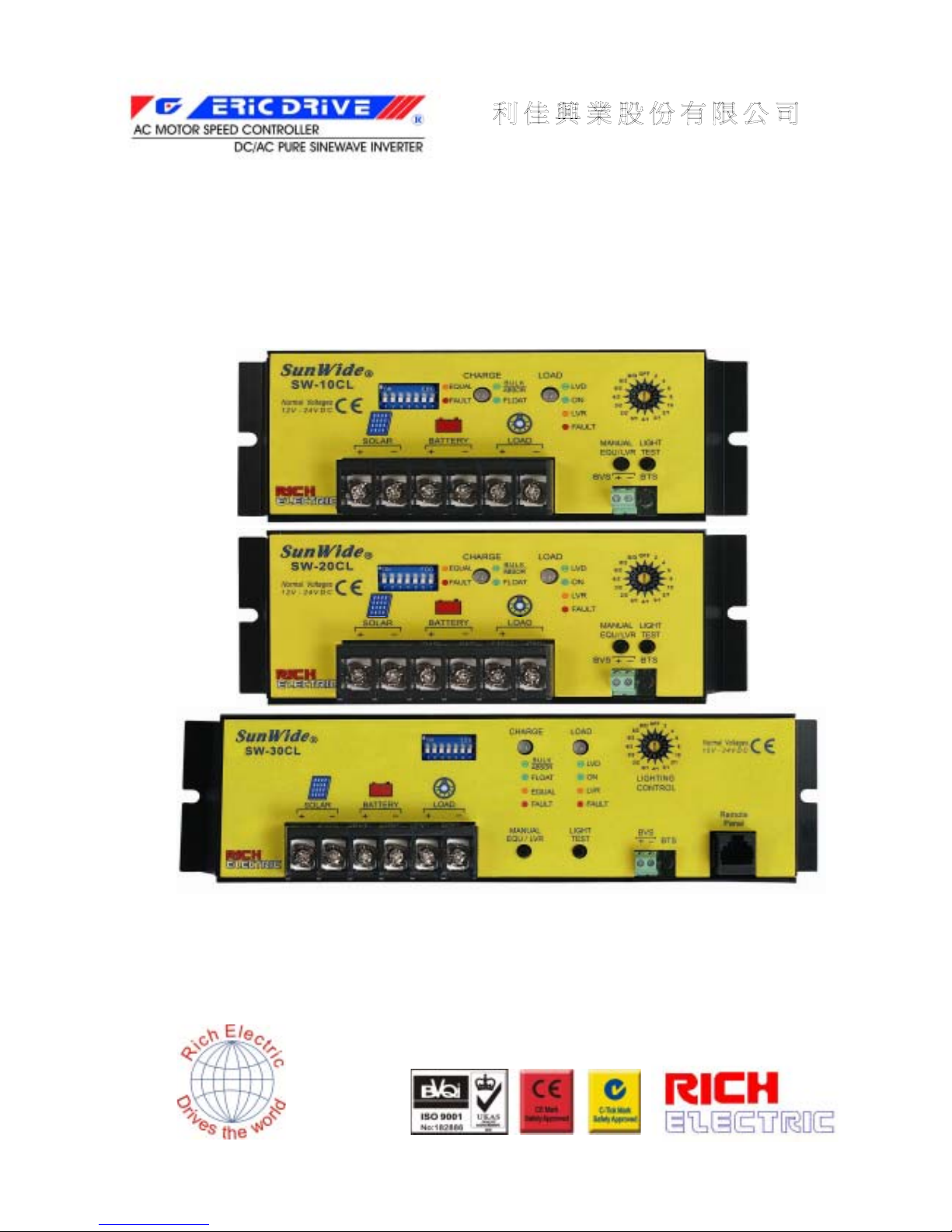

Rich electric SW-10CL User manual

INVERTEK® SUNWIDE SERIES
SW-10CL/ SW-20CL/ SW-30CL/ SW-45CL
Installation and Operation Manual
Solar Battery Charging
Load Control
Lighting Control
MANUALVER.2,1008
利佳興業股份有限公司
RICH ELECTRIC CO.,LTD.

2
1-1 Introduction
The SunWide is an advanced design using a microcontroller for digital accuracy and fully
automatic operation. Each model unit can be used for 12V, 24V and 48V system and can
be operated at three major functions including solar charging, load control and lighting
control. The PWM battery charging has been optimized for longer battery life and the
state-of-the-art auto detector of day and night has been precisely applied to log the
different length of night hours for lighting control no matter where and when (the North
or the South, winter or summer) SunWide is installed. Many specifications of the
SunWide are unique and designed for user-friendly operation. Please take the time to read
this operator’s manual and follow the instruction step by step to help you make full use of
many functions that the SunWide can provide to your solar lighting system.
1-2 Safety Instruction
zThis manual contains important instructions that should be followed during
installation and maintenance of the SunWide controller.
zBe very careful when working with batteries. Lead acid batteries can generate
explosive gases, and short circuits can draw thousands of amps from the battery.
Read all instructions provided with the battery.
zDo not exceed the rated current ratings of the controller.
zDo not exceed a battery voltage of 48V (nominal). Do not use a battery less than
12V.
zCharge only 12, 24, or 48 volt lead-acid batteries when using the standard battery
charging programs or NI-CAD batteries when DIP Switch number 3~5 is in the ON
position in the SunWide.
zDO NOT short circuit the PV array or load while connected to the controller. This
will damage the controller.
zThe controller should be protected from direct sunlight. Ensure adequate space for
air flow around the controller.
zDo not install a SunWide in a sealed compartment with batteries.
zNever allow the solar array to be connected to the SunWide with the battery
disconnected. This can be a dangerous condition with high open-circuit solar voltage
present at the terminals.
zPressure terminal connectors are not required. Use only copperwire with minimum
75°C insulation rating and between 10 AWG (5.2 mm2) and 14 AWG (2.1 mm2)
gage.
zThe negative system conductor should be properly grounded. Grounding should
comply with local codes.

3
1-3 Specifications
MODEL SW-10CL SW-20CL SW-30CL SW-45CL
ELECTRICAL
System voltage ratings 12, 24, 48 Vdc
Current ratings-Battery Charge
Control 10A 20A 30A 45A
Current ratings-Load Control/
Lighting Control 10A 20A 30A 45A
Accuracy 12/24V:≦0.1 % ± 50 mV
48V:≦0.1 % ± 100 mV
Min. voltage to operate 9 V
Max. solar array Voc 140 V
Max. operating voltage 68 V
Total current consumption While operating -25mA, at idle -3mA
High temp shutdown 90ºC disconnect solar 90ºC disconnect load / diversion load
70ºC reconnect solar / load / diversion load
LVD
11.1V (initial setting)
User select: 10.5V, 11.3V, 11.5V, 11.7V, 11.9V,
12.1V, 12.3V for 12V system
Twice or four times of 12V is for 24V and 48V
system
LVR
12.6V (initial setting)
User select: 12.0, 12.8V, 13.0V, 13.2V, 13.4, 13.6,
13.8 for 12V system
Twice or four times of 12V is for 24V and 48V
system
Overload Capacity 150% of rated current for transient surge
BATTERY CHARGING / Built-in BTS
Charge algorithm PWM, constant voltage
Temp comp. coefficient –5mV/ºC / cell (25ºC ref)
Temp comp. range 0ºC to +50ºC
Temp comp. setpoints PWM, float, equalize (with BTS)
MECHANICAL
Weight 0.3 Kgs 0.4 Kgs 0.7 Kgs
Power terminals 10A Rated 20A Rated 30A Rated 45A Rated
ENVIRONMENTAL
Ambient temperature –40 to +45ºC
Storage temperature –55 to +85ºC
Humidity 100% (NC)
Enclosure Indoor & vented, (powder coated steel)
OPTIONS
Remote Panel Optional LCD display for SW-30CL and SW-45CL
Specifications subject to change without notice

4

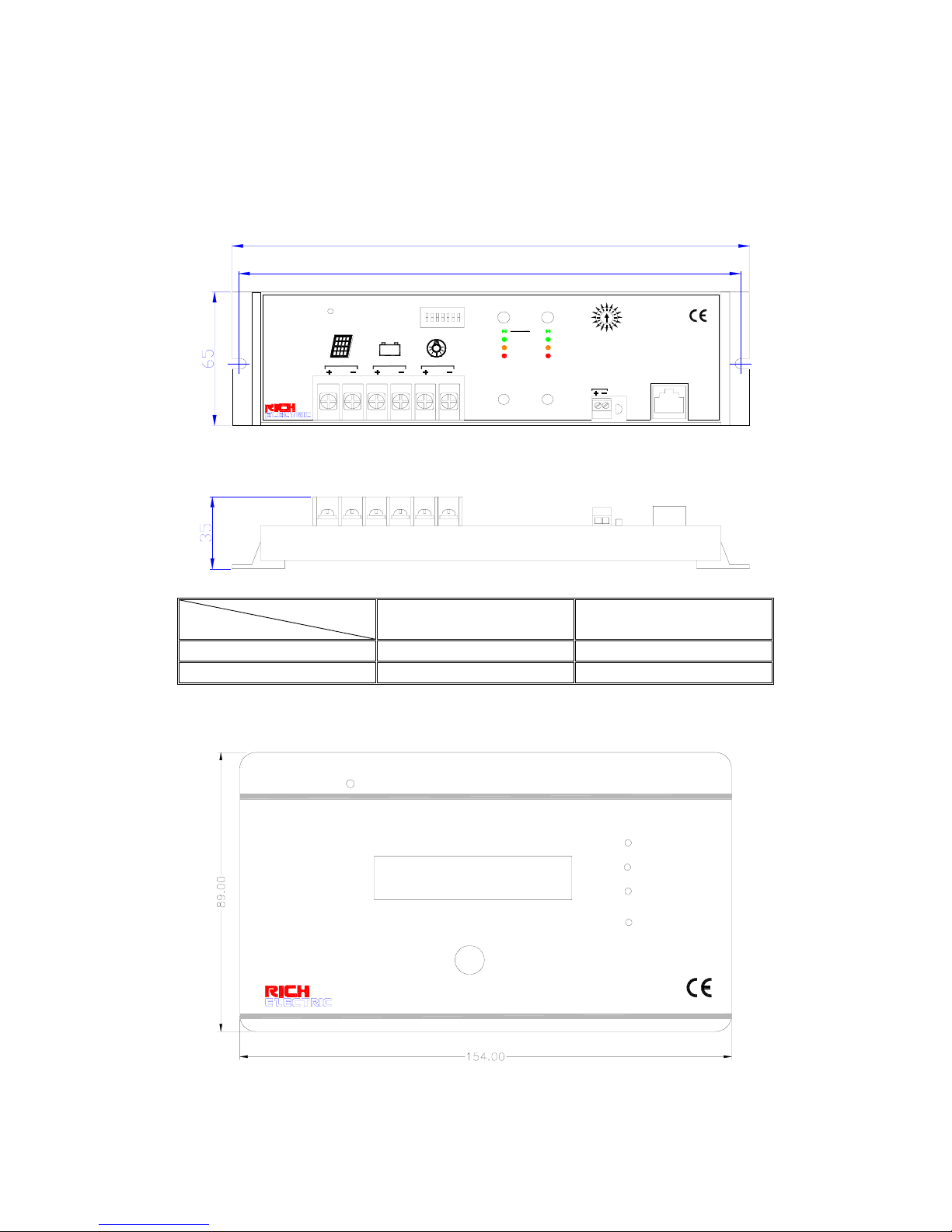

1-4 SW-10CL, SW-20CL, SW-30CL Mounting Dimension
Unit: mm
L1
L
SunWide
SW-30CL
CHARGE LOAD
BULK
EQUAL
FLOAT
FAULT FAULT
ON
LVR
LVD
LIGHT
TEST
MANUAL
EQU/LVR BVS BTS
Remote
Panel
LIGHTING
CONTROL
OFF 246
8
10
2/1
3/1
4/1
6/1
2/2
3/2
4/2
6/2
8/2
D/D
SOLAR BATTERY LOAD
Normal Voltages
12V -24VDC
R
ABSOR
Length
Model L L1
SW-10CL / SW-20CL 168 mm 161 mm
SW-30CL 236 mm 229 mm
1-5 RP-SW Remote Panel Dimension
R
SunWide
FOR INDOOR USE ONLY
Charge
Load
Light
Fault
(Remote Panel)
RP-SW
Charge / Load / Light Controller
4 STAGE PULSE WIDTH MODULATED CHARGE CONTROL
PUSH: Display Select
HOLD: Reset Amp-Hours

5

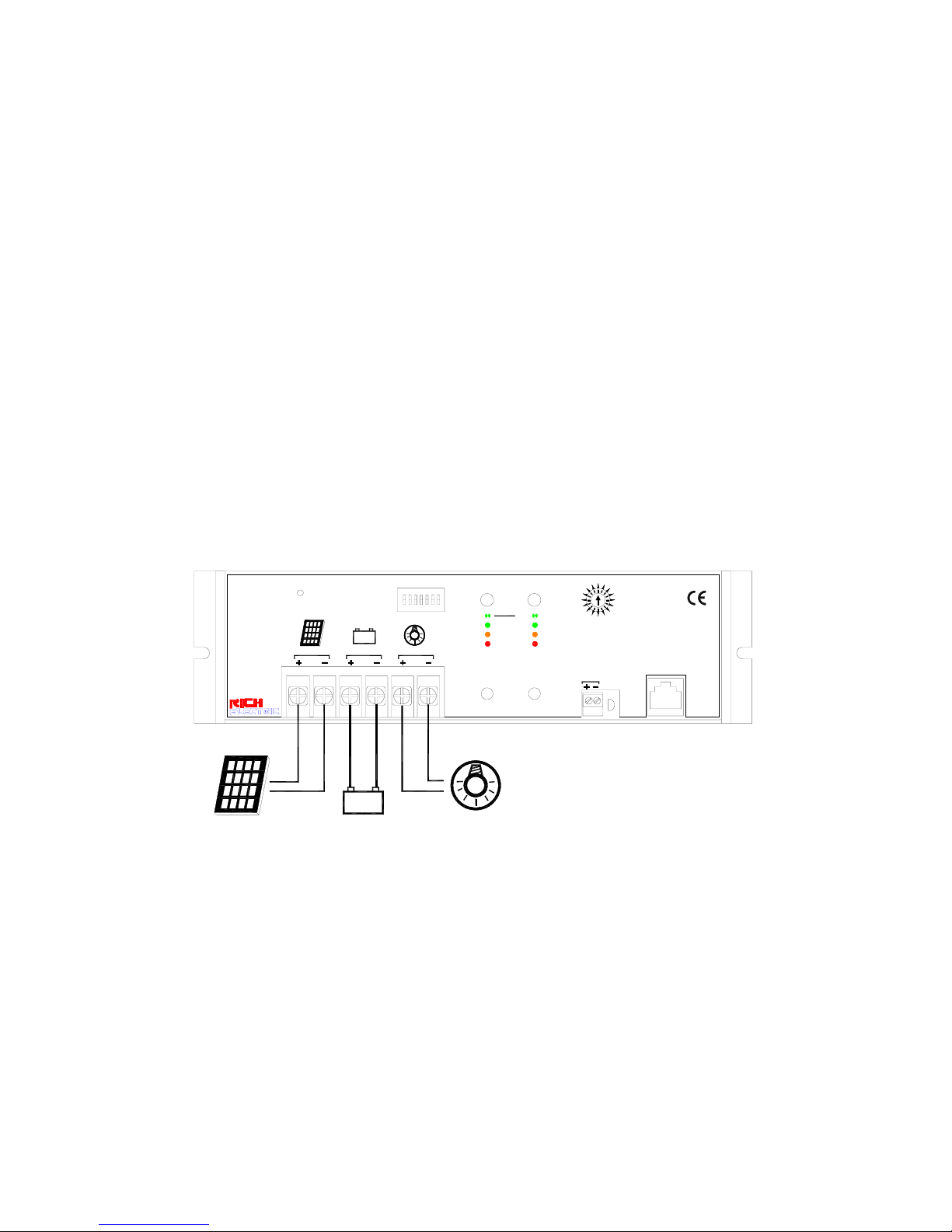

1-6 Installation Overview
The installation is straight forward but it is important that each step is done correctly and
safely. A mistake can lead to dangerous voltage and current levels. Be sure to carefully
follow the following instructions for all the terminal connection.
Control Terminal Connection
Name Description
PV+ Connecting terminal for Solar Array Positive
PV–Connecting terminal for Solar Array Negative
Battery + Connecting terminal for Battery cable Positive
Battery–Connecting terminal for Battery cable Negative
Load + / Light + Connecting terminal for DC Load / Light Positive
Load– / Light – Connecting terminal for DC load / Light Negative
Dip Switch 1, 2 Selection of battery voltage for 12V or 24V or 48V system
Dip Switch 3, 4, 5, Battery charge control mode: Battery charging algorithm
Battery charge control mode: Auto / Manual Equalization
Dip Switch 6 Load control mode: Auto / Manual Reconnect
PV+
PV–
Battery
Pos +
Battery
Neg–
Load+/
Light+
Load–/
Light–
Manual
EQU/LVR Light Test BVS BTS
+ —Remote
Panel
Lighting
Control
Switch
Load
Status
LED
Charge
Status
LED
DIP
Switches
