1. Description
The GTR057 is a two relays multifunction standalone
access controller. It is suitable for mounting either
indoor or outdoor in harsh environments. It is housed
in a strong, sturdy and vandal proof zinc alloy
electroplated structure. The electronics are fully
potted, so the keypad is waterproof and conforms to
IP65.
It supports up to 1200 users in either a card, pin, or a
card + PIN option. The built-in card reader supports
125KHz EM frequency card, and the PIN length is 4-6
digits.
Both of the two relays on board can operate in Pulse
Mode (suitable for access control) or Toggle Mode
(suitable for arming/disarming alarms, switching lights,
machines…etc)
The GTR057 is an ideal choice for door access not
only for small shops and domestic households but
also for commercial and industrial applications such
as factories, warehouses, laboratories, banks and
prisons.
2. Features
•Waterproof conforms to IP65.
•Strong zinc alloy electroplated anti-vandal
structure.
•Two-relay operation
•Both relays can be programmed for 3 modes.
(Card, PIN or Card + PIN)
•1200 users
•Zone 1: up to 1100 PIN & Card holders
•Zone 2: up to 100 PIN & Card holders.
•PIN Length: 4-6 digits; Card type: 125KHz EM
card
•Can be used as a standalone keypad.
•Pulse mode, Toggle Mode
•Block enrolment can enrol 1100 consecutive
cards.
•Backlit keypad
•Adjustable door relay output time, alarm time,
door open time
•Built in light dependant resistor (LDR) for anti-
tamper.
•Built in buzzer.
•Two-relay output for door opening, door status
detecting, open door by button
•Red, yellow and green LED display the working
status
•Support doorbell connection (Zone 2)
•12-24V DC/12-18V AC power input
3. Packing List
Please ensure that all the contents are correct.
If any are missing, please notify the supplier.
4. Specifications
Operating Voltage
12-24V DC
User Capacity
1200
Keypad
12 keys, 3 x 4 digits
Card Type
EM card
Card Reading Distance
3-6cm
PIN Length
4-6 digits
Active Current
60mA
Idle Current
25 ± 5 mA
Lock Output Load
Max 2A
Alarm Output Load
Max 20A
Operating Temperature
-40°C -60°
Operating Humidity
5% - 95% RH
Environment
Conforms to IP65
Adjustable Door Relay
Time
1-99 seconds
Adjustable Alarm Time
0-3 minutes
Wiring Connections
Electric Lock, Exit Button,
DOTL, External Alarm
Dimensions
128(L) x 82(W) x 28mm(H)
Net Weight
650g
Gross Weight
800g
Name
Qty
Digital keypad
1
User Manual
1
Screwdriver
1
Rubber Bungs
4
Self-Tapping Screws
4

GTR057 Installation Manual: Rev 2
3
5. Installation

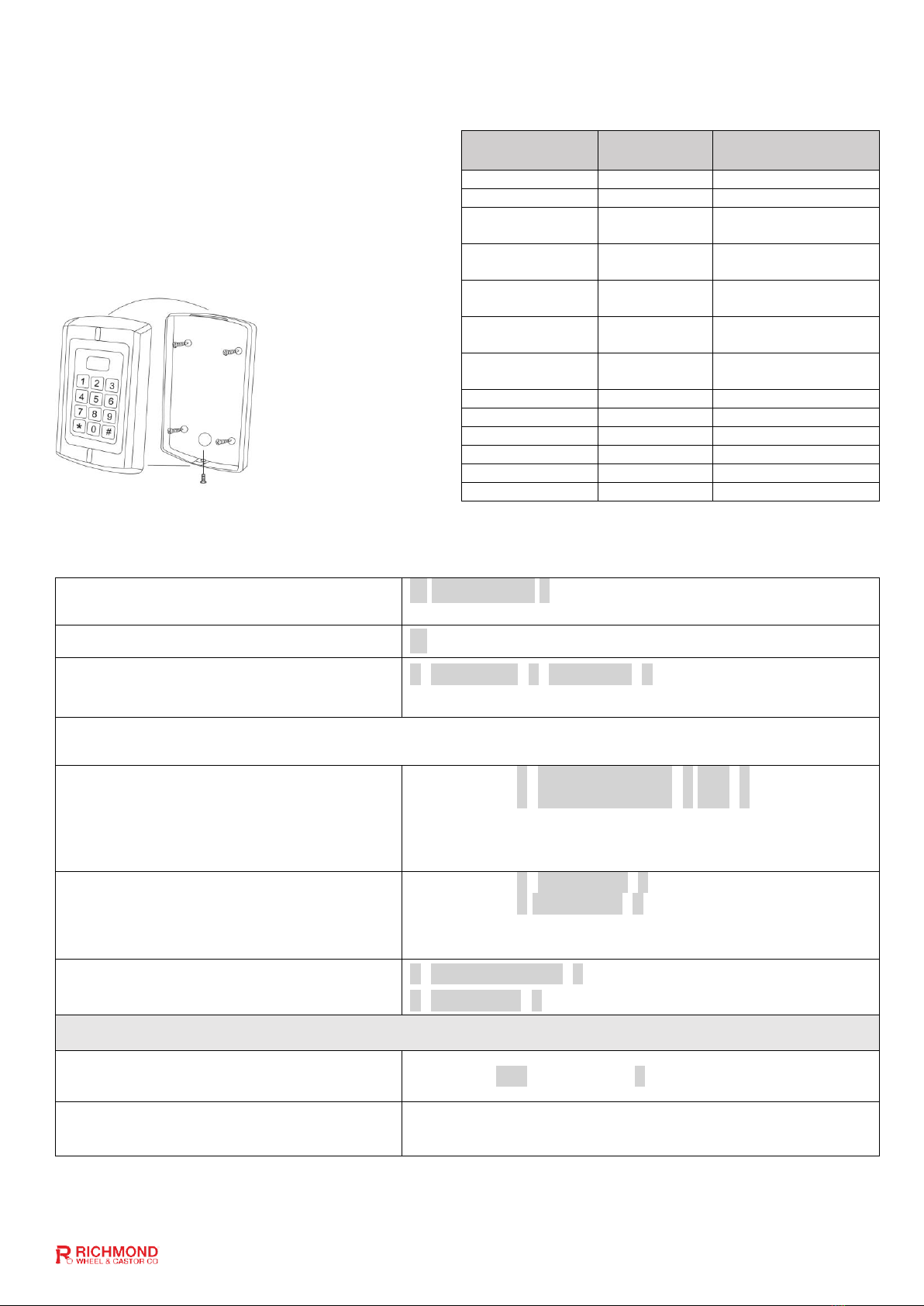

1. Remove the back cover from the keypad using the
supplied security screwdriver.
2. Drill four holes on the wall for the screws and 1
hole for the cable.
3. Fix the back cover firmly on the wall with 4 flat
head screws.
4. Thread the cable through the cable hole.
5. Attach the keypad to the back cover.
7. Quick Reference Programming Guide
6. Wiring
To enter programming mode
✱Master code #
888888 is the default factory master code
To exit programming mode
✱
To change the master code
0New Code #New code #
The master code is any 6 digits
Note: to undertake the following programming the master user must be logged in
To add a PIN user
The PIN is any 4-6 digits between 0000-999999
except for 1234 which is reserved.
For Zone 1: 1 User ID Number # PIN #
For Zone 2: 1 User ID Number # PIN #
The ID number is any number between 1-1100 for Zone 1 and any
number between 1101-1200 for Zone 2. Users can be added
continuously without exiting programming mode.
To add a card
For Zone 1: 1 Read Card #
For Zone 2: 5 Read Card #
Cards can be added continuously without exiting programming
mode.
To delete a PIN or a card user
2User ID number #for a PIN user
2Read Card #for a card user
To unlock the door for Zone 1 or Zone 2
To unlock the door for a PIN user
Enter the PIN then press #
To unlock the door for a card or fob user
Present the card
Function
Description
Grey & Black
GND
Negative Pole
Grey
Alarm -
Alarm Negative
Yellow & Black
OPEN2
Request to Exit
Button of Zone 2
Yellow
OPEN1
Request to Exit
Button of Zone 1
Brown
D_IN
Door Status
Detecting
Red
AC & DC
12-24V DC/12-18V
AC Power Input
Black
AC & DC
12-24V DC/12-18V
AC Power Input
Blue & Black
NO2
White & Black
COM2
Green & Black
NC2
Blue
NO1
White
COM1
Green
NC1

GTR057 Installation Manual: Rev 2
4
How to connect to the GTR156 & GTR212 control board:
The below diagram shows how to connect the wires from the GTR057 wired keypad to the
GTR156 & GTR212 Automatic Slide Gate Opener.

GTR057 Installation Manual: Rev 2
5
How to connect to the GTR061, GTR064 & GTR207 control board:
The below diagram shows how to connect the wires from the GTR057 wired keypad to the GTR061,
GTR064 & GTR207 Automatic Slide Gate Opener.

GTR057 Installation Manual: Rev 2
6

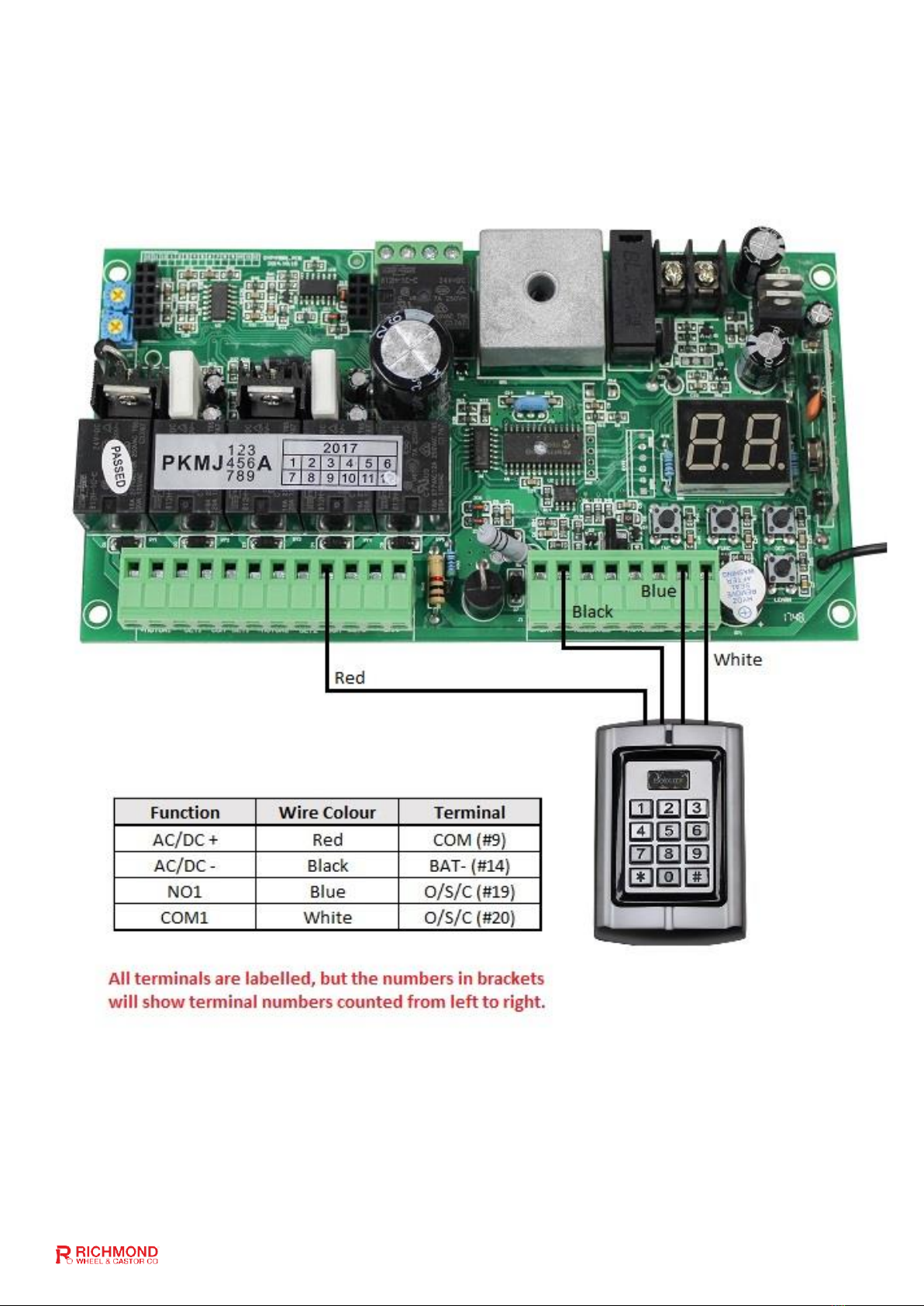

How to connect to the GTR099 control board:
The below diagram shows how to connect the wires from the GTR057 wired keypad to the
GTR099 Automatic Swing Gate Opener.

GTR057 Installation Manual: Rev 2
7
How to connect to the GTR058 control board:
The below diagram shows how to connect the wires from the GTR057 wired keypad to the
GTR058 Automatic Swing Gate Opener.

GTR057 Installation Manual: Rev 2
8
8. Additional Functions
The Zone 2, it can be used to operate the doorbell
when there is no need to operate a second door. The
wiring is connecting the doorbell NO2 and COM2.
Press #, the reader will send out a switching signal to
the doorbell, as long as you press the “#”, the door
bell will continuously operate, it will stop until you
release the “#”
9. Relay Operation (Pulse mode and
Toggle mode)
The two on board relays can operate in either Pulse
Mode (suitable for access control) or Toggle Mode
(suitable for arming/disarming alarms, switching lights,
machines…etc)
Every time a valid card/tag read or valid PIN input in
Pulse Mode, the relay will operate, for the pre-set
relay pulse time.
Every time a valid card/tag read or valid PIN input in
Toggle Mode, the relay changes state, which will not
turn back until read card or input PIN again.
10. Reset to Factory Default
To reset to the factory default, power off, press ✱,
hold it and power on, release it until you hear three
beeps (two short, one long). This means you have
successfully reset to the factory default.
Please Note: If you reset to factory default the user’s
information is still retained
11. Anti-Tamper Alarm
The GTR057 uses a LDR (light dependent resistor) as
an anti-tamper alarm. If the keypad is removed from
the cover then an alarm will operate.
Sound and Light Indication
Operation Status
Red Light
Green Light
Blue Light
Buzzer
Zone1 unlock
-
Bright
-
Short Ring
Zone2 unlock
-
-
Bright
Short Ring
Power on
Bright
-
-
Long Ring
Stand by
Shines slowly
-
-
-
Press keypad
-
-
-
Short Ring
Operation successful
-
-
Bright
Long Ring
Operation failed
-
-
-
3 Short Rings
Enter programming mode
Bright
-
-
Long Ring
In the programming mode
Bright
Bright
-
-
Exit programming mode
Shines slowly
-
-
Long Ring
Alarm
Shines slowly
-
-
Alarm

GTR057 Installation Manual: Rev 2
9
GTR057 Detailed Programming Guide
User Settings
To enter programming mode
✱Master code #
888888 is the default factory master code
To exit programming mode
✱
Note: All the steps below must be done after entering the keypad into programming mode
To change the master code
0 New Code # New code #
The master code is any 6 digits
Setting the working mode: Card, PIN or Card & PIN
Set valid Card or PIN users
3 1 2#, Zone 1
322#, Zone 2
Entry is by either Card or PIN (Factory default setting)
Set valid Card and PIN users
3 1 1#, Zone 1
321#, Zone 2
Entry is by Card and PIN together
Please Note: When adding users, if the Card or PIN user has been enrolled already, you cannot add it again
on the same zone, or the device will give a bleep as error. Same PIN for both Zone 1 and Zone 2 is not valid,
if so, the PIN will be only valid for Zone 1.
Factory default setting: Card or PIN mode
To set user for Zone 1 ( 3 1 2 # )

GTR057 Installation Manual: Rev 2
10
Adding Users
To add a PIN user(s)
1User ID number #PIN #
The ID number is any number among 1-1100. The PIN is
any 4-6 digits between 0000 –999999 except for 1234
which is reserved. Users can be added continuously without
exiting programming mode as follows:
1 User ID number1 # PIN # User ID number2 # PIN #
To delete a PIN user
2 User ID number #
Users can be deleted continuously without exiting
programming mode.
To change the PIN of a PIN user
(Note: This step must be done out of
programming mode)
✱User ID number # Old PIN # New PIN # New PIN #
To add a card user (Method 1)
This is an easy way to enter cards with
auto-generated ID numbers. The ID number will
start from 1 if no user has been programmed.
1Read Card #
Cards can be added continuously without exiting
programming mode.
To add a card user (Method 2)
1User ID number #Card #
The ID number can be any number between 1-1100
To add a series of cards users
(Block Enrolment).
The card numbers must be consecutive
(This operation is only for Zone 1)
5 User ID number # 8 digits Card number # Card quantity #
Card quantity is between 1-1100 of the 8 digits card
number, it is the last 8 digits on the card (Maximum 1100
cards can be enrolled at a stretch within 1 minute).
To delete card users by cards
Note: Users can be deleted continuously
without exiting programming mode
2Read Card #
The device can automatically identify the card of Zone 1 or
Zone 2
To delete card users by user ID
This can be used if a user has lost their card
2User ID #
To delete card users by card number
9Input 8 digits card number #
Cards can be deleted continuously without exiting from
programming mode.
To set user for Zone 2 ( 3 22# )
To set PIN user for Zone 2 is the same as Zone 1, only the ID number is 1101 –1200 for Zone 2.
To set Card user for Zone 2 is the same as Zone 1, with the exception of adding card users with auto-
generated ID numbers (Method 1) as below.
To add card users (Method 1)
Auto-generated ID numbers
5Read Card #
Card can be added continuously without exiting
programming mode.

GTR057 Installation Manual: Rev 2
11
Card and Pin Mode
To set user for Zone 1 ( 3 11#)
To add a card and PIN user
(The PIN is any 4-6 digits between 0000-999999
except for 1234 which is reserved)
Add the card user Press ✱to exit from the programming
mode then allocate the card a PIN as follows:
✱Read card 1234# PIN# PIN#
To change a PIN in card and PIN mode (Method 1)
Note: this is done outside of programming mode so
a user can undertake this themselves.
✱Read card Old PIN# New PIN# New PIN#
To change a PIN in card and PIN mode (Method 2)
Note: This is done outside of programming mode so
a user can undertake this themselves.
✱User ID number# Old PIN# New PIN# New PIN#
To delete a Card and PIN user just delete the card
2Read card #or 2 User ID #
To set users for Zone 2 ( 3 21#) the operation is the same as Zone 1
Card only Mode (in this mode, users can only be valid by card)
To set Card user only
310# , Zone 1
320# , Zone 2
With this setting entry is by Card only
To delete ALL users
Note: This is a dangerous option, so use with care
Delete al users of Zone 1: 2 0000 #
Delete all users of Zone 2: 9 0000 #
To unlock the door (or change the relay state)
For a PIN user
Enter the PIN then press #
For a Card user
Read card
For a Card and PIN user
Read card then enter the PIN

GTR057 Installation Manual: Rev 2
12
Relay Setting (Pulse mode, Toggle mode)
Pulse Mode (Factory Default)
Pulse mode –Door relay time setting
For Zone 1: 4 11-99 #
For Zone 2: 4 21-99 #
The door relay time is between 1-99 seconds, the
factory default setting is 5 seconds
Toggle Mode (Factory Default)
Toggle mode
For Zone 1: 4 10#
For Zone 2: 4 22#
Door Detection, Alarm, Acoustic Signal, Doorbell Settings
Door Open Detection
Door Open Too Long (DOTL) warning. When used with an optional magnetic contact or built-in magnetic contact
of the lock, if the door is opened normally, but not closed after 1 minute, the inside buzzer will beep automatically
to remind people to close the door and continue for 1 minute before switching off automatically. Door Forced
Open warning. When used with and optional magnetic contact or built-in magnetic contact of the lock, if the door
is forced open, or if the door is opened after 120 seconds of the electro-mechanical lock not closed properly, the
inside buzzer and alarm output will both operate. The Alarm Output Time is adjustable between 1-3 minutes with
the default being 1 minute.
To disable door open detection (Factory default setting)
6 0#
To enable door open detection
For Zone 1: 6 1#
For Zone 2: 6 2#
You can enable the door open detection of only one
Zone.
Keypad lockout and alarm output options
If there are 10 invalid cards or 10 incorrect PIN numbers in a 10 minute period either the keypad will lockout for
10 minutes or the alarm will operate, depending on the option selected below
Normal status: No keypad lockout or alarm
70#(Factory default setting)
Keypad Lockout
70#
Alarm output
72#(Alarm output time: 1 minute)

GTR057 Installation Manual: Rev 2
13
Adjust alarm output time
To set the alarm output time (1 ~ 3 minutes)
Factory default is 1 minute)
81~3 #
Keypad Tone
The keypad tone can be set to on or off. When on, the device will give the voice when the keys are pressed;
when off, the device will be silent.
Enable the keypad tone
86#(Factory default setting)
Disable the keypad tone
87#
Change Zone 2 to Doorbell
When there is no need to operate a second door, Zone 2 can be set to operate the doorbell. The wiring is
connecting the doorbell to COM2 and NO2. Press #, the keypad will send the signal to the doorbell.
Zone 2
88#(Factory default)
Doorbell
89#
Remove the alarm
To remove the door forced open warning
Read valid card or Master code #
To remove the door open too long warning
Close the door or Read valid card or Master code #
Anti-Duress
1 When the same card is used in Zone 1 and Zone 2, this card will be an anti-duress card. Please note, you
cannot set an anti-duress PIN.
2 When under forcing, use this card. Both doors are opened. In the meantime, the external alarm alarms.
3 You can set a max of 100 anti-duress cards (The users of Zone 2).
