Riello BS1D User manual

Istruzioni per installazione, uso e manutenzione
安装 , 使用和维修说明书
20023724 (1) - 05/2010
Forced draught gas burners
强制通风燃气燃烧器
CODE - 编码 MODEL - 型号 TYPE - 类型
20024345 BS1D 915 T1
20024417 BS2D 916 T1
20023689 BS3D 917 T1
20023768 BS4D 918 T1
GB
CN
Two stage operation
两段火运行

20023724
1GB
INDEX
1. BURNER DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.1 Burner equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. TECHNICAL DATA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Overall dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.3 Firing rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.1 Working position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.2 Boiler fixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.3 Probe-electrode positioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.4 Gas train . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.5 Gas train electricity supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.6 Gas feeding line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.7 Electrical wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4. WORKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.1 Combustion adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2 Combustion head setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.3 Air damper setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.4 Combustion check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.5 Air pressure switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.6 Burner start-up cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.7 Re-cycle function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.8 Post-ventilation function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.9 Control box reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1 Visual diagnostic control box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6. FAULTS / SOLUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.1 Start-up problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.2 Operating irregularities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7. WARNINGS AND SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7.1 Burner Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7.2 Basic safety measures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

20023724 2GB
1. BURNER DESCRIPTION
Two stage gas burner.
1.1 BURNER EQUIPMENT
Flange with insulating gasket. . . . . . No. 1 Screws and nuts for flange to be fixed to boiler . . .No. 4
Screw and nut for flange . . . . . . . . . No. 1 7 pin plug. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .No. 1
4 pin plug . . . . . . . . . . . . . . . . . . . . No. 1 Remote reset connection . . . . . . . . . . . . . . . . . . . .No. 1
1.2 ACCESSORIES
SOFTWARE DIAGNOSTIC KIT
A special kit is available that, by an optical link to a PC, shows the burner life together with operating hours, type
and number of failures, serial number, etc.
To visualise the diagnostics proceed as follows:
Connect the kit supplied separately to the control box socket.
Reading of the information begins when the software programme included in the kit starts.
REMOTE RESET KIT
The burner has a remote reset kit (RS) consisting of a connection and a push-button operating at a dis-
tance of 20 metres max. In order to install it remove the protective lock-out installed at the factory and
insert the lock-out supplied with the burner (see electrical diagram on page 8).
MULTIBLOC ROTATION KIT
There is a special kit available that can be used to install the burner turned 180°, as illustrated on page 5 in
position 5 in the section entitled "3.1 WORKING POSITION". This kit is designed to ensure the gas train
valve works properly. The kit must be installed in conformity with laws and local regulations.

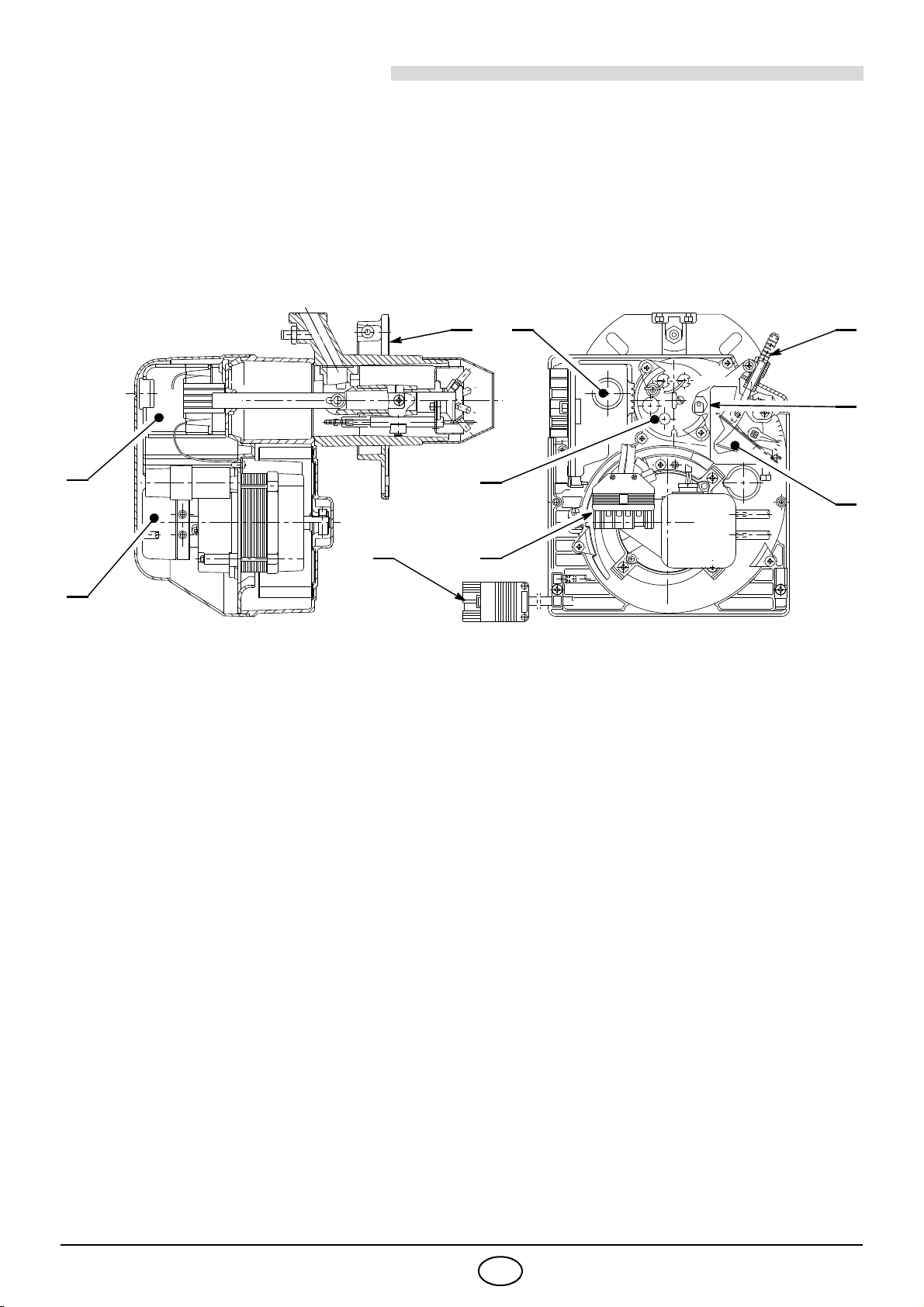

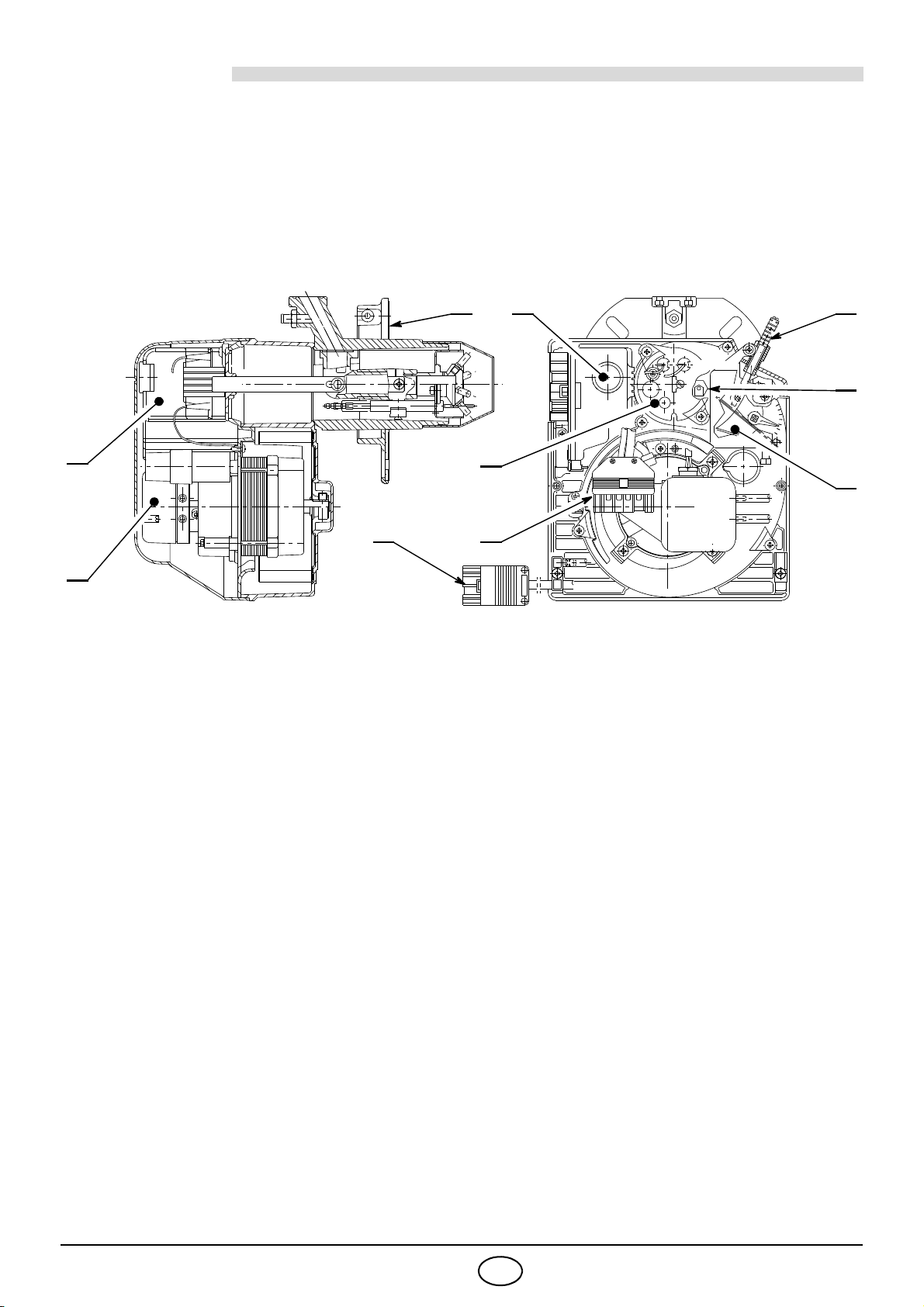

1– Air pressure switch
2– 6 pole socket for gas train
3– Control box with 7 pole socket
4– Reset button with lock-out lamp
5– Head holder assembly
6– Pressure test point
7– Flange with insulating gasket
8– Air damper adjustment assembly
9–Servomotor
10 – 4 pole socket for 2nd stage burner
The burner meets protection level of IP X0D (IP 40) as EN 60529.
According to Directives: EMC 89/336/EEC - 2004/108/EC, Low Voltage 73/23/EEC - 2006/95/EC and
Machines 98/37/EEC - 2006/42/EC.
Gas train according to EN 676.
The burner is approved for intermittent operation as per Directive EN 676.
Note for Switzerland. Swiss provisions, local and cantonal provisions, the provisions of the SVGW authori-
tes for the use of gas, as well as those of the Fir Brigade (VKF), must all be complied with.
0
9
0
9
Fig. 1
D7109
8
6
1
4
2
5
10
3
7
9

20023724
3GB
2. TECHNICAL DATA
2.1 TECHNICAL DATA
For gas family 3 (LPG) ask for separate kit.

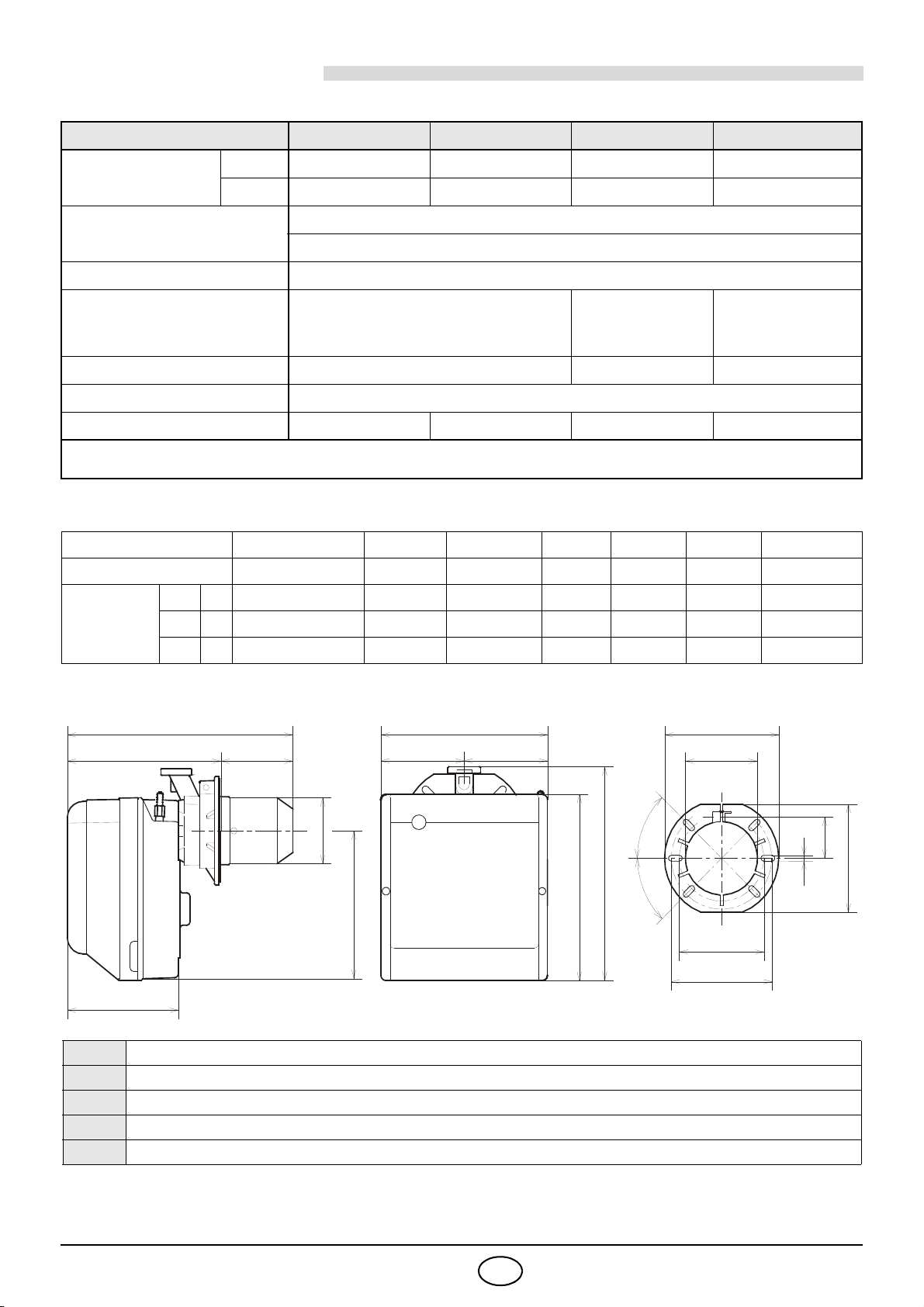

2.2 OVERALL DIMENSIONS
TYPE 915 T1 916 T1 917 T1 918T1
Thermal power (1) kW 16/19 – 52 35/40 – 91 65/80 – 200 110/140 – 250
Mcal/h 13.8/16.3 – 44.7 30.1/34.4 – 78.2 55.9/68.8 – 172 94.6/120.4 – 215
Natural gas (Family 2) Net heat value: 8 – 12 kWh/m3= 7000 – 10,340 kcal/m3
Pressure: min. 20 mbar – max. 100 mbar
Electrical supply Single phase, 230V ± 10% ~ 50Hz
Motor Run current 0.8A 2750 rpm
288 rad/s
Run current 1.8A
2800 rpm
294 rad/s
Run current 1.9A
2720 rpm
288 rad/s
Capacitor 4 F6.3F8F
Ignition transformer Primary 230V / 0.2A – Secondary 8 kV / 12 mA
Absorbed electrical power 0.15 kW 0.18 kW 0.35 kW 0.53 kW
(1) Reference conditions: Temp. 20°C - Barometric pressure 1013 mbar – Altitude 0 m above sea level.
COUNTRY AT - IT - DK - CH GB - IE DE FR NL LU BE
GAS CATEGORY II2H3B/P II2H3P II2ELL3B/P II2Er3P II2L3B/P II2E3B/P I2E(R)B,I3P
GAS
PRESSURE
G20 H 20 –––
–– –
G25 L –25 20 – 25 25 –
G20 E ––20 20/25 ––20/25
TYPEABCDEF G H IL-TMNOPRS
915T1 234 254 295 122.0 112.0 346 230 276 116 70 174 89 210 192 66 167 140 170
916T1 255 280 325 125.5 125.5 352 238 252 114 100 174 106 230 192 66 167 140 170
917T1 300 345 391 150.0 150.0 390 262 280 128 110 196 129 285 216 76.5 201 160 190
918T1 300 345 392 150.0 150.0 446 278 301 168 145 216 137 286 218 80.5 203 170 200
F
HG
A
DE
I
R
S
N
45°
45°
11 O
P
B
C
M
øL
D4475
T

20023724 4GB
2.3 FIRING RATES
In the BS4D model type 918T1, in order to guarantee the working
with an output of 220 - 250 kW, remove the blank deadening to free the
supplementary slits of the air inlet on the cover.
TEST BOILER
The firing rate has been defined according to EN 676 standard.
COMMERCIAL BOILERS
The burner-boiler matching is assured if the boiler conforms to EN 303 and
the combustion chamber dimensions are similar to those shown in the dia-
gram EN 676. For applications where the boiler does not conform to
EN 303, or where the combustion chamber is much smaller than the dimen-
sions given in EN 676, please consult the manufacturers.
Thermal power
Pressure in the combustion
chamber – mbar
Thermal power
Pressure in the combustion
chamber – mbar
50 100 150 200 250
0
0.8
1.6
2.4
3.2
4.0
250.000200.000100.00050.000
10 20 30 40 50 60 70 80 90 100
0
0.4
0.8
1.2
1.6
2.0
2.4
80.00070.00060.00050.00040.00030.00010.000 20.000
kW
D8831 kcal/h
915T1 916T1
kW
kcal/h
D8832
917T1
918T1
A
S7025
A

20023724
5GB
CORRELATION BETWEEN GAS PRESSURE AND BURNER OUTPUT
To obtain the maximum output, a gas head pressure of 9.3 mbar, relatively to 916T1 model, is measured
(M2, see chapter 3.6, page 7) with the combustion chamber at 0 mbar using gas G20 with a net heat value
of 10 kWh/m3(8.570 kcal/m3).
3. INSTALLATION
THE BURNER MUST BE INSTALLED IN CONFORMITY WITH LEGISLATION AND LOCAL STANDARDS.
3.1 WORKING POSITION
The burner is designed for operation in position 1only.
Installation in positions 2, 3, 5, 6 and 7is not recommended as it is likely to hinder the unit’s proper operation
since air damper closure cannot be guaranteed when the burner is on standby.
Installation in position 5is only possible using the “MULTIBLOC rotation kit”, to be ordered separately.
Installation 4is prohibited as safety is compromised.
Thermal power
Gas pressure in the
combustion head – mbar
D8933
0 50 100 150 200 kW
050.000 100.000 150.000 kcal/h
10
8
6
4
2
0250
200.000
12
915T1
916T1
917T1
918T1
D4450
1 2 3 4
5 6 7

20023724 6GB
3.2 BOILER FIXING
To fit the burner to the boiler it is necessary to carry out the following:
Widen, if necessary, the insulating gasket holes (3, fig. 3).
Fix the flange (5) to the boiler door (1) using four screws (4) and (if necessary) the nuts (2) interposing
the insulating gasket (3) but keep unloosing one of the two upper screws (4) (see fig. 2).
Put on the flange (5) the burner combustion head, tighten the flange with the screws (6) and lock the
loose screw (4).
N.B.: The burner can be fixed with the variable dimension (A) (see fig. 4). Anyway, make sure that the
combustion head crosses completely the boiler door thickness.

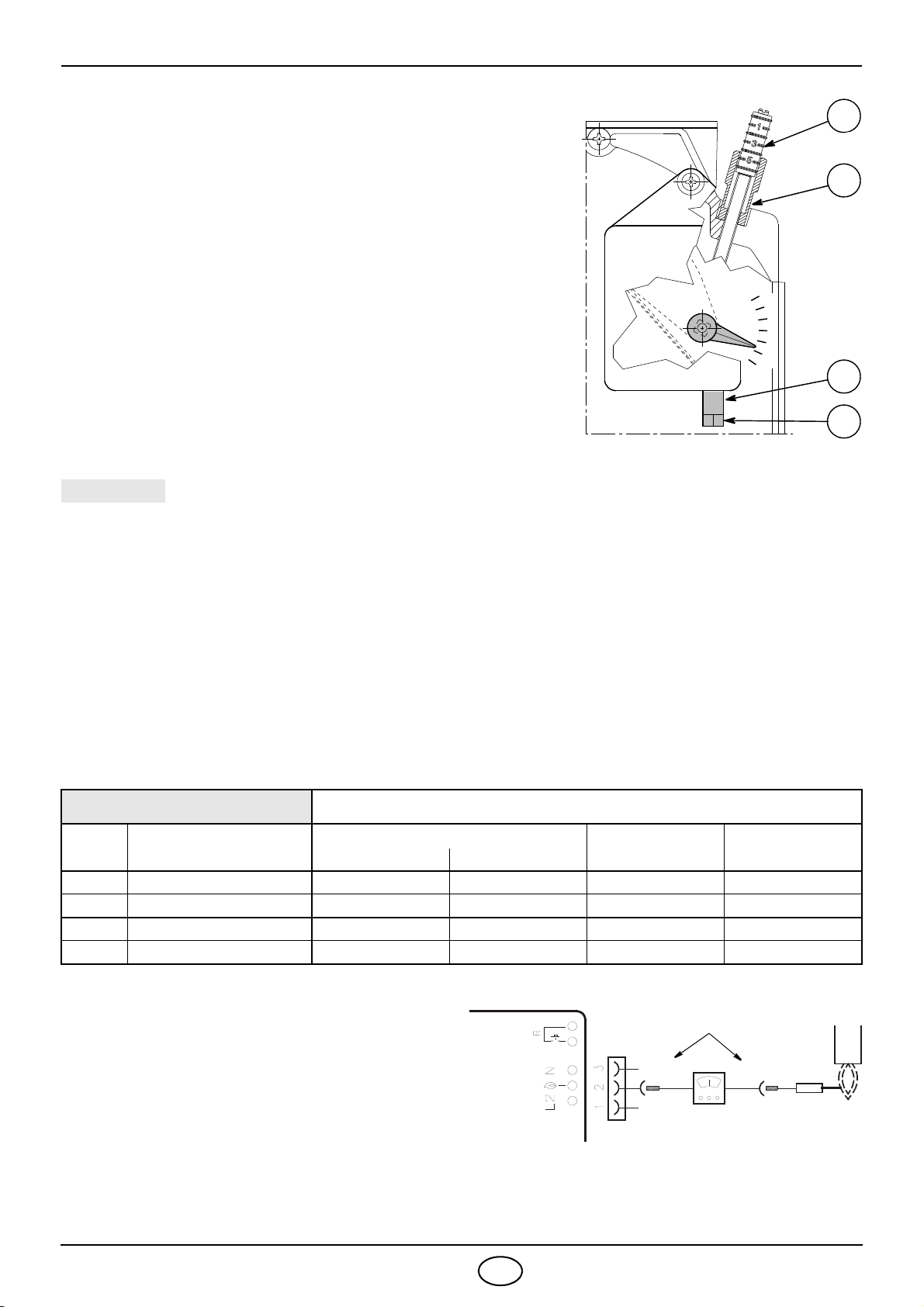

3.3 PROBE-ELECTRODE POSITIONING
Fig. 2 Fig. 3
Fig. 4
TYPE A
915 T1 116 - 70
916 T1 114 - 100
917 T1 128 - 110
918 T1 167.5 - 145
A
D5012
D5011
S7002
D6088
± 0.3
3.5 ± 0.3 A
Fig. 5
1
3
2
4
ATTENTION
Ensure that the plate (3, fig. 5) is always inserted
in the flattening of the electrode.
Lean the probe insulator (4) against the cup (2).
TYPE 915T1 916T1 917T1 918T1
A17 30 31 31

20023724
7GB
3.4 GAS TRAIN, (as EN 676)
The gas train is supplied separately, for its adjustment see the enclosed instructions.
3.5 GAS TRAIN ELECTRICITY SUPPLY
The gas train’s power cables can be fed to the right or
left of the burner, as illustrated in figure 6.
Depending on the entry point, the cable clamp with
pressure test point (1) and simple cable clamp (2) may
need swapping over.
Consequently, you must make sure:
cable clamp (1) is positioned correctly;
the tube is positioned correctly so that there are no
restrictions likely to impede air flowing to the pres-
sure switch.
WARNING
If necessary, cut the tube to the right size.
3.6 GAS FEEDING LINE
GAS TRAIN MATCHED
BURNER
CONNECTIONS USE
TYPE CODE INLET OUTLET
MB ZRDLE 405 B01 3970539 BS1D Rp 1/2 Flange 1 Natural gas and LPG
MB ZRDLE 405 B01 3970540 BS2D Rp 3/4 Flange 2 Natural gas and LPG
MB ZRDLE 407 B01 3970538 BS2D Rp 3/4 Flange 2 Natural gas and LPG
MB ZRDLE 407 B01 3970541 BS3D - BS4D Rp 3/4 Flange 3 Natural gas 150kW and LPG
MB ZRDLE 410 B01 3970542 BS3D - BS4D Rp 1 1/4 Flange 3 Natural gas and LPG
MB ZRDLE 412 B01 3970543 BS3D - BS4D Rp 1 1/4 Flange 3 Natural gas
2
12
1
Fig. 6
D7113
1– Gas supply pipe
2– Manual cock (charged to the installer)
3– Gas pressure gauge (charged to the installer)
4–Filter
5– Gas pressure switch
6– Safety valve
7– Pressure governor
8–1
st and 2nd adjusting valve
M1 – Gas-supply pressure test point
M2 – Pressure coupling test point
M2
Fig. 7
D5209
123M156748

20023724 8GB
3.7 ELECTRICAL WIRING
230V ~ 50Hz
KEY TO LAY-OUT
B5 –2
nd stage working signal
C– Capacitor
CN1 – Ionisation probe
connector
E– Electrode
h.. –Hourcounter
MV – Motor
PA – Min. air pressure switch
PG – Min. gas pressure svitch
RS – Remote reset
SM – Servomotor air damper
SO – Ionisation probe
MG569
CONTROL BOX
D4627
S3 – Lock-out signal
(230V - 0.5A max.)
T6A –Fuse
TB – Burner-earth
TL – Limit thermostat
TR – Adjustment thermostat
TS – Safety thermostat
V10 – Safety valve
V11 –1
st valve
V12 –2
nd valve
X.. –plug
XP.. – socket
ATTENTION:
Do not swap neutral and phase over, follow the diagram shown care-
fully and carry out a good earth connection.
The section of the conductors must be at least 1mm2. (Unless requested
otherwise by local standards and legislation).
The electrical wiring carried out by the installer must be in compliance
with the rules in force in the country
Connect the 2nd stage thermostat (TR) to terminals T6 - T8 and remove
the bridge.
TESTING
Check the burner has stopped by opening the thermostats.
Check that the burner is blocked by opening the connector (CN1) inserted
in the probe red wire and located outside the control box.
CONTROL BOX, (see fig. 8)
To remove the control box from the burner it is necessary to:
disconnect all the connectors, the 7-pin plug, the high voltage cables and the
earth wire (TB);
unscrew the bolt (A, fig. 8) and pull the control box in the direction of the arrow.
To install the control box it is necessary to:
screw the bolt (A) in at a torque of 1 - 1.2 Nm;
reconnect all the connectors previously disconnected.
NOTES
The burners have been type-approved for intermittent operation. This means they
must stop at least once every 24 hours in order to allow the electrical control box
to check its efficiency on start-up. The boiler limit thermostat (TL) normally en-
sures the burner halts. If this does not happen a time switch halting the burner at
least once every 24 hours must be applied in series to limit thermostat (TL).
Main switch
Brown
Blue
Black
TO BE DONE BY
THE INSTALLER
CARRIED-OUT
IN THE FACTORY
A
Fig. 8
E9250

20023724
9GB
4. WORKING
4.1 COMBUSTION ADJUSTMENT
In conformity with Efficiency Directive 92/42/EEC
the application of the burner on the boiler, adjust-
ment and testing must be carried out observ-
ing the instruction manual of the boiler,
including verification of the CO and CO2con-
centration in the flue gases, their tempera-
tures and the average temperature of the
water in the boiler. To suit the required appli-
ance output, choose the proper setting of the
combustion head, and the air damper opening.

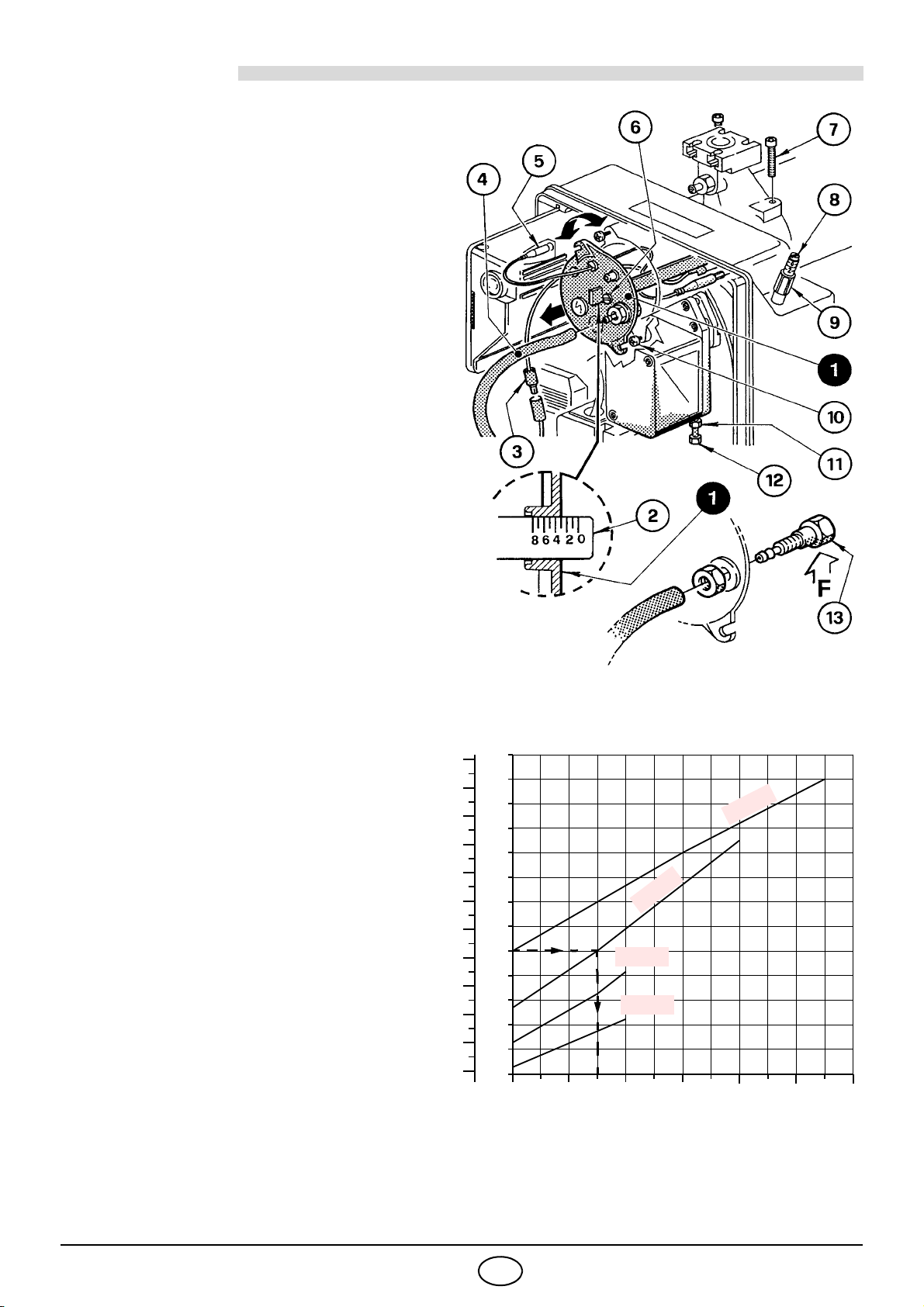

4.2 COMBUSTION HEAD SETTING,
(see fig. 9)
Setting depends on the output of the burner.
Rotate the setting screw (6) in a clockwise or
anticlockwise direction until set point marked
on the regulating rod (2) is level with the out-
side plane of the head assembly (1).
Figure 9 shows the head regulating rod set on
set point 3.
Example for BS3D burners:
The burner is installed in a 100 kW boiler.
Taking an efficiency level of 90% the burner
should give an output of app. 110 kW with the
regulating rod set at set point 3as shown in
the diagram.
The diagram is for indication purposes: to as-
sure good working from the burner we sug-
gest adjusting the combustion head according
to the boiler.
REMOVING THE HEAD ASSEMBLY
Proceed as follows to remove the head assembly:
Disconnect the connections (3 and 5).
Extract the small tube (4) and loosen the
screws (10).
Unscrew and remove the screws (7), pull
out the head assembly support (1) turning
it slightly to the right.
Take care not to change the setting posi-
tion on the elbow-bracket (2) during dis-
mantling.
REASSEMBLING THE HEAD ASSEMBLY
Follow the above instructions in reverse, re-
turning the head assembly (1) to its original
position.
WARNING
Tighten the screws (7) completely (without
locking them); then lock them with a torque
wrench setting of 3-4 Nm.
Check there are no gas leaks from the screws during these operations.
If the pressure test point (13) should work loose, it must be correctly fixed ensuring that the hole (F) in-
side the head assembly (1) is facing downwards.
Fig. 9
S7006
Set point
D8934
170,000
50,000
210,000
130,000
90,000
10,000
kcal/h kW
08246
210
10
50
70
110
130
150
170
190
30
90
230
250
10
270
12
915T1
916T1
917T1
918T1

20023724 10 GB
4.3 AIR DAMPER ADJUSTMENT, (fig. 10)
First start-up must always be performed, adjusting screw (12), so
that the 1st stage air damper position pointer is beyond mark 1,
(factory setting mark 1).
To adjust, proceed as follows:
Take the burner to 2nd stage by closing the T6-T8 connection found
in the 4-pin plug (X4, wiring on page 8).
Fan thrust causes the air damper to go to the 2nd-stage position with
reference to the factory setting (screw 8 on mark 3).
Loosen nut (9) and turn screw (8) to adjust 2nd-stage air flow (see
CO2values given in the table below).
Take the burner to 1st stage by opening the T6-T8 connection found
in the 4-pin plug (X4, page 8).
Adjust 1st stage by turning screw (12), loosening (clockwise) nut (11)
first, referring to the table below for CO2values.
Once you have achieved the optimal setting, tighten (anticlock-
wise) nut (11). When the burner stops, the air damper closes
automatically under its own weight until maximum negative flue
pressure is 0.5 mbar.
To adjust 1st and 2nd stage output, follow the instructions below:
Output ratio between 1st and 2nd stage must be no more than 1:2.
Example for BS3D: 2nd stage output required 140 kW;
Minimum 1st stage output no less than 70 kW.
Whatever the case, the burner's minimum 1st stage output must not be lower than the value indicated in
the operating range.
Example for BS3D: 2nd stage output required 110 kW;
Minimum 1st stage output no less than 65 kW (minimum in operating range page 4).
4.4 COMBUSTION CHECK
It is advisable to set the burner according to the type of gas used and following the indications of the table:
IONIZATION CURRENT
The minimum current necessary for the con-
trol box operation is 5 μA.
The burner normally supplies a higher cur-
rent value, so that no check is needed. Any-
way, if you want to measure the ionization
current, you have to open the connector
(CN1) (see electrical scheme page 8) fitted
on the wire and insert a microammeter.
EN 676 AIR EXCESS: max. output 1.2 – min. output 1.3
GAS Theoretical max. CO2
0 % O2
Setting CO2% CO
mg/kWh NOx
mg/kWh
= 1.2 = 1.3
G 20 11.7 9.7 9.0 100 170
G 25 11.5 9.5 8.8 100 170
G 30 14.0 11.6 10.7 100 230
G 31 13.7 11.4 10.5 100 230
8
9
12
11
0
6
1
2
3
4
5
Fig. 10
ATTENTION
D4631
+_
SO
CN1

20023724
11 GB
4.5 AIR PRESSURE SWITCH
The air pressure switch is set after all other adjustments have been made. Begin with the switch at the
lowest setting. With the burner working at the required output, adjust the dial clockwise, increasing its value
until the burner shuts down. Now reduce the value by one set point, turning the dial anti-clockwise. Check
for reliable burner operation, if the burner shuts down, reduce the value by a half set point.
ATTENTION:
To comply with the standard, the air pressure switch must operate when the CO value exceeds 1%
(10,000 ppm). To check this, insert a combustion analyser in the flue, slowly reduce the burner air setting and
verify that the burner shuts down by the action of the air pressure switch before the CO value exceeds 1%.

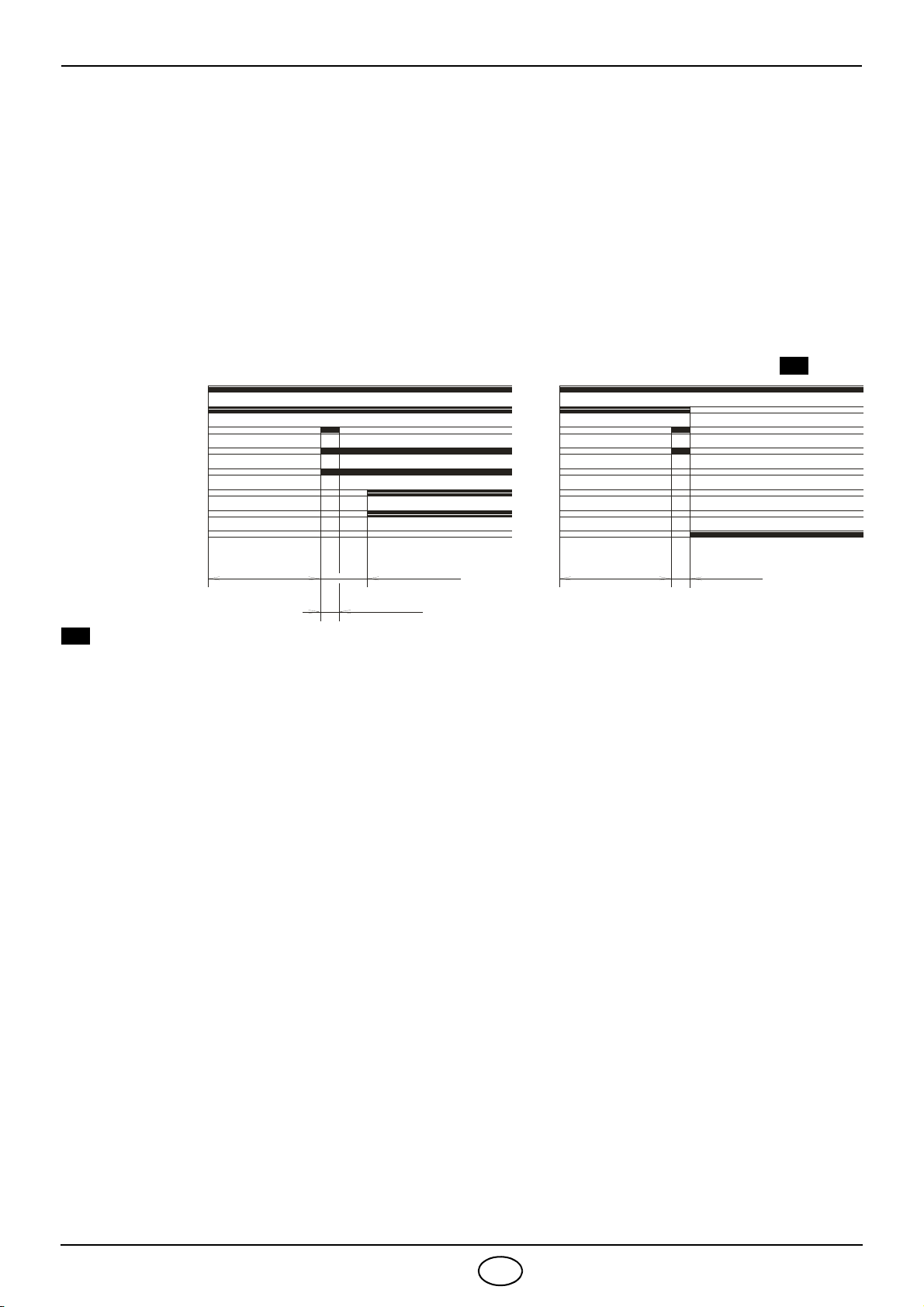

4.6 BURNER START-UP CYCLE
Lock-out is indicated by a lamp on the control box (4, fig. 1, page 2).
4.7 RE-CYCLE FUNCTION
The control box allows re-cycling, i.e. the complete repetition of the starting programme, for 3 attempts maxi-
mum, in the event the flame goes out during operation.
4.8 POST-VENTILATION FUNCTION
Post-ventilation is a function that maintains air ventilation even after the burner is switched off. The burner
switches off when the limit thermostat (TL) opens, cutting off the fuel supply to the valves.
To use this function the reset button must be pressed when the limit thermostat is not switched over
(BURNER SWITCHED OFF).
Post-ventilation time can be set to a maximum of 6 minutes. Proceed as follows:
Press and hold the reset button for at least 5 seconds till the LED indicator changes to red.
Set the desired time pressing the button repeatedly: once = post-ventilation for 1 minute.
After 5 seconds the control box automatically shows the minutes set by the red LED flashing:
1 pulse = post-ventilation for 1 minute.
To reset this function, press and hold the button for at least 5 seconds the LED indicator changes to red then
release it without carrying out any operation, then wait for 20 seconds for the burner to start.
If during post-ventilation there is a new request for heat, post-ventilation time is halted and a new operating
cycle starts when the limit thermostat (TL) switches over.
The control box leaves the factory with the following setting: 0 minutes = no post-ventilation.
4.9 CONTROL BOX RESET
To carry out the control box reset, proceed as follows:
Press the reset button for at least 1 second.
In the event of the burner not restarting it is necessary to check if the limit thermostat (TL) is closed.
Thermostat
Motor
Ignition transformer
First valve
First flame
Second valve
40s min.
3s max.
40s min. 3s max.
Lock-out, due to light failure
A
Normal
Second flame
Lock-out
5 – 25s D5016
A

20023724 12 GB
5. MAINTENANCE
Disconnect the electric supply to the burner by switching off the main power switch and close the
gas shut-off valve before maintaining or checking the system.
The burner requires scheduled maintenance that must be carried out by qualified personnel and in compli-
ance with local legislation.
Scheduled maintenance is vital for the smooth operation of the burner; it avoids waste of fuel and reduces
harmful emissions into the atmosphere.
THE FUNDAMENTAL OPERATIONS TO CARRY OUT ARE AS
FOLLOWS:

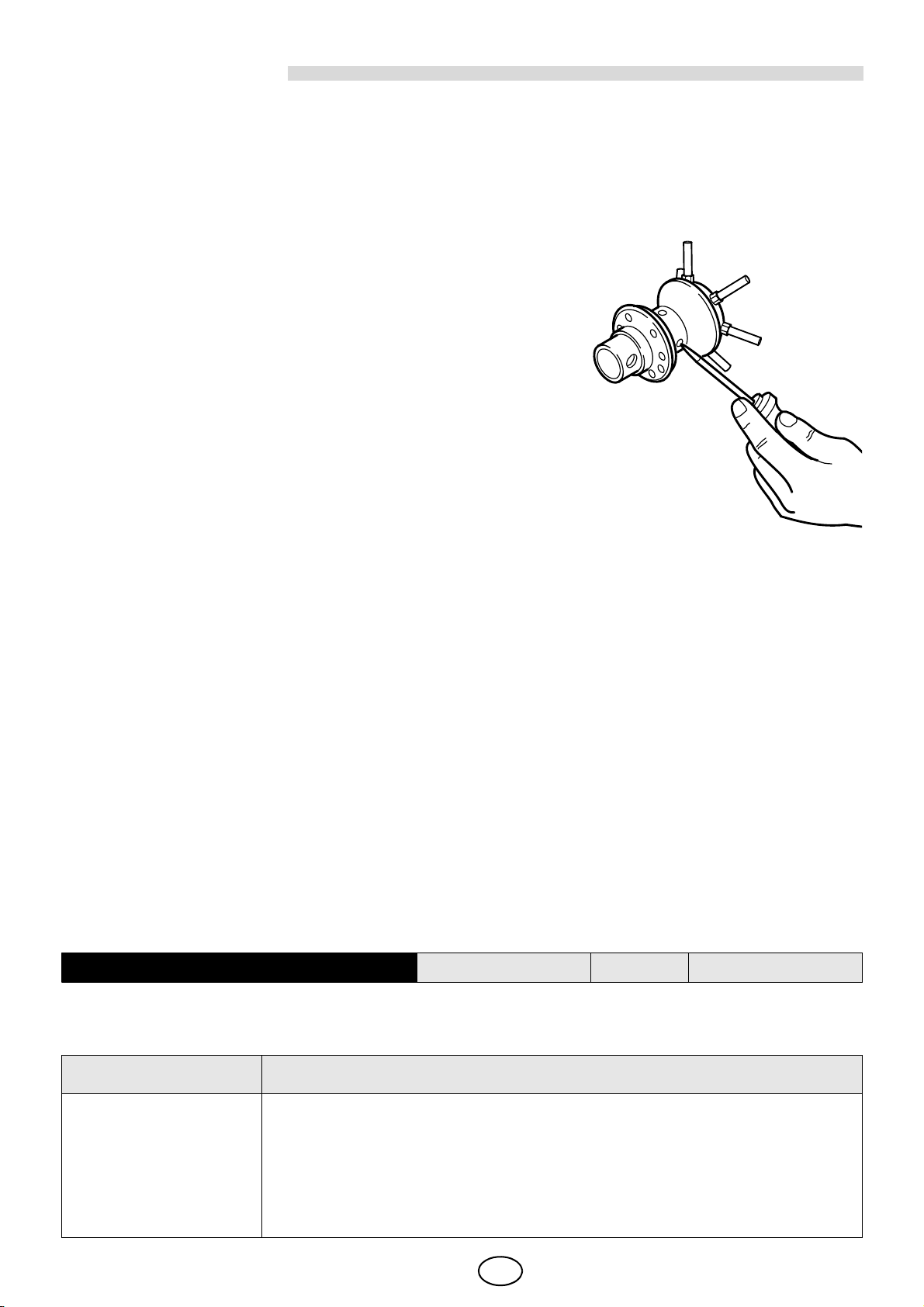

Check at regular intervals that the holes of the gas head are
not obstructed. If they are, clean them with a suitable tool as
shown in the figure 11.
Check there are no occlusions or obstructions in the inlet or
return pipes, in the air suction areas and in the combustion
product waste pipe.
Check that the burner and gas train electrical connections are
correct.
Check that the positioning of the air pressure test point (6, fig.
1, page 2) is correct.
Check that the gas train is suited to the burner capacity, the type
of gas used and the network gas pressure.
Check that the positioning of the combustion head is correct
and that it is properly fixed to the boiler.
Check that the air damper is positioned correctly.
Check that the ionisation probe and the electrode are positioned correctly (see fig. 5, page 6).
Check that the air pressure switch and the gas pressure switch are set correctly.
Leave the burner operating in steady state for approx. ten minutes, checking to ensure that all elements
indicated herein have the proper settings for 1st and 2nd stage.
Then carry out the analysis of the combustion by checking:
CO2percentage (%); CO content (ppm); NOx content (ppm); Ionisation current (μA);
Flue gases temperature at the stack.
5.1 VISUAL DIAGNOSTIC CONTROL BOX
The control box has a diagnostic function that can identify the likely causes of any malfunctions (indicator:
RED LED).
In order to be able to use this function, press and hold the reset button for at least 3 seconds from when the
appliance is made safe (lock-out).
The control box sends a sequence of pulses that are repeated at 2-second intervals.
The sequence of pulses issued by the control box identifies the possible types of malfunction, which are
listed in the table below.
SIGNAL PROBABLE CAUSE
2 pulses

The flame does not stabilise at the end of the safety time:
– faulty ionisation probe;
– faulty or soiled gas valves;
– neutral/phase exchange;
– faulty ignition transformer
– poor burner regulation (insufficient gas).
Fig. 11
E9252
         
2sPulses Pulses
RED LED illuminated
press reset for 3 sec. Interval

20023724
13 GB
To reset the control box after the diagnostics display, press the lockout-reset button.
6. FAULTS / SOLUTIONS
Here below you can find some causes and the possible solutions for some problems that could cause a
failure to start or a bad working of the burner.
A fault usually makes the lock-out lamp light which is situated inside the reset button of the control box
(4, fig. 1, page 2).
When lock out lamp lights the burner will attempt to light only after pushing the reset button. After this if
the burner functions correctly, the lock-out can be attributed to a temporary fault.
If however the lock out continues the cause must be determined and the solution found.
6.1 START-UP PROBLEMS
SIGNAL PROBABLE CAUSE
3 pulses

Min. air pressure switch does not close or is already closed before the limit
thermostat closed:
– air pressure switch faulty;
– air pressure switch incorrectly regulated.
4 pulses

Light present in the chamber before the burner’s switching on or off:
– presence of a strange light before or after the limit thermostat switching over;
– presence of a strange light during pre-ventilation;
– presence of a strange light during post-ventilation.
6 pulses

Loss of ventilation air:
– air loss during pre-ventilation;
– air loss during and after safety time.
7 pulses

Loss of flame during operations:
– poor burner regulation (insufficient gas);
– faulty or soiled gas valves;
– short circuit between ionisation probe and earth.
FAULTS POSSIBLE CAUSES SOLUTION
The burner doesn’t
start when the limit
thermostat closes.
Lack of electrical supply.
Check presence of voltage in the L1-N
clamps of the 7 pin plug.
Check the condition of the fuses.
Check that safety thermostat is not
lock out.
Lack of gas.
Check the manual cock opening.
Check that the valves charge over to
the opening position and there are not
short circuits.
The gas pressure switch does not
close its contact. Adjust them.
The connections in the control box
are wrongly inserted. Check and connect all the plugs.
The air pressure switch is changed
over to the operational position. Replace the pressure switch.
ATTENTION

20023724 14 GB
Burner tends to pull the
flame when switching
from 1st to 2nd stage.
Output ratio between 1st and 2nd stage
greater than 1:2.
Restore correct maximum ratio of 1:2,
making sure 1st stage output is no less
than the operating range's minimum.
High air excess in 1st stage. Restore the correct air excess value (
min. = 1.3) see section “4.4 combustion
control”.
The burner runs nor-
mally in the prepurge
and ignition cycle and
locks out after about 3
seconds.
Phase and neutral connection is
inverted. Invert them.
The earth connection lacks or is in-
efficient. Make the earth connection efficient.
The ionization probe is earthed or not
in contact with the flame, or its wiring
to the control box is broken, or there
is a fault on its insulation to the earth.
Check the right position and if neces-
sary set it according to the instructions
of this manual.
Reset the electrical connection.
Replace the faulty connection.
The burner starts with
an ignition delay.
The ignition electrodes is wrongly
positioned. Adjust it according to the instructions of this manual.
Air output is too high. Set the air output according to the in-
structions of this manual.
Valve brake is too close with insuffi-
cient gas output. Adjust it.
The burner doesn’t
change over the 2nd
stage.
The air damper is locked. Check the right working.
Check the right electrical connection.
The 2nd stage gas valve doesn’t
pull in.
Failed valve: replace it.
The air damper doesn’t close com-
pletely and therefore it doesn’t pull in
the 2nd stage valve micro: check the
micro working.
The burner locks out
after the prepurge
phase due to flame-
failure.
The solenoid valves is passing too
little gas.
Check the pressure in the network and/
or adjust the solenoid valve according to
the instructions of this manual.
The solenoid valves are defective. Change them
The ignition arc is irregular or has
failed.
Check the right insertion of the
connectors.
Check the right position of the elec-
trode according to the instructions of
this manual.
The pipe has not been purged from
the air. Carry out a complete breathing of the line of gas-supply.
FAULTS POSSIBLE CAUSES SOLUTION

20023724
15 GB
6.2 OPERATING IRREGULARITIES
The burner locks out
during the prepurge
phase.
The air pressure switch does not
change over to the operational po-
sition.
The pressure switch is faulty, change it.
The air pressure is too low, (the head is
bad adjusted).
The flame exists. Faulty valves: replace them.
The pressure test point (13, fig. 9,
page 9) is badly positioned.
Place it in the right position according
to the instructions of this manual on
page 9, chapter 4.2.
The burner continues
to repeat the starting
cycle without going on
lock-out.
The gas pressure in the gas-mains
lies very close to the value to which
the gas pressure switch has been set.
The sudden falling-off pressure at the
opening of the valve causes the
opening of the pressure switch. How-
ever this only temporarily, because
the valve immediately closes again,
so then does the pressure switch, be-
cause the pressure builds-up again,
causing the cycle to be repeated
over and over.
Lower and set the pressure switch.
FAULTS POSSIBLE CAUSES SOLUTION
The burner locks out
during operation.
Earth probe.
Check the right position and if necessary
set it according to the instructions of this
manual.
Clean or replace the ionization probe.
The flame disappears 4 times. Check the gas pressure in the network and/or adjust the solenoid valve accord-
ing to the instructions of this manual.
Air pressure switch opening.
The air pressure is too low, (the head is
bad adjusted).
The air pressure switch is faulty,
change it.
Burner shut down. Gas pressure switch opening. Check the pressure in the network and/or
adjust the solenoid valve according to the
instructions of this manual.
FAULTS POSSIBLE CAUSES SOLUTION

20023724 16 GB
7. SAFETY WARNINGS
The dimension of the boiler’s combustion chamber must respond to specific values, in order to guarantee a
combustion with the lowest polluting emissions rate.
The Technical Service Personnel will be glad to give you all the imformation for a correct matching of this
burner to the boiler.
This burner must only be used for the application it was designed for.
The manufacturer accepts no liability within or without the contract for any damage caused to people, ani-
mals and property due to installation, adjustment and maintenance errors or to improper use.
7.1 BURNER IDENTIFICATION
The Identification Plate on the product gives the serial number, model and main technical and performance
data. If the Identification Plate is tampered with, removed or missing, the product cannot be clearly identi-
fied thus making any installation or maintenance work potentially dangerous.
7.2 BASIC SAFETY RULES
Children or inexpert persons must not use the appliance.
Under no circumstances must the intake grids, dissipation grids and ventilation vents in the installation
room be covered up with cloths, paper or any other material.
Unauthorised persons must not attempt to repair the appliance.
It is dangerous to pull or twist the electric leads.
Cleaning operations must not be performed if the appliance is not disconnected from the main power
supply.
Do not clean the burner or its parts with inflammable substances (e.g. petrol, alcohol, etc.). The cover
must be cleaned with soapy water.
Do not place anything on the burner.
Do not block or reduce the size of the ventilation vents in the installation room.
Do not leave containers and inflammable products in the installation room.

20023724
1CN
目录
1. 燃烧器描述 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.1 燃烧器随机备件 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 燃烧器附件 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. 技术参数 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 技术参数 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 外观尺寸 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.3 工作范围 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. 安装. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.1 安装位置 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.2 燃烧器安装 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.3 探针 -电极定位 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.4 燃气阀组 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.5 燃气阀组电气接线 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.6 燃气供气管路 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.7 电气接线 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4. 工作. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.1 燃烧调节 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2 燃烧头设置 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.3 风门挡板设置 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.4 燃烧检查 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.5 空气压力开关 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.6 燃烧器启动程序 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.7 重复启动功能 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.8 后吹扫功能. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.9 控制盒复位. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5. 维护. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1 可视诊断控制盒 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6. 故障 / 解决方法 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.1 启动故障 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.2 运行故障 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7. 安全与警告 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7.1 燃烧器标志 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7.2 安全规程 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

20023724 2CN
1. 燃烧器描述
两段火燃气燃烧器 .
1.1 燃烧器随机附件
带绝热垫的法兰 . . . . . . . . . . . . . . . . No. 1将法兰安装到锅炉上的螺栓和螺母 . . . . . . . . . . . . . . .No. 4
法兰用螺栓和螺母 . . . . . . . . . . . . . . No. 17 针插头 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No.
1
4 针插头 . . . . . . . . . . . . . . . . . . . . . No. 1远程复位连线 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No.
1
1.2 辅助装置
软件诊断组件
此组件通过红外线连接计算机 ,可以显示燃烧器的运行时间，型号和故障类型，序列号等。
按如下步骤进行诊断：
将单独提供的组件连接到控制盒插座上。
启动组件附带的专用软件程序，察看燃烧器相关信息。
远程复位组件
燃烧器有远程复位组件 (RS) 由连接线和按钮组成 （最长的有效距离为 20 米）。
取下在工厂安装的锁定保护套，将附带的远程复位组件插入即可连接该组件。（详见第 8 页的电气接线图）。
旋转安装组件
该特殊组件能使燃烧器的安装位置旋转 180°，参 见 第 5 页 "3.1 安装位置 "的图 5。该组件能确保燃气
阀组工作正常。该组件的安装和使用必须符合法律和地方的规定。
1–空气压力开关
2–连接阀门组的 6 孔插座
3–带7孔插座的控制盒
4–带锁定指示灯的复位按钮
5–燃烧头组件
6–压力测点
7–带绝热垫的法兰
8–风门挡板调节组件
9–风门伺服马达
10 –控制燃烧器二段火的 4 孔插座
燃烧器符合 IP 40, EN 60529 电气保护等级 .
符合标准 : EMC 89/336/CEE - 2004/108/CE, 低电压 73/23/CEE - 2006/95/CE, 机械 98/37/EEC - 2006/
42/EC.
燃气阀组符合 EN 676 标准 .
遵循 EN 676 标准，燃烧器间断运行。
对瑞士用户的提示。 瑞士国家规定，地方和州规定以及 SVGW 权威机构有关燃气使用的相关规定，和 Fire
Brigade (VKF) 的所有规则均符合。
0
9
0
9
图. 1
D7109
8
6
1
4
2
5
10
3
7
9
