Riland ARC 250G User manual

USER MANUAL
ARC 250G/315G/400G
USER MANUAL 0 YF-10G A/0

CONTENTS
Safety warning 2
Machine de cription 3
Technical parameter table 4
In tallation in truction 5
Operation in truction 7
Panel function in truction 8
Note or preventive mea ure 10
Que tion to be run into during welding 11
Maintenance 12
Trouble hooting and fault finding 13
USER MANUAL 1 YF-10G A/0

SAFETY WARNING
On the proce of welding or cutting, there will be po ibility of injury, o plea e take protection
into con ideration during operation. For more detail plea e review the Operator Safety Guide,
which complie with the preventive requirement of the manufacturer.
Electric hock——May lead to death！！
Set the earth fitting according to applying tandard.
Forbidden to touch the bare electric part and electrode with uncovered kin, wet glove or clothe .
Make ure you are in ulated from the ground and the work hop.
Make ure you are in afe po ition.
Ga e and fume ——May be harmful to health!
Keep your head out of the ga e and fume .
When arc welding, ventilator or air extractor hould be u ed to avoid breathing ga e .
Arc ray ——Harmful to your eye , burn your kin.
Wear uitable protective ma k, light filter and protective garment to protect eye and body.
Prepare uitable protective ma k or curtain to protect looker-on.
Fire
Welding park may cau e fire, make ure there i no tinder tuff around the welding area.
Noi e——Exce ive noi e will be harmful to hearing.
U e ear protector or other mean to protect ear.
Warn looker-on that noi e i harmful to hearing.
Malfunction——When trouble happen , contact with authorized profe ional .
If trouble happen during in tallation and operation, plea e follow thi manual in truction to check up.
If you fail to fully under tand the manual, or fail to olve the problem with the in truction, you hould contact the
upplier or the ervice center for profe ional help.
WARNING!
Creepage protecting witch hould be added when u ing the machine!!!
USER MANUAL 2 YF-10G A/0

MACHINE DESCRIPTION
The welding machine i a rectifier adopting the mo t advanced inverter technology.
The development of inverter welding equipment profit from the development of the inverter power upply theory and
component . The inverter welding power ource utilize high-power component ingle tube IGBT to tran fer 50/60Hz
frequency up to 15KHz, then reduce the voltage and commutate, and output high-power voltage via PWM technology.
Becau e of the great reduce of the main tran former’ weight and volume; the efficiency increa e by 30%. The
appearance of inverter welding equipment i con idered to be a revolution for welding indu try.
The welding power ource can offer tronger, more concentrated and more table arc. When tick and work piece get
hort, it re pon e will be quicker. It mean that it i ea ier to de ign into welding machine with different dynamic
characteri tic , and it even can be adju ted for pecialty to make arc ofter or harder.
The welding machine ha the following characteri tic : effective, power aving, compact, table arc, good welding pool,
high no-load voltage, and good capacity of force compen ation and multi-u e. It can weld tainle teel, alloy teel,
carbon teel, copper and other color metal. It can apply to electrode of different pecification and material , including
acidity, alkalinity, and fiber. It can apply in high altitude, the open air and in ide and out ide decoration. Compared with
the ame product of home and abroad, it i compact in volume, light in weight, ea y to in tall and operate.
The welding machine i mo t uitable for welding tube, boiler, vacuum pre ure ve el or the higher quality for welding,
which can gain perfect welding quality. In addition, thi erie machine have enough no-load voltage and the ability of
output, ideal for long cable welding.
Thank for purcha ing our product and hope for your preciou advice. We will be dedicated to produce the be t product
and offer the be t ervice.
WARNING！
The machine i mainly u ed in indu try. It will produce radio wave, o the worker hould make fully
preparation for protection.
USER MANUAL 3 YF-10G A/0

TECHNICAL PARAMETERS TABLE
Model
Parameter
ARC 250G ARC315G ARC 400G
Power voltage(V) Three Pha e
AC 400V±15%
Three Pha e
AC 400V±15%
±
Three Pha e
AC 400V±15%
Frequency (Hz) 50/60 50/60 50/60
Rated input current (A) 14.4 19.7 27.6
No-load voltage(V) 66 69 68
Output current(A) 20-250 20-315 40-400
Rated output voltage(V) 20,8-30 20,8-32.6 21,6-36
Duty cycle (%) 0-100 60 60 60
Efficiency 85 85 85
Power factor 0.93 0.93 0.93
In ulation grade F F F
Hou ing protection
grade
IP21 IP21 IP21
Weight (Kg) 17.5 20 22
Dimen ion (mm) 455×202×372 485×234×425 515×262×468
USER MANUAL 4 YF-10G A/0

INSTALLATION INSTRUCTION
The machine i equipment with power voltage compen ation equipment. When power voltage move between±10% of
rated voltage, it till can work normally.
When u e long cable, in order to prevent voltage form going down, bigger ection cable i ugge ted. If cable i too long,
it may affect the performance of the power y tem. So we ugge t you to u e configured length.
1. Make ure intake of the machine not blocked or covered, le t cooling y tem could not work.
2. U e inducting cable who e ection i not le than 6 mm² to connect the hou ing to the ground. The way i from the
ground-connecting crew at the back to the earth device.
3. Correctly connect the arc torch or holder according to the ketch. Make ure the cable, holder and fa tening plug
have been connected with the ground. Put the fa tening plug into the fa tening ocket at the “-”polarity and fa ten it clockwi e.
4. Put the fa tening plug of the cable to fa tening ocket of “+” polarity at the front panel, fa ten it clockwi e, and the
earth clamp at the other terminal clamp the work piece.
5. Plea e pay attention to the connecting polarity, DC welding machine ha two connecting way : po itive connection
and negative connection. Po itive connection: holder connect with “-” polarity, while work piece with the “+”polarity.
Negative connection: work piece with the “-”polarity, holder with the “+” polarity. Choo e uitable way according to
working demand . If un uitable choice, it will cau e un table arc, more patter and conglutination. If uch problem
occur, plea e change the polarity of the fa tening plug.
6. According to input voltage grade, connect power cable with power upply box of relevant voltage grade. Make ure
there i no mi take and make ure the voltage difference among permi ion range. After the above job, in tallment
i fini hed and welding i available.
If di tance of work piece and machine i too far (500-100m), and the cable (torch cable and
earth cable) are too long, plea e choo e cable of bigger ection to minimize the reduction
of the voltage.
USER MANUAL 5 YF-10G A/0

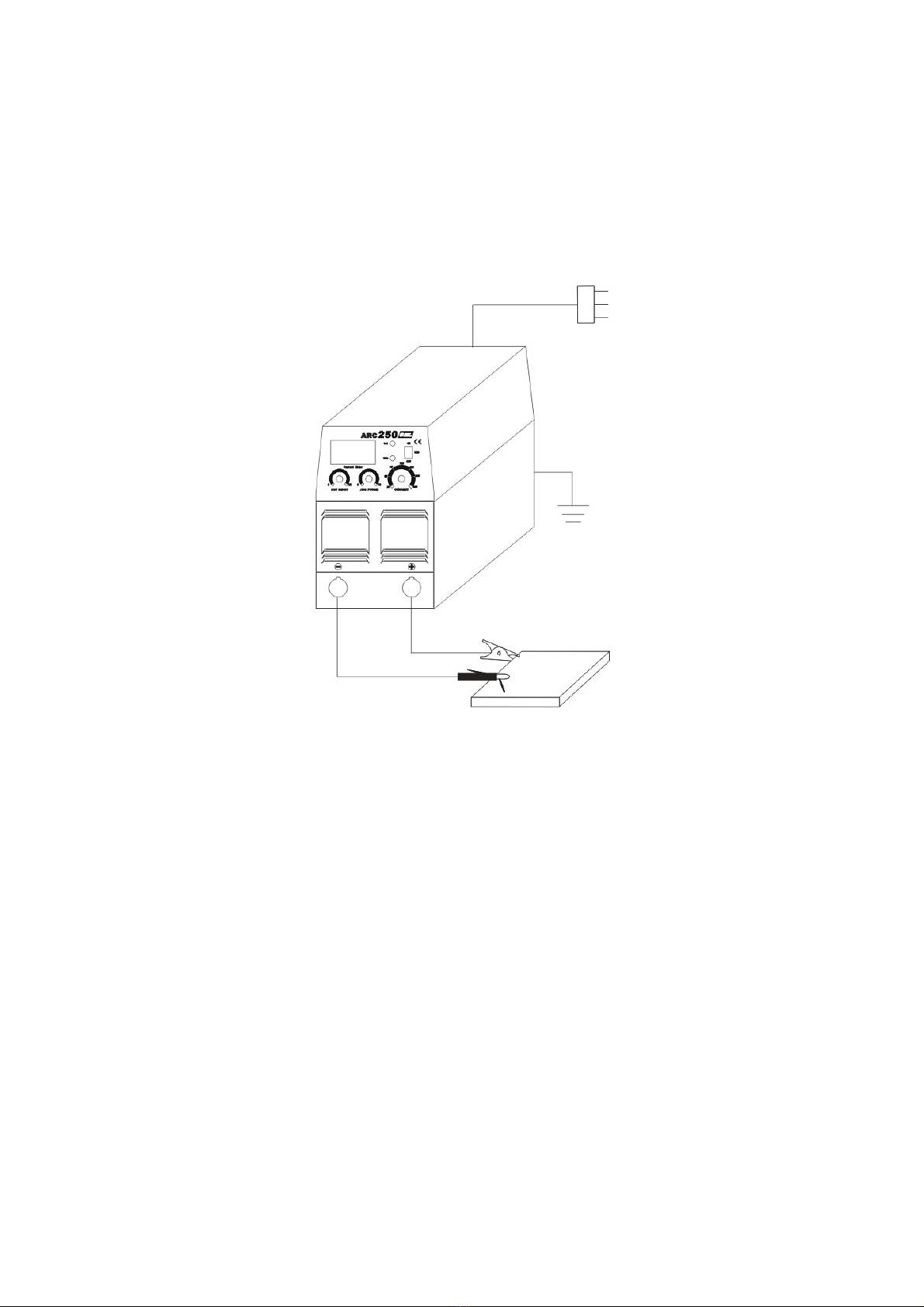

In tallation in truction of ARC 250G:
USER MANUAL 6 YF-10G A/0
Power Supply
(3pha e ~ 400V)
Connected to
the ground
Workpiece
Earth Clamp
Electrode Holder

OPERATION INSTRUCTION
1. Open the power witch, creen will how et current volume and ventilator i beginning to revolve.
2. Adju t knob of welding current and arc- triking pu h, make welding function complie with demand .
3. Generally, welding current i adequate to welding electrode according with a following:
Specification φ2.5 φ3.2 φ4.0 φ5.0
Current 70-100A 110-140A 170-220A 230-280A
4. Knob of arc- triking drive i u e to adju t welding function, pecially in low current arrange, that i cooperated with
knob of welding current adju tment, they may adju t current of arc triking and be out of control of knob of welding
current adju tment .So machine can grain powerful energy and pu h current can achieve effect that may.
5. If the anti- hock device i in talled in the machine. When the witch of back panel i put "ON" po ition, the VRD
indicator i lit, and when the witch i put "OFF" po ition, the VRD indicator i off, then the no-load voltage i 60-70V.
Switch of VRD i put in ide the machine, with the "on" condition. the no-load voltage change to be le than 15V,
which i afe for people.
6. If welding machine ha been coordinated remote control device:
1) Make ure the witch po ition of remote control device before operation .If witch i on “OFF” Po ition that i
out of remote control. Switch i on “ON” po ition that i u ing remote control device.
2) In ert plug of remote control in ocket of remote control correctly and tighten firmly in order to prevent poor
contact.
3) If remote control device i not be u ed, make ure the witch i on “OFF” po ition, or welding current will not be
adju ted on panel.
7. Hot initiation: Heavy current, perfect effect, triking ea ier.
WARNING!
Before connecting operation plea e make ure all the power i turned off. The right order i
to connect the welding cable and ground cable to the machine fir t, and make ure they are
firmly connected and then put the power plug to the power ource.
USER MANUAL 7 YF-10G A/0

PANEL FUNCTION INSTRUCTION
Front Panel In truction of ARC 250G:
1VRD witch
2VRD indicator led
3Abnormal indicator led
4Current meter
5Hot tart adju tment knob
6ARC force adju tment knob
7Current election knob
8Po itive output terminal
9Negative output terminal
Front Panel In truction of ARC 315G:
1Current meter
2ARC force adju tment knob
3Hot tart adju tment knob
4VRD indicator led
5Abnormal indicator led
6VRD witch
7Remote control witch
8Current election knob
9Po itive output terminal
10 Remote control ocket
11 Negative output terminal
USER MANUAL 8 YF-10G A/0

Front Panel In truction of ARC 400G:
1Remote control witch
2VRD witch
3VRD indicator led
4Abnormal indicator led
5Current meter
6Hot tart adju tment knob
7ARC force adju tment knob
8Current election knob
9Po itive output terminal
10 Remote control ocket
11 Negative output terminal
The panel picture above i for reference only. If any difference with the real machine, plea e follow with the real machine.
