Riland ARC 315GTS User manual

ARC 315GTS
WELDING MACHINE
USER MANUAL

Preface
This manual includes hardware description and operation introduction of equipment. For your and other
people’s safety, please read the manual carefully.
Pay attention
Pay attention to the words after the signs below.
Sign
Description
The words after this sign means thereis great potential danger,which
may cause major accident, damage or even death, if it is not followed.
The words after this sign means there is some potential danger,
which may cause hurt or property lose, if it is not followed.
The words after this sign means there is potential risk, which may
cause equipment fault or break, if it is not followed.
Version
VersionYF-TAE-0010,A3, Released at 14th, Jan., 2021.
The contents of this manual are updated irregularity for updating of product. The manual is only used as
operation guide, except for other promises. No warranties of any kind, either express or implied are made in
relation to the description, information or suggestion or any other contents of the manual.

3
CONTENTS
SAFETY WARNING........................................................................................................................................................ 4
MACHINE DESCRIPTION............................................................................................................................................. 9
TECHNICAL PARAMETERS TABLE.........................................................................................................................10
INSTALLATION INSTRUCTION.................................................................................................................................11
OPERATION INSTRUCTION......................................................................................................................................12

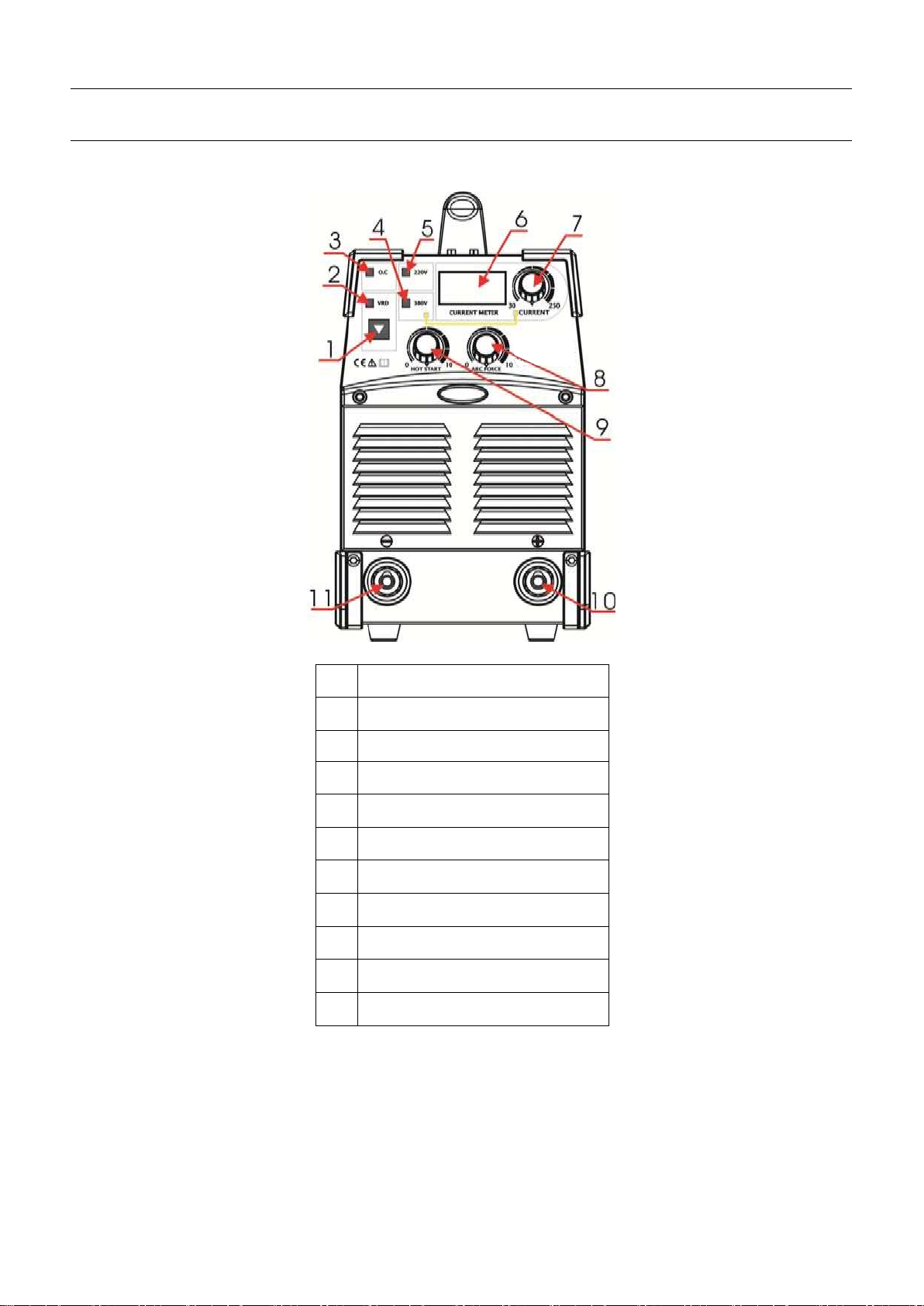

PANEL FUNCTION INSTRUCTION ..........................................................................................................................13
NOTES OR PREVENTIVE MEASURES...................................................................................................................14
QUESTIONS TO BE RUN INTO DURING WELDING............................................................................................15
MAINTENANCE............................................................................................................................................................16
TROUBLESHOOTING AND FAULT FINDING.........................................................................................................17

4

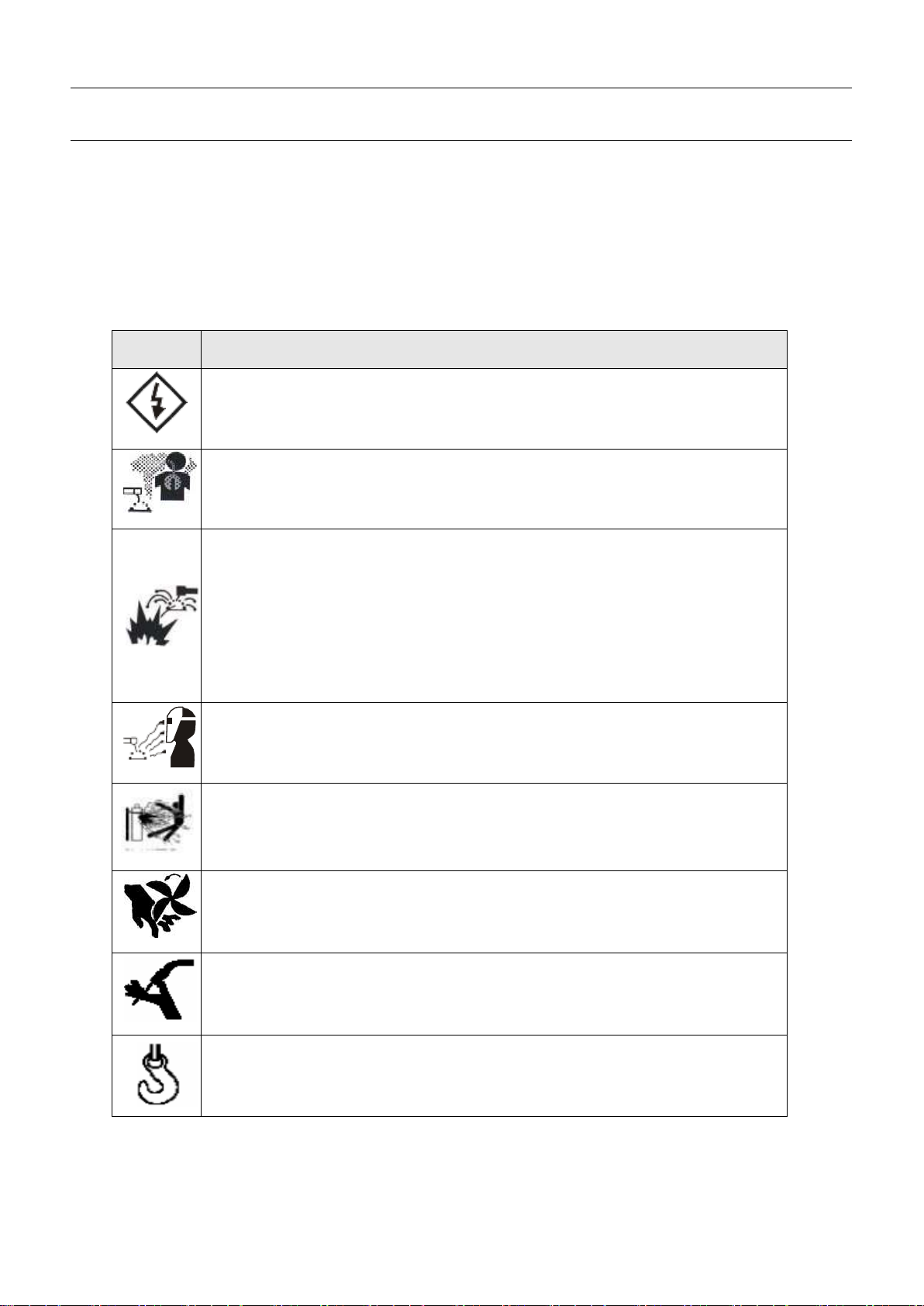

SAFETY WARNING
The safety notes listed in this manual is to ensure correct use of the machine and to keep you and other
people from being hurt.
The design and manufacture of welding machine considers safety. Please refer to the safety warning listed in
the manual to avoid accidents.
Different damage would be caused by wrong operation of the equipment as follows. Please read the user
manual carefully to reduce such damage.
Sign
Description
Any contact of electric parts may cause fatal electric shock or burnt.
Gas and fumes are harmful to health.
Operation in narrow space may cause choke .
Spark and hot workpiece after welding may cause fire.
Bad connected cable may cause fire.
Incompletion connection of workpiece side circuit may cause fire.
Never weld on the case of tinder stuff, or it may cause explode.
Never weld airtight containers such as slot, pipe etc., or it may break.
Arc ray may cause eye inflammation or skin burnt.
Spark and residue will burn your eyes and skin.
Toppling over of the gas cylinder will cause body hurt.
Wrong use of the gas cylinder will lead to high-pressure gas eruption
and cause human hurt.
Never let fingers, hair, clothes or etc. near the moving parts such as
the fan.
The wire shoot out of the torch may stab eyes, face and other naked
parts.
Never stand in front of the swang equipment or under it, or it may fail
and cause injury.

5
Please follow the rules below to avoid heavy accidents.
● Never use the equipment to do other things but welding.
● Follow related regulations for the construction of the input-driven power source, choice of place,
usage of high-pressure gas, storage, configuration, safe-keeping of workpiece after welding and
disposal of waste, etc.
● Nonessentials do not enter the welding area.
● People using heart pacemaker is not allowed to get close to the welding machine or area without
doctor’s permission. The magnetism created by energizing the welding machine can have a bad
effect to the pacemaker.
● Install, operation, check and maintain the equipment by profession personnel.
● Understanding the contents of the user manual for safety.
Please follow the rules below to avoid electric shock。
● Keep away from any electric parts.
● Earth the machine and workpiece by professional personnel.
● Cut off the power before installation or checking, and restart 5 minutes later. The capacitance is
chargeable device. Please ensure it has no voltage before start again even if the power source is cut
off.
● Do not use wire with inadequate section surface or damage insulation sleeve or even exposed
conductor.
● Do ensure well isolation of wire connection.
● Never use the device when the enclosure is removed.
● Never use broken or wet insulation gloves.
● Use firenet when work at high position.
● Check and maintain regularly, don’t use it until the broken parts are fixed well.
● Turn off the power when not in used.
● Follow the national or local related standard and regulations when using the AC welding machine at
narrow or high position.

6
Please follow the below notes to avoid fire and explode, etc.
● No combustible in welding area.
● Keep off combustible when welding.
● Keep hot workpiece after welding away from flammable gas.
● Do move away the combustible around when weld the dooryard, ground and wall,.
● The wire connection of base metal should be as close to the welding place as possible.
● Never weld those facilities with gas pipe or airtight slot.
● Put fire extinguisher around the welding area to prevent fire.
The gas and fumes are harmful to health, please wear protective device
according to regulations.
● Wear exhaust equipment and breathe preventive facilities to prevent gas poisoning or choke.
● Use suggested part exhaust equipment and breathe preventive facilities to prevent hurt or poisoning
by gas and other powder, please.
● To prevent oxygen-deficiency, air out the gas-filled room which is full of CO2 and argon on the
bottom, When operating on trunks, boilers, cabins, etc.
● Please accept the supervisor’s inspection when operating in narrow space. Air the room and wear
breathe preventive facilities.
● Never operate in degrease, washing or spray space.
● Using breathe preventive facilities when weld shielded steel for it will cause poisonous dust and gas.
The arc, spark, residue and noise are harmful to health, please wear
protective appliance.
● Eye protection against arc is recommended when welding or supervise welding.
● Please wear preventive spectacles.
● Welder’s gloves, welder’s goggles, long sleeve clothes, leather apron, and other standard protection
equipments must be worn for welding operation.
● A screen to protect other people against the arc must be set in the welding place.

7
Please follow the notes below to avoid gas cylinder toppling over or broken.
● Use the gas cylinder correctly.
● Use the equipped or recommended gaseous regulator.
● Read the manual of gaseous regulator carefully before using it, and pay attention to the safety
notes.
● Fix the gas cylinder with appropriative holder and other relative parts.
● Never put the cylinder under high temperature or sunshine environment.
● Keep your face away from the gas cylinder exit when opening it.
● Put on the gas shield when it is not used.
● Never put the torch on the gas cylinder. The electrode can not meet the gas cylinder.
Any touch of the switch part will cause injury, please note the following.
● Never use the machine when the enclosure is off.
● Install, operate, check and maintain the machine by professional person.
● Keep your fingers, hair, clothes etc. away from the switch parts such as the fan.
The wire end may deal damage, please note the following.
● Never look into the electric conduction hole when checking the wire feeding is normal or not, , or the
shooting wire may stab your eyes and face.
● Keep your eyes, face or other naked parts away from the end of torch when feeding the wire
manually or pressing the switch.
For better work efficiency and power source maintenance, please note the
following.
● Precautions against toppling over.
● Never use the welding equipment for pipe thawing.
● Lift the power source from side when use the up-down forklift truck to avoid toppling over.
● When using the crane for lift, tie the rope to the ears with an angle no more than φ15 to the vertical
direction.
● When lifting the welding machine which equipped with gas cylinder and wire feeder, download them
from the power source and ensure the horizontal of the machine. Do fix the gas cylinder with belt or
chain when moving it to avoid body hurt.
● Ensure fastness and insulation when lifting the wire feeder through the swing ring for welding.

8
Electromagnetic interference needing attention.
● It may need extra preventive measures when the equipment is used in particular location.
● Before the installation, please estimate the potential electromagnetism problems of the environment
as follows.
a)Upper and lower parts of the welding equipments and other nearby power cable, control cable,
signal cable and phone cable.
b) Wireless electric as well as TV radiation and reception equipment.
c) Computer and other control equipments.
d) Safety-recognition equipment etc. Such as supervise of industrial equipments.
e) Health of people around. Such as personnel using the heart pacemaker or audiphone.
f) Equipments for adjustment and measurement.
g)Anti-disturb capability of other used equipments .Users should ensure these equipments and the
environment are compatible, which may need extra preventive measures.
h) Practical state of the welding and other activities.
● Users should observe the following dos and don’ts to decrease radiation interference.
a) Connect the welding equipments to the power supply lines.
b) Maintain the welding equipments regularly.
c) The cable should be short enough to be close to each other and the ground.
d) Ensure the safety of all the welding metal parts and other parts nearby.
e) The workpiece should be well earth.
f) Shield or protect the other cable and equipments to decrease the effects of disturbances. The
welding equipments can be complete shielded in some special conditions.
● Users are responsible for interference due to welding.

9
MACHINE DESCRIPTION
The welding machine is a rectifier adopting the most advanced inverter technology.
The development of inverter welding equipment profits from the development of the inverter power supply
theory and components. The inverter welding power source utilizes high-power component single tube IGBT
to transfer 50/60Hz frequency up to 15KHz, then reduce the voltage and commutate, and output high-power
voltage via PWM technology. Because of the great reduce of the main transformer’s weight and volume; the
efficiency increases by 30%. The appearance of inverter welding equipment is considered to be a revolution
for welding industry.
The welding power source can offer stronger, more concentrated and more stable arc. When stick and work
piece get short, its response will be quicker. It means that it is easier to design into welding machine with
different dynamic characteristics, and it even can be adjusted for specialty to make arc softer or harder.
ARC welding machine has the following characteristics: effective, power saving, compact, stable arc, good
welding pool, high no-load voltage, and good capacity of force compensation and multi-use. It can weld
stainless steel, alloy steel, carbon steel, copper and other color metal. It can apply to electrode of different
specifications and materials, including acidity, alkalescence, and fiber. It can apply in high altitude, the open
air and inside and outside decoration. Compared with the same products of home and abroad, it is compact
in volume, light in weight, easy to install and operate.
The welding machine is most suitable for those places where require high quality welding performance, such
as welding on pipeline, boiler, vacuum pressure vessel, which can achieve very excellent effect. Moreover, this
machine, which possesses high enough no-load voltage and output capacity, suitability for wide electric grid (it
can go on working under the power supply range from 160V to 460V), and built-in voltage automatic transfer
equipment, can work reliable under 1 phase AC220V and 2phase AC380V, adapt to different power voltage,
so that to satisfy the clients’ requirements better.
Thanks for purchasing our product and hope for your precious advice. We will dedicate to produce the best
products and offer the best service.
WARNING!
The machine is mainly used in industry. It will produce radio wave, so the worker should make
fully preparation for protection.

10
TECHNICAL PARAMETERS TABLE
Model
Parameters
ARC 315GTS
Power voltage（V）
1phaseAC
220V
1phaseAC
380V
Frequency （Hz）
50/60
Rated input current
（A）
39
37
No-load voltage（V）
U0=78V
Ur=15V
U0=68V
Ur=15V
Output current（A）
30-210
30-280
Rated output
voltage（V）
28.4
31.2
Force range（A）
0-100
Duty cycle （%）
30
No-load loss（W）
60
Efficiency
85
Power factor
0.70
Insulation grade
H
Housing protection
grade
IP21
Weight（kg）
15
Dimensions（mm）
466×212×371

11
Connect to
ground
INSTALLATION INSTRUCTION
The machine is equipped with power voltage automatic transfer device. When the power voltage fluctuated
between 1 phase AC220V and 2 phase AC380V, the machine would transfer automatically to relevant
working station. What’s more, it can adapt to the electric grid very well, and also can work continuously in
allowable range(AC160V～460V).
When the machine is used with long cables, in order to prevent voltage from going down, bigger section
cable is suggested. If the cable is too long, it may affect the performance of the power system. So cables of
configured length are suggested.
1. Make sure the intake of the machine is not blocked or covered to avoid malfunction of cooling system.
2. Make sure the earth end of power interface has been reliably and independently grounded.
3. Correctly connectthe arc torch or holder according to the sketch. Make sure the cable, holder and fastening
plug have been connected with the ground. Put the fastening plug into the fastening socket at the “-”
terminal and fasten it clockwise.
4. Put the fastening plug of the cable to fastening socket of “+” terminal at the front panel, fasten it clockwise,
and the earth clamp at the other terminal clamps the
work piece.
5. Please pay attention to the connecting terminal, DC
welding machine has two connecting ways: positive
connection and negative connection. Positive
connection: holder connects with “-” terminal, while
work piece with the “+” terminal. Negative connection
work piece with the“-”terminal, holder with the “+”
terminal. Choose suitable way according to the
working situation. If unsuitable choice is made, it wil
cause unstable arc, more spatters and conglutination.
If such problems occur, please change the polarity of
the fastening plug.
6. According to input voltage grade, 1 phase AC220V or
2 phase AC 380V. Connect power cable with power
supply box of relevant voltage grade. Make sure no
mistake is made and make sure the voltage difference
is among permission range. After the above job,
installation is finished and welding is available.
Installation diagram
If distance of work piece and machine is too far (50-100m), and the cables (torch cable and
earth cable) are too long, please choose cable of bigger section to minimize the reduction of the
voltage.
Power supply
(1phaseAC220V/ AC380V）
Earth clamp
Electrode holder
Work piece

12
OPERATION INSTRUCTION
1. Turn on the power switch, the power indicator of the front panel is in work and indicate 220V or380V and
the fan is beginning to run.
2. The delay startup function is installed in the machine ,when the machine is begin 6 to 8 seconds ,make
sure power voltage automatic transfer equipment can work reliable, and then begin to welding.
3. Choose suitable Welding current andArc force current , according to the thickness of the Work piece ,
diameter of the welding rod , the working situation and the techniques demands.
4. Generally, welding current is adequate to welding electrode according with as following:.
Specification
φ2.5
φ3.2
φ4.0
φ5.0
Current
50-90A
90-130A
140-210A
190-270A
5. Arc force adjustment knob is used for adjusting the welding preferment，when stand-welding and
admire-welding, we can work in Arc force adjustment knob together，would attainability perfectly welding
effect.
6. If the anti-shock device is installed in the machine. When the switch of back panel is put "ON" position,
the VRD indictor is lit, and when the switch is put "OFF" position, the VRD indicator is off, then the
no-load voltage is 60-70V. Switch of VRD is put inside the machine, with the "on" condition. the no-load
voltage changes to be less than 15V, which is safe for people.
7. Hot initiation: Heavy current, perfect effect, striking easier.
WARNING
！
Before connecting operation please make sure all the power is turned off. The right order is
to connect the welding cable and ground cable to the machine first, and make sure they are firmly
connected and then put the power plug to the power source.

13
PANEL FUNCTION INSTRUCTION
FRONT PANEL LAYOUT
1
VRD switch
2
VRD indicator
3
Abnormal indicator
4
380V power indicator
5
220V power indicator
6
Current meter
7
Current adjustment knob
8
ARC force adjustment knob
9
Host start adjustment knob
10
Positive output terminal
11
Negative output terminal
The panel picture above is for reference only. If any difference with the real machine, please follow with the
real machine.

14
1）The machine should be operated in dry environments with humidity levels of max 90%.2
）Ambient temperature should be between -10 to 40 degrees centigrade.
3）Avoid welding in sunshine or drippings. Do not let water infiter the machine.4
）Avoid welding in dust area or the environment with corrosive gas.
5）Avoid gas welding in the environment with strong airflow.
The welding machine is installed with protection circuit of over voltage, over current and over heat. When
voltage, output current and temperature of machine exceed the required standard, welding machine will
stop working automatically. However, overuse (such as over voltage) will still result in damage to the
welding machine. To avoid this, the user must pay attention to the following.
1）The working area is adequately ventilated！
The welding machine is powerful machine, when it is being operated, it generated by high currents,
and natural wind will not satisfy machine cool demands. So there is a fan in inner-machine to cool down
machine. Make sure the intake isnot in block or covered, it is 0.3 meterfrom weldingmachine to objects
of environment. User should make sure the working area is adequately ventilated. It is important for
the performance and the longevity of the machine.
2）Do not over load！
The operator should remember to watch the max duty current (Response to the selected duty cycle).
Keep welding current is not exceed max duty cycle current. Over-load current will damage and burn up
machine.
3）No over voltage！
Power voltage can be found in diagram of main technical data. Automatic compensation circuit of
voltage will assure that welding current keeps in allowable range(160V ～460V). If power voltage is
exceeding allowable range limited, it will damage to components of machine. The operator should
understand this situation and take preventive measures.
4）There is a grounding screwbehind welding machine, with a grounding marker on it. Before operation,
welding crust must be grounded reliable with cable which section is over 6 squaremillimeters, in order
to prevent from static electricity, and accidents because of electricity leaking.
5）If welding time is exceeded duty cycle limited, welding machine will stop working for protection.
Because machine is overheated, temperature control switch is on “ON’’ position and the indicator light
is red. In this situation, you don’t have to pull the plug, in order to let the fan cool the machine. When
the indicator light is off, and the temperature goes down to the standard range, it can weld again.
NOTES OR PREVENTIVE MEASURES
1. Environment
2. Safety norms

15
QUESTIONS TO BE RUN INTO DURING WELDING
Fittings, welding materials, environment factor, supply powers maybe have something to do with welding.
User must try to improve welding environment.
1. Make sure quality of tungsten electrode is high.
2. If the electrode is not dried, it will cause unstable arc, welding defect increases and the quality is down.
3. If use extra-long cable, the output voltage will decrease, so please shorten the cable
When power voltage departs from the rated value, it will make the output current not matched with rated
value; when voltage is lower than rated value, the max output may lower than rated value.
when the single phase voltage is higher than250V，the output is little,So please not use the machine.
It has something with factors as following:
1. Electric wire net voltage has been changed.
2. There is harmful interference from electric wire net or other equipment
1. Maybe current is too big and stick’s diameter is too small.
2. Output terminal polarity connection is wrong, it should apply the opposite polarity at the normal technics,
which means that the stick should be connected with the negative polarity of power source, and work
piece should be connected with the positive polarity. So please change the polarity.
A. Arc-striking is difficult and easy to pause
B. Output current not to rated value
C. Current is not stabilizing when machine is being operated
D. Too much spatter when use MMAwelding

16
MAINTENANCE
1. Remove dust by dry and clean compressed air regularly, if welding machine is operating in environment
where is polluted with smokes and pollution air, the machine need remove dust every month.
2. Pressure of compressed air must be within the reasonable range in order to prevent damaging to small
components of inner-machine.
3. Check internal circuit of welding machine regularly and make sure the circuit connections are connected
correctly and tightly (especially plug-in connector and components). If scale and rust are found, please
clean it, and connect again tightly.
4. Prevent water and steam from entering into the machine. If that happens, please blow it dry and check
insulation of machine.
5. If welding machine will not be used for long time, it must be put into the packing box and stored in dry and
clean environment.

17
TROUBLESHOOTING AND FAULT FINDING
Notes: The following operations must be performed by qualified electricians with valid certifications.
Before maintenance,please contact with us for professional suggestion.
ARC 315GTS faults symptom and solutions:
Fault symptom
Solution
Meter doesn’t display, fan
doesn’t work, no welding
output.
1. Make sure power switch is off.
2. Make sure the power source connecting to input cable is working
alright.
3. Make sure the input voltage is 3 phase.
Meter is normal, fan is
working, no welding output.
1. Check if all kinds of components of machine are poor contact.
2. Check if connector of output terminal is broken or damaged.
3. Check if the control board is damaged (contact with the supplier or
manufacturer).
Abnormal indicator is on, fan
is working, meter is normal
1. IGBT is damaged.
2. Rectifier of quick recovery is damaged.
3. Control board is broken.
4. The feedback circuit is in fault. Please contact with the supplier or
manufacturer.
Too much spatter during
MMA welding
Output terminal polarity connection is wrong. So please change the
polarity.
Erratic welding output current
or out of control of
potentiometer.
1. The potentiometer is damaged.
2. All kinds of connectors are poor contact, especially plugs. Check
them.
Power switch doesn’t work
1. Power switch is broken.
2. Three phase rectifier bridge is broken, replace it.
3. Check if there is any short circuit of inner-machine.
