1. Overview
The Ring Pure Sine Wave (PSW) inverter provides a 230V supply which closely replicates the domestic
mains supply. This makes it ideal for powering more sensitive equipment which may not be compatible
with traditional Modified Sine Wave (MSW) inverters.
2. Contents
3. Optional Parts
4. Features

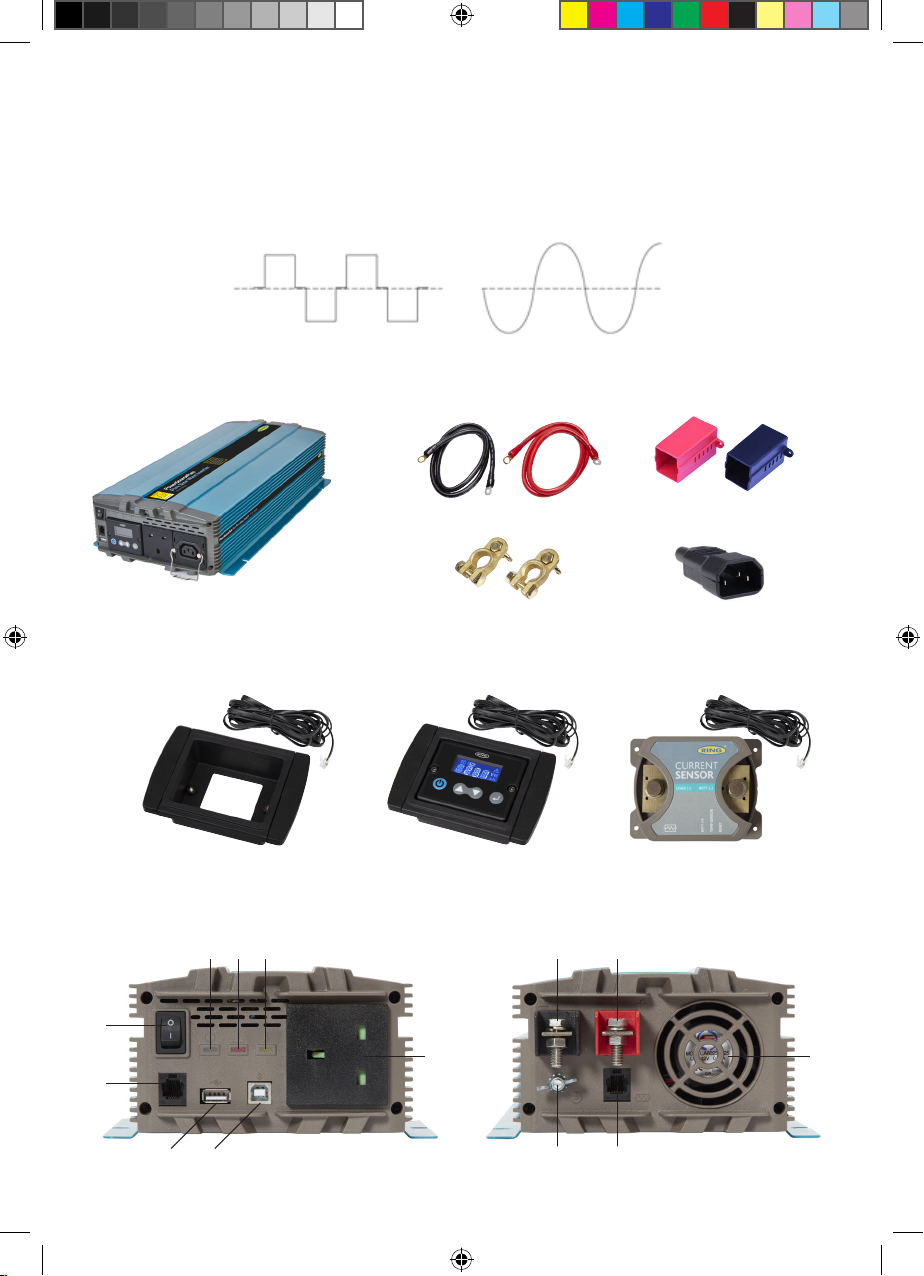

Pure Sine Wave (PSW)Modified Sine Wave (MSW)
Inverter
RINVFRM LCD Frame kit RINVLCD LCD Display & Frame kit RINVCM Current Sensor kit
Connecting cables
Battery clamps IEC Mains plug
600W Model
B
F
J
N
D
H
L
C
K
O
E
I
M
Protective covers
(1000, 2000, 3000W models only)
12065 Pure Sine Inverter RCD UK Instructions Update.indd 2 18/09/2019 12:30

5. Safety
This manual contains important information about the operation of this product. Failure to comply with
the instructions can cause electric shock, fire or serious injury. Responsibility will not be accepted for
damage to persons or property caused by failure to follow the operating instructions.
- Installation should be carried out by a qualified electrician
- Do not expose the unit to moisture or flammable materials
- Do not remove the unit cover, dangerous voltages are present
6. Installation & Setup
Location
This inverter is for indoor use only and should be installed in a well ventilated, cool, dry environment.
- To prevent overheating, do not install where ventilation openings may be obstructed
- Allow 10cm all around the inverter casing to ensure adequate ventilation
- Do not install near fuel tanks or within battery compartments
Battery Connections
Connect the inverter to the battery using the supplied battery cables and terminals.
1. Ensure that the inverter power on/off switch is in the OFF (O) position.
2. To protect inverter terminals against short circuit, protective covers should be fitted where provided.
3. Attach the black (-) cable to the black (-) terminal on the rear face of the inverter and to the black (-)
terminal on the battery
4. Attach the red (+) cable to the red (+) terminal on the rear face of the inverter and to the red (+)
terminal on the battery
5. To further protect against short circuit, it is recommended an in-line fuse (F1) be fitted near the
positive battery post.

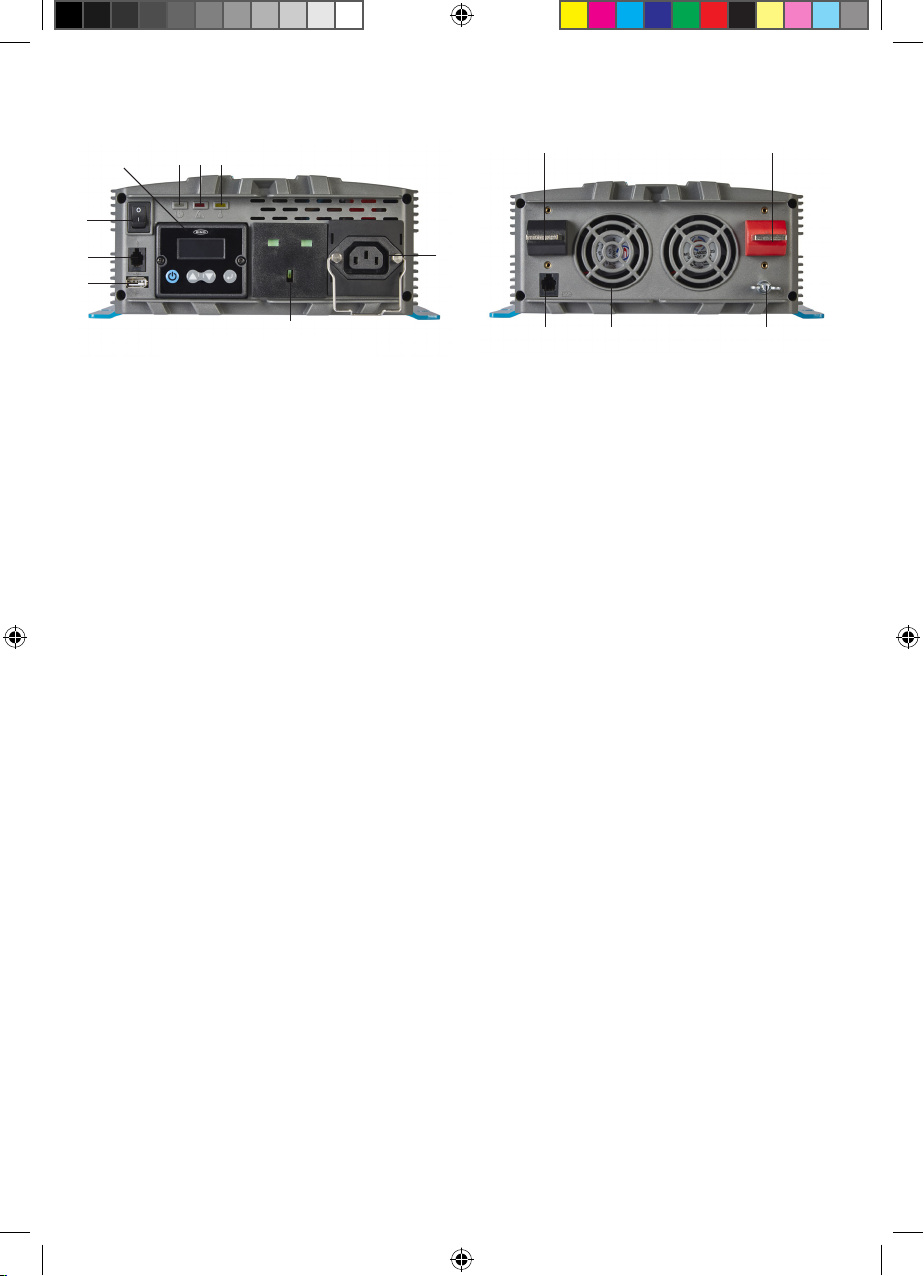

B- Mains 230V AC outlet(s) G- LCD display* L- Battery positive(+)
C- Power on/off switch H- Comms port (RJ-11) M- Battery negative(-)
D- Power indicator I- USB port (2.1A) N- Earth connection
E- Over load indicator J- Display port (RJ-11)** O- Cooling fan(s)
F- Over temperature indicator K- Sensor port (RJ-11) P- IEC320 Mains outlet(s)*
*Only fitted on 1000/2000W models
**Display port is behind LCD display on 1000/2000/3000W models
1000/2000 Models
P
B
H
L
K O N
I
M
FD
GE
C
12065 Pure Sine Inverter RCD UK Instructions Update.indd 3 18/09/2019 12:30

CAUTION
There may be sparks produced when making battery connections, ensure no
flammable materials are present. Incorrect connection of cables to the battery
(reverse polarity) may damage the unit and is not covered by the warranty.
Dual Battery System
For heavy duty applications a secondary battery can be fitted to increase the inverter running time. An
additional relay may also be fitted to allow this battery to be charged from the vehicle alternator when the
vehicle engine is running, Fig2 shows an example installation.
Earth Connection
Ensure the inverter is earthed by connecting a cable from the inverter earthing bolt Nto a suitable earth
within the installation (normally the vehicle chassis).
Single Battery System

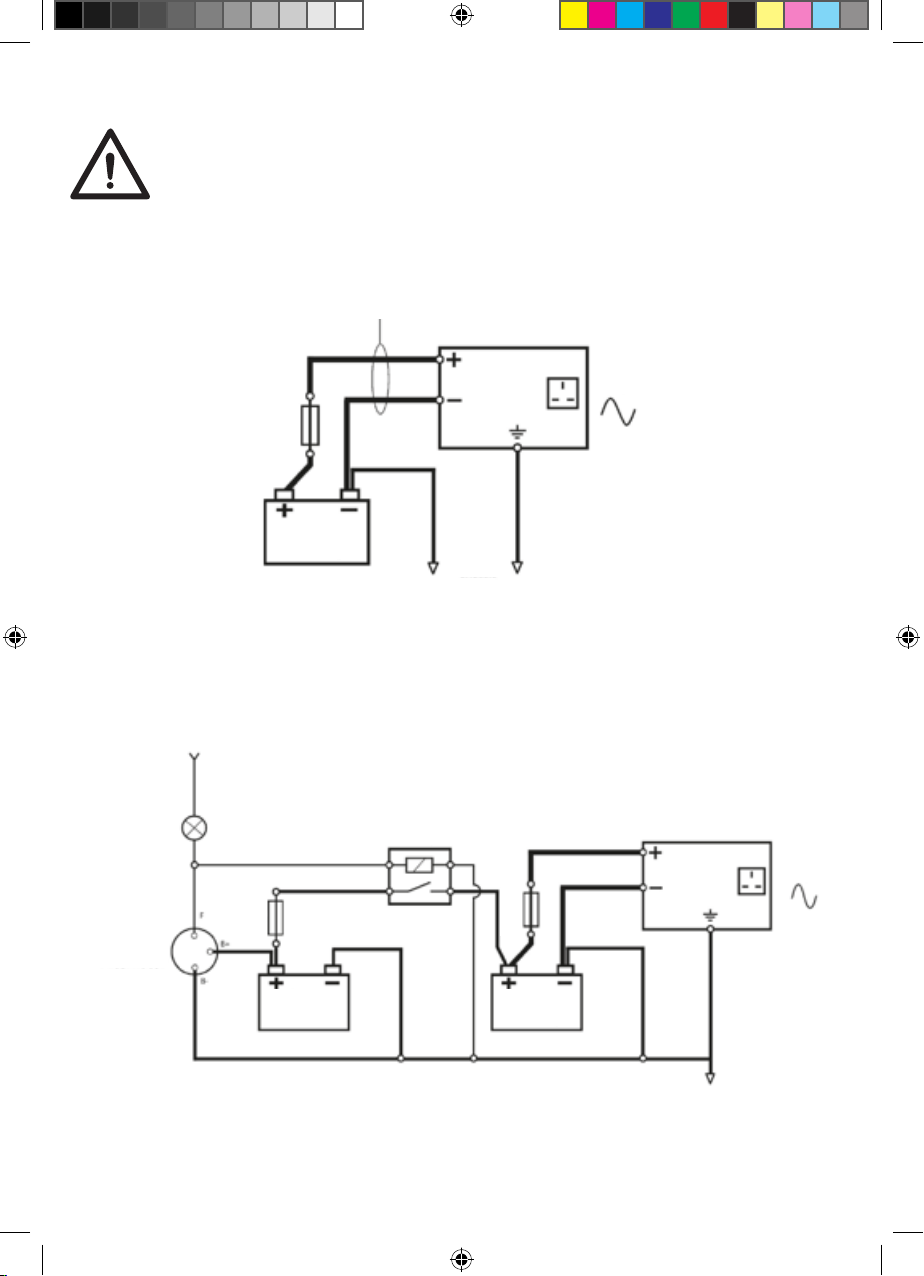

Fig1 – Example single battery system
Supplied
cables
AC
F1
Inverter
Inverter
Battery Vehicle
Chassis
Fig2 – Example dual battery system
F1
F2
AC
Inverter
Inverter
Battery
Vehicle
Battery
Vehicle
Alternator
Vehicle
Chassis
Relay
from ignition
switch
ignition lamp
12065 Pure Sine Inverter RCD UK Instructions Update.indd 4 18/09/2019 12:30

CAUTION
Do not operate the inverter without connecting it to ground, otherwise a fault
condition may present an electric shock hazard.
CAUTION
It is recommended the inverter is wired and tested by a qualified electrician
IEC Outlet Connections
When mounting 230V sockets remotely from the inverter, one IEC outlet socket is provided.

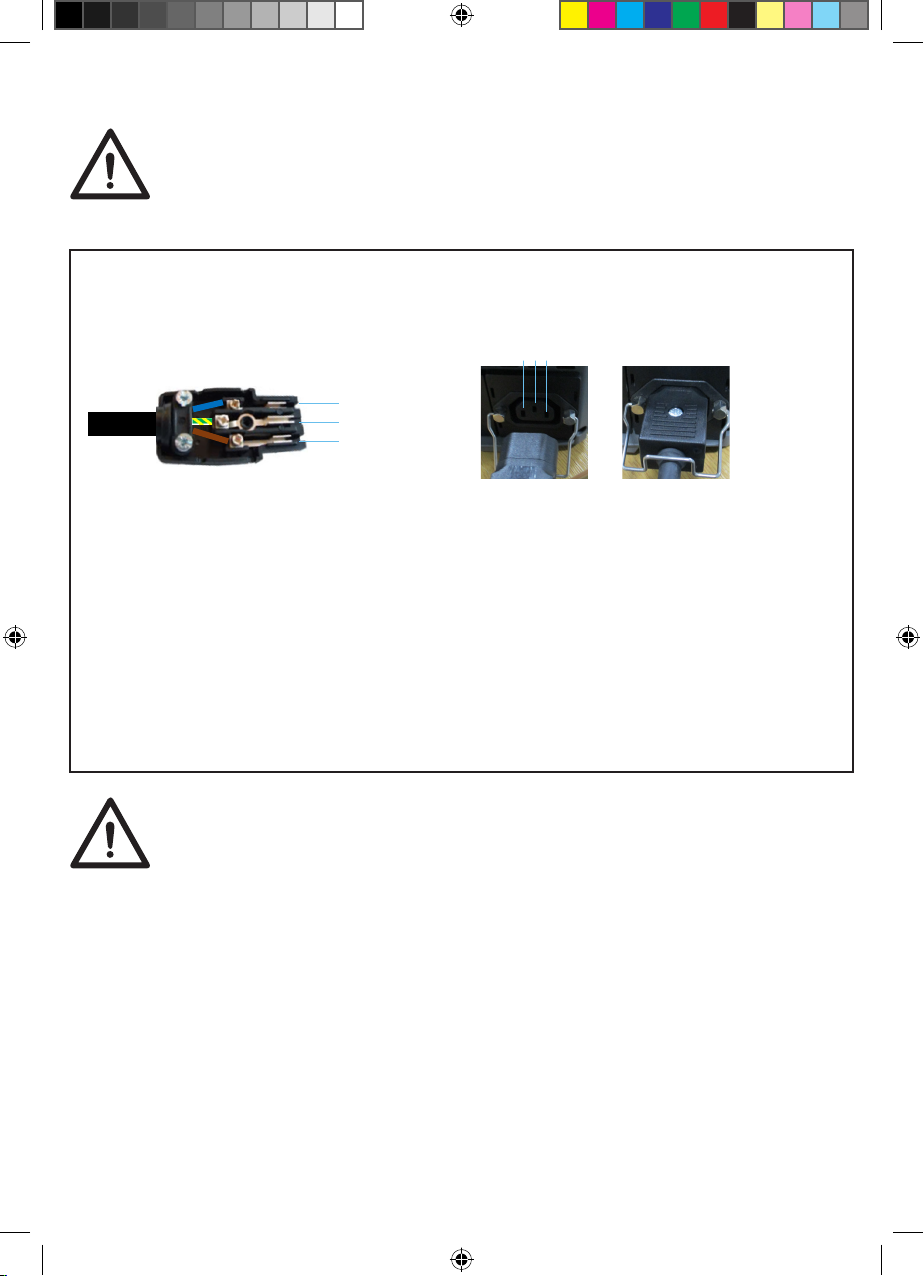

After fitting the provided IEC plug to cabling, ensure the retaining clips are in place, to avoid
disconnection due to vibration.
Earth Leakage Protection
To provide protection in the event of a fault, the 230V outlets on this inverter are protected by an
integral Residual Current Device (RCD). Should a fault occur the inverter will switch off to protect all
connected circuits and display an error code.
Note: The RCD function must be tested at least every three months to ensure it trips correctly,
this can be done in two ways:-
i) Enter Setup Mode > RCD > Press key
ii) From Information Mode, press and hold or key for 3 seconds
If the RCD function is OK, the inverter will trip and PASS will be displayed.
If RCD does not trip correctly FAI L will be displayed, if this happens the inverter should not be used
until it has been checked by a qualified electrician.
Remote Mounting LCD Display (1000/2000/3000W Models)
For installations where the inverter may be inaccessible, the LCD display can be removed from the
inverter and mounted remotely using the optional LCD Frame Kit (RINVFRM)
1. Ensure that the inverter power on/off switch is in the OFF (0) position.
2. Remove 2 x screws holding LCD in position
3. Pull LCD forwards and unclip data connector from circuit board
4. Connect 6 metre extension lead to circuit board
5. Fit blanking plate and fix with 2 x screws, a slot is provided for cable to exit
6. Fix LCD into mounting frame using 2 x screws
7. Fit frame where display is required and attach 6 metre cable to rear
8. Snap fit endplates to cover screw fixings
9. Turn the power on/off switch to the ON (I) position.
10. Inverter can now be controlled remotely from the LCD display
Live
N E L
Earth
Neutral
12065 Pure Sine Inverter RCD UK Instructions Update.indd 5 18/09/2019 12:30

Adding an LCD Display (600W Model)
An LCD display can also be added to models without this function by using the optional LCD Display &
Frame Kit (RINVLCD)
1. Connect 6 metre extension lead to display port Jon inverter
2. Fit frame where display is required and attach 6 metre cable to rear
3. Snap fit endplates to cover screw fixings
4. Turn the power on/off switch to the ON (I) position.
5. Inverter can now be controlled remotely from the LCD display
1. Using black battery cable supplied with inverter, attach one end to battery(-) terminal and other
end to batt(-) terminal on Current Sensor
2. Using red battery cable supplied with inverter, attach one end to battery(+) terminal and other
end to inverter(+) terminal
3. Now connect cables 1-4 (supplied with current sensor) as shown in Fig4
1- Load(-) cable, negative connection from inverter to sensor
Use 1x4AWG cable for 600/1000W models
Use 2x2AWG cable for 2000/3000W models
2- Comms cable, data connection from sensor port Kon inverter to current sensor
3- +12V Power cable, 12V power supply to sensor
4- Temperature sensor cable, temperature compensation for a more accurate current reading
Current Sensor Installation (optional)
To enable monitoring of the input current and hours remaining function, the optional current sensor
(RINVCM) should be fitted as shown in Fig4
Cables provided
with inverter
1. Load (–) cable
4. Temperature sensor cable
2. Comms cable
3. +12V Power cable
Fuse

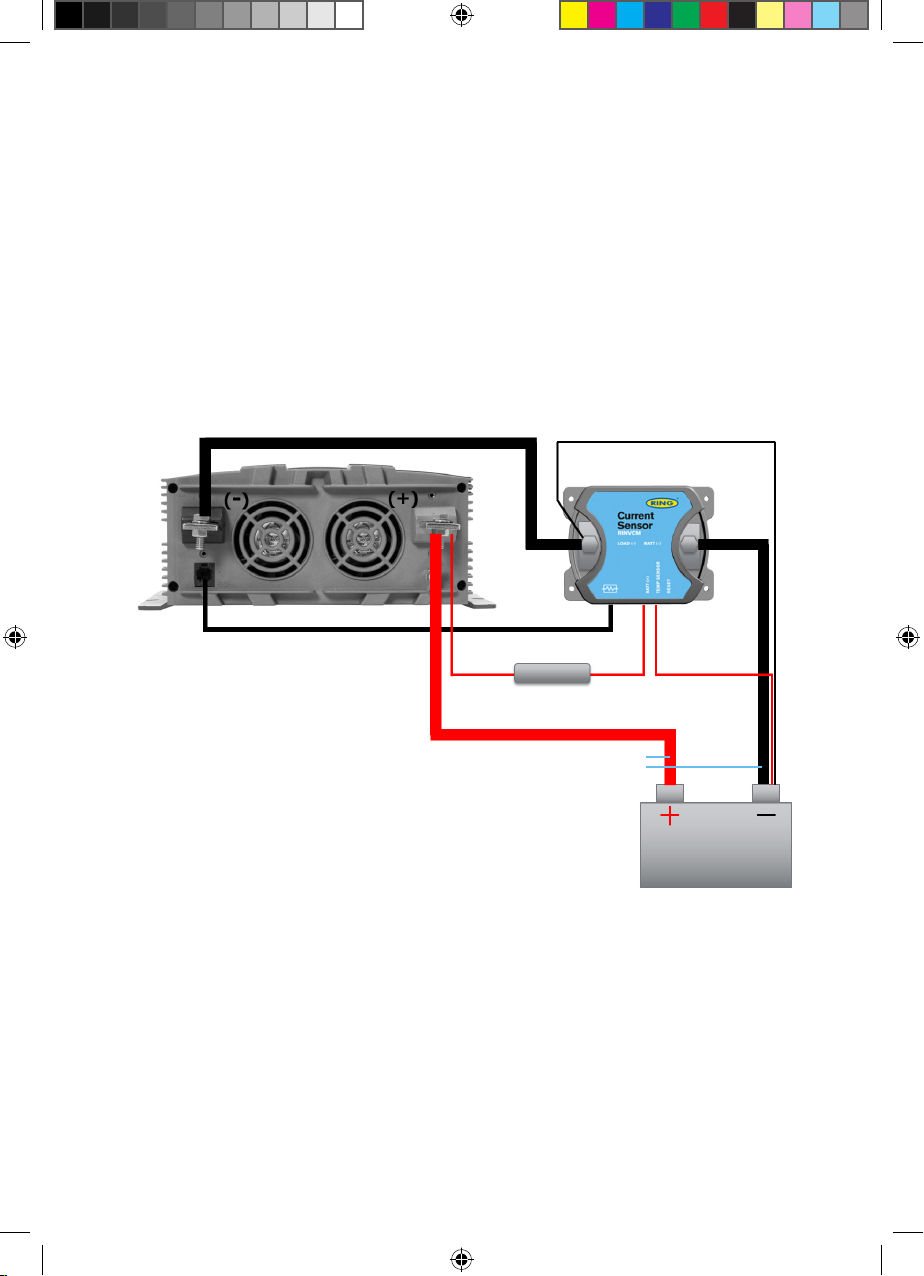

Fig4 – Current sensor installation
12065 Pure Sine Inverter RCD UK Instructions Update.indd 6 18/09/2019 12:30

LCD display
Select key
(Press and hold to enter
Setup Mode)
Down key
(Press and hold to test RCD)
Up key
Power On/Off
(Press and hold to turn
inverter on/off)
7. General Information
Continuous & Surge Power
A Continuous rating is the amount of power the inverter can handle for a number of hours without
overloading. The Surge rating is a brief burst of power the inverter can provide to help start certain types
of load.
Loads Requiring Surge Power
The power rating shown on most electrical appliances is a continuous rating but some appliances require
up to five times this power for a brief period in order to start operating. This needs to be considered
when rating the inverter to avoid overloading it.
When using a microwave oven it should also be noted that the electrical power required from the supply
is around 50% higher than the actual cooking power of the microwave.
Typical Typical Surge
Example Appliance Rated Power Power Required (<1 sec)
Electric Drill 500W 1000W
800W Microwave Oven 1200W 2400W
Angle Grinder 900W 2700W
Portable Air Compressor 200W 700W
Laser Printer 500W 2500W
8. Operation
Switching On
1. Ensure that the inverter power on/off switch is in the OFF (0) position.
2. Plug the appliance into the AC output socket on the inverter, ensuring it does not exceed the
maximum output power of the inverter
3. Turn the power on/off switch to the ON (I) position.
4. The Power indicator will illuminate green and mains power will be available from the AC output
socket(s). On models fitted with a display the LCD screen will also illuminate.
9. LCD Display & Indicators
Where fitted the LCD display provides additional information to help monitor and manage power from
the inverter.
12065 Pure Sine Inverter RCD UK Instructions Update.indd 7 18/09/2019 12:30

Information Mode
Various information modes are available by pressing  buttons to move forward or backwards through
the screens.
DC Voltage Input voltage available from the battery supply.
DC Current Input current being used from the battery supply in order to power the load.
*The optional Current Sensor must be fitted to enable measurement of
input current.
AC Voltage Output voltage available from the AC outlets.
Output Wattage Output power being consumed by the connected loads.
Hours Remaining An estimate of time remaining before the battery will be depleted based on
the current load.
*The optional Current Sensor must be fitted to enable measurement of
hours remaining.

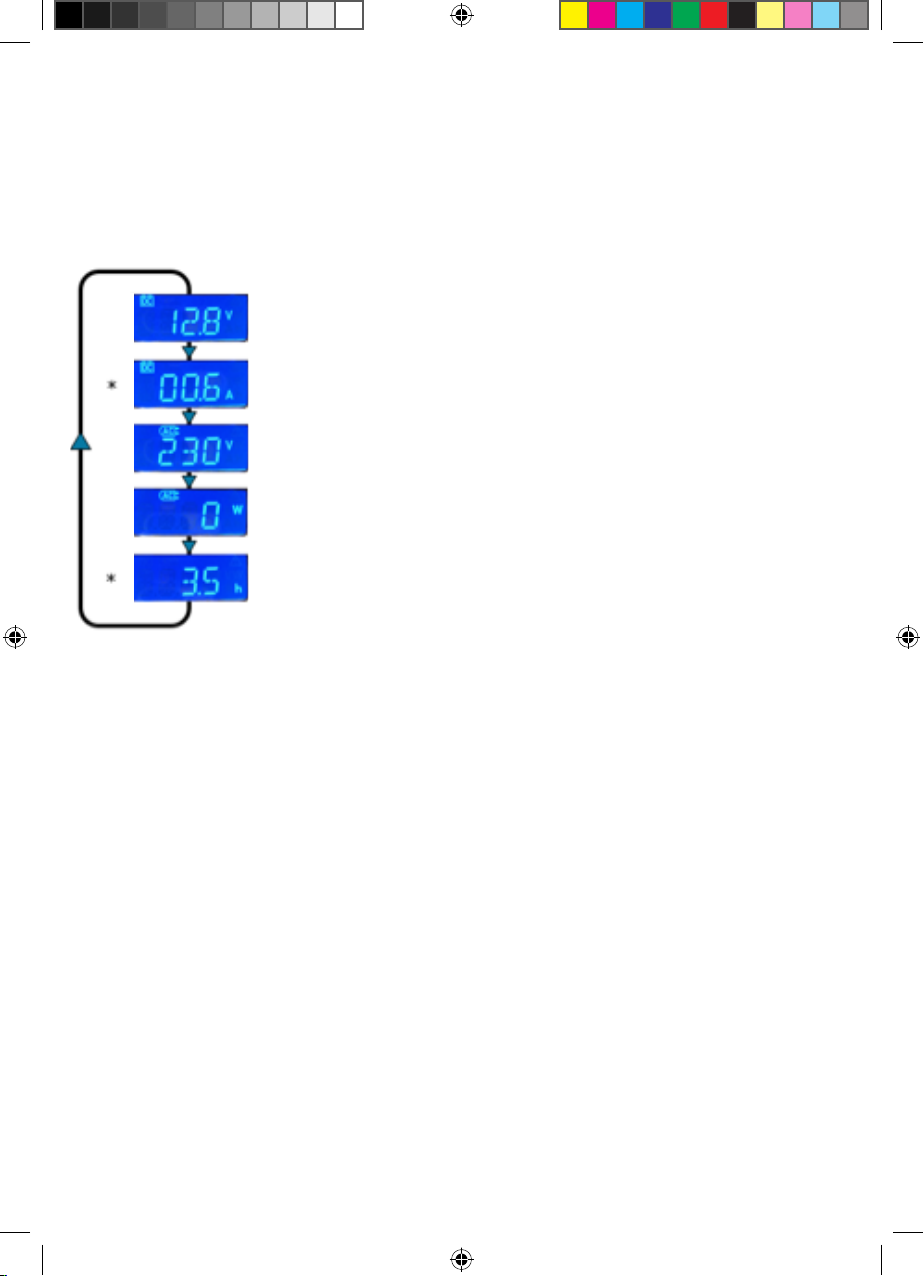

DC Voltage
DC Current
AC Voltage
Output Wattage
Hours Remaining
12065 Pure Sine Inverter RCD UK Instructions Update.indd 8 18/09/2019 12:30

Setup Mode
The inverter can be configured by entering the setup mode
To enter Setup Mode press & hold  key
Press  keys to select item then press  , chosen setting will then flash
Adjust setting using  then press  to set
Press and hold  key to exit back to Information Mode
Output Voltage Sets the AC output voltage. Only change if the application requires a different
voltage for optimum performance
RCD Test Tests the earth leakage protection function is working correctly. This test should
be carried out at least every three months
Last Error Code Allows the last error code to be viewed
Battery Size Sets the Ah rating of the battery supplying the inverter. The value is used when
calculating input current and hours remaining in conjunction with the Current
Sensor
Power Saving Mode If the inverter does not detect a load for 10 minutes it will enter a sleep mode to
reduce drain on the battery. In this mode the power indicator will flash green
Low Voltage Cut-Off Sets the voltage at which the inverter will switch off should the input voltage
become too low
Output Frequency Sets the output frequency of the inverter. Only change if the application requires a
different frequency for optimum performance

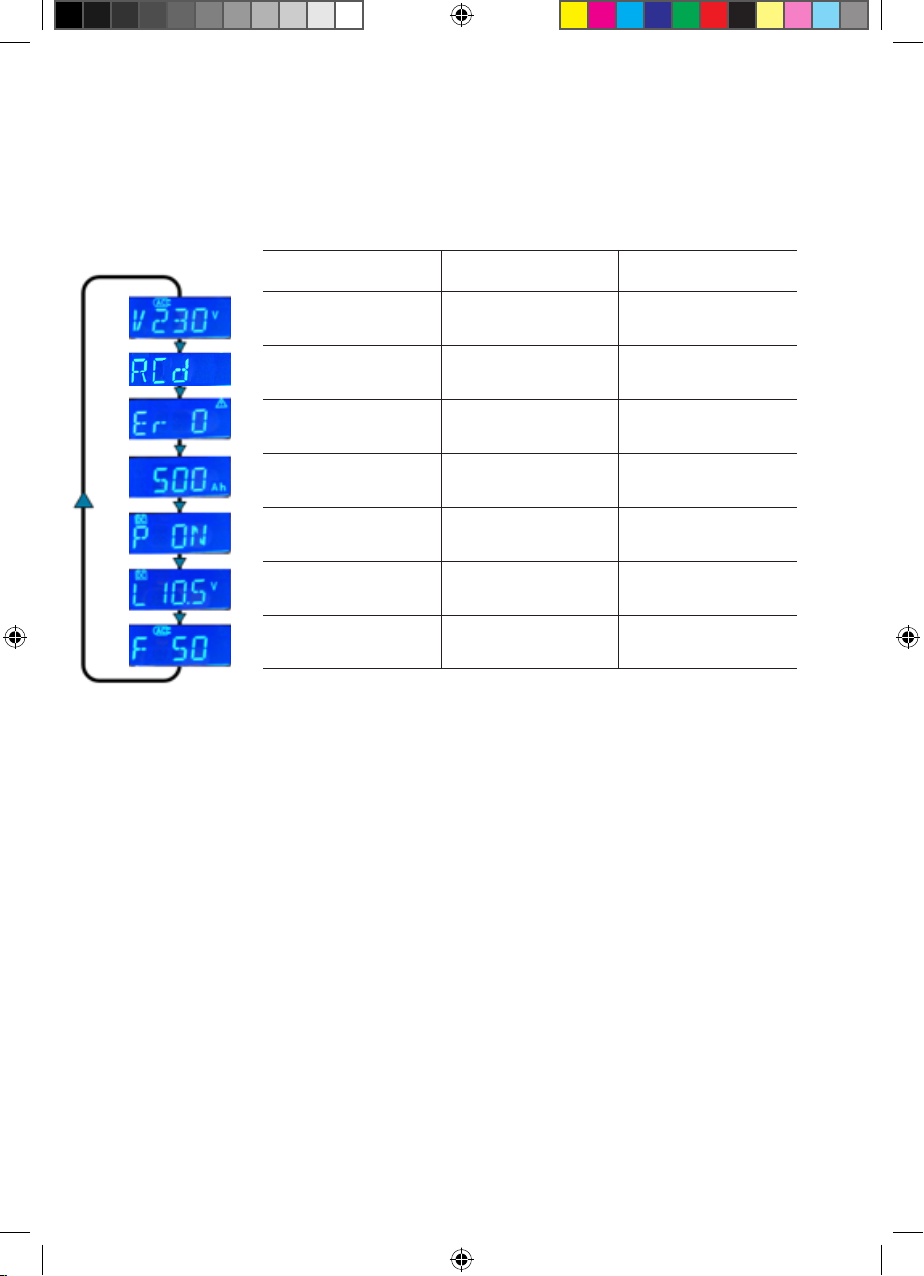

Setting Default
Output Voltage 200/220/230/240V 230V
RCD Test N/A N/A
Last Error Code N/A N/A
Battery Size 90 – 540Ah
(in 30Ah steps) 90Ah
Power Saving Mode ON/OFF ON
Low Voltage Cut-off 9-5 – 11.0V
(in 0.5V steps) 10.0V
Output Frequency 50/60Hz 50Hz
12065 Pure Sine Inverter RCD UK Instructions Update.indd 9 18/09/2019 12:30

Indicator & Error modes
Power Illuminates green to show the unit is switched on and power is available from
the AC output socket(s)
Overload Illuminates red if the units has been overloaded due to excessive current or a
short circuit
Over Temperature Illuminates yellow if the unit has overheated
Audible Alarm An alarm sound will be heard if the unit has switched off due to a fault
Error code Description LEDs Inverter
Status Action
– Normal operation ON None
Battery low voltage
warning ON
Check for low battery voltage
Check cable connections are
not loose
Reduce load to extend
battery life
Battery low voltage
shutdown OFF Switch inverter off, recharge battery then switch back on
Battery high voltage
shutdown OFF
Check battery voltage is
correct for inverter model e.g.
24volt battery for a 24volt
inverter
Overload shutdown OFF
Total load exceeded
continuous rating
Startup current exceeded
surge rating
Appliance short circuit fault
Over temperature
shutdown OFF
Check for adequate
ventilation around inverter
Check inverter cooling fans
are working
RCD tripped OFF
Earth fault detected, switch
inverter off and check all
appliances and wiring before
switching back on
– Power saving mode SLEEP None
12065 Pure Sine Inverter RCD UK Instructions Update.indd 10 18/09/2019 12:30
