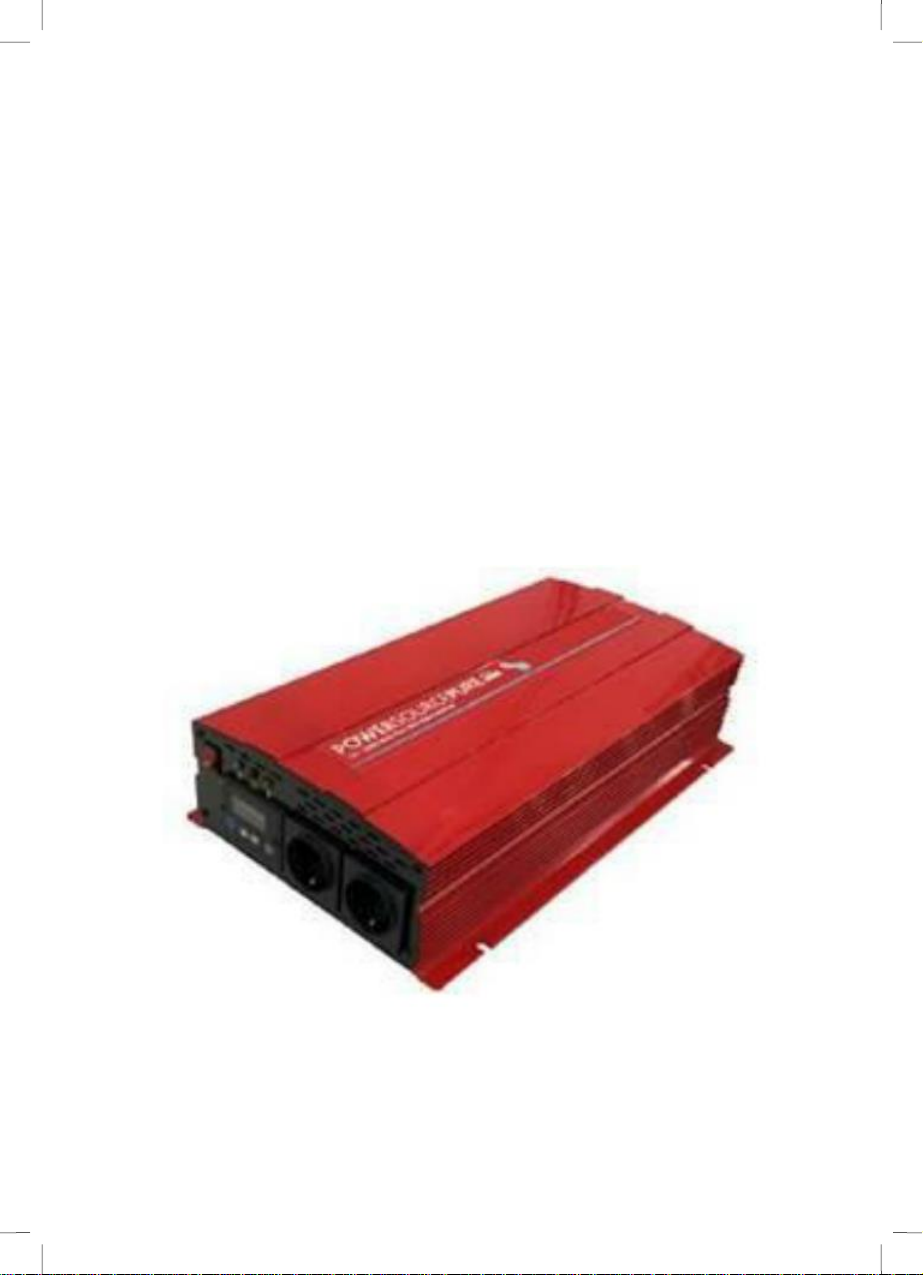

ring PSW-600 User manual

Pure Sine Wave Inverter
12V: PSW-600 /PSW-1000/PSW-2000 /PSW-3000
24V: PSW-1000 / PSW-2000
Instructions
Retain these instructions for future reference

1. Overview
The Pure Sine Wave (PSW) inverter provides a 230V supply which closely replicates the domestic
mains supply. This makes it ideal for powering more sensitive equipment which may not be compatible
with traditional Modified Sine Wave (MSW) inverters.
Pure Sine Wave (PSW)
2. Contents
Protective covers
(1000, 2000, 3000W models only)
3. Optional Parts
PSWLCD Frame kit PSWLCD LCD Display&Frame kit PSW Current Sensor kit
For 1000~2500W For 600W For 600~2500W

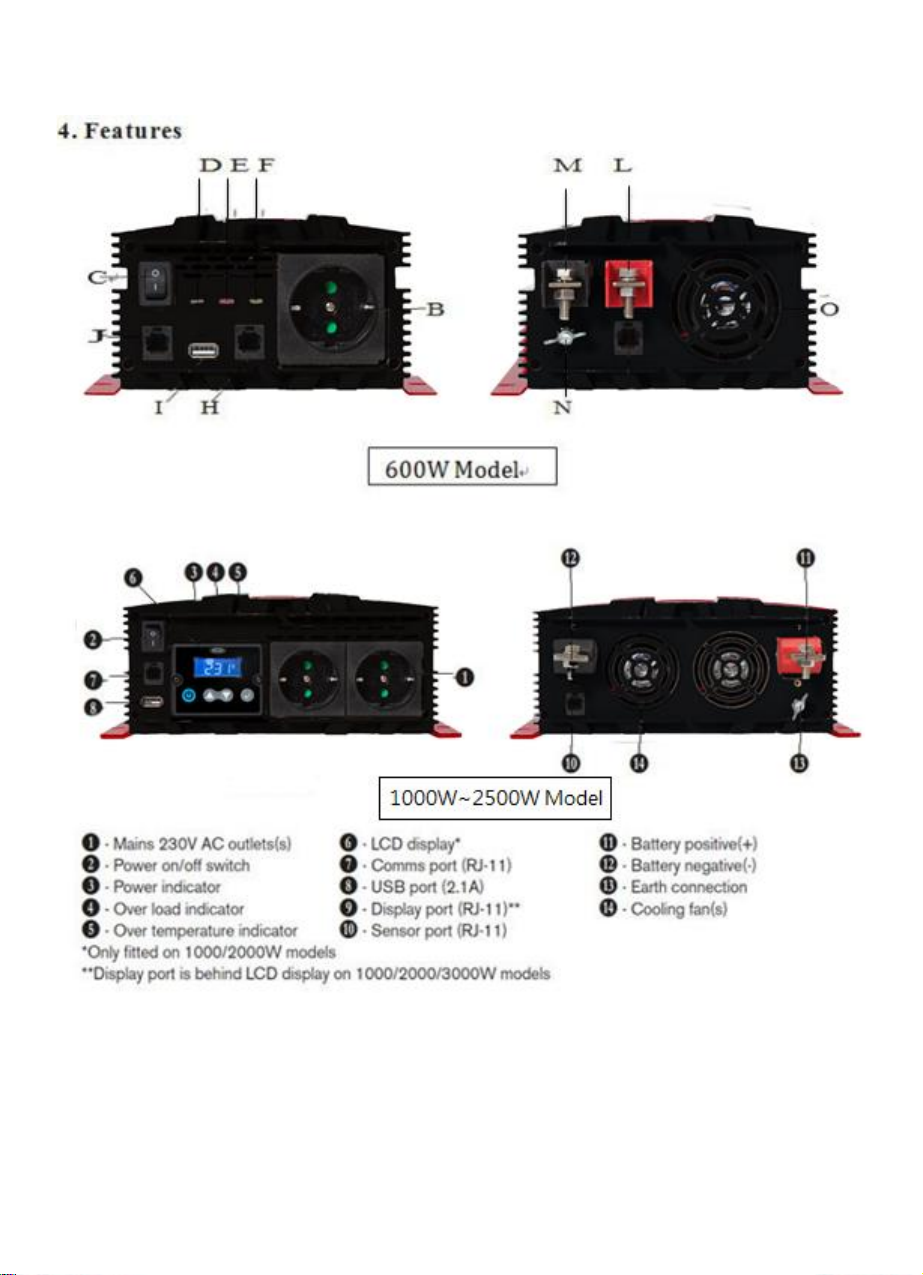

CAUTION
There may be sparks produced when making battery connections, ensure no
flammable materials are present. Incorrect connection of cables to the battery (reverse
polarity) may damage the unit and is not covered by the warranty.
Single Battery System
Supplied
cables
Inverter AC
Inverter
Battery Vehicle
Chassis
Fig1 –Example single battery system
Dual Battery System
For heavy duty applications a secondary battery can be fitted to increase the inverter running time. An
additional relay may also be fitted to allow this battery to be charged from the vehicle alternator when the
vehicle engine is running, Fig2 shows an example installation.
from ignition
switch
ignition lamp Relay
Inverter AC
Vehicle
Alternator
Vehicle
Battery Inverter Battery
Fig2 –Example dual battery system
Vehicle
Chassis
Earth Connection
Ensure the inverter is earthed by connecting a cable from the inverter earthing bolt Nto a suitable earth
within the installation (normally the vehicle chassis).
5
F1
F1
F2

Fig3 –Example RCD installation
CAUTION
It is recommended the inverter is wired and tested by a qualified electrician
Remote Mounting LCD Display (1000/2000/3000W Models)
For installations where the inverter may be inaccessible, the LCD display can be removed from the
inverter and mounted remotely using the optional LCD Frame Kit (WINVFRM)
1. Ensure that the inverter power on/off switch is in the OFF (0) position.
2. Remove 2 x screws holding LCD in position
3. Pull LCD forwards and unclip data connector from circuit board
4. Connect 6 metre extension lead to circuit board
5. Fit blanking plate and fix with 2 x screws, a slot is provided for cable to exit
6. Fix LCD into mounting frame using 2 x screws
7. Fit frame where display is required and attach 6 metre cable to rear
8. Snap fit endplates to cover screw fixings
9. Turn the power on/off switch to the ON (I) position.
10. Inverter can now be controlled remotely from the LCD display
6
2

Adding an LCD Display (600W Model)
An LCD display can also be added to models without this function by using the optional LCD Display &
Frame Kit (WINVLCD)
1. Connect 6 metre extension lead to display port Jon inverter
2. Fit frame where display is required and attach 6 metre cable to rear
3. Snap fit endplates to cover screw fixings
4. Turn the power on/off switch to the ON (I) position.
5. Inverter can now be controlled remotely from the LCD display

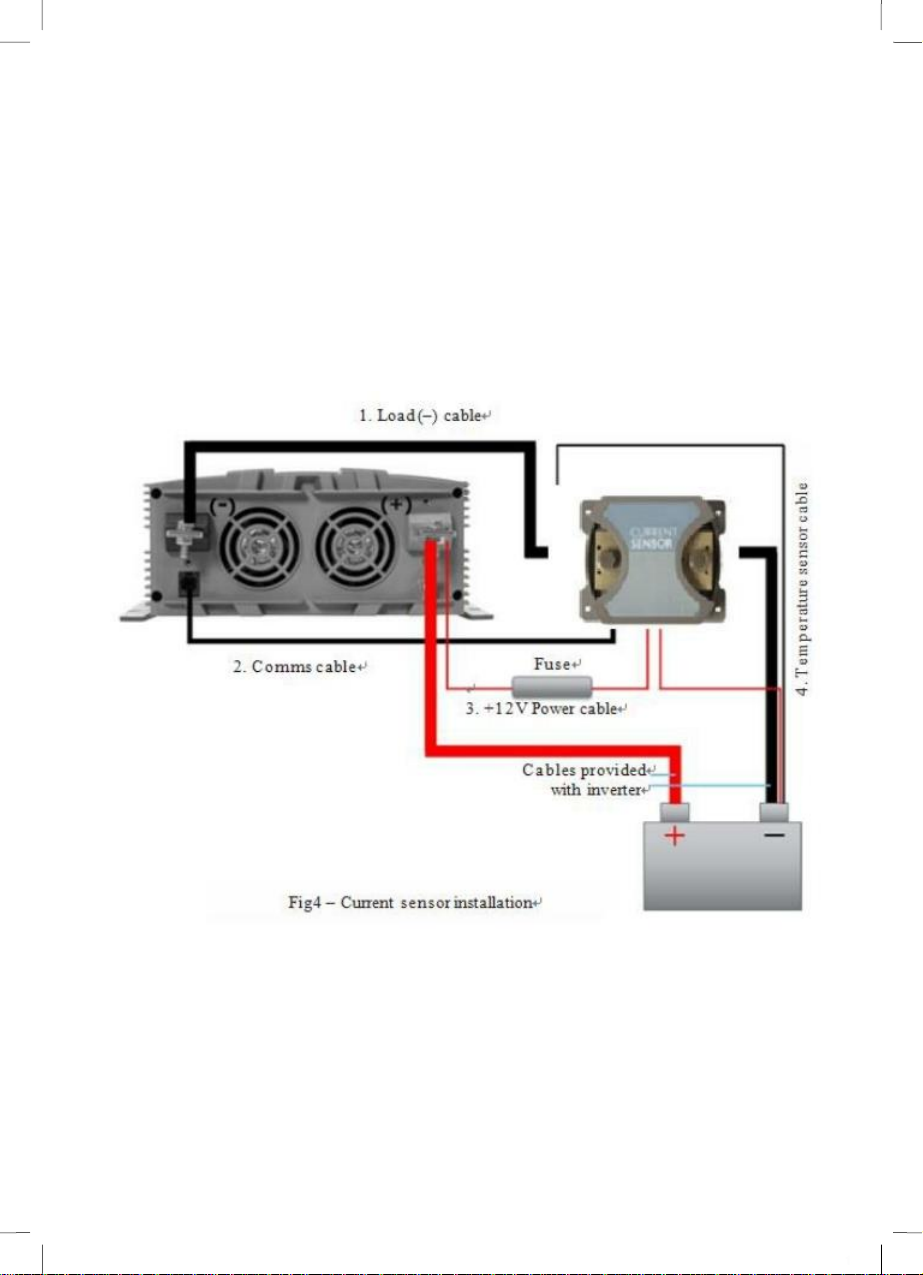

Current Sensor Installation (optional)
To enable monitoring of the input current and hours remaining function, the optional current sensor
(WINVCM) should be fitted as shown in Fig4
1. Using black battery cable supplied with inverter, attach one end to battery(-) terminal and other
end to batt(-) terminal on Current Sensor
2. Using red battery cable supplied with inverter, attach one end to battery(+) terminal and other
end to inverter(+) terminal
3. Now connect cables 1-4 (supplied with current sensor) as shown in Fig4
1- Load(-) cable, negative connection from inverter to sensor
Use 1x4AWG cable for 600/1000W models
Use 2x2AWG cable for 2000/3000W models
2 - Comms cable, data connection from sensor port Kon inverter to current sensor
3- +12V Power cable, 12V power supply to sensor
4- Temperature sensor cable, temperature compensation for a more accurate current reading

5. General Information
Continuous & Surge Power
A Continuous rating is the amount of power the inverter can handle for a number of hours without
overloading. The Surge rating is a brief burst of power the inverter can provide to help start certain types
of load.
Loads Requiring Surge Power
The power rating shown on most electrical appliances is a continuous rating but some appliances require
up to five times this power for a brief period in order to start operating. This needs to be considered
when rating the inverter to avoid overloading it.
When using a microwave oven it should also be noted that the electrical power required from the supply
is around 50% higher than the actual cooking power of the microwave.
Typical Typical Surge
Example Appliance Rated Power Power Required (<1 sec)
Electric Drill 500W 1000W
800W Microwave Oven 1200W 2400W
Angle Grinder 900W 2700W
Portable Air Compressor 200W 700W
Laser Printer 500W 2500W
6. Operation
Switching On
1. Ensure that the inverter power on/off switch is in the OFF (0) position.
2. Plug the appliance into the AC output socket on the inverter, ensuring it does not exceed the
maximum output power of the inverter
3. Turn the power on/off switch to the ON (I) position.
4. The Power indicator will illuminate green and mains power will be available from the AC output
socket(s). On models fitted with a display the LCD screen will also illuminate.
7. LCD Display & Indicators
Where fitted the LCD display provides additional information to help monitor and manage power from
the inverter.
LCD display
Power On/Off
(Press and hold to turn
inverter on/off)
Select key
Up/down keys
5

Information Mode
Various information modes are available by pressing buttons to move forward or backwards through
the screens.
DC Voltage
DCCurrent
AC Voltage
Output Wattage
Hours Remaining
DC Voltage Input voltage available from the battery supply.
DC Current Input current being used from the battery supply in order to power the load.
*The optional Current Sensor must be fitted to enable measurement of
input current.
AC Voltage Output voltage available from the AC outlets.
Output Wattage Output power being consumed by the connected loads.
Hours Remaining An estimate of time remaining before the battery will be depleted based on
the current load.
*The optional Current Sensor must be fitted to enable measurement of
hours remaining.

Setup Mode
The inverter can be configured by entering the setup mode
To enter Setup Mode press & hold key
Press  keys to select item then press , chosen setting will then flash
Adjust setting using  then press to set
Press and hold key to exit back to Information Mode
Output Voltage Sets the AC output voltage. Only change if the application requires a different
voltage for optimum performance
Last Error Code Allows the last error code to be viewed
Battery Size Sets the Ah rating of the battery supplying the inverter. The value is used when
calculating input current and hours remaining in conjunction with the Current
Sensor
Power Saving Mode If the inverter does not detect a load for 10 minutes it will enter a sleep mode to
reduce drain on the battery. In this mode the power indicator will flash green
Low Voltage Cut-Off Sets the voltage at which the inverter will switch off should the input voltage
become too low
Output Frequency Sets the output frequency of the inverter. Only change if the application requires a
different frequency for optimum performance
2
Setting Default
Output Voltage 200/220/230/240V 230V
Last Error Code N/A N/A
Battery Size 90 –540Ah
(in 30Ah steps) 90Ah
Power Saving Mode ON/OFF ON
Low Voltage Cut-off 9-5 –11.0V
(in 0.5V steps) 10.0V
Output Frequency 50/60Hz 50Hz

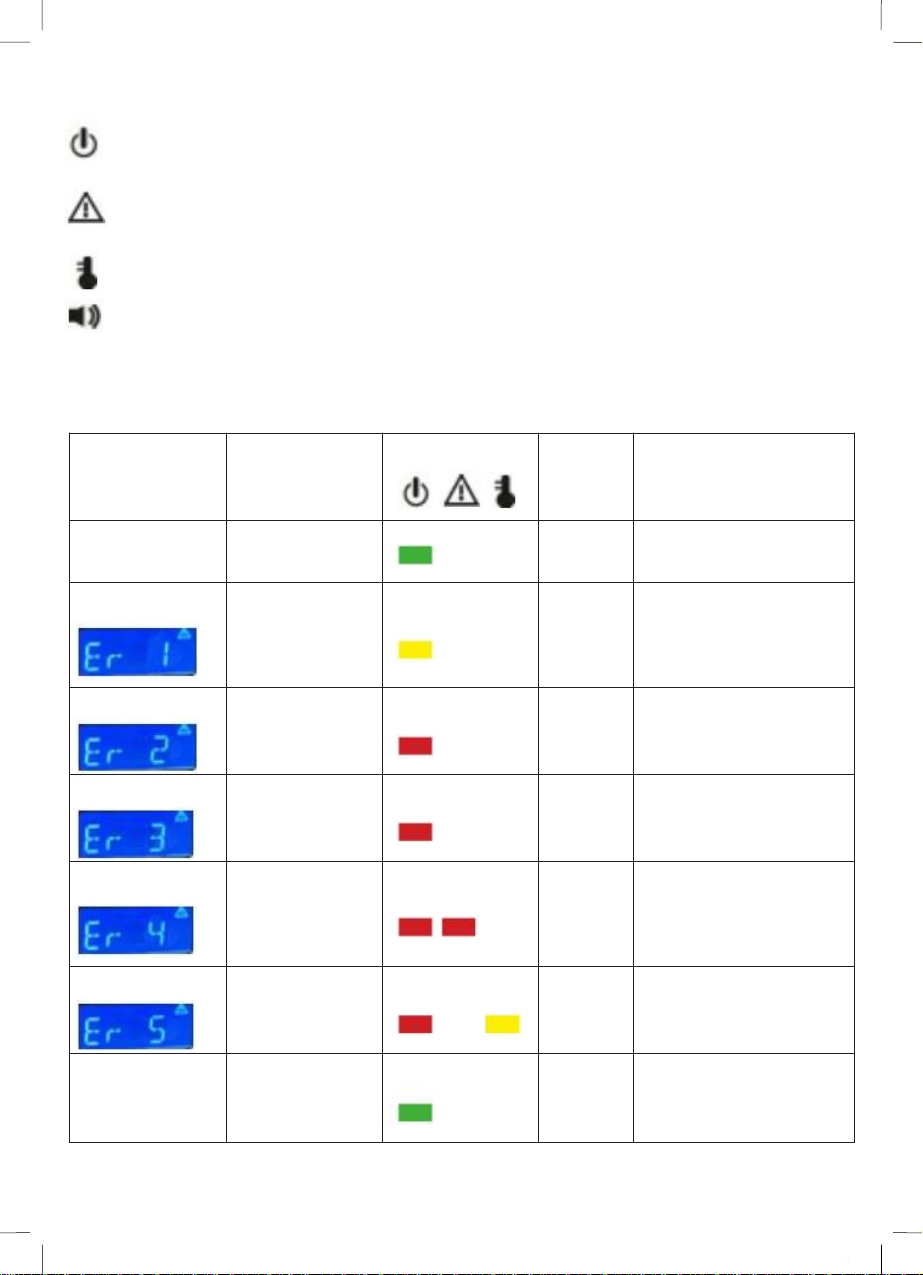

Indicator & Error modes
Power Illuminates green to show the unit is switched on and power is available from
the AC output socket(s)
Overload Illuminates red if the units has been overloaded due to excessive current or a
short circuit
Over Temperature Illuminates yellow if the unit has overheated
Audible Alarm An alarm sound will be heard if the unit has switched off due to a fault
12
Error code Description LEDs Inverter
Status Action
–Normal operation ON None
Battery low voltage
warning ON
Check for low battery voltage
Check cable connections are not
loose
Reduce load to extend
battery life
Battery low voltage
shutdown OFF Switch inverter off, recharge battery then switch back on
Battery high voltage
shutdown OFF
Check battery voltage is
correct for inverter model e.g.
24volt battery for a 24volt
inverter
Overload shutdown OFF
Total load exceeded
continuous rating
Startup current exceeded
surge rating
Appliance short circuit fault
Over temperature
shutdown OFF
Check for adequate
ventilation around inverter Check
inverter cooling fans
are working
–Power saving mode SLEEP None

10. Specifications
2
Part No. PSW-600 PSW-1000 PSW-1000 PSW-2000 PSW-2000 PSW-3000
Voltage 12V 12V 24V 12V 24V 12V
Cont Power Rating
(up to 12 hrs) 600 watts 1000 watts 2000 watts 3000 watts
Peak Power Rating
(up to 200ms) 1200 watts 2000 watts 4000 watts 6000 watts
Output Voltage 200/220/230/240V
AC ±10% 200/220/230/240V AC ±10% 200/220/230/240V AC ±10% 200/220/230/240V AC ±10%
Output Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Output Waveform Pure Sine Wave Pure Sine Wave Pure Sine Wave Pure Sine Wave
Input Voltage Range 9.5V –16.5V
(12V nom) 9.5V –16.5V (12V nom) 19V –33V (24V nom) 9.5V –16.5V (12V nom) 19V –33V (24V nom) 9.5V –16.5V (12V nom)
Input Current 59amps (max) 98amps
(max) 49amps (max) 196amps (max) 98amps (max) 294amps (max)
Efficiency @ 75%
load 90% 90% 90% 90%
No Load Current < 1.5amp < 1.6amp < 1.1amp < 2.0amp 1.5amp < 3.0amp
Power Saving Mode Yes Yes Yes Yes
Power Saving Mode
Current < 0.2amp < 0.2amp < 0.2amp < 0.2amp
Low Battery Alarm 10.0V-11.5V
±0.5 volt 10.0V-11.5V ±0.5 volt 20.0V-23.0V ±0.5 volt 10.0V-11.5V ±0.5 volt 20.0V-23.0V ±0.5 volt 10.0V-11.5V ±0.5 volt
Low Battery Shutdown 9.5V-11.0V
±0.5 volt 9.5V-11.0V ±0.5 volt 19.0V-22.0V ±0.5 volt 9.5V-11.0V ±0.5 volt 19.0V-22.0V ±0.5 volt 9.5V-11.0V ±0.5 volt
Thermal Protection 60 ±10°C 60 ±10°C 60 ±10°C 60 ±10°C
USB Port 2.1amp 2.1amp 2.1amp 2.1amp
Display Panel Port Yes Yes Yes Yes
Current Sensor Port Yes Yes Yes Yes
Comms Port Yes Yes Yes Yes
Dimensions (LxWxH) 340 x 170 x 81.5mm 320 x 247 x 118.5mm 420 x 247 x 118.5mm 500 x 170 x 162mm
Weight 2.8kg 4.3kg 5.9kg 8.0kg
Optional Parts
LCD Display & Frame Kit PSWLCD N/A N/A N/A
LCD Frame Kit N/A PSWFRM PSWFRM PSWFRM
Current Sensor Module PSWCM PSWCM PSWCM PSWCM
