Rinnai Arriva 750 User manual

Arriva 750
Installation guide
Models: RHFE750ETRN/RHFE750ETRL

Appliance must be installed with a Rinnai approved flue
system.
This appliance shall be installed in accordance with:
- Manufacturer’s installation instructions
- AS/NZS 5601.1
- Local regulations and municipal building codes
Installation, servicing and repair shall be carried out only
by authorised personnel.
Warning
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, personal injury
or loss of life.
For more information about buying, using, and servicing
of Rinnai appliances call: 0800 RINNAI (0800 746 624).
Rinnai New Zealand Limited
105 Pavilion Drive, Mangere, Auckland
PO Box 53177, Auckland Airport, Auckland 2150
Phone: [phone]
Email: [email protected].nz
Important:

cnt:
Specification.................................................... 4
Clearances....................................................... 5
Location .......................................................... 6
Gas connection ............................................... 7
Flueing options................................................ 8
Flueing guidelines ........................................... 9
Arriva flue components................................... 10
Flue transition.................................................. 12
Installation....................................................... 13
Installing the log set ........................................ 14
Commissioning ............................................... 15
Setting the air guide vane................................ 15
Panel installation ............................................. 16
Flame pattern .................................................. 17
Installation checklist........................................ 18
Wiring diagram................................................ 19

4 | Arriva 750 Installation Guide: 10473-C 03-13
Specication
Specification summary
Input = 8-31.5 MJ/h
Output = 1.8-7.0* kW
Efficiency = 80% (on high)
Heating area = 70-95 m²**
Gas type = NG or LPG
Inbuilt convector ceramic log space heater
with forced convection and power flue
system.
Arriva 750
Suitability
Ideal for living rooms and open plan areas.
Versatile power flue system makes for
easy installation in almost any living space,
including bedrooms.
The Arriva is ideal for new build installation
into a false (mock) chimney, but can be
fitted into an existing masonry fireplace if
it is big enough.
Dataplate
Inside appliance, upper right hand side
(beside convection fan).
Fan type
3-speed (high, medium, and low) radial
blower fan.
Flue
Power flue, inner - 50 mm,
outer - 78~80 mm. Appliance must be
installed with a Rinnai flue system.
Gas connection
½ “ BSP male flare to barrel union
(lower right hand side of appliance).
Ignition
Continuous spark electronic ignition.
Installation considerations
Room sizesmaller rooms will heat
up quickly, and due to the efficiency of
the appliance, the heater (if auto off is
selected) will turn to a low flame setting
once the set temperature has been
reached.
Noise level
33-41 dB(A)
Power consumption
High 90 W, low 60 W, and standby 10 W.
Standard electrical connection is to the
right hand side of the appliance.
Safety devices
Flame failure sensing system, pressure
relief, overheat safety switch, air
temperature sensor, thermal fuse,
overcurrent fuse, and spark detector.
Temperature control
Thermostatic, temperature control range
16-26 °C.
Weight
70 kg
126
845
365
675
900
675
900
365
90
845
230
660
365
230
660
365
Flat Front
Glass Front
* Will vary according to gas type and flue configuration ** Will vary depending on geographical location in NZ
Dimensions are in mm.

Arriva 750 Installation Guide: 10473-C 03-13 | 5

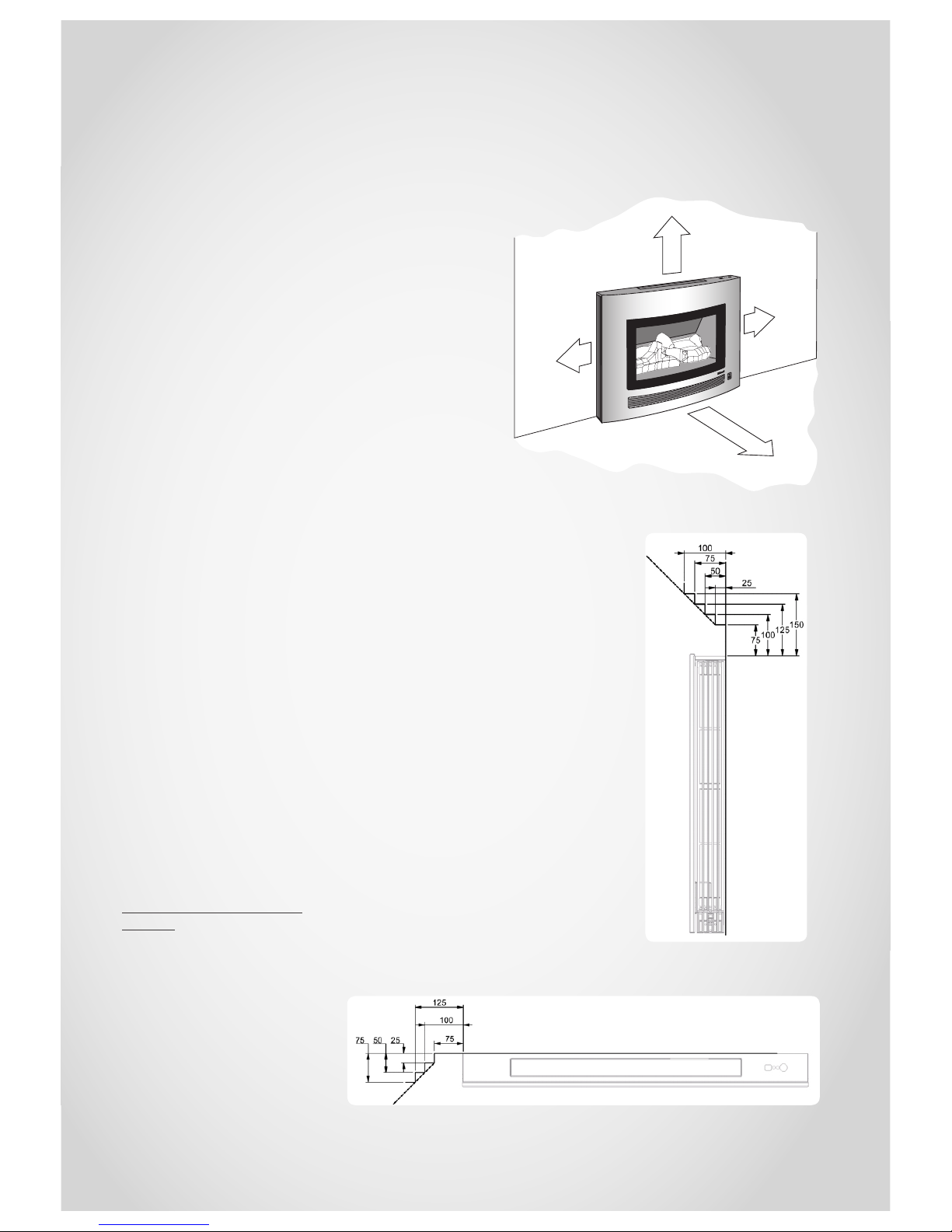

Clearances
The clearances listed below are minimum clearances unless otherwise stated.
Clearances around the heater
The appliance must not be
installed where curtains or other
combustible materials (coffee
tables, couches etc.) could come
into contact with the heater. In
some cases curtains may need
restraining.
Floor protection
Heat emanating from this fire may
over time affect the appearance of
some materials used for flooring,
such as, carpet, vinyl, cork or
timber. This may be amplified if
the air contains cooking vapours
or cigarette smoke. To avoid this
occurring, it is recommended that
a mat be placed in front of the
appliance.
Mantels and surrounds
Mantels and surrounds are allowed
providing they conform to the
minimum clearances shown. These
clearances are important as they:
- allow heat to escape in the
event of a power failure during
operation
- allow optimum performance of
the heater (room air return)
- allow access to the side mesh
filters
Mantel clearance calculation
example
At a 75 mm vertical clearance, the
maximum mantel depth is 25 mm.
For every 25 mm of added mantel
depth, there must be an additional
25 mm of vertical clearance. For
example a mantel depth of
100 mm requires a vertical
clearance of 150 mm.
100 mm
1000 mm
100 mm
250 mm
Arriva mantel clearances
Arriva surround clearances
Clearances required around the heater when operating

6 | Arriva 750 Installation Guide: 10473-C 03-13
Location
The main points governing location are flueing and warm air distribution. The Rinnai
Arriva has a cool outer casing, it can be installed into an existing masonry, or decorative
fireplace.

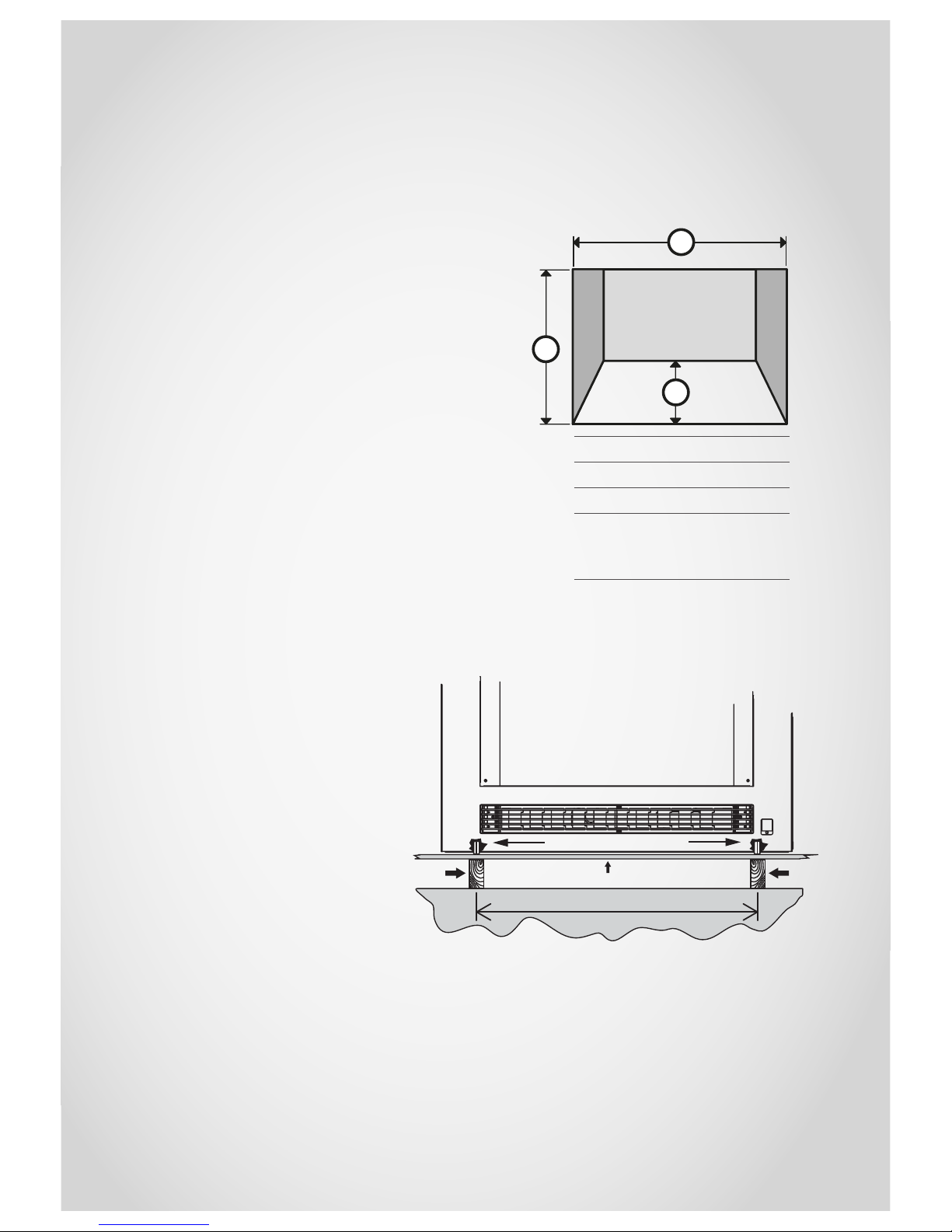

Enclosure dimensions
The heater must be positioned on
a flat level surface that allows free
movement of the appliance. A pair
of wheels located at the rear of
the heater allows the unit to slide
in and out of the enclosure for
commissioning and maintenance.
In a masonry fireplace use a slurry
of sand and cement to level the
base as required.
In a decorative fireplace, when
the appliance is elevated from the
ground, construct a base using
a board with supporting joists as
pictured.
Elevated installation in a decorative fireplace
Enclosure dimensions
W-width 850-860 mm
H-height 660-665 mm
D-depth 380 mm direct flue
475 mm extended flue
500 mm underfloor flue
All dimensions provided are critical to the
installation of this appliance and must be
strictly adhered to.
Joist Joist
MDF board, minimum 20 mm
720
Left and right wheels
w
d
h

Arriva 750 Installation Guide: 10473-C 03-13 | 7
Gas connection
Gas pipe sizing must consider the gas input to this appliance, as well as other gas
appliances in the premises. The gas supply termination is inside the heater, and enters
from the rear right hand side of the appliance.
To ensure correct positioning
terminate the gas supply so it is
80 mm in from the front face of the
enclosure opening.
Purging gas supply
Foreign materials and debris
such as swarf, filings etc. must
be purged from the gas supply.
Failure to do so may cause damage
to the control valve causing it to
malfunction.
Direct flue wall penetration
requirements
Use the guide pictured to mark
the penetration points for the gas
supply and flue transition locations.
Consideration must be given to
the position of any studs, noggins
or other components of the wall
structure on both sides of the wall.
Mark these measurements
accurately as this is critical to a
successful installation.
The penetration for the flue
transition only needs to be made
for direct flue installations, where
the terminal is to be terminated
directly to the rear of the
appliance.
Correct positioning of the gas supply
Direct flue wall penetration points
80 mm
Front of enclosure
Rear of
enclosure
Ø 85~95
400
55
378
580 ± 25
Gas supply penetration
Flue pipe penetration
Centreline of enclosure
All dimensions are in mm.

8 | Arriva 750 Installation Guide: 10473-C 03-13

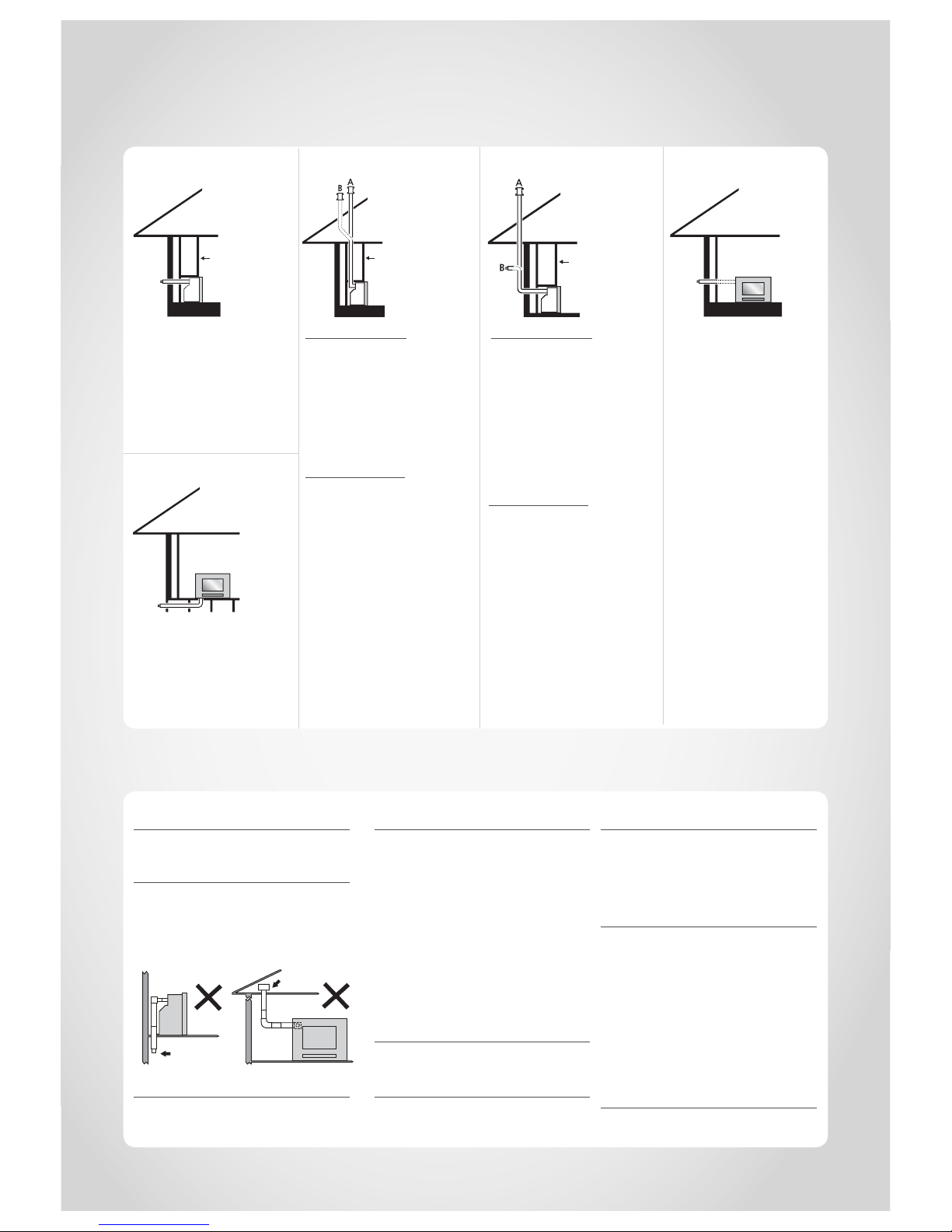

Flueing options
Flueing notes
For all installations an Arriva flue system
MUST BE used. Detailed flue instructions
are provided with Arriva flue kits.
Termination point
Flue is not to terminate under floors or in
a roof space.
Condensate
A condensate trap is required for ALL
vertical flue installations to ensure
condensate generated during combustion
is trapped and prevented from entering
the chamber of the heater.
For horizontal, and down and out
installations, there must be a continuous
fall of at least 2°. This equates to
approximately 20 mm per metre to the
termination point to drain the condensate.
For direct flueing, direct flue kits A and B
have an inbuilt 2° fall.
Masonry
The Arriva must not be flued into natural
draft cavities.
Rear external wall Through wallVertical
False wall
Flue components:
- Direct A flue (R2731), or
- Direct B flue (R2732), or
- Direct flue (ASPDFK)
This flue configuration could
be up to 8.5 m long (no
bends).
A
B
False wall
Aflue components:
- Adaption flue (ASPKIT03)
- Coaxial pipe (ESPIPE900)
- Roof cowl (ESROOFCOWL)
Aflue configuration could have a
flue length of 7 m and contain one
90°bend—the 90°bend would
be the flue transition (ASPKIT03).
B flue components:
- Adaption flue kit (ASPKIT03)
- Coaxial pipe (ESPIPE900)
- Bend 2 x 45°(ESBEND x 1)
- Roof cowl (ESROOFCOWL)
Bflue configuration could have a
flue length of 6.5 m and contain
two bends—the first 90°bend
would be the flue transition
(ASPKIT03), and the second 90°
bend would be the two 45°bends
(ESBEND).
False wall
A
B
A flue components:
- Direct flue (ASPDFK)
- Coaxial pipe (ESPIPE900)
- Bend 1 x 90°(ESBEND x 1)
- Condensate trap (ESCONDK)
- Roof cowl (ESROOFCOWL)
Aflue configuration could have
a flue length of 7.5 m and contain
one 90°bend—the 90°bend
would be the 90°bend (ESBEND).
Bflue components:
- Direct flue (ASPDFK)
- Coaxial pipe (ESPIPE900)
- Bends 2 x 90°(ESBEND x 2)
- Condensate trap (ESCONDK)
Bflue configuration could have a
flue length of 6.5 m and contain
two 90°bends—the bends would
be the two 90°bends (ESBEND).
ASPDFK, remove terminal and use
on outside wall.
Sideways through wall
Flue components:
- Adaption flue (ASPKIT03)
- Coaxial pipe (ESPIPE900)
- Wall terminal (ESWTERM)
Exterior wall
Flue
terminal
Heater
Heater
Exterior wall
Under floor
Flue
terminal
Down and out
Flue components:
- Adaption flue (ASPKIT03)
- Coaxial pipe (ESPIPE900)
- Bend 2 x 45°(ESBEND x 1)
- Wall terminal (ESWTERM)
Down rating the appliance
For all Arriva flueing EXCEPT direct
flueing, the appliance must be down
rated (ensures optimum performance
of the fan) as per the instructions on the
commissioning sheet.
Maximum flue length and number of
bends
• Max. flue length - 8.5 m
• Max. number of bends - three
One 90°bend equals 1 m. For every 90°
bend the overall length must be reduced
by 1 m. For example if an installation has
three 90°bends, the maximum flue length
can be 5.5 m. The flue transition for all
flueing installations, excluding direct
horizontal flueing, is counted a 90°bend.

Arriva 750 Installation Guide: 10473-C 03-13 | 9
Flueing guidelines
It is the responsibility of the
installer to ensure that the
appliance is provided with an
effective flue. Some guidelines
to assist with flue design are
listed below. These must be
read and modified as necessary
with reference to the particular
installation.
The Rinnai Arriva must be
installed with an approved
Rinnai flue system. Approved
flue components for this
appliance are detailed in this
guide.
Clearance to combustibles
• Flue transition (p. 12) - 5 mm
• Elbow component of
adaption flue kit (ASPKIT03)
- 25 mm
All other Arriva flue
components have zero
clearance.
Flashings
Flashings to top of chimney
structure do not form part
of the flue kit and must be
specified.
Flue support
The weight of the flue
system should not
be supported by the
appliance—it should
be self-supporting.
Supporting the flue
is usually completed
during the framing
stage with flue
supports or straps
within the cavity.
Vertical terminations: Flue
cowl clearance
To ensure products of
combustion are cleared,
adequate clearance from the
building is required.
The flue cowl should have a
500 mm clearance from any
part of the building. This also
applies to steeped and pitched
roofs which should be clear of
the ridge line. Lesser clearances
may provide perfectly adequate
flue systems depending on
the installation. Minimum
clearances are shown in
AS/NZS 5601.1.
Shared flues
Gas appliances must not be
connected to a chimney or flue
serving a separate fuel burning
appliance.
Every gas fireplace requires a flue system that will draw effectively and clear flue products
safely under all potential wind and climatic conditions.
Minimum clearance
500 mm to nearest
part of roof

10 | Arriva 750 Installation Guide: 10473-C 03-13
Arriva ue components
Direct A flue kit
Code = R2731
For use in walls 115-240 mm thick—
typically weatherboard construction
(can be cut to size). This is a complete
kit, no other components are required.
• Stainless steel
• Inbuilt 2° fall to drain condensate
Direct B flue kit
Code = R2732
For use in walls 240-400 mm thick—
typically block construction (can be cut
to size). This is a complete kit, no other
components required.
• Stainless steel
• Inbuilt 2° fall to drain condensate
Direct flue kit
Code = ASPDFK
For use in walls greater than
400 mm (can be cut to size). Can be
used in combination with ESPIPE900
for longer flueing. Kit includes flue
slide stopper (part 4822).
Flue terminal section is reusable when
making flue longer. Flue is aluminium,
collars are PVC, and spacers are PBT
plastic.
Arriva adaption flue kit
Code = ASPKIT03
Used for all flueing configurations
EXCEPT standard direct flueing.
Elbow section of this component
(circled) requires a 25 mm clearance
from combustibles, the rest is zero
clearance. This kit also contains a
sub-kit called the condensate drain
kit (shown in next panel), and the flue
slide stopper (part 4822).
Coaxial flue pipe 900 mm
Code = ESPIPE900
Extension pipe (960 mm installed) used
to construct horizontal, vertical, and
downwards flueing. Can be cut to size.
Inner is aluminium, and outer is PVC
plastic. Comes with one wall bracket.
• O-ring for ESPIPE (4350)
• Spacer for ESPIPE (4351)
Condensate drain kit
Code = R1970
The condensate drain kit is provided
with ASPKIT03. It is used for internal
wall flue installations, or other vertical
flue installations that will require
draining of condensate back into the
heater.
Condensate
tray
Condensate
drain hose
Wire Tie
Condensate
Tube
Short End
Long End
Barb (top)
90° Bend

Arriva 750 Installation Guide: 10473-C 03-13 | 11
Vertical terminal
Code = ESROOFCOWL
Roof cowl and connecting pipe
(960 mm installed) for termination of
flue—can be cut to size.
Powder coated (black) galvanised steel
construction.
Condensate trap
Code = ESCONDK
For the small number of vertical
through-wall flue installations, where
the Arriva is installed against a solid
brick wall, or where the direct flue
terminal cannot be used.
Used in conjunction with;
ASPDFK, ESBEND, ESPIPE900, and
ESROOFCOWL.
Universal wall plate
Code = ESPLATE
Used if an extra wall cover plate is
required to tidy any installation work
through the wall, ceiling, or floor.
Wall terminal kit
Code = ESWTERM
Used to terminate the flue pipe
(ESPIPE900) in horizontal flue
installations when used in conjunction
with ASPKIT03.
Contains:
• External wall plate (PVC)
• End cap (aluminium)
Flue guard
Code = R1370
Protection against hot flue gases when
the flue terminates low to the ground.
Colour - warm white.
Ø 170 mm
Mounting/securing screws
External wall plate
7mm
x2
22mm
x6
Flue terminal
Ø 75
120
Ø 80
120
45° flue bends x 2
Code = ESBEND
Two 45° bends used to facilitate
between horizontal, vertical, and
downwards flueing. Can be used
separately, or together as one 90°
bend.
Two spacers included.

12 | Arriva 750 Installation Guide: 10473-C 03-13
Flue transition
The flue transition provides a connection between the flue system and the heater’s flue
spigot and air intake. For all flueing installations, except horizontal direct flueing, the flue
transition is counted as a 90 ° bend.
380 mm
FRONT OF ENCLOSURE
REAR OF
ENCLOSURE
Flue Outlet Air Inlet
Horizontal direct flue transition
FRONT OF ENCLOSURE
REAR OF
ENCLOSURE
Flue Outlet Air Inlet
475 mm
Vertical flue transition
FRONT OF ENCLOSURE
REAR OF
ENCLOSURE
Flue Outlet
Air Inlet
500 mm
Offset flue transition
FRONT OF ENCLOSURE
REAR OF
ENCLOSURE
Flue Outlet
Air Inlet
500 mm
Down and out flue transition
The flue transition requires a
5 mm gap from combustibles. This
clearance is provided automatically
when the supplied standoff
brackets are used. All other flue
components, except the elbow
section of the adaption flue kit are
designed for zero clearance and
can be placed hard against timber
or plasterboard.
In all cases when positioned
correctly the flue transition
connection must protrude 110 mm
from the rear of the enclosure.
Horizontal direct flue transition
When installed as a horizontal
direct flue, the flue transition is
pushed hard against the internal
wall plate, which is pushed
hard against the rear wall of the
enclosure as shown.
Vertical flue transition
When installed as a vertical direct
flue, the flue transition is fastened
to the rear wall by standoff
brackets supplied.
Elbow component of the adaption
flue kit requires a 25 mm clearance
to combustibles.
Appliance needs to be down
rated—refer data plate.
Offset flue transition
When installed as a vertical or
horizontal offset flue, the flue
transition is fastened to the rear
of the wall by standoff brackets
supplied.
Appliance needs to be down
rated—refer data plate.
Down and out flue transition
When installed as a down and out
flue, the flue transition is fastened
to the rear wall by standoff
brackets supplied.
The enclosure depth for a down
and out installation is 500 mm to
allow the flue pipe to clear the base
of the appliance.
Appliance needs to be down
rated—refer data plate.
Flue transition components
The flue transition is comprised of:
- transition flue outlet
- transition air inlet
- wall plate
Transition
flue outlet
Transition
air inlet
Wall plate

Arriva 750 Installation Guide: 10473-C 03-13 | 13

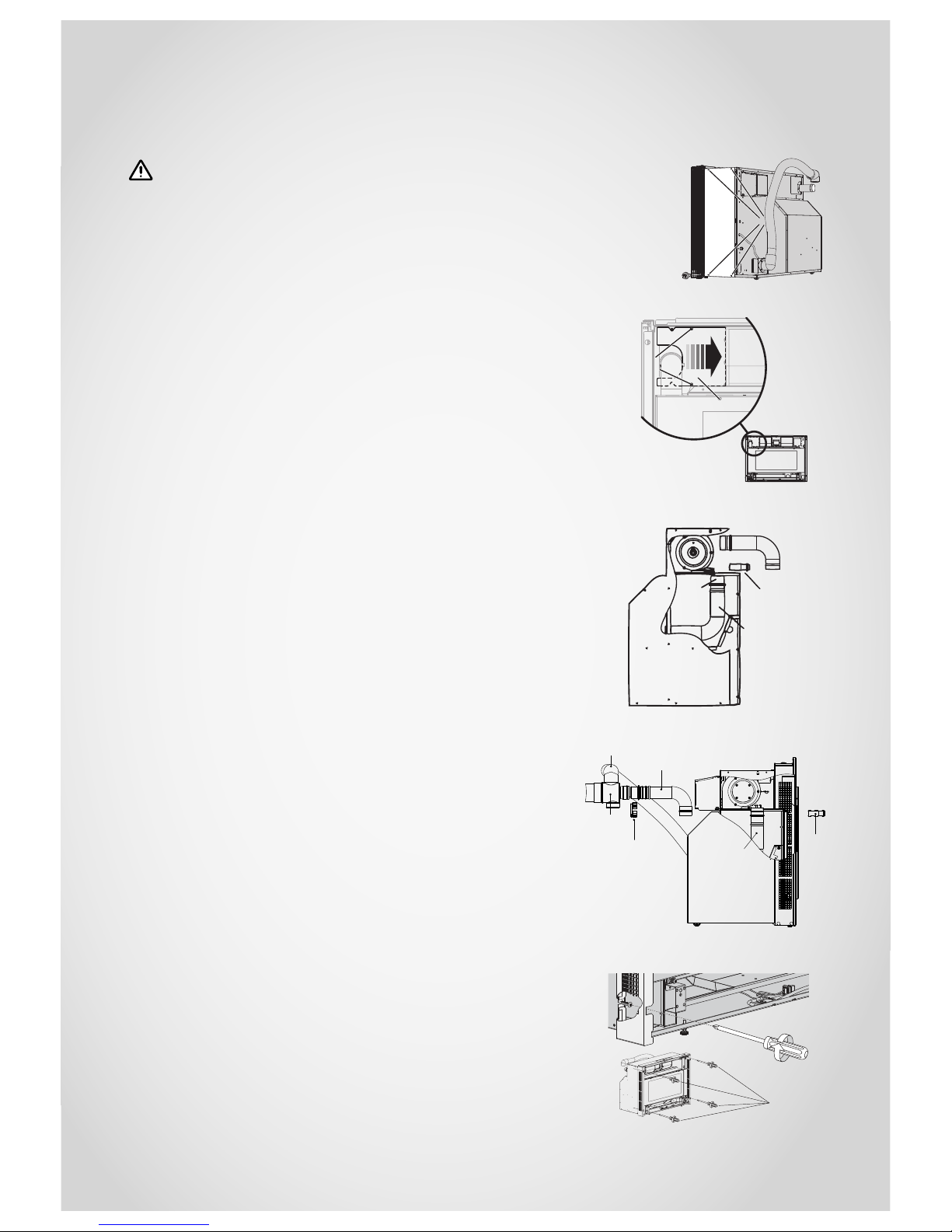

Arriva 750 installation
Isolate the electrical supply
before removing any panels.
Installation overview
1. Connect to gas pipe
2. Open flue & air hose access
3. Connect flue pipe
4. Install heater engine
5. Secure heater
6. Check all connections
1. Connect to gas pipe
a. Remove the right hand side
access panel by removing the
four retaining screws.
b. Extend flexible gas connection
through the gas fitting access
point to the outside of the
heater body.
c. Position the appliance in front
of the enclosure so the end of
the gas pipe aligns with the gas
fitting access point.
d. Securely connect flexible gas
connection to the gas pipe,
testing all connections for gas
leaks.
e. Replace right hand panel and
secure screws in place.
2. Open flue & air hose access
a. Unscrew the flue access panel.
b. Remove the clamp that
secures the telescopic vertical
flue pipe to the telescopic
horizontal flue pipe.
c. Clamp the horizontal flue
pipe to the flue transition box
using either the flue retainer
bracket (supplied in the plastic
bag with the remote control),
or the flue slide stopper
(provided with the ASPDFK
and ASPKIT03 flue kits). The
clamping component will
differ depending on the flue
configuration.
d. Fasten air inlet hose to
transition box using cable tie
supplied in accessory pack
with the remote.
e. Push appliance into position.
Adjust horizontal and vertical
telescopic flue pipe, and
connect using clamp.
f. Replace flue access panel.
3. Connect flue pipe
Connect flue pipe to flue and hold
in place using appropriate clamp.
Failure to secure the flue system
using the supplied clamps may
result in a dangerous situation.
4. Install heater engine
Carefully move the heater into the
enclosure cavity ensuring the gas
pipe and flue transition are aligned
with their access openings.
As the appliance is pushed into
place ensure the flexible gas
connection coils freely inside the
appliance, and that the gas pipe
penetrates through the centre of
the gas access point.
5. Secure heater
Secure the heater, using
appropriate fixings, through the
four appliance mounting points—
two upper and two lower (on each
side of the appliance).
6. Check all connections
Check all connections are properly
engaged and are inserted beyond
the O-ring seal.
1a: Remove right hand access panel
WARNING
Screws
Side
panel
Access
panel
Screws
2a: Unscrew flue access panel
Telescopic horiz. flue pipe
Clamp
Telescopic vertical flue
pipe
Lower
elbow
2b: Remove clamp from flue pipe
Appliance mounting
points
5: Secure heater
2c/d: Fasten horiz. flue pipe and air inlet hose
Flue slide stopper
(ASPDFK & ASPKIT03)
Transition
box
Air inlet hose
Telescopic horiz. flue pipe
Clamp
Telescopic
vertical flue pipe

14 | Arriva 750 Installation Guide: 10473-C 03-13
Installing the log set
Before the log set can be installed
the combustion chamber glass
panel needs to be removed.
1. Remove the two retaining
screws that secure the
combustion chamber glass
panel to the heater engine.
Rotate and lift the combustion
chamber glass clear of the
combustion chamber and
place in a safe location until
required.
2. Remove the log setmade up
of seven pieces:
- rear main log
- right hand front log
- right hand top log
- right hand bottom log
- left hand front log
- centre top log
- left hand bottom log
3. Place the rear main log into
the combustion chamber on
the rear location pins.
4. Place the left hand and front
hand logs into the combustion
chamber on the locating pins.
5. Place the centre top log over
the main log and right hand
front log. Secure on the
central locating pin of each
log. Repeat step with the right
hand top log, securing the
log in the locating pins on the
right hand side.
6. Place the left hand bottom log
onto the combustion chamber
so that it hides the flame
sensor rod from view. Place
the right hand bottom log on
the opposite side.
7. Replace the combustion
chamber glass panel and
secure in place with the two
retaining screws.
Retaining
screws
Combustion
chamber glass
2. Arriva 750 log set assembly
Rear main log
Centre top log
Right hand front log
Right hand top log
Left hand front log
Right hand bottom log
Centre
top log Right hand
top log
Flame sensor rod
1. Removing combustion chamber glass
3. Placing the rear main log 4. Placing the left and right hand front logs
5. Placing the top logs 6. Placing the left hand bottom log
6. Placing the right hand bottom log

Arriva 750 Installation Guide: 10473-C 03-13 | 15
Commissioning
The gas pressures of the appliance
are factory preset for direct flue
installations and will normally not
require adjustment.
For all Arriva flueing EXCEPT direct
flueing, the appliance must be
down rated as per the instructions
on the commissioning sheet. The
commissioning sheet is located
in a plastic pouch behind the
removable access panel on the
right edge of the combustion
chamber glass panel.
Follow the commissioning
instructions to complete the gas
pressure adjustments, and ensure
correct operation of the appliance. Commissioning sheet position
Setting the air guide vanes
The air guide vanes allow the
installer to set and adjust the
horizontal air flow distribution of
the appliance. These are not to
be confused with the horizontal
louvres that determine the
direction of the vertical flow—
these are fixed and cannot be
adjusted.
The air guide vanes can be adjusted
by carefully bending to the left or
right using a screwdriver.
- Do not adjust the vanes more
than five times as this may
cause the metal to fracture
and/or break.
- Do not attempt to adjust the
air flow direction while the
appliance is operating or still
hot as this could result in a
burn injury.

16 | Arriva 750 Installation Guide: 10473-C 03-13
Panel installation
Glass panels
Always wear gloves and safety
glasses when handling glass.
Installing the front panel
Install the fascia panel by hooking
the top to the body and rotating
the bottom in towards the
appliance body.
Secure the fascia to the appliance
body, with the two retaining
screws, through the front of the
warm air discharge louvre.
Installing the top panel
Push the top panel down into
place and secure with the screws
provided.
Always inspect the glass for any chip or obvious sign of damage before installation. Care
is required when handling the front fascia—no sudden impact or excess force should be
applied.
Installing the front panel
Installing the top panel

Arriva 750 Installation Guide: 10473-C 03-13 | 17
Flame pattern
It may take approximately two hours of operation for the logs to achieve their full flame
pattern and glow. During the initial burning in period, some smoke and smell may be
experienced. The appliance should run on the high setting in a well ventilated room until
these dissipate. It is important to check the flame pattern during this time.
Abnormal flame pattern
Abnormal flame performance and/
or pattern can indicate a problem
with your fire, such as blocked gas
injectors, or that the burn media
has shifted from when the fire
was first installed. There are some
warning signs that could indicate a
problem.
- Unusual smell from the
appliance
- Continued difficulty or delay in
establishing a flame
- Flame appears either very
short or very long
- Flame only burns part way
across the burner
- Severe soot building up on the
inside of the glass door
Important
It is the responsibility of the
installer to check that under
normal conditions of the appliance,
all flue gases are exhausted to the
outside atmosphere, and that there
is no spillage of combustion gases
into the room.
If the appliance cannot be made to
perform correctly please contact
Rinnai.
Normal flame pattern
Abnormal flame pattern

18 | Arriva 750 Installation Guide: 10473-C 03-13
Installation checklist
Complete the installation checklist in the customer operation guide, and make sure you
leave the guide with the customer. Explain to the customer about the use and care of the
unit, and ensure they understand the instructions and operation of the appliance.

Arriva 750 Installation Guide: 10473-C 03-13 | 19
Wiring diagram (part of commissioning sheet)
Mark Colour
bk Black
bl Blue
gr/y Yellow - Green Stripe
gy Grey
or Orange
pl Purple
r Red
w White
y Yellow
Mark Part Mark Part
MS Main Switch OH.TH1,2 Over Heat
Thermistor 1, 2
R.TH Thermistor SV1~4 Main Solenoid
Valve 1~4
TF Thermal Fuse BL Combustion Fan
Motor
F Fuse FCC Fan Control
Circuit
ER Electrode RCR Remote
Control Circuit
POV Modulating
Solenoid Valve
CPU Central
Processing Unit
TR Transformer PB Pilot Burner
FR1~4 Flame Rods 1~4 FB Front Burner
RC Remote Controller REARB Rear Burner
CF Convection Fan REARB (L) Rear Burner Left
FM Convection Fan
Motor
REARB(R) Rear Burner
Right
SP Sparker

Rinnai.co.nz
Experience our innovation
0800 746 624
http://www.youtube.com/rinnainz
