FEATURES OF YOUR 1004T
Push Button Ignition: Only one touch of the ON/OFF button is required to operate the heater.
7 Step Automatic Heat Control with electronic thermostat. The fan is also controlled by the
thermostat.
Economy Mode: An energy saving feature that reduces the room temperature by 3˚C over a 90
minute period.
Lockable Control Panel Lid: The 1004T has a lockable Control Panel Lid which is ideal for
commercial use. This feature is great for applications where safety is paramount or when the unit is
required to be set once and left alone. Two keys are also supplied with the unit.
Function Lock: Prevents children from altering heater settings whilst running, or from activating the
heater when turned off. This feature is utilised if the Control Panel Lid is unlocked.
Heater Filter Indicator: When the heater filter becomes covered with dust and the temperature inside
the appliance rises, the heater filter indicator will flash indicating that cleaning is necessary.
The integral humidifier tray can be filled with water as required to raise the humidity level in the room.
Room Sealed: Air for combustion is taken from the outside and the flue product is exhausted outside,
keeping the room air clean.

–3 –
GETTING TO KNOW YOUR NEW 1004T
WARM AIR OUTLET
THERMISTOR
POWER CORD
PLUG 230VAC
iltr
e F
oN
FILTER INDICATOR
AIR FILTER
EXHAUST PIPE
COMBUSTION AIR
INTAKE HOSE
OPERATION
INDICATOR
HUMIDIFIER
OPEN THE DOOR
AND POUR WATER
INTO THE TRAY.
GAS CONNECTION
1/2" BSP (15mm)
CONTROL PANEL
OPERATION/TEMP-
ERATURE
CONTROL DISPLAY
RATING PLATE
MODEL NUMBER,
SERIAL NUMBER,
GAS TYPE, ETC.
FLUE TERMINAL

–4 –
CONTROL PANEL
SetTemp
RoomTemp
Economy
Temp
Control
FunctionLock
Filter
ON/OFF
ON
FUNCTION
LOCK
Lamp is “green”
when this feature is
on.
FILTER LAMP
Flashes when filter is
dirty.
OPERATION LAMP
This lamp turns
“green”when power
is on. Lamp will
change to “red”
when burner is on.
TEMPERATURE
BUTTONS
“”adjust temp. to
lower setting.
“”adjust temp. to
a higher setting.
ENERGY SAVING
BUTTON
Lamp is “green”
when this feature is
activated.
〈CONTROL PANEL〉
〈INDICATOR DISPLAY〉
TEMPERATURE
DISPLAY
SHOWS EITHER THE
TEMPERATURE OR
CODED ERROR
MESSAGES.
ON/OFF BUTTON
Easy operation
One touch ignition
ALL BUTTONS BEEP WHEN OPERATED.

–5 –

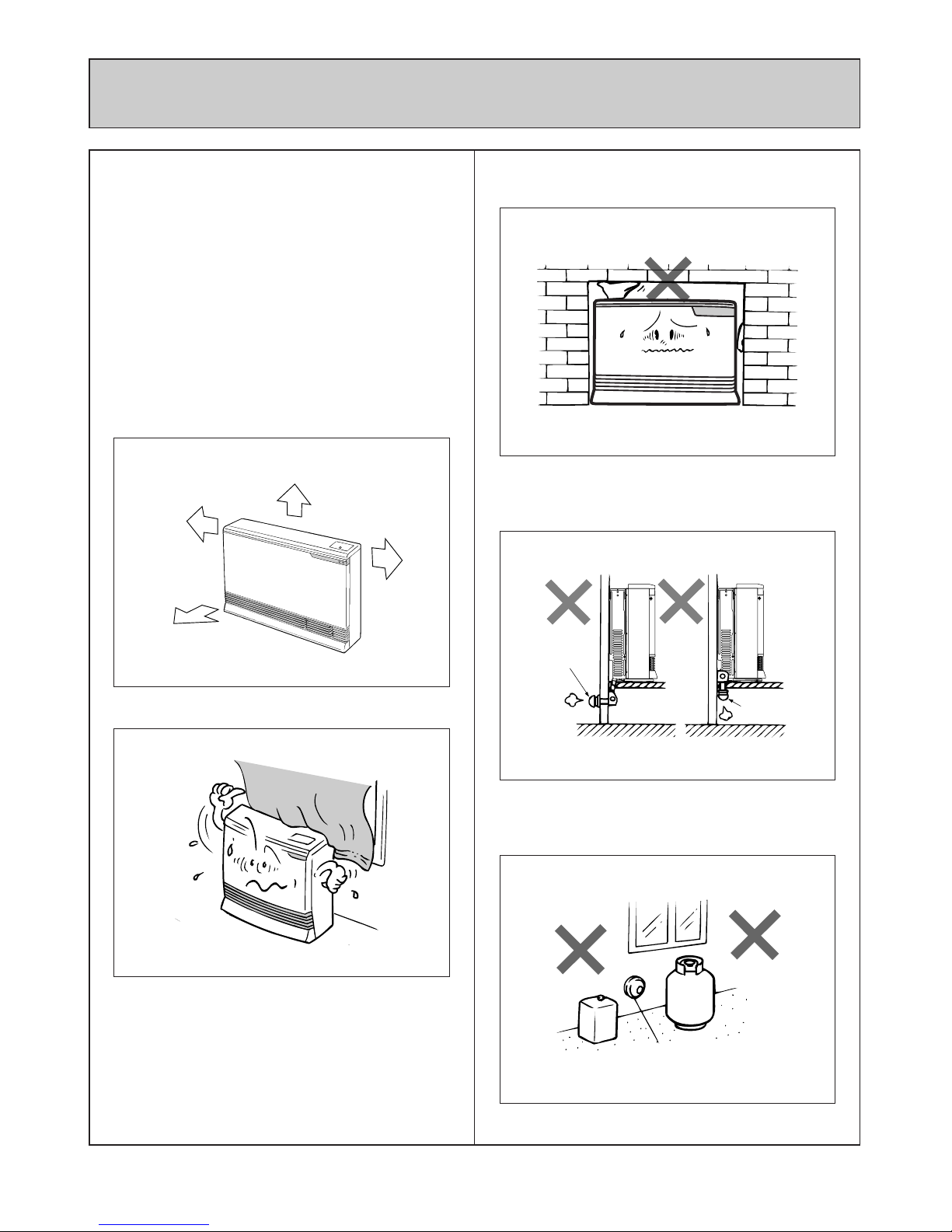

IMPORTANT POINTS
Do not use for any other purpose except
heating.
These clearances should be maintained at all
times.
250mm
50mm
50mm
1000mm
Do not allow curtains or other flammable
materials to come into contact with the heater.
Do not store flammable products near the unit.
Keep flammable materials, trees shrubs etc.
away from flue terminal.
Flue Terminal
LP GAS
Supervise children near heater. Do not allow young children or the infirm to
sleep directly in front of the heater.

–6 –
IMPORTANT POINTS

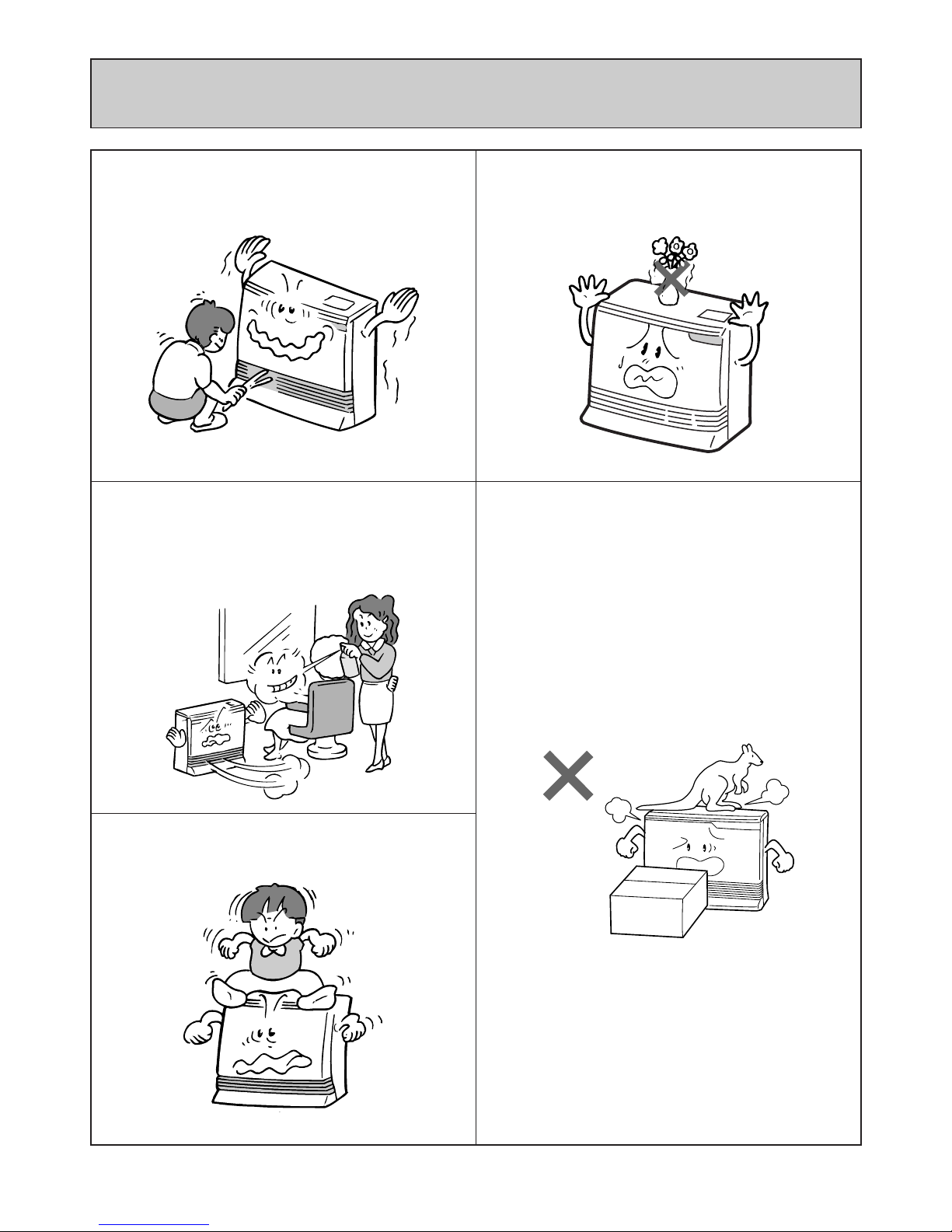

Don’t allow children to ‘post’articles in the
louvres.
Don’t place any articles containing liquids on
top of the heater.
Don’t spray aerosols on the heater whilst it is in
operation.
Most aerosols contain butane gas and can be
a fire hazard if used near this heater when in
use.
Do not place articles on or against the heater.
Do not sit on this heater.

–7 –
HOW TO OPERATE THE HEATER
■Turning ON
●Press the ON/OFF button
・The ON indicator will illuminate green.
・The combustion fan will rotate.
・Ignition will take 5〜10 seconds and the
ON/Combustion indicator will change from
green to red to let you know that the
burner has ignited.
Note:
・When using the unit for the first time or after long periods of disuse, ignition may not occur the first time
it is operated as there may be air in the gas pipes. If ignition does not occur after approximately 30
seconds the unit will cease operation automatically.
Try operating the unit again if this occurs.
・The unit may make noises after ignition/extinction. This is the inside of the unit expanding and
contracting and is normal.
・The heater will not ignite if the “ON/OFF”button is pressed straight after extinction. After
approximately 20 seconds has passed the unit will automatically go back into ignition mode.
■Turning OFF
●Press the ON/OFF button
・The ON/Combustion indicator will go out.
・After the indicator has gone out, the
convection fan will continue to rotate for
several minutes, then stop. This is to
lower the temperature within the unit. Do
not pull out the power cord during this
time.
When the Function Lock is set, the Function Lock indicator will continue to illuminate even when the unit
is OFF and the Function Lock will not be cancelled.
ON/OFF
ON/OFF
CAUTION !
・Do not pull out the power cord or disconnect the power during combustion to cause extinction, or
straight after extinction, as this may cause damage to the unit.

–8 –

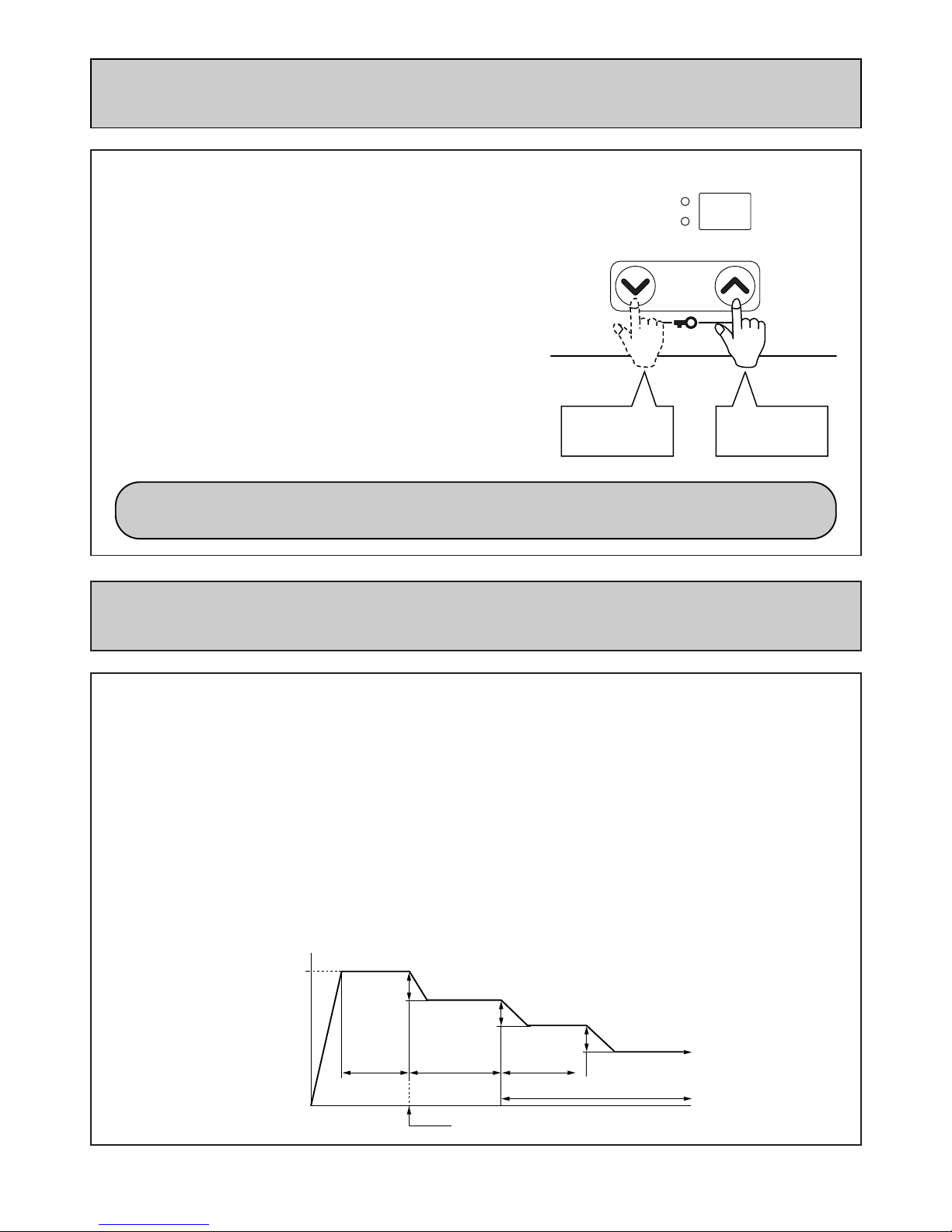

ECONOMY MODE
ADJUSTING THE TEMPERATURE
Displaying, setting and adjusting the room temperature can
only be done when the heater is operating.
・When the unit is first operated, the room temperature is
set at 22˚C.
・Set the desired room temperature with the up and
down buttons while looking at the display section.
・The “Set Temp”can be set to “L”or between “12”〜
“26”, or “H”(continuous combustion on High).
・The “Room Temp”will display “L”(when lower than
1˚C), “1”〜“30”(at intervals of 1˚C), or “H”(when
higher than 30˚C).
・Once a temperature is set, it will be stored in the
microcomputers memory.
Note:
・Rooms may not arrive at the set temperature due to the
construction of the room, the location of the unit, or
external temperatures.
SetTemp
RoomTemp
Temp
・
Time
FunctionLock
Press to lower
the temperature
Press to raise
the temperature
The Economy Mode, when selected, has the ability to reduce gas consumption and ultimately save energy.
Once a room has reached the desired temperature, the unit will automatically begin reducing the set
temperature gradually. This reduction is normally not noticeable, however, it is purely your choice whether to
select this mode or not.
How it works
・After a room reaches the set temperature, the set room temperature will decrease 3 times automatically,
each time, dropping by a maximum of 1˚C in 30 minute blocks. From the second time onwards, the comfort
control will automatically operate. (The comfort control alters combustion and fan speed more frequently to
counteract the feeling of cold air.)
・The Economy indicator will illuminate to let you know that the Economy Function is selected.
・The Economy function will not operate when the set room temperature is less than 16˚C or above 26˚C.
・When the Economy function is operating, the current displayed room temperature may be lower than the
set room temperature, however, this is normal.
Set
Room
Temp Max. 1℃
Max. 1℃
Max. 1℃
30min 30min 30min
Comfort Control
"Economy" indicator illuminates
If the heater does not ignite then the pre-set temperature may not be set to a temperature which is
higher than the actual room temperature.

–9 –
FUNCTION LOCK
1
The Function Lock can be operated either when the
heater is running, or in the “stand by”mode, by
pressing the up and down buttons simultaneously.
The Function Lock is activated and the Function Lock
indicator will glow.
2
To de-activate the Function Lock, simply press both
arrow buttons simultaneously for 2 seconds and the
Function Lock indicator will go out. The lock can be
de-activated at any time in this way.
The Function Lock will help to prevent accidental operation as well as small children from altering the
heater settings.
When the Function Lock is activated during normal operation all heater controls other than the OFF
switch will be locked. Deactivating the lock releases the controls. If the lock is activated whilst the
heater is turned OFF, then all heater functions will be locked. If the heater is turned OFF whilst the
Function lock is activated, it cannot be turned ON again until the lock is deactivated.
SetTemp
RoomTemp
FunctionLock
Temp
・
Time
SetTemp
RoomTemp
FunctionLock
Temp
・
Time

–10 –
OTHER OPERATING INFORMATION

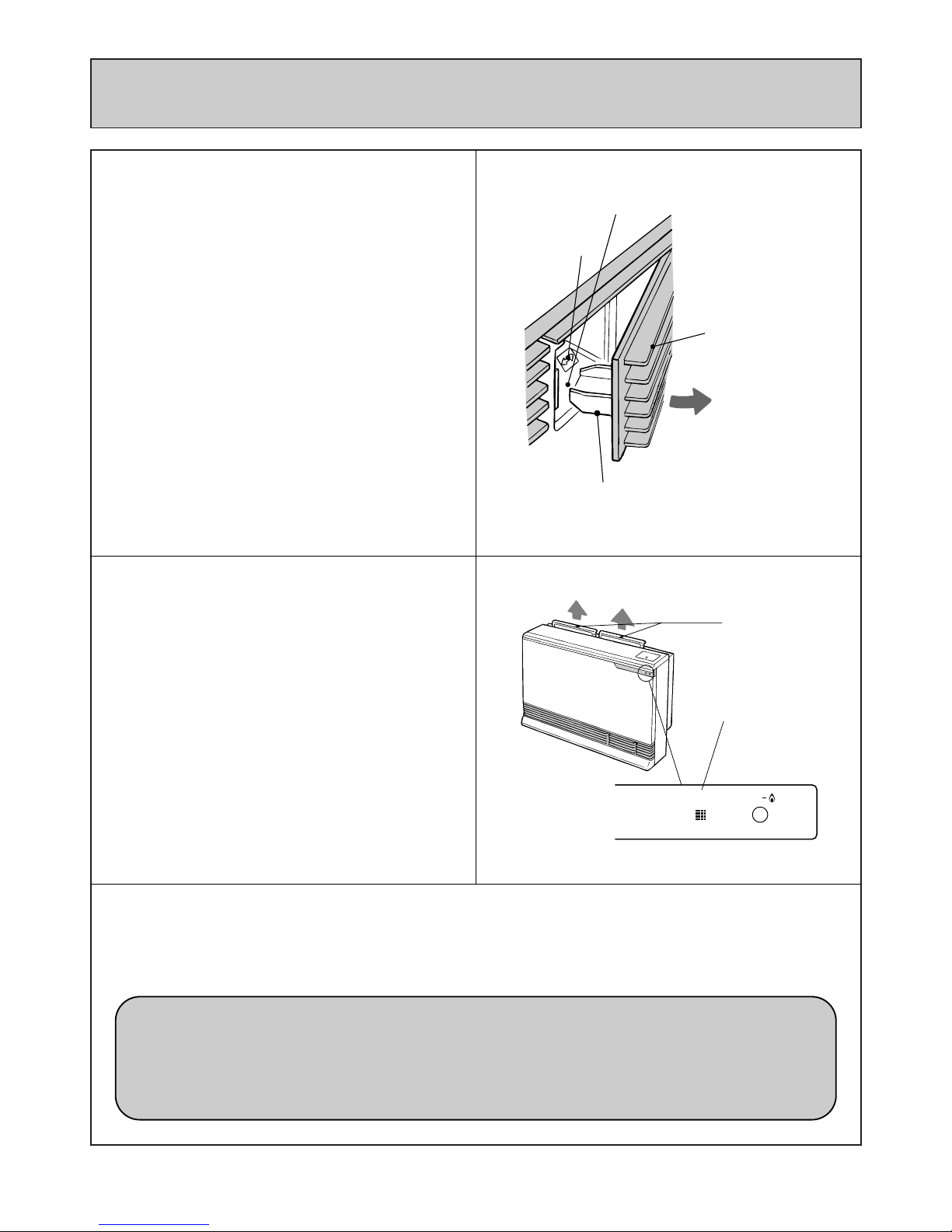

■HUMIDIFIER TRAY
Your 1004T is fitted with an enamelled tray
behind the air outlet so that you can humidify
the air. To fill the tray, open the door as
shown in the diagram and pour water into the
tray using the spout built into the door.
The air will be humidified as it passes over the
water in the tray. DO NOT FILL THE TRAY
WHILST THE UNIT IS IN OPERATION.
CLOSE THE DOOR AFTER FILLING. The
1004T is a very high efficiency appliance.
During operation a small amount of water is
produced in the flue tubes. This drains into
the enamel tray. It is quite normal for a small
quantity of water to remain in the bottom of the
tray. If you are using the humidifier, it will
need filling about once a day during the peak
heating season.
■FAN FILTERS
To protect the fan from dust and lint, the
1004T is fitted with 2 fan filters. They are
located at the top, rear of the unit. To clean,
pull the filters out of the unit and remove dust
with a soft brush or a vacuum cleaner. Re-fit
filters after cleaning. Your 1004T has a filter
clean warning indicator that will illuminate
when required, however, weekly cleaning is
recommended during the peak heating
season.
■OUTSIDE FLUE
On cold days steam may be discharged from the flue outlet. This is normal with a high efficiency
appliance and does not indicate any fault.
The heater and its flue must be installed correctly by an authorised person, and the installation must
conform to all local regulations.
The installation also must comply with the instructions supplied by Rinnai.
This heater must be serviced, installed and removed by an authorised person.
No parts or functions should be modified or permanently removed from the heater or its flue.
AccessDoor
Max.FillLine
HumidifierTray
FillerSpout
Donotforcedooropentoofar.
Closedoorduringheater
operation.
Pull
Fan Filters
iltr
e F
oN
Filter clean
warning
indicator

–11 –
LOCATION
When positioning the unit the main points
governing the location are:
(1) Flueing
(2) Warm Air Distribution.
This heater must not be installed where curtains or
other combustible materials could come into
contact with it. In some cases curtains may need
restraining.
See diagram for other recommended clearances.
Flue fittings must be kept clear of flammable
materials.
This unit is not designed to be built in.
Flue is not designed to be positioned under floors,
or below the level of the heater.
Flue terminal should be positioned away from
flammable materials.
250mm
50mm
50mm
1000mm
Flue
Terminal
Flue
Terminal
Flue Terminal
LP GAS

–12 –
LOCATION
Do not flue into natural draught flues or fireplaces,
this unit can only be used with a Rinnai flue kit.
(A flue kit is available to flue right through to the
rear of most fireplaces Use this kit when the heater
is going to be installed in front of a fireplace.)
Do not flue unit into other rooms.
Flue terminal must be outside.
Flue may be positioned directly under opening
windows with a minimum clearance of 300mm.
Flue sizes:
S flue suits walls 75 - 115 mm
A flue suits walls 115 - 240 mm
B flue suits walls 240 - 400 mm
C flue suits walls 400 - 600 mm
D flue suits walls 600 - 800 mm
E flue suits walls 800 - 1000 mm
25mm spacers are available for wall thicknesses
less than 75mm.
For information on special extra long flues, contact
Rinnai UK Ltd.
Standard Installation of flue manifold.
Diagram below shows minimum clearances and
distances from obstructions.
Flammable
Wall
Non
Flammable
600mm
250mm
Opposite
Wall
Floor
600mm
300mm
Obstruction
300mm
Side Clearances.
In areas subject to heavy snowfall, keep snow clear
of flue terminal at all times.
Snow
SNOW AREAS

–13 –
LOCATION
Do not install the unit in an unusually dusty area.
Use flue guard if the terminal is easily accessible to
children.
Check local regulations.
Flue guards are available as an optional extra.
Floor must be level.
Do not use electrical extension cords to connect
unit to power supply.
Keep the power cord away from the flue.
Flue manifold position.
Centre of hole for flue manifold can be drilled
anywhere within the shaded area.
(To avoid studs etc.)
When drilling the flue hole, check for water and gas
pipes and electric cables before starting to drill.
Use an 80mm (8cm) drill for hole through wall.
R265
R338
300
54 22
50
465
;;;;
;
;;
;
;
;;
;
;
;;
;
;
;;
;
;
;;
;
;
;;
;
;;;;
;;;;
;
;;
;
;
;;
;
;
;;
;
;
;;
;
;
;;
;
;;;;
;;;
;;;
;;;
QQQ
QQQ
QQQ
¢¢¢
¢¢¢
¢¢¢
GUARD
FOR WEATHERBOARD WALLS DRILL
THROUGH CENTRE OF WEATHERBOARD
FROM OUTSIDE, THEN DRILL FROM INSIDE
THROUGH PLASTERBOARD.
(mm)

–14 –
INSTALLATION INSTRUCTIONS
Important Safety Instructions
1. Gas Safety (Installation & Use) Regulations 1998 are the ‘Rules in Force’.
In your own interest and that of safety, it is law that all gas appliances shall be installed by
competent persons in accordance with the above regulations.
Failure to install appliances correctly could lead to prosecution. Other persons should NOT
attempt to install this equipment.
2. Unpack the appliance and check it carefully. If it appears to have any operating defects DO NOT
INSTALL, but contact the supplier.
3. This appliance is intended to be used to raise the temperature in a room or office etc. You should
NOT use it for any other purpose without seeking advice from the supplier.
4. This appliance is safe if correctly installed and sited. Please comply CAREFULLY with the
instructions.
5. This appliance is to be used for NATURAL GAS (G20) and PROPANE (G31) only. It must NOT
be used with any other type of gas.
6. Installation MUST be carried out in accordance with the current issue of:
a) Building Regulations issued by the Dept. of the Environment and Building Standards (Scotland
Consolidation) Regulations.
b) I.E.E. Wiring Regulations for electrical installations.
c) Gas Safety (Installation and Use) Regulations 1998.
d) BS5871 Part 1:2001
e) BS5440 Part 1:2000 and Part 2:2000
f) BS6891 Part 1:1998 (Natural Gas) and BS5482 Part 1:1994 (Propane).
g) Local Byelaws
h) Children & Young Persons Act 1933 revised 1952
i) Health and Safety at Work etc. Act, 1974
j) Such other specifications or legislation that may have superseded the above documents.
7. Should the heater be fitted in a room where there are young children; elderly; infirm or
handicapped persons, it is strongly recommended that a guard is fixed around the heater.
Guards conforming to British Standard Specification 6778:1986 (Fireguards for Use with Portable
Free Standing or Wall Mounted Heating Appliances) in respect of fixing, strength and painted
finish are acceptable and overall dimensions should be such that there is a gap of at least 100mm
(4 inches) between the guard and the heater. Standard guards that meet these requirements are
available from the supplier.
Please be sure you are aware of the implications of these notes.

–15 –
MAKING ELECTRICAL CONNECTION
WARNING: This appliance must be earthed.
This appliance is suitable for use on 230V 〜50Hz mains only and external wiring must be carried out
to I.E.E. Regulations.
Connect the appliance to the mains electrical supply. A 3amp switched fuse spur with contact
separation of at least 3mm on all poles, must be provided as a means of electrically isolating the
heater for servicing purposes.
Observe polarity and that wiring is correctly restrained.
E EARTH Green / Yellow
L LIVE Brown / Red
N NEUTRAL Blue / Black
IMPORTANT
Do not use a clock or any other type of switch on the electrical supply apart from as the means of
isolating the supply for servicing. (A clock or switch in the supply would also turn OFF the convection
fan and allow overheating to take place).
INSTALLATIONS NOT INCORPORATING A REMOTE TIMING DEVICE
When the heater is to be used as a stand-alone unit the central timer sub PCB fitted on the heater has
to be disconnected from the main PCB. Disconnecting terminal plug H (white, red and blue wires), as
indicated on the top wiring diagram of page 37, will enable the heater to operate independent of a
timing device.
TIME CONTROL
It is necessary to make the time control electrical connection before the unit is fixed to the wall.
The switch live and neutral wires from any remote timing device must be connected onto the terminal
connector situated on the rear of the appliance. Removing the metal protection cover accesses this
terminal connector block which is indicated in the photograph below. (Wiring diagram Page 37)
Terminal Connector Block
Plug H

–16 –
WIRING DIAGRAM FOR PROGRAMMER
N
L
N
L
RANDALL851TIMER
RINNAI556T
RINNAI1004T RINNAI1004T
L
N
L
N
For multiple Rinnai appliances using a single time clock.

–17 –
POSITIONING THE FLUE TERMINAL
O
H
N
N
M
Q
M
HK
B
P
Q
Q
I
F
L
J
G
C
A
I
D,E
Dimension
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
Terminal Position
Directly below an opening, air brick, opening windows, etc.
Above an opening, air brick, opening window, etc.
Horizontally to an opening, air brick, opening window, etc.
Below gutters, soil pipes or drain pipes.
Below eaves.
Below balconies or car port roof.
From a vertical drain pipe or soil pipe.
From an internal or external corner.
Above ground, roof or balcony level.
From a surface facing the terminal.
From a terminal facing a terminal.
From an opening in a car port. (e.g. door, window) into a dwelling.
Vertically from a terminal on the same wall.
Horizontally from a terminal on the same wall.
From the wall on which the terminal is mounted
From a vertical structure on the roof.
Above an intersection with roof.
Distance
300mm
300mm
300mm
75mm
200mm
200mm
150mm
200mm
300mm
600mm
1200mm
1200mm
1500mm
300mm
N/A
N/A
N/A

–18 –
INSTALLATION INSTRUCTIONS
■The following components are supplied with your 1004T
Flue Manifold .......................1 Spare rubber seal ................1
(For weatherboard installations)
Back Spacer
Set 1
1
2
1
2
11
11
3
1
7
1
1
2
Air inlet hose
Floor
Brackets
Exhaust
adaptor
Pipe stopper
A&S
Pipe stopper
E
Wall
Brackets
Insulation
Clip
Plastic tie for
air inlet
(M4)
(M4×20)
(M4)
(M4.8×32)
Wood Screws
Instructions
For Flue Lock Stopper
For Flue Manifold
Wall Bracket Screws
For Back Spacer Set
8(M5)
For Wall Brackets
Check unit supplied is correct for the gas type.
Refer to data plate located inside front panel.
Check for damage. If the unit is damaged contact your supplier.
Do not install a damaged unit before checking with your supplier.
