Rinnai LS1000 User manual

LS - Gas Fireplace
Installation Manual
Models:
Flametech® (RHFE0800F)
LS1000 (RHFE1000)
LS1500 (RHFE1500)

Rinnai 2 RHFE0800F_1000_1500 IM
Congratulations on the purchase of your Rinnai LS - Gas Fireplace. We trust you will have many years of comfort
and enjoyment from your appliance.
IMPORTANT
BEFORE INSTALLING OR USING THIS APPLIANCE
Before proceeding with the operation or installation read this manual thoroughly and gain a full
understanding of the appliance, to ensure safe and correct installation and use.
This appliance must be installed in accordance with:
• Manufacturer’s Installation Instructions
• Current AS/NZS 3500
• Plumbing Code of Australia (PCA)
• Local Regulations and Municipal Building Codes
including local OH&S requirements
This system must be installed, commissioned, serviced,
maintained and removed ONLY by an Authorised Person.
For continued safety of this appliance it must be installed and
maintained in accordance with the manufacturer’s instructions.
This manual to suit LS - Gas Fireplace Heater Models:
Flametech®* LS1000 LS1500
RHFE0800SF * RHFE1000S RHFE1500S
RHFE0800DF * RHFE1000D RHFE1500D
*Incorporates Flametech®self burning log technology.

Rinnai 3 RHFE0800F_1000_1500 IM
WARNING
This appliance MUST be installed, maintained and removed ONLY by an Authorised Person.
For continued safety of this appliance it MUST be installed and maintained in accordance with
the manufacturers instructions.
Warnings & Important Information 5
Before Using or Installing This Appliance ........................................................................................................................ 5
Regulatory Information ....................................................................................................................................................... 5
Dress Guard Warnings ........................................................................................................................................................ 5
Mandatory Inspection prior to Installation ........................................................................................................................ 5
Modications. ....................................................................................................................................................................... 6
General Safety Warnings .................................................................................................................................................... 6
General Installation Information 8
Location ................................................................................................................................................................................ 8
TV & Ornamentation Warning ............................................................................................................................................. 8
Framing 9
Framing Dimensions ........................................................................................................................................................... 9
Base Board and Cut-outs �������������������������������������������������������������������������������������������������������������������������������������������������� 9
Cavity Ventilation ................................................................................................................................................................. 9
Additional Framing Notes ................................................................................................................................................... 9
Framing for RHFE0800F .................................................................................................................................................... 10
Framing for RHFE1000 .......................................................................................................................................................11
Framing for RHFE1500 ...................................................................................................................................................... 12
Supply Connections 13
Installing Engine Into Cavity ............................................................................................................................................. 13
Adjustable Feet ��������������������������������������������������������������������������������������������������������������������������������������������������������������� 13
Seismic Brackets ������������������������������������������������������������������������������������������������������������������������������������������������������������� 13
Removing the Burner Box Glass ...................................................................................................................................... 14
Gas Supply ......................................................................................................................................................................... 15
Installation of Consumer Piping �������������������������������������������������������������������������������������������������������������������������������������� 15
Purging Gas Supply �������������������������������������������������������������������������������������������������������������������������������������������������������� 15
Leak Testing the Connection ������������������������������������������������������������������������������������������������������������������������������������������� 15
Room thermistor ................................................................................................................................................................ 15
Electrical Supply ................................................................................................................................................................ 16
Direct Wired Installations ������������������������������������������������������������������������������������������������������������������������������������������������ 16
Flueing 17
Flue Exhaust & Air Inlet Connections .............................................................................................................................. 17
Installation Conguration Warnings ................................................................................................................................ 18
Flue Terminal Location ...................................................................................................................................................... 20
Flue Components .............................................................................................................................................................. 21
INSTALLATION TABLE OF CONTENTS

Rinnai 4 RHFE0800F_1000_1500 IM
WARNING
This appliance MUST be installed, maintained and removed ONLY by an Authorised Person.
For continued safety of this appliance it MUST be installed and maintained in accordance with
the manufacturers instructions.
Commissioning 22
General Information ........................................................................................................................................................... 22
Gas Pressure Setting ........................................................................................................................................................ 22
Commissioning the PCB ................................................................................................................................................... 23
Room Thermistor O󰀨set ................................................................................................................................................... 23
Thermistor O󰀨set Adjustment ������������������������������������������������������������������������������������������������������������������������������������������ 23
Gas Control Solenoids ...................................................................................................................................................... 23
Gas Pressures .................................................................................................................................................................... 24
Setting Gas Pressures ...................................................................................................................................................... 24
Checking the Supply Pressure ���������������������������������������������������������������������������������������������������������������������������������������� 24
Setting the Pilot Pressure ������������������������������������������������������������������������������������������������������������������������������������������������ 25
Setting the Operating Pressure ��������������������������������������������������������������������������������������������������������������������������������������� 25
Burn media installation ..................................................................................................................................................... 26
Test Operation and Lighting Sequence ........................................................................................................................... 26
Abnormal Flame Pattern ................................................................................................................................................... 26
Check Wi-FiConnectivity ................................................................................................................................................. 27
Resetting Wi-Fi Module ..................................................................................................................................................... 27
Installation Checklist & Installation Record .................................................................................................................... 27
Wall Lining Installation 28
Plasterboard Wall With Plastered Finish ......................................................................................................................... 29
Edge Finishing Options .................................................................................................................................................... 30
Tiled Or Second Skin Wall Linings ................................................................................................................................... 31
Non-Combustible Thick Wall Linings .............................................................................................................................. 32
Non-Combustible Recess Installations ........................................................................................................................... 33
Specications 34
Table 1. Appliance Details ................................................................................................................................................. 34
Table 2. Dimensions .......................................................................................................................................................... 35
Wiring Diagram .................................................................................................................................................................. 36
Contacts 38
INSTALLATION TABLE OF CONTENTS

Rinnai 5 RHFE0800F_1000_1500 IM
IMPORTANT
BEFORE USING OR INSTALLING THIS APPLIANCE
Before proceeding with the operation or installation read this manual thoroughly and gain a full
understanding of the appliance, to ensure safe and correct use.
Failure to carefully read and follow all instructions in this manual can result in equipment
malfunction, property damage, personal injury and/or death.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in
personal injury or death.
WARNINGS: Indicates a potentially hazardous situation which, if not avoided, could result in
personal injury or death.
CAUTIONS: Indicates a potentially hazardous situation which, if not avoided, could result in
minor or moderate injury or damage to the appliance. It may also be used to alert against unsafe
practices.
WARNING
REGULATORY INFORMATION
This appliance shall be installed in accordance with:
Manufacturer’s Installation Instructions.
Current AS/NZS 3000, AS/NZS 3500 & AS/NZS 5601.
Local Regulations and Municipal Building Codes including local OH&S requirements.
This appliance has been certied by the Australian Gas Association. The A.G.A. Certication
Number is shown on the data plate.
This appliance MUST be installed, maintained and removed ONLY by an Authorised Person.
For continued safety of this appliance it MUST be installed and maintained in accordance with
the manufacturers instructions.
NOTICE TO VICTORIAN CONSUMERS
This appliance MUST be installed by a person licensed with the Victorian Building Authority.
ONLY a licensed person will have insurance protecting their workmanship.
So make sure you use a licensed person to install this appliance and ask for your Compliance
Certicate. For further information contact the Victorian Building Authority on 1300 815 127.
WARNING
DRESS GUARD WARNINGS
The guard is tted to this appliance to reduce the risk of re or injury from burns and
no part of it should be permanently removed. For protection of young children or the
inrm, a secondary guard is required.
The glass dress guard supplied with this appliance MUST NOT be permanently removed as it
fulls an operational safety function. Additional dress guards including free standing types may
be used in conjunction with, but NOT replace, the dress guard supplied with this appliance.
WARNING
MANDATORY INSPECTION PRIOR TO INSTALLATION
Immediately report any damage or discrepancies to the Supplier of the appliance. This
appliance was inspected and tested at the time of manufacture and packaging, and released for
transportation without known damage. Upon receipt, inspect the exterior for evidence of rough
handling in shipment. Ensure that the appliance is labelled correctly for the gas and electrical
supply, and/or other services it is intended to be connected to.
For safety and warranty purposes, appliances that may be damaged or incorrect MUST NOT be
installed or operated under ANY circumstances. Installation of damaged or incorrect appliances
may contravene local government regulations. Rinnai disclaims any liability or responsibility
whatsoever in relation to the installation or operation of damaged or incorrect appliances.
Take care when opening or unpacking this appliance. Failure to do so may result in serious injury
or product failure.
Check the label for the correct gas type (refer rating plate, inside the appliance). Refer to local gas
authority for conrmation of the gas type if you are in doubt.
WARNINGS & IMPORTANT INFORMATION

Rinnai 6 RHFE0800F_1000_1500 IM
WARNING
MODIFICATIONS.
DO NOT MODIFY THIS APPLIANCE,modifying from original specications may create a
dangerous situation and will void your warranty. Failure to comply with these instructions could
result in a re or explosion, which could cause serious injury, death or property damage.
DO NOT modify the electrical wiring of this appliance.
If the power cord is damaged or deteriorated then it MUST be replaced by an authorised person.
Failure to do so may result in electric shock, re, serious injury or product failure.
Improper installation, adjustments, service or maintenance can cause serious injury, death or
property damage. Such work MUST ONLY be performed by an authorised person.
WARNING
GENERAL SAFETY WARNINGS
This appliance is HEAVY, during installation the use of a mechanical lifting aid is recommended,
noting that improper lifting may result in serious injury.
WARNING: This heater MUST NOT be used if any of the glass panels are damaged.
Flue terminal MUST always vent directly to outdoors. DO NOT extend the ue vertically or
horizontally in ways other than prescribed in this appliance manufacturer’s installation
instructions. ONLY the ue components specied by Rinnai must be used.
When considering installation ensure
minimum clearances as follows are adhered
to, refer Fig. 1.
Heat radiating from the front of this heater
may over time a󰀨ect the appearance of
some materials used for ooring such as
carpet, vinyl, cork or timber. This e󰀨ect may
be amplied if the air in the room contains
cooking vapours, candle vapours and
cigarette smoke, etc. To avoid this possibility,
it is recommended that a mat or similar
protective sheet be placed in front of the
appliance, extending at least 750 mm in front
of the dress guard. Refer to the installation
manual for mantle clearances, additional
installation information and warnings.
This appliance MUST NOT be installed where curtains or other combustible materials could
come into contact with it. In some cases curtains may need restraining.
This appliance is NOT intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
The appliance is NOT intended for use by young children or inrm persons without supervision.
Young children and the inrm SHOULD be supervised at all times when in the vicinity of this
heater while it is in operation.
The heater MUST NOT be located immediately below a power socket outlet.
A dedicated 230 V earthed 10 Amp power point must be used with this appliance.
Suitable ONLY for indoor installation.
DO NOT operate this appliance before leak checking hoses and gas cylinder connection.
NOT to be connected to an LP gas cylinder located indoors.
Please keep this instruction booklet in a safe place for future reference. All dimensions referred
to in these instructions are in millimetres, unless otherwise specied.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS IN OR NEAR THIS APPLIANCE.
DO NOT PLACE ARTICLES ON OR NEAR THIS APPLIANCE.

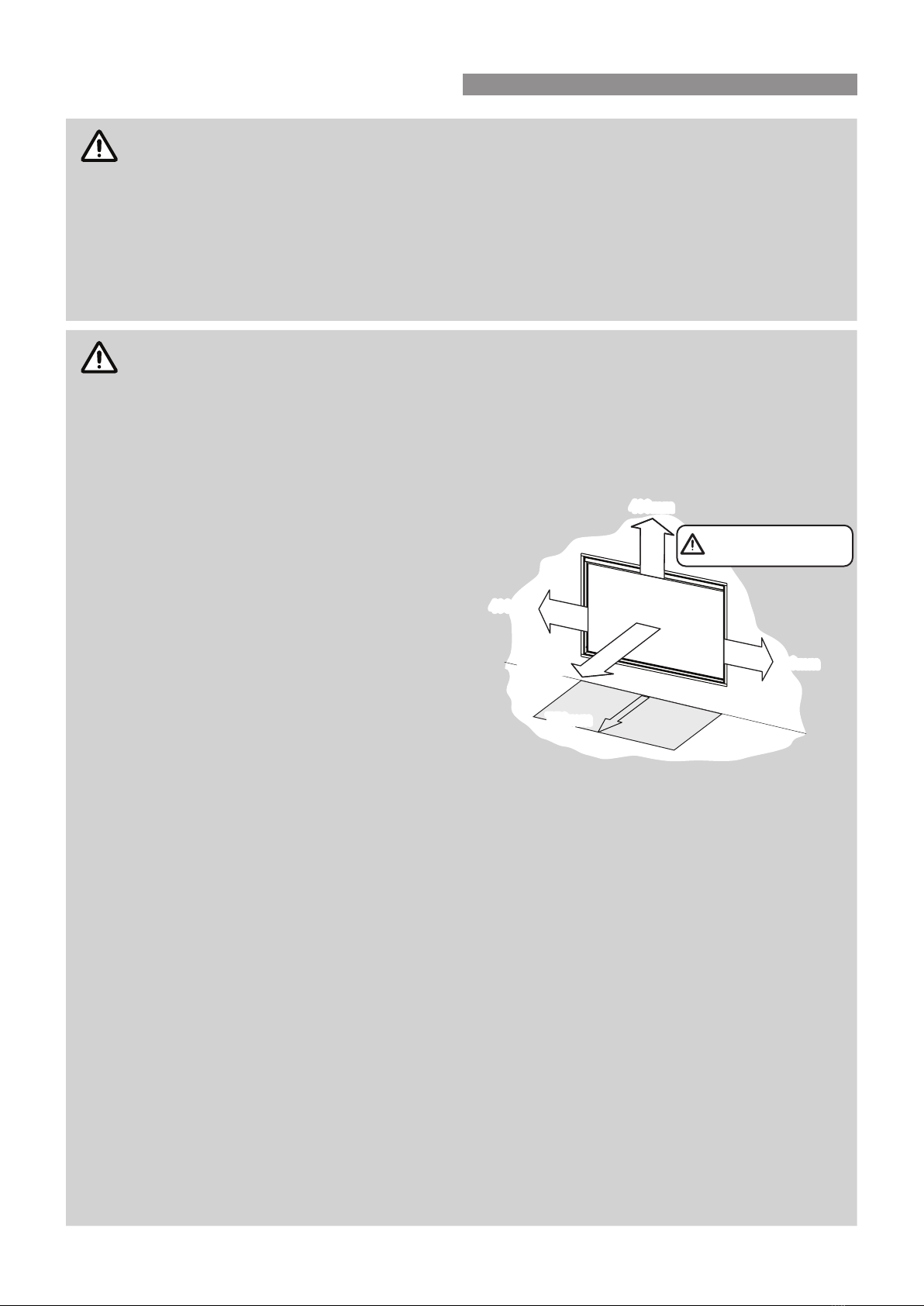

Note that side and vertical
clearances are measured
from the edge of the glass.
400mm
400mm
400mm
750mm
1000mm
400mm
Fig .1
400mm
400mm
750mm
1000mm
WARNINGS & IMPORTANT INFORMATION

Rinnai 7 RHFE0800F_1000_1500 IM
CARTON CONTENTS / ITEM CHECKLIST
The components for LS - Gas Fireplace heaters may be supplied in separate cartons, the following tables list which
components are in each carton. Ensure that the components listed for the installation method being installed are
present before proceeding with the installation.
COMPONENTS DESCRIPTION
CARTON CONTENTS
(A) (B) (C)
Engine Burn
Media Flue
(1) LS - Gas Fireplace Heater Engine.
(2) Glass frame.
(3) ½” BSP Flare Adaptor and Nut (packed separately in parts plastic bag).
(4) Remote control (batteries included)
(5) Operation and Installation manual.
(6) Burn media installation guide.
(7) Colour burn media placement sheet (attached to the glass frame)
(8) Commissioning sheet (attached in a plastic pouch inside engine)
(9) Burner media - RHFE0800F ONLY (shipped inside engine)
(10) Flue lock bracket and truss screws (x2)
(11) Burn media - RHFE1000/1500 ONLY (packaged separately).
(12) Flue components and accessory items are ordered separately.
WARNINGS & IMPORTANT INFORMATION

Rinnai 8 RHFE0800F_1000_1500 IM
LOCATION
When positioning the heater, the main variables governing
the location are Flueing and Warm Air Distribution.
This heater MUST NOT be installed where curtains or
other combustible materials could come into contact with
it. In some cases curtains may need restraining. Refer to
"General Safety Warnings" on page 6 for additional
safety considerations.
IMPORTANT
Horizontal and vertical clearances are
measured from the edge of the burner box
glass.
Combustible mantles and surrounds can be added to
compliment the design provided that they conform to the
following clearances requirements.
The minimum clearance from the edge of the burner box
glass is 400 mm. The depth of the mantle or surround (A)
at this minimum clearance may not exceed 250 mm.
An additional 100 mm of clearance is required for every
extra 50 mm of mantle depth. The depth of the mantle
or surround (B) at 500 mm of clearance may not exceed
300 mm.
Refer to the section "Wall Lining Installation" starting on
page 27 for additional information.
Refer "Cavity Ventilation" on page 9 for cavity ventilation
details.
NOTE
Combustion product spillage testing must be
conducted during appliance commissioning.
This testing may show a need for additional
xed ventilation.
TV & ORNAMENTATION WARNING
CAUTION
INSTALLATION OF TV OR ORNAMENTATION ABOVE THE HEATER
The installation of electrical appliances above and in the vicinity of the heater such as, but
not limited to, Plasma TV, LCD TV, Home Theatre Screens, Speakers, etc must comply with
their manufacturers' instructions. It is the responsibility of the installer/end-user to check the
installation instructions of these items and to ensure the location is suitable.
This caution also extends to, but is not limited to, ornaments such as: Paintings, Prints,
Photographs, Tapestries, Mirrors, Stu󰀨ed Animals, etc.
Please note the recommended clearances as per the diagram above. The temperature of the wall
surface directly above the appliance may be elevated and may discolour paint nishes or distort
vinyl wall coverings. For durability of surfaces you should contact the relevant manufacturer for
their specication.
WARNING
RINNAI DOES NOT TAKE ANY RESPONSIBILITY FOR ANY DAMAGE OCCURRING TO
ANY ITEMS INSTALLED ABOVE AND IN THE VICINITY OF THE HEATER.
IDEA
Use either a shelf or mantle below the TV or ornament or alternately you can construct a recess
to mount TV or ornament in. Check the manufacturers installation instructions for these items
and ensure the recess is suitable.
400mm 400mm
400mm
257mm
1000mm
500mm
A = 250mm
B = 300mm
400mm 400mm
400mm
257mm
1000mm
GENERAL INSTALLATION INFORMATION

Rinnai 9 RHFE0800F_1000_1500 IM
FRAMING DIMENSIONS
Framework of the installation must conform to local building codes. Non-combustible materials need not be used.
If the appliance is elevated from the ground within the structure, a base must be constructed using suitable material
with supporting joists capable of supporting a minimum of 1.5 times the weight of the appliance.
CAUTION
AS/NZS 5601 “GAS INSTALLATIONS” requires that ue components be supported independently
of the appliance.
For the following framing dimensions it is important to be aware that the studs are o󰀨set—the cavity needs to be
framed based on the centreline of the glass, not the opening size.
Base Board and Cut-outs
To ensure everything lines up and ts properly, it is recommended that on the base the following dimensions are
pencilled; glass centreline, unit depth centreline, feet position, gas and room thermistor cut-outs.
* Assumes 10mm plasterboard / All dimensions in mm RHFE0800F RHFE1000 RHFE1500
A Thermistor / ambient air access - right glass of centreline 50 50 225
B Gas supply access - left of glass centreline 220 220 220
C Support feet centres - left of glass centreline 640 740 990
D Support feet centres - right glass of centreline 360 460 710
E Gas supply / thermistor access - from front of enclosure* 77 77 77
CAVITY VENTILATION
Ventilation of at least 2000 mm² is required in the cavity ideally below the base of the heater engine. This is to
provide room air at ambient room temperature to the re thermistor located in the base of the heater engine.
Ventilation can be via a vent or an open toe kick at the base of the cavity, however it MUST be in the same room
and wall cavity as the heater.
Additionally the top of the cavity needs to be ventilated into the room or another space. This ventilation opening
MUST be at least 2000 mm². This opening is to prevent heat build-up within the cavity, which if left unventilated
could potentially cause damage to wall surfaces or coverings and / or cause the appliance to cut out.
ADDITIONAL FRAMING NOTES
Plaster board is set 1 mm back from the front edge of the frame to allow for a slim edge plaster nish.
To ensure the appliance performs correctly, without rattling, the heater engine MUST be installed on a at level
support base.
IMPORTANT
Issues caused by rattling res not installed on a at level base, as detailed in this guide, will NOT
be covered by warranty.
E
A
B
Gas supply access
Thermistor / ambient air access Ø 40 mm
Glass centreline
Dimension
E assumes 10 mm plaster board
Drawing is for a top down view
C D
FRAMING

Rinnai 10 RHFE0800F_1000_1500 IM
FRAMING FOR RHFE0800F
IMPORTANT
To prevent the transfer of heat from the heater engine to surfaces (including to surfaces of non-
combustible materials), a minimum 50 mm clearance MUST be maintained. Failure to provide this
clearance (especially at the non ue connection end of the heater engine) may cause permanent
heat damage to adjacent wall materials.
All dimensions are assuming a 10 mm plaster board.
Studs and joists are required directly below the support feet of the appliance.
Framing shown is 90 x 45 mm and the re platform shown is 18 mm plywood.
Allow room underneath the appliance for the gas supply to enter the re cavity (min. 100 mm).
The framing dimensions have the studs o󰀨set. This is because the cavity needs to be framed
based on the centreline of the Linear glass, NOT the opening size.
Where there is a requirement for a symmetrical installation, the cavity size will need to increase,
refer to the diagram below.
520 Min730 Min
1250 min.
1020 Min
~800
640 360
500 **
816 *
300
770
845
80**
39 mm assumes
10 mm wallboard
403 mm assumes a 10 mm wallboard
on both sides of a double-sided unit.
415 mm is the min. for a single-sided
unit to maintain 50 mm clearance to
the back of the fire.
Glass centreline
Glass centreline
39
566 *
257 ±5 *
1365 min.
1690 (for symmetrical cavity)
845 min.
Min. 100 mm
underneath to allow
for gas supply to
enter cavity
403
Recommended that lintel is left
until heater engine is installed so
minimum clearances can be
maintained
*** For symmetrical cavities, make this dimension the same as the left hand dimension (730mm)
** Maintain 25 mm clearance to combustibles for first 500mm of flue
* Plaster board cutout for finishing trim
Shaded area is the clearance required around the heater engine (Min. 50 mm). On the non
flue end of the heater enginge this is automatically achieved with the carry bar.
FRAMING

Rinnai 11 RHFE0800F_1000_1500 IM
FRAMING FOR RHFE1000
IMPORTANT
To prevent the transfer of heat from the heater engine to surfaces (including to surfaces of non-
combustible materials), a minimum 50 mm clearance MUST be maintained. Failure to provide this
clearance (especially at the non ue connection end of the heater engine) may cause permanent
heat damage to adjacent wall materials.
All dimensions are assuming a 10 mm plaster board.
Studs and joists are required directly below the support feet of the appliance.
Framing shown is 90 x 45 mm and the re platform shown is 18 mm plywood.
Allow room underneath the appliance for the gas supply to enter the re cavity (min. 100 mm).
The framing dimensions have the studs o󰀨set. This is because the cavity needs to be framed
based on the centreline of the Linear glass, NOT the opening size.
Where there is a requirement for a symmetrical installation, the cavity size will need to increase,
refer to the diagram below.
1450 min.
796 Min
341 *
257 ±5 *
1016 *
500 **
~ 575
620 ***830
740 460
300
80**
870
945
403
39 mm assumes
10 mm wallboard
39
403 mm assumes a 10 mm wallboard
on both sides of a double-sided unit.
415 mm is the min. for a single-sided
unit to maintain 50 mm clearance to
the back of the fire.
Glass centreline
Glass centreline
1565 min.
1890 (for symmetrical cavity)
945 min.
Min. 100 mm
underneath to allow
for gas supply to
enter cavity
Recommended that lintel is left
until heater engine is installed so
minimum clearances can be
maintained
*** For symmetrical cavities, make this dimension the same as the left hand dimension (830mm)
** Maintain 25 mm clearance to combustibles for first 500mm of flue
* Plaster board cutout for finishing trim
Shaded area is the clearance required around the heater engine (Min. 50 mm). On the non
flue end of the heater enginge this is automatically achieved with the carry bar.
FRAMING

Rinnai 12 RHFE0800F_1000_1500 IM
FRAMING FOR RHFE1500
IMPORTANT
To prevent the transfer of heat from the heater engine to surfaces (including to surfaces of non-
combustible materials), a minimum 50 mm clearance MUST be maintained. Failure to provide this
clearance (especially at the non ue connection end of the heater engine) may cause permanent
heat damage to adjacent wall materials.
All dimensions are assuming a 10 mm plaster board.
Studs and joists are required directly below the support feet of the appliance.
Framing shown is 90 x 45 mm and the re platform shown is 18 mm plywood.
Allow room underneath the appliance for the gas supply to enter the re cavity (min. 100 mm).
The framing dimensions have the studs o󰀨set. This is because the cavity needs to be framed
based on the centreline of the Linear glass, NOT the opening size.
Where there is a requirement for a symmetrical installation, the cavity size will need to increase,
refer to the diagram below.
1950 min.
796 Min
341 *
257 ±5 *
1516 *
500 **
~ 575
870 Min *** 1080 Min
990 710
300
80**
1120
1195
*** For symmetrical cavities, make this dimension the same as the left hand dimension (1080mm)
** Maintain 25 mm clearance to combustibles for first 500mm of flue
* Plaster board cutout for finishing trim
Shaded area is the clearance required around the heater engine (Min. 50 mm). On the non
flue end of the heater enginge this is automatically achieved with the carry bar.
403 mm assumes a 10 mm wallboard
on both sides of a double-sided unit.
415 mm is the min. for a single-sided
unit to maintain 50 mm clearance to
the back of the fire.
Glass centreline
2065 min.
2390 (for symmetrical cavity)
1195 min.
Glass centreline
403
Min. 100 mm
underneath to allow
for gas supply to
enter cavity
Recommended that lintel is left
until heater engine is installed so
minimum clearances can be
maintained
39 mm assumes
10 mm wallboard
39
FRAMING

Rinnai 13 RHFE0800F_1000_1500 IM
INSTALLING ENGINE INTO CAVITY
Using the handholds (white slots on the left hand end and carry bars on the right hand end), carefully lift and slide
the heater engine into the enclosure and position in place.
Adjustable Feet
Use the feet on all corners of the unit to adjust the re so that it is level. The feet are adjustable. Having the unit
level is critical to the installation, so the wall lining can be installed ush with the frame edge of the appliance.
Seismic Brackets
In areas where seismic activity can be expected. Secure the heater engine to the bottom of the cavity using the
four seismic brackets.
To level the unit and not a󰀨ect where the feet go, the seismic brackets need to be elevated before the unit is
installed into the cavity
Hand hold
Carry bar position, two carry bars
SUPPLY CONNECTIONS

Rinnai 14 RHFE0800F_1000_1500 IM
REMOVING THE BURNER BOX GLASS
The glass front sits in a narrow channel at the bottom of the re and is held in place by glass retainer latches
positioned at the top, either side of the unit (the 1500 model has an extra glass retainer latch in the centre).
IMPORTANT
Take care when lifting the glass from the engine noting the glass for the RHFE1500 weighs
approximately 7 kg.
Removal Procedure:
Using a screwdriver, loosen the three screws holding the louvre in place, remove the louvre, and then remove the
screws (so the glass can come out) and put the louvre to one side.
1. Push the top glass retainer latches up and slightly to one side to release the top section of the glass. These
will stay in the upright position if moved slightly to one side
2. Using the frame tabs at the top of the glass frame, lift up and gently slide to the right and rotate the glass until
the left section comes free, then move the glass panel to the left to remove the right section.
Glass retainer latch
Louvre
Glass frame tabs
Push up the latch and to the
side to release the glass
SUPPLY CONNECTIONS

Rinnai 15 RHFE0800F_1000_1500 IM
GAS SUPPLY
WARNING
Gas pipe sizing must consider the gas input to this appliance as well as all other gas appliances
in the premises. The gas meter and regulator must be specied for the total gas rate.
A suitable sizing chart such as the one in AS/NZS 5601 should be used.
The use of rubber hose for any gas connection to a xed appliance is NOT authorised by the
manufacturer.
IMPORTANT
Conrm correct gas type (see labels located on top or rear panels). Refer to local gas authority
for conrmation of gas type if you are in doubt.
Installation of Consumer Piping
The gas supply (consumer piping), termination is
inside the heater and enters through the base of
the appliance.
A ½” BSP ared nut (A) and a ½” BSP Male Flare
x ½” Barrel Union (B) are provided for connection
to the consumer piping (C). They are shipped
inside the engine attached to on the gas inlet
connection of the heater.
Once the gas connection is made lock the sliding
plate (D) in place to stop the connection rattling,
refer to the images right.
Purging Gas Supply
Foreign materials and debris such as swarf,
lings, etc. MUST be purged / removed from the
gas supply, failure to do so may cause damage
to the gas control valve causing it to malfunction.
Leak Testing the Connection
Plug the end of the consumer piping gas and leak test all joints.
CAUTION
Use a soapy solution to test all gas connections. If a leak is present bubbles will form at the leak
point. When nished remove any residue with a rag. Prevent any soapy solution from coming in
contact with electrical components.
ROOM THERMISTOR
Once installed the room temperature thermistor should be set so the bulb on the end is outside of the re box and
into an area where room air will be drawn over it from the lower room ventilation, refer to the image below.
IMPORTANT
The room temperature thermistor is provided with a 1.5 metre lead and is to be positioned so that
it is in the air ow of the cavity ventilation. It may be mounted directly to the inside of an air vent
grill. The thermistor MUST be accessible for servicing after the wall linings have been installed.
B
C
A
DD
D
SUPPLY CONNECTIONS

Rinnai 16 RHFE0800F_1000_1500 IM
ELECTRICAL SUPPLY
This heater has a 1.5 m power cord with a three pin plug supplied. The power cord passes through a slot in the
front right hand side of the appliance, approximately 140 mm from the front of the unit.
If a power point is used it MUST be 230 V, rated at 10A and MUST be earthed.
This power point MUST NOT be located above the heater and a switch provided to electrically isolate the
appliance for servicing.
Direct Wired Installations
Alternatively the appliance can be direct wired to conceal the power supply.
IMPORTANT
A qualied electrician will need to be consulted where a direct wired installation is required.
A switch is to be provided to electrically isolate the appliance for servicing.
Any such installation must comply with the requirements of AS/NZS 5601, AS/NZS 3000 and any
other relevant local regulations.
approx.
140 mm
SUPPLY CONNECTIONS

Rinnai 17 RHFE0800F_1000_1500 IM
IMPORTANT
The following information is provided as a basic overview of the ue system requirements. Refer
to the LS - Gas Fireplace, Flue Installation Manual which is provided with ue transition
components for comprehensive details regrading the installation of the ue system .
FLUE EXHAUST & AIR INLET CONNECTIONS
WARNING
The following steps in the installation are critical. If the connections are not secured correctly,
then products of combustion could disperse into the room being heated.
1. Connect the ue terminal exhaust connection to the ue exhaust outlet, and secure in place (two screws) with
the ue locking bracket (supplied in the accessories plastic bag with the remote control).
2. Secure the ue transition to the framing using a wall clip (supplied with LSFKIT01/02 or ASPDFK).
3. Attach the air intake hose to the large air inlet connection on the ue transition (LSFKIT01/02 or ASPDFK)
and secure in place with the supplied cable tie (also supplied), noting that the other end of the air inlet hose
is already pre-installed to the appliance.
4. Ensure that the rubber cap remains secured in place on the unused (small) air inlet connection.
Air inlet hose
(This end is supplied
pre-fitted to the appliance)
Air inlet hose
(This end is supplied pre-fitted to the appliance)
Flue exhaust outlet
Flue exhaust
locking bracket
Flue exhaust
connection
Flue exhaust
locking bracket
(shown installed)
Flue exhaust
connection
Small air inlet connection
Large air inlet
connection
LSFDFK01
LSFKIT01/02
(Extension piece not shown)
Air inlet hose
Flue exhaust
connection
(Rubber cap MUST remain in place)
Air inlet hose
(shown installed)
Flue exhaust
locking bracket
Flue exhaust
locking bracket
(shown installed)
Air inlet hose
(This end is to be
fitted to LSFKIT01/02
or LSFDFK01)
FLUEING

Rinnai 18 RHFE0800F_1000_1500 IM
INSTALLATION CONFIGURATION WARNINGS
WARNING
ONLY the Rinnai ue system components specied in this reference manual MUST be used.
Components NOT specied in these manuals, whether manufactured by Rinnai or otherwise, are
NOT compatible and MUST NOT be used! Rinnai appliance warranty conditions may be voided if
non Rinnai ue components are tted.
Use ONLY the supplied silicone grease when lubricating the O-rings.
ONLY an authorised person MUST install, service and remove the Rinnai heater & ue system.
The maximum ue length is 8.5m (1) and the maximum number of 90° bends is 3 (2).
(1) For every 90 ° bend, the overall ue length MUST be reduced by 1m.
(2) The 90° bend of the ue transition piece is NOT counted as a 90 ° bend.
LS / Flametech series heaters combustion settings are factory set for "long ue", which is for ue
lengths that are 3 metres or greater. For ue lengths shorter than 3 metres it may be necessary to
change dip switch setting, refer to the commissioning instructions for full details.
NOTE
Note 1. When cutting the ue transition for joining to other components the minimum total
length MUST NOT be less than 300mm!
NOTE
Note 2. The all aluminium ue extension component MUST be tted at this point.
NOTE
Note 3. Where stipulated a Minimum 2° fall towards the terminal is required to ensure correct
drainage of condensation formed in the discharge ue.
NOTE
Note 4. Where stipulated a Minimum 2° fall towards the appliance is required to ensure correct
drainage of condensation formed in the discharge ue.
See Note 1.
!
Cut to correct
length & discard
See Note 3.
!
DIRECT DIRECT EXTENDED
OFFSET
LSFDFK01
LSFDFK01
See Note 1.
!
Cut to correct
length & discard
See Note 3.
!
See Note 2.
!
LSFKIT01
ESWTERM
See Note 1.
!
See Note 3.
!
Cut to correct
length & discard
LSFDFK01
ESPIPE900
See Note 2.
!
See Note 1.
!
Cut to correct
length & discard
LSFKIT01
ESPIPE900
ESWTERM
See Notes 1 & 4.
!
See Notes 2 & 4.
!
AA
Cut to correct
length & discard
See note 3.
!
A
See note 3.
!
See note 3.
!
LSFKIT01
See Note 3.
!
FLUEING

Rinnai 19 RHFE0800F_1000_1500 IM
27mm 31mm
Minimum 70mm
Cut to correct
length & discard
ESWTKIT2
(Flue Terminal, Terminal Adapter,
Wall Plate & Fixings)
VERTICAL ROOF
See Note 4.
!
See Notes 2 & 3.
!
B
B
B
See Notes 1 & 3.
!
*
*
B
B
B
B B
See Note 3.
!
Cut to correct
length & discard
B
VERTICAL ON-WALL
DOWN & OUT / UNDER
UNDER FLOOR
See Note 2.
!
See Note 2.
!
C
See Note 2.
!
*
*
See Note 1.
!
See Note 2.
!
See Note 2.
!
C
C
C
See Note 4.
!
See Note 3.
!
See Note 4.
!
See Note 4.
!
LSFEXTKIT01
FLUEING

Rinnai 20 RHFE0800F_1000_1500 IM
FLUE TERMINAL LOCATION
WARNING
Ensure that the location of the ue terminal can comply with the requirements of AS/NZS 5601 -
Fig. 6.2 which is reproduced in part below.
AS/NZ 5601 was current at the time of printing but may have been superseded. It is the installer’s
responsibility to ensure that requirements of the current version of AS/NZS 5601 are met.
Refer to separately supplied Rinnai LS - Gas Fireplace - Flue Installation Manual for comprehensive
ue installation details.
1Where dimensions c, j or kcannot be achieved an equivalent horizontal distance
measured diagonally from the nearest discharge point of the terminal to the opening
may be deemed by the Technical Regulator to comply.
2See Clause 6.9.4 for restrictions on a flue terminal under a covered area.
3See Figure J3 for clearances required from a flue terminal to an LP Gas cylinder.
Aflue terminal is considered to be a source of ignition.
4For appliances not addressed above acceptance should be obtained from the
Technical Regulator.
FIGURE 6.2 (in-part) MINIMUM CLEARANCES REQUIRED FOR FAN-ASSISTED FLUE TERMINALS,
ROOM-SEALED APPLIANCE TERMINALS AND OPENINGS OF OUTDOOR APPLIANCES
* - unless appliance is certified for closer installation
NOTES:
† - Prohibited area below electricity meter or fuse box extends to ground level.
Sh a d i n g indic at e s p r ohibite d a rea for flu e ter m inal s
LEG E N D:
I= Mechan i c al a i r i nlet
M= G a s m e ter
P= E l e c tr i ci t y me ter or fuse box
S= St r u c ture
T= F l u e ter m inal
Z= Fan-assiste d a p p l i a n c e o nly
Dir e ction o f
discharge
Se e N o te 1
Se e N o te 1
Opening into
a building
T
T
T
T
T
T
T
C
M
d
d
e
e
h
j
j
j
n
b
f
a
h
P
Z
S
k
k
g
g
g
I
T
Door
Min. Clearances
(mm)
Fan Assisted
•Appliances up to 50 MJ/h input 200
•Appliances over 50 MJ/h input 300
300*ecafrusrehtoroynoclabaevoba,dnuorgehtmorFb
300*renroclanretxerollawnruteratnorFc
d
From a gas meter (M) (see 5.11.5.9 for vent terminal location of regulator )
(see Table 6.6 for New Zealand requirements) 1000
eFrom an electricity meter or fuse box (P) † 500
epipliosroepipniardamorFf
gHorizontally from any building structure* = or obstruction facing a terminal 500
hFrom any other flue terminal , cowl, or combustion air intake † 300
•Appliances up to 150 MJ/h input * 300
•Appliances over 150 MJ/h input up to 200 MJ/h input * 300
•Appliances over 200 MJ/h input up to 250 MJ/h input * 500
•Appliances over 250 MJ/h input * 1500
• All fan-assisted flue appliances , in the direction of discharge 1500
1500rewolbapsagnidulcni,telnirialacinahcemamorFk
150tupnirh/JM05otpusretaehecapS•
• Other appliances up to 50 MJ/hr input 500
•Appliances over 50 MJ/h input and up to 150 MJ/h input 1000
•Appliances over 150 MJ/h input 1500
metI.feR
a
Below eaves, balconies and other projections:
n
j
Horizontally from an openable window, door, non-mechanical air inlet, or any other opening into a
building with the exception of sub-floor ventilation:
Vertically below an openable window, non-mechanical air inlet, or any other opening into a
building with the exception of sub-floor ventilation:
75
i
ii
iii
iMinimum clearance 500mm to nearest part of roof
ii Minimum clearance 25mm to any combustible materials
iii Decktite or lead collar flashing
WARNING
The ue terminal should be positioned away ammable materials.
FLUEING
