Rinnai Neo RIB2311L User manual

Neo
Installation guide
RIB2311N / RIB2311L

For more information about buying, using, and servicing of Rinnai
appliances call: 0800 RINNAI (0800 746 624).
Rinnai New Zealand Limited
105 Pavilion Drive, Mangere, Auckland
PO Box 53177, Auckland Airport, Auckland 2150
Phone: [phone], Fax: [phone]
Email: [email protected].nz
Web: www.rinnai.co.nz
www.youtube.com/rinnainz
www.facebook.com/rinnainz
Important:
For installations into a combustible opening, a Rinnai zero
clearance box and flue kit are mandatory. Appliance must be
installed with a Rinnai approved flue system.
This appliance shall be installed in accordance with:
- Manufacturer’s installation instructions
- AS/NZS 5601.1 Gas Installations
- Local regulations and municipal building codes
Installation, servicing and repair shall be carried out only by
authorised personnel.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, personal injury or loss of
life.

cnt:
Checklist.....................................................................4
Specification...............................................................5
Dimensions.................................................................6
Clearances..................................................................7
Mantels and surrounds...............................................9
TV installation above a fireplace.................................10
Enclosure dimensions for inbuilt models ...................11
Electrical connection .................................................12
TV installation above a fireplace.................................10
Gas supply ..................................................................13

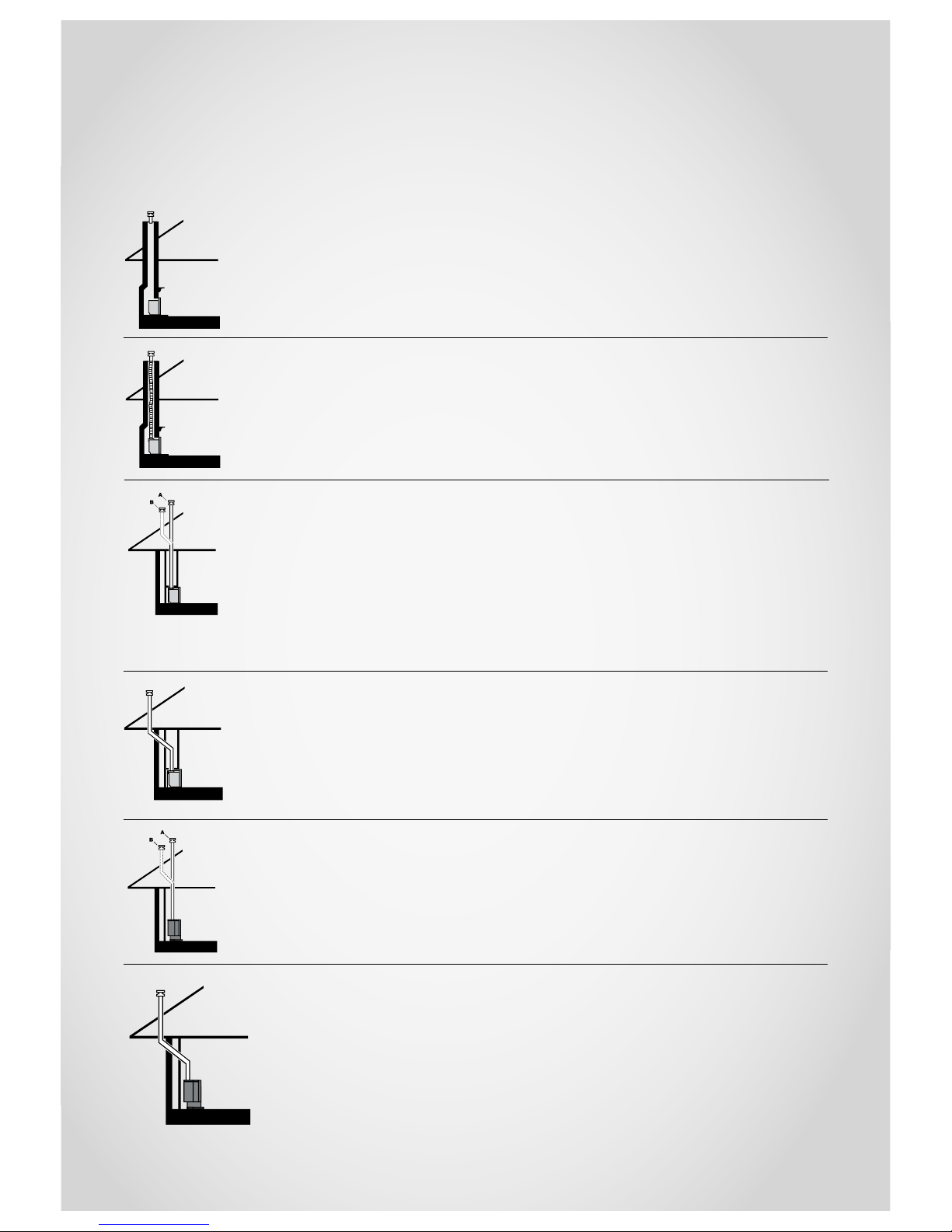

Flueing options...........................................................14
Flueing guidelines ......................................................15

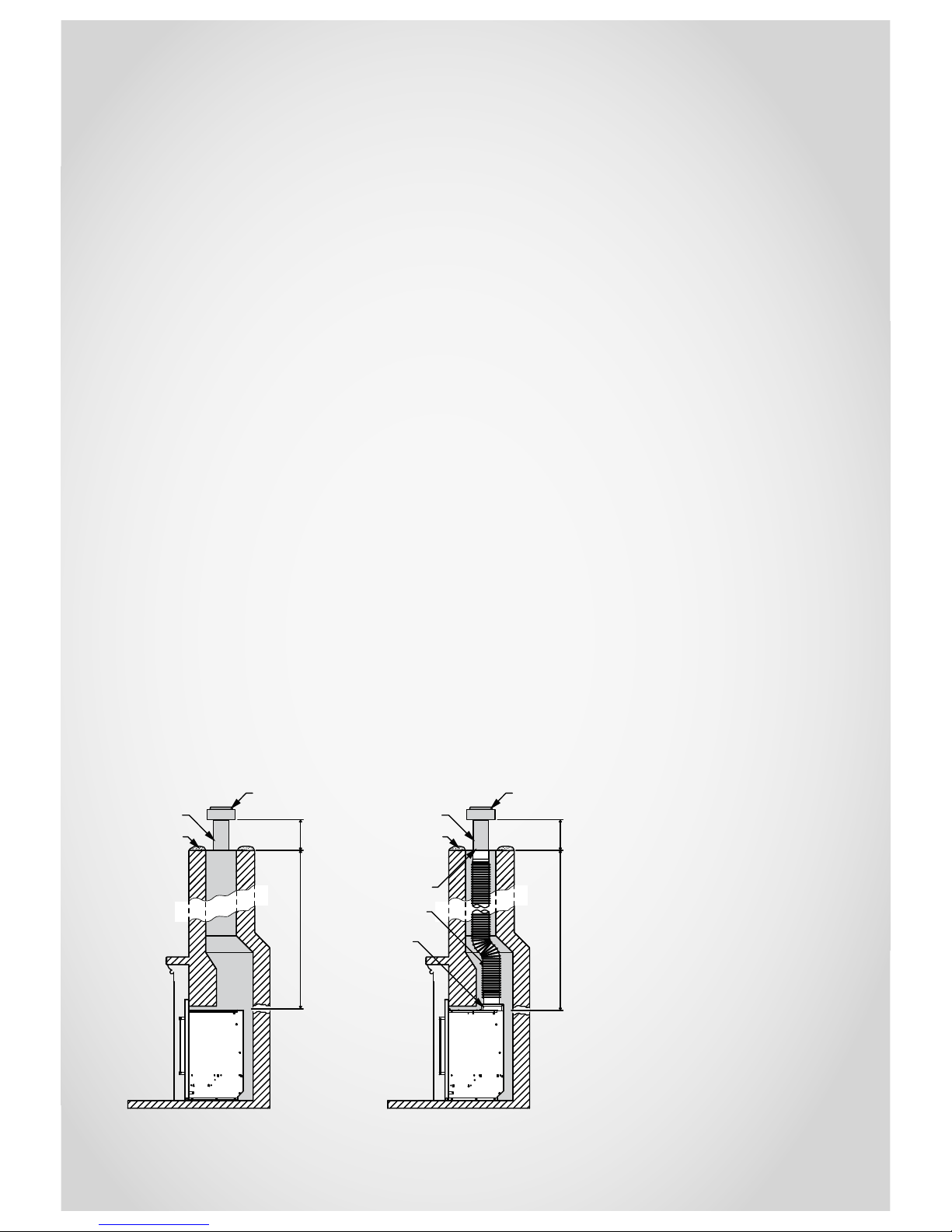

Masonry flue installation ............................................16
Masonry installation...................................................18
Inbuilt mock chimney installation ..............................20
Freestanding installations ..........................................22
Log set and granule pack installation.........................24
Inner frame and control panel....................................26
Test pressures.............................................................27
Outer frame and dress guard .....................................28
Flame pattern .............................................................29
Commissioning ..........................................................29
Wiring diagram...........................................................30

4 | Neo installation guide: 11906-H 08-15
Checklist
Engine: Masonry installations
1. Rinnai Neo heater (engine)
2. Outer frame (standard or classic)
3. Glass outer dress guardstandard frame
Mesh dress guardclassic frame (inbuilt models)
4. Inner frame
5. Log set and granule pack (inside appliance)
6. Semi rigid stainless steel gas pipe
7. Flared brass adaptor  “ UNF - ½ “ BSPT
8. Foam sealing strip
9. Operation and installation guides
Standard
frame
Classic
frame
12
2
3
4
5
5
67
8
3
9
Inbuilt mock chimney installations
A. Engine set (see above)
1. Spigot adaptor
2. Spigot guide panel
3. Spigot guide rails
4. Zero clearance box top panel
5. Zero clearance box rear panel
6. Zero clearance box left and right panels
7. Zero clearance box base panel
8. Hardware pack
A3
7
2
1
8
5
6
4
Freestanding console installations
A. Engine set (refer masonry installation)
1. Spigot adaptor
2. Console top panel
3. Console right side panel
4. Console left side panel
5. Console rear panel
6. Console pillar
7. Hardware pack
1
A
3
2
74
5
6
Freestanding plinth installations
A. Engine set (refer masonry installation)
1. Spigot adaptor
2. Plinth top panel
3. Plinth right side panel
4. Plinth left side panel
5. Plinth rear panel
6. Plinth pillar
7. Plinth base
8. Hardware pack
1
A3
2
4
5
6
7
8
Remote wireless controller- comes with all ETR models
1. RF combination remote wireless controller with wall mount
2. AA batteries (x2)
3. Operation guide
123

Neo installation guide: 11906-H 08-15 | 5
Specication
Neo
Natural draft burning log effect inbuilt gas fire
with glass front and convection fan. Different
frame options available.
Choose from either the electronic timer remote
model (ETR), which lets you preset the warmth
to come on at any time, or the manual control
model for push button operation.
Specification summary
Input = 14-30 MJ/h*
Output = 2.98-6.94 kW*
Efficiency = 80%
Energy star = 4.1 stars*
Heating area = 69-107 m2**
Gas type = NG or ULPG
* Will vary according to gas type and flue configuration
** Will vary depending on geographical location in NZ
Suitability
- Inbuilt masonry
- Inbuilt mock chimney
- Freestanding
The Neo is not suitable for areas where painting
is taking place, or in places such as hairdressing
salons, where there may be fluff and dust, and
where aerosols are used. The inbuilt Neo gas
fireplace models are not designed to be built
into bookcases.
Installation considerations
The Neo draws air for combustion from the room.
Adequate ventilation must be calculated and
provided by the gasfitter as per AS/NZS 5601.1.
Burn media
Driftwood log set comes as standard.
Convection fan
Fan forced 2-speed convection fan (low and
high). Heat is distributed from the top of the
appliance.
Data plate
Inside appliance on the front left hand side.
Gas connection
½ “ BSPT. The gas supply terminates inside the
heater at the lower front right hand side of the
appliance.
Ignition
Continuous spark electronic ignition.
Noise level
37-45 dB(A)
Flue (masonry)
Rinnai recommends the use of a Rinnai flexiliner
flue (Ø 100 mm).
Flue (mock chimney and freestanding)
Inner 100 mm, outer 150 mm. Appliance must be
installed with a Rinnai flue system.
Power consumption and electrical supply
High = 50 W
Standby = < 3 W
Comes with a 1.5 m power cord and 3-pin plug.
The standard electrical connection is to the rear
left of the appliance, but can pass through the
left or right by removing the knockout tab from
the bottom edge of the front panel.
Safety devices
Overheat switch, electrical fuse, and flame failure
sensing system.
Temperature control
- Manual models
Manual control on the side of the unit.
- ETR models
Thermostat control. Temperature control
range 7-32 °C. The lower temperature range
is for cooler climates where the room
temperature could fall below 7 °C.
Weight
60 kg

6 | Neo installation guide: 11906-H 08-15
Dimensions (mm) - includes the frame
Neo Inbuilt masonry
865
660
359 62
691 589
235
305
45
510
Neo Inbuilt mock chimney
865 363 62
660
650
240
795
280
45
305
510
Freestanding console
865
865
760
280
760
305
140
235
363 62
712
510
865
865
837
280
305
215
235
363 62
837
712
510
Freestanding plinth

Neo installation guide: 11906-H 08-15 | 7
Neo Inbuilt Premium Classic
703
865
590
359
436
510

8 | Neo installation guide: 11906-H 08-15
Clearances
The clearances listed below, measured from the edge of the inner glass, are
minimum clearances unless otherwise stated.
While the heater is operating
The appliance must not be installed where curtains or other combustible materials could come
into contact with the heater.
The 1000 mm clearance above, for the inbuilt model, is the clearance to the ceiling. The
400 mm side clearance includes side walls.
Floor protection
Heat from this fire may over time affect the appearance of some materials used for flooring,
such as, carpet, vinyl, cork or timber. This may be amplified if the air contains cooking vapours
or cigarette smoke. To avoid this occurring, it is recommended that a mat be placed in front of
this appliance.
Hearths
A hearth is not necessary, but can be used for decorative purposes or protection of sensitive
flooring. A hearth, if installed, must not obscure the front of the fire.
400 mm
10 mm
1000 mm
400 mm
400 mm
10 mm
75 mm
Neo inbuilt clearances
Neo freestanding clearances

Neo installation guide: 11906-H 08-15 | 9
Mantels and surrounds
Combustible mantels and surrounds require clearance from the unit to minimise
the risk of fire. Mantels and surrounds, made of combustible materials such as
wood, are allowed providing they are outside the minimum clearances shown.
The Neo gas fireplace is not designed to be built into bookcases.
A
B
C
AMantel needs to be a minimum of 400 mm away from the edge of the inner glass.
B Maximum mantel depth at 400 mm (A) is 250 mm.
CSurround needs to be a minimum of 400 mm away from the edge of the inner glass.
For every 50 mm of added mantel depth there must be an additional 100 mm of clearance from
the edge of the glass.
For example:
Mantel depth
A
: clearance required
300 mm 500 mm
350 mm 600 mm
400 mm 700 mm

10 | Neo installation guide: 11906-H 08-15

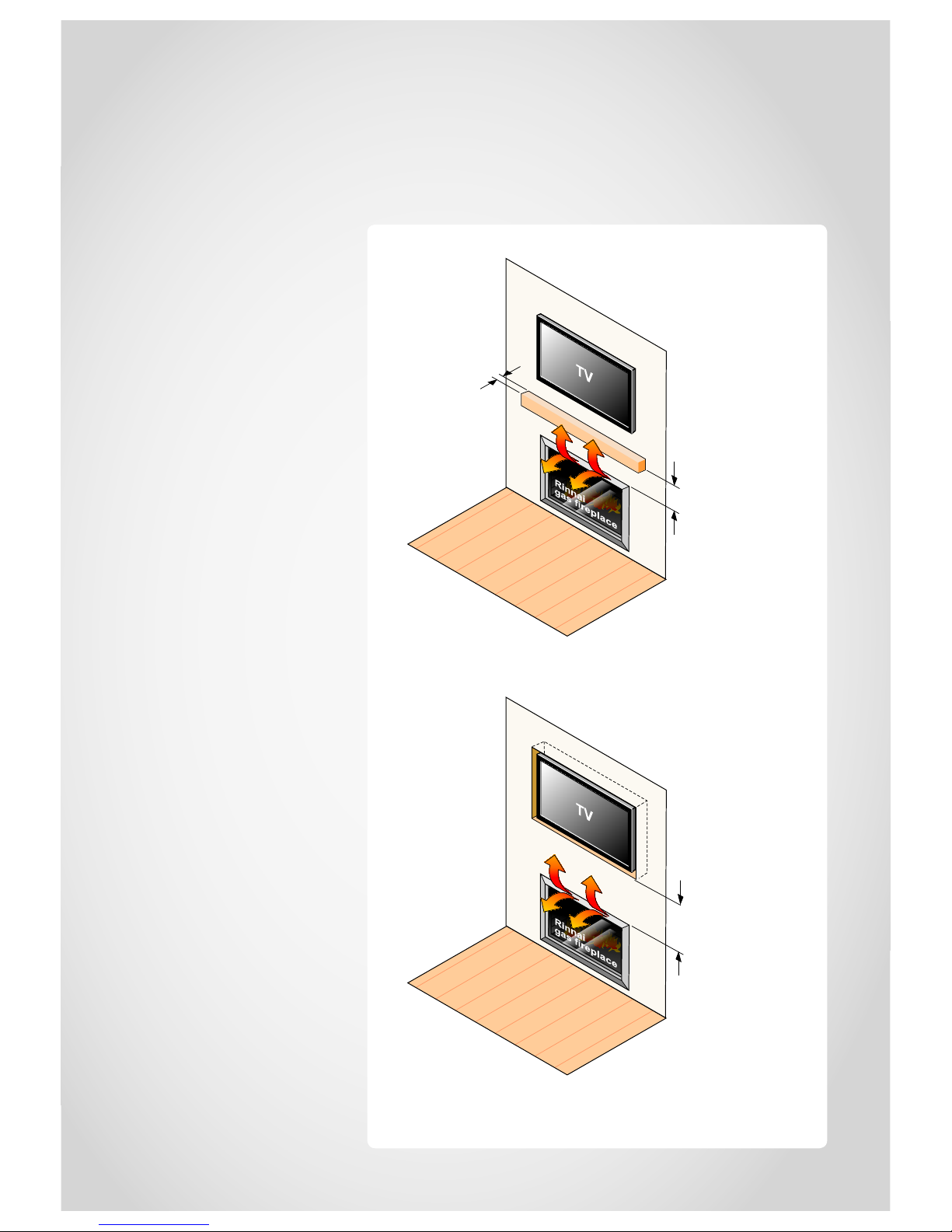

TV installation above a replace
If installing a flat screen TV above a fire, the main issue is heat. Heat from the
fire, and heat from the flueing components that could be installed behind the TV
especially if recessed).
The Rinnai Neo gas fires have
a powerful fan that distributes
warm air from the appliance
out into the room. As warm
air is dispersed outwards, as
opposed to directly upwards,
installation of a TV may be an
option.
The general rule for television
installations is that the
bottom of the television
recess should be at least 400-
450 mm above the fire.
For a TV mounted directly
above a fire, the mantel must
be at least the depth of the
TV to deflect heat away from
the appliance.
Always check with the TV
manufacturer
Some television warranty
conditions state that a TV
is not to be installed above
a fireplacealways check
with the TV manufacturer
beforehand.
Rinnai does not accept any
responsibility for damage to
a TV resulting from the use of
this information.
TV directly above
TV recessed
At least the
depth of the TV
Refer clearance
information for
each model
400 mm
minimum

Neo installation guide: 11906-H 08-15 | 11

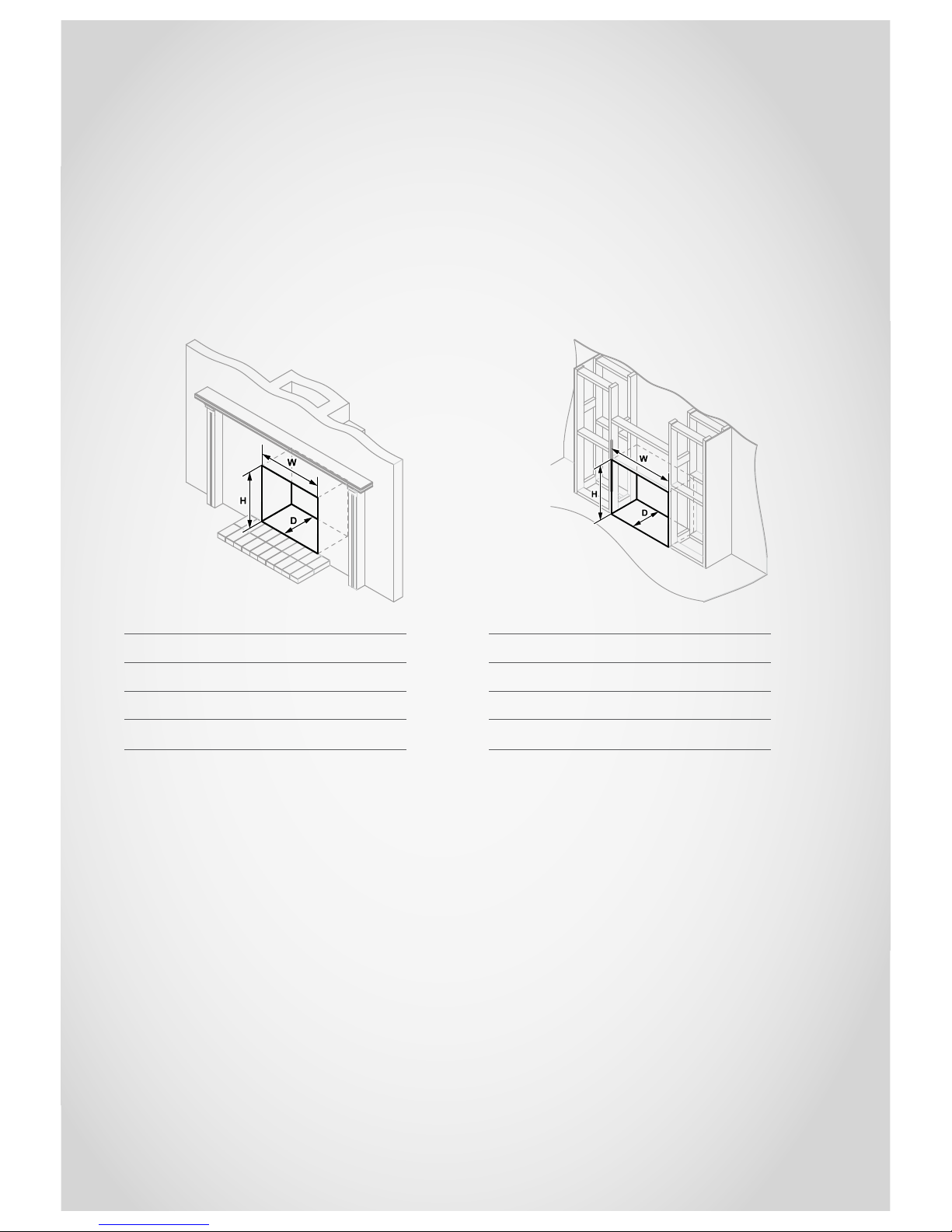

Enclosure dimensions for inbuilt models
The main points governing location are flueing and warm air distribution. The
enclosure dimensions provided are critical to the installation of this appliance and
must be adhered to.
The heater must be positioned on a flat level surface that allows free movement of
the appliance.
Inbuilt masonry installations Inbuilt mock chimney installations
Inbuilt masonry
W-width 695 mm
H-height 600 mm
D-depth 370 mm
Use a slurry of sand and cement to level the
base as required.
Inbuilt mock chimney
W-width 800 mm
H-height 650 mm
D-depth 370 mm
The zero clearance box needs to be supported
within the enclosure. Either construct a base
using board with supporting joists or support
with the frame itselfmust be capable of
supporting a minimum of 1.5 times the weight
of the appliance.
ImportAnt
The total cavity depth MUST also include the
thickness of the external cladding as the zero
clearance box MUST BE installed flush with the
cladding surface to ensure alignment of the
flue.

12 | Neo installation guide: 11906-H 08-15
Electrical connection
The Neo is supplied with a power cord (length 1500 mm) and a 3-pin plug. The
standard electrical connection passes through the rear panel, but can also pass
through the left or right hand side of the unit by removing the knockout tab from
the bottom edge of the front panel. If changing the electrical position use the
rubber grommet from the rear of the appliance for cable protection.
The connection is either direct wired* or
connected to a power point within the cavity.
This must be connected to a dedicated 240 V,
10 A earthed power point. The electric isolation
switch must be accessible after the appliance
has been installed.
The heater must not be located immediately
below a socket outlet (potential fire hazard).
The power cord is not fire rated and should not
come into contact with the unit. If the power
cord is damaged, it must be replaced by a
licensed tradesperson. This must be a genuine
replacement part available from Rinnai—part
number 6765B.
* Consult a qualified electrician if direct wiring is required as it must comply with AS/NZS 5601 and AS/NZS 3000 and other
relevant local regulations

Neo installation guide: 11906-H 08-15 | 13
Gas supply
Gas pipe sizing must consider the gas input to this appliance as well as all other gas
appliances in the premises. The gas meter and regulator must be specified for the total
gas rate. An approved sizing chart such as the one in AS/NZS 5601.1 should be used.
The gas supply termination is inside the heater and enters through the rear of the
appliance.
Gas supply location
1. Mark off the location for the vertical centre line of the
heater enclosure.
2. To the right of the vertical centre line, mark off the
vertical and horizontal locations for the gas supply
penetration.
2
Gas supply locaon
3
INBUILT FREESTANDING
Masonry Mock chimney Console Plinth
305 mm to right of the
appliance centre line
305 mm to right of the
appliance centre line
305 mm to right of the
appliance centre line
305 mm to right of the
appliance centre line
45 mm from base of
enclosure
45 mm from base of
enclosure
140 mm from floor level 215 mm from floor level
Terminate 230 mm from
front of enclosure
Terminate 230 mm from
front of enclosure
Terminate at wall,
clearance plus 125 mm
Terminate at wall,
clearance plus 125 mm
5
WALL
4
Minimum
clearance75mmBack of heater
FRONTOFENCLOSURE
REAR OF
ENCLOSURE
4
STEP 1
Inbuilt installations
STEP 2
Freestanding installations
The length of the gas supply termination
is measured from the front of the
enclosure.
The length of the gas supply termination
is measured from the back of the heater
plus 125 mm.
Installer to terminate to suit, and fit
supplied gas connection . Leak test the
joint between the flexible gas connection
and termination.

14 | Neo installation guide: 11906-H 08-15
Flueing options
The below options detail the most common types of flue installations. If you have an
installation that varies from those below, please contact Rinnai.
Flue component
- Flue cowl (R1760-2)
Masonry without a flexiliner flue
For installations into a masonry cavity where
the chimney has been swept, checked for
soundness and ability to achieve a good draw.
Masonry with flexiliner flue
For installations into a masonry cavity where
a Rinnai aluminium flue is required to ensure
optimum performance of the appliance.
Flue components
- Flexiliner flue kit (R1756) 3.6 m
If flueing exceeds 3.6 m add:
- Flexiliner flue extension (R1761)
Inbuilt mock chimney direct and offset
For installations into a combustible opening
with a zero clearance box, where the flue runs
vertically in-wall.
A: Flue component
- Zero clearance flue kit (R1762Z)
B: Flue components
- Zero clearance flue kit (R1762Z)
- 45 ° bend kit x 2 (R1764)
If flueing exceeds 3.6 m add the
galvanised or stainless steel flue
extension (R1763Z, R1763SS).
Inbuilt mock chimney offset wall penetration
For installations into a combustible opening
with a zero clearance box. Flue runs in-wall,
then penetrates the building before terminating
vertically.
Typically used in multi-storey dwellings where
the fire is installed on the ground floor.
Flue components
- Zero clearance flue kit (R1762Z)
- Wall penetration kit (R1766)
If flueing exceeds 3.6 m add the
galvanised or stainless steel flue
extension (R1763Z, R1763SS).
Freestanding vertical
Straight vertical or with an offset in the roof
space.
Freestanding with offset wall penetration
Flue runs vertically, penetrates the building
before terminating vertically.
Typically used in multi-storey dwellings where
the fire is installed on the ground floor.
Flue components
- FS galaxy black flue kit (R1762GL)
- FS brushed SS flue kit (R1762BS)
To offset the flue in the roof use
45 ° bends (R1764 x 2)
Flue components galaxy black
-
FS galaxy black flue kit (R1762GL)
- Wall penetration kit blk. (R1766GL)
Flue components brushed SS
- FS brushed SS flue kit (R1762BS)
- Wall penetration kit galv. (R1766)

Neo installation guide: 11906-H 08-15 | 15
Flueing guidelines
Minimum flue length - 3.6 m
This is required to ensure adequate draw and to prevent spill-back of combustion products,
which can cause the safety sensors to shut down the fire. The minimum flue length before any
bend or offset is 1.2 m (or one length of flue). The minimum flue length is 3.6 m or three lengths
of flue.
Maximum flue length - 8 m
Rinnai recommends a maximum flue length of 8 m with a maximum of two 45 ° bends.
Difference in flue lengths
For our inbuilt range our flue lengths are all 1.2 m. For our freestanding flues, those that are
powder coated (galaxy black and brushed stainless steel), flue lengths are 1 m. Any easy way to
remember is unpainted 1.2 m, and painted 1 m.
Inner flue: Clearance to combustibles
Clearance from the inner flue to a combustible material must be greater than 25 mm.
Flue cowl clearance
To ensure products of combustion are cleared, adequate clearance for the building is required.
The flue cowl should have a 500 mm clearance from any part of the building. This also applies to
steeped and pitched roofs which should be clear of the ridge line as shown. Lesser clearances
may provide perfectly adequate flue systems depending on the installation. Minimum
clearances are shown in AS/NZS 5601.1.
Flue terminal locations
Must be compliant with ‘Clearances Required for Flue Terminals’ from AS/NZS 5601.1. The flue is
not to terminate under floors or in a roof space.
Self-supporting flue
The weight of the flue system should not be supported by the appliance—it should be self-
supporting. Supporting the flue is usually completed during the framing stage with flue supports
or straps within the cavity.
Shared flues
Gas appliances must not be connected to a chimney or flue serving a separate fuel burning
appliance.
Flashings to to the top of the chimney structure do not form part of the flue kit and
must be specified.

16 | Neo installation guide: 11906-H 08-15
Masonry ue installations
There are two types of masonry flue installations; open chimney and lined chimney. An open
chimney uses the natural draft properties of a sound chimney, an approved chimney plate and
cowl to provide flueing for the heater. A lined chimney installation is used when the existing
chimney condition is inadequate for an open chimney installation and uses a Rinnai flexiliner flue
to provide flueing for the heater.
Check dimensions of opening
Ensure opening is within the range provided, and if necessary bring them to the required
dimensions. Also check chimney height as inadequate height can affect product performance.
Some installations may require the chimney height to be extended to reduce down drafts. Also
check there are no obstructions.
Provide a solid, flat, and sealed base, otherwise noise and vibration may result. Sealed means no
holes or openings in the fireplace.
Some criteria for checking chimney soundness
Rinnai strongly recommends the use of a Rinnai flexiliner flue system. Failure to meet this criteria
may result in an unsafe situation. Installation without a flexiliner flue is permissible as long as the
chimney is swept, checked for soundness and ability to achieve a good draw. Some criteria for
checking soundness:
- All loose/broken bricks must be replaced or repaired ensuring the chimney is of sound
construction and does not leak.
- Chimney must be swept clean and be free from soot and creosote that may have built up if
previously used for a solid fuel fire.
- Any damper plate must be fixed in an open position or removed.
- Any underfloor air supply to the fireplace must be completely sealed to prevent secondary
air draw.
Open chimney installation Lined chimney installation
Chimney plate
Mortar
Approved chimney
cowl
Minimum
200 mm
Minimum
3.6 m
Chimney plate
Mortar
Approved chimney
cowl
Minimum
200 mm
Minimum
3.6 m
Adaptor
Flexible chimney
liner
Appliance
adaptor
Masonry installaon without a flexiliner flue Masonry installaon with a flexiliner flue

Installation
Installation, servicing and repair
shall be carried out only by
authorised personnel.

18 | Neo installation guide: 11906-H 08-15
Masonry installation

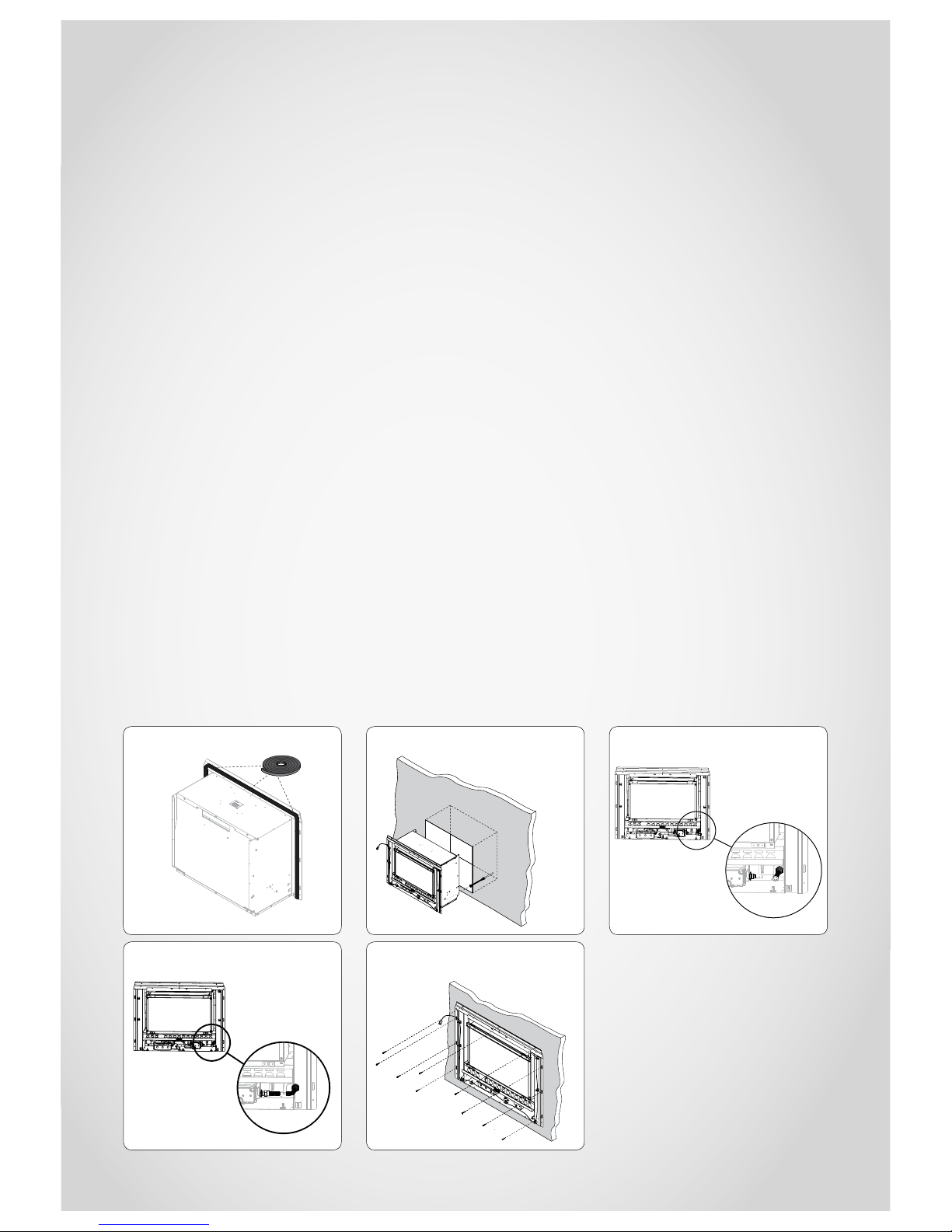

4. Preparing the engine
1. Prepare site: Ensure the
enclosure meets the dimension
requirements and check the
gas and electrical supplies have
been prepared according to the
information in this guide.
2. Unpack engine: The Neo
engine is supplied in one carton.
Check for damage and ensure
you have the correct gas type
before starting. Do not install if
any damage is evident.
3. Install flue: Install flexiliner
flue if applicable, refer next page
for an overview of how the flue is
assembled and connected to the
unit.
4. Prepare engine: Attach the
adhesive backed foam sealing
strip (supplied) to the rear face
of the front assembly mounting
panel at approximately 30 mm
from the top edge.
The foam strip forms a seal
between the heater and the
fireplace brickwork. If an
adequate seal cannot be formed
then another means of sealing
must be used (non-combustible
insulation or heat resistance
silicon).
Unscrew the five screws securing
the gas/electrical plate and put
aside.
5. Connect flue adaptor:
Connect the flue adaptor to the
flexiliner flue.
6. Position engine: Place the
Neo engine in front of the
fireplace enclosure. Use a panel
of the cardboard packaging
underneath the engine to
minimise damage to the floor.
7. Connect electrical supply
8. Insert unit into fireplace:
Carefully move the heater into
the fireplace ensuring the gas
supply pipe and fittings feed into
the rear access hole. Connect the
flue (refer next page).
9. Connect gas supply: Firmly
grasp the stainless steel flexi pipe
and bend at 90 °, approximately
mid-way, to line up with the gas
control valve inlet then attach
pipe to gas control valve and
tighten.
10. Leak test: Leak test all
appliance connections. When
finished remove any residue with
a rag. Prevent any soapy solution
coming into contact with the
electrical components.
11. Secure: Fasten the heater to
the masonry using appropriate
fasteners (not supplied) using
the three holes across the top
and at least two holes on each
side.
12. Complete installation
9. Connect gas supply 02
9. Connect gas supply 01
Adapt instructions as necessary for masonry installations without a flexiliner flue.
8. Insert engine into fireplace
D
11. Securing the heater

Neo installation guide: 11906-H 08-15 | 19
3.6 m
Fixings R1760-2
Chimney cowl
Ø 100 mm
Guide rails
R1760-3
Flexi flue chimney
flashing plate
(400 x 300 mm)
R1760-6
Aluminium flexi flue
3.6 m
Guide plate
Flexi flue spigot adaptor
Attaching the flexiliner flue to the unit
1. Attach the guide rails to the heater using the predrilled holes and four screws.
2. Align the guide plate with the guide rails and slide the flue assembly forward until the front tab of the
guide plate is fully forward and against the rear of the flange at the top of the heater.
3. Ensure the guide plate is securely fastened with two screws to the flue access plate.

20 | Neo installation guide: 11906-H 08-15
1. Prepare site
Ensure the enclosure meets the
dimension requirements and
check the gas and electrical
supplies have been prepared
according to the information in
this guide.
Ensure there are no walls, studs,
noggins, ceiling joints, wiring,
or other obstructions within the
wall or ceiling cavity where the
flue is to be located.
2. Assemble zero clearance
box
Refer separate assembly
instructions included with the
zero clearance box.
3. Fit zero clearance box
Slide assembled box into
the cavity, ensuring the gas
and electrical supplies are
accessible.
4. Install flue
Install flue kit and/or
components.
5. Unpack engine
The Neo engine is supplied in
one carton. Check for damage
and ensure you have the correct
gas type before starting. Do not
install if any damage is evident.
6. Prepare engine
Attach the flue guide rails,
supplied with the zero clearance
box, to the top of the heater
engine using the four predrilled
holes and screws supplied.
7. Fit cladding
Before installing the heater
ensure the cladding for the
front of the enclosure has been
fitted. The cladding MUST BE
installed flush with the zero
clearance box. Failure to do this
will cause alignment problems
with the flue.
8. Connect flue adaptor
Connect the flue adaptor* to
the engine by aligning the guide
rails with the guide plate* of
the flue adaptor. Slide the flue
adaptor in until the guide plate
is fully home against the rear of
the flange of the heater at the
top of the heater.
* Supplied with the zero clearance box
9. Position engine
Place the Neo engine in front
of the fireplace enclosure.
Use a panel of the cardboard
packaging underneath the
engine to minimise damage to
the floor.
10. Connect electrical supply
11. Insert unit into fireplace
Carefully move the heater into
the zero clearance box ensuring
the gas supply and pipe fittings
feed into the rear access hole.
Align the guide rails with the
guide plate and slide the heater
engine in until the guide plate
is fully home against the rear
fascia assembly mounting panel.
12. Connect flue
The weight of the flue should
not be supported by the
appliance, it should be self-
supporting. Supporting the flue
is usually completed during the
framing stage with flue supports
or straps within the cavity.
13. Secure flue
Replace the flue access plate
and secure the guide plate of
the flue adaptor to the flue
access plate with the two screws
supplied.
Secure access plate to the
heater.
14. Connect gas supply
Firmly grasp the stainless steel
flexi pipe and bend at 90 °,
approximately mid-way, to line
up with the gas control valve inlet
then attach pipe to gas control
valve and tighten.
15. Secure heater
Secure the guide plate to the
fascia mounting panel with the
two screws supplied.
Fasten the heater engine to
the cladding surface using
appropriate fasteners (not
supplied) in at least four
positions.
16. Leak test
Leak test all appliance
connections. When finished
remove any residue with a rag.
Prevent any soapy solution
coming into contact with the
electrical components.
12. Complete installation
Inbuilt mock chimney (zero clearance installation)
