Rinnai RH-C819-GB User manual

En
g
li
sh
Operation / Installation Manual
Chimney Hood
RH-C819-GB
RinnaiCorporation

TABLE OF CONTENTS
English
Version: 2018 08
Page 1 - 7

CONTENTS
1
E
n
g
lish
Safety warnings ----------------------------------------------------------------------------------------------------------------------------------------------1
Specifications & components --------------------------------------------------------------------------------------------------------------------------- 3
Installation --------------------------------------------------------------------------------------------------------------------------------------------------- 4
Operation----------------------------------------------------------------------------------------------------------------------------------------------------- 5
Maintenance and care ------------------------------------------------------------------------------------------------------------------------------------ 6
Troubleshoot ------------------------------------------------------------------------------------------------------------------------------------------------ 7
IMPORTANT
To register your product warranty, please paste the serial numbers stickers enclosed with the packaging on your
warranty card. Please contact your local Rinnai Customer Care Centre should you require further assistance.
SAFETY WARNINGS
Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains
important information on safe installation, use and care of the appliance. Keep these instructions for reference and pass
them on to future user.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
There is a fire risk if cleaning is not carried out in accordance with the instruction;
CAUTION: Accessible parts may become hot when used with cooking appliances;
The appliance uses 4 hob elements at most.
Unpacking
• Do not use the appliance if there are obvious signs
oftransportation damage.
• If the power supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
qualified technician to avoid hazard.
• Please ensure that young children do not play with
plastic bag packaging.
For the installer
• The extractor hood can be installed over gas and
electric cook top. Minimum installation height from
the bench top to the bottom of the hood is 700mm
(gas range) and 550mm (electric range) (Fig. 1).
For the user
• The extractor hood is designed for domestic use to
eliminate unpleasant odors from the kitchen. Do not
use the hood for uses other than its specific purpose.
• Do not allow young children to play with or operate
the appliance. Supervise its use by the elderly or
infirm.
• Installation and repair should be attempted by
qualified technical personnel only.
• It is dangerous to modify any part of this appliance.
Tampering with electrical connections or mechanical
parts can cause operation faults and may put the
user at risk.
• Never leave high naked flames under the extractor
hood when it is in operation. Always cover lit burners
withcookware.

2
En
g
lish
h
Fig. 1
•
Always mount the extractor hood over the center of
the hob.
•
Ensure that the appliance is installed in a location
with good and permanent ventilation.
•
When making the electrical connections, check that
• The mains voltage and frequency corresponds
to the technical information shown on the
rating plate.
• Electrical connection must be made in
accordance to local standards only. Check that
the voltage in your area is correct before
plugging in.
•
Use an electrical connector with earth that is correct
for your location. The electrical connection of this
appliance must be connected to earth (where
applicable):
• Green & Yellow = EARTH; Blue = NEUTRAL;
Brown =LIVE
•
Ductedmode:
• Connect the extractor hood to the exhaust duct
through a pipe of minimum Ø160mm. Use the
shortest and straightest duct route possible.
• Do not connect the extractor hood to exhaust
ducts carrying combustion fumes.
• Arrange proper ventilation if the extractor hood
is used in conjunction with other appliances
which are not supplied by electrical power e.g.
gas burning appliances. The kitchen must have a
direct opening to the outside in order to allow
entry of fresh air.
Note: The manufacturer accepts no responsibility for
complaints attributed to the design and layout of the
pipe work.
•
Do not flambé or grill with an open flame directly
under the extractor hood. Flames could be drawn up
into the hood by the suction and the grease filters
may catch fire.
•
Monitor cooking continuously as overheated oil
increases the risk of self-ignition.
•
Do not operate the extractor hood without a grease
filter.
•
It is important to clean and/or replace the filters at
appropriateintervals.
•
Grease deposits build-up increases the risk of fire.
•
Always disconnect the unit from the power supply
before carrying out any cleaning or maintenance work
on the hood.
•
Ensure that the power supply chord is free from any
heat source or sharp objects.
•
Multiple plugs and extension cables must not be used.
Overloading is dangerous and may cause a fire hazard.
Disposal
•
This appliance and its packaging are environmentally
friendly and recyclable. Please help us to care for the
environment by disposing the packaging in a proper
manner and recycling any old appliances.
•
Before disposing an old appliance, disconnect it from
the power supply and cut the power supply cord to
preventhazards.
The manufacturer will not be held liable for any
damages resulting from improper installation nor
failure to adopt proper safety measures during
installation and operational use of the appliance.

3
SPECIFICATIONS
En
g
lish
h
Model RH-C819-GB
Voltage 220V - 240V / 50Hz
Power of 220W Motor
Power of 1 x 7W Lamp
Cable Length 1.5m
Appliance 898 x 505 x 545~1010mm
Dimension
(W x D x H)
Note: The manufacturer reserves the right to change any
technological improvement or modification without prior
notice.
Fig. 2
COMPONENTS
Re
Qt
Productcomponents
A
1
Mountingbracket
B
1
Inner duct
C
1
Outer duct
D
1
Motor housing
E
3
Baffle filter
Qty
Installation components
2
Screw M3 x 12
4
Screw ST5 x 25
Qty
Documentation
1
Operation / Installation Manual
Fig. 3

4
INSTALLATION
En
g
lish
h
This appliance can be installed in ducted or recirculation
mode.
Ducted mode (Fig. 4)
• In ducted mode, the extractor hood fan extracts the
cooking vapours and passes them through the
grease filter. The air then flows to the outside.
• The grease filter absorbs the solid particles in the
cookingvapors.
• In this mode, only aluminum filters are installed
(charcoal filter is optional).
Fig. 4
Connection to exhaust air pipe (Fig. 6)
• Attach Ø160mm pipe directly to the air outlet and
secure appropriately (Fig. 6).
• Connect pipe to the outdoor duct.
Wall mounting (Fig. 7 & 8)
Do ensure that the appliance is mounted on a solid
surface which could withstand the appliance’s weight.
• Draw a vertical line at the center of the wall.
• From bench top (see A), draw a horizontal line (see
B) above minimum installation height level.
• Mark a reference point at C. Repeat this step on the
other side.
• Drill Ø 8mm holes at center of marking points. Insert
wall plugs in the wall.
• Fix the hood body to wall using 2(two) ST5 x 25
screws provided. Tighten screws firmly. Note: Adjust
the hood body alignment if necessary (Fig. 9).
• Place mounting bracket on the wall at desired height
level, aligning bracket center at vertical line (see D).
• Mark the center of the bracket holes and drill Ø 8mm
holes. Insert wall plugs in the wall. Secure mounting
bracket firmly using 2(two) ST5 x 25 screws provided.
• Fix the inner duct to both mounting bracket using
2(two) M3 x 12 screws provided (Fig. 8).
• Slide the outer duct downwards and ensure that it is
well seated on the hood body.
Fig. 6
Fig. 7

RAT
E
n
g
li
sh
Aligning the hood body (if necessary) (Fig. 9)
• Before attaching hood body to wall, adjust the
2(two) screws located on the hood body mounting
points.
• Hook the hood body onto the support screws and
tighten the support screws fully.
• Adjust screws to level the hood body.
Fig. 8
Fig. 9
Installation must be performed by qualified personnel only. The manufacturer declines all responsibility for improper
installation and does not accept responsibility for appliance warranty in the event of damage caused by incorrect
installation.
OPERATION
To achieve better air extraction, we recommend you to switch on the blower a few minutes before starting to cook.
Leave it on for approximately 15 minutes after cooking or till all cooking smell is completely removed.
Switch control: Touch the sensor buttons gently to operate this appliance.
A B C E F
A. On/Off Switch B. Display Window C. Fan Speed (increase)
D. Fan Speed (decrease) E. Delay Timer F Light
1. When power up the hood, the orange ring standby icon will light up.
2. Press once to select ON / OFF, the power on icon and the rest of the operation icons will light up.
3. Touch to increase the fan speed 1-2-3-P
4.
Touch to decrease the fan speed P-3-2-1
5. Booster: Touch to increase the fan speed to P (high speed). After working for 10 minutes, P speed jump to
Speed 3. When working in P, the delay function will not start.

6. Light : Touch to select on/off
7. Delay Stop Timer:
(i) Press Fan Speed 1, then press timer icon. Speed 1 will blink for 5 seconds and follow by timer icon blink.
(ii) Press the Delay stop Timer icon to select the require stop timing.
[Indication of "1" = 5 mins, "2" = 10 mins, "3" = 15 mins, "4" = 20 mins]
(iii) After the delay time reach, it will automatically jump to the motor speed display.
To exit the delay function, press the speed button to 0. The delay stop function will exit after 5 seconds.
8. Clean and Fresh Function: After power on, press and hold the delay stop timer icon for 3 seconds. You will hear a beep
sound. The function will start after the beep sound. After 5 seconds, all lights will turn off. The timer will blink and the
ON/OFF icon will indicate with an orange ring backlight. To disable, press the ON/OFF icons. All function icons will light
up. Press the timer icon to disable.
9. When the cooker hood has been operated for 90 hours, an orange dot indicator will blink at the bottom right
of the display square. This indicator is to remind you to clean grease filters. To cancel the reminder, press and hold the
ON/OFF button for 5 seconds, and the operation hours will reset to zero.
When the cooker hood has been operated for 270 hours, an orange dot indicator will light up solidly at the bottom right of
the display square. This indicator is to remind you to change to charcoal filters. To cancel the reminder, press and hold the
ON/OFF button for 5 seconds, and the operation hours will reset to zero.
5

MAINTENANCE AND CARE
En
g
li
sh
Disconnect the power supply cord before carrying out
any cleaning or maintenance activities. It is important
to clean and/or replace the filters at appropriate
intervals as grease deposits build-up increases the risk
of fire. Do not operate the extractor hood without
grease filter.
S/S Baffle filter (Fig. 10)
• Filters are used to absorb the grease particles formed
during cooking process. The filters must be
removed and cleaned every week, depending on the
frequency of usage. The filter can be removed by
sliding out the 3 S/S panel (Fig10.1) Clean the filter
either by hand or in the dishwasher.
•
If cleaning manually by hand, soak the filters in
warm detergent solution to ease the removal of
grease. Brush the filters, rinse thoroughly and
leave it to dry before refitting.
• If by dishwasher, select an appropriate wash
program. Leave it to dry before refitting. Note:
slight discoloration of the filter may occur.
•

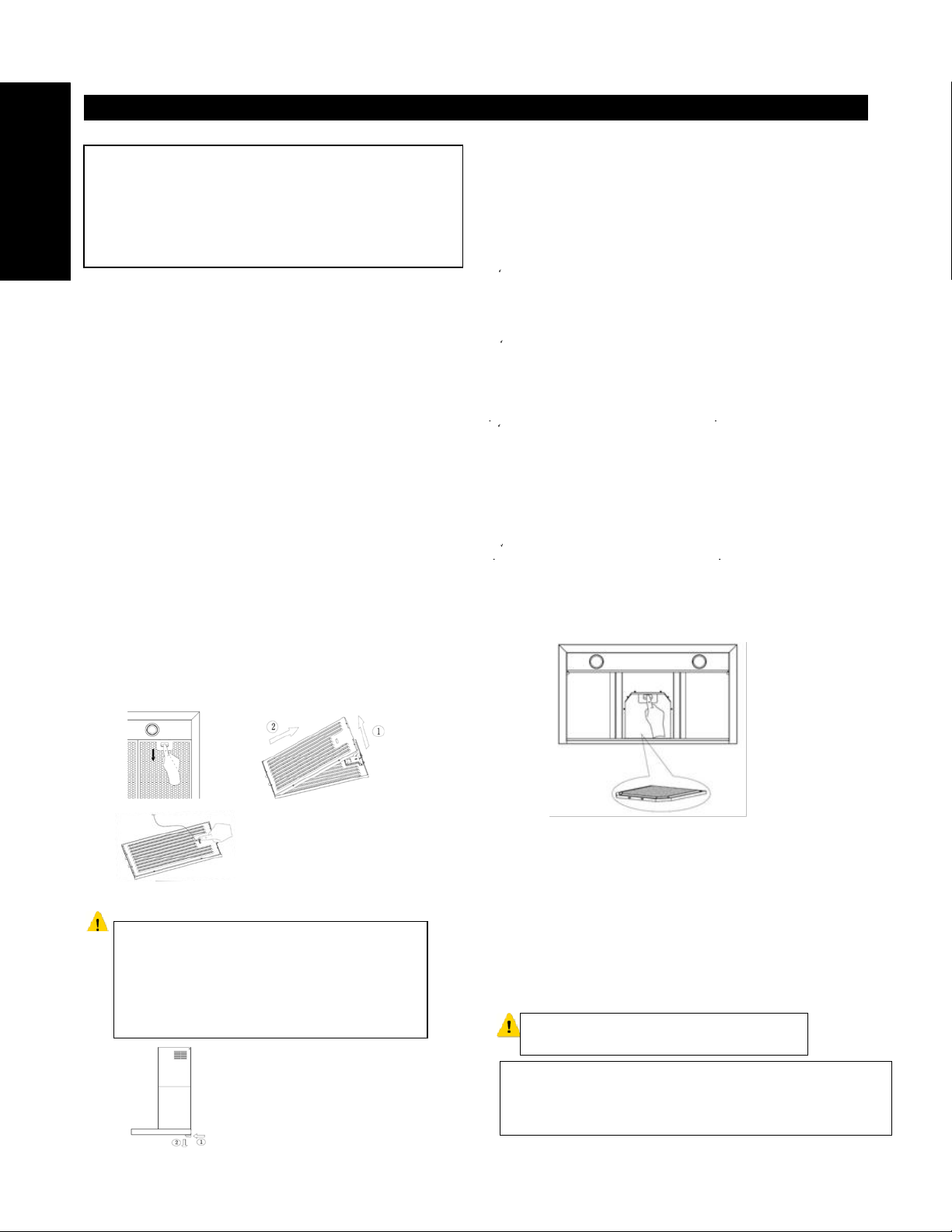

Removing and inserting the baffle filters:
• To remove, always hold the baffle filter with
one hand while depressing the handle and pull
down the filter by the other hand. Remove the
filter by unlocking the hook.(Fig.10.2)
• To refit, slot the filter into position. Make sure
that the handle is visible on the outside.
Fig.10 Fig.10
. 1
o Oil collector removing reference drawing steps
(Fig.11)
1. The filters must be removed and cleaned every 4 weeks,
depending on frequency of usage.
If wash by hand, soak the filters in warm detergent
solution to ease the removal of grease. Brush the filters,
rinse thoroughly and leave it to dry before refitting.
If by dishwasher, select an appropriate wash program.
Leave it to dry before refitting. Note: slight discoloration of
the filter may occur.
Charcoal filter (where applicable) (Fig. 12)
•
The charcoal filter should be replaced when it is
dirty or discolored, or when the control panel
shows time to replace.
•
These charcoal filters are not washable and cannot
be restored.
Removing and inserting charcoal or aluminum charcoal
filter.
oRemove the saturated charcoal filter from the
blower as shown.(Fig.12)
oFit in the new charcoal or aluminum filter.
Fig.10.2
Cleaning the appliance body
Fig.12
Removing the grease filter
Kindly note that the grease filter may fall during removal
from the unit and this will resultin damages to both the
filter and the hob below it.Please ensure that you hold
the grease filter securely at all time when you are removing
it from the unit.You are advised that the safety cable is not
meant to support the greasefilter after removal from the
unit.
Clean the extractor hood using warm detergent
solution and a soft damp cloth. Wipe dry with a lint-
free cloth.
• Avoid using corrosive or abrasive products that could
damage the surface.
Lightreplacement
Kindly contact Rinnai customer care service for
replacement of LED light bar.
Fig.11
You are strongly recommended to follow these safety instructions. The
manufacturer will not be held liable for any damages to the appliance
or any fire hazard due to failure to observe the above safety
recommendations.
7

TROUBLESHOOT
Problem
Possible Cause
Solution
Extractor hood does not
function
No electrical supply
Check that plug is
connected and main
power switch is turned
on
Poor airflow
Grease filters clogged with
greasebuild-up
Clean the grease filters and
refit when dry
Charcoal filters clogged
with grease build-up
Replace charcoal filters
with new sets
Hood suction is not effective
Inadequate ventilation
Ensure that the kitchen is
sufficientlyventilated
to allow entry of
fresh air
Charcoal filters are not
installed
Install charcoal filters for
setting in recirculation mode
Motor is running but no airflow
Poor exhaust
Please contact Rinnai
Customer Care Service
Whirringsound
Foreign object may be in
contact with fan blade
Please contact Rinnai
Customer Care Service
Lights are not working
Bulbs are blew out
Replace the damaged bulbs
Bulbs are loose
Tighten the bulbs
En
g
li
sh
If problem persists after the above checks, please contact Rinnai Customer Care
Centre for assistance.
Please quote the model number of your appliance as shown on the rating plate
attached to your equipment (Fig. 13).
For service calls under warranty, please note that it is necessary to produce your
proof of purchase and valid warranty card.
Fig.13
(For illustration purpose only.)
8

Rinnai Customer Care Centres
China |中国
Guangzhou Rinnai Gas & Electric
Room 2805, No.31 Jianghe Building,
Tianshou Road, Guangzhou, China
广州林内燃具电器有限公司
中国广州天河区天寿路 31 号江河大厦 2805 室
Tel 电话 : [phone]
Email 邮箱 : [e-mail]
URL 网址 : www.gzrinnai.com.cn
Philippines
Mitsui Industia Corporation
10 Buenaventura St., Cor MacArthur
Highway, Dalandan Valenzuela City,
Philippines
Tel : [phone]
Fax : [phone]
Indonesia
PT. Bhakti Idola Tama
Jl. Raya Pejuangan No.21,
Komp. Ruko Sastra Graha No.11 -13
Jakarta 11530
Tel : [phone] (Customer Care) /
0815 112 99999(SMS Center)
Email: [e-mail]
URL:www.rinnai.co.id
Singapore
Rinnai Holdings (Pacific) Pte Ltd
61 Ubi Road 1 #02-20 & 21
Oxley Bizhub Singapore 408727
Tel : [phone]
Fax : [phone]
Email : ser[email protected]g
URL : www.rinnai.sg
Macau |澳門
Rinnai Appliance Service Center
Edificio Industrial, 3 andar F.A da Zona Macau
林內爐具服務中心
Thailand | ประเทศไทย
Rinnai (Thailand) Co., Ltd. / Lucky Flame Co., Ltd.
61/1 Soi Kingkaew 9, Kingkaew Rd.
Racha Thewa, Bangphli, Samutprakarn 10540, Thailand
澳門青洲跨境工業大廈 3 樓 F 座


 () 

Phone電話 :[phone]
Fax 傳真 : [phone]
URL 网址 : www.rinnai.com.hk/mo


61/1 



9 




   




 
 10540
Tel : [phone]
Email : [e-mail]
URL : www.luckyflame.co.th
Malaysia
Rinnai (M) Sdn Bhd
D2-3-G & D2-3-1, Block D2, Pusat Perdagangan Dana 1,
Jalan PJU 1A/46, 47301 Petaling Jaya,
Selangor Darul Ehsan, Malaysia
Tel : [phone]
Fax : [phone]
Toll free: 1800-88-8180
Email: [e-mail]
URL : www.rinnai.com.my
Vietnam | Việt Nam
Rong Viet Commerce Company Limited
120 3/2 Street, Ward 12, District 10,
Ho Chi Minh City, Vietnam
Công Ty TNHH Thương Mại Rồng Việt
120 Đường 3/2, Phường 12, Quận 10,
TP. HồChí Minh, Việt Nam
Tel : [phone]
Fax : [phone]
Email : [e-mail]
URL : www. rongviet-rinnai.com
Myanmar | ျမန္မာ
Myanmar Kowa International Co., Ltd
No.199, Ground Floor, 34th Street (Upper Block),
Kyauktada Township, Yangon, Myanmar
အမတွ ္(၁၉၉)၊၃၄ လမ္း ( ) ၊
ေက်ာက္တံတားၿမိဳ႕နယ္၊ ရန္ကုန္ၿမ႕ိဳ ။
Tel ဖုန္း : (95-1) 245925 / 246304 / (95-9) 7300 7773
Fax ဖက္(စ္) : (95-1) 245925
Email အီးေမးလ: [e-mail]
