Rinnai RH-KT2959-GBV User manual

Slant Hood
Operation/ Installation Manual
RH-KT2959-GBV

Intended Use Page 3
Safety Information Page 4
Environmental Protection Page 6
Operating Mode Page 6
Operating Instructions Page 7

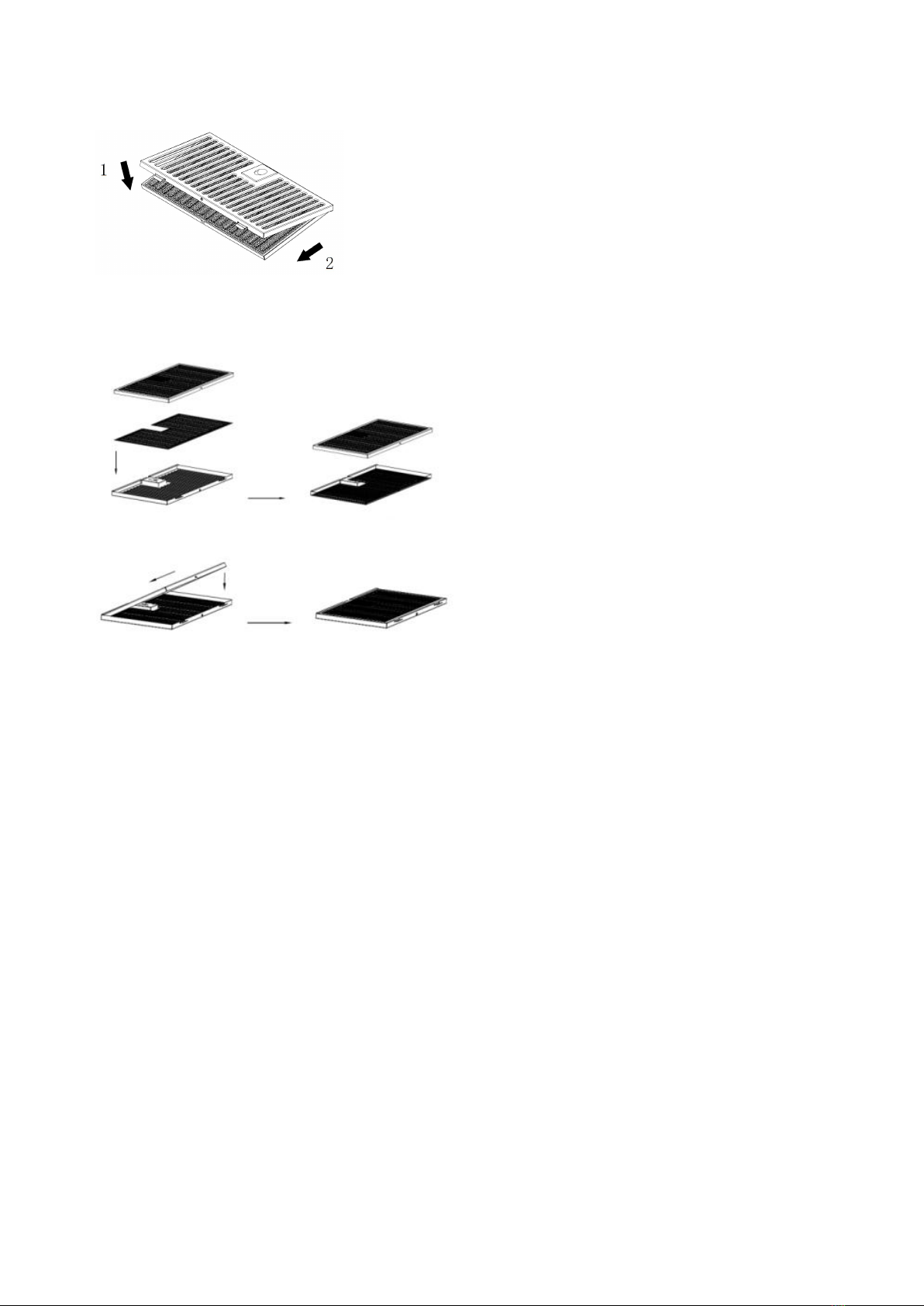

Care and Maintenance Page 10
Trouble Shooting Page 14

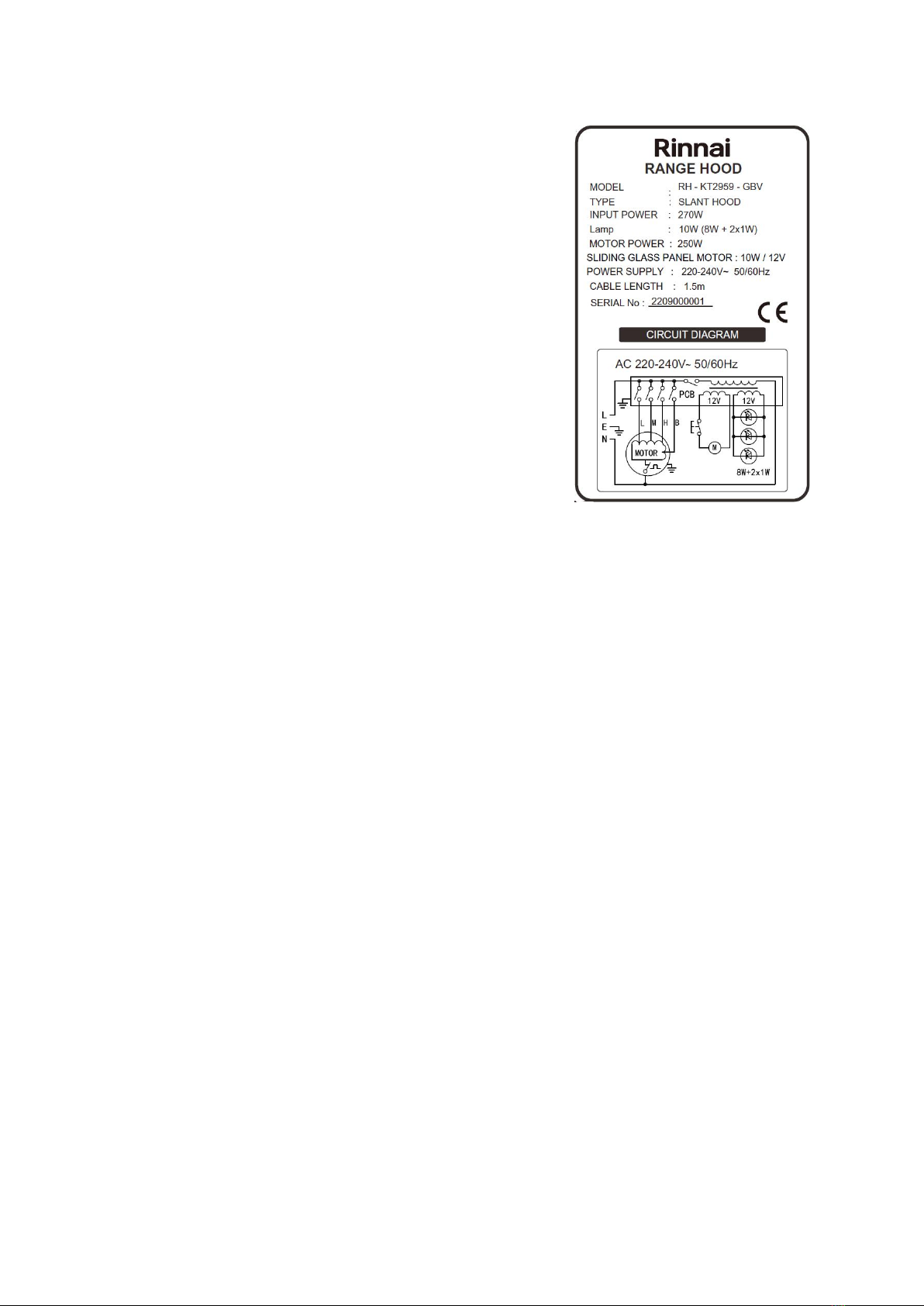

Specification and Component List Page 16

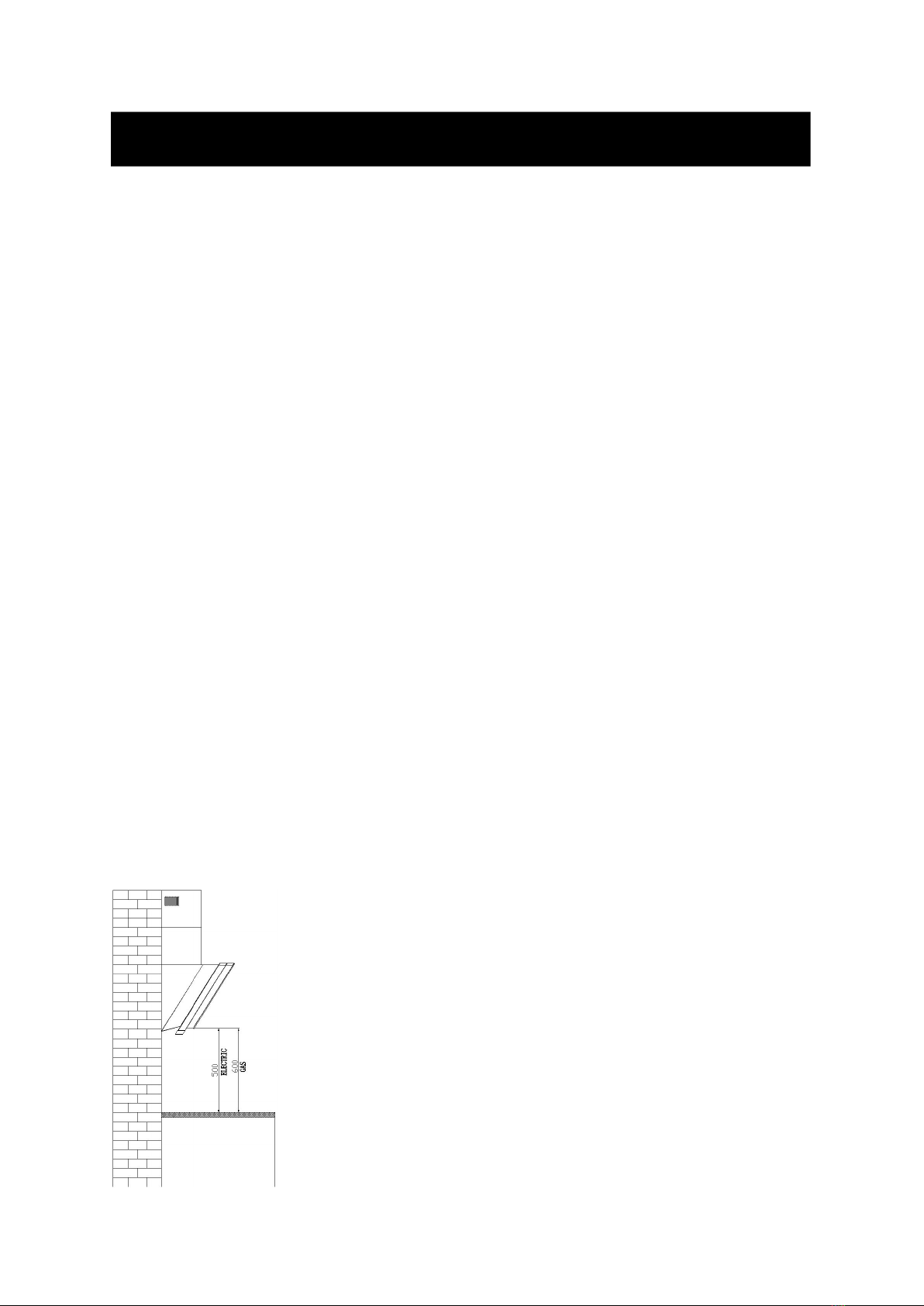

Installation Instructions Page 17
Version 2022.10
CONTENTS
To register your product warranty, please paste the
serial number stickers enclosed with the packaging
on your warranty card.
Please contact your local Rinnai After Sales Service
Center should you require further assistance.

3
Please read this user manual thoroughly before attempting to use this appliance for the
first time. This manual contains important information on safe installation, use and care
of the appliance. Keep these instructions for reference and pass them on to future user.
This appliance can only be used safely if it is correctly installed according to the safety
instructions. The installer is responsible for ensuring that the appliance works correctly at its
installation location.
This appliance is intended for domestic use and household environment only. The appliance is
designed to eliminate unpleasant odours from the kitchen. Do not use the hood for other uses
than its specific purpose. Do not leave the appliance unattended during operation.
This appliance may be used by children over the age of 8 years old and by persons with
reduced physical, sensory or mental capacity or by persons with a lack of experience or
knowledge if they are supervised by someone who is responsible for their safety or have been
instructed in how to use the appliance safely and have understood the risks involved in not using
it properly.
Children must not play with the appliance. Cleaning and user maintenance must not be
performed by children unless they are over 15 years of age and are supervised. Keep children
below the age of 8 years old at a safe distance from the appliance and power cable.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been
damaged during transport.
Important
This extractor hood is intended for use in ducted mode only.
The manufacturer is not liable for any damage which is caused by
improper use or incorrect operation.
Intended Use

4
Warning – Suffocation
Packaging material is dangerous to children. Never allow children to play with packaging
material.
Warning – Risk of Fire
Do not operate the extractor without a grease filter. It is important to clean and/or replace the
grease filters at appropriate intervals. Grease deposits build-up increases the risk of fire.
Do not flambé or grill with an open flame directly under the extractor hood. Flames could be
drawn up into the hood by the suction and the grease filters may catches fire. Do not install
the extractor hood near a heat producing appliance for solid fuel (e.g. wood or coal) unless a
closed, non-removable cover is available. There must be no flying sparks.
Monitor cooking continuously as overheated oil increases the risk of self-ignition. Never use
water to put out burning oil or grease. Switch off the cooker. Extinguish flames carefully
using a lid, fire blanket or something similar.
Never leave high naked flames under the extractor hood when it is in operation. An extractor
hood installed above the cooker may become damaged or catches fire. Always cover lit
burners with cookware.
Ensure that the power supply cord is free from any heat source or sharp objects.
Multiple plugs and extension cables must not be used. Overloading is dangerous and may
cause a fire.
Operating several gas burners at the same time gives rise to a great deal of heat. An
extractor hood installed above the cooker may become damaged or catch fire.
Warning – Risk of Burns
Accessible parts become very hot when in operation. Never touch hot parts. Keep children at
a safe distance.
Appliance becomes hot during operation. Allow the appliance to cool down before cleaning.
Safety Information

5
Warning – Risk of Injury
Incorrect repairs are dangerous. Repairs should be attempted by our qualified technical
personnel’s only. If the appliance is defective, unplug the appliance from the mains or switch
off the circuit breaker in the fuse box. Contact your local Rinnai After Sales Service Center
for assistance.
It is dangerous to modify any part of this appliance. Tampering with electrical connections or
mechanical parts can cause operation faults and may put the user at risk.
Do not use any high pressure cleaners or steam cleaners, which can result in an electric
shock.
Penetrating moisture may result in an electric shock. Clean the appliance using a damp cloth
only. Before cleaning, pull out the mains plug or switch off the circuit breaker in the fuse box.
Components inside the appliance may have sharp edges. Wear protective gloves.
Lighting emitted by the LED lights are very dazzling and can damage the eyes. Do not look
directly into lighted LED lights for longer than 100 seconds.
Warning – Risk of Electric Shock
A defective appliance may cause electric shock. Never switch on a defective appliance.
Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact
your local Rinnai After Sales Service Center for assistance.
Incorrect repairs are dangerous. Any repairs and replacements of damaged power cable or
components should be attempted by our qualified technical personnel’s only. Contact your
local Rinnai After Sales Service Center for assistance.
Penetrating moisture may result in an electric shock. Clean the appliance using a damp cloth
only. Before cleaning pull out the mains plug or switch off the circuit breaker in the fuse box.
Warning – Cause of Damage
Always switch on the appliance while cooking to avoid condensation. Condensation can
produce corrosion damage.
Always replace faulty lights to prevent the remaining lights from overloading.
Do not clean the controls with a wet cloth as this may risk damage due to ingress of humility
into the electronic circuitry.
Clean all stainless steel surfaces in the direction of the grain only as incorrect cleaning may
damage the stainless steel surface. Do not use any stainless steel cleaners for controls.
Never use strong and abrasive cleaning agents as this may cause damage to the stainless
steel surface
There is a risk of surface damage if you do not peel off the protective film. Remove the
protective film from all parts of the appliance before using the appliance for the first time.

6
Energy Saving
During cooking ensure that there is a sufficient supply of air to enable the extractor hood to
work efficiently and with a low level of operating noise.
Adjust the fan speed to the amount of cooking vapor produced during cooking. Only use
intensive / booster mode when required. Operating the fan speed at lower levels consumes
less energy.
Switch off the extractor hood if you no longer require it.
Clean and replace the grease filters at regular intervals in order to increase the effectiveness
of the extractor hood and to prevent the risk of fire.
Disposal
This appliance and its packaging are environmentally friendly and recyclable. Please help us
to care for the environment by disposing the packaging in a proper manner and recycling
any old appliances.
Before disposing an old appliance, disconnect it from the power supply and cut the power
supply cord to prevent hazards.
Operating Mode
Ducted Mode
In ducted mode, the extractor hood fan extracts the cooking vapours
and passes them through the grease filter. The air then flows to the
outside.
The grease filter absorbs the solid particles in the cooking vapours.
In this mode, only grease filters are installed (charcoal filter is
optional).
Environmental Protection

7
Operating the Extractor Hood
Touch the sensor buttons gently to operate this appliance.
To achieve better air extraction, it is advisable to switch on the extractor hood a few minutes
before starting to cook and leave it on for approximately 15 minutes after cooking (or at least all
cooking smell is completely removed).
Control Panel
Operating Instructions
STANDBY MODE: When the extractor hood is powered up for the first time or powered
up again after a power rage, the power ON/OFF orange ring symbol backlight will light up.
POWER ON/OFF: Touch this symbol to switch the extractor hood to the ON or OFF
position. When the extractor hood is switch to ON position, all the symbol backlights on
the control panel, Rinnai logo and the decorative lights will light up at the same time
including the numerical 0 on the display window.
Note: If the sensor detects that there is no movements on the control panel for
approximately 40 seconds it will automatically switches back to standby mode. The
decorative lights will also turn off by itself. To power up the extractor again touch the
ON/OFF symbol again.
Touch this symbol to increase the fan setting (1 – 2 – 3 – 4 - P). To turn off set to 0.
Touch this symbol to decrease the fan speed (P – 3 – 2 – 1). To turn off set to 0.

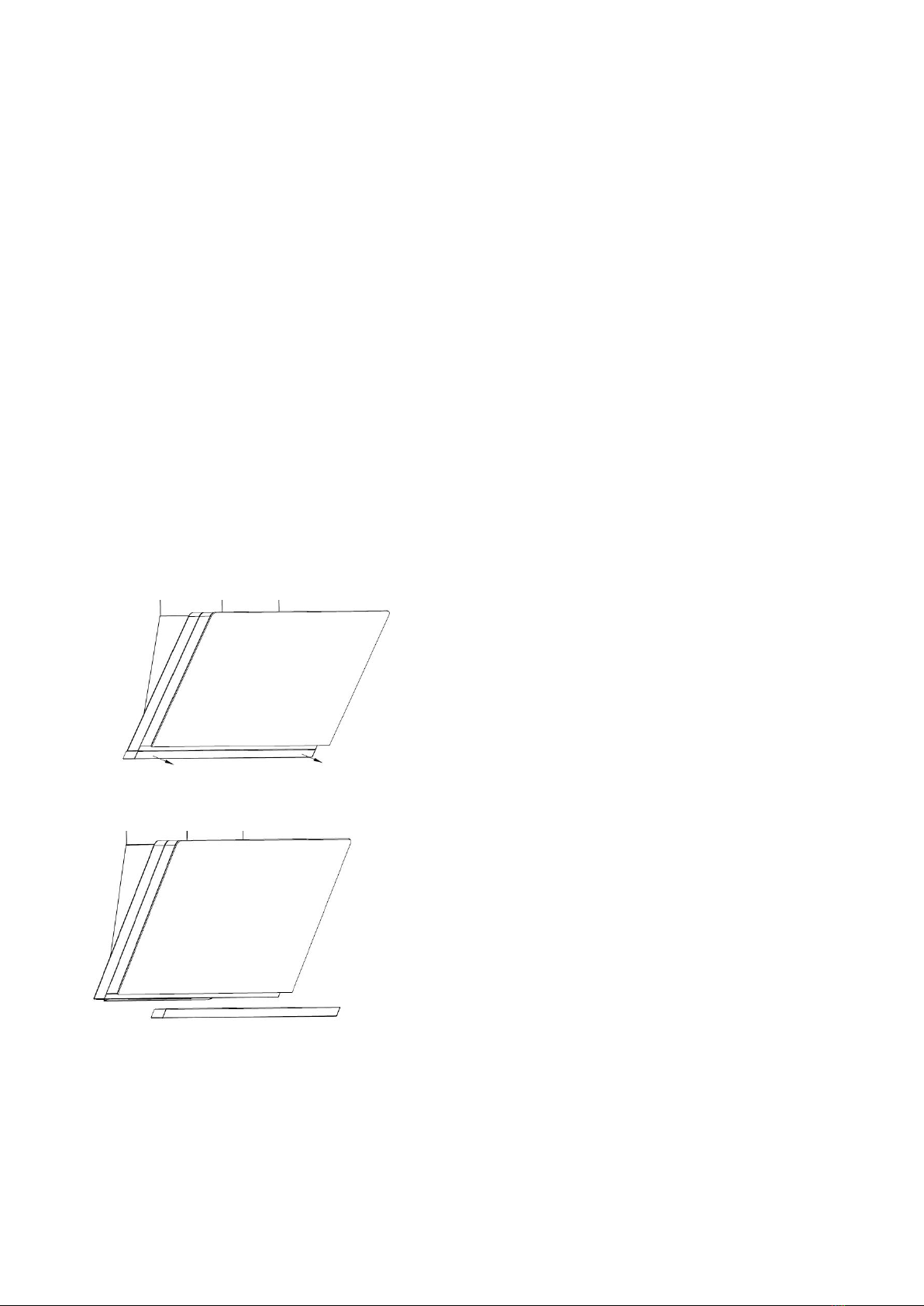

Note: Elevation of the Glass Panel
When the fan is turn ON while the glass panel is in closed mode, the glass panel will
automatically ascend till it is fully opened and the LED light will light up.
To set to Booster Mode: Increase the fan setting until you see a P on the display window.
After approximately 10 minutes it will automatically switches back to fan setting 3. To
terminate the booster function before the preset time expires, touch the fan setting
increase or decrease symbol.
Note: When using booster function the delay timer cannot be used at the same time.

8
Touch this symbol to control the LED lights and Decorative lights setting
Note: This function operates independently from the fan settings
LED Light Setting: Touch the lamp symbol once to turn ON and OFF the LED lights.
DECORATIVE Light Setting: Hold the lamp symbol for 2 seconds to enter setting mode to
change the preset lighting program
After entering setting mode alphabet “A.” will appear on the display window, to change to other
colors please hold the lamp symbol again for 2 seconds to change to other colors.
To change the brightness of each color hold the lamp symbol for 2 seconds to enter setting
mode and choose the color that you want to change the brightness. To change the brightness,
press the increase or decrease symbol.
Factory Setting for the Decorative Lights:
“A.”: Cyan Color
“B.”: Red Color
“C.”: Green Color
“D.”: Blue Color
“E.”: White
“F.”: Mix Color (Select the red, green and blue LEDs to mix colors according to their brightness
set in previous "B", "C" and "D" selection separately ("+" and "-" buttons do not respond).
“G.”: Running Color (Cyan – Red – Green – Blue) Brightness cannot be change in this setting.
NOTE: After the Decorative light mode has been set, it will automatically memorise the setting.
a. To set up delay timer increase the fan speed to 1 or 2 or 3 as required.
b. Touch the timer symbol to begin setting the required time. Both the fan speed number on the
display window and the timer symbol will begin flashing for 5 seconds.
c. Set the required time by touching on the timer icon
d. After the required time is set, the extractor hood will automatically switch back to the fan
setting earlier and the timer ring symbol backlight will start flashing
e. When the preset times has expired, the timer ring symbol backlight will stop approximately 5
seconds later.
f. To disable this function before the preset time expires, touch the fan speed setting symbol to
0. Timer will automatically cut off approximately 5 seconds later.
Note: Touching once on the timer icon will indicate a number 1 on the display window. The timer
is preset from a minimum of 5 minutes to a maximum of 20 minutes where 1 is equivalent to 5
minutes, 2 is 10 minutes, 3 is 15 minutes and 4 is 20 minutes.

9
To set up clean and fresh function after cooking, set the fan increase/decrease symbol to
0 on the display window. Turn OFF the LED light panel by touching and holding the light
symbol for approximately 1 second. Touch and hold the timer symbol for approximately 3
seconds. An audible signal will sound as an acknowledgement. When the signal tone is
activated, the function will start and after approximately 40 seconds all lights will be turn
off except for the ON/OFF symbol orange ring backlight and the timer symbol orange ring
flashing. To disable this function before the preset time expires, touch the ON/OFF
symbol, all symbols will light up. Touch the timer symbol for approximately 3 seconds to
disable this function.
Another alternative to operate this clean and fresh function if there is a need to clean the
air in the room when there is no cooking is to switch ON the extractor hood by touching on
the ON/OFF symbol. Touch and hold the timer symbol for approximately 3 seconds. An
audible signal will sound as an acknowledgement. When the signal tone is activated, the
function will start and after approximately 40 seconds all lights will be turn off except for
the ON/OFF symbol orange ring backlight and the timer symbol orange ring flashing. To
disable this function before the preset time expires, touch the ON/OFF symbol, all
symbols will light up. Touch the timer symbol for approximately 3 seconds to disable this
function.
Note: Clean and fresh function is preset to work for 5 minutes each hour for 24 hours at
fan setting speed 1.
If the extractor hood has been operated for 90 hours a white backlight dot will start
flashing on the lower right side of your display window. This is to remind you that the
metal grease filter should now be clean if you have not done so.
Note: To reset this function hold the timer symbol for approximately 5 seconds
If your extractor hood has been operated for 270 hours a white dot saturation indicator will
light up solidly on the lower right side of your display window to remind you that it is time
to change the charcoal/carbon filter if you have not done so. If heavy cooking is observed
or when the charcoal filters is/are noticeably dirty or discoloured, have the charcoal filters
replaced immediately. The charcoal filters are not washable and cannot be restored.
To reset this function touch and hold the timer symbol for approximately 5 seconds.
Note: The saturation indicator for charcoal/carbon filter does not apply to this
model

10
Warning: Before carrying out any cleaning or maintenance activities, ensure that the
appliance is disconnected from the main power supply.
Components inside the appliance may have sharp edges. Wear protective gloves.
Cleaning Agents
To ensure that the different surfaces are not damaged by using the wrong cleaning product,
follow the instructions in the table. Do not use any of the following:
Harsh or abrasive cleaning agents, e.g. scouring powder or liquid scouring cleaner
Cleaning products with a high alcohol content
Hard scouring pads or cleaning sponges
Pressure washers or steam cleaners
Cleaning products that dissolve limescale
Aggressive all-purpose cleaning products
Note: Use a new soft sponge or cloth. Do wash thoroughly before each use. Never use a wire
sponge or brush as it may leave scratches or other marks and follow all instructions and
warnings included with the cleaning products.
Surface
Instruction
Stainless Steel
Clean with warm soapy water using a soft damp sponge or damp cloth
Wipe off with a dry lint free cloth to avoid smearing or staining on the hood
Clean in the direction of the grains only
Painted Surface
Clean with warm soapy water using a soft damp sponge or damp cloth
Wipe off with a dry lint free cloth
Do not use any stainless steel cleaner
Aluminum and Plastic
Clean with warm soapy water using a soft damp sponge or soft damp cloth
Wipe off with a dry lint free cloth
Glass
Clean with a solution of warm water and a little washing up liquid using a soft damp
sponge or damp cloth
Wipe off with a dry lint free cloth
Do not use a scraper
Controls
Clean with warm soapy water using a soft damp sponge or soft damp cloth
Wipe off with a dry lint free cloth
Never clean the controls with a wet cloth as there is a risk of damage to the
electronics
Care and Maintenance

11
Metal Grease Filter
Warning: It is important to regularly clean and/or replace the metal grease filters at
appropriate intervals as grease deposits build-up increases the risk of fire. Do not operate the
extractor hood without any grease filters installed.
Components inside the appliance may have sharp edges. It is advisable that you wear
protective gloves.
Note: Kindly note the metal grease filter may fall during removal from the unit and this will result
in damages to both the metal grease filter and any cooker hob below it. Please ensure that you
hold the metal grease filter securely at all times when removing it from the unit.

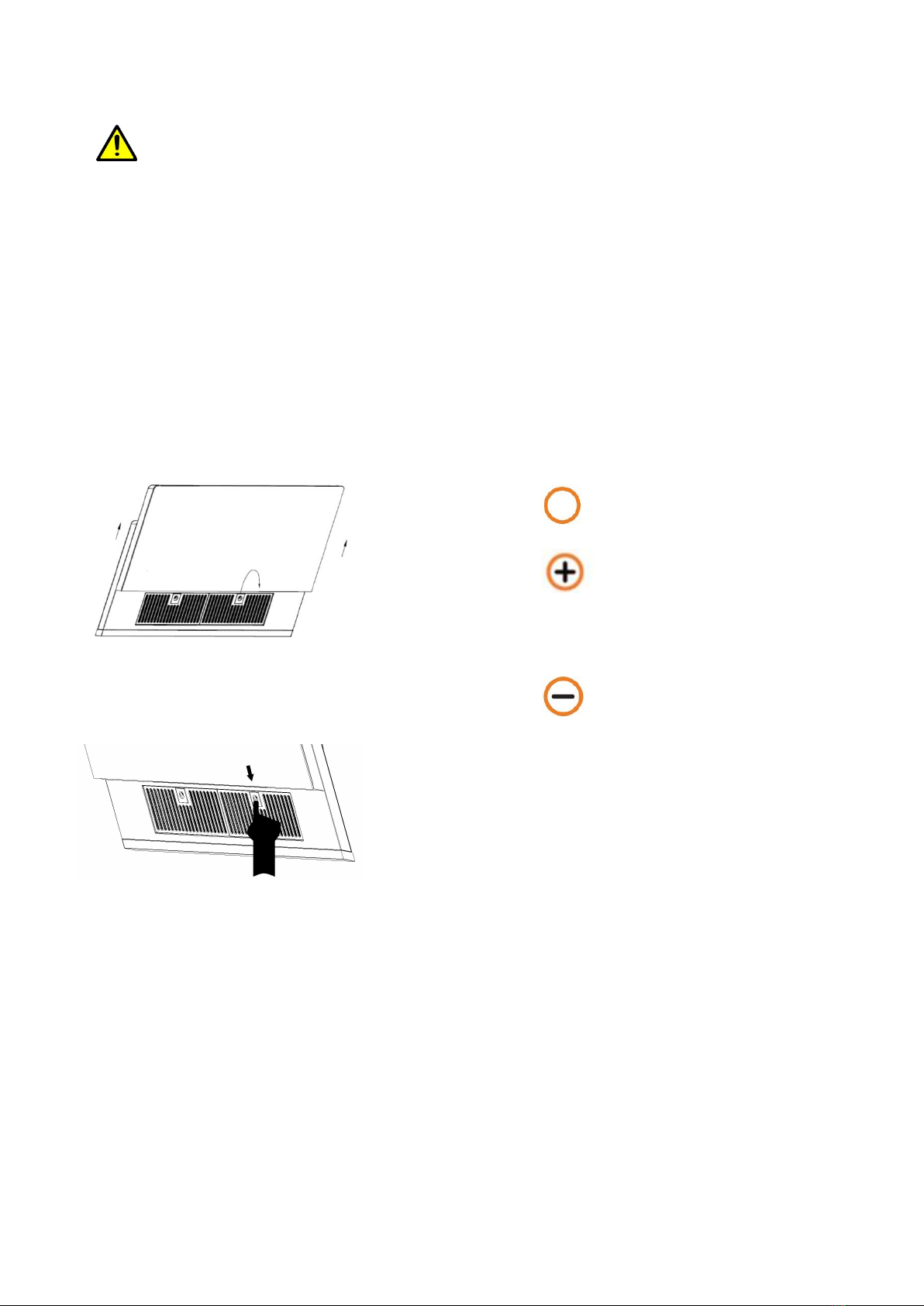

Removing the Metal Grease Filter (Fig. 1, Fig.1. 1)
Press the “ ”Power ON/OFF symbol to
start up the extractor hood.
Press the “ ”speed symbol to set fan
speed to level 1. The glass panel will slide and
ascend automatically till it is fully opened, the
LED lights will light up.
Press the “ ” speed symbol to decrease the
fan speed to 0. Press the grease filter locking
clip and gently pull down the grease filter, at the
same time take hold of the grease filter from
underneath using your other hand. The grease
filter can only be removed when the fan is fully
stopped.
Insert back the grease filter and lock it in place
after washing.
Press Power ON/OFF Switch button to turn off
the extractor hood after inserting the grease
filter. At this time, the buzzer will buzz for 10
seconds, the glass panel will automatically slide
and descend until it is fully closed.
Note: Grease deposits may accumulate at the bottom of the metal grease filter. Hold the metal
grease filter flat to prevent any grease or fats from dripping out of the filter.
Fig.1
Fig.1.1

12
Dismantling the Two Piece Metal Grease Filters (Fig.2, Fig.2a)
To dismantle, hold the metal grease filter
down and slide the top piece metal grease
filter out. Remove the grease filter
components and separate the inner and
outer grease filter (Fig. 1)
Cleaning the Metal Grease Filters
Do not use any aggressive, acidic or alkaline cleaning products.
The metal grease filters must be removed and cleaned every 4 weeks depending on the
frequency of usage or when the orange indicator light blinks on the control panel display
window.
When cleaning the metal grease filters, also clean the grease filter holder and all accessible
parts in the appliance using a damp cloth.
The metal grease filters can be cleaned in the dishwasher or by hand.
If by hand washing: Soak the filters in warm detergent solution (approx. 40℃) to simplify the
removal of grease. Brush the grease filters, rinse thoroughly and leave it to dry before
refitting.
If by dishwasher: Use normal domestic dishwashing detergent, select an appropriate wash
program (no more than 70℃), do not clean heavily soiled grease filters together with any
cookware. Place the grease filters in the dishwasher leaving plenty of space around them.
Leave it to dry before refitting.
Note: A slight discolouration of the metal grease filter may occur. This discolouration has no
effect on the performance of the grease filters.
Fig. 2
Fig. 2. 1
To insert back, revise the above
procedure. (Fig. 2. 1)

13
Installing the Metal Grease Filter
Insert back the metal grease filter and lock it in place, at the same time take hold of the
grease filter from underneath using your other hand to insert into the grease filter holder,
make sure the grease filter is positioned correctly.
If the metal grease filter has not been inserted correctly, the buzzer (fast beat) will sound,
and the glass panel will not descend until the metal grease filter is properly inserted, press
the grease filter locking clip and reinsert it again. When the metal grease filter is correctly
inserted, the buzzer will buzz again for 10 seconds before the glass panel slides to descend
until it is fully closed.
Cleaning the Appliance Body
Clean the extractor hood using warm detergent solution and a soft damp cloth. After
cleaning, dry it using a lint free cloth.
Avoid using corrosive or abrasive products that could damage the surface.
Do not clean the controls with a wet cloth as this may risk damage due to ingress of humility
into the electronic circuitry
Oil Collector Cup
Cleaning the Oil Collector Cup (Fig. 3 & Fig. 3. 1)
Hold both sides of the oil collector in a
horizontal position and slowly slide the oil
collector from the unit. As oil may be present
in the oil collector hold the oil collector flat
when removing it out of the housing. (Fig. 3
& Fig. 3. 1)
Clean the oil collector by using warm
detergent solution. Leave it to dry before
refitting
Reverse the procedure when fitting back.
If the oil level is seen to filled up to two thirds
of the oil collector, you are requested to
dispose the oil to avoid any overflowing
LED Lights
Defective LED lights can only be replaced by the manufacturer, their customer service or their
authorized after sales service agents only.
Fig.3
Fig.3.1

14
Warning: Incorrect repairs are dangerous. Repairs should be attempted by our qualified
technical personnel’s only. If the appliance is defective, unplug the appliance from the mains or
switch off the circuit breaker in the fuse box. Contact your local Rinnai After Sales Service
Center for assistance.
Problem
Possible Cause
Solution
The Extractor
Hood Does Not
Work
No electricity supply
Check power plug is connected properly and main
power switch is turned on
Faulty Fuse
Check fuse box of the extractor hood to make sure
fuse is not blown
Whirring Sound
Foreign object may be in
contact with fan blade
Please contact your local Rinnai After Sales
Center
Motor is Running
but No Air Flow
Non return flap might be
jammed
Please contact your local Rinnai After Sales
Center
Lights are Not
Working
The LED lights are defective
Please contact your local Rinnai After Sales
Center
Sliding Glass
Panel does not
Elevate
Power plug is not plug in
correctly
Plug in the power plug again
Sliding track might be defect
Please contact your local Rinnai After Sales
Center
Rotating module might be
spoilt or stuck
Please contact your local Rinnai After Sales
Center
Sliding glass motor might be
spoilt
Please contact your local Rinnai After Sales
Center
Circuit board or switch
assembly might be
damaged
Please contact your local Rinnai After Sales
Center
Sliding Glass
Panel Assembly
Return when
Moving
Limit Switch Failure
Please contact your local Rinnai After Sales
Center
Audio Signal is
Not Functioning
PCB Board Failure
Please contact your local Rinnai After Sales
Center
Trouble Shooting

15
If problem persists after the above checks, please contact
your local Rinnai After Sales Service Center for assistance.
Please quote the model number of your appliance as shown
on the rating plate. (Fig. 4)
For service calls under warranty, please note that it is
necessary to produce your proof of purchase and valid
warranty card.
Please be aware that a visit by an after-sales engineer might
incur charges if a problem turns out to be the result of user’s
error even during the warranty period.
Note: Rating plate is for illustration purpose only and its
specifications may vary across other models
Fig. 4

16
Ref
Qty Product Parts
A 1 Mounting Bracket 1
B 1 Inner Duct
C 1 Mounting Bracket 2
D 1 Outer Duct
E 2 Hood Body
F 2 SS oil collector
G 1 Aluminum Filter with SS Cover
Ref
Qty Installation Accessories
8 Wall Plug
8 Screw ST4*30
2 Screws ST4*8
Ref Qty Documentation
1 Installation Manual
1 1: 1 Installation Diagram
1 Warranty Sticker
Model: RH‐KT2959‐GBV
Power Rating: 270W
Voltage: 220‐240V~
Power Frequency: 50/60Hz
Power of Lamps: 10W
(8W Led strip + 2 x 1W
Decorative light)
Length of the cable: 1.5m
Appliance 898 x 490 x 970 ‐ 1450mm
Dimensions: (W x D x H)
*The manufacturer reserves the right to effect any
technological improvement or modification
without prior notice.
Specification
Components List

17
Safety and General Information
•Read these instructions carefully. Check the appliance for damage after unpacking it.
•The appliance can only be used safely if it is correctly installed according to the safety
instructions. The installer is responsible for ensuring that the appliance works correctly at
its installation location.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or qualified technical personnel in order to avoid a hazard.
•The surfaces of the appliance are easily damaged. Avoid damaging them during
installation.
•This appliance is intended to be mounted on the wall.
•The extractor hood can be installed over any gas and electric cooktop. Minimum
installation height from the bench top to the bottom of the hood is Min 600mm (gas
range) and Min 500mm (electric range). Fig 5
•Always mount the extractor hood over the center of the hob.
•Ensure that the appliance is installed in a location with good permanent ventilation.
•When making electrical connections, check that the mains voltage and frequency
corresponds to the technical information shown on the rating plate.
•Electrical connection must be made in accordance to local standards only. Check that
the voltage in your area is correct before plugging in.
•Use an electrical connector with earth that is correct for your location. The electrical
connection of this appliance must be connected to earth (where applicable):
Green & Yellow = EARTH
Blue = NEUTRAL
Brown = LIVE
Minimum installation height:
Gas range Min 600mm
Electric range Min 500mm
Installation Instructions

18
Warning
Components inside the appliance may have sharp edges. Wear protective gloves.
The extractor hood may fall down if it has not been properly fastened in place. All
fastening components must be fixed firmly and securely.
The extractor hood is heavy. To move the appliance 2 people are required. Use only
suitable tools and equipment.
Changes to the electrical or mechanical assembly are dangerous and may lead to
malfunctions. Do not make any changes to the electrical or mechanical assembly.
Components inside the appliance may have sharp edges. These may damage the
connecting cable. Do not kink or pinch the connecting cable during installation.
It must always be possible to disconnect the appliance from the electricity supply.
The appliance must only be connected to a protective contact socket that has been
correctly installed.
The mains plug of the mains power cable must be easily accessible after installation of
the appliance. If this is not possible, an all-pole isolating switch must be integrated into
the permanent electrical installation
The permanent electrical installation must only be wired by a professional electrician.
Note: The manufacturer will not be held liable for any damages resulting from
improper installation nor failure to adopt proper safety measures during
installation and operational use of the appliance.
Checking the Wall
Do ensure the wall must be level, vertical and adequately loadbearing.
The depth of the bore holes must be the same length as the screws. The wall plugs must
have a secure grip.
The enclosed screws and wall plugs are suitable for solid brickwork. Suitable fasteners
must be used for other structures (e.g. plasterboard, porous concrete, poroton bricks).
The max weight of the extractor hood is 40kgs.
Fig. 5

19
Preparing the Installation
Ensure that there are no electrical wires, gas pipes or water pipes in the area where holes
are to be drilled.
Step 1 (Fig. 6)
Determine where the extractor hood should
be positioned and lightly mark where the
lower edge of the appliance should be on
the wall. Determine where the middle
should be based on the hob. (Fig. 6)
Place the template against the line drawn
on the wall and tape it in place. Mark the
area where the screws should be inserted.
Drill 8mm diameter holes to a depth of
40mm for fastening the appliance, remove
the template and press in the wall plugs
flush with the wall and mount the screws
(Do not tighten) (Fig. 6. 1)
Attaching and Aligning the Extractor Hood
Step 2 (Fig. 7, Fig. 7. 1, Fig. 7. 2)
Mount the appliance onto the wall and do
ensure that it is properly engaged with the
mounting screws 3 & 4 (Fig. 7)
If there is a need to realign the appliance,
adjust the screws on the top of the motor
housing (Fig. 7. 1)
Fig.7
Fig. 6 1=1 Installation
Fig. 6. 1
Fig. 7

20
Tighten the screws 3, 4, 5, 6 firmly after
realignment. (Fig. 7. 2)
Fig.7.1
Fig. 7. 1
Fig. 7. 2
