Rinnai RH-S239-SSR User manual

Operation / Installation Manual
Slim Line Hood
RH-S239-SSR
Rinnai Corporation
中
文
En
glis
h
Ba
has
a
Ind
one
sia
Việ
t
ภาษ
中
文
En
glis
h
Ba
has
a
English
Ind
one
sia
Việ
t
ภาษ
ย
English

Page 1 - 7 English
Version: 2015. 05
TABLE OF CONTENTS

1
Safety warnings -------------------------------------------------------------------------------------------------------------------------------------------1
Specifications & components--------------------------------------------------------------------------------------------------------------------------3
Installation -------------------------------------------------------------------------------------------------------------------------------------------------4
Operation---------------------------------------------------------------------------------------------------------------------------------------------------5
Maintenance and care ----------------------------------------------------------------------------------------------------------------------------------6
Troubleshoot ----------------------------------------------------------------------------------------------------------------------------------------------7
Unpacking
Do not use the appliance if there are obvious signs
of transportation damage.
If the power supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
qualified technician to avoid hazard.
Please ensure that young children do not play with
plastic bag packaging.
For the installer
The extractor hood can be installed over gas and
electric cook top. Minimum installation height from
the bench top to the bottom of the hood is 700mm
(gas range) and 550mm (electric range) (Fig. 1).
For the user
The extractor hood is designed for domestic use to
eliminate unpleasant odors from the kitchen. Do not
use the hood for uses other than its specific purpose.
Do not allow young children to play with or operate
the appliance. Supervise its use by the elderly or
infirm.
Installation and repair should be attempted by
qualified technical personnel only.
It is dangerous to modify any part of this appliance.
Tampering with electrical connections or mechanical
parts can cause operation faults and may put the
user at risk.
Never leave high naked flames under the extractor
hood when it is in operation. Always cover lit burners
with cookware.
CONTENTS
Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains
important information on safe installation, use and care of the appliance. Keep these instructions for reference and pass
them on to future user.
IMPORTANT
To register your product warranty, please paste the serial numbers stickers enclosed with the packaging on your
warranty card. Please contact your local Rinnai Customer Care Centre should you require further assistance.
SAFETY WARNINGS
English

2
Always mount the extractor hood over the center of
the hob.
Ensure that the appliance is installed in a location
with good permanent ventilation.
When making the electrical connections, check that
othe mains voltage and frequency corresponds to
the technical information shown on the rating
plate.
oElectrical connection must be made in
accordance to local standards only. Check that
the voltage in your area is correct before
plugging in.
Use an electrical connector with earth that is correct
for your location. The electrical connection of this
appliance must be connected to earth (where
applicable):
oGreen & Yellow = EARTH; Blue = NEUTRAL;
Brown =LIVE
Ducted mode:
oConnect the extractor hood to the exhaust duct
through a pipe of minimum Ø120mm. Use the
shortest and straightest duct route possible.
oDo not connect the extractor hood to exhaust
ducts carrying combustion fumes.
oArrange proper ventilation if the extractor hood
is used in conjunction with other appliances
which are not supplied by electrical power e.g.
gas burning appliances. The kitchen must have a
direct opening to the outside in order to allow
entry of fresh air.
Note: The manufacturer accepts no responsibility for
complaints attributed to the design and layout of the
pipe work.
Do not flambé or grill with an open flame directly
under the extractor hood. Flames could be drawn up
into the hood by the suction and the grease filters
may catch fire.
Monitor cooking continuously as overheated oil
increases the risk of self-ignition.
Do not operate the extractor hood without a grease
filter.
It is important to clean and/or replace the filters at
appropriate intervals.
Grease deposits build-up increases the risk of fire.
Always disconnect the unit from the power supply
before carrying out any cleaning or maintenance work
on the hood.
Ensure that the power supply chord is free from any
heat source or sharp objects.
Multiple plugs and extension cables must not be used.
Overloading is dangerous and may cause a fire hazard.
Disposal
This appliance and its packaging are environmentally
friendly and recyclable. Please help us to care for the
environment by disposing the packaging in a proper
manner and recycling any old appliances.
Before disposing an old appliance, disconnect it from
the power supply and cut the power supply cord to
prevent hazards.
The manufacturer will not be held liable for any
damages resulting from improper installation nor
failure to adopt proper safety measures during
installation and operational use of the appliance.
Fig. 1
English

3
Model
RH-S239-SSR
Voltage
220V - 240V / 50Hz
Power of Motor
220W
Power of Lamps
2 x 40W
Cable Length
1.5m
Appliance Dimension
(W x D x H):
90cm model 900 x 420 x 120mm
Note: The manufacturer reserves the right to effect any
technological improvement or modification without prior notice.
Ref Qty Product components
A 1 Air outlet for recirculating
B
1
Control Switch
C
SPECIFICATIONS
COMPONENTS
Fig. 2
Fig. 3
English
D
A
B
C
D
2
3
Charcoal filters
Aluminium grease filters

4
This appliance can be installed in ducted and recirculation mode .
Installation must be performed by qualified personnel only. The manufacturer declines all responsibility for improper
installation and does not accept responsibility for appliance warranty in the event of damage caused by incorrect
installation.
INSTALLATION
English
Ducted mode (Fig. 4)
In ducted mode, the extractor hood fan extracts the
cooking vapours and passes them through the
grease filter. The air then flows to the outside.
The grease filter absorbs the solid particles in the
cooking vapors.
In this mode, only grease filters are installed
(charcoal filter is optional).
Connection (Fig. 5 & 5.1)
Attach Ø150mm pipe directly to the air outlet and
secure appropriately (Fig. 5).
If using a Ø120mm pipe, connect to the air outlet
using a reducing connector (not provided).
Secure both joints appropriately
Connect pipe to the outdoor duct.
Fig. 4
Fig
. 5 Fig. 5.1

5
To achieve better air extraction, we recommend you to switch on the blower a few minutes before starting to cook.
Leave it on for approximately 15 minutes after cooking or till all cooking smell is completely removed.
OPERATION
English

6

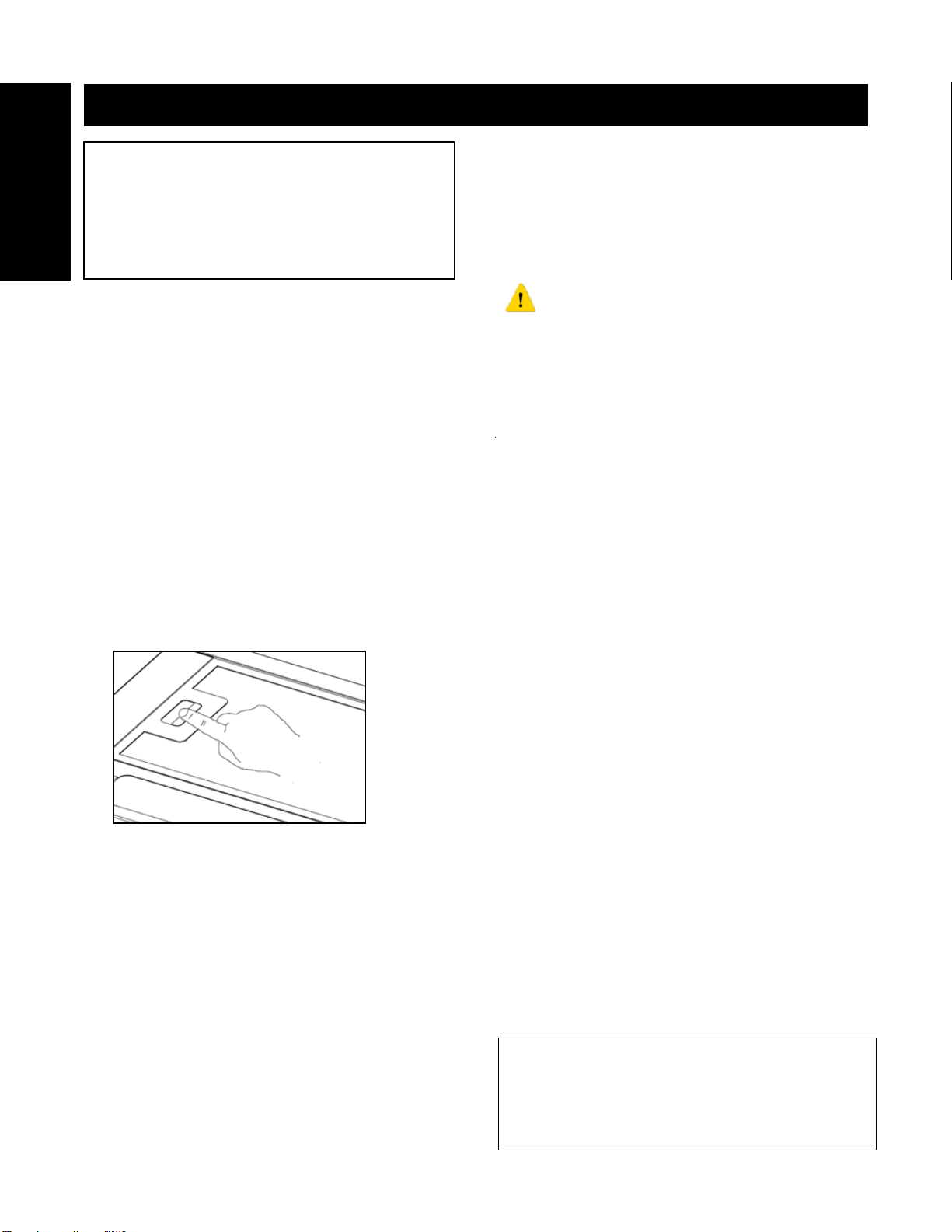

Grease filter (Fig. 9)
Grease filters are used to absorb the grease particles
formed during cooking process. The filters must be
removed and cleaned every 4 weeks, depending on
how often the appliance is used. Clean the filter
either by hand or in the dishwasher. Note: Take care
not to bend the filters during washing.
If by hand washing, soak the filters in warm
detergent solution to simplify the removal of grease.
Brush the filters, rinse thoroughly and leave it to dry
before refitting.
If by dishwasher, select an appropriate wash
program. Leave it to dry before refitting. Note: slight
discoloration of the filter may occur.
Removing and inserting the grease filters:
 To remove, depress the handle and pull down at
the same time.
 To refit, slot the filter into position. Make sure that
handle is visible on the outside.
Cleaning the appliance body
Clean the extractor hood using warm detergent
solution and a soft damp cloth. Wipe dry with a lint-
free cloth.
Avoid using corrosive or abrasive products that could
damage the surface.
Light replacement
Replace the light bulb with another which has the
same characteristics as a higher voltage bulb could
damage the electrical unit.
Removing and replacing the light bulbs:
oUnscrew and remove lamp cover.
oReplace damaged lights as shown.
oRefit lamp cover.
MAINTENANCE AND CARE
Disconnect the power supply cord before carrying out
any cleaning or maintenance activities. It is important
to clean and/or replace the filters at appropriate
intervals as grease deposits build-up increases the risk
of fire. Do not operate the extractor hood without
grease filter.
Fig 9
You are strongly recommended to follow these safety
instructions. The manufacturer will not be held liable
for any damages to the appliance or any fire hazard Due
to failurea to observe the above safety
recommendations.
.
English
Charcoal Filters
Charcoal filters cannot be reused. They must be
replaced with the appropriate type once a year or
depending on the frequency of appliance usage.
For thie appliance to function effectively, regular
maintenance is a must. Clogged filters restrict airflow
and may cause the motor to overheat.

7
Problem
Possible Cause
Solution
Extractor hood does not
function
No electrical supply
Check that plug is
connected and main power
switch is turned on
Poor airflow
Grease filters clogged with
grease build-up
Clean the grease filters and
refit when dry
Charcoal filters clogged
with grease build-up
Replace charcoal filters
with new sets
Hood suction is not effective
Inadequate ventilation
Ensure that the kitchen is
sufficiently ventilated to
allow entry of fresh air
Charcoal filters are not
installed
Install charcoal filters for
setting in recirculation mode
Motor is running but no airflow
Poor exhaust
Please contact Rinnai
Customer Care Service
Whirring sound
Foreign object may be in
contact with fan blade
Please contact Rinnai
Customer Care Service
Lights are not working
Lamps are burnt out
Replace the damaged lamps
Lamps are loose
Tighten the lamps
TROUBLESHOOT
If problem persists after the above checks, please contact Rinnai Customer Care
Centre for assistance.
Please quote the model number of your appliance as shown on the rating plate
attached to your equipment (Fig. 11).
For service calls under warranty, please note that it is necessary to produce your
proof of purchase and valid warranty card.
English
MODEL
TYPE
INPUT POWER
POWER SUPPLY
CABLE LENGTH : 1.5m
: 170W. Lamp ( 2x40W )
: SLIM HOOD
: RH-S239-SSR
CIRCUIT DIAGRAM
R A N G E H O O D
: 220V-240V / 50Hz
SERIAL No :
AC220-240V/50Hz
0
1
2
M
M
Lamp
Control Plug

Rinnai Customer Care Centres
China |中国
Guangzhou Rinnai Gas & Electric
Room 2805, No.31 Jianghe Building,
Tianshou Road, Guangzhou, China
广州林内燃具电器有限公司
中国广州天河区天寿路 31 号江河大厦 2805 室
Tel 电话 : [phone]
Email 邮箱 : [email protected]
URL 网址 : www.gzrinnai.com.cn
Philippines
Mitsui Industia Corporation
10 Buenaventura St., Cor MacArthur
Highway, Dalandan Valenzuela City,
Philippines
Tel : [phone]
Fax : [phone]
Indonesia
Customer Care of PT. Rinnai Indonesia
Jl. Raya Pejuangan No.21,
Komp. Ruko Sastra Graha No.11 -13
Jakarta 11530
Tel : [phone] (toll free) /
0815 112 99999 (SMS Center)
Email : [email protected]
URL : www.rinnai.co.id
Singapore
Rinnai Holdings (Pacific) Pte Ltd
47 Tannery Lane #05-01/02,
Elite Industrial Building II, Singapore 347794
Tel : [phone]
Fax : [phone]
Email : [email protected]
URL : www.rinnai.sg
Macau |澳門
Fu Lei (Leong Si) Trading Limited
Avenida do Almirante Lacerda No. 14-14C,
Edf. Industrial Iao Son 11-And-A, Macau
冨利（粱氏）貿易有限公司
澳門提督馬路 14-14C,祐順工業大厦 11 樓A
Tel 电话 : [phone]
Fax 传真 : [phone]
URL 网址 : www.rinnai.com.hk/mo
Thailand | ประเทศไทย
Rinnai (Thailand) Co., Ltd. / Lucky Flame Co., Ltd.
61/1 Soi Kingkaew 9, Kingkaew Rd.
Racha Thewa, Bangphli, Samutprakarn 10540, Thailand




Tel : [phone]
Email : [email protected]
URL : www.luckyflame.co.th
Malaysia
Rinnai (M) Sdn Bhd
D2-3-G & D2-3-1, Block D2, Pusat Perdagangan Dana 1,
Jalan PJU 1A/46, 47301 Petaling Jaya,
Selangor Darul Ehsan, Malaysia
Tel : [phone]
Fax : [phone]
URL : www.rinnai.com.my
Vietnam | Việt Nam
Rong Viet Commerce Company Limited
120 3/2 Street, Ward 12, District 10,
Ho Chi Minh City, Vietnam
Công Ty TNHH Thương Mại Rồng Việt
120 Đường 3/2, Phường 12, Quận 10,
TP. Hồ Chí Minh, Việt Nam
Tel : [phone]
Fax : [phone]
Email : [email protected]
URL : www. rongviet-rinnai.com
Myanmar | ျမန္မာ
Myanmar Kowa International Co., Ltd
No.199, Ground Floor, 34th Street (Upper Block),
Kyauktada Township, Yangon, Myanmar
အမွတ္ (၁၉၉)၊ ၃၄ လမ္း ()
ေက်ာက္တံတားၿမိဳ႕နယ္၊ ရန္ကုန္ၿမိဳ႕။
Tel ဖုန္း : (95-1) 245925 / 246304 / (95-9) 7300 7773
Fax ဖက္(စ္) : (95-1) 245925
Email အီးေမးလ : marke[email protected]
