Operation / Installation Manual
Slim Line Hood
RH-S319-PBR-T
Rinnai Corporation
中
文
En
glis
h
Ba
has
a
Ind
one
sia
Việ
t
ภาษ
中
文
En
glis
h
Ba
has
a
English
Ind
one
sia
Việ
t
ภาษ
ย
English

Page 1 - 7 English
Version: 2015. 08
TABLE OF CONTENTS

1
Safety warnings -------------------------------------------------------------------------------------------------------------------------------------------1
Specifications & components--------------------------------------------------------------------------------------------------------------------------3
Installation -------------------------------------------------------------------------------------------------------------------------------------------------4
Operation---------------------------------------------------------------------------------------------------------------------------------------------------5
Maintenance and care ----------------------------------------------------------------------------------------------------------------------------------6
Troubleshoot ----------------------------------------------------------------------------------------------------------------------------------------------7
Unpacking
Do not use the appliance if there are obvious signs
of transportation damage.
If the power supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
qualified technician to avoid hazard.
Please ensure that young children do not play with
plastic bag packaging.
For the installer
The extractor hood can be installed over gas and
electric cook top. Minimum installation height from
the bench top to the bottom of the hood is 700mm
(gas range) and 550mm (electric range) (Fig. 1).
For the user
The extractor hood is designed for domestic use to
eliminate unpleasant odors from the kitchen. Do not
use the hood for uses other than its specific purpose.
Do not allow young children to play with or operate
the appliance. Supervise its use by the elderly or
infirm.
Installation and repair should be attempted by
qualified technical personnel only.
It is dangerous to modify any part of this appliance.
Tampering with electrical connections or mechanical
parts can cause operation faults and may put the
user at risk.
Never leave high naked flames under the extractor
hood when it is in operation. Always cover lit burners
with cookware.
CONTENTS
Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains
important information on safe installation, use and care of the appliance. Keep these instructions for reference and pass
them on to future user.
IMPORTANT
To register your product warranty, please paste the serial numbers stickers enclosed with the packaging on your
warranty card. Please contact your local Rinnai Customer Care Centre should you require further assistance.
SAFETY WARNINGS
English

2
Always mount the extractor hood over the center of
the hob.
Ensure that the appliance is installed in a location
with good permanent ventilation.
When making the electrical connections, check that
othe mains voltage and frequency corresponds to
the technical information shown on the rating
plate.
oElectrical connection must be made in
accordance to local standards only. Check that
the voltage in your area is correct before
plugging in.
Use an electrical connector with earth that is correct
for your location. The electrical connection of this
appliance must be connected to earth (where
applicable):
oGreen & Yellow = EARTH; Blue = NEUTRAL;
Brown =LIVE

Recirculation mode only:
oArrange proper ventilation if the extractor hood
is used in conjunction with other appliances
which are not supplied by electrical power e.g.
gas burning appliances. The kitchen must have a
direct opening to the outside in order to allow
entry of fresh air.
Note: The manufacturer accepts no responsibility for
complaints attributed to the design and layout of the
pipe work.
Do not flambé or grill with an open flame directly
under the extractor hood. Flames could be drawn up
into the hood by the suction and the grease filters
may catch fire.
Monitor cooking continuously as overheated oil
increases the risk of self-ignition.
Do not operate the extractor hood without a grease
filter.
It is important to clean and/or replace the filters at
appropriate intervals.
Grease deposits build-up increases the risk of fire.
Always disconnect the unit from the power supply
before carrying out any cleaning or maintenance work
on the hood.
Ensure that the power supply chord is free from any
heat source or sharp objects.
Multiple plugs and extension cables must not be used.
Overloading is dangerous and may cause a fire hazard.
Disposal
This appliance and its packaging are environmentally
friendly and recyclable. Please help us to care for the
environment by disposing the packaging in a proper
manner and recycling any old appliances.
Before disposing an old appliance, disconnect it from
the power supply and cut the power supply cord to
prevent hazards.
The manufacturer will not be held liable for any
damages resulting from improper installation nor
failure to adopt proper safety measures during
installation and operational use of the appliance.
Fig. 1
English

3
Model
RH-S319-PBR-T
Voltage
220V - 240V / 50Hz
Power of Motor
3 x 85W
Power of Lamps
2 x 1W (LED)
Cable Length
1.5m
Appliance Dimension
(W x D x H):
90cm model 900 x 420 x 120mm
Note: The manufacturer reserves the right to effect any
technological improvement or modification without prior notice.
Ref Qty Product components
A 1 Hood Body
B
3 Charcoal Filterl
C
SPECIFICATIONS
COMPONENTS
Fig. 2
Fig. 3
English
D
3
2LED Light
A
B
C
D
E
E1Bottom panel
Aluminium grease filters

4
This appliance can only be installed in recirculation mode .
Installation must be performed by qualified personnel only. The manufacturer declines all responsibility for improper
installation and does not accept responsibility for appliance warranty in the event of damage caused by incorrect
installation.
INSTALLATION
English

5
To achieve better air extraction, we recommend you to switch on the blower a few minutes before starting to cook.
Leave it on for approximately 15 minutes after cooking or till all cooking smell is completely removed.
OPERATION
English

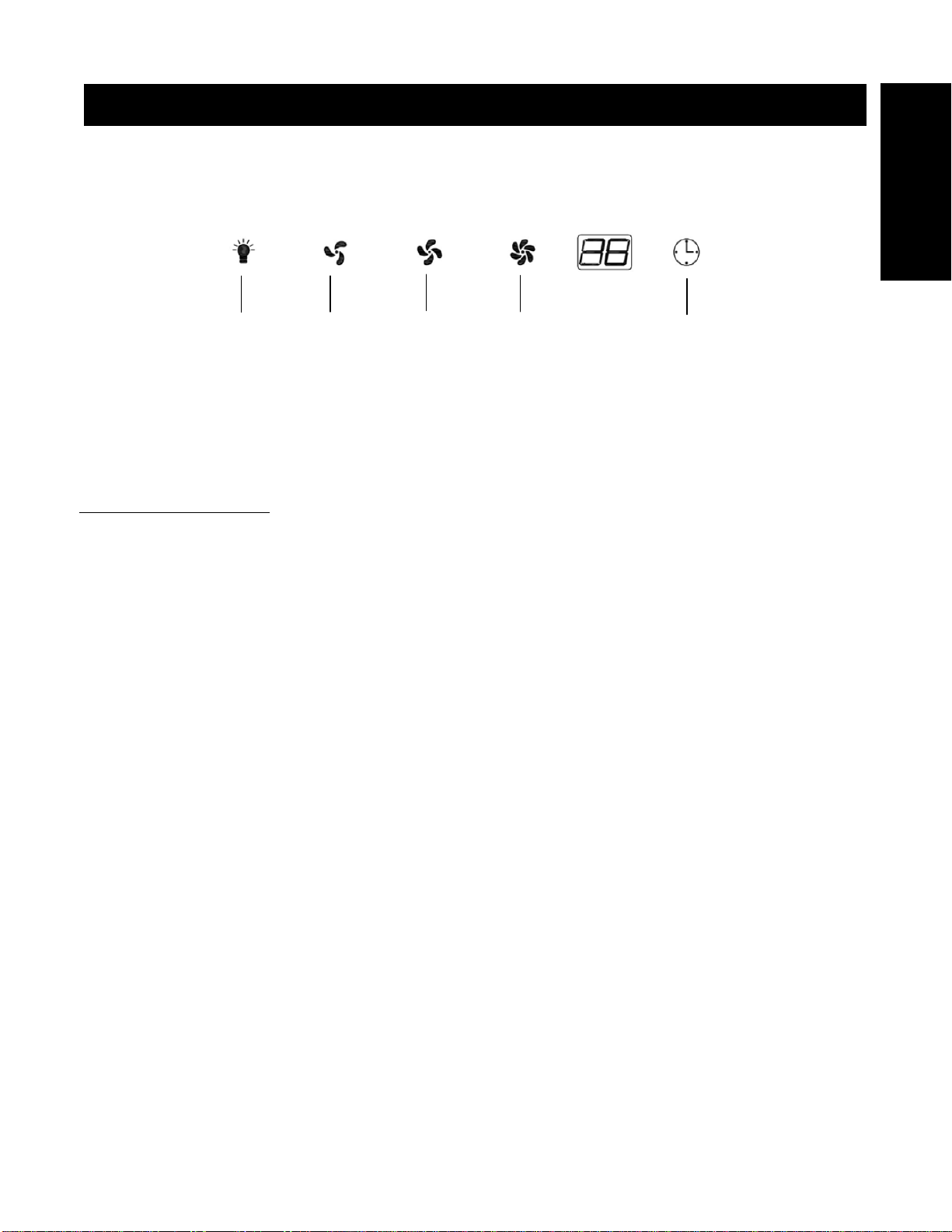

3 Speed Touch Control (1 2 3 )
1: Press to turn the Low speed blower On of Off
2: Press to turn the Medium speed blower On of Off
3: Press to turn the High speed blower On of Off
LIGHT: Press to turn the light on/off.
1TIMER
LIGHT
Delay Timer:
3 Minutes: When the hood is switched on, press the Timer button once quickly, the timer icon will turn orange and
start to flash, and the cooker hood will be switched off after 3 minutes.
23

6
Grease filter (Fig. 9)
Grease filters are used to absorb the grease particles
formed during cooking process. The filters must be
removed and cleaned every 4 weeks, depending on
how often the appliance is used. Clean the filter
either by hand or in the dishwasher. Note: Take care
not to bend the filters during washing.
If by hand washing, soak the filters in warm
detergent solution to simplify the removal of grease.
Brush the filters, rinse thoroughly and leave it to dry
before refitting.
If by dishwasher, select an appropriate wash
program. Leave it to dry before refitting. Note: slight
discoloration of the filter may occur.
Removing and inserting the grease filters:
 To remove, depress the handle and pull down at
the same time.
 To refit, slot the filter into position. Make sure that
handle is visible on the outside.
Cleaning the appliance body
Clean the extractor hood using warm detergent
solution and a soft damp cloth. Wipe dry with a lint-
free cloth.
Avoid using corrosive or abrasive products that could
damage the surface.
Light replacement (Fig. 9.1, 9.2)
Replace the light with another which has the
same characteristics as a higher voltage light could
damage the electrical unit.
MAINTENANCE AND CARE
Disconnect the power supply cord before carrying out
any cleaning or maintenance activities. It is important
to clean and/or replace the filters at appropriate
intervals as grease deposits build-up increases the risk
of fire. Do not operate the extractor hood without
grease filter.
Fig 9
You are strongly recommended to follow these safety
instructions. The manufacturer will not be held liable
for any damages to the appliance or any fire hazard Due
to failurea to observe the above safety
recommendations.
.
English
Charcoal Filters
•Charcoal filters cannot be reused. They must be
replaced with the appropriate type once a year or
depending on the frequency of appliance usage.
For this appliance to function effectively, regular
maintenance is a must. Clogged filters restrict airflow
and may cause the motor to overheat.
Fig. 9.1
Fig. 9.2
•Removing and replacing the lights:
o
oDisconnect the connector as illustrated in(Fig. 9.2).
oReplace a new set of light assembly. Note: For purchase of
spare part, please check with your local Rinnai Rinnai
Customer Care Centre for assistance.
oReverse the procedure for refitting and push back the light
assembly into the hood.
Push out the light assembly using a small straight
screwdriver as illustrated in (Fig.9.1)

7
Problem
Possible Cause
Solution
Extractor hood does not
function
No electrical supply
Check that plug is
connected and main power
switch is turned on
Poor airflow
Grease filters clogged with
grease build-up
Clean the grease filters and
refit when dry
Charcoal filters clogged
with grease build-up
Replace charcoal filters
with new sets
Hood suction is not effective
Inadequate ventilation
Ensure that the kitchen is
sufficiently ventilated to
allow entry of fresh air
Charcoal filters are not
installed
Install charcoal filters for
setting in recirculation mode
Motor is running but no airflow
Poor exhaust
Please contact Rinnai
Customer Care Service
Whirring sound
Foreign object may be in
contact with fan blade
Please contact Rinnai
Customer Care Service
Lights are not working
Lamps are burnt out
Replace the damaged lamps
Lamps are loose
Tighten the lamps
TROUBLESHOOT
If problem persists after the above checks, please contact Rinnai Customer Care
Centre for assistance.
Please quote the model number of your appliance as shown on the rating plate
attached to your equipment (Fig. 11).
For service calls under warranty, please note that it is necessary to produce your
proof of purchase and valid warranty card.
English

Rinnai Customer Care Centres
China |中国
Guangzhou Rinnai Gas & Electric
Room 2805, No.31 Jianghe Building,
Tianshou Road, Guangzhou, China
广州林内燃具电器有限公司
中国广州天河区天寿路 31 号江河大厦 2805 室
Tel 电话 : [phone]
Email 邮箱 : [email protected]
URL 网址 : www.gzrinnai.com.cn
Philippines
Mitsui Industia Corporation
10 Buenaventura St., Cor MacArthur
Highway, Dalandan Valenzuela City,
Philippines
Tel : [phone]
Fax : [phone]
Indonesia
Customer Care of PT. Rinnai Indonesia
Jl. Raya Pejuangan No.21,
Komp. Ruko Sastra Graha No.11 -13
Jakarta 11530
Tel : [phone] (toll free) /
0815 112 99999 (SMS Center)
Email : [email protected]
URL : www.rinnai.co.id
Singapore
Rinnai Holdings (Pacific) Pte Ltd
61 Ubi Road 1 #02-20 & 21 O
xley Bizhub Singapore 408727
Tel : [phone]
Fax : [phone]
Email : [email protected]
URL : www.rinnai.sg
Macau |澳門
Rinnai Appliance Service Center
Edificio Industrial, 3 andar F.A da Zona Macau
林內爐具服務中心
澳門青洲跨境工業大廈3樓F座
Phone電話 :[phone]
Fax 傳真 : [phone]
URL 网址 : www.rinnai.com.hk/mo
Thailand | ประเทศไทย
Rinnai (Thailand) Co., Ltd. / Lucky Flame Co., Ltd.
61/1 Soi Kingkaew 9, Kingkaew Rd.
Racha Thewa, Bangphli, Samutprakarn 10540, Thailand




Tel : [phone]
Email : [email protected]
URL : www.luckyflame.co.th
Malaysia
Rinnai (M) Sdn Bhd
D2-3-G & D2-3-1, Block D2, Pusat Perdagangan Dana 1,
Jalan PJU 1A/46, 47301 Petaling Jaya,
Selangor Darul Ehsan, Malaysia
Tel : [phone]
Fax : [phone]
Toll free: 1800-88-8180
Email: [email protected]
URL : www.rinnai.com.my
Vietnam | Việt Nam
Rong Viet Commerce Company Limited
120 3/2 Street, Ward 12, District 10,
Ho Chi Minh City, Vietnam
Công Ty TNHH Thương Mại Rồng Việt
120 Đường 3/2, Phường 12, Quận 10,
TP. Hồ Chí Minh, Việt Nam
Tel : [phone]
Fax : [phone]
Email : [email protected]
URL : www. rongviet-rinnai.com
Myanmar | ျမန္မာ
Myanmar Kowa International Co., Ltd
No.199, Ground Floor, 34th Street (Upper Block),
Kyauktada Township, Yangon, Myanmar
အမွတ္ (၁၉၉)၊ ၃၄ လမ္း ()
ေက်ာက္တံတားၿမိဳ႕နယ္၊ ရန္ကုန္ၿမိဳ႕။
Tel ဖုန္း : (95-1) 245925 / 246304 / (95-9) 7300 7773
Fax ဖက္(စ္) : (95-1) 245925
Email အီးေမးလ : marke[email protected]
