Rinnai RH-C209-GCR User manual

Operation / Installation Manual
操作 / 安装说明
Petunjuk Pemakaian / Pemasangan
Hoạt động / Hướng dẫn lắp đặt

Chimney Hood
塔形烟机
Tudung Hisap
Máy Hút Khói Mùi –Dòng Chimney

RH-C209-GCR
RH-C209-GCV
Rinnai Corporation
中
文
En
glis
h
Ba
has
a
Ind
one
sia
Việ
t
ภาษ
中
文
En
glis
h
Ba
has
a
English
Ind
one
sia
Việ
t
ภาษ
าไท
ย
English
中文
Bahasa Indonesia
Tiếng Việt
ภาษาไทย

English Page 1 - 7
中文 8 - 14 页
Bahasa Indonesia Hal. 15-21
Tiếng ViệtTrang 22 - 28
  29 - 35
Version: 201506
En
glis
h
TABLE OF CONTENTS

1
Safety warnings -------------------------------------------------------------------------------------------------------------------------------------------1
Specifications & components--------------------------------------------------------------------------------------------------------------------------3
Installation -------------------------------------------------------------------------------------------------------------------------------------------------4
Operation---------------------------------------------------------------------------------------------------------------------------------------------------5
Maintenance and care ----------------------------------------------------------------------------------------------------------------------------------6
Troubleshoot ----------------------------------------------------------------------------------------------------------------------------------------------7
Unpacking
Do not use the appliance if there are obvious signs
of transportation damage.
If the power supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
qualified technician to avoid hazard.
Please ensure that young children do not play with
plastic bag packaging.
For the installer
The extractor hood can be installed over gas and
electric cook top. Minimum installation height from
the bench top to the bottom of the hood is 700mm
(gas range) and 550mm (electric range) (Fig. 1).
For the user
The extractor hood is designed for domestic use to
eliminate unpleasant odors from the kitchen. Do not
use the hood for uses other than its specific purpose.
Do not allow young children to play with or operate
the appliance. Supervise its use by the elderly or
infirm.
Installation and repair should be attempted by
qualified technical personnel only.
It is dangerous to modify any part of this appliance.
Tampering with electrical connections or mechanical
parts can cause operation faults and may put the
user at risk.
Never leave high naked flames under the extractor
hood when it is in operation. Always cover lit burners
with cookware.
CONTENTS
Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains
important information on safe installation, use and care of the appliance. Keep these instructions for reference and pass
them on to future user.
IMPORTANT
To register your product warranty, please paste the serial numbers stickers enclosed with the packaging on your
warranty card. Please contact your local Rinnai Customer Care Centre should you require further assistance.
En
glis
h
SAFETY WARNINGS
English

2
Always mount the extractor hood over the center of
the hob.
Ensure that the appliance is installed in a location
with good and permanent ventilation.
When making the electrical connections, check that
oThe mains voltage and frequency corresponds
to the technical information shown on the
rating plate.
oElectrical connection must be made in
accordance to local standards only. Check that
the voltage in your area is correct before
plugging in.
Use an electrical connector with earth that is correct
for your location. The electrical connection of this
appliance must be connected to earth (where
applicable):
oGreen & Yellow = EARTH; Blue = NEUTRAL;
Brown =LIVE
Ducted mode:
oConnect the extractor hood to the exhaust duct
through a pipe of minimum Ø120mm. Use the
shortest and straightest duct route possible.
oDo not connect the extractor hood to exhaust
ducts carrying combustion fumes.
oArrange proper ventilation if the extractor hood
is used in conjunction with other appliances
which are not supplied by electrical power e.g.
gas burning appliances. The kitchen must have a
direct opening to the outside in order to allow
entry of fresh air.
Note: The manufacturer accepts no responsibility for
complaints attributed to the design and layout of the
pipe work.
Do not flambé or grill with an open flame directly
under the extractor hood. Flames could be drawn up
into the hood by the suction and the grease filters
may catch fire.
Monitor cooking continuously as overheated oil
increases the risk of self-ignition.
Do not operate the extractor hood without a grease
filter.
It is important to clean and/or replace the filters at
appropriate intervals.
Grease deposits build-up increases the risk of fire.
Always disconnect the unit from the power supply
before carrying out any cleaning or maintenance work
on the hood.
Ensure that the power supply chord is free from any
heat source or sharp objects.
Multiple plugs and extension cables must not be used.
Overloading is dangerous and may cause a fire hazard.
Disposal
This appliance and its packaging are environmentally
friendly and recyclable. Please help us to care for the
environment by disposing the packaging in a proper
manner and recycling any old appliances.
Before disposing an old appliance, disconnect it from
the power supply and cut the power supply cord to
prevent hazards.
The manufacturer will not be held liable for any
damages resulting from improper installation nor
failure to adopt proper safety measures during
installation and operational use of the appliance.

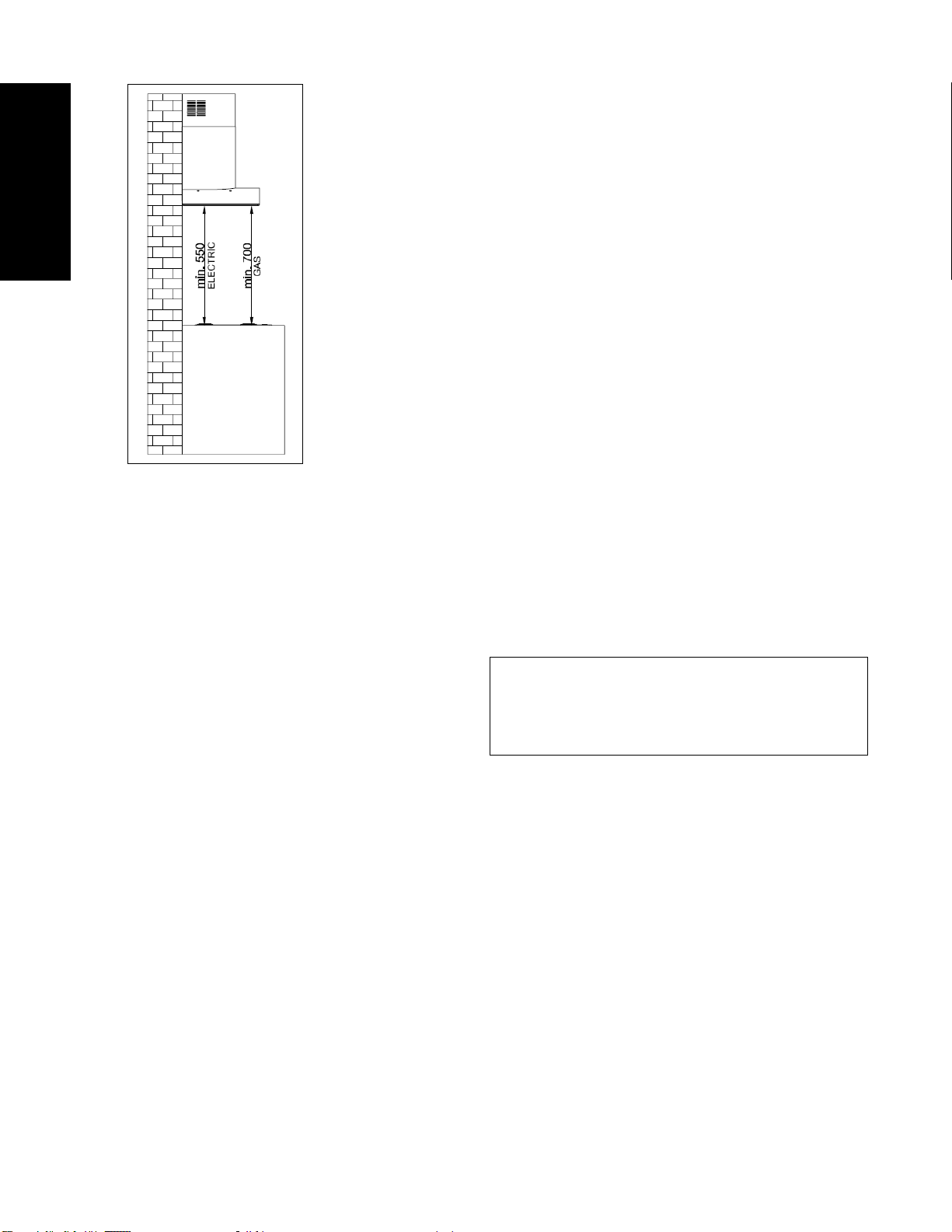

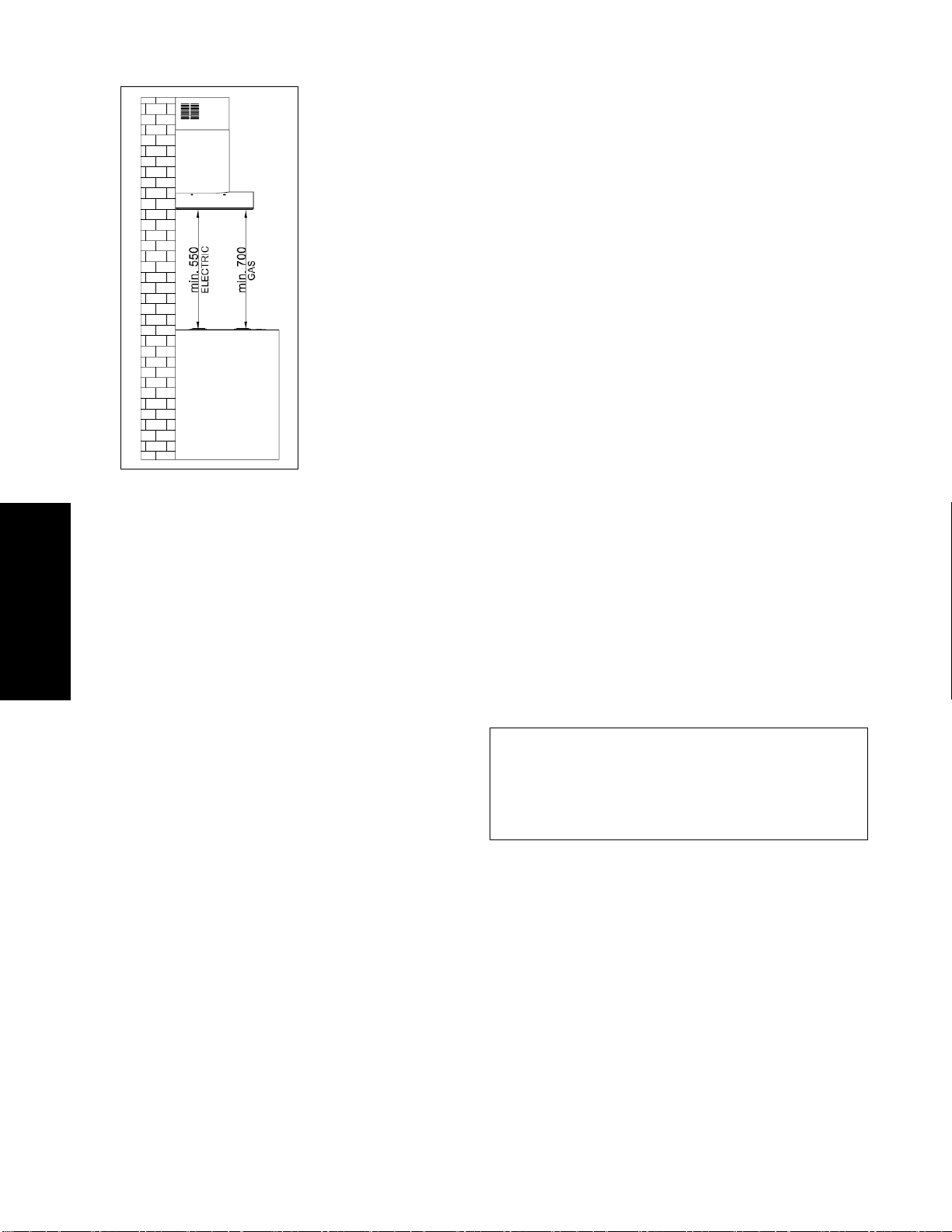

Fig. 1
English

3
Model
RH-C209-GCR
RH-C209-GCV
Voltage
220V - 240V / 50Hz
Power of Motor
400W
Power of Lamps
2 x 20W
Cable Length
1.5m
Appliance
Dimension
(W x D x H):
90cm model
898 x 460 x 479-854mm
Note: The manufacturer reserves the right to effect any
technological improvement or modification without prior notice.
Ref
Qty
Product components
A
1
Mounting bracket
B
1
Inner Duct
C
1
Outer Duct
D
1
Motor Housing
E
1
Glass Panel
F
1
Charcoal Filter
G
2
Grease Filter
Qty
Installation components
2
Screw M3 x 12
4
Screw ST5 x 25
Qty
Documentation
1
Operation / Installation Manual
SPECIFICATIONS
COMPONENTS
Fig. 2
Fig. 3
English

4

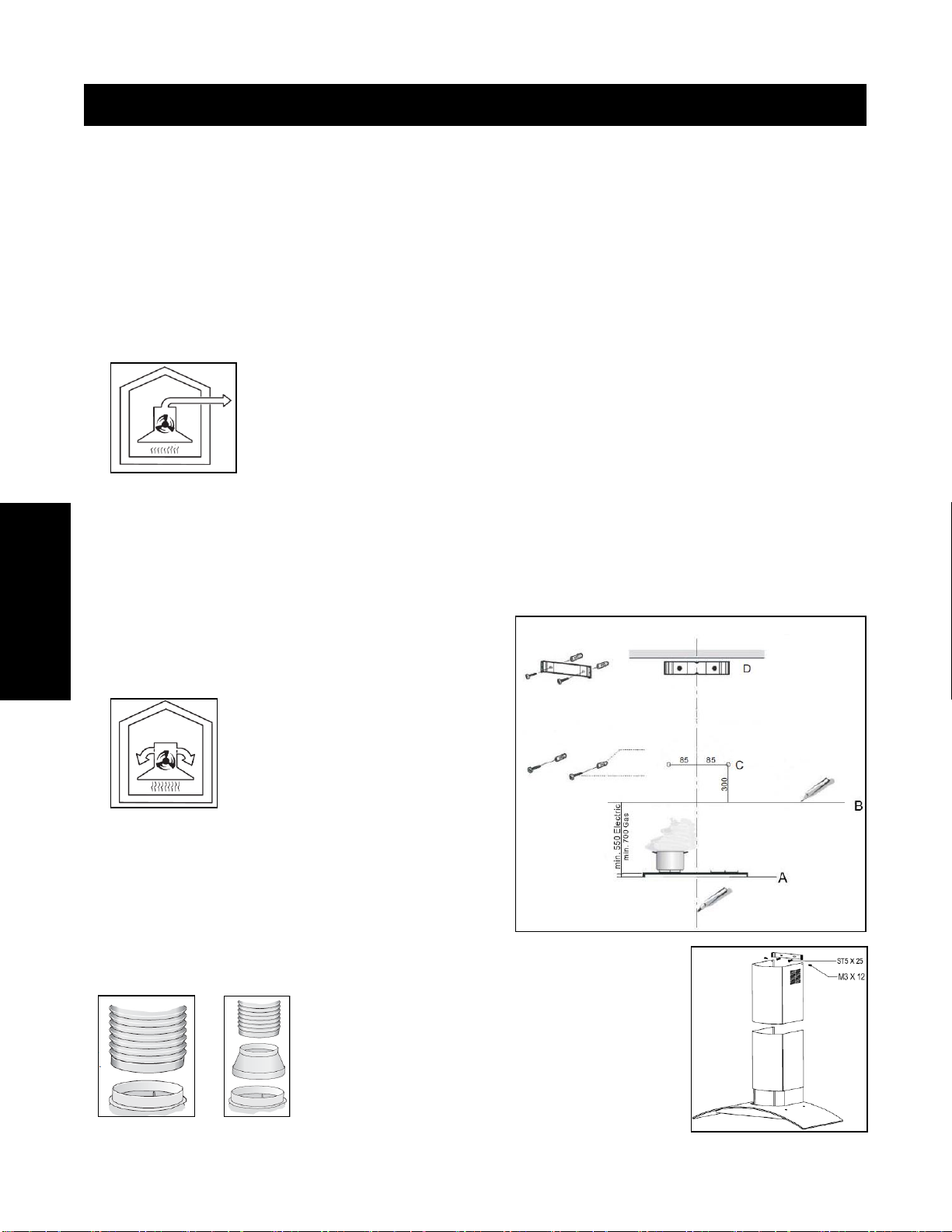

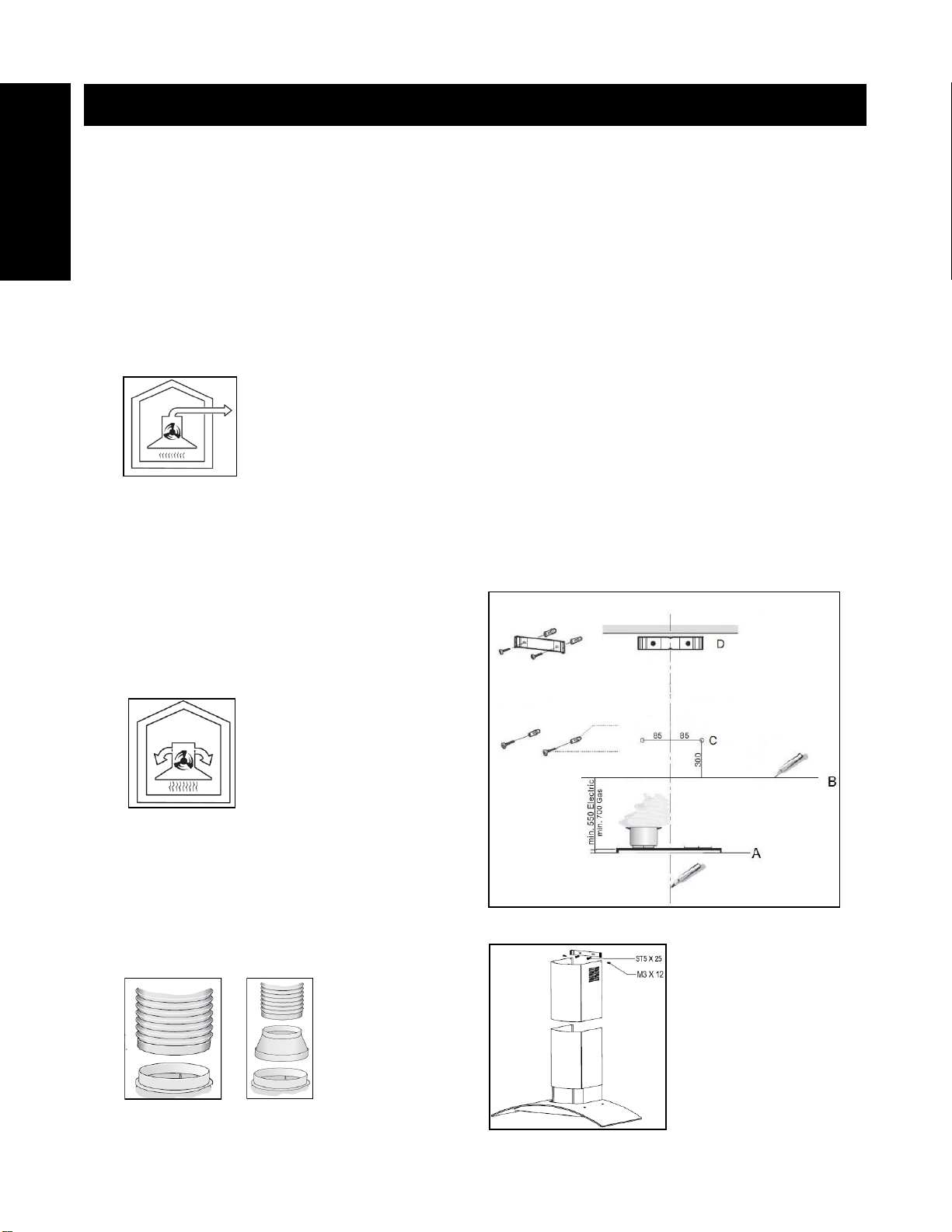

This appliance can be installed in ducted or recirculation
mode.
Ducted mode (Fig. 4)
In ducted mode, the extractor hood fan extracts the
cooking vapours and passes them through the
grease filter. The air then flows to the outside.
The grease filter absorbs the solid particles in the
cooking vapors.
In this mode, only grease filters are installed
(charcoal filter is optional).
Recirculation mode (Fig. 5)
In recirculation mode, the extractor hood fan
extracts the cooking vapors which are purified in the
grease filter and charcoal filter.
The purified air is then recirculated into the kitchen
via a vent opening in the hood. The grease filter
absorbs the solid particles in the cooking vapors.
The charcoal filter is designed to absorb cooking
odor. In this mode, both grease filters and charcoal
filters are installed.
Connection to exhaust air pipe (Fig. 6 & 6.1)
Attach Ø150mm pipe directly to the air outlet and
secure appropriately (Fig. 6).
If using Ø120mm pipe, connect to the air outlet
using a reducing connector (not provided).
Secure both joints appropriately (Fig. 6.1).
Connect pipe to the outdoor duct.
Wall mounting (Fig. 7 & 8)
Do ensure that the appliance is mounted on a solid

Draw a vertical line at the center of the wall.
From bench top (see A), draw a horizontal line above
minimum installation height level (see B).
Mark a reference point at C. Repeat this step on the
other side.
Drill Ø 8mm holes at center of marking points. Insert
wall plugs in the wall.
Fix the hood body to wall using 2 (two) ST5 x 25
screws provided. Tighten screws firmly. Note: Adjust
the hood body alignment if necessary (Fig. 9).
Place mounting bracket on the wall at desired height
level. Align bracket center at vertical line (see D).
Mark the center of the bracket holes and drill Ø 8mm
holes. Insert wall plugs in the wall.
Secure mounting bracket firmly using 2 (two) ST5 x
25 screws provided.
Fix the inner duct to mounting bracket using 2 (two)
M3 x 12 screws provided (Fig. 8).
Slide the outer duct downwards and ensure that it is
well seated on the hood body.
INSTALLATION
Fig. 4
English
Fig. 5
Fig. 7
Fig. 6
Fig. 6.1
Fig. 8

5
To achieve better air extraction, we recommend you to switch on the blower a few minutes before starting to cook.
Leave it on for approximately 15 minutes after cooking or till all cooking smell is completely removed.

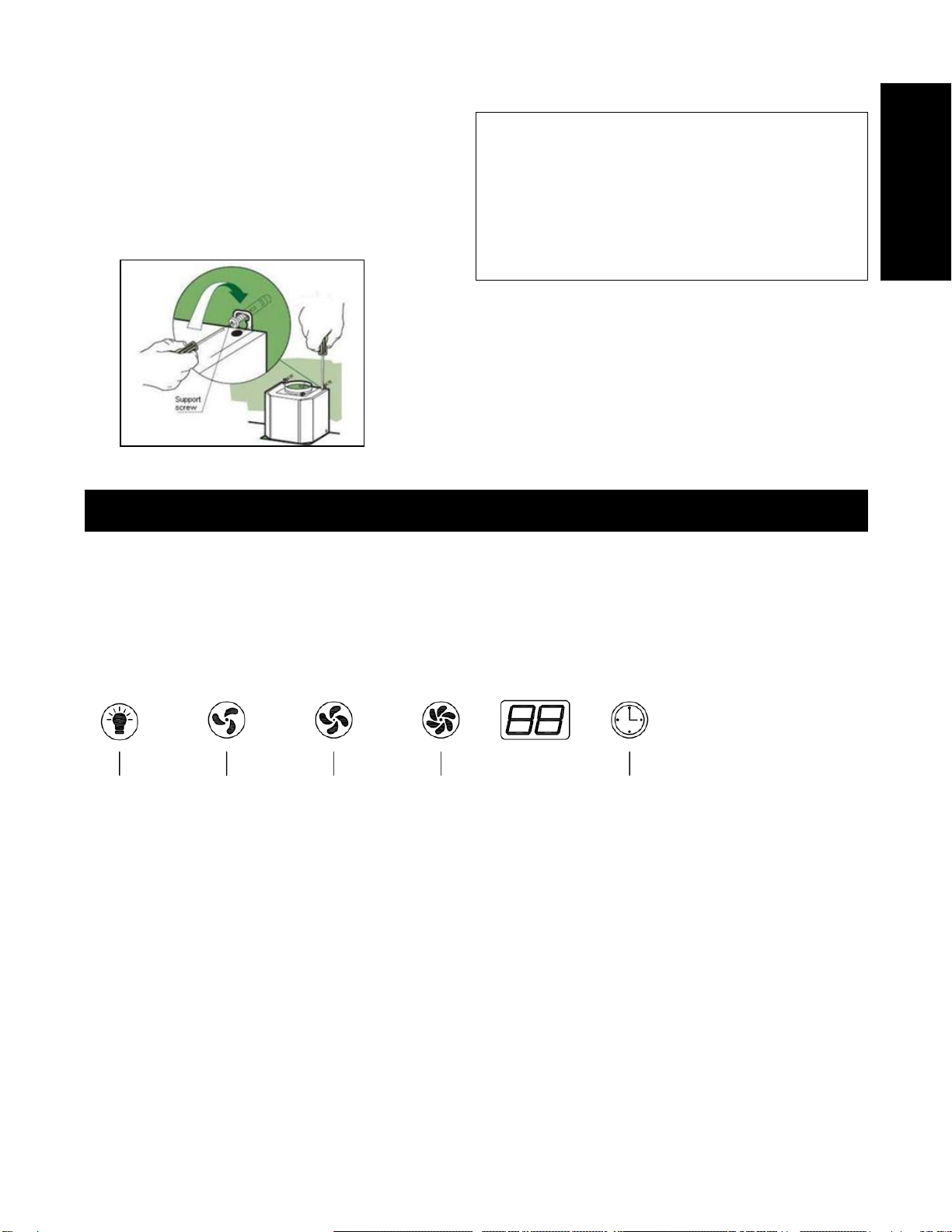

Switch control
Note: Touch the sensor buttons gently to operate this appliance.
LIGHT: Touch to select on/off.
LOW SPEED: Touch to on/off the fan at low speed.
MEDIUM SPEED: Touch to on/off the fan at medium speed.
HIGH SPEED: Touch to on/off the fan at high speed.
DELAY STOP TIMER:
oTouch to select delay stop timer at 3, 6, 9, 12 or 15 minutes. The timer setting & countdown is displayed in
the window. The fan turns off automatically after timer ends operation.
oTo deactivate this function before the timer stops, touch the speed button to turn off the fan completely.
Or, touch the delay stop timer to clear setting and fan remains running at the selected speed.
Aligning the hood body (if necessary) (Fig. 9)
Before attaching hood body to wall, adjust the
2(two) screws located on the hood body mounting
points.
Hook the hood body onto the support screws and
tighten the support screws fully.
Adjust screws to level the hood body.
Installation must be performed by qualified personnel
only. The manufacturer declines all responsibility for
improper installation and does not accept responsibility
for appliance warranty in the event of damage caused by
incorrect installation.
OPERATION
English
Fig. 9










6

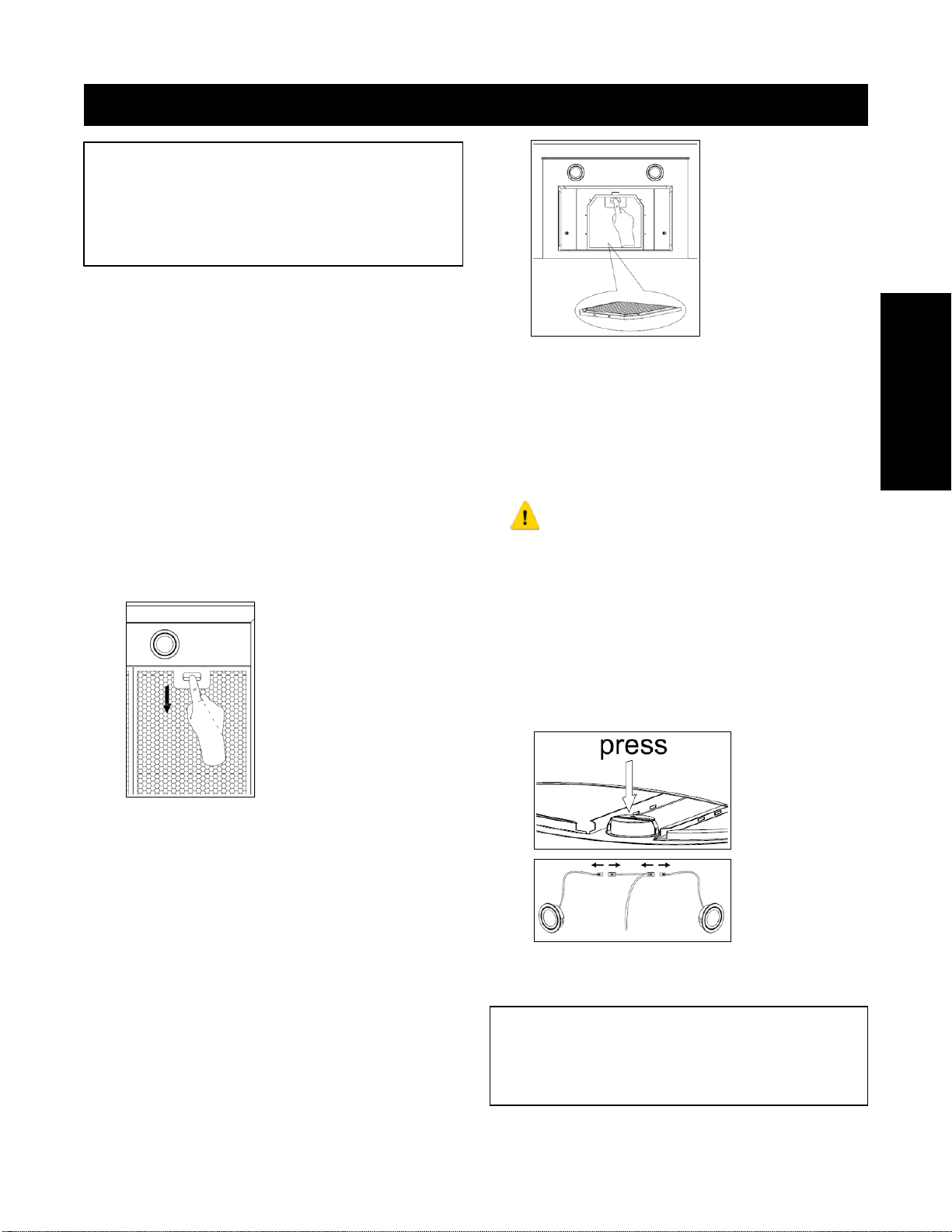

Grease filter (Fig. 10)
Grease filters are used to absorb the grease
particles formed during cooking process. The filters
must be removed and cleaned every 4 weeks,
depending on frequency of usage. Clean the filter
either by hand or in the dishwasher. Note: Take
care not to bend the filters during washing.
If by hand washing, soak the filters in warm
detergent solution to simplify the removal of
grease. Brush the filters, rinse thoroughly and
leave it to dry before refitting.
If by dishwasher, select an appropriate wash
program. Leave it to dry before refitting. Note:
slight discoloration of the filter may occur.
Removing and inserting the grease filters:
oTo remove, depress the handle and pull down
at the same time.
oTo refit, slot the filter into position. Make sure
that the handle is visible on the outside.
Charcoal filter (where applicable) (Fig. 11)
The charcoal filters should be replaced when it is
noticeably dirty or discolored, usually after 6 to 12
months depending on the conditions of use.
These filters are not washable and cannot be
restored. To ensure that this appliance functions
effectively, regular maintenance is necessary as
clogged filters restrict airflow and may cause the
motor to overheat.
Removing and inserting the charcoal filter:
oRemove the saturated charcoal filter from the
blower as shown.
oFit in the new charcoal filter.
Cleaning the appliance body
Clean the extractor hood using warm detergent
solution and a soft damp cloth. Wipe dry with a lint-
free cloth.
Avoid using corrosive or abrasive products that could
damage the surface.
Light replacement (Fig. 12 & 12.1)
Replace the light bulb with another which has the
same characteristics as a higher voltage bulb could
damage the electrical unit.
Removing and replacing the lights:
oPush out the light assembly from inside of the
hood body (Fig. 12).
oDisconnect the light connector (Fig. 12.1).
oReplace a new set of light assembly. Note: For
purchase of spare part, please check with your
local Rinnai Rinnai Customer Care Centre for
assistance.
oReverse the procedure for refitting.
MAINTENANCE AND CARE
Disconnect the power supply cord before carrying out
any cleaning or maintenance activities. It is important
to clean and/or replace the filters at appropriate
intervals as grease deposits build-up increases the risk
of fire. Do not operate the extractor hood without
grease filter.
You are strongly recommended to follow these safety
instructions. The manufacturer will not be held liable for
any damages to the appliance or any fire hazard due to
failure to observe the above safety recommendations.
.
English
Fig. 10
Fig. 11
Fig. 12
Fig. 12.1

7
Problem
Possible Cause
Solution
Extractor hood does not
function
No electrical supply
Check that plug is
connected and main power
switch is turned on
Poor airflow
Grease filters clogged with
grease build-up
Clean the grease filters and
refit when dry
Charcoal filters clogged
with grease build-up
Replace charcoal filters
with new sets
Hood suction is not effective
Inadequate ventilation
Ensure that the kitchen is
sufficiently ventilated to
allow entry of fresh air
Charcoal filters are not
installed
Install charcoal filters for
setting in recirculation mode
Motor is running but no airflow
Poor exhaust
Please contact Rinnai
Customer Care Service
Whirring sound
Foreign object may be in
contact with fan blade
Please contact Rinnai
Customer Care Service
Lights are not working
Lamps are burnt out
Replace the damaged lamps
Lamps are loose
Tighten the lamps
TROUBLESHOOT
If problem persists after the above checks, please contact Rinnai Customer Care
Centre for assistance.
Please quote the model number of your appliance as shown on the rating plate
attached to your equipment (Fig. 13).
For service calls under warranty, please note that it is necessary to produce your
proof of purchase and valid warranty card.
Fig.13 - Rating plate is for illustration
purpose only and its specifications
vary across models.
English

8
安全警告 -------------------------------------------------------------------------------------------------------------------------------------------------8
规格及零部件 ------------------------------------------------------------------------------------------------------------------------------------------10
安装---------------------------------------------------------------------------------------------------------------------------------------------------------11
操作 --------------------------------------------------------------------------------------------------------------------------------------------------------12
维修与保养-----------------------------------------------------------------------------------------------------------------------------------------------13
常见故障的识别与处理 ------------------------------------------------------------------------------------------------------------------------------14
开箱
如有明显的运输过程造成的损伤，请不要使用该
器具。
如果电源线破损，则必须由生产商，服务代理或
者合格的技术人员进行更换，防止伤害风险。
请确保孩童远离塑料包装。
给安装人员
此油烟机罩可以安装在燃气炉和电炉上方。从台
面到烟机底部的最小的安装高度为 700mm
(燃气灶) 和550mm (电炉) (图. 1).
请把油烟机罩安装在灶的正上方。
请确保器具的安装地点有良好的通风。
连接电源时，请按照铭牌所示信息确认电源电压
与频率。
给用户
烟机是适合国内使用的，用于消除厨房的异味。
请不要把烟机使用于其他用途。
请不要让孩童玩弄或者操作器具。请监督年老体
弱者的使用。
安装与维修只能让合格的技术人员进行。
对烟机任意的修改将导致危险。篡改电气连接配
件或机器配件都会导致运行错误并会使使用人员
陷入危险。
当烟机运行时请不要使用较高火焰的燃烧器。会
点燃燃烧器上面的炊具。
请不要在烟机下方直接燃火或烤火。火焰会被吸
进烟机，里面的油脂过滤器会着火。
目录
在使用本器具前，请仔细阅读本使用手册。本手册包括重要的涉及人身安全以及器具使用和保养方面的信息。
要注册您的产品保修，需要把序列号贴纸贴到随机器包装的保用证上。请联系当地的林内客户售后服务中心咨
询更新信息。
En
glis
h
安全警告
重要提示
中文

9
电源连接必须符合当地标准。请在插入电源之前
确认当地的电压是否正确。
请使用符合当地的接地连接器。此器具的电源连
接必须接地 ( 合适的 ):
绿色 & 黄色 = 接地; 蓝色 = 零线; 褐色 = 相线
管道模式 ：
请使用管径最小为 120mm 的管来连接烟机与排
气管。请尽量使用最短与最直的管道。
请不要将火焰排进与烟机连接的排气管。
如果烟机与其他非电器器具如燃气器具一起使
用，请务必做好适当的通风。厨房必须打开直
接通往室外的窗门来换气。
注意 :生产商没有任何义务接受管道安装与设计的投
诉。
请注意不断观察，因为过热的热油会增加自燃的
危险。
请不要操作没有油脂过滤器的器具。
定期清理与更换过滤器很重要，因为油脂积聚会
增大着火的危险。
请在取出清理或维修之前务必切断电源。
请确认电源线远离任何热源或尖锐的物体。
禁止使用多用插头与延长电线。有超负荷的危
险，会引发火灾。
处理
此器具与其包装都是环保及可循环再用的。
请帮助我们爱护环境，用适当的方式处置包装以
及旧的器具。
在处置旧器具前，请切断电源以及移走电源线防
止危险发生。
注意 :生产商不会对由于任何安装或者通过非正当的
方式安装与运行产生的损坏负责。
图. 1
中文

10
型号
RH-C209-GCR
RH-C209-GCV
电压
220V - 240V / 50Hz
马达功率
400W
灯泡功率
2 x 20W
电源线
1.5m
器具尺寸
(W x D x H):
90cm model
898 x 460 x 479-854mm
注意: 生产商拥有改造器具而不预先对消费者进
行告知的权利。
参照
数量
产品配件
A
1
安装支架
B
1
内罩
C
1
外罩
D
1
电机组件
E
1
玻璃面板
F
1
木炭过滤器
G
2
油脂过滤器
数量
安装配件
2
Screw M3 x 12
4
Screw ST5 x 25
数量
文件
1
操作 / 安装说明手册
规格
部件名称
图.2
图. 3
中文

11
该器具必须以管道模式或回流模式安装。
管道模式 (图. 4)
在管道模式中，烟机的风扇会把煮食的油烟吸进管
道并通过油脂过滤器排出屋外。
油脂过滤器吸收煮食过程中油烟的固体物质。因此
在此模式中， 只安装油脂过滤器 (木炭过滤器是
可选择的).
回流模式 (图. 5)
在回流模式里，烟机的风扇将吸走被油脂过滤器
与木炭过滤器净化后的煮食气体。
净化后的气体之后通过烟机里的一个排气孔回流
进厨房.
油脂过滤器吸收煮食气体的固体物质。
木炭过滤器是设计吸收煮食气味的。
在此模式里，要安装油脂过滤器与木炭过滤器 。
链接 (图. 6 & 6.1)
把Ø150mm 管直接装到出风口，并紧固(图. 6).
如果使用 Ø120mm 管道，连接到出风口就要使
用变径连接器 (不提供).
紧固所有的连接件 (图. 6.1).
把管道连接到屋外管道。
墙面安装与固定架 (图. 7 & 8)
务必确保安装器具的墙面够坚固，以承受器具的重
量。
在墙面的中央到台面画一条垂直的线.
从台面 (参照 A), 在最少安装高度处画一条水平
线(参照 B) 。
在C 处画一个参照点。在另外一面重复画一点。
在这些点的中央钻一个 Ø 8mm 的孔。插入 膨胀
螺钉。
用配套的两个( ST5 x 25)螺丝把 机体固定到墙
上。注意:根据需要调整机身的直线水平(图. 9).
把安装架安装在希望的高度处，对准架子的中心
画垂直线 (参照 D)。
在架子孔的中间标注，钻一个 Ø 8mm 的孔。 把
膨胀螺钉钉进去。
用配套的两个 ST5 x 25 螺丝固定安装架。
请用配套的 两个 M3 x 12 螺丝固定内罩到安装
架。(图. 8).
向下滑动外罩并确保固定在机体上。
安装
中文
图. 4
图. 5
图. 7
图. 6
图. 6.1
图. 8

12
为了达到更好的抽气效果，我们建议在煮饭前几分钟先启动抽风。而在煮饭后 15 分钟左右或者等油烟完全消失之
后再关闭烟机。
开关控制
控制钮 注意 : 轻轻接触感应按键来启动机器.
灯: 轻触，选择启动/关闭.
低速: 轻触启动/关闭低速的风扇。
中速:轻触启动/关闭中速的风扇。
高速: 轻触启动/关闭高速的风扇。
延迟停止计时器:
o接触此键选择延迟停止时间，可选择 3, 6, 9, 12 或15 分钟。计时器设置是以倒计时方式显示在窗口。风扇
就会在计时器倒数完之后自动关闭。
o要在计时器倒数完之后停用，轻触速度键来完全关闭风扇。或者，轻触延迟停止键来清除设置，风扇就会
在选择速度下继续运转。
对准机体 ( 尽可能 )(图. 9)
在把机体贴到墙上之前，调整在机体安装点上的
两个螺丝的位置。
把机体挂到支撑螺丝上面，拧紧螺丝。
调整螺丝来调整机体的水平。
注意 :生产商不会对由于任何安装或者通过非正当的
方式安装与运行产生的损坏负责。
图. 9
操作
中文
灯
低速
中速
高速
延迟停止

13
油脂过滤器 (图. 10)
油脂过滤器是用于吸收煮饭过程中发出的油脂
的。此过滤器必须根据使用频率每 4周清洗或者
移出。过滤器可以用手或洗碗机清洗。注意: 注
意清洗时不要弯曲过滤网。
如果用手洗，用温水清洗液洗更容易洗掉油脂。
再重新安装回去之前，要擦洗干净并晾干过滤
器。
如果用洗碗机，选择一个适合的清洗程序。重新
安装回去之前要晾干过滤器。
注意: 过滤器会有轻微的掉色现象。
移出与插入油脂过滤器:
o移出，压下把手同时拉出。
插入，把过滤器放入槽中。确保把手在外面
可视
过滤器 (适合的位置) (图. 11)
在看到脏污或者褪色的时候应该更换木炭过滤
器，这通常在 6-12 个月之后，根据使用情况而
定。
这些过滤器不能清洗也不能恢复。为了确保器具
的功能正常，定期的保养是需要的，因为堵塞的
过滤网会阻止空气流动并会引起马达过热。
移出和插入木炭过滤器:
o如图所示，从风机移出饱和木炭过滤器。
o装入新的木炭过滤器。
清洗机体
清洗烟机要使用温水清洗液和软湿布。清洗之后，
用无尘布来擦干。
避免使用腐蚀性或研磨性的产品，因为这样会容易
刮花产品表面。
灯的更换 (图. 12)
更换灯泡时要注意更换的灯泡须与原灯泡的
特性相同，因为如果规格不同会对电子元件造成损
伤。
移走与更换灯泡:
o推出机体里的灯泡 (图.12).
o切断灯泡的电源 (图.12.1).
o更换新的灯泡。
注意: 如要购买零件，请与当地的林内售后服
务联络请求协助。
o再安装回去。
维修与保养
请确保主电源在清洗或保养维修之前已经被切断。
定期对过滤器清洗或更换是很重要的，因为油脂积
聚会增加着火的危险。
不要在没有油脂过滤器的情况下开动机器。
图. 10
图. 11
图. 12
图. 12.1
注意 :强烈建议您阅读这些安全提示。制造商对任何
由于不遵守上述安全建议而引致器具损伤或火灾都
不需负任何责任。
.
中文

14
问题
可能导致问题的原因
解决方法
烟机不运作
没电
确认插头已经插上，电源已经开
启。
风量小
油脂过滤器被油脂堵塞
清洗油脂过滤器，晾干后安装回去
木炭过滤器被油脂堵塞
更换新的木炭过滤器
抽油烟率太低
通风不足
确保厨房通风情况良好以使新
鲜空气能进入厨房内
木炭过滤器没安装
安装木炭过滤器，以设置为回流模
式
马达启动但是不能抽风
排风不好
请联系林内的售后服务中心
呼呼的声音
风扇页可能有外物碰触到
请联系林内的售后服务中心
灯不亮
灯泡损坏
更换掉烧坏的灯泡
灯泡松了
拧紧灯泡
常见故障的识别与处理
如果进行了以上的确认之后问题依然存在，请联系林内的售后服务中心请
求帮助。
请找出产品的型号，型号在机体的铭牌上，如图所示。(图.13).
如果需要保修服务，请提供购买产品的证明与有效的保修证。
图.13 - 注意 : 铭牌只起插图提示的
作用，不同产品的铭牌不同。
中文

15
Peringatan Keselamatan -------------------------------------------------------------------------------------------------------------------------------15
Spesifikasi & Komponen--------------------------------------------------------------------------------------------------------------------------------17
Pemasangan-----------------------------------------------------------------------------------------------------------------------------------------------18
Pengoperasian--------------------------------------------------------------------------------------------------------------------------------------------19
Pemeliharaan & Perawatan---------------------------------------------------------------------------------------------------------------------------20
Pemecahan Masalah------------------------------------------------------------------------------------------------------------------------------------21
Membuka Bungkusan
Jangan gunakan alat ini jika terdapat tanda
kerusakan saat transportasi.
Jika kabel listrik rusak, harus diganti oleh pihak
perusahaan atau pabrik, agen service atau orang
yang ahli untuk mengatasi kerusakan.
Pastikan bahwa anak kecil tidak bermain dengan
plastik pembungkus ini.
Cara Pemasangan
Tudung hisap bisa dipasang diatas kompor gas dan
juga pemasak elektrik lainya. Tinggi minimum
pemasangan dari atas tungku ke bagian bawah
tudung adalah 700mm (kompor gas ) dan 550mm
( kompor listrik ). Gam.1
Selalu arahkan tudung hisap tepat ditengah kompor.
Untuk pengguna
Tudung hisap didesain untuk mengurangi bau tidak
sedap dari dapur. Jangan menggunakan tudung hisap
untuk tujuan yang tidak semestinya.
Jangan biarkan anak kecil mengoperasikan alat ini.
Awasi oleh orang tua.
Pemasangan dan perbaikan harus dilakukan oleh
orang yang berpengalaman.
Sangat berbahaya untuk memodifikasi bagian dari
alat ini. Merusak sambungan listrik atau bagian
mekanik bisa menyebabkan kesalahan penggunaan
dan mungkin menyebabkan pengguna dalam
bahaya.
Jangan pernah biarkan api tinggi langsung dibawah
tudung hisap. Selalu tutupi dengan alat memasak.
DAFTAR ISI
Silahkan anda membaca panduan manual ini sebelum anda menggunakannya. Pentujuk manual ini berisi informasi yang
penting yang berhubungan dengan keselamatan pribadi anda dan juga cara penggunaan dan perawatanya.
PENTING
Untuk meregristrasi garansi produk anda, silahkan menyalin nomer seri pada stiker yang ada pada kemasan kartu
garansi anda. Silahkan hubungi layanan purna jual dikota anda jika anda memerlukan bantuan lebih lanjut.
En
glis
h
PERINGATAN KESELAMATAN
Bahasa Indonesia

16
Pastikan bahwa alat anda terpasang pada lokasi
yang mempunyai ventilasi udara yang permanen.
Saat membuat saluran listrik, periksa bahwa sumber
arus utama dan frekuensi sama dengan yang ada di
data plate.
Penghubung listrik harus dibuat sesuai pada standar
local. Pastikan bahwa tegangan diarea anda benar
sebelum dinyalakan.
Gunakan penghubung listrik yang sesuai dengan
lokasi anda. Penghubung listrik dari alat ini harus
terhubung dengan ground (yang berlaku):
oHijau dan kuning = Bumi, Biru = netral, Cokelat =
Arus
Untuk mode ventilasi:
oHubungkan tudung hisap pada saluran pipa
dengan diameter minimum Ø120mm. Cari
langkah terpendek dan terlurus yang paling
mungkin.
oJangan hubungkan tudung hisap pada penghisap
yang membawa sisa pembakaran.
oAtur ventilasi yang tepat jika tudung hisap
digunakan dengan alat lain yang tidak didukung
oleh tegangan listrik misalnya alat pembakar
gas. Dapur harus mempunyai ventilasi udara
yang terhubung langsung keluar untuk
memungkinkan adanya sirkulasi udara.
Catatan: Perusahaan tidak akan bertanggung jawab
untuk keluhan yang menyangkut disain dan tata letak
pipa.
Jangan memasak atau memanggang langsung
dibawah tudung hisap. Api bisa menyebabkan tudung
terbakar karena terhisap dan mungkin filter bisa
terkena api.
Selalu pantau saat memasak secara terus menerus
karena jika terlalu panas bisa meningkatkan resiko
kebakaran.
Jangan mengoperasikan tudung hisap tanpa grease
filter.
Sangat penting untuk membersihkan atau mengganti
penyaring dengan interval waktu tertentu. Tumpukan
endapan minyak bisa meningkatkan resiko kebakaran.
Jangan pernah menyambungkan alat ini dengan
sumber arus saat akan melakukan pembersihan atau
perawatan tudung.
Pastikan bahwa sumber arus bebas dari sumber panas
lainnya atau benda tajam.
Jangan gunakan colokan yang ganda dan kabel yang
terlalu panjang. Sesuatu yang terlalu berlebihan
berbahaya dan bisa menyebabkan kerusakan.
Pembuangan
Alat ini dan pembungkusnya sangat ramah lingkungan
dan bisa didaur ulang.
Tolong bantu kami untuk menjaga lingkungan dengan
membuang pembungkus pada tempat yang sesuai
dan medaur ulang alat yang sudah lama.
Sebelum membuang alat yang lama, matikan dari
sumber arus dan pindahkan tegangan untuk
menghindari kerusakan.
Catatan: Perusahaan tidak bertanggung jawab atas
kerusakan akibat pemasangan yang tidak benar atau
kegagalan untuk mengambil tindakan-tindakan
keselamatan yang tepat selama pemasangan dan
penggunaan operasional alat ini.
Gam. 1
Bahasa Indonesia

17
Model
RH-C209-GCR
RH-C209-GCV
Tegangan
220V - 240V / 50Hz
Daya Motor
400W
Daya Lampu
2 x 20W
Panjang kabel
1.5m
Dimensi alat
(W x D x H):
90cm model
898 x 460 x 479-854mm
Catatan: Perusahaan mempuyai hak untuk
melakukan peningkatan dan memodifikasi alat ini
tanpa ada pemberitahuan terlebih dahulu.
Ref
Jml
Komponen Produk
A
1
Mounting bracket
B
1
Inner Duct
C
1
Outer Duct
D
1
Motor Housing
E
1
Glass Panel
F
1
Charcoal Filter
G
2
Grease Filter
Jml
Komponen Pemasangan
2
Screw M3 x 12
4
Screw ST5 x 25
Jml
Dokumentasi
1
Pengoperasian/ Petunjuk
manual
SPESIFIKASI
KOMPONEN
Gam. 2
Gam. 3
Bahasa Indonesia

18
Peralatan ini bisa dipasang dengan menggunakan mode
ventilasi dan juga mode recycle.
Ducted mode (Mode ventilasi ) (Gam. 4)
Dalam mode ventilasi, kipas filter membersihkan
uap masakan dan menyalurkanya ke grease filter.
Udara kemudian mengalir keluar.
Grease filter menyerap partikel padat dalam uap
masakan.
Dalam mode ini, hanya grease filter yang dipasang
(charcoal filter hanya tambahan).
Mode recycle (Gam. 5)
Cara ini, kipas tudung hisap mengubah asap yang
dibersihkan di grease filter dan charcoal filter.
Udara bersih kemudian disirkulasikan lagi kedalam
ruang dapur melalui lubang angin yang terbuka di
bagian atas tudung hisap.Grease filter menyerap
partikel solid asap saat memasak.
Charcoal filter didesign untuk menyerap bau tidak
sedap. Pada mode ini baik grease filter dan charcoal
filter dipasang.
Saluran atau penghubung (Gam. 6 & 6.1)
Pasang pipa berdiameter 150mm langsung ke udara
luar (Gam. 6).
Jika menggunakan pipa berdiameter 120mm,
hubungkan ke udara luar menggunakan penghubung
yang lebih kecil (tidak tersedia).
Pasang kedua sambungan dengan benar (Gam. 6.1).
Sambungkan pipa ke luar ruangan.
Pemasangan pada dinding cabinet (Gam. 7 & 8)
Pastikan alat menempel pada lapisan dinding yang keras
sehingga bias menopang berat alat ini.
Buat garis vertikal ditengah dinding.
Dari atas tungku (lihat A), buat garis horisontal (lihat
B) diatas minimum level tinggi pemasangan.
Tandai titik refensi pada titik C. Ulangi langkah ini
pada sisi lain.
Bor lubang berdiameter 8mm pada tengah titik.
Masukan penopang kedinding.
Tentukan posisi tudung ke dinding menggunakan 2
baut ST5 x 25 yang tersedia. Catatan: Sesuaikan
posisi tudung jika diperlukan (Gam. 9).
Tempatkan mounthing braket pada posisi tinggi yang
diinginkan. Luruskan braket pada garis vertikal (lihat
D).
Tandai pusat lubang braket dan bor dengan diameter
Ø 8mm. Masukan penopang kedinding.
Pasang mounthing bracket dengan benar
menggunakan 2 baut ST5 x 25 yang sudah ada.
Pasang inner duct ke mounting bracket
menggunakan 2 baut M3 x 12 yang ada (Gam. 8).
Geser outer duct kebawah dan pastikan bahwa outer
duct terpasang dengan benar pada badan kap.
PEMASANGAN
Gam. 4
Gam. 6
Gam. 6.1
Bahasa Indonesia
Gam. 5
Gam. 8
Gam. 7
