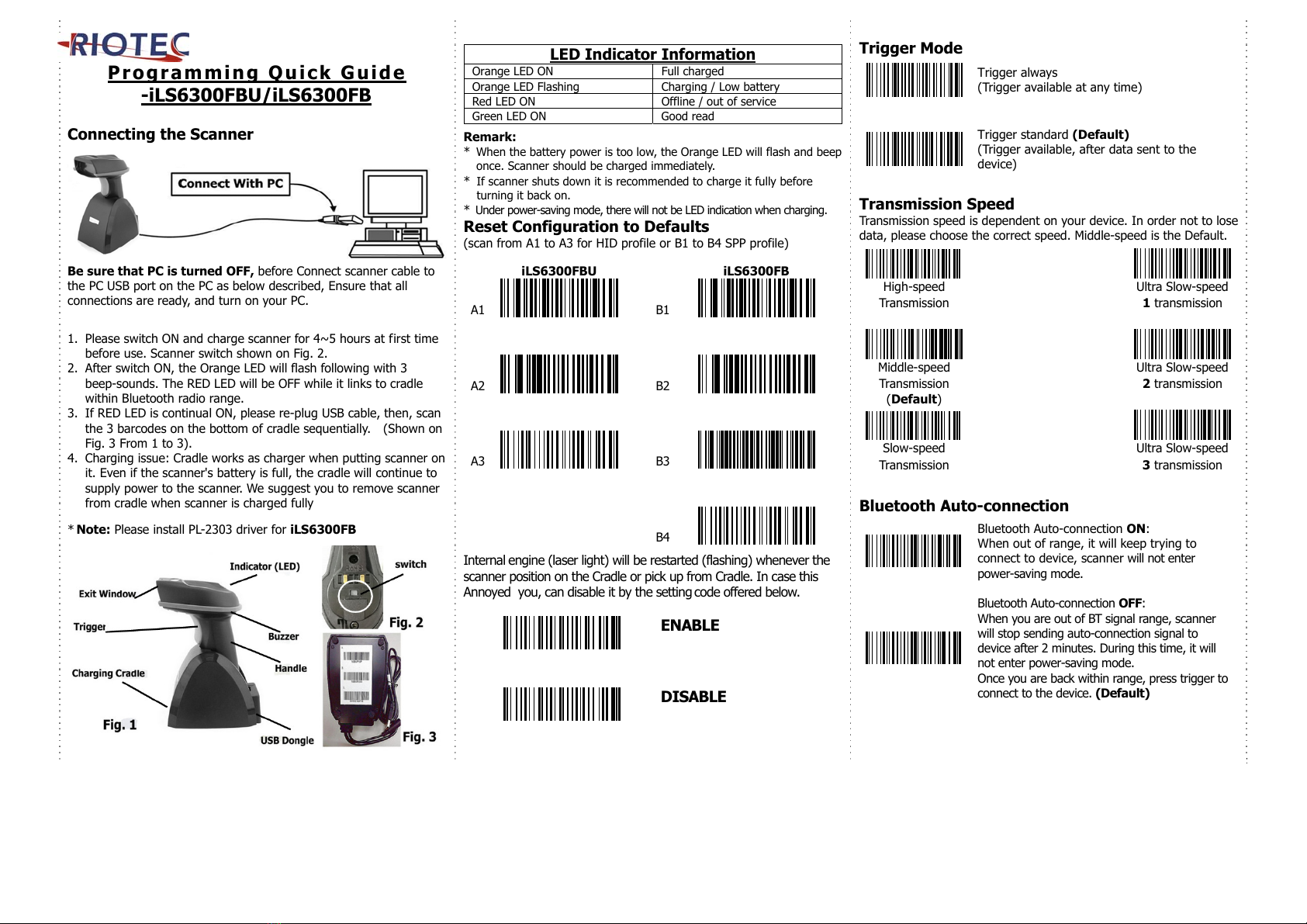

Programming Quick Guide
-iLS6300FBU/iLS6300FB
Connecting the Scanner
Be sure that PC is turned OFF, before Connect scanner cable to
the PC USB port on the PC as below described, Ensure that all
connections are ready, and turn on your PC.
1. Please switch ON and charge scanner for 4~5 hours at first time
before use. Scanner switch shown on Fig. 2.
2. After switch ON, the Orange LED will flash following with 3
beep-sounds. The RED LED will be OFF while it links to cradle
within Bluetooth radio range.
3. If RED LED is continual ON, please re-plug USB cable, then, scan
the 3 barcodes on the bottom of cradle sequentially. (Shown on
Fig. 3 From 1 to 3).
4. Charging issue: Cradle works as charger when putting scanner on
it. Even if the scanner's battery is full, the cradle will continue to
supply power to the scanner. We suggest you to remove scanner
from cradle when scanner is charged fully
* Note: Please install PL-2303 driver for iLS6300FB
Remark:
* When the battery power is too low, the Orange LED will flash and beep
once. Scanner should be charged immediately.
* If scanner shuts down it is recommended to charge it fully before
turning it back on.
* Under power-saving mode, there will not be LED indication when charging.
Reset Configuration to Defaults
(scan from A1 to A3 for HID profile or B1 to B4 SPP profile)
iLS6300FBU iLS6300FB
A1 B1
A2 B2
A3 B3
B4
Internal engine (laser light) will be restarted (flashing) whenever the
scanner position on the Cradle or pick up from Cradle. In case this
Annoyed you, can disable it by the setting code offered below.
ENABLE
DISABLE
LED Indicator Information
Orange LED ON Full charged
Orange LED Flashing Charging / Low battery
Red LED ON Offline / out of service
Green LED ON Good read
Trigger Mode
Trigger always
(Trigger available at any time)
Trigger standard (Default)
(Trigger available, after data sent to the
device)
Transmission Speed
Transmission speed is dependent on your device. In order not to lose
data, please choose the correct speed. Middle-speed is the Default.
High-speed Ultra Slow-speed
Transmission
1 transmission
Middle-speed Ultra Slow-speed
Transmission
(Default)
2 transmission
Slow-speed Ultra Slow-speed
Transmission 3 transmission
Bluetooth Auto-connection
Bluetooth Auto-connection ON:
When out of range, it will keep trying to
connect to device, scanner will not enter
power-saving mode.
Bluetooth Auto-connection OFF:
When you are out of BT signal range, scanner
will stop sending auto-connection signal to
device after 2 minutes. During this time, it will
not enter power-saving mode.
Once you are back within range, press trigger to
connect to the device. (Default)

2
Keyboard Country(For USB HID only)
Scan the appropriate country code as below to program the keyboard
layout for your country or language. As a general rule, the following
characters are supported, but need special care for countries other
than the United States: @ | $ # { } [ ] = / ‘ \ < > ~
USA
(Original setting)
Italian
Norway France
$
Germany
V
ietnam
Sweden Spain
%$
Denmar
k
Portu
g
al
Switzerland (F) Hun
g
ary
$
Latin America
Icelandic
Brazil
Poland
$
Belgium
Turkey F
*The different keyboard language option starts from June. 2017.
Power-saving Mode
Power-saving mode OFF
Powe
r
-saving mode ON (Default):
Enter power-saving mode after 3-minute inactivity.
This function converses battery power. When you
press "SCAN/Power ON" button, it will wake up and
begin to scan.
Powe
r
-saving mode ON:
Enter power-saving mode after 10-minute
inactivity. This function converses battery power.
When you press "SCAN/Power ON" button, it will
wake up and begin to scan.
*When charging, the scanner will not enter power-saving mode
automatically
Bulgarian Latin Turkey Q
Finland
Japan
Netherlands Korea
Thai Russia
Switzerland German
How to append a “prefix” or a “suffix” to the
barcode data
prefix suffix
1. Scan above configuration code for Prefix or Suffix
2. Enter the required values (right, numeric barcode) for Prefix or
Suffix using the hex values for the desired HEX values from “Prefix
& Suffix TABLE (blew page)”
3. Then, end by scanning Code X (below, right)
* The max. of special characters is 5.
* When you append 1~4 required values for Prefix or Suffix, it must
end with Code X
* It doesn’t need Code X, if you append 5 values to barcode data.
How to delete Prefix or Suffix
1. Scan above configuration code for Prefix or Suffix
2. Enter the “0” “0” (above, right)
3. Then end by scanning Code X (below, right)
Numeric barcode for settings
0
6
C
1 7
D
2 8
E
3 9
F
4
A
5
B X

3
Prefix & Suffix TABLE
HEX HID
(SPP) HEX HID (SPP) HEX HEX HEX HEX
01 CTRL A
(SOH) 19 CTRL
Y
(EM) 20 SPACE 38 8 50 P 68 h
02 CTRL B
(STX) 1A CTRL Z(SUB) 21 ! 39 9 51 Q 69 i
03 CTRL C
(ETX) 1B ESC (ESC) 22 " 3A : 52 R 6A j
04 CTRL D
(EOT) 1C CTRL \ (FS) 23 # 3B ; 53 S 6B k
05 CTRL E
(ENQ) 1D CTRL ] (GS) 24 $ 3C < 54 T 6C l
06 CTRL F
(ACK) 1E CTRL ^ (RS) 25 % 3D = 55 U 6D m
07 CTRL G
(BEL) 1F CTRL _ (US) 26 & 3E > 56 V 6E n
08 Backspace
(BS)
27 ' 3F ? 57 W6F o
09 Tab
(HT) HEX HID Only 28 ( 40 @ 58 X 70 p
0A CTRL J
(LF) 80 F1 29 ) 41 A 59 Y 71 q
0B CTRL K
(VT) 81 F2 2A * 42 B 5A Z 72 r
0C CTRL L
(FF) 82 F3 2B + 43 C 5B [ 73 s
0D Ente
r
(CR) 83 F4 2C , 44 D 5C \ 74 t
0E CTRL N
(SO) 84 F5 2D - 45 E 5D ] 75 u
0F CTRL O
(SI) 85 F6 2E . 46 F 5E ^ 76 v
10 CTRL P
(DLE) 86 F7 2F / 47 G 5F _ 77 w
11 CTRL Q
(DC1) 87 F8 30 0 48 H 60 ` 78 x
12 CTRL R
(DC2) 88 F9 31 1 49 I 61 a 79 y
13 CTRL S
(DC3) 89 F10 32 2 4A J 62 b 7A z
14 CTRL T
(DC4) 8A F11 33 3 4B K 63 c 7B {
15 CTRL U
(NAK) 8B F12 34 4 4C L 64 d 7C |
16 CTRL
V
(SYN)
35 5 4D M 65 e 7D }
17 CTRL W
(ETB)
36 6 4E N 66 f 7E ~
18 CTRL
X
(CAN)
37 7 4F O 67 g
Symbologies – 1
ENABLE
CODE 39 DISABLE
ENABLE
UPC-A
DISABLE
ENABLE
EAN-13 DISABLE
ENABLE EAN-8 DISABLE
ENABLE CODE 93 DISABLE
Symbologies – 2
ENABLE CODABAR DISABLE
ENABLE
INTERLEA
VED 25 DISABLE
ENABLE
INDUSTR
IAL 25 DISABLE
ENABLE
MSI DISABLE
ENABLE
PLESSEY DISABLE
ENABLE
CODE 11 DISABLE

4
Symbologies – 3
ENABLE
MATRIX
25 DISABLE
ENABLE
POSTCO
DE 25 DISABLE
ENABLE
AVIATI
ON 25 DISABLE
ENABLE
GS1
Omnidir
ectional DISABLE
ENABLE
GS1
Limited DISABLE
Quick guide is subject to change without notice. R_191003_01
