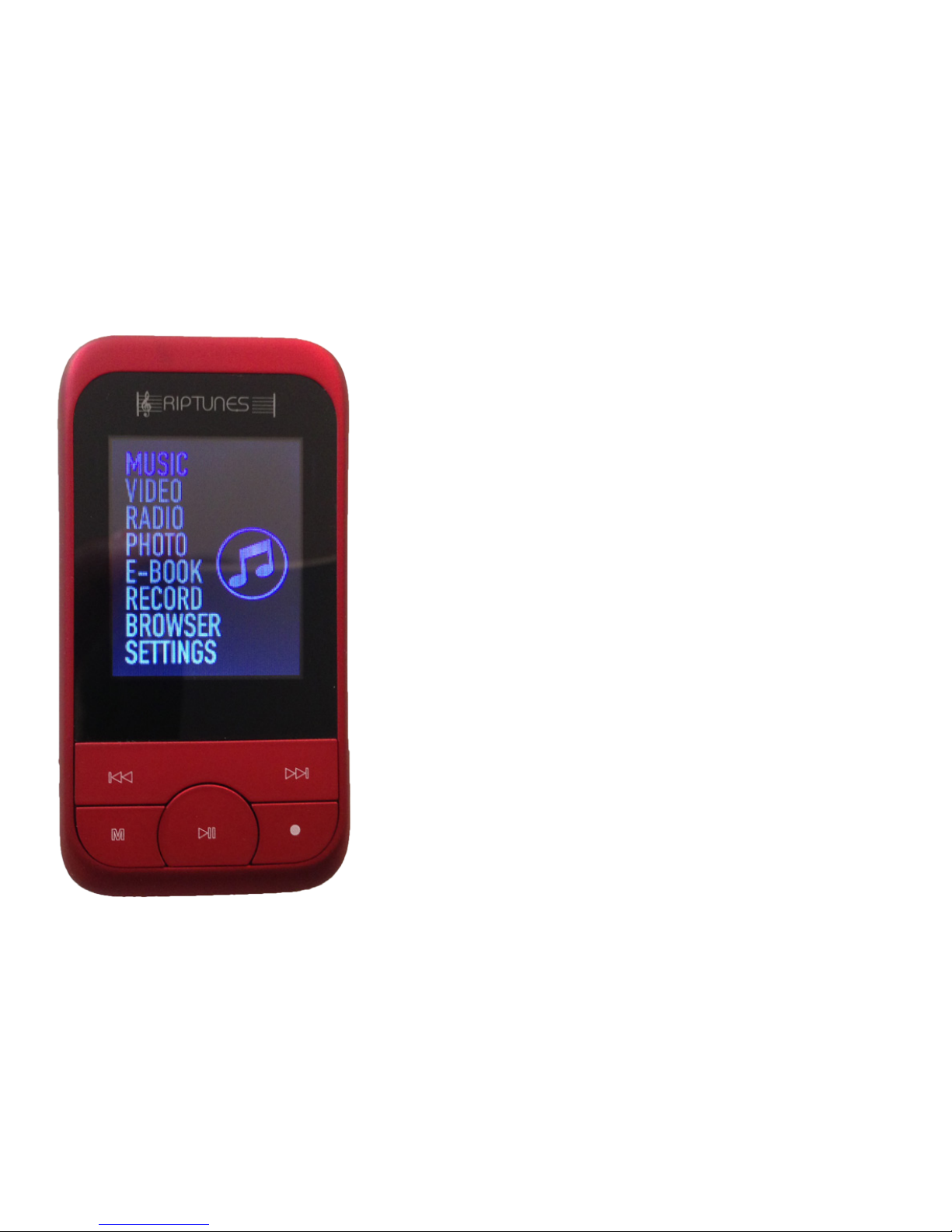

RIP TUNES MP1874 User manual

RipTunes MP-1874
MP3 Player
User Manual
—
Manual de Usuario
—
Mode d’emploi

2
INTRODUCTION
Thank you for purchasing this RipTunes MP3 Player. Please
carefully review these instructions before using your device.
INTRODUCCIÓN (ESPAÑOL)
Gracias por comprar el Reproductor MP3 RipTunes. Por favor,
antes de utilizar su dispositivo lea y revise con cuidado estas
instrucciones. (consulte la página 16)
INTRODUCTION (FRANÇAIS)
Merci d’avoir acheté ce lecteur MP3 RipTunes. Consultez atten-
tivement cette notice avant d’utiliser votre appareil.
(continuez à la page 29)

EN
ES
FR
3
ACTIONS
1.   button: Play/Pause/
Power ON-OFF (press
& hold)
2. Mbutton: Select
3.  button: Next song/
menu, fast forward,
increase volume
4. button: Previous
song/menu, rewind, decrease volume
5.  REC/A-B REPEAT button: Rapid recording, A-B repeat while
playing music.
6. “RESET” button: reboot the player with a paperclip.
Previous
Select
Next
Record
Play/Pause
& On/O
USB
Port
Microphone
& Reset
Head-
phone

EN
ES
FR
4
BATTERY
Important: For optimum battery life, charge the player for at least 8
hours before using it for the rst time.
Battery level indicators:
Battery empty—please charge the battery
Battery fully charged
POWER ON/OFF
To turn the player on/o, press and hold the   button until the
display shuts on/o.

EN
ES
FR
5
MUSIC DEVICE CONTROLS
1.   button: Play/Pause
2. Mbutton: Enter menu (change volume); push
and hold to return to device menu
3.  button: Next track /
Fast forward (push & hold) / increase volume
4. button: Previous track /
Rewind (push & hold) / decrease volume
5. If lyric les (.lrc) are included on your player, push and hold the
menu button during playback to see the lyrics.

EN
ES
FR
6
MUSIC MENU (MUSIC PLAYING)
While music is PLAYING, press the SELECT (M) button to choose from
the following options:
1. Repeat: track repeat options
2. Equalizer: EQ settings
3. Change volume: Playback volume
4. Exit: Return to music screen

EN
ES
FR
7
MUSIC MENU (MUSIC PAUSED)
While music is PAUSED, press the SELECT (M) button to choose from
the following options:
1. Local folder: Browse music les
2. Delete le: Delete a single track
3. Change volume: Playback volume
4. Exit: Return to music screen

EN
ES
FR
8
VIDEO DEVICE CONTROLS
1.   button: Play/Pause
2. Mbutton: Enter menu (change volume); push and hold to return to
device menu
3.  button: Next track /
Fast forward (push & hold) / increase volume
4. button: Previous track /
Rewind (push & hold) / decrease volume

EN
ES
FR
9
VIDEO MENU CONTROLS
While video is PAUSED, press the SELECT (M) button to choose from
the following options:
1. Local folder: Browse video les
2. Delete le: Delete a video le
3. Repeat: Video repeat options
4. Change volume - Adjust volume
5. Exit: Return to video playback

EN
ES
FR
10
FM RADIO CONTROLS
Make a recording of the radio: Press the SELECT (M) button and
choose “Record station”. The recording interface will open; press the
  button to start recording. Press   button to stop the record
once, then push and hold the SELECT (M) button to save the record.
Manual tuning:
Press button: Decrease 0.1 MHz; Press button: Increase 0.1 MHz.
Saving presets: Press SELECT (M) button enter into the “Radio” menu,
and choose “Save Station”. Press the SELECT (M) button again to save it.
Tuning to presets: If there are multiple presets, press the   button
to change between to them one by one.
Automatic searching: Press SELECT (M) button enter into the Radio
menu and choose ‘auto scan’. The tuner will scan the frequencies and
pause briey when a station is found before continuing.

EN
ES
FR
11
PHOTO CONTROLS
To view pictures, select Photos from the main menu and press the
SELECT (M) button to enter the photo browser.
Use the or button to scroll through the ROOT folder and select a
photo. Press the   button to view the photo.
Press the   button again to return to the ROOT folder
Photo menu
While in the ROOT folder, press the SELECT (M) button to access the
photo menu.
Local folder: Browse photo les
Playback set: Select to automatic or manual photo scrolling
Delete le: Delete single photos
Exit: Return to photo screen

EN
ES
FR
12
TEXT READER
To read your text les, select Reader from the main menu and press
the SELECT (M) button to enter the Reader.
Use the or button to scroll through the ROOT folder and select a
le. Press the   button to view the le.
Press the   button again to return to the ROOT folder
Text Reader menu
While in the ROOT folder, press the SELECT (M) button to access the
reader menu.
Local folder: Browse text les
Delete le: Delete single les
Exit: Return to text le navigator

EN
ES
FR
13
AUDIO RECORDING
To record voice memos, select Record from the main menu and press the SE-
LECT (M) button or press the button directly to enter the recording mode.
1. Press the   button or button to start recording
2. To pause recording, press the   button again.
3. To save the recording and exit to the main menu, HOLD the SELECT
(M) button.
4. The recorded le saved in the present setting content “Recording
stopped sub-menu / Main disk content “
5. If the display says “capacity is full”, you’ll need to free up space by
deleting les.
6. If the display says “Content is full” means there are 99 les in this
folder. Please create a dierent target folder.

EN
ES
FR
14
RECORDING TECHNICAL SPECS
32 kbps WAV format. Fair sound quality.
64 kbps WAV format. Average sound quality.
128 kbps WAV format. Good quality
256 kbps WAV format. High quality
VOICE MEMOS
To play back recorded voice memos, select Voice from the Browser
submenu or Music interface and press the SELECT (M) button to enter
the voice memos mode.

EN
ES
FR
15
FILE BROWSER
Under the Files menu, you can view all the les on your device and
open them directly.
Local folder: Browse all les
Exit: Return to main screen
SYSTEM SETTINGS
Adjust various system settings from within this menu:
• System time
• LCD settings (brightness, etc.)
• Language
• Auto Power o
• Storage/Memory info
• Firmware version
• Revert to factory settings

EN
ES
FR
16
ACCIONES
1. Botón  : Reprodu-
cir/Pausa/Encendi-
do-Apagado (Presion-
ar y sostener)
2. Botón M: Seleccionar
3. Botón : Siguiente
canción/menú, ad-
elantar, subir volumen
4. Botón : Canción/menú previo, retroceder, bajar volumen
5. Botón  REC/A-B REPEAT: Grabación rápida, A-B repetir mientras
reproduce música
6. Botón “RESET”: reinicializar el reproductor usando un clip para papeles
Previo
Selección
Sigui-
ente
Grabando
Reproducir
/Pausa
Puerto
USB
Microphone
& Reset
Auricu-
lares

EN
ES
FR
17
BATERÍA
Importante: Para una vida óptima de su batería, cargue el reproductor
por lo menos 8 horas antes de usarlo por primera vez.
Indicador de Batería:
Batería baja. Debe recargase el reproductor lo más pronto posible
Batería llena
ENCENDIDO/APAGADO
Para encender o apagar el reproductor presione y sostenga el botón
  hasta que la pantalla se prenda o apague, según sea el caso.

EN
ES
FR
18
REPRODUCCIÓN DE MÚSICA
1. Botón   : Reproducir/Pausar
2. Botón M: Ingresar a menús.
Presione y sostenga para ir al Menú Principal
3. Botón  : Pista siguiente / avanzar (presionar
y sostener) / subir volumen
4. Botón : Pista anterior / retroceder (presionar
y sostener) / bajar volumen
5. Si los archivos Lyric (.lcr) están incluidos en su reproductor, presi-
one y sostenga el botón MENU durante la reproducción para ver las
letras (lyrics)

EN
ES
FR
19
MENÚ: REPRODUCIENDO MÚSICA
Mientras la música se está REPRODUCIENDO presione SELECT (M)
para elegir una de las siguientes opciones:
1. Repetir (Repeat): opción para repetición de la pista
2. Ecualizador (Equalizer): Ajustes del Ecualizador (EQ)
3. Cambiar volumen (Change volumen): Volumen de reproducción
4. Salir (Exit): Regresar a la pantalla de música

EN
ES
FR
20
MENÚ: MÚSICA EN PAUSA
Mientras la música esté en PAUSA presione SELECT (M) para elegir una
de las siguientes opciones:
1. Carpeta local (Local Folder): Explorar los archivos de música
2. Borrar archivo (Delete File): Borrar una sola pista
3. Cambiar Volumen (Change Volume): Volumen de reproducción
4. Salir (Exit): Regresar a la pantalla de música
