Riverside Double Hang Basic 2 User manual

Installation Instruction
Page 1 of 19
Closet Installation Instructions
Table of Contents
Introduction ................................................................................................................................................ 2
Tools and Materials Needed .................................................................................................................. 2
Pre-Installation Checklist..................................................................................................................... 3
Closets and Materials
Double Hang (Included in Models: Basic 2,4,6 & 10).............................................................................. 4
Long Hang (Included in Closet Models: Basic 1,4,5,6,10 and Standard 1).......................................... 6
Tall Double Hang (Included in Models: Basic 8,11 and Standard 2,3,4,5 & 6)........................................ 8
Tall Shelf (Included in Closet Models: Basic 8,9 & 11) ..................................................................... 10
Tall Hang Shoe (Included in Models: Basic 11 and Standard 5)............................................................ 12
Tall 4 Drawer Hang (Included in Closet Models: Standard 1-6) ........................................................ 14
Floor Standing Closet Installation Guide ............................................................................................ 16
Installing Drawer Boxes and Fronts......................................................................................................... 17
Hanging Closet Installation Guide ........................................................................................................... 17

Installation Instruction
Page 2 of 19
Welcome to Riverside Millwork's Closet Installation Instruction Guide
Hello and thank you for choosing Riverside Millwork for your closet installation needs! We are thrilled to assist
you in bringing a new level of organization and style to your space. This guide is your comprehensive resource
for installing Riverside Millwork's closets, designed to provide clear, step-by-step instructions to make your
installation process as smooth and successful as possible.
In this guide, you'll find:
Detailed instructions for various closet components.
User-friendly language and a step-by-step approach.
Helpful tips to ensure a successful installation.
We encourage you to read through the instructions thoroughly before beginning and gather all the necessary
tools and materials. Remember, a well-planned installation is key to achieving the best results. If at any point
you need additional support, our team at Riverside Millwork is just a call or email away, ready to assist you.
Tools and Materials Needed
Before embarking on your closet installation journey, it's essential to gather all the necessary tools and materials
to ensure a smooth and efficient process. Start with basic hand tools such as a hammer, screwdriver set
(including Phillips and flathead), a power drill with various drill bits, a level, a tape measure, and a stud finder. If
you’re comfortable using one. Additionally, have a set of wrenches and pliers at hand for any adjustments. In
terms of materials, ensure you have all the closet components, including shelves, rods, gables, drawer boxes,
and hardware like screws, nails, and brackets. It’s also wise to have some extra items like wood glue, sandpaper,
and double-sided tape for minor fixes. Safety equipment is paramount, so include protective eyewear, gloves,
and possibly a dust mask. By being prepared with these tools and materials, you're setting yourself up for a
successful and hassle-free installation.

Installation Instruction
Page 3 of 19
Preinstallation Checklist
Read Through the Instructions: Before beginning, take the time to thoroughly read through the installation
guide. Understanding each step in advance will help streamline the process.
Check All Components: Ensure you have received all necessary components for your closet installation. Cross-
reference the parts with the inventory list provided in the guide.
Prepare Your Tools: Gather all the tools listed in the "Tools and Materials Needed" section. Make sure your
power tools are charged or you have access to an electrical outlet.
Measure Your Space: Carefully measure the area where you plan to install the closet. Verify these dimensions
against the specifications of the closet system to ensure a proper fit.
Inspect the Area: Check the walls for levelness and the floor for evenness. Identify any potential obstacles such
as outlets, switches, or vents that might affect the installation.
Locate Wall Studs: Use a stud finder to locate the studs in the walls where you will be securing the closet
components. Marking these will be crucial for a secure installation.
Clear the Workspace: Remove any existing furniture, decorations, or obstacles from the installation area. Ensure
you have enough room to work comfortably.
Protect the Area: Consider laying down drop cloths or protective sheets to safeguard your flooring and nearby
furniture from dust or damage during the installation process.
Safety First: Prepare your safety gear, including protective eyewear and gloves. Ensure your work area is well-lit
and ventilated.
Ask for Assistance: Some steps in the installation may require an extra pair of hands. Plan ahead and ask a
friend or family member for help if needed.

Installation Instruction
Page 4 of 19
Double Hang (DH) Included in Models: Basic 2,4,6 & 10

Installation Instruction
Page 5 of 19
ORDER OF ASSEMBLY/STEPS
Prepare the Gables: Start by placing both gables (left
and right) face up on a soft cloth or cardboard. This
will help protect your floor and the cabinet panels
from scratches. Now, attach Screw B to each gable as
shown in Diagram A.
Attaching Additional Parts: Next, use Screw H to
attach parts M/O, C, and D to both the left and right
gables, following the guidance in Diagram A.
Working with One Gable: Pick one gable and lay its
front edge on the floor. Now, securely fasten the
nailer in place using Screw A.
Assembling the Top Shelf: On the same gable you just
worked on, keep it laid down and attach the Top,
Fixed Shelf to it using Screw B.
Next Steps After Assembly: Once you've assembled
all the cabinets for this room, please refer to the
installation drawing and follow the instructions
provided for the subsequent steps.
Remember, taking your time and ensuring each part
is correctly aligned and firmly attached is key to a
successful assembly.
Note: the closet rod should be installed after the
unit is has been affixed to wall.

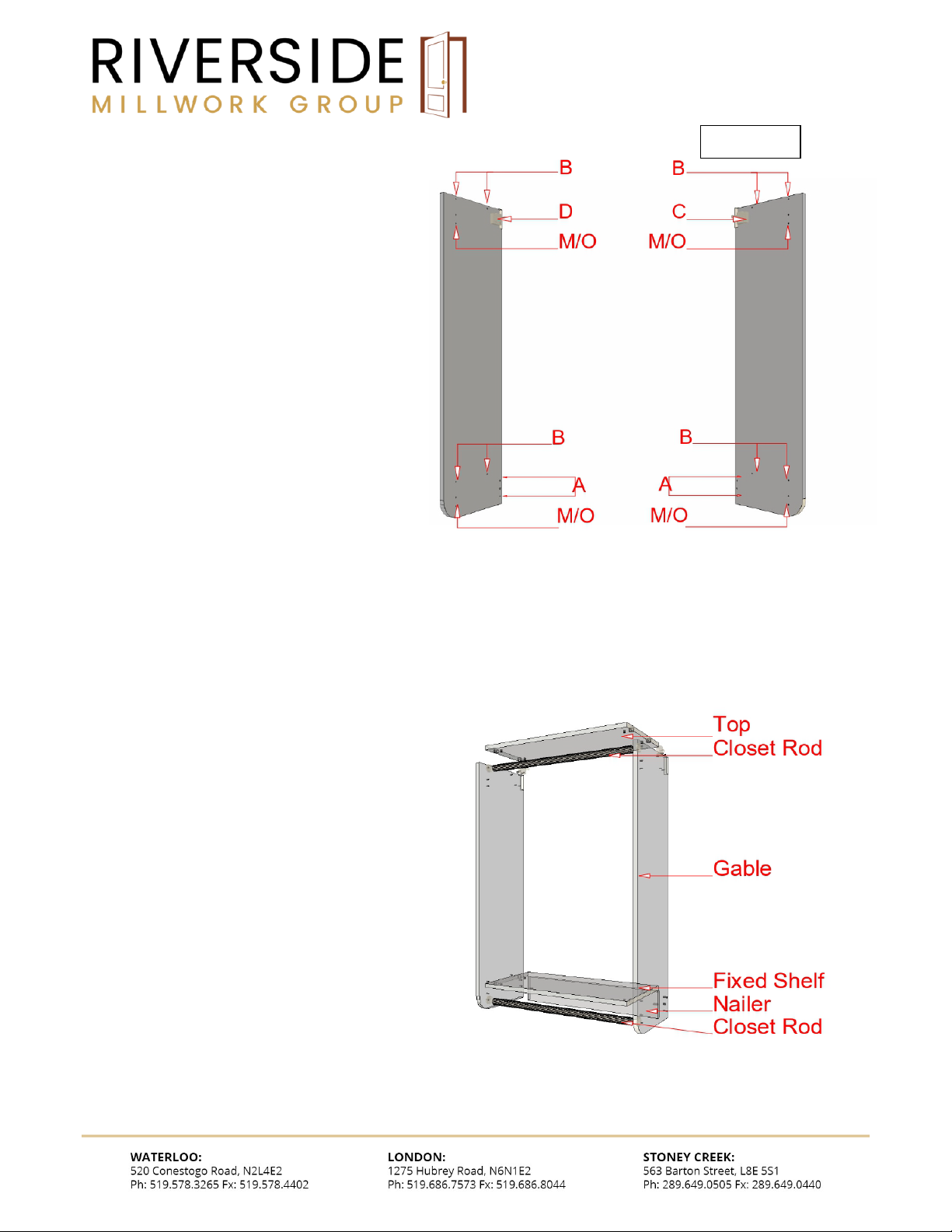

Diagram A

Installation Instruction
Page 6 of 19
Long Hang (LH) Included in Closet Models: Basic 1,4,5,6,10 and Standard 1

Installation Instruction
Page 7 of 19
Tall Double Hang (TDH)
ORDER OF ASSEMBLY/STEPS
Starting Off: Begin by laying both gables face up on a piece
of cardboard or cloth. This is a smart move to avoid any
scratches or damage to the unit.
Attaching Screws to Gables: Now, grab Screw B and attach it
to both the left and right gables. You can see exactly how to
do this in Diagram B.
Attaching Additional Parts:Next, take parts M/O, C, and D,
and using Screw H, attach them to both the left and right
gables. Diagram B will show you the way!
Working on the Nailer: Choose one of the gables and turn its
front edge towards the floor. Then, use Screw A to attach the
Nailer in place.
Assembling the Top Shelf: On the same gable, lay it down
again and now it’s time to attach the Top, Fixed Shelf. Do this
using Screw B.
What's Next: Once you've successfully assembled all the
cabinets for this room, take a look at the installation
drawing. It, along with the instructions, will guide you on
what to do next.
Note: the closet rod and adjustable shelve should be
installed after the unit is affixed to the wall.
Diagram B

Installation Instruction
Page 8 of 19
-
Tall Double Hang (TDH) Included in Models: Basic 8,11 and Standard 2,3,4,5 & 6

Installation Instruction
Page 9 of 19
ORDER OF ASSEMBLY/STEPS
Prepare the Gables: Begin by laying both gables face up on
cardboard or cloth. This is to make sure you don’t scratch or
damage the unit. Safety first!
Attaching Screws to Gables: Now, take Screw B and attach it
to both the right and left Gables as shown in Diagram C. This is
your first big step in assembly!
Adding More Parts: Using Screw G, attach part M/O to both
the left and right Gables. You'll find the specifics in Diagram C.
Toe Kick and Nailer Installation: Choose one of the gables and
lay its front edge on the floor. Then, attach the Toe Kick and
Nailer using Screw A.
Assembling the Top Shelf: Keep the same gable laid down and
attach the Top, Fixed Shelf using Screw B and a screwdriver.
Attaching the Second Gable: Take the second Gable and place
it on top of the Fixed Shelf, Top, Nailer. Tighten it to Screw B
using your screwdriver.
Securing the Toe Kick and Nailer: Again, use Screw A to attach
the Toe Kick and Nailer.
Deck Attachment: Attach the Deck to Screw B and tighten it
with the screwdriver.
Upright Positioning: Carefully stand the cabinet upright
against the wall.
Final Steps: After assembling all the cabinets for this room,
refer to the installation drawing and follow the instructions for
the next steps.
Note: the closet cod should be installed after the
unit is affixed to the wall.

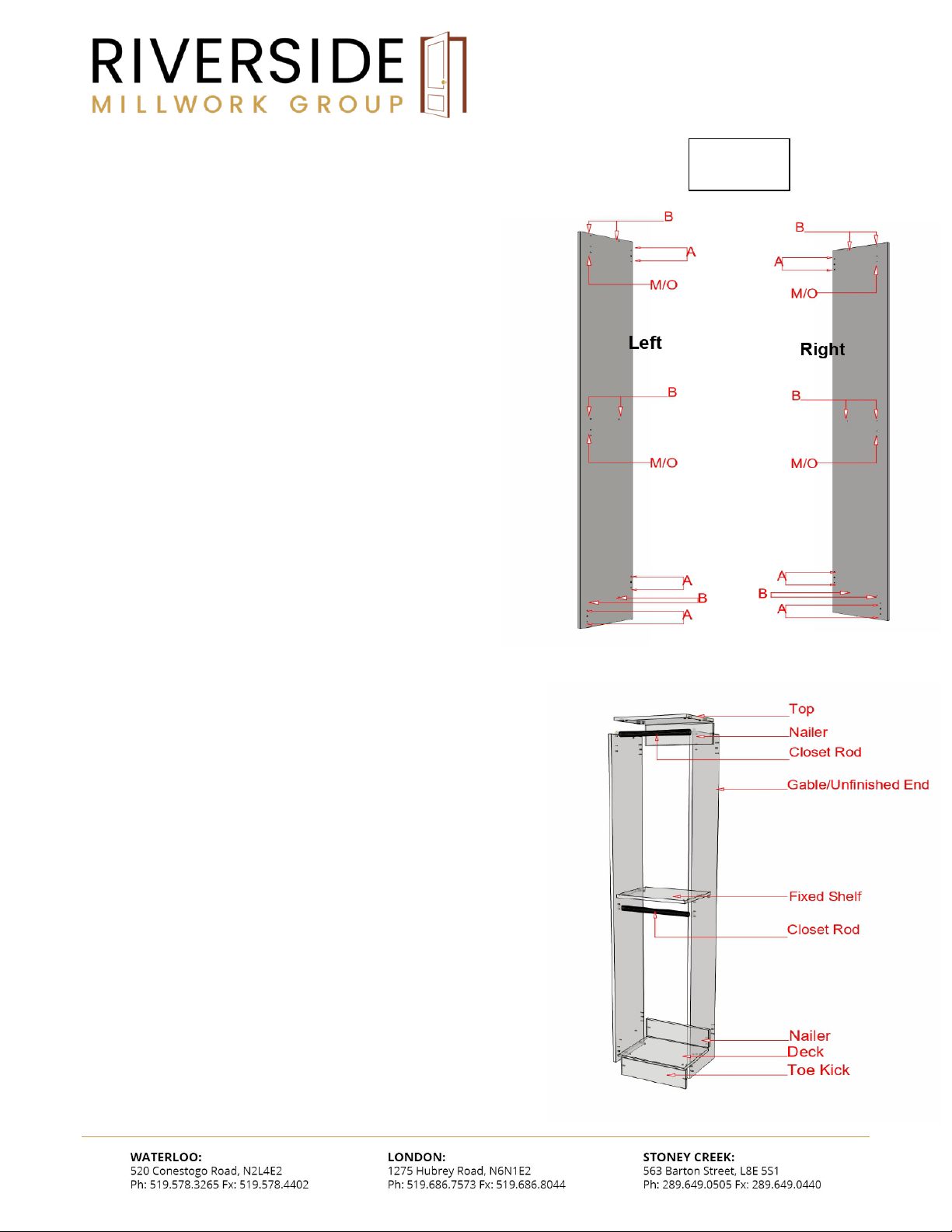

Diagram C

Installation Instruction
Page 10 of 19

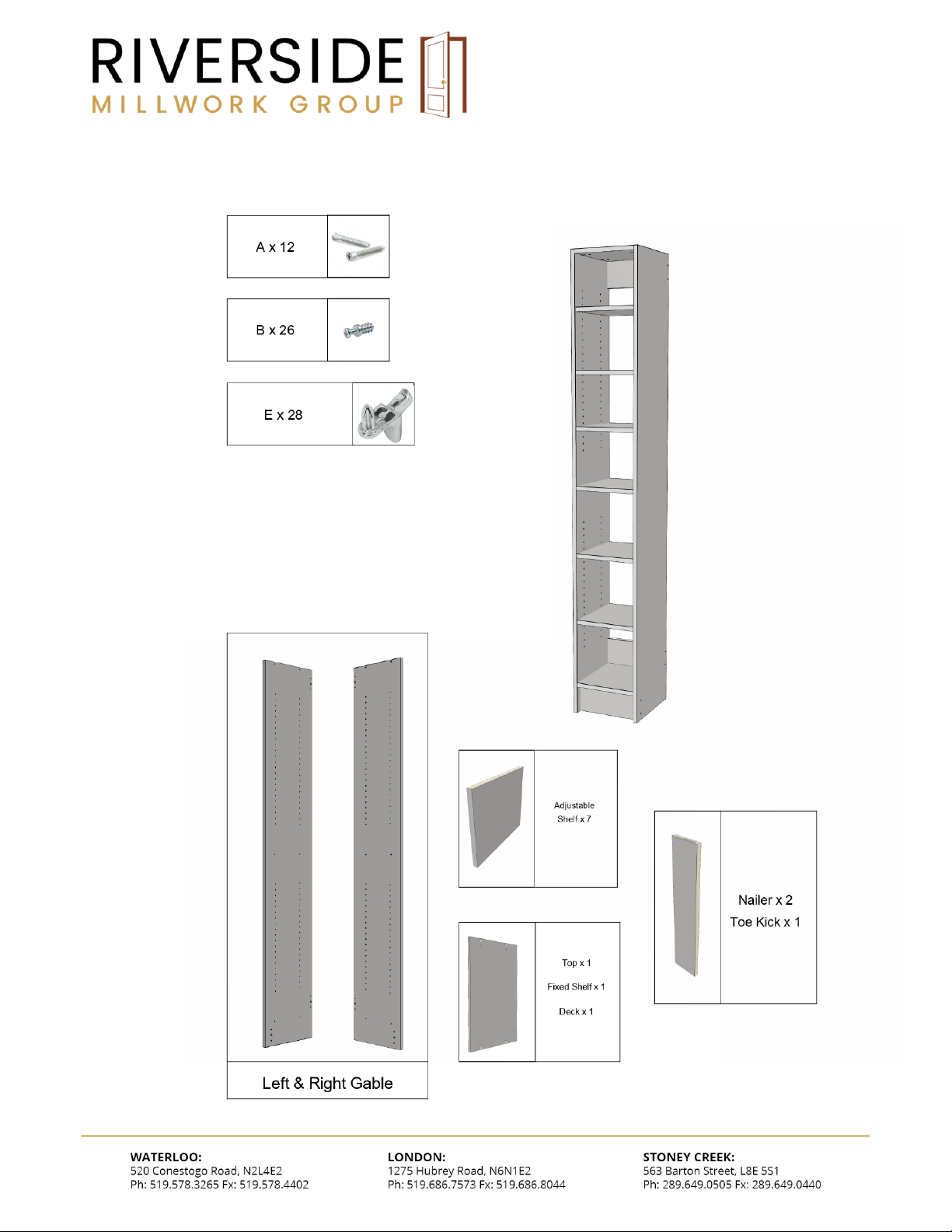

Tall Shelf (TSHF) Included in Closet Models: Basic 8,9 & 11

Installation Instruction
Page 11 of 19
ORDER OF ASSEMBLY/STEPS
Starting with the Gables: First, lay down both gables face up
on cardboard or cloth. This is a smart step to avoid scratching
or damaging the unit.
Attaching Screws to Gables: Use Screw B to attach it to the
left and right gables, as shown in Diagram D.
Toe Kick and Nailer Installation: Turn one of the gables on the
floor so its front edge is facing up. Now, attach the Toe Kick
and Nailer using Screw A.
Assembling the Top Shelf: Keep the same gable laid down and
attach the Top, Fixed Shelf to it using Screw B. You're doing
great!
Working with the Second Gable: Now, take the second Gable
and place it on top of the Fixed Shelf, Top, Nailer. Tighten it to
Screw B with a screwdriver.
Securing the Toe Kick and Nailer Again: Attach the Toe Kick
and Nailer once more, using Screw A.
Deck Attachment: Next, attach the Deck to Screw B and
tighten it with the screwdriver.
Upright Positioning: Stand the cabinet upright against the
wall.
Final Steps: Once all the cabinets for this room are assembled,
refer to the installation drawing and follow the instructions for
your next steps.
Note: the closet rod should be installed after the
unit is affixed to the wall.

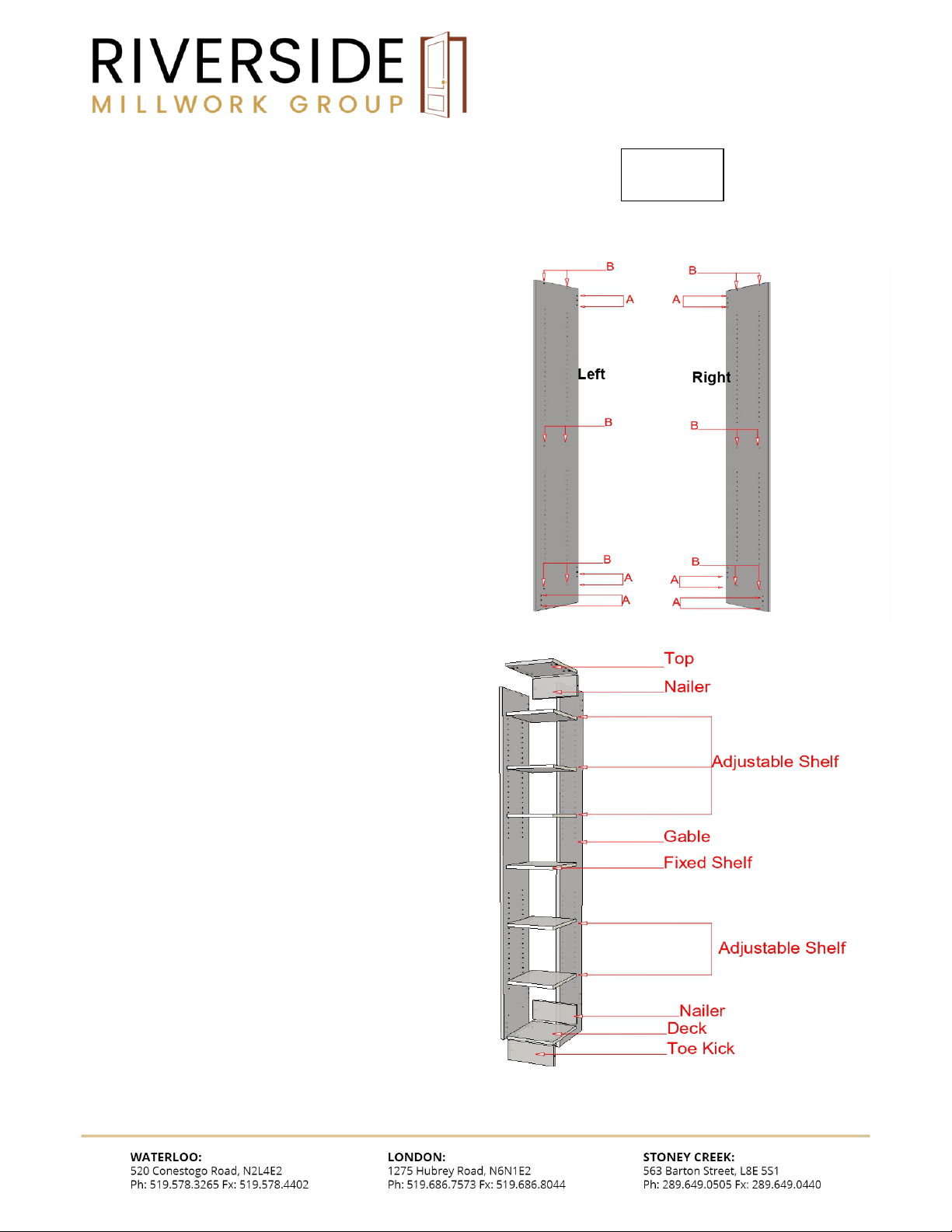

Diagram D

Installation Instruction
Page 12 of 19

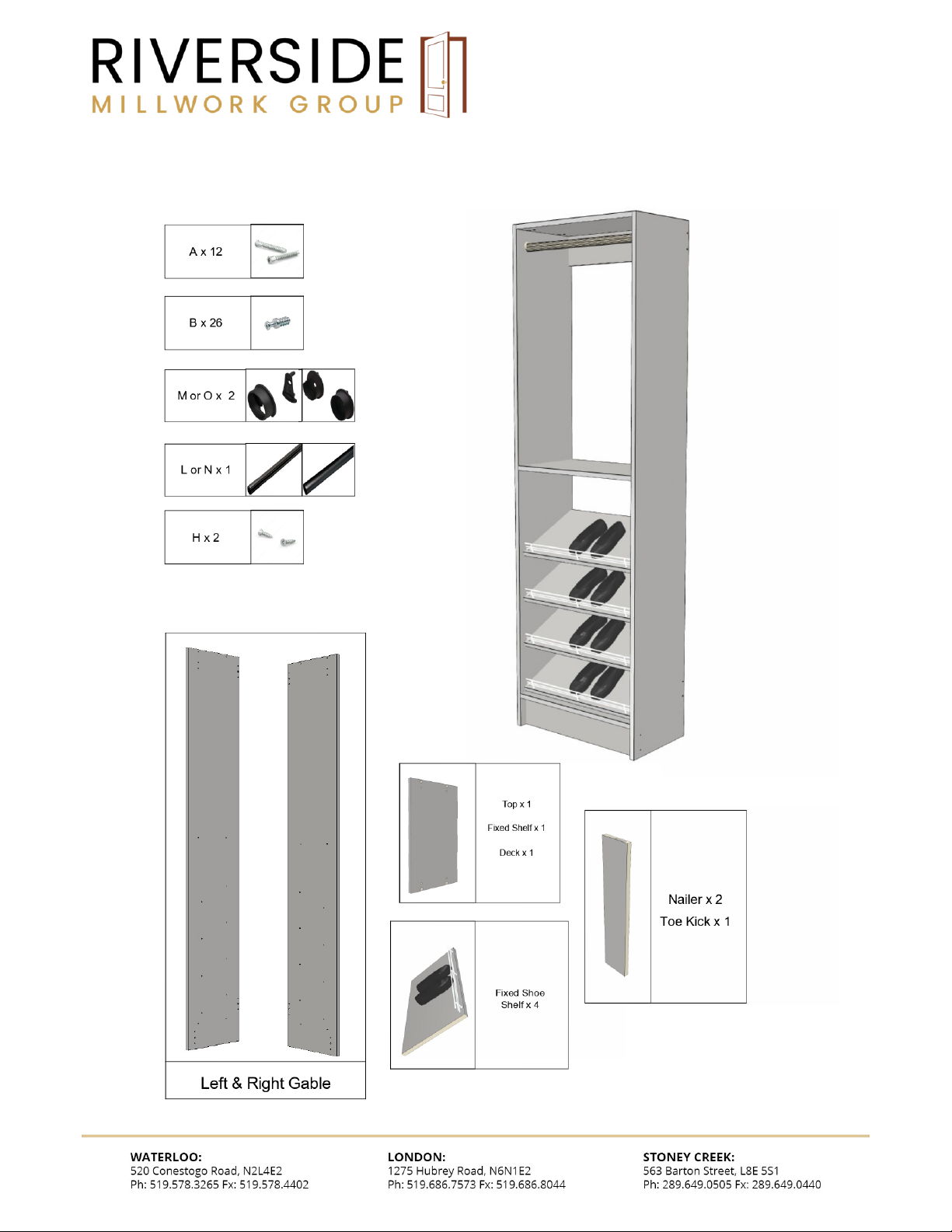

Tall Hang Shoe (THSHOE) Included in Models: Basic 11 and Standard 5

Installation Instruction
Page 13 of 19
ORDER OF ASSEMBLY/STEPS
Getting Started with the Gables: Begin by laying down both
gables face up on a piece of cardboard or cloth. This is a great
way to protect your unit from any scratches or damage.
First Steps with Screws: Attach Screw B to the left and right
Gables as shown in diagram E. It's the first step towards
building your shelf!
Adding More Components: Now, with Screw H, attach part
M/O to both the left and right Gables, following the guidance
in the diagram.
Toe Kick and Nailer Installation: Turn one of the gables on the
floor to expose the front edge and attach the Toe Kick and
Nailer using Screw A.
Assembling the Top and Fixed Shelf with Rail: On the same
gable, lay it down and attach the Top, Fixed Shelf, and Fixed
Shelf with Rail to it using Screw B.
Second Gable Installation: Take the second Gable and place it
on top of the Fixed Shelf, Top, Fixed Shelf with Rail, and Nailer.
Tighten it to Screw B using a screwdriver.
Securing the Toe Kick and Nailer to the Second Gable: Use
Screw A to attach the Toe Kick and Nailer once more.
Deck Attachment: Attach the deck to Screw B and tighten it
using the screwdriver.
Upright Positioning: Carefully stand the cabinet upright
against the wall.
Final Steps: Once all the cabinets for this room are assembled,
refer to the installation drawing and follow the instructions for
what to do next.
Note: the closet rod should be installed after the
unit is affixed to the wall.
Diagram E

Installation Instruction
Page 14 of 19
Tall 4 Drawer Hang (T4DH) Included in Closet Models: Standard 1-6

Installation Instruction
Page 15 of 19
ORDER OF ASSEMBLY/STEPS
Preparing the Gables: Begin by laying both Gables face up on
cardboard or a cloth. This smart move helps to prevent any
scratches or damage to the unit.
Attaching the First Screws: Screw B comes into play here!
Attach it to the left and right Gables as shown in Diagram F. It's
an important step to get right.
Toe Kick and Nailer Installation: Turn one of the gables on the
floor so that the front edge is facing up. Attach the Toe Kick
and Nailer using Screw A.
Top Shelf Assembly: Stay with the same gable and lay it down
to attach the Top, Fixed Shelf using Screw B.
Second Gable Placement: Now, take the second Gable and
place it on top of the Fixed Shelf, Top, Nailer. Tighten it to
Screw B with a screwdriver.
Securing the Toe Kick and Nailer Again: Repeat the Toe Kick
and Nailer attachment, this time using Screw A again.
Deck Attachment: Attach the Deck to Screw B and make sure
it's tightened with a screwdriver.
Adding Component P: Next up, attach Part P using Screw G, as
per the details in Diagram.
Upright Positioning: Stand the cabinet upright against the
wall.
Final Steps: After all the cabinets for this room are assembled,
don't forget to refer to the installation drawing and follow the
next steps as instructed.
Note: the closet rod should be installed after the
unit is affixed to the wall.
Diagram F

Installation Instruction
Page 16 of 19
Installation Instructions
Riverside Floor Standing Closet Installation
Guide
Arranging the Cabinets:Start by arranging
your assembled cabinets in the order
shown on the provide drawings. It's like a
fun puzzle, getting everything in just the
right place.
Leveling and Aligning the Cabinets: Next,
level each cabinet and make sure the front
edge of each one is perfectly flush with its
neighbor. This step is key for a seamless
and professional look.
Securing Cabinets Together: Now, it's time
to bond the cabinets together. Use 1 ¼ inch
screws to securely screw the cabinets to
each other. This will make sure they stay
together as one solid unit.
Locating Studs: Grab a stud finder (not
included in your kit) to locate the studs in
your wall. This is an important step to
ensure your cabinets are attached securely
to the wall.

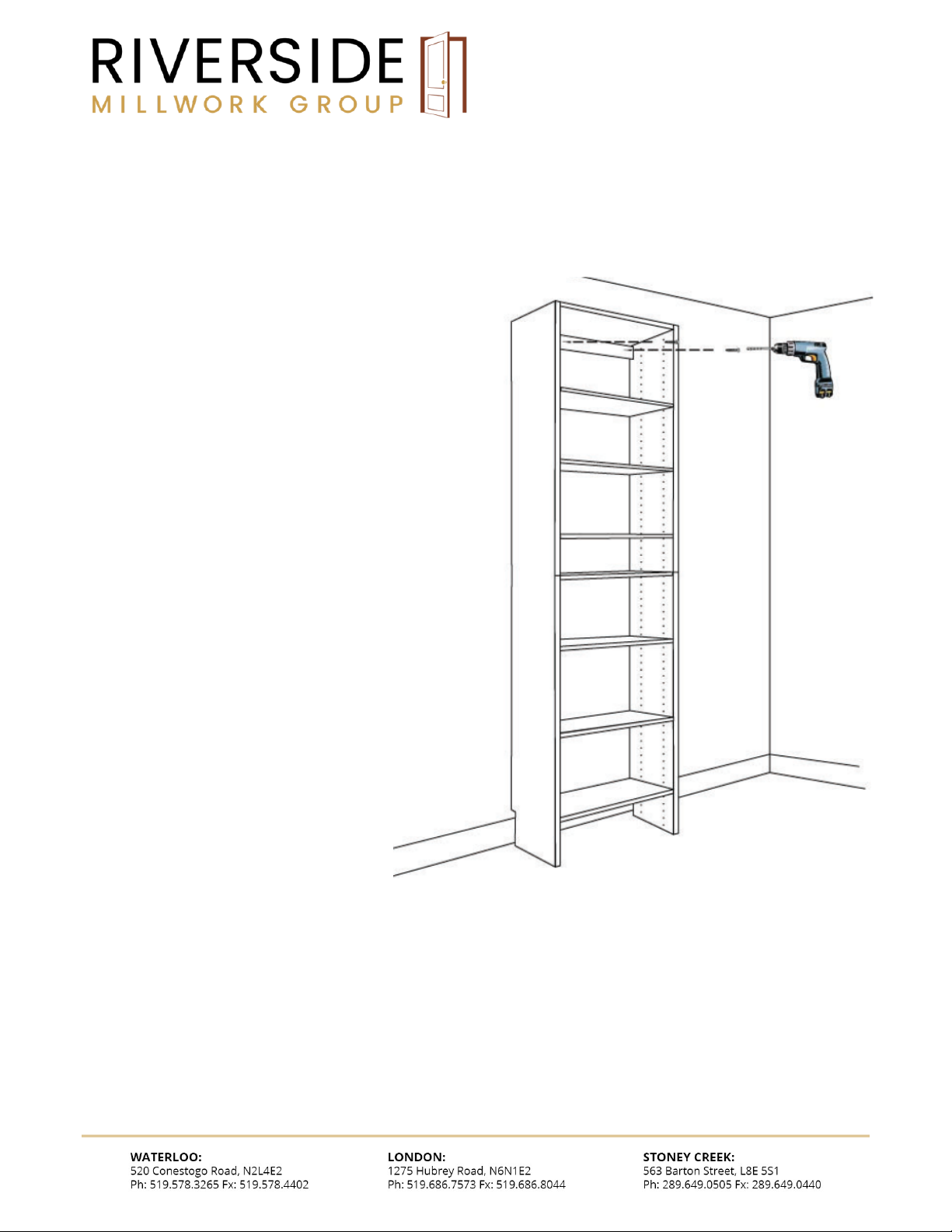

Attaching Cabinets to the Wall: Using 2 ½
inch screws, attach the closet to the wall
through the Nailer at both the top and
bottom of each cabinet, wherever a stud is
located. Check out the adjacent diagram for
a visual guide on how to do this.

Installation Instruction
Page 17 of 19
Installing Drawer Boxes and Fronts
Setting Up the Drawer Box: Let's start by placing the drawer box on top of the slides. Make sure the front (the side with the plastic clips
on the bottom) is facing outward. Gently push the drawer box back into the cabinet until you hear a satisfying click. That's your cue that
it's in place!
Aligning the Drawer Front: Next, use double-sided tape to line up the bottom drawer front with the bottom edge of the Deck. Aim for a
tiny gap of about 1/16th of an inch on each side between the drawer front and the outer edge of your gable. It’s all about getting that
perfect fit!
Pre-Drilling for Screws: With the drawer front held firmly by the tape, carefully slide the drawer box out just enough to work. Now, using
a 1/16th inch drill bit, pre-drill holes as close to the sides of the drawer box as you can. This step is crucial, especially for Shaker drawer
fronts, to avoid drilling through the panel.
Attaching the Drawer Front: Attach the drawer front using the screws provided. This is where everything starts to come together.
Closing the Drawer: Gently close the drawer to check your work. Everything should look neat and aligned.
Spacing for the Next Drawer Front: Place 1/8-inch spacers on top of the installed drawer front. Then, put the next drawer front on top of
the spacers. This ensures even spacing for a professional look.
Repeat the Process: Repeat steps 1-6 for each drawer front until they are all installed. It's a bit repetitive, but the result is worth it!
Riverside Hanging Closet Installation Guide
Measuring and Cutting the Closet Hanging Rod: First things first, measure the width of your closet and subtract a quarter inch from that
measurement. This is the length you'll need to cut your hanging rod to ensure a snug fit.
Marking Closet Rod Placement: From the spot where you plan to place the rod, mark a point 1 and 5/8 inches lower. This mark is where
your rod will be installed.
Locating the Studs: Time to find those studs! Use a stud finder to locate them in your wall. This is important for securely attaching your
rod. After you've put in the first screw, use a level to make sure the rod is straight before adding more screws.
Remember Wall Stud Spacing: Keep in mind that exterior wall studs are typically 24 inches apart, while interior wall studs are usually 16
inches apart. Also, be aware of what's behind your drywall. Sometimes stud finders can be a bit tricky.
Installing the Hanging Rod: Once you're sure the rod is securely in place, it's time to hang your shelf. Carefully hang your assembled shelf
on the rod. Tilt the bottom slightly away from the wall to avoid scratches, then slide it into its final position.
Securing the Shelf: Secure the shelf in place by tightening the screws on the hanging bolts. This step ensures everything stays exactly
where it should.
Installing Additional Shelves: To install the next shelf, just repeat the same steps. It's the same process, so you'll be a pro in no time!
For more information on how to assemble and install our closet, please visit our website, to watch some of the assembly & installation
videos.

Installation Instruction
Page 18 of 19

Installation Instruction
Page 19 of 19
