Robam CXW-200-A609 User manual

CXW-200-A609
CXW-220-A610
Range Hood
User Manual
Before operating this unit, please read the ser manual completely and keep it. u

Safety Precaution.........................................................................................................1
Important Information....................................................................................................3
Product Overview.........................................................................................................4
Packing List.................................................................................................................4
Installation...................................................................................................................5
Use Instruction.............................................................................................................7
Maintenance and Services............................................................................................8
Prats Removal..............................................................................................................8

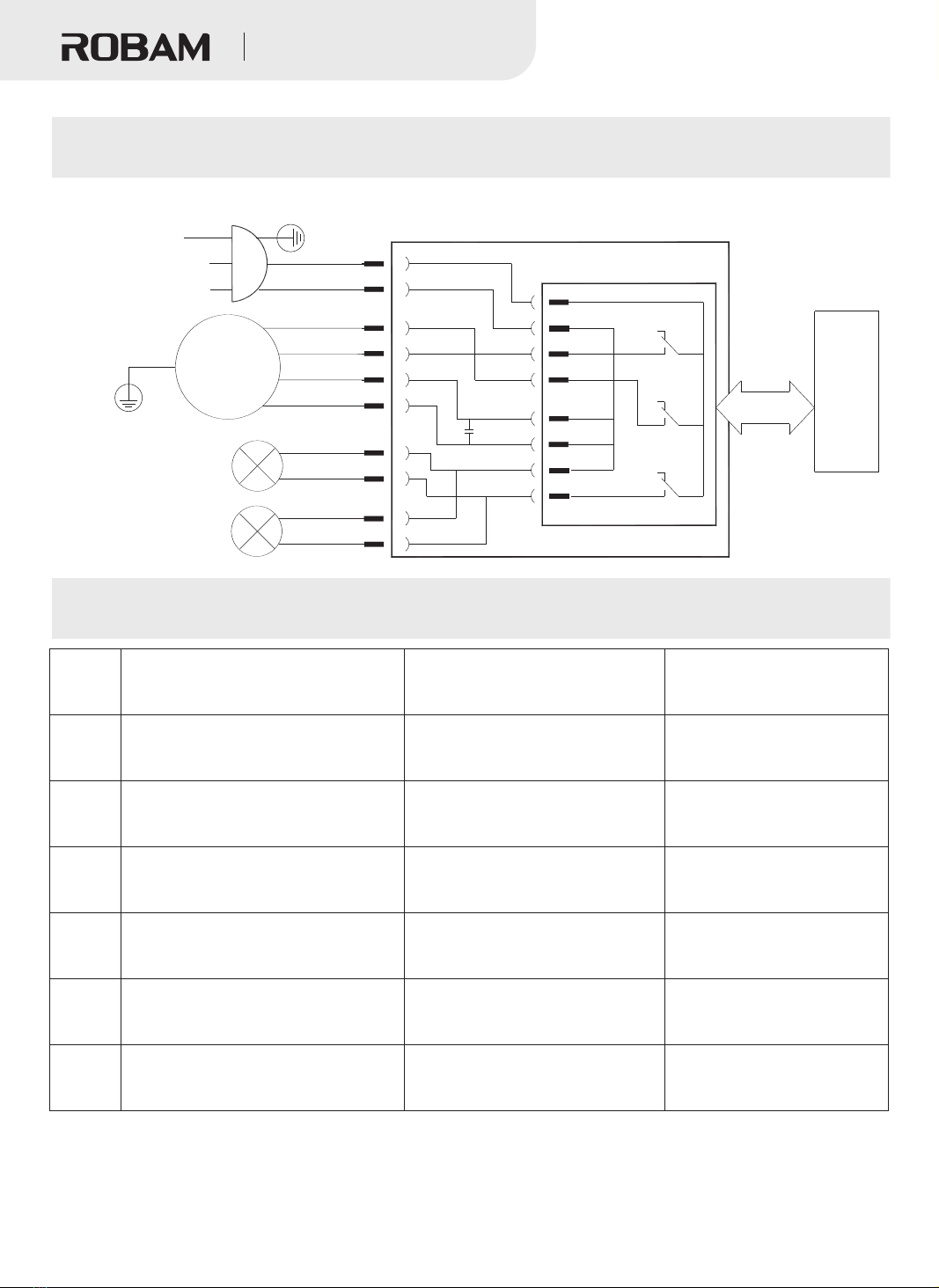

Circuit Diagram..........................................................................................................10
General Troubleshooting.............................................................................................10
CONTENTS

Prohibit water on motor, switches or
other electric parts; Prohibit wash range
hood by water spray. Don’t use range
hood if wet or it may cause electric
leakage or shock.
Don’t touch plug, electric parts or
button by wet hands, or it may cause
electric shock.
Safety Precaution
Subject to harmful or destruct degree
In order to avoid harm or property damage to the users or other person, the following distinction and marks
are stipulated. They are important safety precaution, please comply strictly based on the full understanding.
Danger If ignore this sign and operate product improperly, it’s highly possible to cause danger,
serious injury or fire.
If ignore this sign and operate product improperly, it’s possible to cause danger, serious
injury or fire.
If ignore this sign and operate product improperly, it’s possible to cause injury or loss.
Please use this product according to manual strictly, or ROBAM shall not take any
responsible caused by improper operation.
Don't allow children or weakling to use
range hood separately, or it may cause
electric shock or other accident.
The electric wire must be cut off before
clean, install or maintain range hood
avoiding from electric shock.
Don’t change, stretch, bind or press
electric wire, or it’s possible to cause
electric shock or fire because of broken
wire.
Prohibit any change of interior circuit,
or it may cause injury or other danger,
for example, electric shock or fire.
Please turn off range hood immediately
if pan got fire (range hood shall
aggravate fire if it’s working) and
extinguish fire by effective action. For
example, cover flame by metal cover, turn
off gas valve immediately and remove
inflammable things.
Any abnormal, please turn off power,
take off plug or cut off electric source,
and contact service. It’s possible to
cause electric shock or fire if using
range hood under abnormal situation.
Notice and Prohibit Mark
1
Warning
Notice
Danger
Prohibit Prohibit
Flame
Prohibit
Touch
Prohibit Touch
by Wet Hand
Prohibit
Disassembly
Strict
Execution
Neccessary
Earthed
Caution
Electric Shock
Caution Scald
Warning
Prohibit
Prohibit Prohibit
Prohibit Strict
Execution
Strict
Execution
Strict
Execution
Prohibit Touch
by Wet Hand
Dear users:
Range Hood
Thank for your buying our range hood. Please accept our best regards.Please read this user manual
carefully before installation and operation.
*The pictures in this manual only for your reference. If the picture isn’t accord with object, subject to object. We
keep to right to update appearance, structure or products without notice.

Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
In order to ensure safety, range hood
must be installed by specific accessory (
especially expansion pipe and wooden
screws, or it may cause accidental drop
of range hood). The pipe bore and hole
must fit tightly during the installation of
metal expansion pipe. It is prohibited to
make excessively large hole to prevent
accidental drop of loosening expansion
pipe.
The range hood must be used by
specific plug and properly ground it. It’s
possible to cause electric shock, hot
plug or fire because of improper
electric wire. Installation must be
executed by professional person based
on local electrical regulations. Before
connect electricity, power must be
turned off.
If electric a l wir e is broke n , onl y
professional engineer can replace it.
If the range hood will be used with the
kitchen range burning gas or other
fuels, the room must be well ventilated.
The range hood and electric circuit must be
installed by skilled and trained personnel
wit h required qualification. When
installation, the related regulation, standard
or instruction on fire must be complied. It
may cause danger because of improper
installation, for example, electric shock,
drop or fire accident.
Range hood must b e install e d,
d i s a s s e m b l e d or m a i n t a i n e d b y
professional person.
Put out the stove fire in time when it
is not used. That the stove fire bakes
the range hood directly is prohibited.
Do not barbecue food directly under
the range hood lest the range hood is
damaged and an accident should
occur.
All operation must comply with our
safety guidelines as well as local safety
regulations.
The range hood is used only daily life not
special environment ( for example, outside).
And it’s not allowed to exhaust dangerous or
explosive matter or air. It should be put
under dry and ventilation environment
without dangerous air.
The outlet must be connect with outside. In
order to ensure safety and fresh air, waste
gas should be exhaust to outside. Don’t
exhaust waste gas to the wall, loft or garage.
Don’t touch bulb if it’s on or just close in
short time, or it may cause scald.
It may get fire if cleaning range hood not in
accordance with manual.
Keep a good habit to turn off gas hob and gas valve if go outside, sleep or finish operation. Replace or
check gas pipe regularly, since gas alarm device can’t completely avoid accident caused by gas
leakage.
2
Warning
Prohibit
Prohibit
Disassembly
Prohibit
Touch
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Range Hood

重要信息
3
Important Information
Package of Range Hood
Before use range hood
Please settle those packages carefully in order to protect environment.
Don’t allow children to play plastic film and package, it may cause asphyxia. Please avoid children near package
material.
This range hood exhaust fume outside.
Please read this manual and all information carefully before installation and operation. Please comply with our
suggestion. If it’s necessary, please read manual for gas hob. And please keep these manual carefully for future
reference.
This manual is available for different models. So you may find different description with your own range hood.
If range hood has obvious damage, please don’t electrify and contact operator.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Range Hood
Because the installation is difficult and
hood is heavy, the installation shall be
executed by professional person based
on manul.
Be fo re re mo vi n g r an ge hood f o r
installation, clean or maintainance ,
power must be cut off avoiding from
electric shock. When installation, clean
or maintainance, protective gloove
must be wear avoiding from injury.
Don't break electric wire or other
in v is ibl e e qu ip men t w h en cu t tin g
something or drilling holes on ceiling.
When the oil exceeds 2/3 or near tick
mark in the oil cup, clean it in time. Don't
eat waste oil from oil cup.
The gas from range hood shall not be
exhausted to hot flue used for burning gas or
other fuels.
When range hood is using in well
sealed building, it should have air inlet
or open door to ensure good ventilation.
Th e t emp e ra t ur e f or r a nge h o od
working can’t exceed 40℃.
The wall of installing range hood needs
enough strength. For hollow walls, the
thickness of solid layer of hollow wall must
be more than 30mm, but for concrete walls,
it can be drill holes directly. The range hood
must be fixed on the wall firmly.
Notice
Prohibit Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution

机体尺寸
595 350
569
Product Overview
Product Parameter
size&Dimension
Packing List
595×350×(mm)569
≥290Pa
Rated Main Motor input power
≥23%
19kg
≤2W 2×
Dimension(L×W×H)
Maximum Static Pressure
Normal Odor Reduction Degree Instantaneous Odor Reduction Degree
Rated Whole Machine input power
Grease separation degree ≥92%
Noise
Max lighting power
Net weight
Model
Power Supply
Total Pressure Efficiency
Nominal Pressure
Air Flow Rate
220-240V 50Hz
~
3
17m /min
400Pa
≥98%
A609:≤57dB A609:≤58dB
≥80%
A609:204W A610:224W
CXW-200-A609
CXW-220-A610
Labeled dimensions are only for reference (Unit: mm)
Please check lists if open the package.
4
Packing List
No.Name Quantity
No.Name Quantity
1
12
11
6
5
4
3
2
Range Hood
Plastic Expansion Pipe
1 piece
4 pieces
1 piece
1 set
S T4x18 Self-Tapping Screw 10 piece
13
S 4× Wooden Screw T 60 4 pieces
10
Hitching Leg Stop Block 1 piece
1 pair
7
Hitching Leg 1 piece
9
1 set
8
Φ175 (Outer Diameter)
Aluminum Foil Air Duct
Φ175 (Outer diameter)
Air Duct Interface
Adhesive Tape Of Air Duct
Fixed Bar Of Air Duct
User Manual
Check Valve
M6 Metal Expansion Pipe
Range Hood
Note: The deviation between the expressed value and measured value of air flow rate, maximum static
pressure and nominal wind pressure shall not exceed -10% of the expressed value.
14 Oil cup 1 piece
A609:200W A610:220W
A609

Installation
Installation Notice
5
Warning
1.The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or
other fuels,the discharge of air must fulfill the requirements of local regulations.
2.Note that when installing the metal expansion pipe, the pipe shall match with the hole in size. Overlarge hole is
prohibited, as it will result in loose pipe and accidental drops.
3.There shall be adequate ventilation of the room when the range hood is used at the same time as appliances
burning gas or other fuels.
4.If the flue aperture is less than air duct aperture, it will influence the fume suction effect and the too long air
duct will influence the fume suction effect, too.
5.This product is only for daily use and please do not use it under special environment (e.g. outdoor); nor can it
be used to exhaust hazardous or explosive substance or gas. Before assembly, the product shall be placed
in environment which is dry, ventilated without corrosive and harmful gas in the surrounding.
●
Range hood shall be avoided to be installed at the place where there are many doors and windows since it will cause
too large cross-ventilation so as to influence the oil fume exhaust effect.
●Tool preparation
The following tools shall be prepared when range hood installation: 1. Electric impact drill (with drill);
2.Wrench; 3.Screw driver; 4.Ruler
Surrounding environment
Preparation Before Installation
●Installation and circuit setting must be operated by professionals with experiences and non-professionals
shall not assemble, disassemble and repair range hood.
●Don't connect power before installation,it may cause electric shock.
●If your kitchen is in decoration state, please do not expose the range hood outside since construction
material, dust, paint, coating and the gases they volatile will corrode the surface of range hood and the surface
will be tarnished. Therefore, it's suggested to assemble the range hood after decoration.
● If gas hob needs to be removed before installing range hood, please turn off gas valve firstly.
●Don't install range hood on the wooden or other flammable wall. The wall of installation range hood shall
be on the nonflammable, enough stable, smooth and level surface.
●Range hood may have very sharp edge, please wear protective gloves while moving the range hood for
installation, cleaning or maintenance.
●When drilling holes on the wall, the electric wire buried in the wall shall be avoided to prevent from fire.
●Range hood shall not be installed too high, nor shall it be disturbed by external air flow so that the fume
suction effect will not be influenced.
●Please retain installation space for hood while fabricating cupboard so as for the care and maintenance .
●Please keep the hood body level while installing the machine.
●Please use single phase socket with earthing, which shall be well earthed.(Water pipe grounding is not
reliable.The grounding of gas piping may cause the danger of fire and explosion.)
●Use appointed accessories for installation or range hood may fall down and cause danger.
●If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard. Don't stretch, change ,tie, or press supply cord, or it may
cause fire or electric shock.
●If finish installation, clean range hood firstly, then connect power and test run.
Range Hood

Wall
Air duct drill sizeφ200
Projected
dimension at
top of range
hood
Picture 2
Picture 3
Picture 1
安装
350
500
10
800～850
Cupboard dimensions are only for reference.
Movable decoration panel
(made by yourself)
300~400
Hung ceiling drill size drawing
(Projected dimension at top of range hood)
350
595
870~970
●Determine the position
and the size of two holes as picture 3; See picture 2 for
hung ceiling drill size.
: keep two holes level,
35±2
Hitching leg stop block
235
72±2
Hitch ing leg
110
55 55
530
●According to the size of hitching leg in the corresponding position of the wall, drill 4 holes which
depth is 60-70mm with a diameter of 8mm drilling tools. (Don't be too large). Then, insert expansion pipe to the holes
and fix hitching leg firmly with 4pcs of ST4X60 wooden screws. At the distance of 72mm with 4 holes, drill a hole with
10mm diameter(not to large) and 50-55mm depth, then insert M6 metal expansion pipe as picture 3. ）
●Install the machine body: Fix check valve as shown in picture 4 , and then according to picture 3 shown, put the
hitching hole at the back of the hanging hole to press the peg, shaking the body with the hand to check whether it’s
steady. After machine body is installed in a place, on the M6 metal expansion pipe, install the hitching leg stop block, a
gasket, tighten the nut (to prevent the machine body dropping under the action of external force accidently).
Install hitching leg:
●Install ALUM-Nod：
6
Installation
201
215
1)Hole position of ALUM-NOD（No need to drill holes in public flue）
a.Installation of air duct and coil base directly facing window: Disassemble a glass and assemble
plywood with exhaust holes, or drill holes on the glass directly.
b. When coil base is not close to window: Select the nearest coil base, install the air duct on the window
accessible to outdoor to penetrate the window; or select the nearest coil base, drill hole on the wall
accessible to outdoor and install air duct to penetrate the wall.
c.Drill the wall opening: Measure the position that air duct faces wall and mark the drilling scope on the wall
surface (i.e. circle a little larger than outer diameter of air duct), then use long drill to drill the wall. Pay attention to
the wall structure and material while drilling and do not damage the wall besides wall opening.
Range Hood
Note: All data units in the following figures are in mm
A609

7
2.Connect the ALUM-NOD
Use Instruction
Switch Panel
Press the “ Lighting” key one time, the lighting lamp will be on. Press again, the lighting
lamp will be off. This switch just control lighting lamp.
Press the “ High speed” when “power” is on, the impeller will rotate in high speed to absorb
fume (that is, high speed is turned on). If press "Low speed”, range hood shall change to low
speed.
Press the “Low speed” when “power” is on,the impeller will rotate in low speed to absorb
fume (that is, low speed is turned on). If press "High speed”, range hood shall change to
high speed.
Lighting Low
speed
High
Speed
Power
Range hood should be open before cooking, and connect plug firstly.
When “ Power” icon is on, if only lighting lamp is on, gently touch the “ Power” key,
the lighting lamp will be turned off; if “Power” is on and fan is working, gently touch
the“Power” key, the power icon will flicker and range hood will be in delayed working
condition, then turn off all the working conditions after 1min ; if power icon is
flickering, gently touch the “ Power” key, then all the functions will be shut down.
First connect the ALUM-NOD without air duct fixed strip with air duct interface, sealed by adhesive tape of air duct
and straighten the ALUM-NOD to outdoor directly. When the wall hole is larger than ALUM-NOD, the air duct can be
pulled to outdoor directly; when the wall hole is smaller than air duct, it can be selected according to the hole
size since the small end of air duct interface has four specifications: 140, 150, 160 and 170. The surplus part that is
smaller than wall hole can be cut by scissor.
Then insert the other end of ALUM-NOD with air duct fixed strip between internal and external ring of check valve
outlet and seal it by adhesive tape of air duct. Last, put the 4 fasteners into the slots and rotate clockwise, the
ALUM-NOD is fixed on the check valve.
Machine body
Check valve
Check valve interface
St4x18 screw
Seal ring of check valve
Φ175ALUM-NOD
Adhesive tape
of air duct Φ175Air duct interface
Cut the surplus part smaller than wall hole
Φ180 Φ170 Φ160 Φ150
Φ140
Adhesive tape of air duct
Fastener
Slot
The diameter of exhaust wall hole shall be close to the air duct diameter, which shall not be too small, or it
will cause unsmooth fume exhaust, rise of noise and reduction of air volume. Outlet pipe and wall hole or
connection with public flue interface must be sealed strictly so as to make sure that the air duct and
check valve or public flue interface are connected firmly and make sure that the blade of check
valve or public flue interface is flexible in opening and closing.
Note: Please straighten the ALUM-NOD while assembling so as to
prevent ALUM-NOD from producing noise at semi-stretching state;
the surplus part can be cut by wire cutter.
Range Hood
Lighting Low
speed
High
Speed
Power
o r
o r
o r
o r
A609 s witch panel A6 s 10 witch panel

8

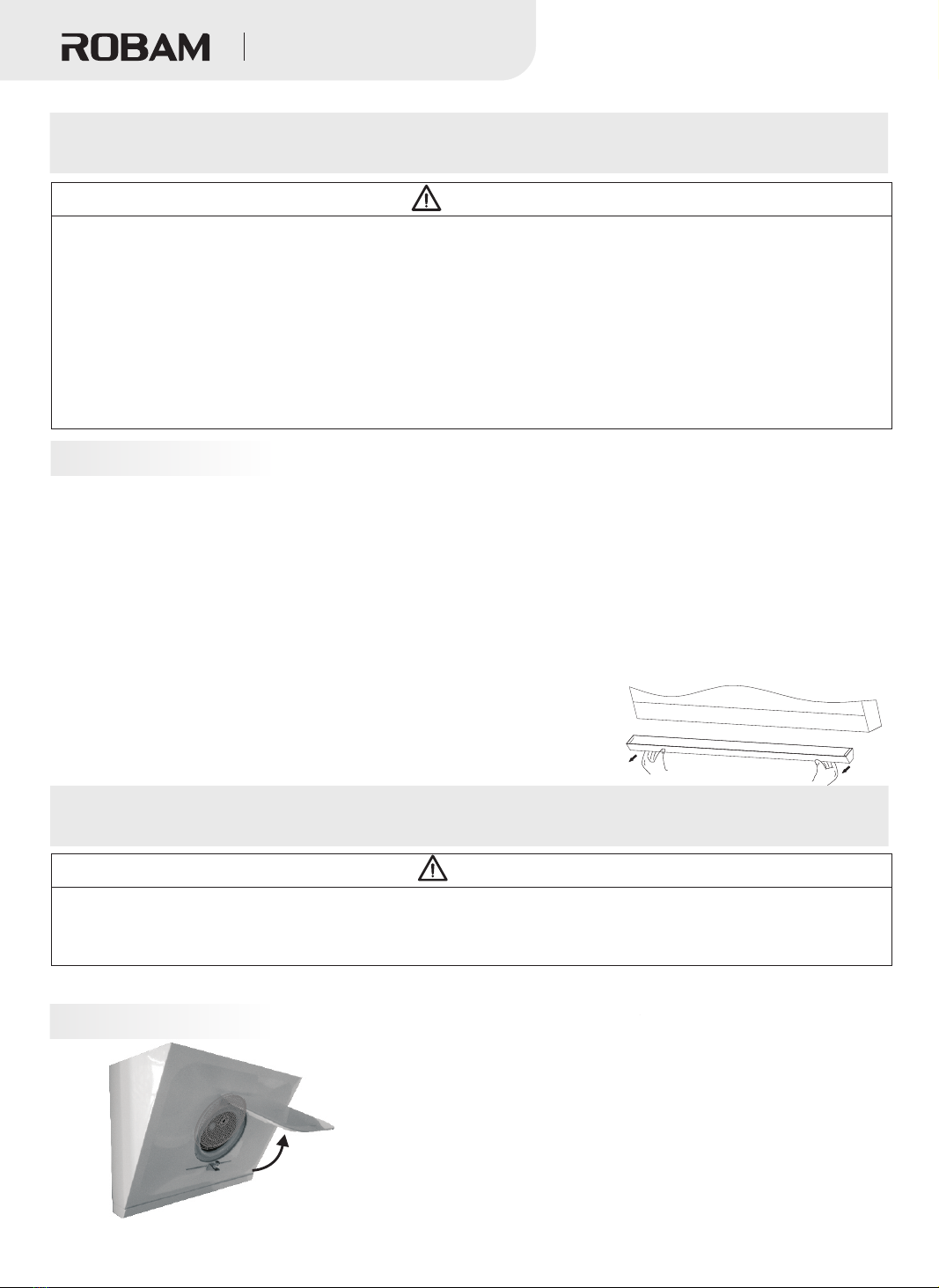

Notice
Maintenance and Services
Warning
Parts Removal
1.The machine body needs not to be disassembled in ordinary conditions. Disassembly shall be operated by
professional serviceman.
2. The electricity must be cut off before clean, installation or maintenance of range hood.
Note: The assembly steps are opposite with the disassembly steps.
Please wear protective glove during operation avoiding from hurting hands.
Warning
Hold front plate by hands, and revolve it according to arrow
direction, make front plate horizontally, and stand front plate by
one hand, now, user can disassemble interior mesh cover and clean it.
Disassemble interior mesh cover
1.There is a fire risk if cleaning is not carried out in accordance with the instructions.
2.Cleaning and maintenance shall be conducted under outage. Electrical components such as motor, switch,
and connector shall not be spoiled by water so as to prevent from accidents.
3.It's prohibited to wash with water so as to prevent accidents.
4.Stove fire shall be extinguished timely when it is not used; do not flambe under the range hood and it's
prohibited to bake food under range hood directly to prevent range hood from damaging and causing
accidents.
5.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
6.Accessible parts may become hot when used with cooking appliances.
●The hood shall be cleaned and maintained regularly depending on the surroundings, so as to keep its
cleanness & efficiency and extend its service life.
We recommend: Clean the surface of hood each time after cooking.
To ensure smooth discharge of fumes, the mesh cover shall be cleaned regularly with warm water and detergent
according to actual situations. Be careful to avoid damage.
●Don’t use the powerful detergent, we recommend to wipe with wet cloth soaked in neutral detergent and dry
it by soft cloth. And avoid detergent to touch switches.
●Don't keep dirt on the surface of range hood for long time;
●Don't use cleaning ball, brush or other harsh tool to clean range hood. It may cause scoring.
●Wear gloves to clean or maintain range hood avoiding from hurt.
●Check oil cup regularly. Hold oil cup by hands as picture,
then remove oil cup and pull out waste oil.
●Don't touch lamp if turn on or turn off in short time. It may cause scald.
●If range hood don’t use for long time, pull out the plug. Don’t haul plug crudely.
Range Hood

Pull out inner
mesh cover
Slot Slot
loose
The machine body needs not to be disassembled in ordinary conditions.
Disassembly shall be operated by professional serviceman.
Disassembly procedure:
1.Disconnect the plug;
2.Remove 16pcs of M4 pan head screws and 2pcs of M5 pan head screws on the rear plate, then take out the
rear plate;
3.Remove fixed screws on the top of outlet, then take out the air duct;
4. Unscrew the pressing plate to the left or right, and take out the protective mesh.
(See Disassembly of interior mesh enclosure)
5. Unscrew 4pcs of sink head screw on the check ring, then take out the check ring.
6.Screw off the nut cap clockwise to take out impeller vertically;
The assembly steps are opposite with disassembly steps.
(When assembling impeller, please add some lubricating oil in the axle hole of impeller.)
Rear plate
Machine body
Impeller Check ring
Nut cap
Motor
Interior mesh cover
Air duct
Oil cup
LED light
Disassembly and assembly of general drawing
Range Hood
Disassemble Procedure:
1.rotective net Rotate the screw in the hole 1-2
cycles counterclockwise by cross screwdriver to
loosen pressing plate.
2.Push the pressing plate aside by finger to left
or right.
3.Pull out the interior mesh cover.
Note: The assembly steps are opposite with the
disassembly steps.
9

10
M
220-240V~ L
N
Green/Yellow E
brown
blue
black
blue
brown(red)
orange(yellow)
EL
EL
blue
red
blue
red
C
red
yellow
Terminal box
Control circuit
K1
K2
K3
Operating Circuit
Circuit Diagram
General Troubleshooting
Any other problems, please contact our local service center or dealers.
No.
1
2
3
4
5
Fault Phenomenon Fault Cause Elimination Methods
No response by pressing any switch
(e.g. impeller does not rotate, lighting
lamp is not on)
Power plug is not well connected
or power outage Well connect the power plug
Press the lighting switch but the
lighting is off
Lighting lamp is broken or power
plug is not well connected
Replace lighting lamp or well
connect the power plug
There is induced electricity on the
surface of machine body, hand
numbness
Power socket is not well grounded Use single phase tripolar
socket for well ground
abnormal sound when impeller is
rotating
Impeller is loosened, set screw
of impeller is not tightened
Tighten the set screw of
impeller
abnormal sound for ALUM-NOD ALUM-NOD is not straightened
Please install according to
the requirements of
Operation Manual
6Oil dripping at rear back of hood
Oil cup is not assembled in place
after disassembly for cleaning
Assemble the oil cup in
place
Range Hood
X P
Green/Yellow

:
Edition: A/0
Publication Date：April,1,2016
Model A609、A610
