Robam CXW-200-A809 User manual

Operation Manual
Range Hood
CXW-200-A809
CXW-200-A818
A818

Contents
1.Important ................................................1
2.Introduction..............................................1
3.Installation Instructions............................2
4.Use..........................................................5
5.Maintenance ..........................................7

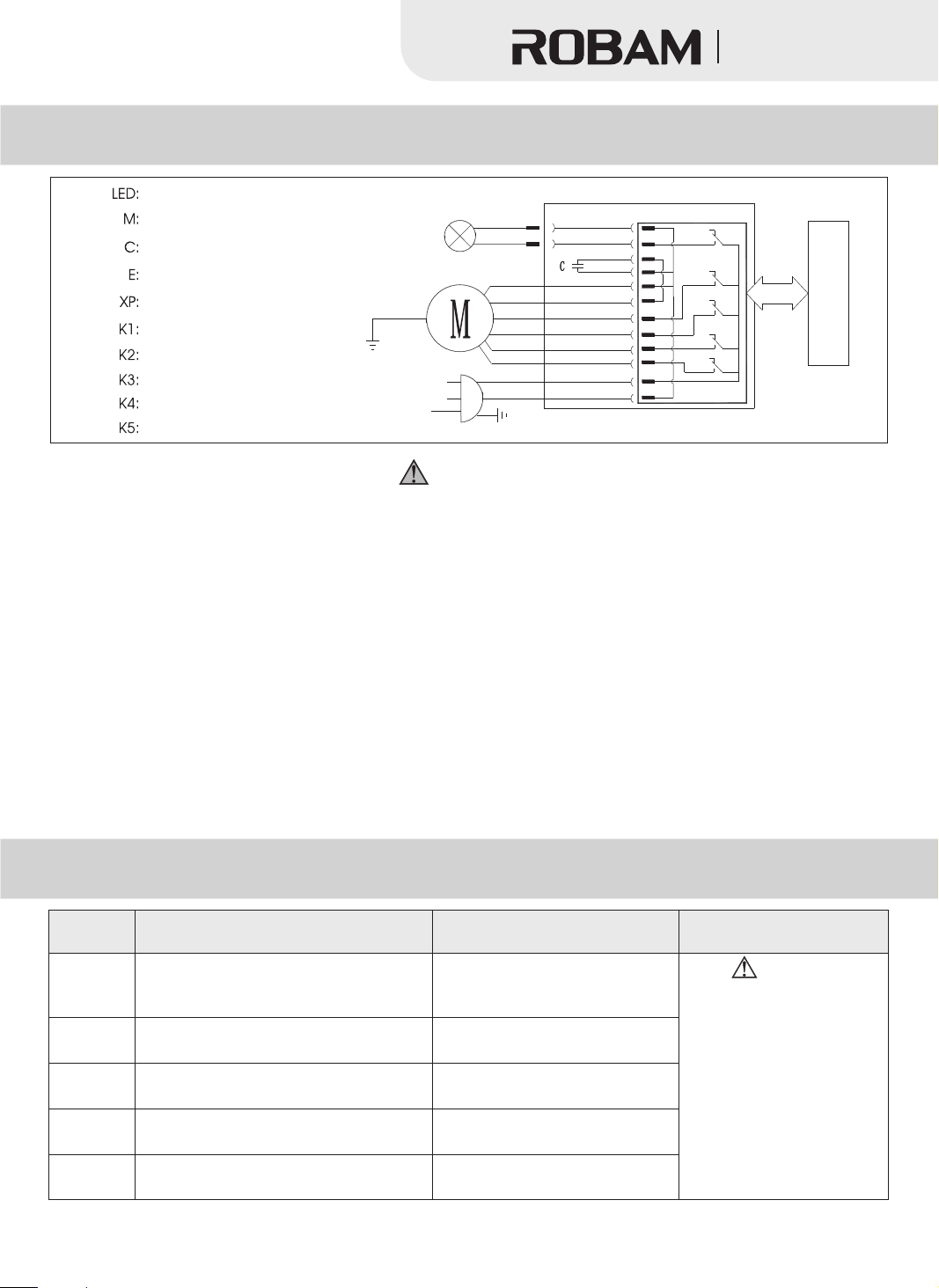

6.Electrical Diagram..................................9
7.General Troubleshooting........................9

A818
1
Contents indicated by are warnings. Failure to follow the instructions will cause danger.

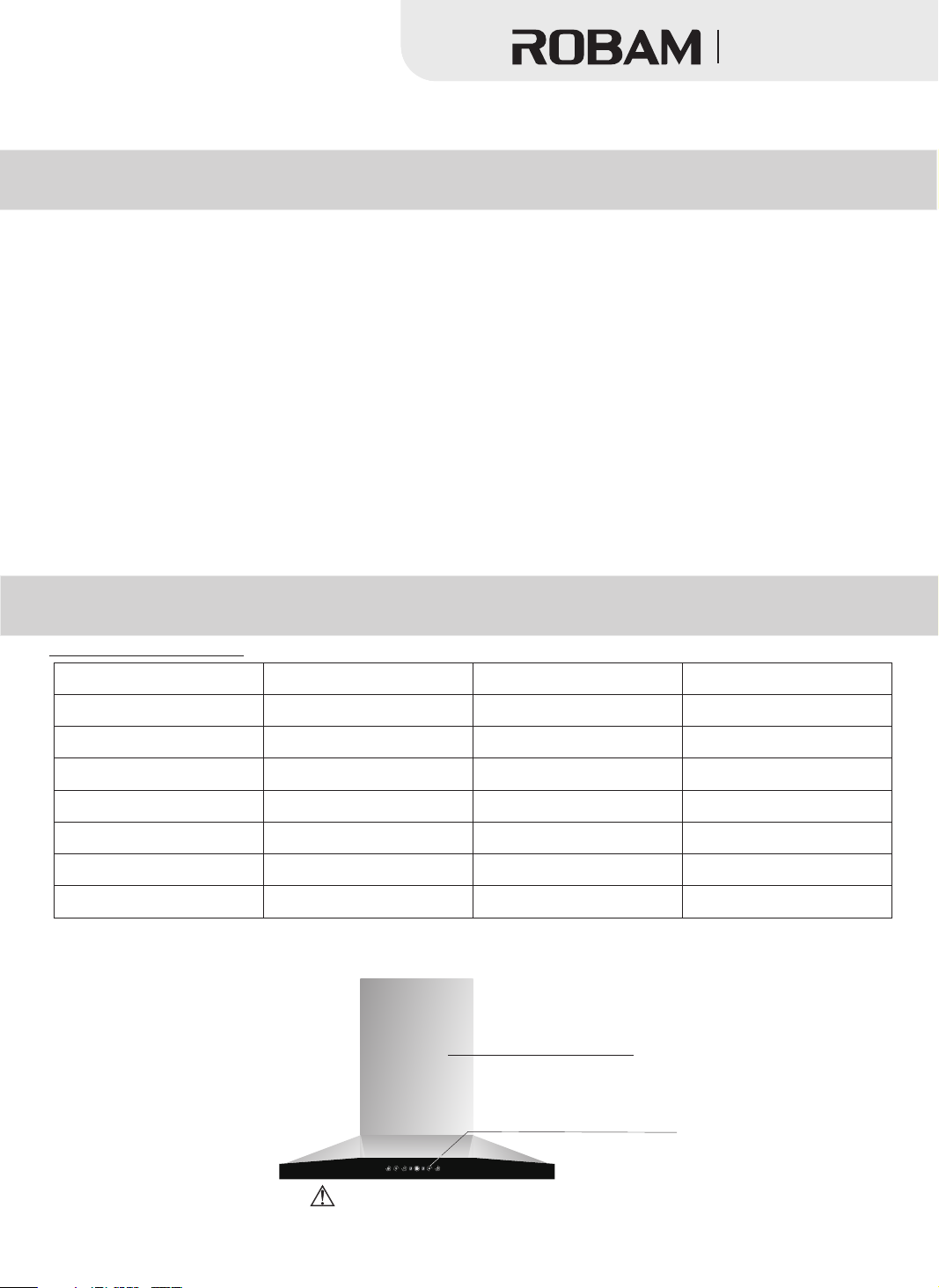

Figure 1
Decorative panel
Switch
CXW-200-830 2
Thank you very much for choosing ROBAM range hood.Please read the manual carefully before using the product.
Introduction
Important
Dear user
Technical Specification
吸油烟机
Range Hood
Packaging of New Hood
Please dispose the packaging materials in an environmentally-friendly way to maintain a good environment.
Keep children away from the plastic film and packing carton. They are not toys and may cause choking.
Disposal of Old Hood
If the old hood cannot be used any longer, it is recommended to dispose it to an “unusable” state before discarding.
Please assist disposing or recycling the useable materials from the old hood, thus contributing to the environmental
protection.
Before Using the New Hood
The range hood exhausts fumes outside.
Before installing and using the product, please carefully read and strictly follow the instructions and accompanying
documents. When necessary, also read the Operation Manual of your gas hob and save them properly for future
reference.
As the manual apply to different types of hoods, you may find some extra characteristics described here.
If obvious damage is found, do not energize it and immediately contact your local dealer or the service center.
Don't let unsupervised children and frail people use the hood alone. Otherwise, it will cause electric shock or other
injuries.
≥280Pa
18m/min
3
Rated input power of the
main motor
≥23%
≤4W
Dimensions (L×W×H)
Maximum static pressure
Odor decrease rate ( normal)
Odor decr ease rate (inst ant aneous )
≥80%
≥350Pa
≥98%
Rated input power of the hood
204W
200W
Grease separation rate ≥96%
Noise
Maximum input power of
the light
Net weight of the host
Model
Power supply
Full pressure efficiency
Nominal pressure
Air flow rate
CXW-200-A809
CXW-200-A818
220-240V~ 50Hz
≤57.5dB
A809：895×524×597(mm)
A818：895×504×652(mm)
A818：26kg
A809：25.5kg
1.The deviation between the specified value and actual value of airflow shall not exceed 10% of the
specified value.
2.When stir-frying function is enabled, the power will increase by 5% compared to strong power (level-3)
3
and the airflow is 19 m /min.

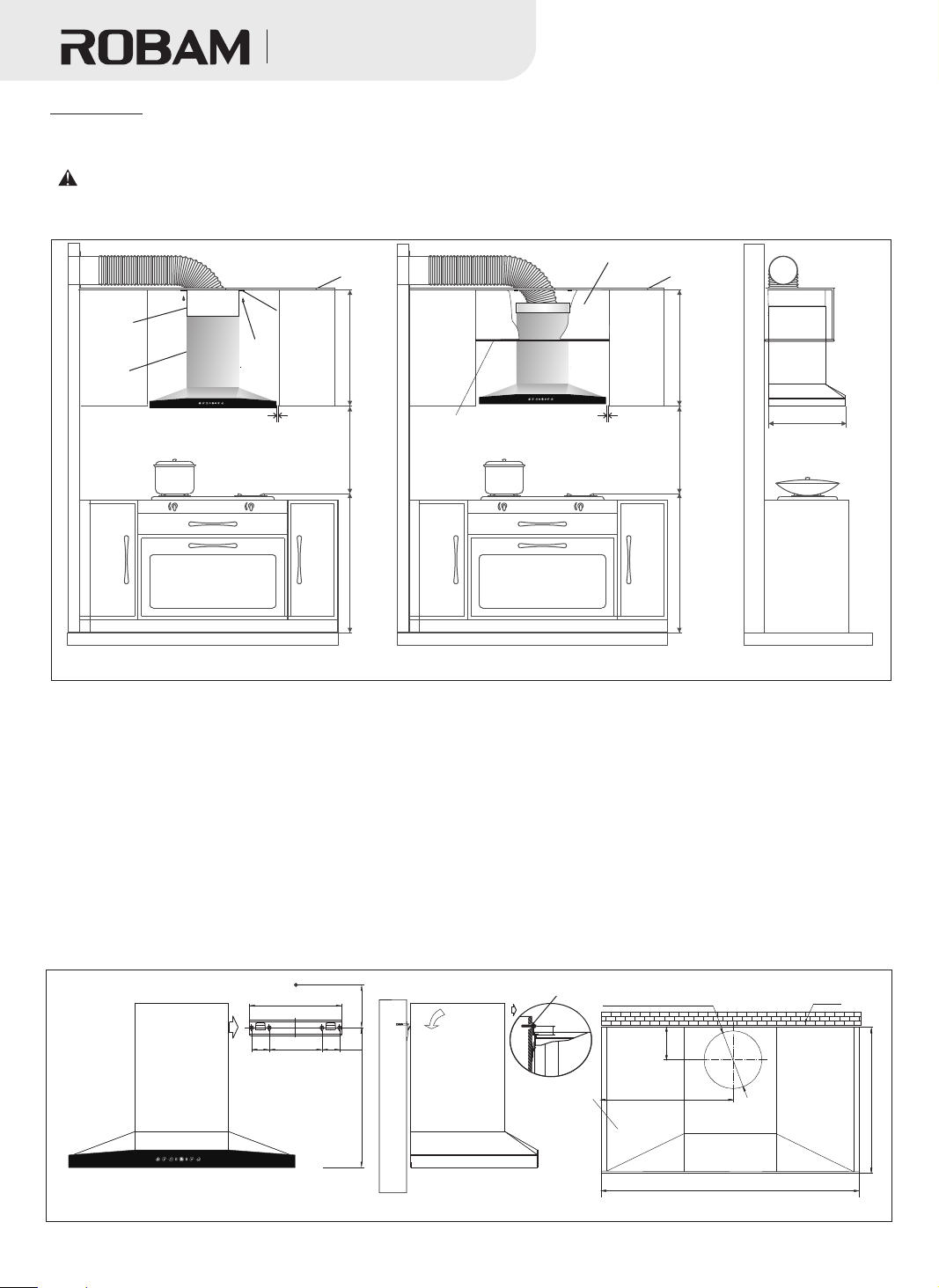

Installation Instructions
Warning
Preparation for Installation
Surroundings
Keep the hood away from too many doors and windows, so as to avoid air convection affecting the efficiency.
Tools
The hood will be installed with the following tools: 1). an impact drill (with drill bit); 2). a wrench;
3). a screwdriver; and 4). a ruler.
Body Size
372
504（524)
Check the items in the box
2
368
895
652(597）
Figure 2
CXW-200-8302
The hood is for daily household use. Please do not operate it in special circumstances (e.g. outdoor), nor
use it to discharge hazardous or explosive substances or gases. Before installation, the product shall be placed
in a dry and ventilated place without corrosive and harmful gases.
The marked sizes are for reference only. Size in the brackets is specific to A809 hood. (Unit: mm)
Note: There are 2 oil cups provided, one as spare oil cup and the other to be installed on the hood. When
using the hood, install the cup on the filter mesh.
Packing List
No. Name Quantity
1
12
11
6
5
4
3
2
Hood
Plastic expansion pipe
Operating Instructions
Envelope
1 piece
4 pieces
1 piece
1 piece
Check valve 1 set
ST4×18 self-tapping screw 10 pieces
Φ175 (OD) aluminum exhaust
pipe
13
14
ST4.8×50 wood screw 4 pieces
10
Hitching foot stopper 1 piece
M6 metal expansion pipe 1 pair
7Oil cup 2 pieces
15
Hitching foot 1 piece
8
Φ175 (OD) exhaust pipe joint
9
Exhaust pipe tape
Fixed bar for exhaust pipe
1 set
吸油烟机
Range Hood
1. Flue gases shall not be discharged to the hot flue, which is exclusively used for discharging the combustion gas or
other fuel fumes.
2. Note that when installing the metal expansion pipe, the pipe shall match perfectly with the hole in size.
Overlarge hole is prohibited, as it will result in loose pipe and accidental drops.
3. If the hood is used together with a cooking hob burning gas or other fuels, the room must be well ventilated.
4. Flue diameter smaller than that of the exhaust pipe will affect the hood efficiency. So will overlong exhaust pipe.
5. Regulations concerning the discharge of air have to be fulfilled.
No. Name Quantity
A818

A818
A818
A818
A818
Installation Notes
●
outside airflow interference, so as not to reduce
the efficiency.
Don't install the hood too high and protect it from
●
body to facilitate the maintenance and repair.
When making cupboard, save room for the hood
●During installation, please keep the body level.

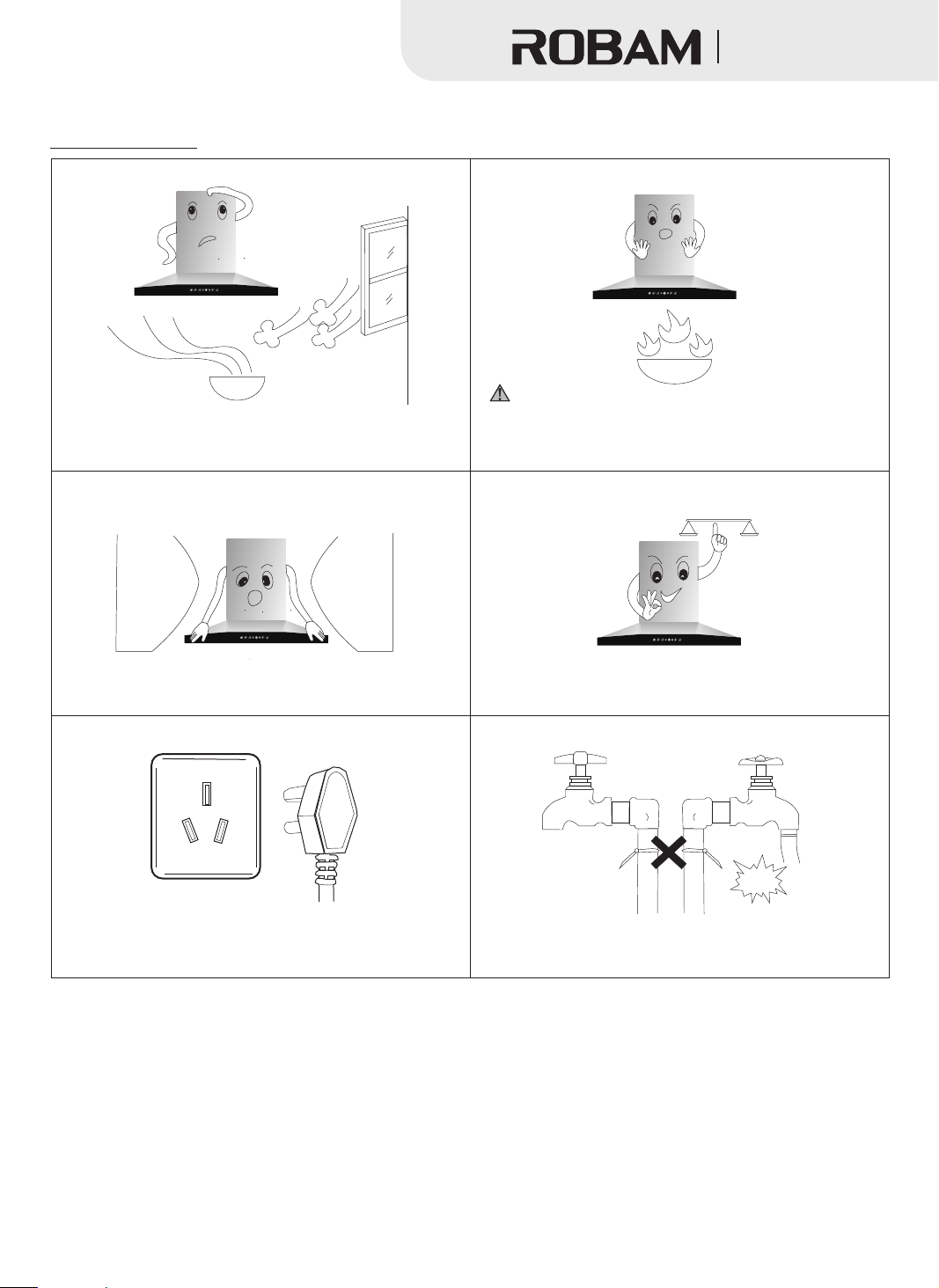

Figure 7
●
not well grounded
The water pipe is ●
cause fire and explosion.
Gas pipeline grounding may
Figure 8
3
Figure 3 Figure 4
Figure 5 Figure 6
Explosion
Water pipe
Gas pipeline
CXW-200-8302
CXW-200-8302
CXW-200-8302
Warning: put out the fire promptly after use. Don't
use the hob to bake the hood directly.Don't cook food
directly under the hood. Otherwise, it will damage the
hood, causing accidents.
吸油烟机
Range Hood
Please also note that:
●Do not expose the hood if your kitchen is under renovation, because construction materials, dusts, paint,
coatings, and emitted gases will corrode and tarnish the hood surface. Therefore, it is recommended to
install it after the renovation is completed.
●Don't install the hood on wood and other combustible walls. The wall shall be made of noncombustible
materials with enough strength.
●Installation and circuit setting must be done by experienced professionals. Non-professionals are not
allowed to install, dismantle and repair the hood.
●The hood may have very sharp edges. So, please wear protective gloves during hood installation, cleaning
or repair.
● When drilling on the wall, keep away from embedded wires to avoid fire.
(The picture for reference only, please subject
to actual plug)
●and have it well groundedUse fittable plug .

4
504
Ceiling
660(600)-800mm
650-750mm
800-900mm
Drawing panel
10mm
Ceiling
Removable panel
Removable baffle
650-750mm
800-900mm
10mm
(Figure 9-1 Installation method of hood with removable baffle)(Figure 9-2 Installation method of hood without removable baffle)
Mounting hole
of the drawing
panel
ST4X18 self-tapping
screws
(if installation method in Figure 9 -2 is adopted, there's no need to adjust and install the drawing panel)
CXW-200-8302
Decorative panel
Figure 10-1
35±2mm
Hitching foot stopper
235mm
65±2mm
Hitching foot
110mm
55mm 55mm
600(545)mm
Installation
(A818 and A809 are identical)
108mm
467mm
Wall
Hole size of the exhaust pipe Φ200mm
Ceiling drilling size chart
50 4 ( 524 ) mm
895mm
Figure10-2
Projection size of
the hood top
Size in brackets is specific to A809 hood
660(600)-800mm
Note: Figures in brackets are specific to the cupboard size of A809 hood.
吸油烟机
Range Hood
1.Determine the position: the size of removable baffle ( reference: 430mm) can be adjusted according
to the actual situations. The installation pitch of holes is shown in Figure 10-1. The hook body shall be
centered vertically and kept level. Ceiling hole size is shown in Figure 10-2.
The hood shall be installed right above the hob. The minimum distance between the bearing surface
of cooking appliance and the lowest part of hood is 650mm (larger space specified in the installation
instruction of gas hob shall be considered, if any; the distance for electric cooker may be reduced
appropriately, depending on the actual situations) .
2. Install hitching foots: according to the size of the hitching foots, drill four 50-60mm-deep holes on the
wall accordingly with an 8mm-diameter drill bit (overlarge holes are prohibited). Press the expansion
pipe into the holes, and then fix the hitching foots with 4 accompanying ST4.8×50 wood screws. At 65mm
above the four holes, drill a hole of 10mm-diameter and 40-45mm depth (overlarge holes are prohibited).
Insert the M6 metal expansion pipe into the hole. (As shown in Figure 10-1)
3. Adjust the drawing panel: pull the brackets of the panel up to an appropriate height and then pull the
panel sides to find the drawing panel. Remove the protective film, and insert it along the gap between the
decorative panel and the housing. Then adjust it to the proper height.
4. Install the hood body: fix the check valve as shown in Figure 11. Then direct the hanging holes in the
back of hood at the hooks of hitching foots according to Figure 10-1, and press them together. Shake the
body to check if it's hung securely. After the body is mounted, install the hitching foot stopper and gaskets to
the M6 metal expansion pipe, and then tighten the nuts (to prevent accidental decoupling of the body
under external force).
5.Install the drawing panel: as shown in Figure 9 -1 , there are some gap between the drawing panel
and the top plate. Push the panel against the top plate and then fix it to the top plate with ST4×18 screws.
A818
A818
A818

5
6. Install the aluminum exhaust pipe: insert one of the ends in the outer ring of the check valve connection and seal
with exhaust pipe tapes. Then, put four snaps of the check valve connection in corresponding slots, and rotate them
clockwise to fix the exhaust pipe to the check valve.
Insert the other pipe end to the pipe connection and stick with tapes. Straighten the aluminum exhaust pipe to the
outdoors. This can be done directly when the wall hole is larger than the pipe. Otherwise, there are four pipe ends
(OD: 140, 150, 160, and 170 respectively) to be chosen from according to the hole size. Then cut the excess part with
scissors. (Specific steps are shown in the figure below) In case of connection with the public flue, straighten the
aluminum exhaust pipe and connect it to the public flue outlet.

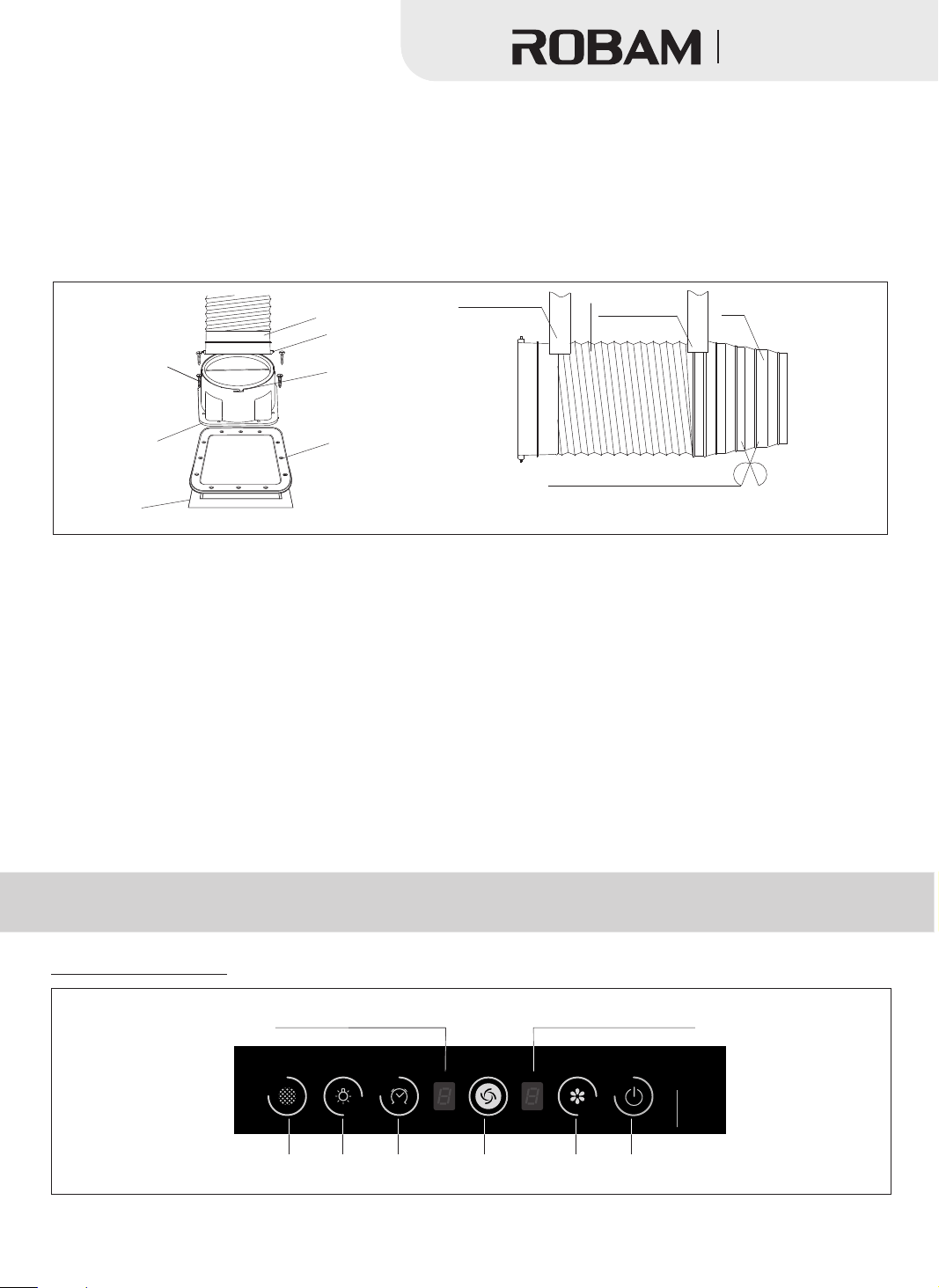

Figure 11
Body
Check valve
Check valve connection
ST4×18 screw
Check valve seals
Note: During installation, straighten the aluminum exhaust pipe to avoid noises
in semi-stretched state. Excess part may be cut with a wire cutter.
Φ175 aluminum exhaust pipe
Exhaust pipe tape Φ175 exhaust pipe connection
Cut the excess part smaller than the hole
Φ180 Φ170 Φ160 Φ150
Φ140
Exhaust pipe tape
Snap
Slot
Use
Switch Control Panel
Figure 12
Light Reservation
Reservation Display Area Airflow Display Area
Cleaning reminder
吸油烟机
Range Hood
7. Install the other end of the aluminum exhaust pipe (reference)
Aluminum exhaust pipe and hob facing the window:
Remove one of the glasses and install a plywood with ventilation holes or punch directly on the glass.
●Hob away from the window:
Install the aluminum exhaust pipe through the window that is close to the hob and connected outside, or
install it by punching on the wall that is close to the hob and connected outside.
●Drill hole through the wall:
Determine the location of the aluminum exhaust pipe against the wall and draw the drilling range (i.e. a circle
slightly larger than the pipe OD). Use a long drill bit to drill through the wall. Pay attention to the wall
structure and material, so as not to destroy other parts of the wall.
The hole diameter shall be close to that of the exhaust pipe. Undersized hole will cause poor
exhaust efficiency, more noises and lower airflow. The connection between the pipe and the hole
or the public flue must be sealed tightly to ensure that, the pipe and the check valve or public flue
is connected securely. The blades at the check valve connection or public flue connection must
be flexible.
Stir-frying Airflow Power

6
Figure 16
Figure 15
Figure 17 Figure 18
Stir-frying Airflow
Power
Reservation Cleaning reminder
Figure 13 Figure 14
Light
Figure 19 Figure 20
吸油烟机
Range Hood
●

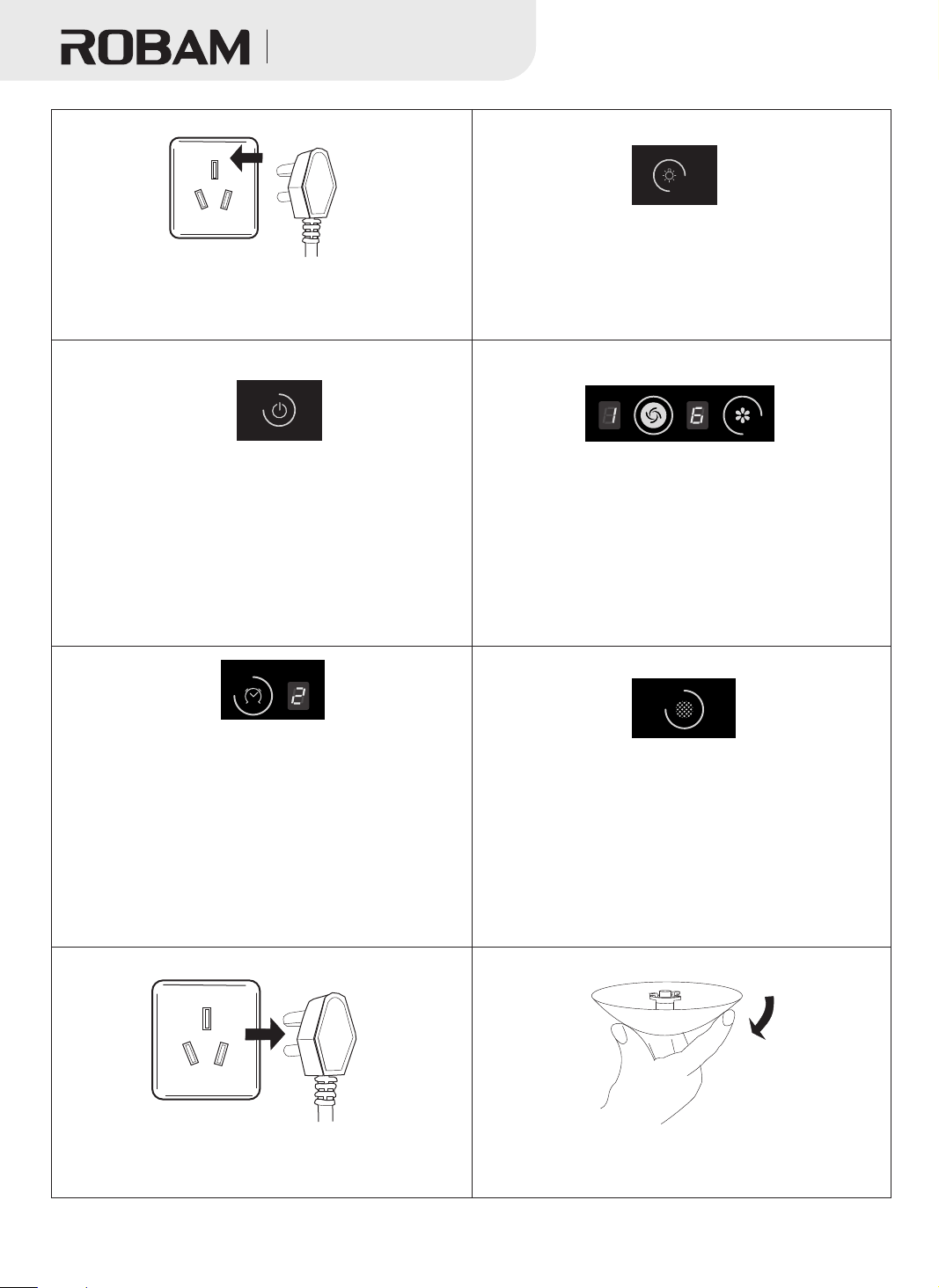

qualified installation. The hood is in standby.
Plug in and a tick from the buzzer will indicate
(The
pict u r e for re f e renc e on l y, plea s e s ubje c t
to actual plug)
●
repress to turn it off. Each press will trigger a tick
from the buzzer. The Lighting Button only controls
the spotlight.
Press the light button to turn on the light and
●
working, the reservation display area will show
“1”, meaning the reservation lasts 10 min. 10
min later, the hood will beep to remind the end of
reservation. Press the button twice, the timer
display area will show “2”, meaning the
reservation lasts 20 min…by this analogy, the
maximum reservation is 60 min. Upon end of
reservation, press any button to cancel the beep.
Press the reservation button when the fan is
●
function. After the hood runs for 60h, the
“cleaning reminder” icon will keep “ ON”
while the buzzer beeps to remind the user to clean
the oil filter. At this time, the user can keep
pr essing th e but to n to ca nc el re mi nd er.
Otherwise, the icon will go “OFF” automatically
after 1 h.
The appliance has a “ cleaning reminder”
●
spotlight is “ ON” , press the power button
gently and the spotlight will be turned off directly;
if the fan is working, press the power button, the
power icon will flash and the fan will be shut down
after 1min. Press the button again, all functions
will be disabled.
When the power icon is lit up and only the ●
display area will show “6” for “3” minutes
and then automatically switch to “Level-3”
airflow. At this time, you may adjust the
airflow via the airflow button. Each press will
trigger a tick from the buzzer and decrease the
airflow by a level.
Press the stir-frying button, the airflow
●Please unplug it during long-term shutdown.
(The picture for reference only, please subject
to actual plug)
●
rotate the cup right to toss away the oil.
When the oil reaches above 2/3 of the oil cup,

Figure 21 Figure 22
7
Maintenance
There is a fire risk if cleaning is not carried out in accordance with the instructions.
CXW-200-8302
Note: Cleaning and maintenance must be done when the power is disconnected. Keep the electrical components
(e.g. motors, switches and connectors) away from water to avoid accidents.

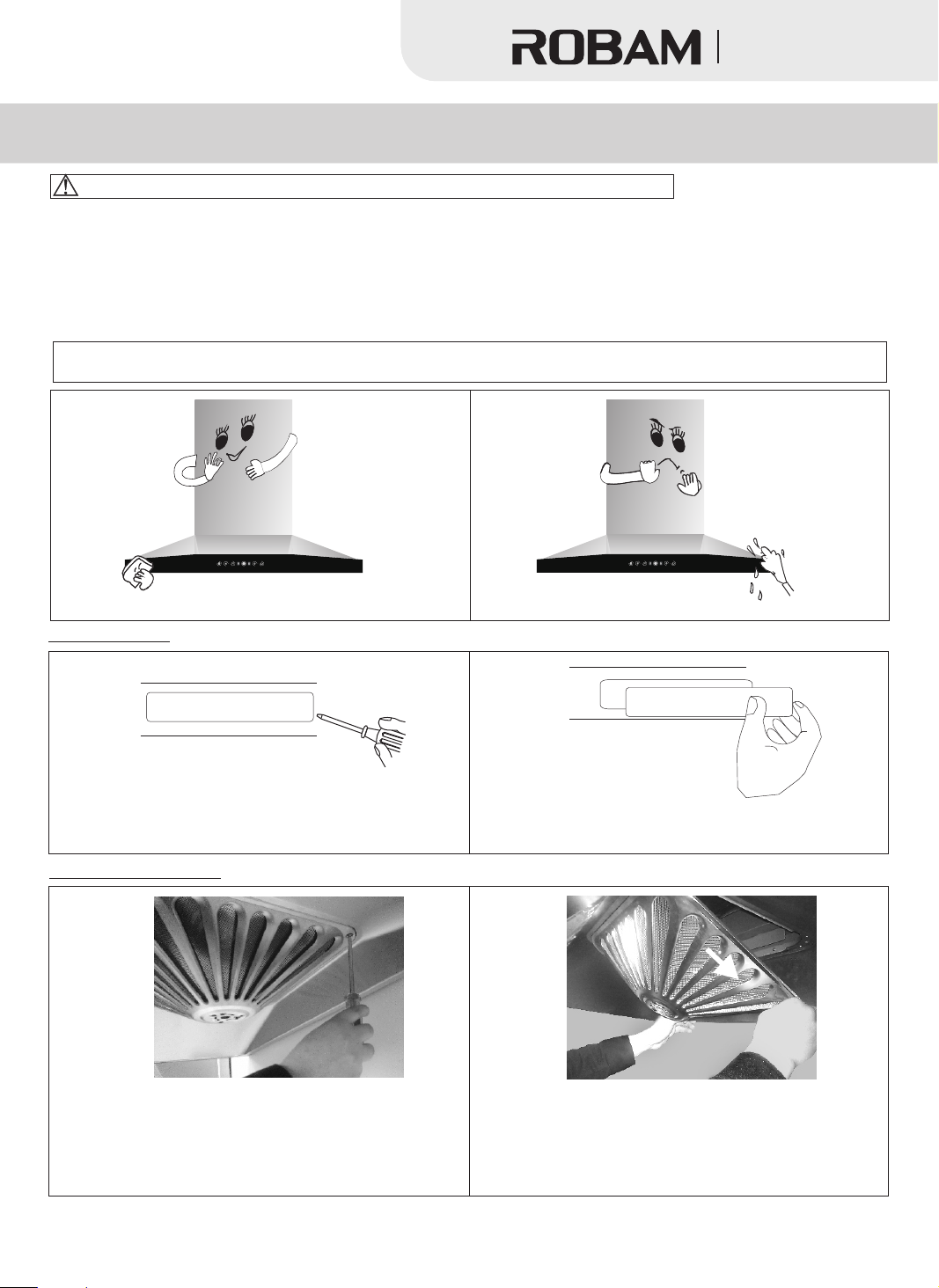

Light Removal
Figure 24Figure 23
Filter Mesh Removal
Figure 26Figure 25
Note: When installing the filter mesh, put the side with screw holes inward.
吸油烟机
Range Hood
The hood shall be cleaned and maintained regularly depending on the surroundings, so as to keep its
cleanness & efficiency and extend its service life.
We recommend to:
●Clean the exhaust fume collecting hood and range hood body after each cooking.
●To ensure smooth discharge of fumes, the filter shall be cleaned regularly with warm water and detergent
according to actual situations. Be careful to avoid damage.
●Suitably wipe it with a wet cloth soaked in mild ● Don't rinse with water to avoid accidents.
●
sharp in the gap between the light cover and hood.
Insert a small flathead screwdriver or something ●
from the hood. Pull out the connector to replace
the spotlight.
Raise it outward forcibly to remove the spotlight
● Align the Phillips screwdriver wit the screw hole
and raise it upward forcibly meanwhile rotating
it counter-clockwise about 120°, so as to
remove the screw out of the cross slot of the
exhaust fume collecting hood.
● Hold the two screws on the filter mesh and pull
it down to detach the two prongs inside from the
exhaust fume collecting hood. Then pull the
filter out in the arrow direction to remove it.
A818 A818

8

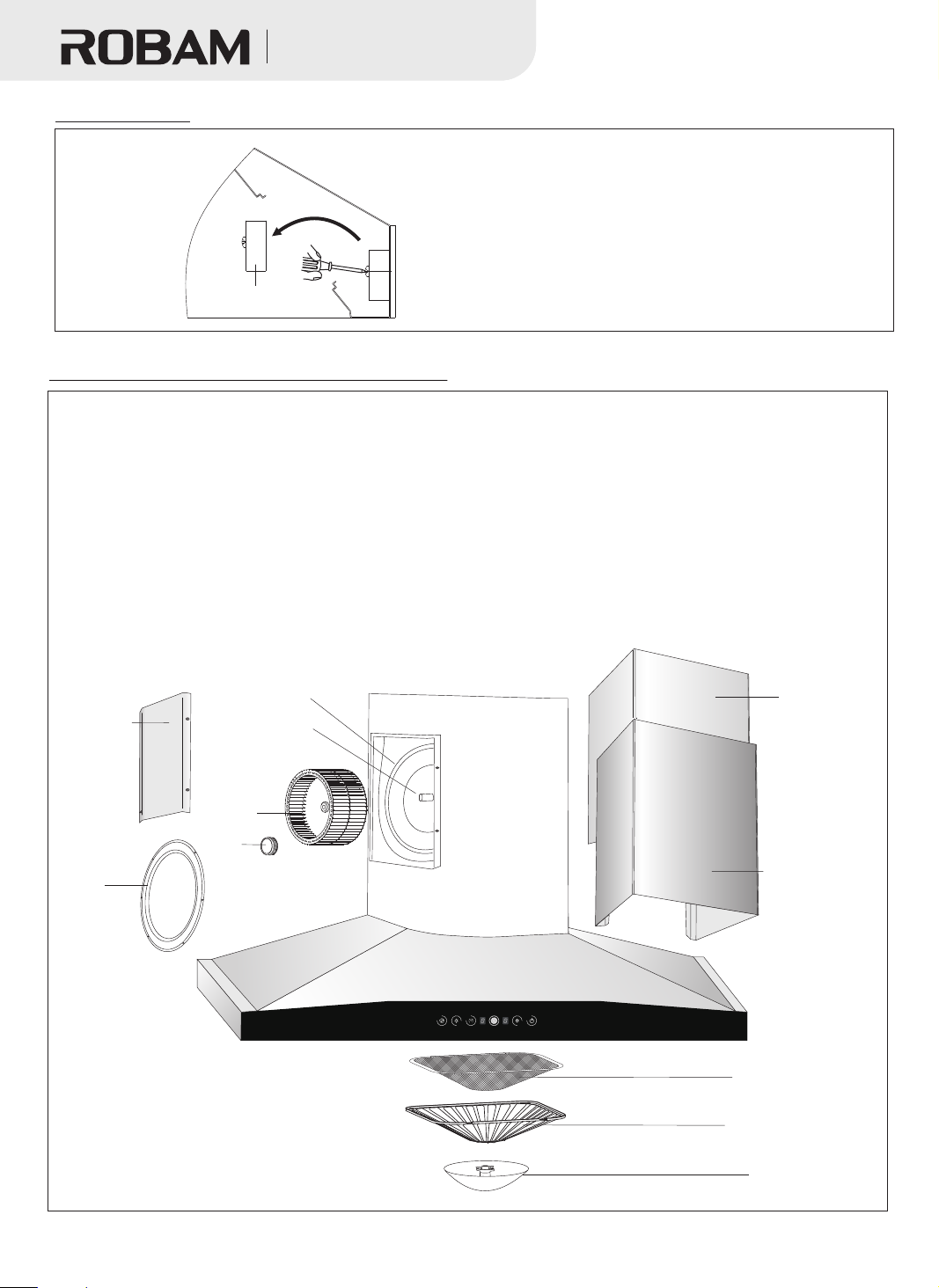

General Plan of Body Installation and Removal
Figure 28
Removal steps:
1. Pull out the plug;
2. Unscrew the four screws from the back of the decorative panel. Tilt the panel forward to a certain
angle, and then pull it up forcibly;
3. Remove the drawing panel from the decorative panel;
4. Use a Phillips screwdriver to unscrew the fastening screws on the cover to remove the cover;
5. Unscrew the fastening screws on the retaining ring to remove the retaining ring;
6. Unscrew the cap clockwise and take out the impeller vertically;
7. Remove the oil cup as shown in Figure 20 and then remove the filter mesh according to Figure 25-26.
The installation and removal procedure in reverse. (When mounting the impeller, apply some lubricant to
the shaft hole.)
Note: Step 3 is unnecessary if no drawing panel is installed.
Impeller
Cap
Air flue
Motor
Retainer ring
Cover pla te
Drawi ng panel
Decorative panel
Note: The light, filter mesh and switch shall be installed in a reverse order.
Switch Removal
Switch accessory
Figure 72
Oil cup
Filter mesh
Filter screen
吸油烟机
Range Hood
●
to remove the two screws on the switch. Push the
switch assembly diagonally upward to take it out
from the lamp hole for repair and replacement.
After removing the light, use a Phillips screwdriver
A818

9
Electrical Diagram
General Troubleshooting
Warning
Cause
Failure
No
1
2
3
4
5
吸油烟机
Range Hood
Spotlight
Motor
Capacitance 500VAC 6μF
Ground terminal
Power plug
Strong extraction switch
Medium extraction switch
Weak extraction switch
Stir-frying switch
Lighting switch
LED
Yellow/Green
Yellow/Green E
Blue
Red
Brown
Orange
Grey
Black
White
Blue
Brown
Blue
Blue
Red
Yellow
Red
Connection box
Control circuit
Function circuit
L
D
220V~ XP
K5
K4
K3
K2
K1
No response after pressing any button
(e.g. the impeller does not rotate,
light is "OFF")
Light "OFF" after pressing the light button
Induced current on the hood body that
paralyzes hands
Abnormal sound during impeller running
No oil in the oil cup after a period of time
The power is not connected
properly or there is power failure
The light is damaged or poorly
connected
The power outlet is not well
The impeller is loose and the
cap is not tightened
The body is tilt
1. Please unplug the
p o w e r c o r d w h e n
connecting the plug-ins
or replacing any part.
2. If the hood's power
cord is damaged, it must
be re placed by our
maintenance staff.
3. Keep the hood
away from fire to avoid
accidents.
For other failures, please contact the vendor, special service center or our service center directly.
Warning
There shall be adequate ventilation of the room when the range hood is used at the same time as appliances
burning gas or other fuels.
- Do not flambé under the range hood.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or
mental capacities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Accessible parts may become hot when used with cooking appliances.
The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest
part of the range hood. When the range hood is located above a gas appliance, this distance shall be at least
65 cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into
account.
-
-

Edition: A/1
