Robam CXW-260-76H1S User manual

CXW-260-76H1S
Range Hood
User Manual
Before operating this unit, please read the user manual completely and keep it. If the manual is lost, you can
send e-mail to [email protected], request for an electronic manual.

Safety Precaution....................................................................................................................1
Important Information..............................................................................................................4
Product .................................................................................................................5Description
Packing List.............................................................................................................................5
Installation...............................................................................................................................6
User Manual..........................................................................................................................10
Maintenance.......................................................................................................................11
Removal of Components.......................................................................................................12
Circuit Diagram......................................................................................................................14
Troubleshooting of General faults..........................................................................................14
CONTENTS

Range Hood
1
Safety Precaution
Subject to harmful or destruct degree
In order to avoid harm or property damage to the users or other person, the following distinction and marks are stipulated.
They are important safety precaution, please comply strictly based on the full understanding.
Danger If ignore this sign and operate product improperly, it’s highly possible to cause danger, serious
injury or fire.
If ignore this sign and operate product improperly, it’s possible to cause danger, serious injury
or fire.
If ignore this sign and operate product improperly, it’s possible to cause injury or loss.
Please use this product according to manual strictly, or ROBAM shall not take any responsible
caused by improper operation.
Notice and Prohibit Mark
Warning
Notice
Warning
Dear users:
Thank for your buying our range hood. Please accept our best regards.Please read this user manual carefully before
installation and operation.
*The pictures in this manual only for your reference. If the picture isn’t accord with object, subject to object. We keep to right
to update appearance, structure or products without notice.
Don't allow children or weakling to use range hood separately, or it may
cause electric shock or other accident.
Prohibit water on motor, switches or other electric parts; Prohibit wash
range hood by water spray. Don’t use range hood if wet or it may cause
electric leakage or shock.
Don’t touch plug, electric parts or button by wet hands, or it may cause
electric shock.
Don’t change, stretch, bind or press electric wire, or it’s possible to cause
electric shock or fire because of broken wire.
Prohibit any change of interior circuit, or it may cause injury or other
danger, for example, electric shock or fire.
Prohibit Touch
by Wet Hand
Prohibit
Prohibit
Prohibit
Prohibit
Danger
Prohibit Prohibit
Flame
Prohibit
Touch
Prohibit
Disassembly
Strict
Execution
Neccessary
Earthed
Caution
Electric Shock
Caution Scald
Prohibit Touch
by Wet Hand
Unplug before cleaning,installing or maintaining,avoiding from electric
shock.
Strict
Execution

Range Hood
2
Please turn off range hood immediately if pan got fire (range hood
shall aggravate fire if it’s working) and extinguish fire by effective action.
For example, cover flame by metal cover, turn off gas valve immediately
and remove inflammable things.
Any abnormal, please turn off power, take off plug or cut off electric
source, and contact service. It’s possible to cause electric shock or fire if
using range hood under abnormal situation.
Strict
Execution
Strict
Execution
Danger
Range hood must be installed, disassembled or maintained by professional
person.
Stove fire shall be extinguished timely when it is not used; do not
flambe under the range hood and it's prohibited to bake food under range
hood directly to prevent range hood from damaging and causing accidents.
Prohibit
In order to ensure safety, range hood must be installed by specific
accessory (especially expansion pipe and wooden screws, or it may
cause accidental drop of range hood). The pipe bore and hole must fit
tightly during the installation of metal expansion pipe. It is prohibited to
make excessively large hole to prevent accidental drop of loosening
expansion pipe.
The range hood must be used by specific plug and properly ground it. It’s
possible to cause electric shock, hot plug or fire because of improper
electric wire. Installation must be executed by professional person based
on local electrical regulations. Before connect electricity, power must be
turned off.
Strict
Execution
Strict
Execution
Strict
Execution
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
Warning
Don’t touch bulb if it’s on or just close in short time, or it may cause scald.
Prohibit Touch
Prohibit
Disassembly
Strict
Execution
All operation must comply with our safety guidelines as well as local
safety regulations.
Strict
Execution
There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels.
Strict
Execution
This appliance just for household use only.And it’s not allowed to exhaust
dangerous or explosive matter or air. It should be put under dry and
ventilation environment without dangerous air.

Range Hood
Strict
Execution
Strict
Execution
The range hood and electric circuit must be installed by skilled and trained
personnel with required qualification. When installation, the related
regulation, standard or instruction on fire must be complied. It may cause
danger because of improper installation, for example, electric shock, drop or
fire accident.
The outlet must be connect with outside. In order to ensure safety and fresh
air, waste gas should be exhaust to outside. Don’t exhaust waste gas to the
wall, loft or garage.
Warning
Strict
Execution
Strict
Execution
There is a fire risk if cleaning is not carried out in accordance with the
instructions.
Keep a good habit to turn off gas hob and gas valve if go outside, sleep
or finish operation. Replace or check gas pipe regularly, since gas alarm
device can’t completely avoid accident caused by gas leakage.
Notice
Prohibit
The air must not be discharged into a flue that is used for exhausting fumes
from appliances burning gas or other fuels, the discharge of air must fulfill
the requirements of local regulations.
3
Strict
Execution
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
Strict
Execution
The minimum distance between the supporting surface for the cooking
vessels on the hob and the lowest part of the range hood. When the
range hood is located above a gas appliance, this distance shall be at
least 650mm. If the instructions for installation for the gas hob specify a
greater distance, this has to be taken into account.
Strict
Execution
Before removing range hood for installation, clean or maintainance, power
must be cut off avoiding from electric shock. When installation, clean or
maintainance, protective gloove must be wear avoiding from injury.
Strict
Execution
Range hoods and other cooking fume extractors may adversely affect the
safe operation of appliances burning gas or other fuels (including those in
other rooms) due to back flow of combustion gases. These gases can
potentially result in carbon monoxide poisoning. After installation of a range
hood or other cooking fume extractor, the operation of flued gas appliances
should be tested by a competent person to ensure that back flow of
combustion gases does not occur.

Range Hood
4
This manual is available for different models. So you may find different description with your own range hood.
4
Important Information
Package of Range Hood
Before use Range Hood
Strict
Execution
Notice
Strict
Execution
Don't break electric wire or other invisible equipment when cutting
something or drilling holes on ceiling.
When the oil exceeds 2/3 or near tick mark in the oil cup, clean it in
time. Don't eat waste oil from oil cup.
When range hood is using in well sealed building, it should have air inlet
or open door to ensure good ventilation.
The wall of installing range hood needs enough strength. For hollow walls,
the thickness of solid layer of hollow wall must be more than 30mm, but for
concrete walls, it can be drill holes directly. The range hood must be fixed on
the wall firmly.
Strict
Execution
Strict
Execution
Because the installation is difficult and hood is heavy, the installation
shall be executed by professional person based on manul.
Strict
Execution
Please settle those packages carefully in order to protect environment.
Don’t allow children to play plastic film and package, it may cause asphyxia. Please avoid children near package material.
This range hood exhaust fume outside.
Please read this manual and all information carefully before installation and operation. Please comply with our suggestion. If
it’s necessary, please read manual for gas hob. And please keep these manual carefully for future reference.
If range hood has obvious damage, please don’t electrify and contact operator.
DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.
This product must not be disposed together with the domestic waste. This
product has to be disposed at an authorized place for recycling of electrical
and electronic appliances.
By collecting and recycling waste, you help save natural resources, and make
sure the product is disposed in an environmental friendly and healthy way.
Strict
Execution
CAUTION:Accessible parts may become hot when used with cooking
appliances.
Strict
Execution
The temperature for range hood working can’t exceed 40℃.

Product Description
Body Size
Packing List
Technical Data
Range Hood
Please check the items in the container upon unpacking
5
Note:
1. The performance test results are all in 230V~50Hz power supply environment. The noise in according to IEC 60704.
2. The determined value of nominal wind pressure,max static pressure shall not be less than 90% of declared value.
3. The noise declared value shown is A weighted sound pressure level.
Rated Voltage
Rated Frequency
The marked sizes are for reference only, the depth dimension includes machine feet. (Unit: mm)
435
204
181
795
457
171
Ø185(outer diameter)
aluminum exhaust pipe
Range hood
Plastic expansion pipe
User manual
Air outlet holder
ST4.2×8 self-tapping screw
4×60 wood screw
Hitching foot stopper
M6 metal expansion pipe
Hitching foot
No. Name Quantity No. Name Quantity
Packing List
1
11
4
3
2
1
4
10
1
9
1
8
12
2
5
4
1
13
6
1
7
6
14
1
Oil cup 1
Pressing strips 1
2
ST4.2×18 self-tapping screw 6
M4×9 screw
(795×204×457)mm
260W
CXW-260-76H1S
500Pa
264W
2W×2
950Pa
44dB(A)
22kg
Dimension (L×W×H)
Rated Main Motor Power Input
Rated Power Input
Net Weight
Noise
Max static pressure
Nominal Wind Pressure
Model
220-240V~
3
1080m /h
Airflow
Lamp Power(max)
50Hz
3
1380m /h
High
Turbo
High
Low
54dB(A)
Note: Please put the oil cup in the box on the hood body when using.
Main hood panel component
Adjustable hook component
Optional
Accessories
Pegboard component
1
2
1
1
1
3
No. Name Quantity No. Name Quantity

Installation
Preparation for installation
If the flue aperture is less than air duct aperture, it will influence the fume suction effect and the too long air duct
will influence the fume suction effect, too.
Range Hood
6
Notice
●Installation and circuit setting must be done by experienced professionals. Only a professionally trained person with an
installation qualification can install the hood. Non-professionals are not allowed to install, dismantle and repair the hood.
●Please do not power on the hood before installation to avoid electric shock.
●Do not expose the hood if your kitchen is under renovation, because construction materials, dusts, paint, coatings, and
emitted gases will corrode and tarnish the hood surface. Therefore, it is recommended to install it after the renovation is
completed.
●If you need move the Gas Hob before installing the Range Hood, please close the main valve before moving the Gas Hob.
●Don't install the hood on wood and other combustible walls. The wall shall be made of noncombustible materials with
enough strength and the surface shall be flat.
●The hood may have very sharp edges. So, please wear protective gloves during hood installation, cleaning or repair.
●When drilling on the wall or ceiling board, keep away from embedded wires and other concealed devices to avoid electric
shock and fire.
●Do not install the hood at a too high position as well as keep the hood free from disturbance of ambient airflow lest the
reduction of smoke pumping effect shall occur.
●When making cabinet, please leave space for installation and disassembly of the hood in order to maintain and overhaul
the hood.
●When installing, please keep the machine body remain horizontal.
●Please use single phase grounded socket and the hood shall be well grounded (water pipe grounding is not reliable and
gas pipeline grounding has risks of causing fire disaster and explosion).
●In order to ensure safety and successful installation, please use standard accessories provided with the hood for
installation, otherwise the hood may be at risk of falling down.
●If the power cord is damaged, in order to avoid danger, it must be replaced by manufacturer, professionals of its
maintenance department or similar departments. Please do not carry out restructuring, stretching, knotting and squeezing or
apply heavy objects to the power cord, etc., otherwise it may cause power cord damage easily, leading to accidents such as
electric shock and fire disaster, etc.
●The installation height of the mounting section is only applicable to electric cookers.The minimum distance between the
supporting surface for the cooking vessels on the hob and the lowest part of the range hood. When the range hood is
located above a gas appliance, this distance shall be at least 650mm. If the instructions for installation for the gas hob
specify a greater distance, this has to be taken into account.
●After installation, please clean the surface of the hood, and then supply power for test run.

Range Hood
●Determine the location:
To ensure a good operating experience, it is recommended that the top of the fume hood be flush with the bottom of
the hanging cabinet. The following three installation methods are listed below according to the reserved size of the
hood, and option a is preferred:
a.Installation method when the width of the hanging cabinet is greater than 800mm (the following installation
method takes 900mm as an example)
The cabinet pre-determined size is shown in Figure 1, the cabinet and ceiling opening size is shown in Figure 2 and Figure
3, the socket location is recommended to be installed above the ceiling.
Removable bottom (shaded space for storage)
projection dimensional drawing
435
175
138
Cabinets removable bottom openings dimensional drawing
Cabinet depth
Cabinet base plate
Wall
Cabinet storage space
175
Installation
Note: All data in synoptic diagram below are recommended dimensions, and units are expressed in mm.
Inside space size900mm
Inside space size900mm
Figure 1
Figure 2-1 Figure 2-2
Ceiling hole sizes(Projection size of the hood top)
265
795
112
Duct drilling size Ø200
204
Figure 3 Wall
7

Range Hood
b. Installation method when there is no hanging cabinet
The size of the cabinet reservation is shown in Figure 4, the size of the ceiling opening is shown in Figure 3,
and the socket location is recommended to be installed above the ceiling.
315-415
800-850 750-850
795
main hood panel (Selection)
≥200
204
405
181
233
c. Installation method when the hanging cabinet width is 435-800mm (the following installation method takes
450mm as an example)
Cabinet pre-determined size as Figure 5, cabinet and ceiling opening size as Figure 6 and Figure 3, socket location is
recommended to be installed above the ceiling.
Note: If this solution is used for installation, users need to purchase special hooks, please contact with the after-sales
service center for specific installation.
181
315-415
800-850 750-850
450
≥200
204
795
233
8
Figure 4
Figure 5

Range Hood
9
Connection the aluminum exhaust pipe
●Drilling position of the aluminum exhaust pipe (public flues do not require drilling)
a.Aluminum exhaust pipe and hob facing the window: Remove one of the glasses and install a plywood with ventilation
holes or punch directly on the glass.
b.Hob away from the window: Install the aluminum exhaust pipe through the window that is close to the hob and connected
outside; or install it by punching on the wall that is close to the hob and connected outside.
c.Drill hole through the wall: Determine the location of the aluminum exhaust pipe against the wall and draw the drilling range
(i.e. a circle slightly larger than the pipe OD). Then use a long drill bit to drill through the wall. Pay attention to the wall
structure and material, so as not to destroy other parts of the wall.
Hitching foot
stopper
●Install hood body
The air outlet seat is fixed as shown in Figure 9, and the hanging hole at the rear of the hood body is aligned with
the hook of the hanging foot as shown in Figure 7, and the hood body is shaken by hand to see if it is hung firmly.
After the hood body is installed in place, put in the M6 metal expansion tube to hang the foot limit block, gasket,
and tighten the nut (to prevent the hood body from accidentally unhooking under the action of external force).
405 55
55 55
629
25±2
180
Limit block
mounting hole
435
450
175
Cabinets removable bottom openings dimensional drawing
7.5 7.5
Figure 6
●Install hitching feet
According to the size of the hitching feet, drill four 60-70mm-deep holes on the wall accordingly with an 10mm-diameter
drill bit (overlarge holes are prohibited). Press the expansion pipe into the holes, and then fix the hitching feet with 4
accompanying 4×60mm wood screws. Drill a hole with diameter of 10mm and depth of 50-55mm at the position 55mm
above the four holes and insert the M6 metal expansion pipe into the hole. (Figure 7)
Figure 7
●Link the aluminum exhaust pipe
First, straighten the aluminum exhaust pipe, put the end without duct fixing strip on the public flue interface and tape it (if there
is no public flue, please pull the duct directly to the outdoor). When the public flue interface or wall hole is larger than the
aluminum exhaust pipe, it can be directly connected, when it is smaller than the duct, you can choose the duct interface. First,
put one end of the aluminum exhaust pipe without duct fixing strip on the duct interface with tape, and then connect it with the
public flue interface. The small end of the duct connector has five specifications: 140mm, 150mm, 160mm, 170mm, and
180mm outside diameter, and the excess part smaller than the public flue connector or wall hole can be cut off according to the
actual situation.
Then, put the four snaps of the air outlet holder interface into the four slots of the air outlet holder and rotate clockwise to fix it.
Finally, the end of the aluminum foil duct with the duct fixing strip is inserted into the outer ring of the air outlet seat interface,
fixed with three ST4.2×8 screws distributed and sealed with duct tape.

Range Hood
10
Figure 8
Note: During installation, straighten the aluminum exhaust pipe to avoid
noises in semi-stretched state.Excess part may be cut with a wire cutter.
Ø185 aluminum
exhaust pipe
Exhaust pipe tape
Ø185 exhaust pipe
connection (Selection)
Cut the excess part smaller than the hole
Ø190
Ø180 Ø170 Ø160
Ø150
Exhaust pipe tape
Ø140
User Manual
Switch control panel
Figure 9
M4×9 screw
Note: Please install the air outlet seat
seal with the adhesive side facing up.
Hood body
S T4.2×18
screw
Air outlet holder
Air outlet holder
connection
Air outlet
holder seal
Buckle
Slot
Pressing strips
High/Turbo
Low/Mid
Lighting Power
Display screen
AI intelligent control
Turn on the power, the buzzer sounds to indicate the power-on state.
Press the power button to enter the power-on state, and the power button icon lights up for a long
time.
①In the state of the fan not running, press the power button to enter the shutdown state;
②In the fan running state, press the power button, the hood will enter the delayed working state,
and automatically turn off all functions after 1 minute; during the delay, the delayed shutdown can be
canceled according to the Ming key and gear key
③In the power-on state, if there is no operation within 3 minutes, it will enter the power-off state.
Power
High/Turbo
The exhaust wall hole diameter shall be close to that of the exhaust pipe, which shall not be too small.
Otherwise, it will cause poor exhaust efficiency, more noises and lower volume, etc. The connection between
the pipe and the hole or the public flue must be sealed tightly to ensurethat, the pipe and the check valve or
public flue is connected securely. The blades at the public flue connection must be flexible.
In the power-on state：
①Press the high/turbo button, the high/turbo icon lights up (the display shows "3") , into the high
gear operation state;
②Then press the high/turbo button, high/turbo icon flashing (the display shows "6"), the fan starts
turbo gear, 3 minutes later automatically switch to high gear, then the icon is long light, into the high
gear operation state；
③Repeatedly press this button, the fan in the "high gear-turbo gear" between the cycle of switching.

11
Notice
Maintenance
●The hood shall be cleaned and maintained regularly depending on the surroundings, so as to keep its cleanness &
efficiency and extend its service life.
We recommend that: Clean the outer surface of range hood after each cooking.
To ensure smooth discharge of fumes, the protective screening shall be cleaned regularly
according to actual situations. Be careful to avoid damage when cleaning.
●It is recommended to use a neutral detergent to clean instead of strong detergents, and dry with a soft cloth. If your
range hood is a mechanical switch, you should also avoid detergent touching each control key.
●Do not allow stains to stay on the surface of the hood for too long.
●Please do not use cleaning balls, brushes and other rough objects to clean the hood to prevent the hood body surface
from scratching.
●When cleaning or maintaining the hood, please wear protective gloves to prevent wounding during wiping.
●Please regularly check and clean the oil cup. As shown in the right figure, hold the oil cup with both hands, pull it out
and pour out the waste oil.
●The range hood shall be started before cooking.
●Please unplug it during long-term shutdown, but please do not pull hard.
Range Hood

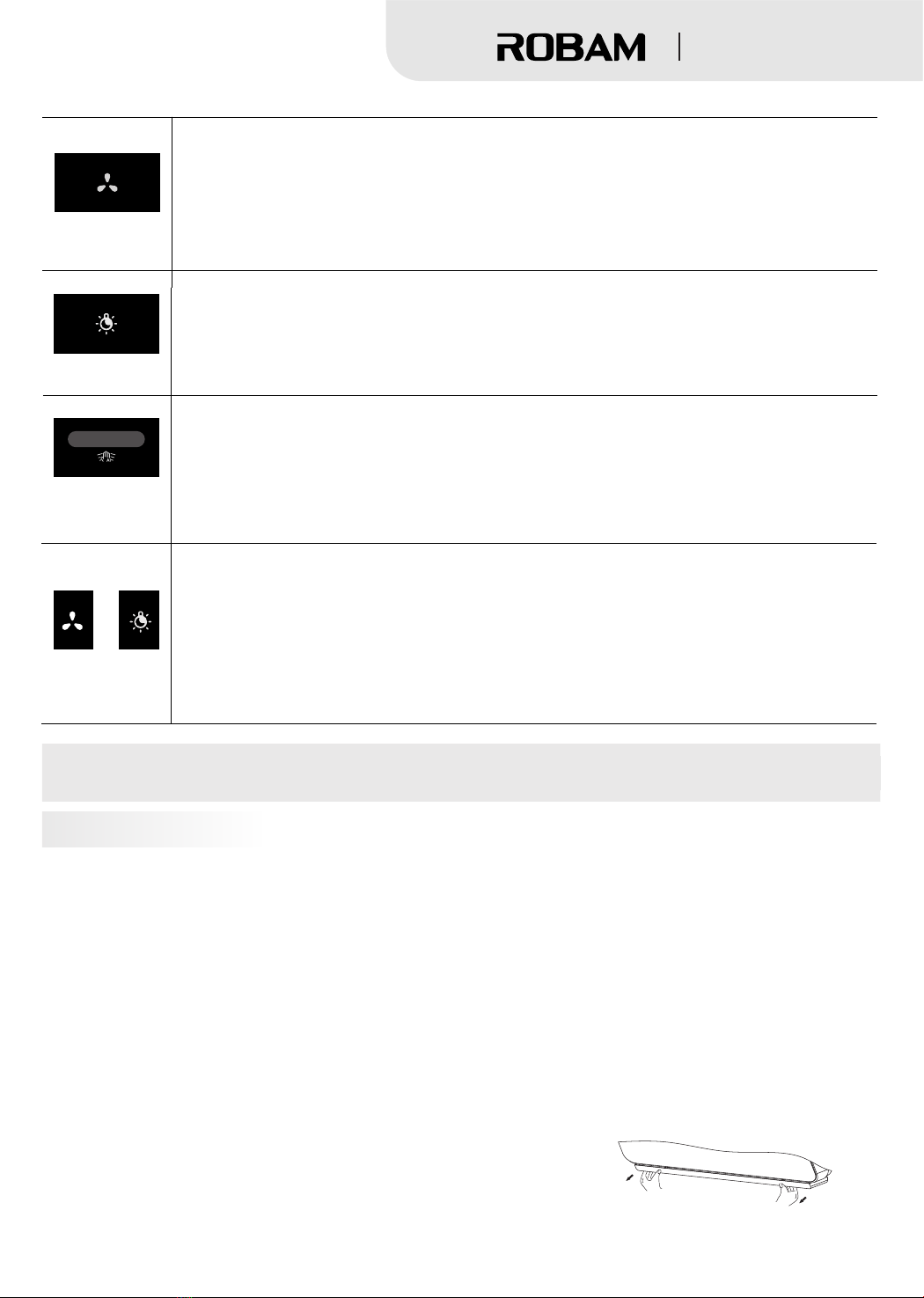

Low/Mid
In the power-on state:
①Press the low/mid , the low/mid icon lights up (the display shows "1") and the fan starts button
working in the low gear;
②press the low/mid again, the low/mid icon flashes (the display shows "2"), and it enters Then button
the medium work;
③Repeatedly press this button, the fan in the "low gear - mid gear" between the cycle of switching.
Lighting
Press the bright button to turn the illumination on, and press the bright button again to turn it off.
When the power button is off, follow the bright button, then the lighting and the air guide will be
opened at the same time.
Note: The initial power-up default light mode is cold light. When the power is off, long press the
bright button to cycle between warm light mode and cool light mode.
AI intelligent
control
Cleaning lock
+
①Hover in front of the detection area can control the switch on and off and synchronize the light
switch, waving from left to right to control the large air volume burst and strong gear switch,
waving from right to left to control the small air volume weak gear and off switch;
②Off state while long press the + low/mid button, you can turn off or on the high/turbo button
detection function, while long press the + lighting , you can turn off or on high/turbo button button
the gesture on the automatic light function.
In the off state, press and hold the low/mid button + lighting key at the same time to enter the
cleaning lock state, low/mid, lighting key icon long light, air guide, lighting automatically open, fan
off. In this case, all keys are invalid except for the following keys.
①according to the bright key, lighting off, low/mid and lighting icon slow flash, again according to
the bright key, lighting on, low/mid and lighting icon long light, and so on cycle;
②simultaneously long press the low/mid button + lighting button to exit the cleaning lock state,
enter the shutdown state, the air guide and lighting off.

12
Lamp information
Lamp image
Lamp Type
Max Power
Voltage
Dimension
Rectangular LED
2W
12VDC
See the lamp image
Romoval of lamp
Range Hood
Romoval of switch
20
Note: The installation procedures of the following components are in reverse with the removal. Please wear protective
gloves during operation to prevent the sharp edge of metal hurting your hands.
Disassembly must be carried out by professionals, and users are not allowed to carry out disassembly. Unplug
before installing or disassembling, avoiding from electric shock.
Removal of Components
54 16.8
●Long press the low/mid button + lighting button to make the air guide open, then unplug the power supply.
●Use a screwdriver or a flat metal object to insert into the slit of the edge of the LED lamp, force outward, remove the
LED lamp and unplug the connecting wire, you can repair and replace.
Wind deflector
LED lamp
●Use suction cups to suck the middle of the switch assembly, pull it out vertically, and unplug the connecting wires for
repair and replacement.
Switch Components

13
Range Hood
Romoval of filter
Romoval of the hole range hood
In general,the range hood body does not need to remove.
The removal needs to be completed by professional
maintenance staff.
Oil cup
●Long press the low/mid button + lighting button to make the air guide open, then unplug the power supply.
●Remove the screws on the left and right sides of the screen by rotating 90° counterclockwise with a screwdriver
against the screw holes.
●Put your fingers into the filter hand holes on both sides, hold the filter and lift it upwards, so that the lower end of the
filter can be removed from the slot.
Filter mesh hand hole
Filter mesh slot
1. Remove the LED lamp and filter according to the steps of "Romoval of lamp" and "Romoval of filter", respectively.
2. Unplug the power supply, remove the oil cup and take off the whole machine.
3. Remove the switch assembly according to the steps in "Romoval of Switch".
4. Remove the screws on the rear panel and remove the rear panel and power board.
5. Remove the air duct assembly by unscrewing the screws on the air duct assembly.
6. Unscrew the retaining ring and rectifier mesh screws to remove them, while screwing down the cap clockwise to
remove the impeller vertically.
The installation procedure is the reverse of the disassembly procedure. (When putting on the impeller, please put some
lubricant in the shaft hole of the impeller)
Note: If there is a host panel and host attached panel installed then remove them first.
Hood body
Cap
Motor
Retaining
ring
Rectification
network
Impeller
Air flue
Rear side acoustic foam
Backboard
Power supply board
Glass components
Terminal box cover
Pusher motor
LED Lamp Filter mesh
Switch Components
Terminal box
Filter mesh
Filter mesh

14
Circuit Diagram
Troubleshooting of General faults
220-240V~
Operating
circuit Electric putter
Range Hood
Green/Yellow E
Terminal box
Control circuit
L
NXP
EL
white W
red V
black U
brown
blue
K5
black
blue
red
EL
Mhigh
voltage
module
black
blue
red
Plug in the power plug
Replace the light or plug in the plug
Use single-phase three-pole
socket and well grounded
Tighten the cap
Adjust the hood body
to the horizontal state
Cause
Fault
Serial
number
Warning
The light is damaged or
poorly connected
The impeller is loose, and the
cap is not tightened
The power plug is not connected
properly or there is power failure
The power socket is not
grounded well
No response after pressing any icon
(e.g. the impeller does not rotate,
or the light is off)
Pressing the lighting icon, the
headlamp is not lit
Induced current exists on the hood
body may paralyze hands
Abnormal sound during impeller running
1
2
3
4
No oil in the oil cup after a
period of time The hood body is tilt
5
Solution
1.When connecting or replacing the plug, please unplug the power plug.
2.If the range hood's power cords are damaged,it must be replaced by our company's professional
maintenance staff.
6
Open the air guide in the process of
hearing a few beeps prompt, or the air
guide can not open completely
Electric actuator drive circuit
failure, or electric actuator
failure, or electric actuator
wire poor contact
Contact a repair professional
drive circuit

Edition: A/0
Publication Date: October, 25, 2022
