Robam CXW-200-A811 User manual

Operation Manual
Range Hood
CXW-200-A811

CONTENTS
1.Important Information..............................1
2.Product Overview...................................1
3.Installation.........................................2
4.Use Instruction.....................................5
5.Maintenance and Services....................6
6.Circuit Diagram.....................................9
7.General Troubleshooting........................9

1
吸油烟机
Range Hood
Improper operation may cause hazardous effect.

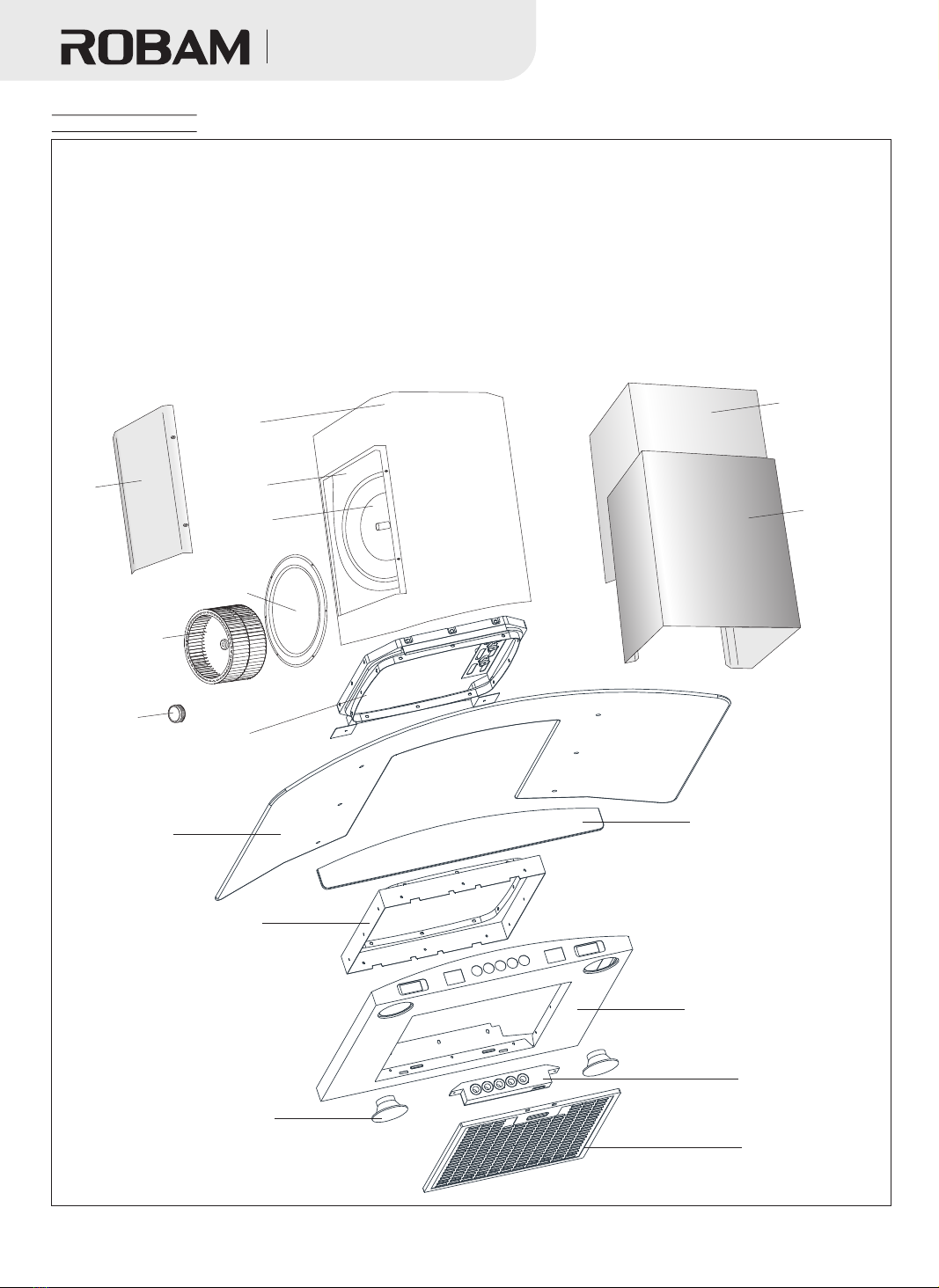

Picture 1
≤W2 ×2
204W
200W
Size（L x W x H）
Thank for your buying our range hood. Please accept our best regards.
Please read this operation manual carefully before installation and operation.
Rated Main Motor Input Power
Max Lighting Power
Rated Whole Machine Input Power
Net Weight
Noise
Important Information
Product Overview
220-240V~ 50Hz
≥220Pa
≥310Pa
16 m/min
3
≥22%
CXW-200-A811
Max Static Pressure
Total Pressure Efficiency
Nominal Wind Pressure
Model
Power Supply
Air Flow Rate
Dear Users
895×500×545(mm)
25kg
Panel
Switch
Glass Cover
Glass
≤56.5dB
+1
-2
Technical Paramater
New Package of Range Hood
Please settle those packages carefully in order to protect environment.
Don’t allow children to play plastic film and package, it may cause asphyxia. Please avoid children near package
material.
Dispose Old Range Hood
If the old range hood can’t work, we suggest users to dispose them after confirming without any usage.
There are something useful material inside of old range hood, please assist us to dispose so as to protect environment.
Before use new range hood
This range hood exhaust fume outside.
Please read this manual and all information carefully before installation and operation. Please comply with our
suggestion. If it’s necessary, please read manual for gas hob. And please keep these manual carefully for future reference.
This manual is available for different models. So you may find different description with your own range hood.
If range hood has obvious damage, please don’t electrify and contact operator.
Children and disability are not allowed to use range hood independently in order to avoid accident.

2
吸油烟机
Range Hood
Installation
Warning
2 In installing metal expansion tube ensure perfect match of tube diameter with hole diameter to prevent
accidental falling off loosened expansion tube due to excessive hole expansion
. ,
from .
3 Use range hood in case of gas or other fuel combustion and ensure ventilation in the room. good .
4 Flue opening smaller than that of the air duct or excessively long air duct will effect the fume removal. .
Preparation
Ambient environment
Range hood shall be installed away from positions with too many windows or doors, which will lead to
strong air convection and thus reduce the effect of fume removal.
Tools：
Installing range hood requires the following tools:1.impact electric drill(with drill bit);2.Wrench;
3.Screwdriver;4.Ruler
Size & Dimension
Packing List
S/CName Quantity
S/CName Quantity
1
10
3
2Plastic expansion tube
Operation Manual
1unit
4unit
1unit
ST 4x18tapping screw 10unit
Packing List
Picture 2
11
Oil cup 1unit
Range Hood
7
6
5
4Check Valve 1copy
Bracket
4unit
13
12
ST 4x60wooden screw
8
Stop block for bracket
M6 metal expansion tube
1pair
14
1pair
1unit
Φ175 aluminum foil's air duct
Φ175 air duct's interface
Adhesive tape
Fixed bar of air duct
1pair
Note: The size just for reference.
Note: This product must be used in the daily life. Don't use it under special situation(for example:
outside ),Meanwhile ,don't use this product to exhaust dangerous explosive material or gas . This
product must be placed under safe circumstance before installation. ( dry, good ventilation,
non-corrosive and innoxious ,etc)
9
1.The range hood is prohibited from exhausting fume into hot flue ,which is used for exhausting
gas fuel or other fuel fume.
Note:Pls install the oil cup as operation manual of the picture 20.

吸油烟机
Range Hood
free from external airflow to prevent reduced the
effect of fume removal
Don't install the range hood too high and keep it
Please reserve sufficient space when making
cabinet in order to maintain and repair hood. Keep hood horizontal when installing
Warning：The height from hood bottom to the
cooktop should be not less than 650mm.(see
installation in details).Don't allow to contact
fire with range hood directly. Forbid gas stove
from getting fire to prevent damage of range
hood or happening of accident.
Picture 3Picture 4
Picture 5Picture 6
Please pay much attention to following:
If your kitchen is under installation, please don’t divulge range hood outside, because the smell from building
material, dust, painting, coating material may cause rust. We suggest users to install range hood after decoration.
Don’t allow to install range hood on the wall which is easy to fire, for instance, wooden wall. Please install range
hood on the wall where has enough space and strength for noncombustible material.
Range hood and electricity must be installed by specific operation. Don’t allow to install, disassembly and
maintenance range hood by non-professionable person.
Please ware glove when moving, installing, cleaning or repairing range hood.
Please be care of electricity inside of wall when operator digging holes on the wall. It may causes fire.
Picture 7
(The picture for reference only, please subject
to actual plug)
Use fittable plug and earthed.
Tap water pipe
improperly earthed
It's dangerous of fire and
explosion to earth gas pipe.
Picture 8
Explosive
Tap water pipe
Gas pipe
Installation Precautions
3

4
吸油烟机
Range Hood
Installation
1、Location:Reference dimension for mounting of removable baffle is 430(mm),but subject to adjustment according
to actual situations. The installation hole(picture 10) shall be centered vertically with the hood body and kept horizontally.
Operator shall install range hood upright the gas hob with recommended lowest height between hood bottom and cooktop
is 650mm (if maximum installation distance is specified in the instruction of installation, this shall be taken into consideration;
The installation height can be reduced according to actual situations when there is electric hob).
Picture 9
Top plate
600-800mm
650-750mm
800-900mm
Vice motor panel
10mm
Top Plate
Removable Plate
Removable baffle
600-800mm
650-750mm
800-900mm
10mm
(Picture 9-1 mounting without removable baffle)(Picture 9-2 mounting with removable baffle)
Motor panel
Stand for motor panel
ST4X18tapping screw
2.Installing hanging plate: drill four 60-70mm-deep holes by Ф8mm drill bit at positions corresponding to the
hanging plate dimension.Force the expansion tube into the holes and fasten firmly the hanging plate by the supplied
four 4x60 wooden screws. Drill a 50-55mm-deepФ10mm hole at position 65mm high from the four holes and force
the M6 metal expansion tube into the hole.(picture 10-1)
3
4
5
.Adjusting the vice motor panel:hold the holder of the vice motor panel,and pulling it into the proper
height,then pulling the vice motor panel with two hands by both side of the panels. Pull it upward to adequate
height and tear off its protective film.
.Installing hood body: As shown in Picture11, align the hanging holes at back of the hood body to the hooks on
the hanging plate and slide the body in by pressing and shake by hands the body to see if it is firmly hang(shown
as 1 0-1). When the body is ready in place, install safety stop block and gasket on the M6 metal expansion tube
and fasten firmly the nuts to prevent the hood body from running out of the hooks under external force.
.Adjusting and installing vice motor panel: as shown in Picture 9-1,about 3 centimeter gaps is left between
the vice motor panel and the ceiling,push the vice motor panel against the ceiling till it contacts, then fasten the
vice motor panel on the ceiling by ST 4x18 screws.
Ceiling hole size picture
Projection size on the
top of range hood
Wall
Duct hole sizeφ200mm
Picture 10-1
Mounting
Stop block for bracket
Picture 10-2
370
500
430
235mm
110mm
55mm 55mm
505m m 65±2mm
35±2 mm

5
Use Instruction
Control Panel
Auto Light Low High Power
吸油烟机
Range Hood
Picture 11
Firstly, fasten one side of aluminum foil’s air duct without fixed bar on the interface by adhesive tape, then straighten
air duct with the interface of public flue and connect it. (Without public flue, please straighten air duct outside of room.
When the interface of public flue or the size of wall’s hole is bigger than aluminum foil’s air duct, it can be connected
directly; When it’s smaller, there are four specification for the interface of air duct, such as 140mm, 150mm, 160mm and
170mm. The users can cut additional parts based on actual situations.
Then, fasten one side of aluminum foil’s air duct with fixed bar in the external ring of check valve by adhesive tape.
Finally, put 4 fasteners on the interface of check valve into corresponding groove, and fasten air duct on the check
valves clockwise.
Check valve interface
Φ180 Φ170 Φ160 Φ150
Φ140
Fastener
Groove
2) Connect aluminum foil’s air duct
Φ175 aluminum foil's air duct
Adhesive tape Φ175 air duct's interface
cut additional part which smaller than wall's hole
Notice: Please straighten the aluminum foil's air duct when installing
this product to avoid noise under incompletely straight condition. The
additional air duct can be cut by wire-cutter.
Check valve
Body of machine
Seal ring of check valve
ST4X18 screws
Adhesive tape
The hole diameter on the wall shall be near to that of air duct and shall not be too small. Otherwise, it will lead
obstructed exhaust, higher noise and lower air flow rate. The interface between air duct and check valve or public
flue must be sealed completely and connected firmly. The sheet on the interface of check valve or pubic flue’s
interface must move smoothly.
6. Install aluminum foil’s air duct:
1) Drill hole position for aluminum foil (for public flue, don’t need to drill holes)
a. Aluminum foil and cooktop faces to window: disassemble one side glass, and install one plywood with holes, or
open holes on the glass directly.
b. Cooktop keeps far away from the window: Select the window nearest to the outside with good ventilated to install
aluminum foil across the window; Or drill hole on the wall nearest cooktop and install aluminum foil across the wall.
c. Drill holes on the wall: measure aluminum foil’s position on the wall, draw the hole’s scope on the wall ( circles
slightly larger than the diameter of aluminum foils), then drill holes through the wall. Don’t destroy the outside wall,
so when drill holes, please take care of wall’s structure and materials.

Pull out power plug in case not being used for.
6
When plug is connected well ,buzzer sounds three
times and hood enters into waiting condition.
High
Press the power button, the light of "power "button
turn on,press "high Speed" button,the motor works
with high speed.if press the "low speed" button,it
will work in the low speed states.
Low
Light
Lightly touch "Light" key by finger, its lamp turns
on and press "Light" key again, its lamp goes out.
(Lighting lamp turns off)
After ensuring power is on, lightly touch "Light" key by finger, its lamp
turns on and press “Light" key again, its lamp goes out(Lighting lamp
turns off);If the motor is running,touch "power"button,the "power"button
will be shinning,goinginto delaying state and range hood shall be turn off
all functions after 1 mins.(in the delaying states,the button of “high speed”
and “low speed” are not functional).If the “power"button is shining,press
the "power"button again to swith off all functions.
Power
After connect with power,press "power" button,
the light of "power" turn on,press "low speed",the
motor works with low speed,press "high speed"
button again,it will switch into high speed level.
When the power light is on, please press the key of Auto, the smoke senor
and heat senor function are open, if the smoke density or the temperture
exceed the default, the range hood will start to work in high speed level,
and the button of “high speed" light is on. Press "power" button to cancel this
function.
Auto
Please take off the flat filter according to Picture
25 shown. Please put the oil cup in the range hood
along the direction of arrow. If the oil over than 2/3
of the oil collector, take out the collector, and drop the
waste oil.
吸油烟机
Range Hood
Maintenance and service
oil cup
If don’t clean range hood under specified methods,it may be liable of fire.
Picture 13 Picture 14
Picture 15 Picture 16
Picture 17
Picture 18
Picture 19 Picture 20

For safety concern ,do not wash the range hood
by water spray.
Wipe with wet cloth soaked in neutral detergent.
7
Remarks: Put the lampshade to smoking collection cover by hand when install the lampshade.
Range hood shall be cleaned at regular intervals depending on the environmental conditions to keep clean and
good effect ,it's helpful to extend service life.
Our suggestion: To ensure smooth fume removal ,oil guide mesh should be cleaned every month .Impeller should
be cleaned once every year by professionals.
Noted: Maintenance and cleaning shall be carried out when power off.
Pull out the lampshade with connector, and
change to a new one.
.Remove the lampshade by screwdriver
Put finger to the lock of oil filter ,move it ,then take
out of filter.
Remove 6 screws on the glass cover by screwdriver,
then pull down the glass cover.
吸油烟机
Range Hood
Remove the screws of components by screwdriver,
then maintenance or change it.
Remove the two screws of gas sensor and heat
sensor by screwdriver ,then maintenance or change it.
heat sensor
gas sensor
Dismounting of lampshadel
Dismounting of oil filter Dismounting of heat sensor and gas sensor
Dismounting the switch
Picture 21 Picture 22
Picture 23 Picture 24
Picture 25 Picture 26
Picture 27 Picture 28

Impeller
Cap
Duct
Cover Plate
Baffle ring
Motor
Shell body
Decorative
tube
Draw tube
8
Connection
Glass cover panel Glass panel
Smoke canopy
LED light
Flat filter
Switch
Transition
1.Pull out power plug;
2.Screw off 4 screws behind the decorative tube and incline the decorative tube forward to certain
angle and put it out by force with bands;
3.Take out drawing tube from the decorative tube;
4.Remove the cover plate after screwing off the fastening screws by screwdriver;
5.Remove the baffle ring after screwing off its fastening screws;
6.Screw off cap cover clockwise and vertically take out impeller;
7.Remove 6 fastening screws on the surface of glass cover panel. Take out of glass cover.
8. Please take out the flat filter according to the picture 25 ;take off the oil cup according
to the picture 20 .
The assembly steps are just opposite to the disassembly .In assembling impeller, apply lubricant to
the axle hole of the impeller.
Notice: Don't follow with steps 3 without draw tube.
吸油烟机
Range Hood
Dismounting steps
Picture 29

EL:
M:
C:
XP:
E:
M
Warning
There shall be adequate ventilation of the room when the range hood is used at the same time as appliances
burning gas or other fuels 。
- Do not flambé under the range hood.
- Regulations concerning the discharge of air have to be fulfilled.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or
mental capacities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Accessible parts may become hot when used with cooking appliances
The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest
part of the range hood. When the range hood is located above a gas appliance, this distance shall be at least
65 cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into
account.
-
-
吸油烟机
Range Hood
General Troubleshooting
Circuit Diagram
LED lamp
Motor
Capacitor 500VAC 5
Power Plug
Earthing Terminal
9
1.When connecting
accessory or replacing bulb,
please pull out power plug;
2.If power wires of range
hood damaged, replace
them by professionals;
3.Don't allow to exhaust
flame through range hood.
Warning
Lamp damaged or improperly
contacted
Loose impeller,cap not properly
fastened
Plugs improperly plugged or
power off
Plug improperly earthed
Reasons
No reaction in pressing any switch(such as
impeller does not run and lamp does not light)
Lamp fails in pressing lighting switch
Induction current on hood surface
Abnormal impeller sound
ProblemNo.
1
2
3
4
No oil in oil cup after some time Inclined installation of hood
body
5

Edition: A/2
