Robam CXW-200-A866 User manual

CXW-200-A866
Range Hood
Operation Manual
Before operating this unit, please read the operation manual completely and save it.
A866

Safety Precaution.........................................................................................................1
Important Information....................................................................................................3
Product Overview.........................................................................................................4
Packing List.................................................................................................................4
Installation...................................................................................................................5

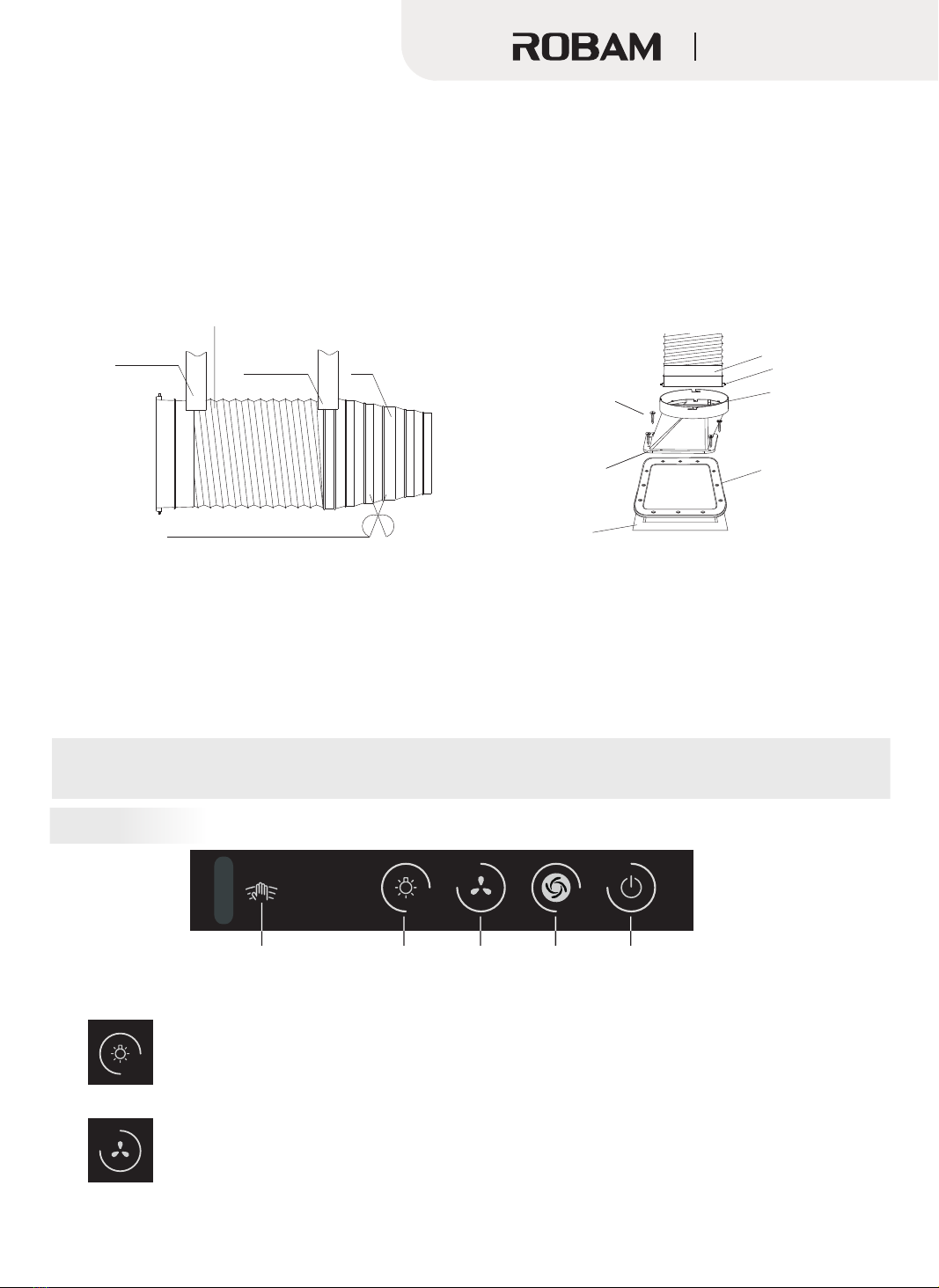

Use Instruction............................................................................................................7

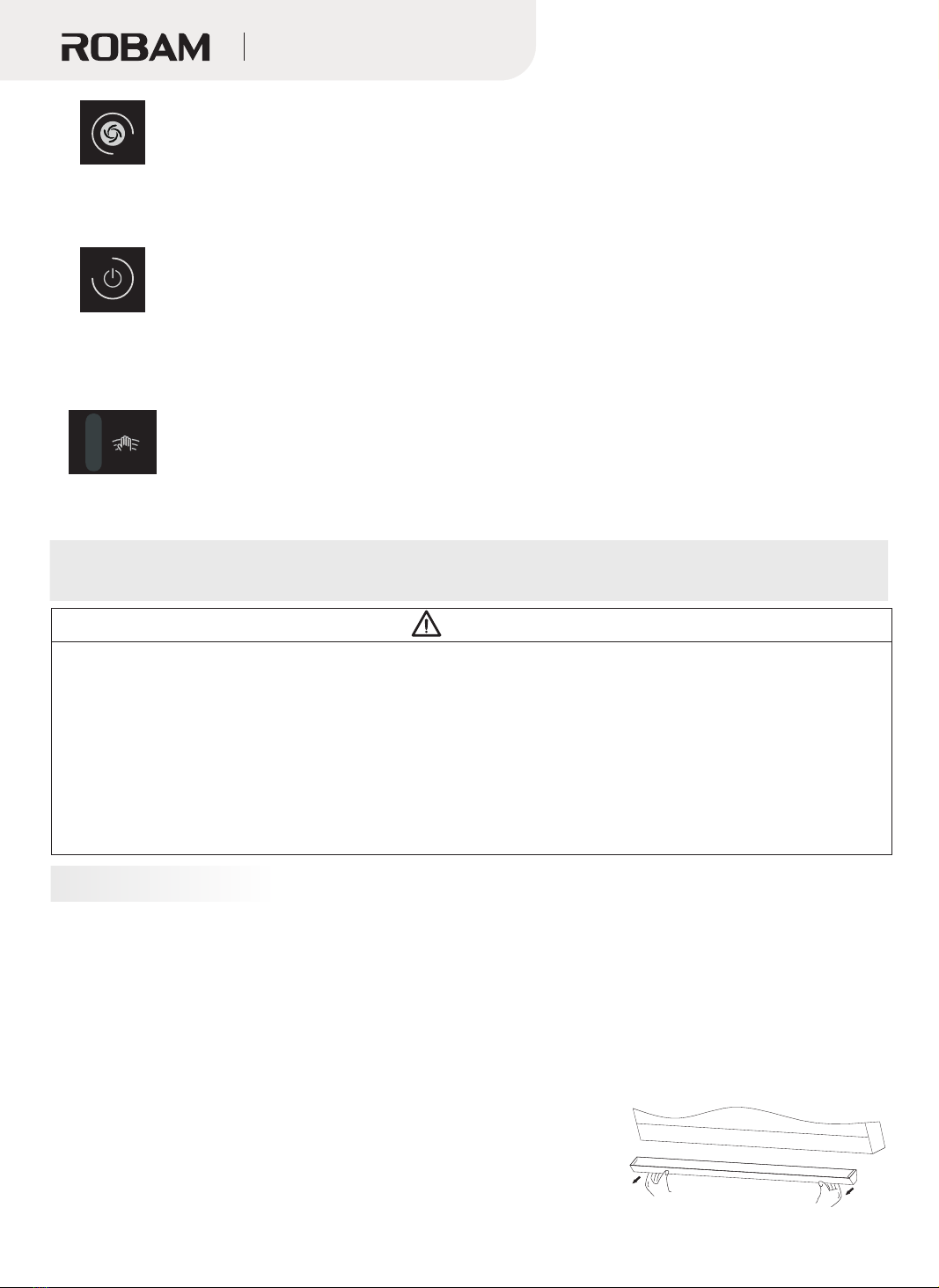

Maintenance and Services...........................................................................................8

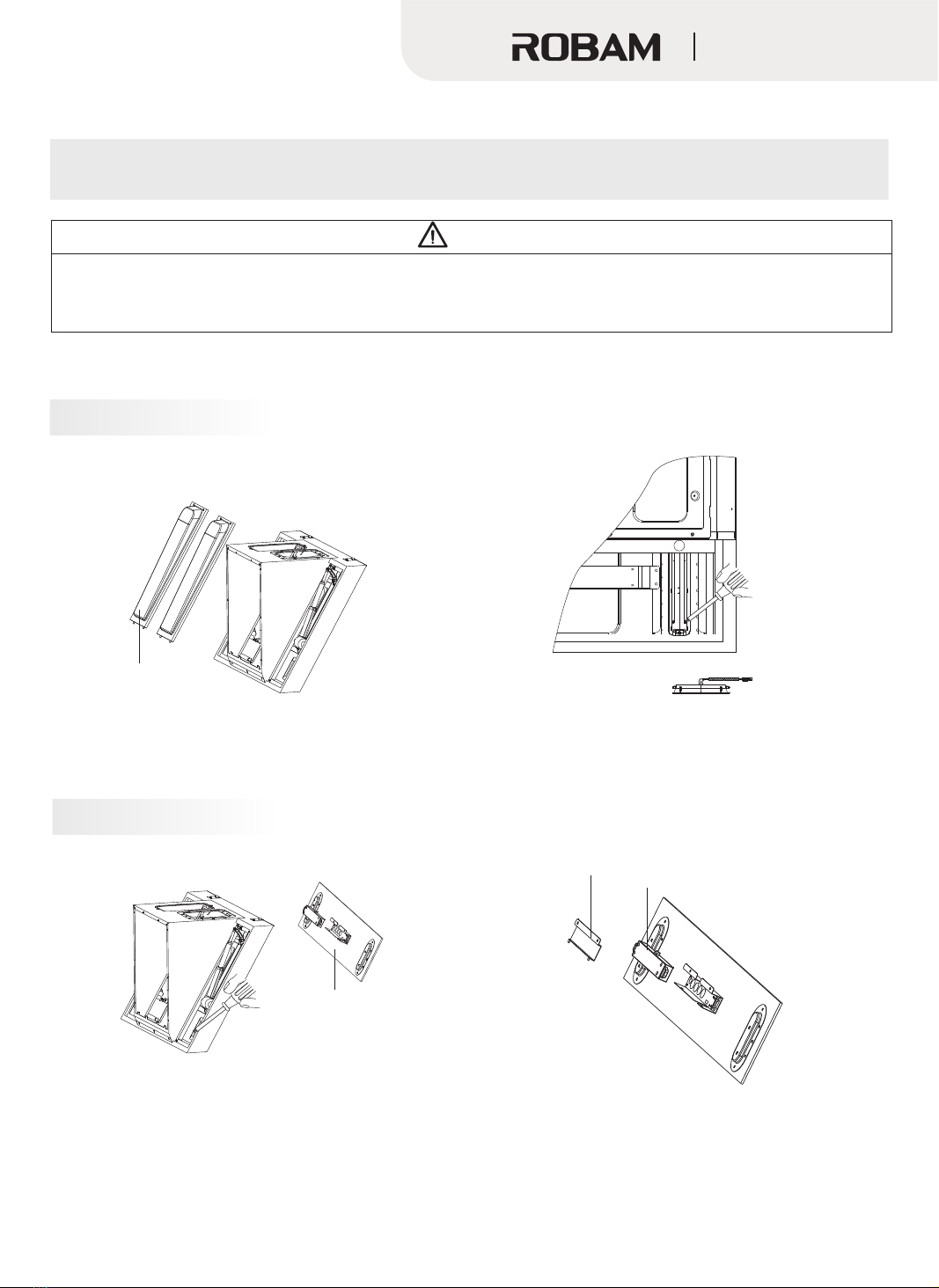

Prats Removal.............................................................................................................9

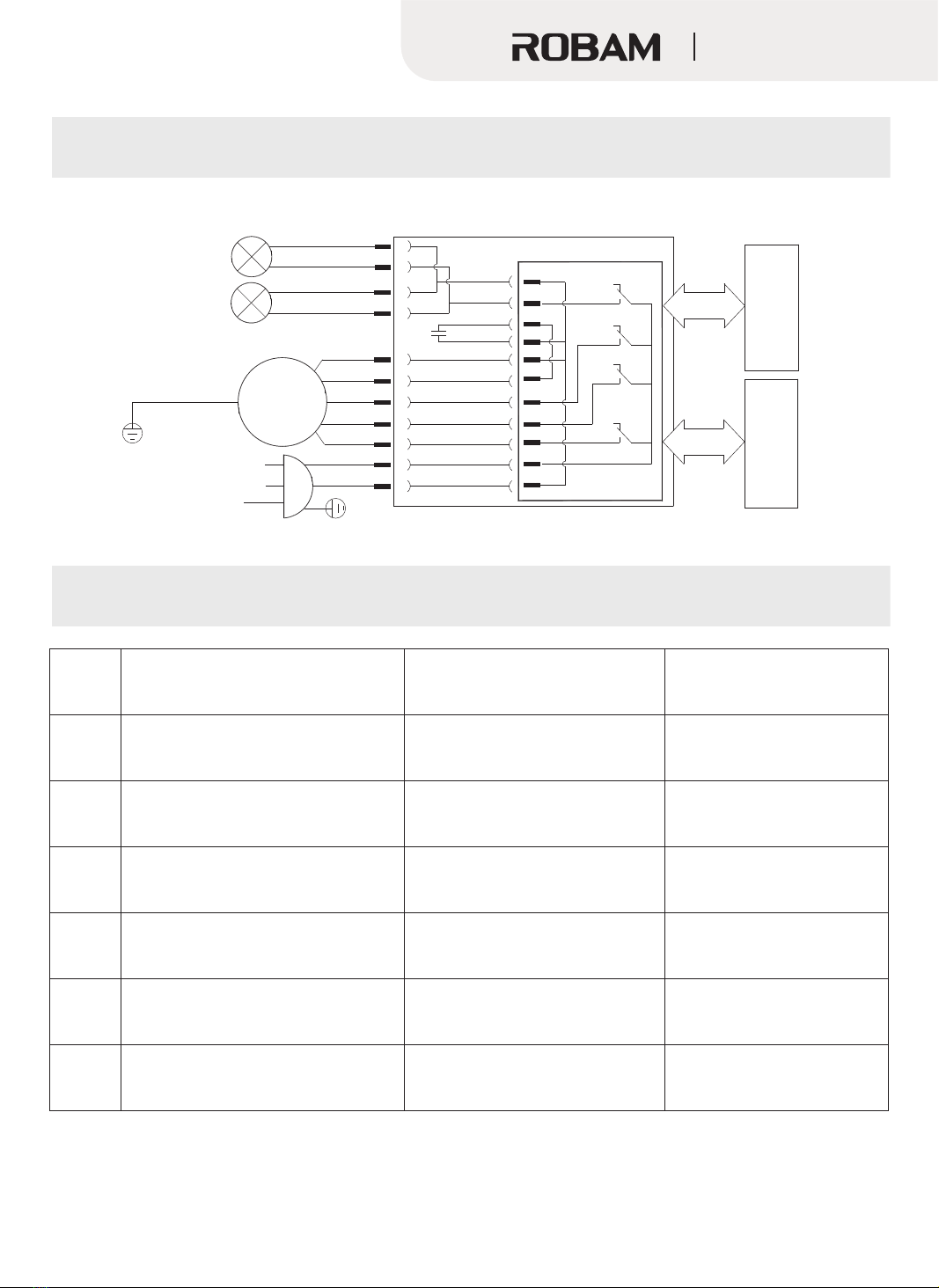

Circuit Diagram..........................................................................................................11
General Troubleshooting.............................................................................................11
CONTENTS

Prohibit water on motor, switches or
other electric parts; Prohibit wash range
hood by water spray. Don’t use range
hood if wet or it may cause electric
leakage or shock.
Don’t touch plug, electric parts or
button by wet hands, or it may cause
electric shock.
Safety Precaution
Subject to harmful or destruct degree
In order to avoid harm or property damage to the users or other person, the following distinction and marks
are stipulated. They are important safety precaution, please comply strictly based on the full understanding.
Danger If ignore this sign and operate product improperly, it’s highly possible to cause danger,
serious injury or fire.
If ignore this sign and operate product improperly, it’s possible to cause danger, serious
injury or fire.
If ignore this sign and operate product improperly, it’s possible to cause injury or loss.
Please use this product according to manual strictly, or ROBAM shall not take any
responsible caused by improper operation.
Don't allow children or weakling to use
range hood separately, or it may cause
electric shock or other accident.
The electric wire must be cut off before
clean, install or maintain range hood
avoiding from electric shock.
Don’t change, stretch, bind or press
electric wire, or it’s possible to cause
electric shock or fire because of broken
wire.
Prohibit any change of interior circuit,
or it may cause injury or other danger,
for example, electric shock or fire.
Pl ea s e t u rn o ff range ho o d
immediately if pan got fire (range
hood shall aggravate fire if it’s working)
and extinguish fire by effective action.
For example, cover flame by metal
cover, turn off gas valve immediately
and remove inflammable things.
Any abnormal, please turn off power,
take off plug or cut off electric source,
and contact service. It’s possible to
cause electric shock or fire if using
range hood under abnormal situation.
Notice and Prohibit Mark
1
Warning
Notice
Danger
Prohibit Prohibit
Flame
Prohibit
Touch
Prohibit Touch
by Wet Hand
Prohibit
Disassembly
Strict
Execution
Neccessary
Earthed
Caution
Electric Shock
Caution Scald
Warning
Prohibit
Prohibit Prohibit
Prohibit Strict
Execution
Strict
Execution
Strict
Execution
Prohibit Touch
by Wet Hand
Dear users:
Range Hood
Thank for your buying our range hood. Please accept our best regards.Please read this operation manual
carefully before installation and operation.
*The pictures in this manual only for your reference. If the picture isn’t accord with object, subject to object. We
keep to right to update appearance, structure or products without notice.

Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
In order to ensure safety, range hood
must be installed by specific accessory (
especially expansion pipe and wooden
screws, or it may cause accidental drop
of range hood). The pipe bore and hole
must fit tightly during the installation of
metal expansion pipe. It is prohibited to
make excessively large hole to prevent
accidental drop of loosening expansion
pipe.
The range hood must be used by
specific plug and properly ground it. It’s
possible to cause electric shock, hot
plug or fire because of improper
electric wire. Installation must be
executed by professional person based
on local electrical regulations. Before
connect electricity, power must be
turned off.
If electric a l wir e is broke n , onl y
professional engineer can replace it.
If the range hood will be used with the
kitchen range burning gas or other
fuels, the room must be well ventilated.
The range hood and electric circuit must be
installed by skilled and trained personnel
wit h required qualification. When
installation, the related regulation, standard
or instruction on fire must be complied. It
may cause danger because of improper
installation, for example, electric shock,
drop or fire accident.
Range hood must b e install e d,
d i s a s s e m b l e d o r m a i n t a i n e d b y
professional person.
Put out the stove fire in time when it is
not used. That the stove fire bakes the
range hood directly is prohibited. Do
not barbecue food directly under the
range hood lest the range hood is
damaged and an accident should
occur.
All operation must comply with our
safety guidelines as well as local safety
regulations.
The range hood is used only daily life not
special environment ( for example, outside).
And it’s not allowed to exhaust dangerous or
explosive matter or air. It should be put
under dry and ventilation environment
without dangerous air.
The outlet must be connect with outside. In
order to ensure safety and fresh air, waste
gas should be exhaust to outside. Don’t
exhaust waste gas to the wall, loft or garage.
Don’t touch bulb if it’s on or just close in
short time, or it may cause scald.
It may get fire if cleaning range hood not in
accordance with manual.
Keep a good habit to turn off gas hob and gas valve if go outside, sleep or finish operation. Replace or
check gas pipe regularly, since gas alarm device can’t completely avoid accident caused by gas
leakage.
2
Warning
Prohibit
Prohibit
Disassembly
Prohibit
Touch
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Range Hood

Because the installation is difficult and
hood is heavy, the installation shall be
executed by professional person based
Be fo re r em o vi n g r a ng e hood f o r
installation, clean or maintainance ,
power must be cut off avoiding from
electric shock. When installation, clean
Don't broken electric wire or other
in v is ib le e qui p me nt w he n c ut ti ng
something or drilling holes on ceiling.
When the oil exceeds 2/3 or near tick
mark in the oil cup, clean it in time. Don't
eat waste oil from oil cup.
The gas from range hood shall not be
exhausted to hot flue used for burning gas or
other fuels.
When range hood is using in well
sealed building, it should have air inlet
o r o p e n d o o r t o e n s u r e g o o d
Th e te m pe rat u re f o r r ang e ho o d
working can’t exceed 40℃.
The wall of installing range hood needs
enough strength. For hollow walls, the
thickness of solid layer of hollow wall must
be more than 30mm, but for concrete walls,
it can be drill holes directly. The range hood
重要信息
3
Notice
Prohibit
Important Information
Package of Range Hood
Before use range hood
Please settle those packages carefully in order to protect environment.
Don’t allow children to play plastic film and package, it may cause asphyxia. Please avoid children near package
material.
This range hood exhaust fume outside.
Please read this manual and all information carefully before installation and operation. Please comply with our
suggestion. If it’s necessary, please read manual for gas hob. And please keep these manual carefully for future
reference.
This manual is available for different models. So you may find different description with your own range hood.
If range hood has obvious damage, please don’t electrify and contact operator.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Range Hood
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution

4
Note: 1.
2.
The tolerance of air flow rate or max static pressure between testing value and actual value should be within 10%.
When stir-frying function is enabled, the power will increase by 5% compared to strong power (level-3) and
the airflow is 19 m³/min.
895
Oil Cup 1piece
Product Overview
Product Parameter
Range Hood
size&Dimension
Packing List
Please check lists if open the package.
Labeled dimensions are only for reference (Unit: mm)
A866
895×399×(mm)551
≥330Pa
Rated Main Motor input power
≥23%
27.5kg
≤4W 2×
Dimension(L×W×H)
Maximum Static Pressure
Normal Odor Reduction Degree
Instantaneous Odor Reduction Degree
Rated Whole Machine input power
Grease separation degree ≥92%
Noise
Max lighting power
Net weight
Model
Power Supply
Total Pressure Efficiency
Nominal Pressure
Air Flow Rate
220-240V 50Hz
~
3
18m /min
420Pa
≥98%
≤57dB
≥80%
208W
200W
CXW-200-A866
399
551
Packing List
No.Name Quantity
No.Name Quantity
1
12
11
6
5
4
3
2
Range Hood
Plastic Expansion Pipe
1 piece
4 pieces
1 piece
1 set
S T4x18 Self-Tapping Screw 10 piece
13
S 4× Wooden Screw T 60 4 pieces
10
Hitching Leg Stop Block 1 piece
1 pair
7
8
Hitching Leg 1 piece
9
1 set
Φ175 (Outer Diameter)
Aluminum Foil Air Duct
Φ175 (Outer diameter)
Air Duct Interface
Adhesive Tape Of Air Duct
Fixed Bar Of Air Duct
Operation Manual
Check Valve
M6 Metal Expansion Pipe
14

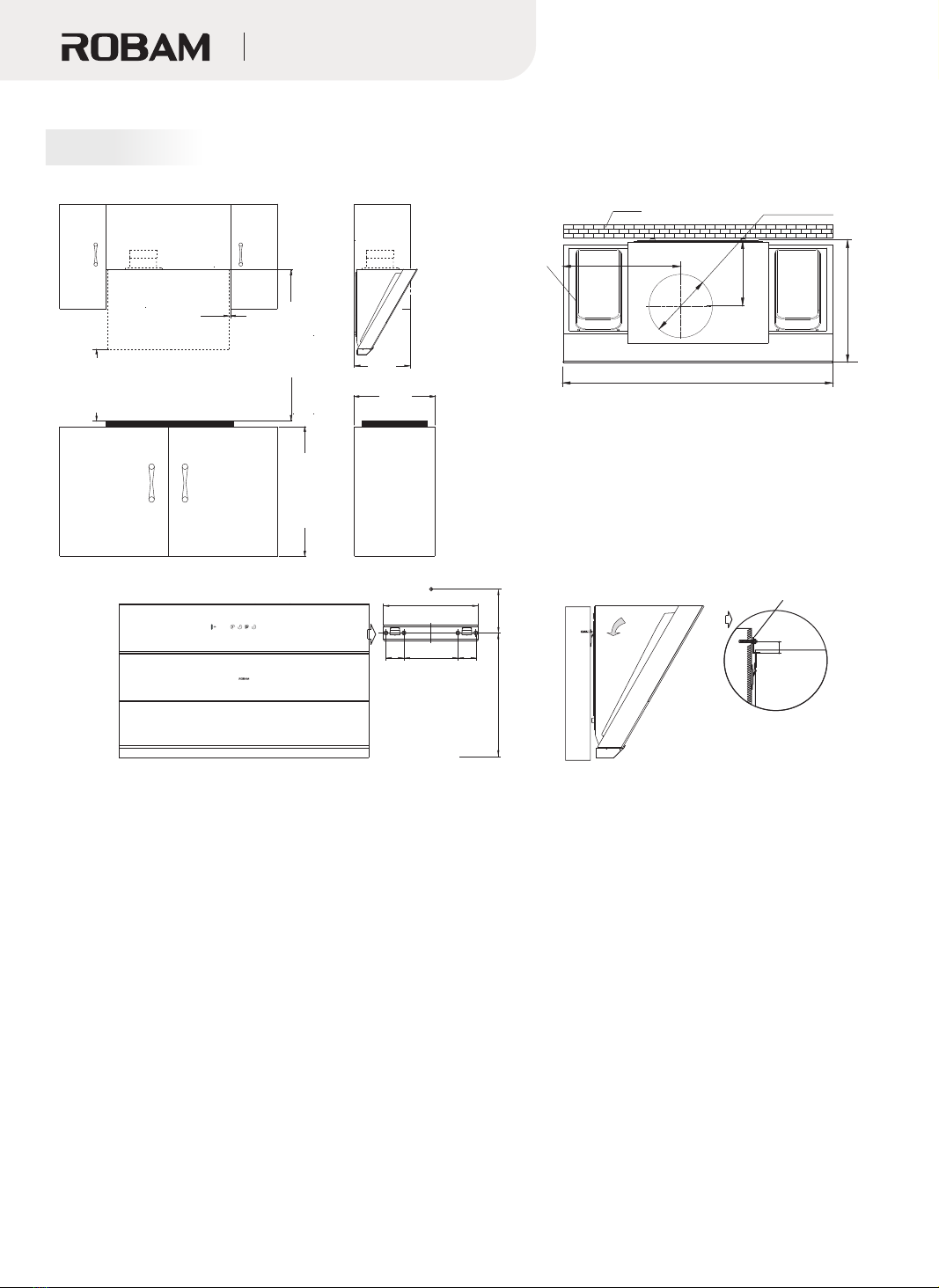

Installation
Installation Notice
5
Warning
1.The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or
other fuels,the discharge of air must fulfill the requirements of local regulations.
2.Note that when installing the metal expansion pipe, the pipe shall match with the hole in size. Overlarge hole is
prohibited, as it will result in loose pipe and accidental drops.
3.There shall be adequate ventilation of the room when the range hood is used at the same time as appliances
burning gas or other fuels.
4.If the flue aperture is less than air duct aperture, it will influence the fume suction effect and the too long air
duct will influence the fume suction effect, too.
5.This product is only for daily use and please do not use it under special environment (e.g. outdoor); nor can it
be used to exhaust hazardous or explosive substance or gas. Before assembly, the product shall be placed
in environment which is dry, ventilated without corrosive and harmful gas in the surrounding.
●
Range hood shall be avoided to be installed at the place where there are many doors and windows since it will cause
too large cross-ventilation so as to influence the oil fume exhaust effect.
●Tool preparation
The following tools shall be prepared when range hood installation: 1. Electric impact drill (with drill);
2.Wrench; 3.Screw driver; 4.Ruler
Surrounding environment
Preparation Before Installation
●Installation and circuit setting must be operated by professionals with experiences and non-professionals
shall not assemble, disassemble and repair range hood.
●Don't connect power before installation,it may cause electric shock.
●If your kitchen is in decoration state, please do not expose the range hood outside since construction
material, dust, paint, coating and the gases they volatile will corrode the surface of range hood and the surface
will be tarnished. Therefore, it's suggested to assemble the range hood after decoration.
● If gas hob needs to be removed before installing range hood, please turn off gas valve firstly.
●Don't install range hood on the wooden or other flammable wall. The wall of installation range hood shall
be on the nonflammable, enough stable, smooth and level surface.
●Range hood may have very sharp edge, please wear protective gloves while moving the range hood for
installation, cleaning or maintenance.
●When drilling holes on the wall, the electric wire buried in the wall shall be avoided to prevent from fire.
●Range hood shall not be installed too high, nor shall it be disturbed by external air flow so that the fume
suction effect will not be influenced.
●Please retain installation space for hood while fabricating cupboard so as for the care and maintenance .
●Please keep the hood body level while installing the machine.
●Please use single phase socket with earthing, which shall be well earthed.(Water pipe grounding is not
reliable.The grounding of gas piping may cause the danger of fire and explosion.)
●Use appointed accessories for installation or range hood may fall down and cause danger.
●If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard. Don't stretch, change ,tie, or press supply cord, or it may
cause fire or electric shock.
●If finish installation, clean range hood firstly, then connect power and test run.
Range Hood

6
350
500
10
800 850~
300 400~
850~950
●Determine the position:keep two holes level,
and the size of two holes as picture 3 ; See
picture 2 for hung ceiling drill size.(unit:mm)
391
215
wall
Projected
dimension
at top of
range hood
895
399
●
●
Install hitching leg: According to the size of hitching leg in the corresponding position of the wall, drill 4 holes which
depth is 60-70mm with a diameter of 8mm drilling tools. (Don't be too large). Then, insert expansion pipe to the holes
and fix hitching leg firmly with 4pcs of ST4X60 wooden screws. At the distance of 72mm with 4 holes, drill a hole with
10mm diameter(not to large) and 50-55mm depth, then insert M6 metal expansion pipe as picture 3.
Install the machine body: Fix check valve as shown in picture 5 , and then according to picture 3 shown, put the
hitching hole at the back of the hanging hole to press the peg, shaking the body with the hand to check whether it’s
steady. After machine body is installed in a place, on the M6 metal expansion pipe, install the hitching leg stop block, a
gasket, tighten the nut (to prevent the machine body dropping under the action of external force accidently).
Picture1 Picture 2
Picture 3
Cupboard dimensions are only for reference.(unit:mm)
Hung ceiling drill size drawing(unit:mm)
35±2
Hitching leg stop block
235
72±2
Hitching leg
110
55 55
513
unit:mm
Air duct drill sizeφ200mm
安装
Installation
Range Hood
●Install ALUM-Nod：
1)Hole position of ALUM-NOD（No need to drill holes in public flue）
a.Installation of air duct and coil base directly facing window: Disassemble a glass and assemble plywood
with exhaust holes, or drill holes on the glass directly.
b. When coil base is not close to window: Select the nearest coil base, install the air duct on the window
accessible to outdoor to penetrate the window; or select the nearest coil base, drill hole on the wall accessible
to outdoor and install air duct to penetrate the wall.
c.Drill the wall opening: Measure the position that air duct faces wall and mark the drilling scope on the wall
surface (i.e. circle a little larger than outer diameter of air duct), then use long drill to drill the wall. Pay attention to
the wall structure and material while drilling and do not damage the wall besides wall opening.
A866
Movable decoration panel
(made by yourself)

7
Picture 4
Φ190
Φ180 Φ170 Φ160
Φ150
Picture 5
Φ140
Lighting Low speed Stir-frying
/High speed
Power
Infrared sensing
●Press the “ Lighting” key one time, the lighting lamp will be on. Press again, the lighting
lamp will be off. The buzzer rang once you press it each time.This switch just control
lighting lamp.
Low speed
Lighting
●Range hood should be open before cooking, and connect plug firstly.
●Press the “Low speed” when “power” is on,the impeller will rotate in low speed to absorb
fume (that is, low speed is turned on).
Machine body
Check valve
Check valve interface
St4x18 screw
Seal ring of check valve
Φ185ALUM-NOD
Adhesive tape
of air duct Φ185Air duct interface
Cut the surplus part smaller than wall hole
Adhesive tape
of air duct Fastener
Slot
2.Connect the ALUM-NOD
First connect the ALUM-NOD without air duct fixed strip with air duct interface, sealed by adhesive tape of air duct
and straighten the ALUM-NOD to outdoor directly. When the wall hole is larger than ALUM-NOD, the air duct can be
pulled to outdoor directly; when the wall hole is smaller than air duct, it can be selected according to the hole
size since the small end of air duct interface has four specifications: 140, 150, 160 ,170and 180. The surplus part
that is smaller than wall hole can be cut by scissor.
Then insert the other end of ALUM-NOD with air duct fixed strip between internal and external ring of check valve
outlet and seal it by adhesive tape of air duct. Last, put the 4 fasteners into the slots and rotate clockwise, the
ALUM-NOD is fixed on the check valve.
Range Hood
Note: Please straighten the ALUM-NOD while assembling so as to
prevent ALUM-NOD from producing noise at semi-stretching state;
the surplus part can be cut by wire cutter.
Use Instruction
The diameter of exhaust wall hole shall be close to the air duct diameter, which shall not be too small,
or it will cause unsmooth fume exhaust, rise of noise and reduction of air volume. Outlet pipe and wall
hole or connection with public flue interface must be sealed strictly so as to make sure that the air
duct and check valve or public flue interface are connected firmly and make sure that the blade
of check valve or public flue interface is flexible in opening and closing.
Switch Panel

8
Stir-frying/High
speed
Power
Infrared sensing
Range Hood
Notice
Maintenance and Services
Warning
1.There is a fire risk if cleaning is not carried out in accordance with the instructions.
2.Cleaning and maintenance shall be conducted under outage. Electrical components such as motor, switch,
and connector shall not be spoiled by water so as to prevent from accidents.
3.It's prohibited to wash with water so as to prevent accidents.
4.Stove fire shall be extinguished timely when it is not used; do not flambe under the range hood and it's
prohibited to bake food under range hood directly to prevent range hood from damaging and causing
accidents.
5.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
6.Accessible parts may become hot when used with cooking appliances.
●The hood shall be cleaned and maintained regularly depending on the surroundings, so as to keep its
cleanness & efficiency and extend its service life.
We recommend: Clean the surface of hood each time after cooking.
To ensure smooth discharge of fumes, the mesh cover shall be cleaned regularly with warm water and detergent
according to actual situations. Be careful to avoid damage.
●Don’t use the powerful detergent, we recommend to wipe with wet cloth soaked in neutral detergent and dry
it by soft cloth. And avoid detergent to touch switches.
●Don't keep dirt on the surface of range hood for long time;
●Don't use cleaning ball, brush or other harsh tool to clean range hood. It may cause scoring.
●Wear gloves to clean or maintain range hood avoiding from hurt.
●Check oil cup regularly. Hold oil cup by hands as picture,
then remove oil cup and pull out waste oil.
●.
●If range hood don’t use for long time, pull out the plug. Don’t haul plug crudely.
Range hood should be open before cooking
●Press the “ stir-frying/High speed” ， stir-frying is turned on, and the icon shall be
flickering. Press the button again, range hood shall change to high speed. If there is not any
operation in stir-frying working condition，range hood shall change to high speed
automatically after 3 minutes
●Press the "power",icon will flicker and range hood is in standby state.That is to say,it is
ready-made and waiting for the work instructions.When “ Power” icon is on, if only lighting
lamp is on, gently touch the “ Power” key, the lighting lamp will be turned off; if “Power” is on
and fan is working, gently touch the“Power” key, the power icon will flicker and range hood
will be in delayed working condition, then turn off all the working conditions after 1min ;
press "stir-frying/high speed”,“low speed”,“lighting” in delayed working condition will exit from
the delayed working condition. If power icon is flickering, gently touch the “ Power” key, then
all the functions will be shut down.
●In high speed or low speed working condition, if there is any object moving in around
15cm area right in front of the infrared probe, stir-frying shall turned on automatically In
“stir-frying/High speed”nd “low speed”t the same time
for 3
. The icon is lit up in high speed working condition.
.
the shutdown state, press a a
seconds，the infrared sensing can be turned on or turned off. The customers can
turn off the infrared sensing function if they don't like it.

Light Removal
Switch Removal
9
Top cover plate
Unscrew the screw in the top cover plate with
screw driver, then take down the top cover plate.
Unscrew the two screws in the lamp with screw
driver, take down the lamp, then repair or
replace it.
After take down the top cover plate, unscrew
the screw in the upper glass assembly with
screw driver.then take down the upper glass
assembly.
Unscrew the screw in the small plat, take out
the small plat, then take out switch assembly
to repair or replace it.
Upper glass assembly
Small flat
Switch
Range Hood
Parts Removal
1.The machine body needs not to be disassembled in ordinary conditions. Disassembly shall be operated by
professional serviceman.
2. The electricity must be cut off before clean, installation or maintenance of range hood.
Note: The assembly steps are opposite with the disassembly steps.
Please wear protective glove during operation avoiding from hurting hands.
Warning

Filter Mesh Removal
10
Turn on the range hood to make the air deflector
open， then Unplug the power plug.
Hold two handle hole in filter mesh with two
hands,push outwards slightly,to make filter mesh
not get stuck,then pull out the the filter mesh along
the direction of arrow to make it out of card slot,
finally take out filter mesh outwards and wash it.
Rear plate Air duct Motor
Impeller
Top cover plate Machine body
Small flat
Switch
Air deflector
Oil cup
Under glass
The machine body needs not to be disassembled in ordinary conditions.
Disassembly shall be operated by professional serviceman.
Disassembly and assembly of general drawing
Range Hood
Card slot
Disassembly procedure:
1.Take out filter mesh according to
the instruction steps of "filter mesh removal", then unscrew 4pcs of screw on the check ring;
2.Plug in the power plug to close air deflector, then disconnect the plug;
3.Screw off the screws on the rear plate, take out the rear plate, then unscrew 4pcs of screw on the outlet of
air duct, take out the air duct;
4.Screw off the nut cap clockwise to take out impeller vertically;
5.Take out light according to the instruction steps of "light removal";
6.Take out switch assembly according to the instruction steps of "switch removal";
The assembly steps are opposite with disassembly steps.
(When assembling impeller, please add some lubricating oil in the axle hole of impeller.)

11
blue
red
blue
red
brown
orange
grey
black
blue
brown
blue
yellow/green
L
N
220-240 ~V XP E
M
EL
EL
blue
red
yellow
red
terminal box
control circuit
operation circuit
C
K4
K3
K2
K1
electric push rod
Range Hood
Circuit Diagram
General Troubleshooting
Any other problems, please contact our local service center or dealers.
No.
1
2
3
4
5
Fault Phenomenon Fault Cause Elimination Methods
No response by pressing any switch
(e.g. impeller does not rotate, lighting
lamp is not on)
Power plug is not well connected
or power outage Well connect the power plug
Press the lighting switch but the
lighting is off
Lighting lamp is broken or power
plug is not well connected
Replace lighting lamp or well
connect the power plug
There is induced electricity on the
surface of machine body, hand
numbness
Power socket is not well grounded Use single phase tripolar
socket for well ground
abnormal sound when impeller is
rotating
Impeller is loosened, set screw
of impeller is not tightened
Tighten the set screw of
impeller
abnormal sound for ALUM-NOD ALUM-NOD is not straightened
Please install according to
the requirements of
Operation Manual
6Oil dripping at rear back of hood
Oil cup is not assembled in place
after disassembly for cleaning
Assemble the oil cup in
place
yellow/green

:
Edition: A/0
Publication Date：July,1,2016
Model A866
