Robam CXW-220-A670 User manual

CXW-220-A670
Range Hood
User Manual
Before operating this unit, please read the ser manual completely and keep it. u

Safety Precaution.......................................................................................... ....1
Important Information....................................................................................... .............3
Product Overview................................................................................................. ........4
Packing List......................................................................................................... .... ....4
Installation Instructions...................................................................................... ....5
User Manual......................................................................................................... 8
Maintenance.......................................................................................... 10
Removal of Components........................................................................................... 10

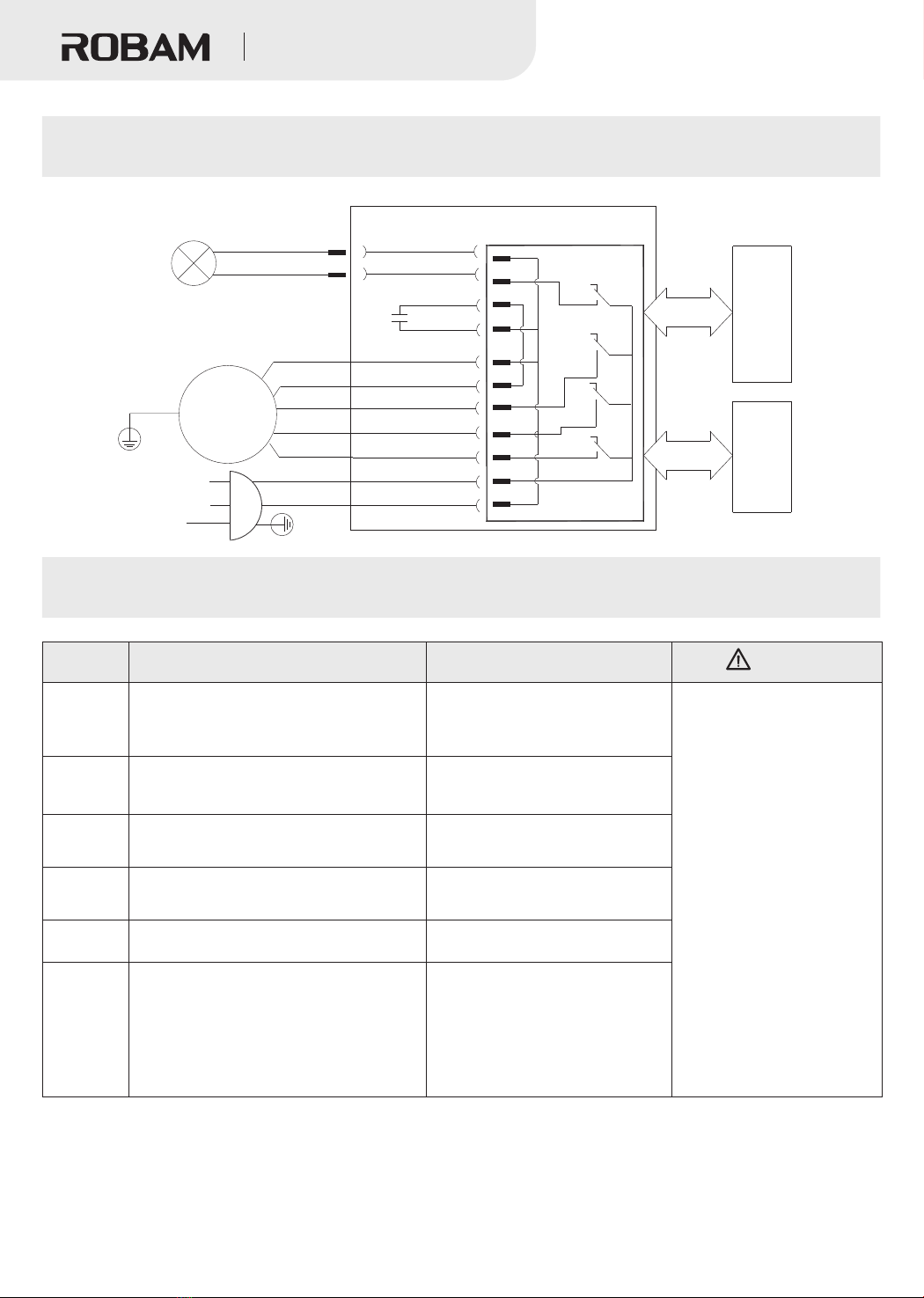

Circuit Diagram....................................................................................................... .. 12
Troubleshooting of General faults........................................................................................ 13
......................
..........
...........
........... .
.................
..................
...............................
............
........... .
..
CONTENTS

Prohibit water on motor, switches or
other electric parts; Prohibit wash range
hood by water spray. Don’t use range
hood if wet or it may cause electric
leakage or shock.
Don’t touch plug, electric parts or
button by wet hands, or it may cause
electric shock.
Safety Precaution
Subject to harmful or destruct degree
In order to avoid harm or property damage to the users or other person, the following distinction and marks
are stipulated. They are important safety precaution, please comply strictly based on the full understanding.
Danger If ignore this sign and operate product improperly, it’s highly possible to cause danger,
serious injury or fire.
If ignore this sign and operate product improperly, it’s possible to cause danger, serious
injury or fire.
If ignore this sign and operate product improperly, it’s possible to cause injury or loss.
Please use this product according to manual strictly, or ROBAM shall not take any
responsible caused by improper operation.
Don't allow children or weakling to use
range hood separately, or it may cause
electric shock or other accident.
The electric wire must be cut off before
clean, install or maintain range hood
avoiding from electric shock.
Don’t change, stretch, bind or press
electric wire, or it’s possible to cause
electric shock or fire because of broken
wire.
Prohibit any change of interior circuit,
or it may cause injury or other danger,
for example, electric shock or fire.
Please turn off range hood immediately
if pan got fire (range hood shall
aggravate fire if it’s working) and
extinguish fire by effective action. For
example, cover flame by metal cover, turn
off gas valve immediately and remove
inflammable things.
Any abnormal, please turn off power,
take off plug or cut off electric source,
and contact service. It’s possible to
cause electric shock or fire if using
range hood under abnormal situation.
Notice and Prohibit Mark
1
Warning
Notice
Danger
Prohibit Prohibit
Flame
Prohibit
Touch
Prohibit Touch
by Wet Hand
Prohibit
Disassembly
Strict
Execution
Neccessary
Earthed
Caution
Electric Shock
Caution Scald
Warning
Prohibit
Prohibit Prohibit
Prohibit Strict
Execution
Strict
Execution
Strict
Execution
Prohibit Touch
by Wet Hand
Dear users:
Range Hood
Thank for your buying our range hood. Please accept our best regards.Please read this user manual
carefully before installation and operation.
*The pictures in this manual only for your reference. If the picture isn’t accord with object, subject to object. We
keep to right to update appearance, structure or products without notice.

Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
In order to ensure safety, range hood
must be installed by specific accessory (
especially expansion pipe and wooden
screws, or it may cause accidental drop
of range hood). The pipe bore and hole
must fit tightly during the installation of
metal expansion pipe. It is prohibited to
make excessively large hole to prevent
accidental drop of loosening expansion
pipe.
The range hood must be used by
specific plug and properly ground it. It’s
possible to cause electric shock, hot
plug or fire because of improper
electric wire. Installation must be
executed by professional person based
on local electrical regulations. Before
connect electricity, power must be
turned off.
If electric a l wir e is broke n , onl y
professional engineer can replace it.
If the range hood will be used with the
kitchen range burning gas or other
fuels, the room must be well ventilated.
The range hood and electric circuit must be
installed by skilled and trained personnel
wi t h required qualification. When
installation, the related regulation, standard
or instruction on fire must be complied. It
may cause danger because of improper
installation, for example, electric shock,
drop or fire accident.
Range hood must be i n stalled ,
d i s a s s e m b l e d or m a i n t a i n e d b y
professional person.
Put out the stove fire in time when it
is not used. That the stove fire bakes
the range hood directly is prohibited.
Do not barbecue food directly under
the range hood lest the range hood is
damaged and an accident should
occur.
All operation must comply with our
safety guidelines as well as local safety
regulations.
The range hood is used only daily life not
special environment ( for example, outside).
And it’s not allowed to exhaust dangerous or
explosive matter or air. It should be put
under dry and ventilation environment
without dangerous air.
The outlet must be connect with outside. In
order to ensure safety and fresh air, waste
gas should be exhaust to outside. Don’t
exhaust waste gas to the wall, loft or garage.
Don’t touch bulb if it’s on or just close in
short time, or it may cause scald.
It may get fire if cleaning range hood not in
accordance with manual.
Keep a good habit to turn off gas hob and gas valve if go outside, sleep or finish operation. Replace or
check gas pipe regularly, since gas alarm device can’t completely avoid accident caused by gas
leakage.
2
Warning
Prohibit
Prohibit
Disassembly
Prohibit
Touch
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Range Hood

3
Because the installation is difficult and
hood is heavy, the installation shall be
executed by professional person based
on manul.
Be fo re re mo vi n g range h ood f o r
installation, clean or maintainance ,
power must be cut off avoiding from
electric shock. When installation, clean
or maintainance, protective gloove
must be wear avoiding from injury.
Don't break electric wire or other
in v is ibl e equ i pm ent wh en cut t in g
something or drilling holes on ceiling.
When the oil exceeds 2/3 or near tick
mark in the oil cup, clean it in time. Don't
eat waste oil from oil cup.
The gas from range hood shall not be
exhausted to hot flue used for burning gas or
other fuels.
When range hood is using in well
sealed building, it should have air inlet
or open door to ensure good ventilation.
Th e te m per a tur e for ra nge ho od
working can’t exceed 40℃.
The wall of installing range hood needs
enough strength. For hollow walls, the
thickness of solid layer of hollow wall must
be more than 30mm, but for concrete walls,
it can be drill holes directly. The range hood
must be fixed on the wall firmly.
重要信息
Notice
Prohibit
Important Information
Package of Range Hood
Before use Range hood
Please settle those packages carefully in order to protect environment.
Don’t allow children to play plastic film and package, it may cause asphyxia. Please avoid children near package
material.
This range hood exhaust fume outside.
Please read this manual and all information carefully before installation and operation. Please comply with our
suggestion. If it’s necessary, please read manual for gas hob. And please keep these manual carefully for future
reference.
If range hood has obvious damage, please don’t electrify and contact operator.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Strict
Execution
Range Hood

4
The marked sizes are for reference only. (Unit: mm）
Packing List
340Pa
895×399×(mm)548
Rated Input Power of the Main Motor
57dB
≥23%
27.5kg
Dimensions (L×W×H)
Odour Decrease Rate (Normal)
Odour Decrease Rate (Instantaneous) ≥80%
430Pa
≥98%
Rated Input Power of the Hood
222W
220W
Grease Separation Rate ≥92%
Noise
Maximum Input Power of the Light
Net Weight of the Host
220-240V~ 50Hz
Body Size
3
19m /min
399
548
895
CXW-220-A670
Note: 1.The deviation between the expressed value and measured value of air flow rate, maximum static
pressure and nominal wind pressure shall not exceed -10% of the expressed value.
2. When stir-frying function is enabled, the power will increase by 10% compared to strong power (level-2),
3
and the air flow rate is 20m /min.
≤2W
Maximum Static Pressure
Model
Power Supply
Total Pressure Efficiency
Nominal Pressure
Air Flow Rate
Technical Specification
Product Overview
Range Hood
Please check lists if open the package.
Packing List
No.Name Quantity
No.Name Quantity
1
12
11
6
5
4
3
2
Range hood
Plastic expansion pipe
1 piece
4 pieces
1 piece
1 set
S T4x18 self-tapping screw 10 piece
13
S 4× wooden screw T 60 4 pieces
10
Hitching foot stopper 1 piece
1 pair
7
8
Hitching foot 1 piece
9
1 set
Φ185 (OD)
aluminum exhaust pipe
Exhaust pipe connection
Exhaust pipe tape
Exhaust pipe fixed strip
User manual
Check valve
M6 metal expansion pipe
14 Oil cup 1 piece

5
Installation
Notice
●
Keep the hood away from too many doors and windows, so as to avoid air convection affecting the efficiency.
●Tools preparation
The hood will be installed with the following tools:1. an impact drill (with drill bit) 2. a wrench 3. a screwdriver; and
4. a ruler.
Surrounding
Preparation for installation
●Installation and circuit setting must be done by experienced professionals. Only a professionally trained
person with an installation qualification can install the hood. Non-professionals are not allowed to install,
dismantle and repair the hood.
●Please do not power on the hood before installation to avoid electric shock.
●Do not expose the hood if your kitchen is under renovation, because construction materials, dusts, paint,
coatings, and emitted gases will corrode and tarnish the hood surface. Therefore, it is recommended to install
it after the renovation is completed.
●Don't install the hood on wood and other combustible walls. The wall shall be made of noncombustible
materials with enough strength and the surface shall be flat.
●The hood may have very sharp edges. So, please wear protective gloves during hood installation, cleaning
or repair.
●When drilling on the wall or ceiling board, keep away from embedded wires and other concealed devices to
avoid electric shock and fire.
●Do not install the hood at a too high position as well as keep the hood free from disturbance of ambient
airflow lest the reduction of smoke pumping effect shall occur.
●When making cabinet, please leave space for installation and disassembly of the hood in order to maintain
and overhaul the hood.
●When installing, please keep the machine body remain horizontal.
●Please use single phase grounded socket and the hood shall be well grounded (water pipe grounding is not
reliable and gas pipeline grounding has risks of causing fire disaster and explosion).
●In order to ensure safety and successful installation, please use standard accessories provided with the
hood for installation, otherwise the hood may be at risk of falling down.
●If the power cord is damaged, in order to avoid danger, it must be replaced by manufacturer, professionals
of its maintenance department or similar departments. Please do not carry out restructuring, stretching,
knotting and squeezing or apply heavy objects to the power cord, etc., otherwise it may cause power cord
damage easily, leading to accidents such as electric shock and fire disaster, etc.
●After installation, please clean the surface of the hood, and then supply power for test run.
Warning
1.The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or
other fuels,the discharge of air must fulfill the requirements of local regulations.
2.Note that when installing the metal expansion pipe, the pipe shall match with the hole in size. Overlarge hole is
prohibited, as it will result in loose pipe and accidental drops.
3.There shall be adequate ventilation of the room when the range hood is used at the same time as appliances
burning gas or other fuels.
4.If the flue aperture is less than air duct aperture, it will influence the fume suction effect and the too long air
duct will influence the fume suction effect, too.
5.This product is only for daily use and please do not use it under special environment (e.g. outdoor); nor can it
be used to exhaust hazardous or explosive substance or gas. Before assembly, the product shall be placed
in environment which is dry, ventilated without corrosive and harmful gas in the surrounding.
Range Hood

6
Installation Hole size of the exhaust pipe Φ200mm
350
500
10
800～850
Cabinet dimension is for reference only
Movable decorative
panel (homemade)
300～400
Walls
(Projection size of the hood top)
399
895
391
215
Ceiling hole sizes
848～948
1. Determine the position: Preliminary dimensions
of cabinet is shown as Figure 1, ceiling hole size is
shown in .
35±2
Hitching foot stopper
2. Install hitching foot: according to the size of the hitching foot, drill four 60-70mm-deep holes on the wall
accordingly with an 10mm-diameter drill bit (overlarge holes are prohibited). Press the expansion pipe into
the holes, and then reliably fix the hitching foot with 4 accompanying ST4×60 wood screws. Drill a hole with
diameter of 10mm and depth of 50-55mm at the position 72mm above the four holes and insert the M6 metal
expansion pipe into the hole. (As shown in Figure 3)
3. Install the hood body: fix the check valve as shown in Figure 5. Then direct the hanging holes in the back of
hood at the hooks of hitching foot according to Figure 3, and press them together. Shake the body to check if
it's hung securely. After the body is mounted, install the hitching foot stopper and gaskets to the M6 metal
expansion pipe, and then tighten the nuts (to prevent accidental decoupling of the body under external force).
●Drilling position of the aluminum foil exhaust pipe (public flues do not require drilling)
a. Aluminum foil exhaust pipe and hob facing the window: Remove one of the glasses and install a plywood with
ventilation holes or punch directly on the glass.
b. Hob away from the window: Install the aluminum foil exhaust pipe through the window that is close to the hob
and connected outside; or install it by punching on the wall that is close to the hob and connected outside.
Install the aluminum foil exhaust pipe
Figure 1
Note: All data units in the following figures are in mm
235
72±2
Hitching foot
110
55 55
509
10
Range Hood
Figure 2
Figure 3

7
The exhaust wall hole diameter shall be close to that of the exhaust pipe, which shall not be too small. Otherwise, it
will cause poor exhaust efficiency, more noises and lower airflow, etc. The connection between the pipe and the
hole or the public flue must be sealed tightly to ensure that, the pipe and the check valve or public flue are
connected securely. The blades at the check valve connection or public flue connection must be flexible.
Figure 4
Note: During installation, straighten the aluminum foil
exhaust pipe to avoid noises in semi-stretched state.
Excess part may be cut with a wire cutter.
c. Drill hole through the wall: Determine the location of the aluminum foil exhaust pipe against the wall and draw
the drilling range (i.e. a circle slightly larger than the pipe OD). Then use a long drill bit to drill through the wall. Pay
attention to the wall structure and material, so as not to destroy other parts of the wall.
●Link the aluminum foil exhaust pipe
Insert the end of aluminum foil exhaust pipe without fixed strip to the pipe connection and stick with tapes, then
straighten the aluminum foil exhaust pipe and connect it to the public flue outlet (If there is no public flue, please
straighten the aluminum foil exhaust pipe to the outdoors). This can be done directly when the public flue outlet or
wall hole is larger than the aluminum foil exhaust pipe. Otherwise, there are five types of pipe small ends(OD: 140,
150, 160, 170 and 180 respectively) to be chosen from according to the hole size. Then cut the excess part smaller
than public flue outlet or wall hole with scissors.
Then insert the end of the aluminum foil exhaust pipe with fixed strip in the outer ring of the check valve connection
and seal with exhaust pipe tapes. At last, put four snaps of the check valve connection in corresponding slots, and
rotate them clockwise to fix the exhaust pipe to the check valve.
Φ185 aluminum foil exhaust pipe
Exhaust
pipe tape Exhaust pipe connection
Cut the excess part smaller than the wall hole
Φ190
Φ180 Φ170 Φ160
Φ150
Exhaust pipe tape
Figure 5
User Manual
Switch Control Panel
Light Reservation Stir-frying Air Flow Rate Power Supply
Reservation display area Airflow display area
Cleaning reminder
Power Supply
When the hood is shutdown, press the power button to enter standby mode, and
now the fan is enabled. If the fan is working, after pressing the power button, the
power icon will flash and the fan will be shut down after 1 minute. When the power
button is flashing, press the button again, all functions will be disabled.
Body
Check valve
Check valve connector
ST4X18 screw
Check valve seal
Buckle
Slot
Φ140
Waving sensor
Range Hood

Reservation
Cleaning reminder
Press the reservation button when the fan is working, each press will increase the
reservation time by 10 minutes, and the maximum reservation is 60 minutes. Upon end
of reservation, the hood will sound a beep. Now, press any button to cancel the beep.
After the hood has run for 60 hours, the “cleaning reminder” icon will flash to remind the
user to clean the oil filter. Now press the cleaning button to enter cleaning mode (when the
fan stops, in addition to cleaning button and light button, the rest buttons are invalid), in
which users can clean the oil filter by themselves. Keep pressing the cleaning button for 3
seconds to exit the cleaning mode after cleaning, and the cumulative time will be cleared.
In normal state, keeping pressing the cleaning button for 3 seconds can enter cleaning
mode.
Press the light button to turn on the light and repress to turn it off. (Press the light
button in off mode, the smoke deflector and the light will be turned on at the same
time. )
Light
In the standby status, press the stir-frying button, and the smoke deflector will be
unfolded, and the fan will run at “Level-6”; then repressing the stir-frying button to shut
down the fan. After running at “Level-6” for 3 minutes, the hood will automatically
switch to “Level-2” airflow. In off mode, keeping pressing the stir-frying button for 3
seconds can check the accumulative total running hours of the hood.
Stir-frying
In off mode, the waving sensor is on standby. In standby mode or fan operation mode,
the “Level-6” can turned on or turned off by the waving sensor. In the off mode, keep
pressing the “stir-frying” button and “airflow” button for 3 seconds at the same time can
turn on or turn off the waving sensor.
Waving sensor
Air Flow Rate
In the standby status, press the airflow button, the smoke deflector will be unfolded,
and the fan will run at “Level-2”; then repressing the airflow button, the fan will run at
“Level-1”, and then press again to shut down the fan.
8
Range Hood
Warning
1.There is a fire risk if cleaning is not carried out in accordance with the instructions.
2.Cleaning and maintenance shall be conducted under outage. Electrical components such as motor,
switch, and connector shall not be spoiled by water so as to prevent from accidents.
3.It's prohibited to wash with water so as to prevent accidents.
4.Stove fire shall be extinguished timely when it is not used; do not flambe under the range hood and it's
prohibited to bake food under range hood directly to prevent range hood from damaging and causing
accidents.
5.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
6.Accessible parts may become hot when used with cooking appliances.
Maintenance

9
Notice
Removal of light
Push the light by hand from inside, and then
disconnect the wire for repair and replacement.
Removal of Components
Keep pressing the cleaning icon to unfold
smoke deflector, and unplug the power plug.
Removing the two screws on the small cover
plate by a screwdriver, and take the small cover
plate as per the direction of the arrow.
light
Range Hood
●The hood shall be cleaned and maintained regularly depending on the surroundings, so as to keep its cleanness
& efficiency and extend its service life.
We recommend that:
Clean the exhaust fume collecting hood and hood body after each cooking.
To ensure smooth discharge of fumes, the filter screen shall be cleaned regularly according to actual situations.
Be careful to avoid damage when cleaning.
●It is recommended to use a neutral detergent to clean instead of strong detergents, and dry with a soft cloth, and
should avoid the contact between detergent and control buttons.
●Do not allow stains to stay on the surface of the hood for too long.
●Please do not use cleaning balls, brushes and other rough objects to clean the hood to prevent the body surface
from scratching.
●When cleaning or maintaining the hood, please wear protective gloves to prevent wounding during wiping.
●Please check and clean the oil cup regularly. Pinch the oil
cup by hands as the right picture and pull out to pour the waste oil.
●Do not touch the light bulb that has been turned on or just been
turned off to avoid burns.
●Please unplug it during long-term shutdown, but please do not pull hard.
1.The machine body needs not to be disassembled in ordinary conditions. Disassembly shall be operated by
professional serviceman.
2. The electricity must be cut off before clean, installation or maintenance of range hood.
Note: The installation procedures are in reverse with the removal. Please wear protective gloves during operation
to prevent the sharp edge of metal from hurting your hands.
Warning

10
Removal of switch
Removal of filter screen
Hold the two magnetic clasps with slightly outward
force to make the filter no longer been sucked.
Then lift the filter screen as per the arrow direction
to make it out of slot. At last, take the filter screen
outward for cleaning.
Take out the switch assembly and unplug the
connection line for maintenance and replacement.
Magnetic clasp
Slot
Keep pressing the cleaning icon to unfold smoke
deflector, and unplug the power plug. Removing
the two screws on the small cover plate by a
screwdriver, and take the small cover plate as per
the direction of the arrow.
Long press on the icon of cleaning reminder will
make the smoke deflector open.
Small cover plate
Switch assembly
Deflector
Range Hood

11
Removal steps
1. Keep pressing the cleaning icon to lock the smoke deflector in the open condition. Then take off the filter
screen according to filter removal steps and unscrew four screws on the retaining ring.
2. Close the smoke deflector and pluck the power plug;
3. Screw out the screws on the back board to remove it. Then unscrew each four screws of the air outlet and
the border of air passage and remove the air passage;
4. Unscrew the cap clockwise, and take out of the impeller vertically;
5. Take out of the lamp according to the lamp removal steps;
6. Take out of the switch assembly according to the switch removal steps;
Installation steps are opposite to the removal steps.
(When you install the impeller, please add some lubricating oil on the shaft hole of it. ）
Back board
Removal of the whole body
Air passage
Top cover plate
Electric mot or
Impe ller
Exhaust fume collecting hood
Oil cup
Cap
Air filter cover
Smok e de flec tor
Switch assembly
Light
Range Hood
In general, there is no need to dissemble the hood body.
The remove work needs to be completed by professional maintenance staff.

Troubleshooting of General faults
The light is damaged or poorly
connected.
The impeller is loose, and the cap
is not tightened.
The power socket is not
grounded well.
Cause
No response after pressing any button
(e.g. the impeller does not rotate, or
the light is off)
Pressing the light switch, the light is
not lit.
Induced current exists on the hood
body may paralyze hands
Abnormal sound during impeller
running
FaultNo.
1
2
3
4
No oil in the oil cup after a period of time The body is tilt
5
12
Circuit diagram
6
After pressing the air flow key and
during the opening of the smoke
deflector, there are some beeps or
the smoke deflector cannot open at
all.
The driving circuit of the
electronic push rod or the push
rod itself malfunctions, or the
wire of the push rod is in poor
contact.
Warning
M
L
NXP
Terminal box
Control circuit
Operating Circuitn Electric putter
brown
orange
gray
black
blue
brown
blue
C
K4
K3
K2
K1
EL
blue
red
Range Hood
Green/Yellow
Green/Yellow E
blue
red
yellow
red
The power plug is not connected
properly or there is power failure
1. When connecting or
replacing the plug, please
unplug the power plug.
2. If the range hood's
power cords are damaged,
it must be replaced by our
company's professional
maintenance staff.
3. The flame is strictly
prohibited being sucked
into the machine in case
of the accidents.
220-240V~

:
Edition: A/0
Publication Date：
Model A670
August,1,2017
