Robe Anolis Calumma S MC User manual

Version 1.
0
QR code for user manual

Calumma Remote S
2
Table of contents
1. Safety instructions ...................................................................................................................................................... 3
2. Fixture exterior view ................................................................................................................................................... 5
3. Control and connection .............................................................................................................................................. 5
4. Installation .................................................................................................................................................................. 8
4.1 Mounting the fixture ............................................................................................................................................ 8
4.2 Connection to power .......................................................................................................................................... 10
5. Software update ....................................................................................................................................................... 15
6. Technical specifications ............................................................................................................................................ 17
7. Cleaning and maintenance ....................................................................................................................................... 21
7.1 Disposing of the product .................................................................................................................................... 21
8. ChangeLog ................................................................................................................................................................ 21

Calumma Remote S
3
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR Calumma Remote S !
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure
safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this
manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Unauthorized modification will void warranty.
1. Safety instructions
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!
This fixture should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supplied, consult your authorized distributor or local power company.
Always disconnect the fixture from AC power before servicing or cleaning.
Make sure the power/data cable is not damaged by sharp edges.
Do not install the unit near an open flame.
Refer servicing to qualified service personnel.
Do not connect this fixture to a dimmer pack.
LED light emission. Risk of eye injury. Do not look into the beam from a short distance without suitable protective
eyewear. Do not look at LEDs with magnifiers or similar optical instruments that may concentrate the light
output.
The fixture was designed for outdoor use. This fixture must not be used for underwater installation.
When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.
Avoid using the unit in locations subject to possible impacts.
The fixture body never must be covered with cloth or other materials when the fixture is under operation.
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
The fixture becomes hot during operation. Allow the fixture to cool approximately 30 minutes prior to servicing or
maintenance.
Operate the fixture only after having familiarized yourself with its functions. Do not permit operation by persons
not qualified to operate the fixture. Most damages are the result of unprofessional operation!
Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!

Calumma Remote S
4
Please use the original packaging if the fixture is to be transported.
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the warranty becomes void. Furthermore, any other operation may lead to dangers like short-circuit,
burns, electric shock etc.
The product (covers and cables) must not be exposed to a high frequency electromagnetic field higher than 3V/m.
Immunity of the equipment is designed according to the standard EN 55035 Electromagnetic compatibility of
multimedia equipment - Immunity requirements
Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility of multimedia
equipment – Emission Requirements according to class B.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
The [Device] wireless operation is safe and complies to RF Exposure requirements.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning for fixtures with Harsh Environment Finish (HEF):
Handle with care!
Avoid any damage to the painted surface.
Damaging the paint may result in corrosion and loss of warranty.

Calumma Remote S
5

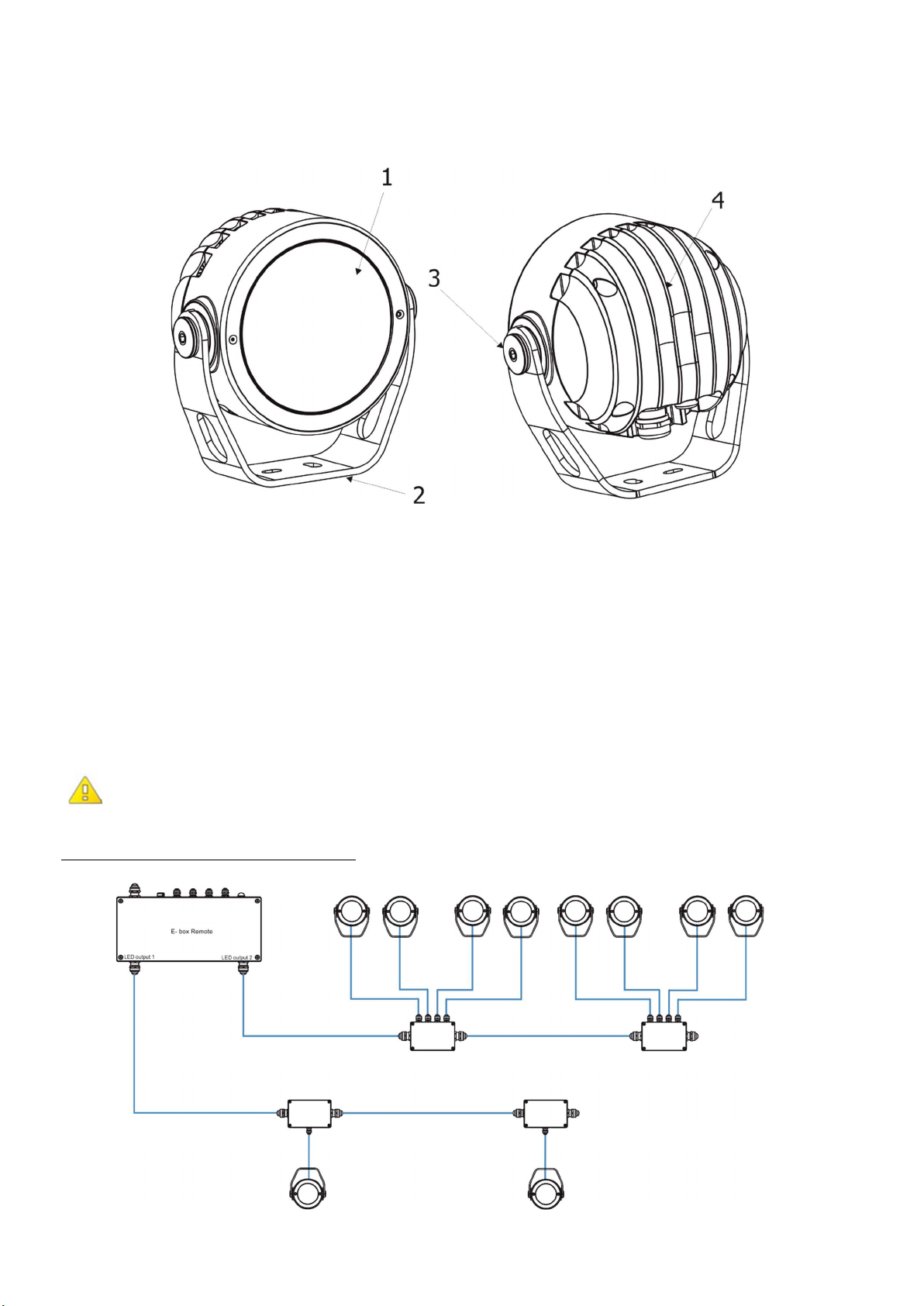

2. Fixture exterior view
3. Control and connection
The Calumma Remote S modules should be connected to the E-Box Remote or E-Box Remote basic via junction
boxes.
The E-box Remote has to be switched to the Pass-Through mode.
Example of connection with E-box Remote
1. Transparent glass cover
2. Mounting yoke
3. Tilt adjusting lock
4. LED module with heat sink

Calumma Remote S
6

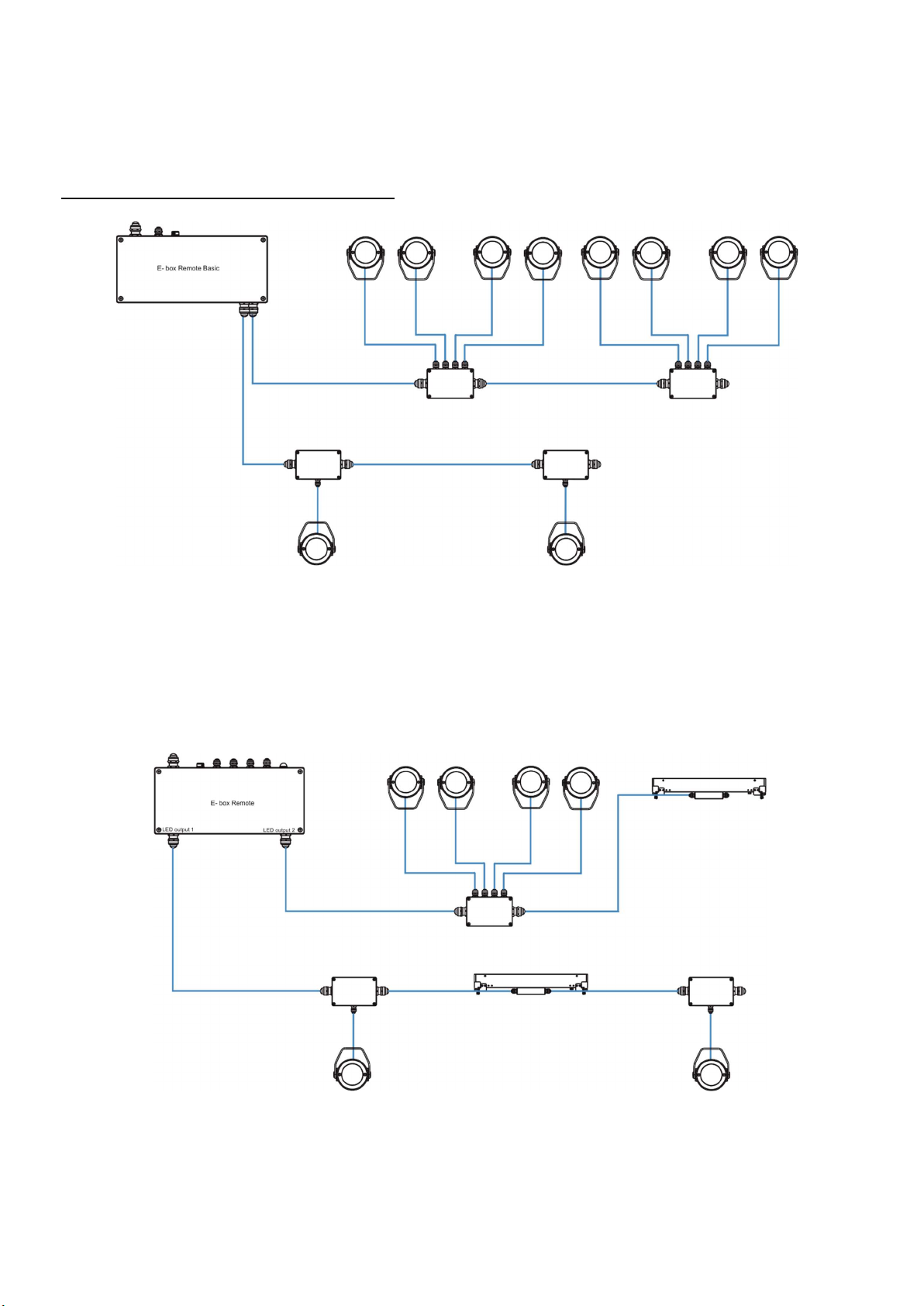

Example of connection with E-box Remote Basic
Note. Combination of Calummas Remote S and Emineres Remote is also possible.
Example:

Calumma Remote S
7
Max. number of Calummas Remote S connected to the E-box Remote/E-box Remote Basic depends on cable
length.
E-box Remote/E-box Remote Basic
Cable length *
Max. number of Calummas
Remote
S
SC/Calummas Remote
S
MC
25 m
13
50 m
10
75
m
8
100 m
6
* Cable length is a total cable length on both outputs of the E-box Remote (E-box Remote Basic).
Example:
Total cable length(output 1+output 2)=L1+L2+L3+L4+L5+L6+L7+L8+L9
Max. number of Calummas Remote M SC/MC connected to the one output of the E-box Remote/E-box Remote
Basic is 10.

Calumma Remote S
8
4. Installation
4.1 Mounting the fixture
The Calumma Remote S can be fastened in any orientation on a flat, non-flammable surface by means of mounting
yoke (2).
The LED module (4) can be tilted +180°/-180°. Use an Allen key 2.5 for adjusting a LED module position.
Ensure that the structure to which you are attaching the fixture is secure.

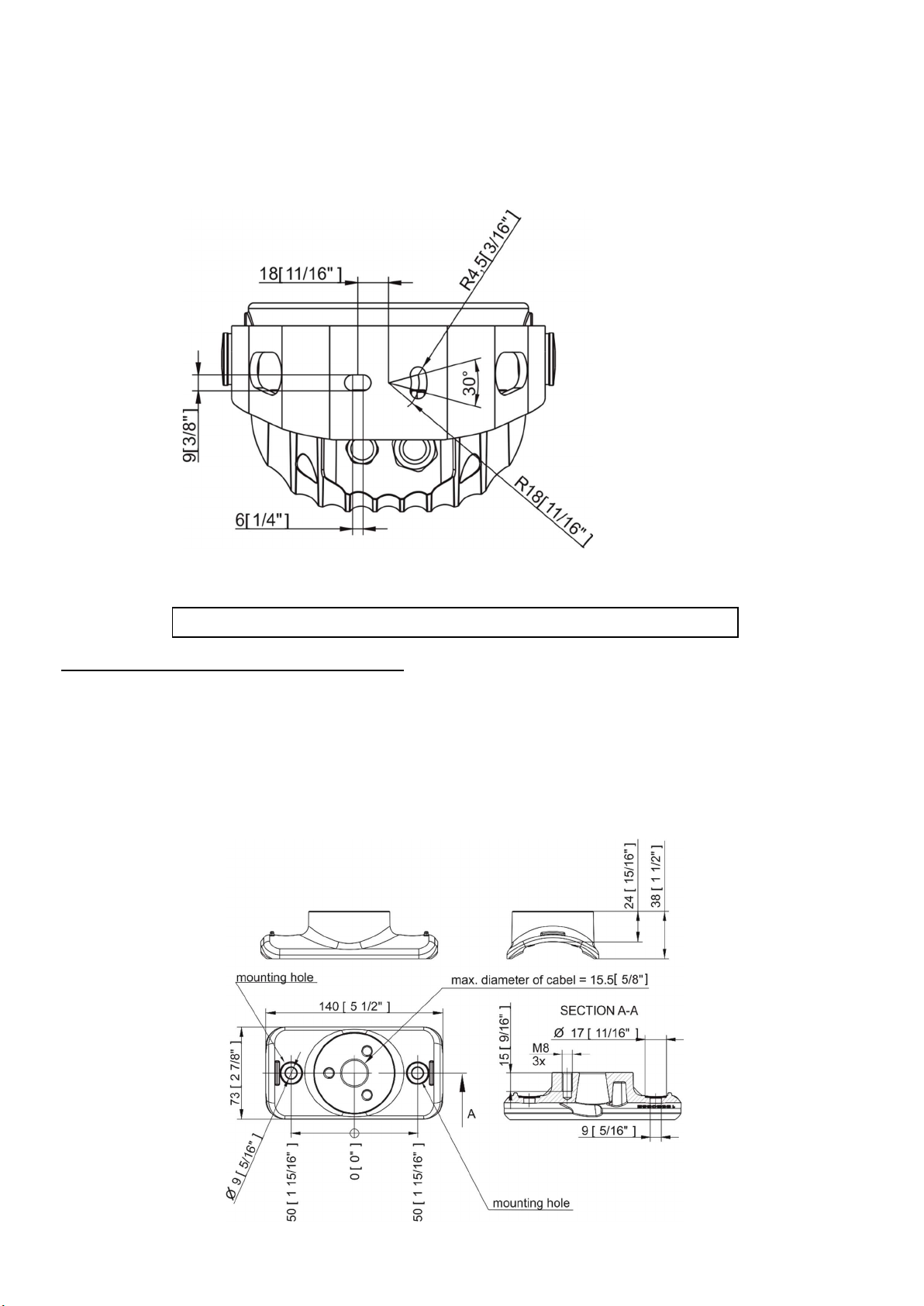

Mounting the fixture via the pole clamp adaptor
The pole clamp adaptor serves as a fastening element for Calumma Remote S on a pole of diameter of 76-116mm
or on the flat pole. The Calumma Remote S has to be equipped with a modified mounting yoke (P/N 11418772 )
intended for this way of installation.
The pole clamp adaptor set includes: 1x pole clamp adaptor, 1x rubber cable gland, 3x Allen screw M8x20, 3x flat
washer, 3x spring washer, 2x tube spacer.

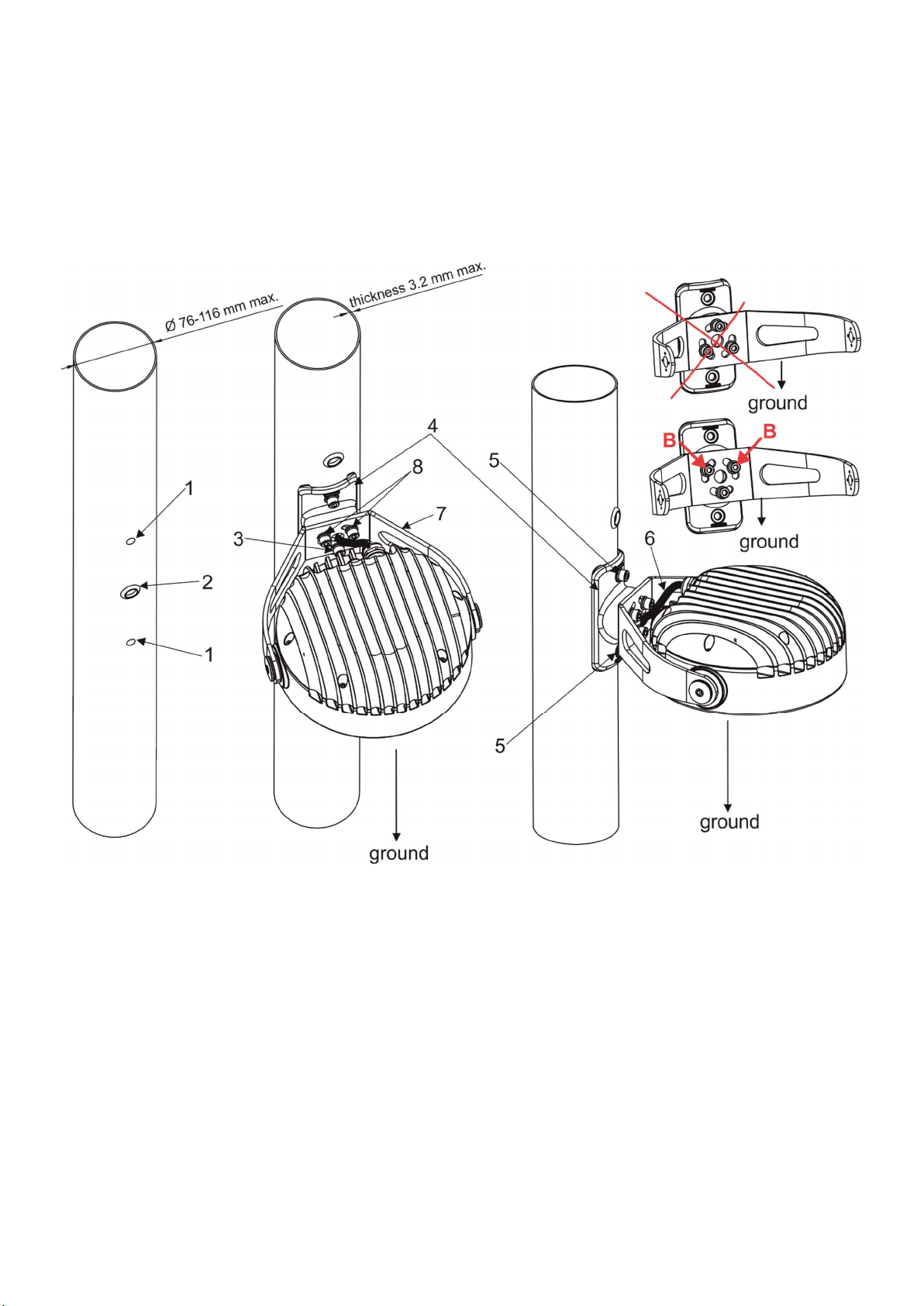

1. The pole clamp adaptor can be screwed on the pole by means of two screws or fixed by means of
a steel clamping tape (max. width of tape=20mm).

Calumma Remote S
9
If you use two screws for fastening the pole clamp adaptor on the pole, drill two holes (1) for fastening the
pole clamp adaptor on the pole. Diameter of holes depends on material of pole and used screws. Be sure
that fastening of the pole clamp adaptor is secure to keep weight of Calumma Remote S.
2. Drill the hole (2) for rubber cable gland (diameter of hole=20mm, max. thickness of pole wall= 3.2mm),
make drilled hole edges clean (without burrs) and insert the rubber gland into the hole.
3. Screw the pole clamp adaptor (4) on the pole by means of two screws (5) with spring washers or use a
steel clamping tape for fastening the pole clamp adaptor on the pole.
In case of screwing the pole clamp adaptor (7) on a flat surface (pole), two pole spacers have to be inserted
under two mounting holes of the pole clamp adaptor (on fastening screws (5)) to fill up space between
the pole and the pole clamp adaptor
4. Pass the Calumma Remote S cable (6) through mounting yoke (7), pole clamp adaptor (4) and through
cable gland (2) into the pole.
5. Screw the Calumma mounting yoke (7) on the pole clamp adaptor (4) by means of three Allen screws
M8x20 (3) with washers (Allen screw + spring washer+ flat washer). Keep correct orientation of the
fastening screws (3) as drawn on the picture – two screws (B) have to aim upwards, one screw has to be
orientated towards ground.
NOTE. Three mounting openings in the mounting yoke allow positioning of the mounting yoke.

Calumma Remote S
10
4.2 Connection to power
The unit must be installed by a qualified electrician in accordance with all national
and local electrical and construction codes and regulations.

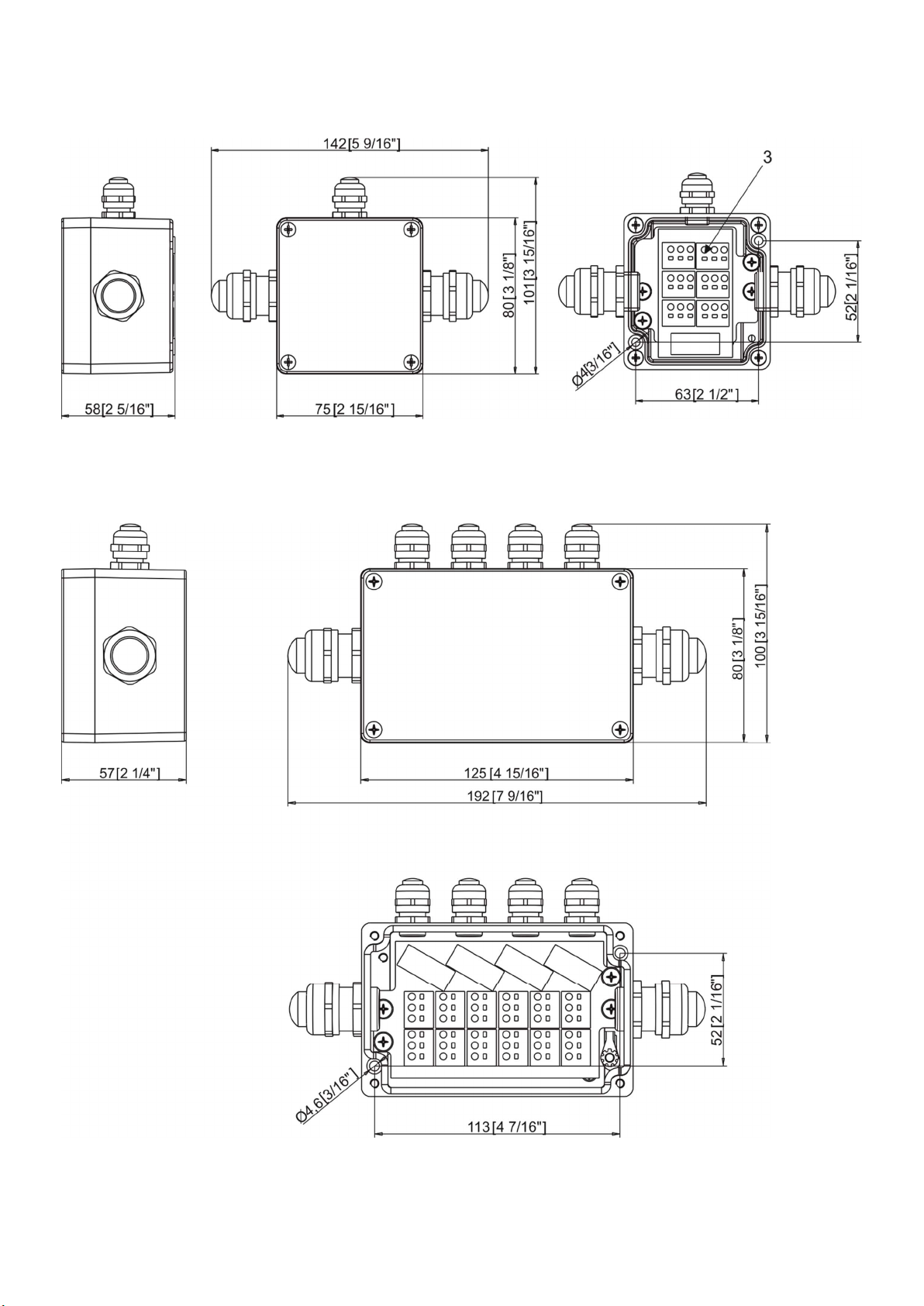

Junction box installation.
Junction box with one output
Junction box with four outputs
1.Unscrew the four screws (1) from the cover (2) on the junction box to get access to the DPS with terminal
blocks (3) and two mounting holes (4).
2. Screw the junction box on a non-flammable flat surface.
3. Connect cables to terminal blocks.

Calumma Remote S
11
Two cable glands M20 x 1.5 serves for a power/data cable. One (or four) cable gland M12 x 1.5 serves for Calumma
Remote S connection cable.
Remove the end cap from the cable gland before passing the cable.
We recommend to apply an adequate layer of the paste LOCTITE 5331 on the plastic holder of the cable gland
before inserting it into the body of the gland.

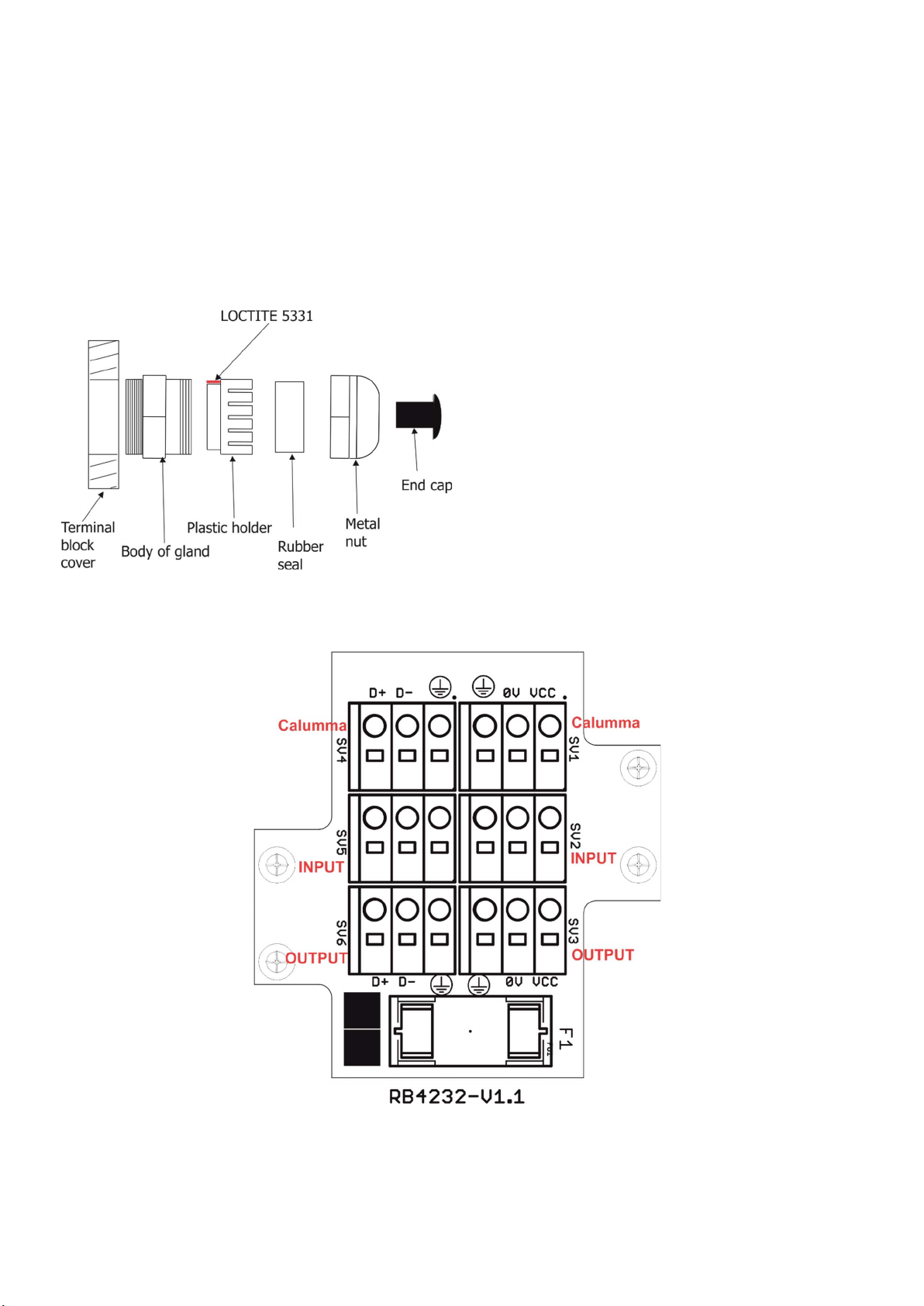

Cable gland M20x1.5 and M12x1.5

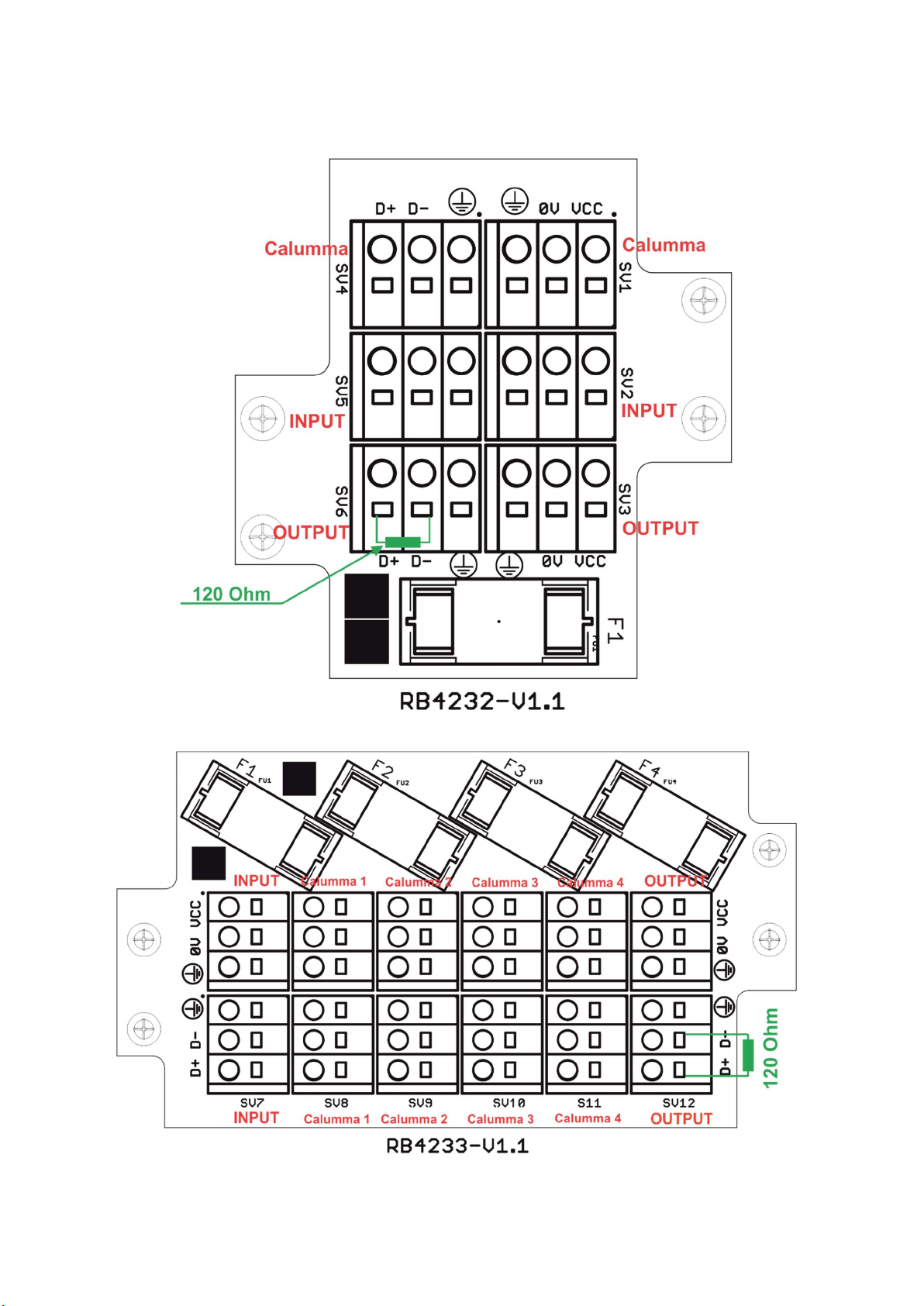

Wiring of connection blocks on DPS RB4232 in the junction box with one LED output.
Fuse F1: 2A/500V AC.

Calumma Remote S
12

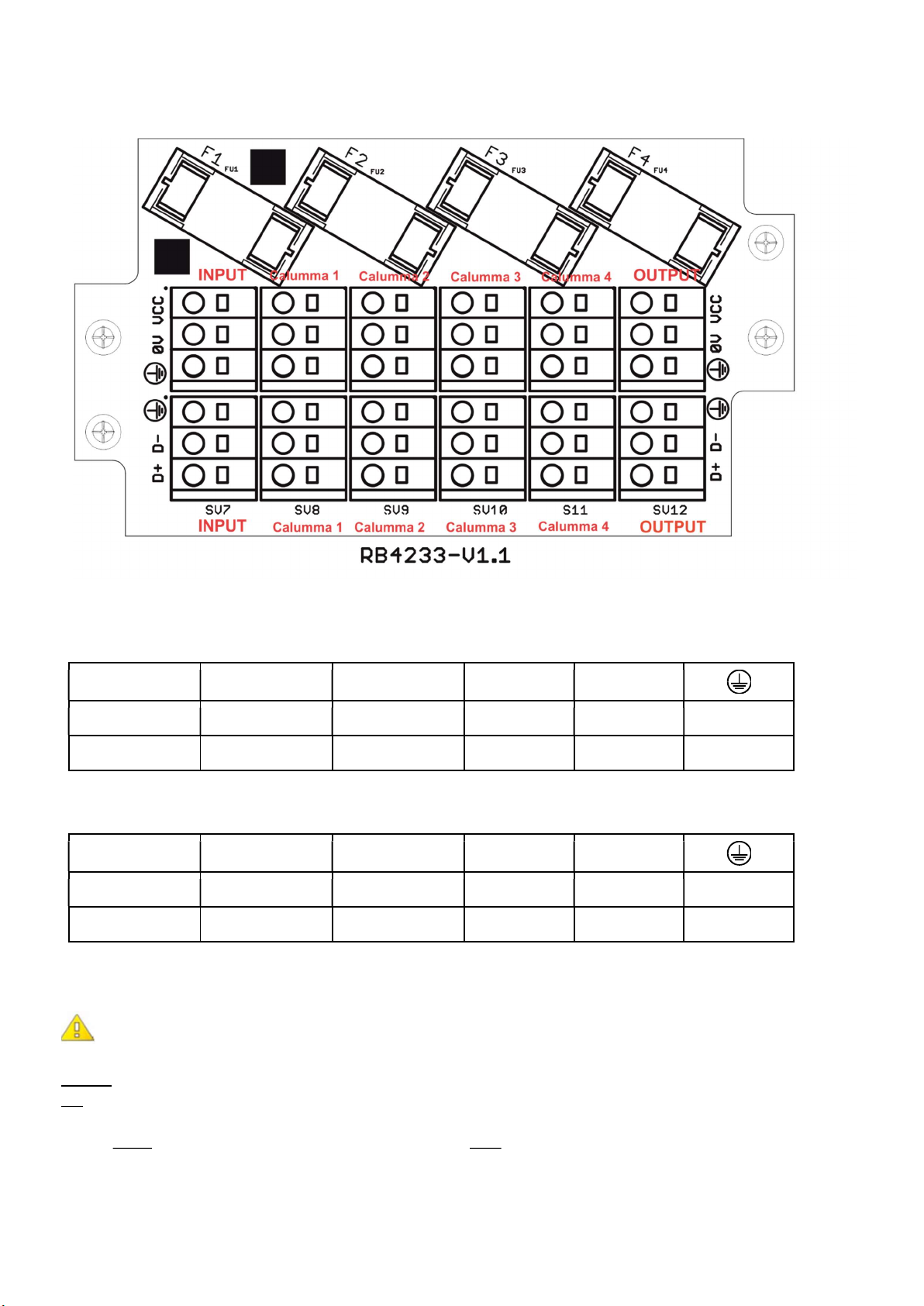

Wiring of connection blocks on DPS RB4233 in the junction box with four LED outputs.
Fuse F1-F4: 2A/500V AC.
Calumma Remote S connection:
Connector
Vcc
D+
D
-
0V
Function
LEDs +
Data +
Data
-
LEDs
-
Not connected
Colour of
wire
Red
Orange
White
Black
Colours of wires apply to the 5-cored cable UL 20969 5x 20AWG (P/N 13053481)
Connection between junction box and E-box Remote and among junction boxes:
Connector
Vcc
D+
D
-
0V
Function
LEDs +
Data +
Data
-
LEDs
-
Not
connected
Colour of wire
Red
Orange
White
Black
Colours of wires apply to the 5-cored cable SJTW 5x 14AWG (P/N 1305 3336).
NOTE: Each line of Calummas Remote S connected to the LED output of the E-box Remote has to be terminated
at the last fixture.
EITHER connect a 120 Ohm resistor between terminals D+ and D- in the last fixture,
OR terminate via RDM as described in the E-box Remote user manual.
Ensure ONLY the last fixture in the line is terminated using ONE of the above methods!

Calumma Remote S
13
Examples
Termination via 120 Ohm resistor

Calumma Remote S
14

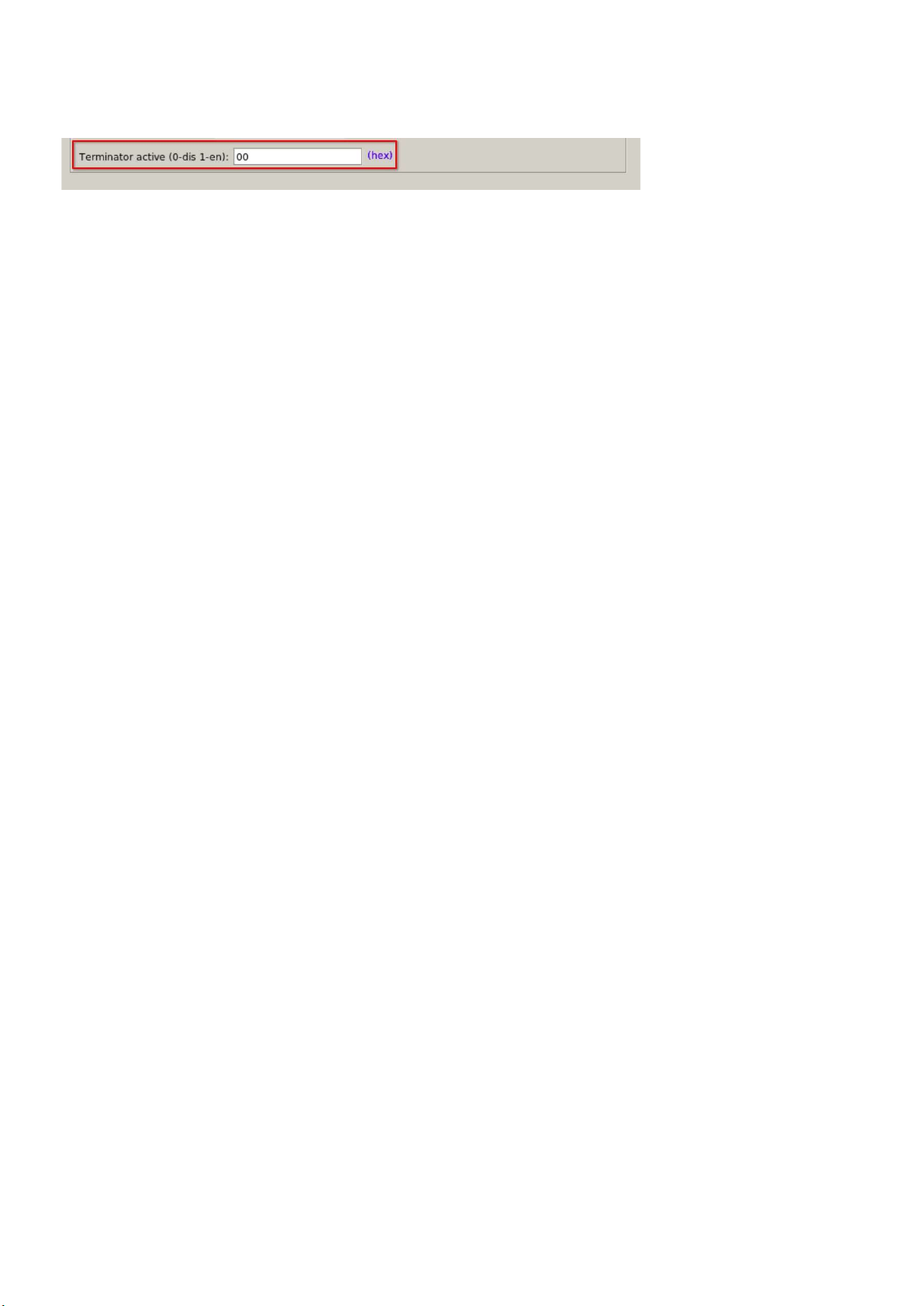

Termination via RDM:
4. Screw the cover (2) back on the junction box.

Calumma Remote S
15
5. Software update
Software update of Calumma Remote S modules has to be done by means of the software ROBE Uploader running
on PC.
The ROBE Uploader is a software for automatized software update of ROBE fixtures. The ROBE Uploader switches
Calummas Remote S to the update mode automatically.
Please see https://www.robe.cz/robe-uploader/ for more information.
The Calummas Remote S have to be operated in the Pass-Through mode only.
To update Calummas Remote S including the E-box Remote.
1. Update connected LED modules by means of the file Calumma.lib in the ROBE Uploader.
2. Set the E-box Remote to the Standard mode and switch it off/on. Use the file EminereEbox.lib in
the ROBE Uploader for software update of the E-box Remote.
3. After updating the E-box Remote, set the E-box Remote to the Pass-Through mode and switch it off/on.
For more information about updating please see the E-box Remote user manual and E-box Remote Base user
manual.
Examples of connection for software update
1. By means of DMX connection and Robe Universal Interface.

Calumma Remote S
16

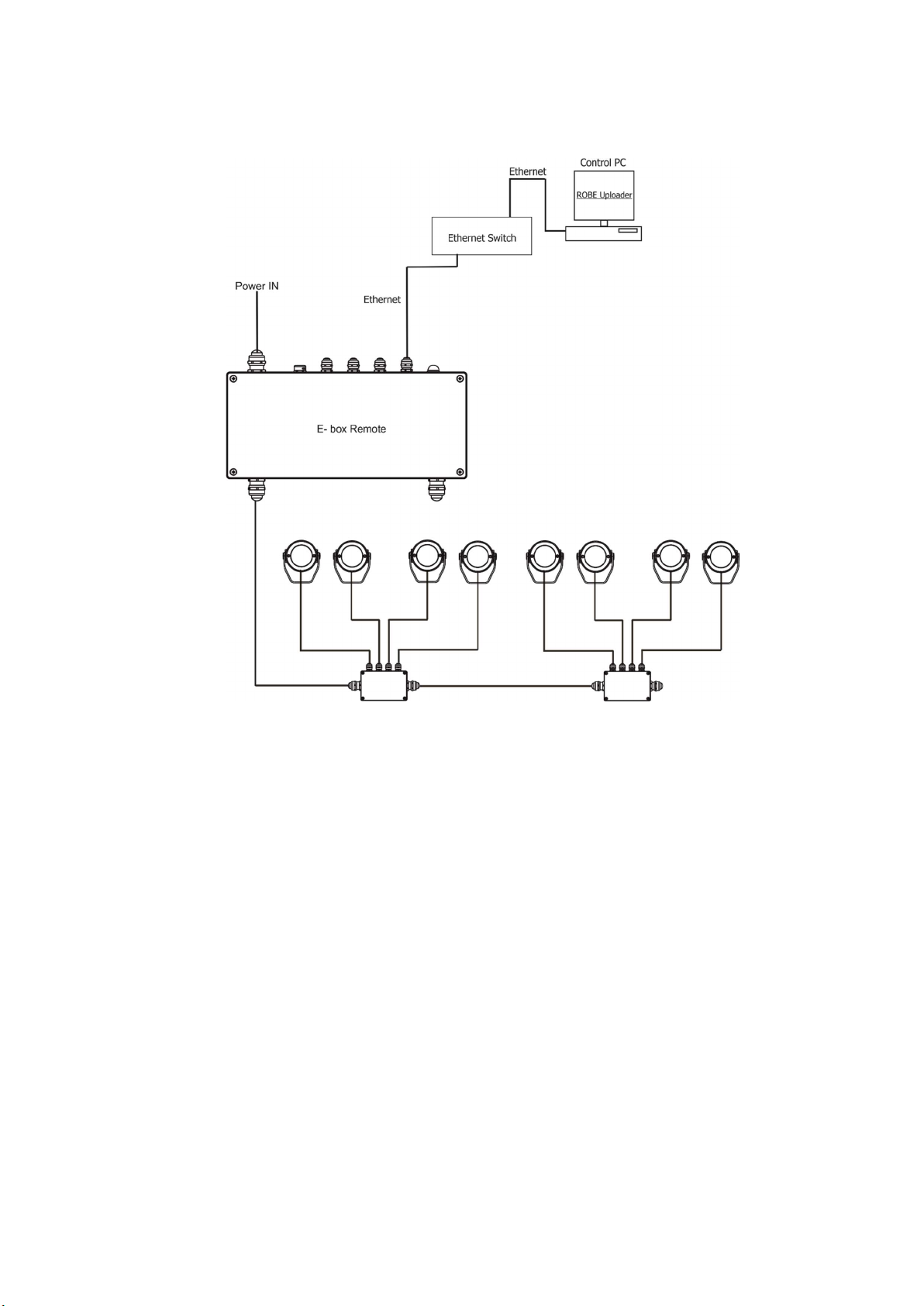

2. By means of the Ethernet connection

Calumma Remote S
17
6. Technical specifications
Power supply
• Input voltage: 48 V
• Power consumption:
Calumma Remote S MC: 30 W
Calumma Remote S SC: 30 W
Optic
• Light source:
Calumma Remote S MC: 3 x high power multichip LEDs
Calumma Remote S SC: 19 x high power single chip LEDs
• Colour variants: RGBW (W - 6500 K), RGBA, PW (W - 3000 K)
• Beam Angle Calumma Remote S MC:
Symetrical: 9°, 15°, 25°, 30°, 45°, 65°, 100°
Bi-symetrical: 10° x 30°, 30° x 10°, 10° x 60°, 60° x 10°, 15° x 45°, 45° x 15°,
15°x90°, 90°x15°, 30°x60°, 60°x30°, 30°x90°, 90°x30°
• Beam Angle Calumma Remote S SC:
Symetrical: 10°, 15°, 25°, 30°, 45°, 65°, 100°
Bi-symetrical: 10° x 30°, 30° x 10°, 10° x 60°, 60° x 10°, 15° x 45°, 45° x 15°,
15°x90°, 90°x15°, 30°x60°, 60°x30°, 30°x90°, 90°x30°
• Projected Lumen Maintenance: L90B10 >90.000 hrs, Ta = 25°C / 77°F
Compatible drivers
• E-box Remote
• E-box Remote Basic
Mounting method
• Via yoke
• Adjustability: -180°/+180°
Housing
• High pressure die-cast aluminium body
• Tempered glass
Cooling system
• Convection
Total heat dissipation
• Calumma Remote S MC: 77 BTU/h (calculated)
• Calumma Remote S SC: 77 BTU/h (calculated)
Protection factor
• CE: IP 67 (IP 66 junction box)
• US: Suitable for wet location
Impact rating
• IK10
Operating ambient temperature range
• -20°C /+40°C (-4°F /+104°F)

Calumma Remote S
18
Connection
• Via E-box Remote/E-box Remote Basic
Calumma IN: cable UL 20969 5x 20AWG (P/N 13053481), length 1m standard
Interconnecting cable between junction boxes: SJTW 5x 14AWG (P/N 13053336)
Junction Box for Calumma XS, (1x Output)
Junction Box for Calumma XS, (4x Output)
Weight
• Calumma Remote S SC: 3.45 kg (7.6 lbs)
• Calumma Remote S MC: 2.95 kg (6.5 lbs)

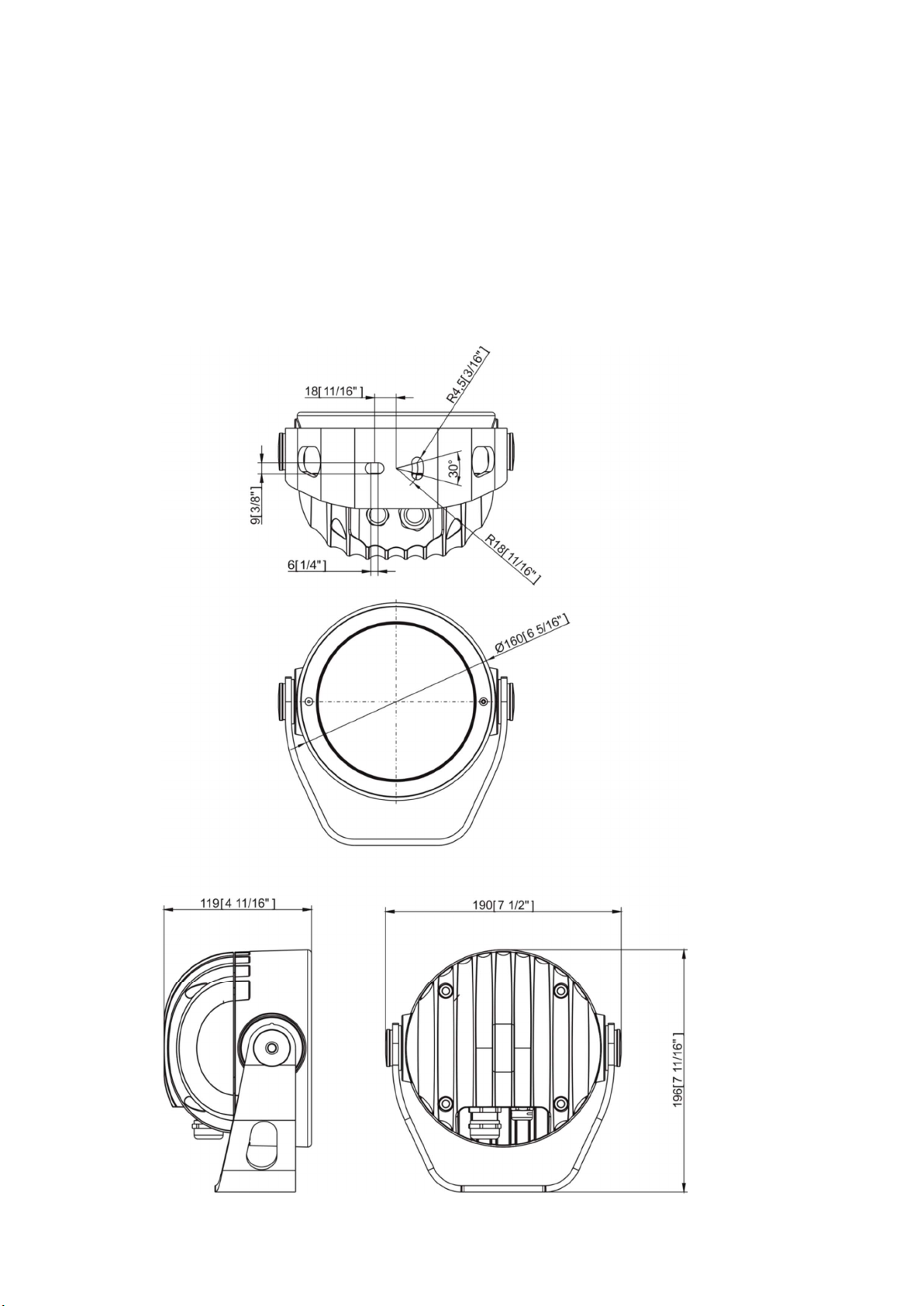

Dimensions (All dimensions in mm [inch])

Calumma Remote S
19
Calumma S with Pole clamp adaptor
Pole clamp adaptor for Calumma

Calumma Remote S
20
Junction box with one output
Junction box with four outputs
