Robe Anolis UVinere 2 User manual

Version 1.
3
QR code for user manual

UVinere
2
Table of contents
1. Safety instructions ...................................................................................................................................................... 3
2. Fixture exterior view ................................................................................................................................................... 5
3. Installation .................................................................................................................................................................. 5
3.1 Mounting the fixture ............................................................................................................................................ 5
3.2 Connection to mains ............................................................................................................................................. 6
3.3 The Booster box .................................................................................................................................................... 9
3.4 The Booster box installation ............................................................................................................................... 10
3.5 Jumper cable assembling .................................................................................................................................... 12
4. Software update ....................................................................................................................................................... 15
5. Technical specifications ............................................................................................................................................ 16
6. Cleaning and maintenance ....................................................................................................................................... 20
6.1 Disposing of the product .................................................................................................................................... 20
7. ChangeLog ................................................................................................................................................................ 21

UVinere
3
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR UVinere !
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure
safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this
manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Unauthorized modification will void warranty.
1. Safety instructions
THIS LUMINAIRE IS DESIGNED WITH UV LEDS AND MUST BE INSTALLED IN COMPLIANCE WITH
COMPETENT TECHNICAL DIRECTIONS TO PREVENT THE USER’S EYE AND BARE SKIN FROM EXPOSURE
TO HARMFUL UV RADIATION.
CE LUMINAIRE EST CONCU POUR ETRE UTILISE AVEC DES LED UV ET DOIT ETRE INSTALLE EN STRICTE
CONFORMITE AVEC LES INSTRUCTIONS AFIN D’EVITER QUE LES YEUX OU LA PEAU L’UTILISATEUR NE
SOIENT EXPOSES AUX EFFETS NEFASTES DES RAYONS UV.
CAUTION:
Radiation exposure may cause blindness and cancer of skin!
Maximum exposure time (minutes)
Non optic
al version
24°
Distance from
UV source
UVinere 2 UVinere 4 UVinere 2 UVinere 4
1.5m (4.9ft) 37.0 18.5 - -
2m (6.6ft) 65.7 32.9 - -
3m (9.8ft) 147.9 74.0 27.5 -
4m (13ft) 263.0 131.5 48.9 24.5
5m (16.4ft) 410.9 205.5 76.5 38.2
6m (19.7ft) 591.7 295.9 110.1 55.0
7m (23ft) 805.4 402.7 149.8 74.9
8m (26ft) 1051.9 526.0 195.7 97.9
9m (29.5ft) 1331.4 665.7 247.7 123.9
10m (32.8ft) 1643.7 821.8 305.8 152.9

UVinere
4
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!
This fixture should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supplied, consult your authorized distributor or local power company.
Always disconnect the fixture from AC power before cleaning, servicing or installing.
Make sure the data/power cable is not damaged by sharp edges. Check the fixture and the power cord from time
to time.
Do not install the unit near an open flame.
During operation the housing becomes hot.
Refer servicing to qualified service personnel.
This fixture falls under protection class I. Therefore this fixture has to be connected to a mains socket outlet with
a protective earthing connection.
The fixture was designed for outdoor use. This fixture must not be used for underwater installation.
When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.
Avoid using the unit in locations subject to possible impacts.
The fixture body never must be covered with cloth or other materials when the fixture is under operation.
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
The fixture becomes hot during operation. Allow the fixture to cool approximately 30 minutes prior to servicing or
maintenance.
Operate the fixture only after having familiarized yourself with its functions. Do not permit operation by persons
not qualified to operate the fixture. Most damages are the result of unprofessional operation!
Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard
EN55103-2 ed.2 Electromagnetic compatibility. Product family standard for audio, video, audiovisual and
entertainment lighting control apparatus for professional use. Part 2: Immunity.
The product (covers and cables) must not be exposed to a high frequency electromagnetic field higher than 3V/m.
The installation company should check levels of possible interferences above the tested levels E1,E2,E3 given by
this standard (e.g. transmitters in surrounding area) before installing the equipment.
Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility of multimedia
equipment – Emission Requirements according to class B.
Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!
Please use the original packaging if the fixture is to be transported.
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the warranty becomes void. Furthermore, any other operation may lead to dangers like short-circuit,
burns, electric shock etc.

UVinere
5
2. Fixture exterior view
3. Installation
3.1 Mounting the fixture
The UVinere can be arranged in any orientation on a flat, non-flammable surface by means of two mounting
brackets (5), the LED module (2) can be tilted (+95°/-95°) to get access to mounting brackets (5).
Ensure that the structure to which you are attaching
the unit is secure.
1. Transparent glass cover
2. LED module
3. Output connector
4. Input connector
5. Mounting brackets
6. Aluminium base

UVinere
6
3.2 Connection to mains
The unit must be installed by a qualified electrician in accordance with all national
and local electrical and construction codes and regulations.
This device falls under class one and must be grounded!
The UVinere is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz AC power
source from 120-277 Volts.
The following wiring of the input/output connectors applies to the fixtures marked X on their labels only. Older
versions of the UVineres have swapped D- and D+ and do not have mark X on their labels.
E.g.
Input - panel connector Output - panel connector
(front view) (front view)
Fixture´s Amphenol connectors are dust and water protected according to IP 67 by mating with related Amphenol
connectors.
They cannot stay disconnected outdoor.
The output panel connector at last fixture in the UVinere chain has to always be covered with the water-tight
cap to keep declared IP rating.
The UVinere modules should be connected to the E-box which allows power supply of the UVinere modules and
their control.
Do not connect (disconnect) Emineres UV to the E-box or Booster box and each other when they are under
voltage!
When you change any setting of the E-box, disconnect the E-box from power and connect it to power again
to activate changes which you have made.

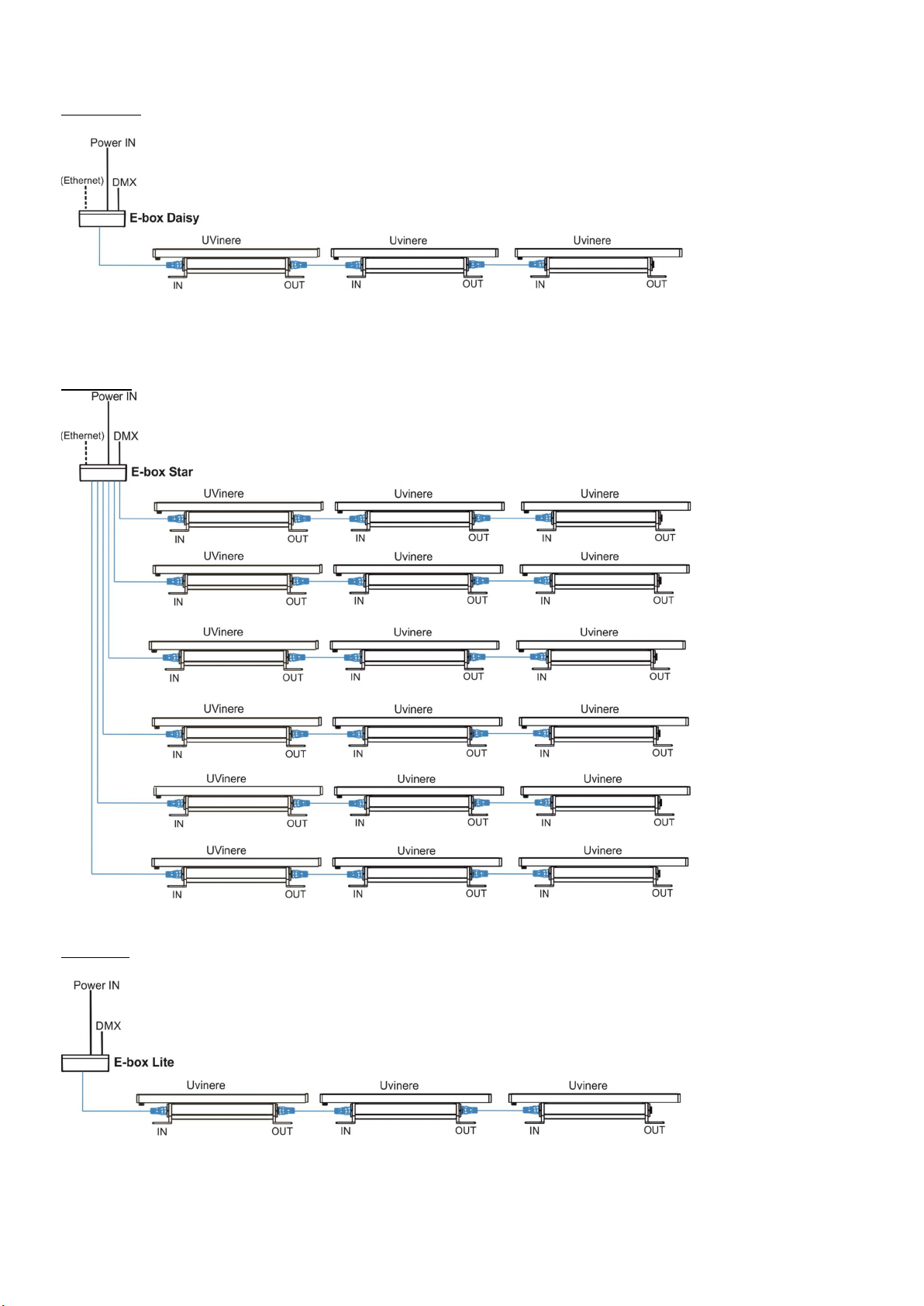

Examples of connection for various versions of the E-box.
Please read the E-box user manual for more information about its setting and connection to UVinere modules.
Needed cables are stated in the chapter “Technical information“.

UVinere
7
E-box Daisy
E-box Star
E-box Lite
Number of connected Emineres UV to one E-box output depends on a cable length, power voltage,
type of UVinere and E-box and operation mode.

UVinere
8
The tables below state max. theoretical number of Emineres UV connected to the one LED output of the E-box
without Booster boxes. The following tables apply for the Standard mode of E-boxes.
UVINERE
2
Voltage
Cable length *
120V
190V
230V
277V
10 m
41
64
78
94
20 m
41
64
78
94
30 m
28
64
78
94
50 m
17
43
63
91
70 m
12
31
45
65
100 m
9
21
31
46
200 m
4
11
16
23
UVINERE
4
Voltage
Cable length *
120V
190V
230V
277V
10 m
21
33
40
48
20 m
21
33
40
48
30 m
15
33
40
48
50 m
9
22
32
47
70 m
6
16
23
38
100 m
4
11
16
23
200 m
2
5
8
12

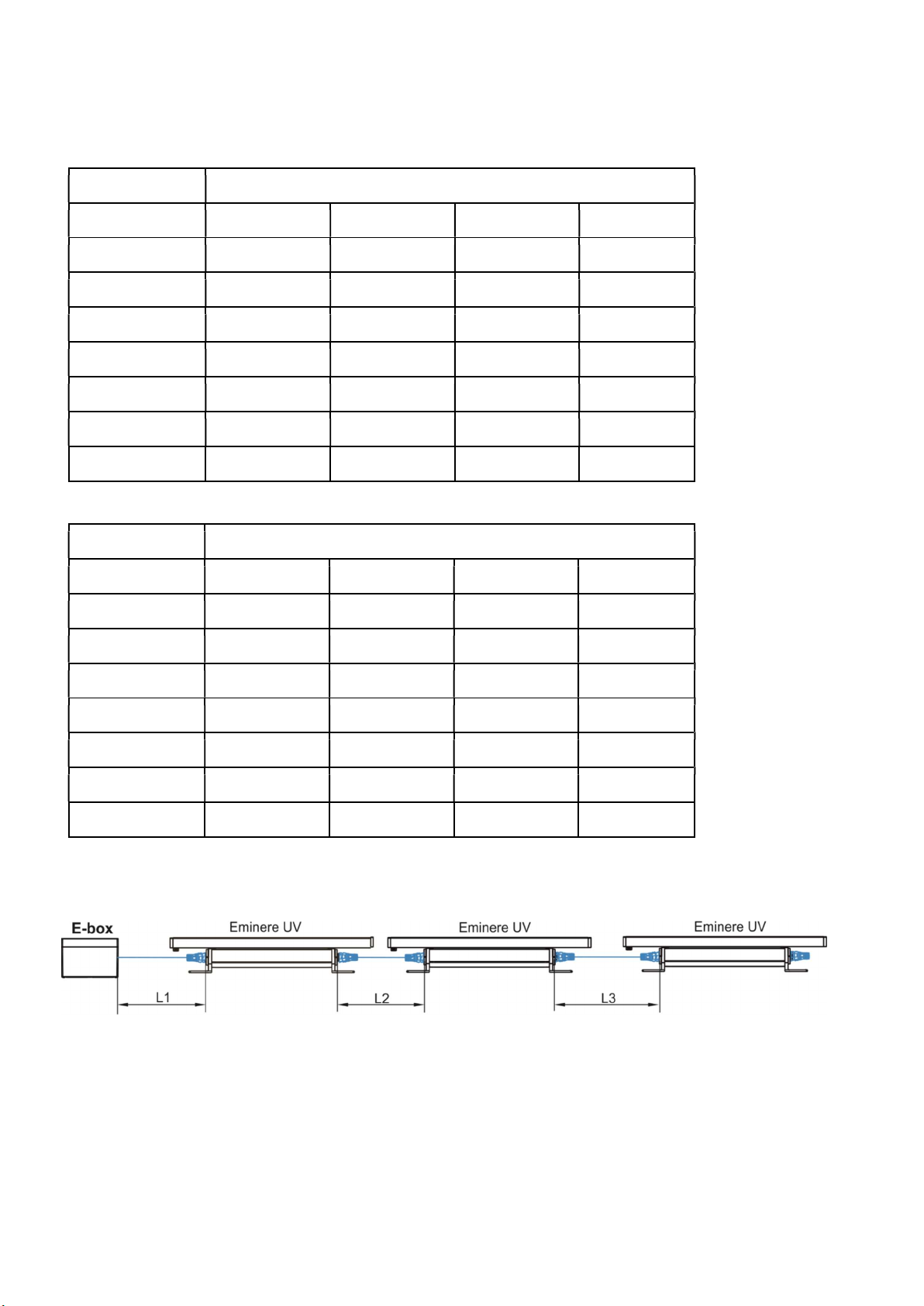

* Cable length is a total cable length between E-box and last connected UVinere.
Example: Total cable length=L1+L2+L3
Notice for the E-box Star: The tables above state max. total number of Emineres UV connected to 6 LED outputs
of the E-box Star (or max. number of Emineres UV connected to one output if the rest of outputs is not
connected).The E-box Star has only one power input!

UVinere
9
3.3 The Booster box
To compensate a voltage drop in large installation, the Booster boxes have to be connected in the chain of
Emineres UV at every LED output of the E-box.
The following tables give numbers of Emineres UV after which the Booster box has to be installed in the chain of
Emineres UV (at one LED output of the E-box). The following tables apply for the Standard mode of E-boxes.
UVINERE 2 Max. number of Emineres UV 2= 94
Voltage
Cable
length
120V 190V 230V 277V
10 m 41,82 64 78 -
20 m 41,82 64 78 -
30 m 28,56,84 64 78 -
50 m 17,34,51,68,85 43,86 63 91
70 m 12,24,36,48,60,72,84 31,62,93 45,90 65
100 m 9,18,27,36,45,54,60,72,81,
90
21,42,63,84 31,62,93 46,92
200 m 4,8,12,16,20,24,28,32,36
40,44,48,52,56,60,64,68,72
76,80,84,88,92
11,22,33,44,55,
66,77,88
16,32,48,64,80 23,46,69,92
UVINERE 4 Max. number of Emineres UV 4= 48
Voltage
Cable
length
120V 190V 230V 277V
10 m 21,42 33 40 -
20 m 21,42 33 40 -
30 m 15,30,45 33 40 -
50 m 9,18,27,36,45 22,44 32 47
70 m 6,12,18,24,30,36,42 16,32 23,46 38
100 m 4,8,12,16,20,24,28,32,36,
40,44
11,22,33,44 16,32 23,46
200 m 2,4,6,8,10,12,14,16,18,20,
22.24.26,28,30,32,34,36,38
40,42,44,46
5,10,15,20,25,30
35,40,45
8,16,24,32,40 12,24,36

UVinere
10
Example: E-box Daisy, Power supply= 230V, Cable length=70m, fixture=UVinere 2
The Booster box has to be connected after every 45th UVinere 2 (fixture 45 and fixture 90) from 94 fixtures.
3.4 The Booster box installation
ALWAYS DISCONNECT THE UVINERES FROM MAINS BEFORE
CONNECTING/DISCONNECTING THE BOOSTER BOX.
The Booster box falls under protection class I. Therefore, every Booster box
has to be connected to a mains socket outlet with a protective earthing connection.
1.Unscrew the four screws (1) from the cover (2) on the Booster box to get access to the terminal block (3) and
two mounting holes of diameter of 4.6 mm (4).
2. Screw the Booster box on a non-flammable flat surface and connect cables.
The Cable gland M20x1.5 for Power IN (5) is intended for a cable of a diameter of 7-13mm.
Remove the end cap from the cable gland before passing the cable.

UVinere
11
Power connection
L
N
(earth)
Core (EU) Braun Blue Green/yellow
Core (US) Black White Green
We recommend to apply an adequate layer of the paste LOCTITE 5331 on the plastic holder of the cable gland
before inserting it into the body of the gland and an adequate layer of the paste LOCTITE 577 on the thread of the
gland body.
Cable gland M20 MS:
The cable gland M20 MS with a standard seal serves for a cable of diameter of 6-12mm, for smaller diameter of
cable (4-8mm) you have to remove the original seal from the cable gland M20 and use the enclosed reducing seal
instead of it. The reducing seal for diameter of cable 4-8mm (P/N 13051388) is enclosed in the Booster box.
3. Screw the cover (2) back on the Booster box.

UVinere
12

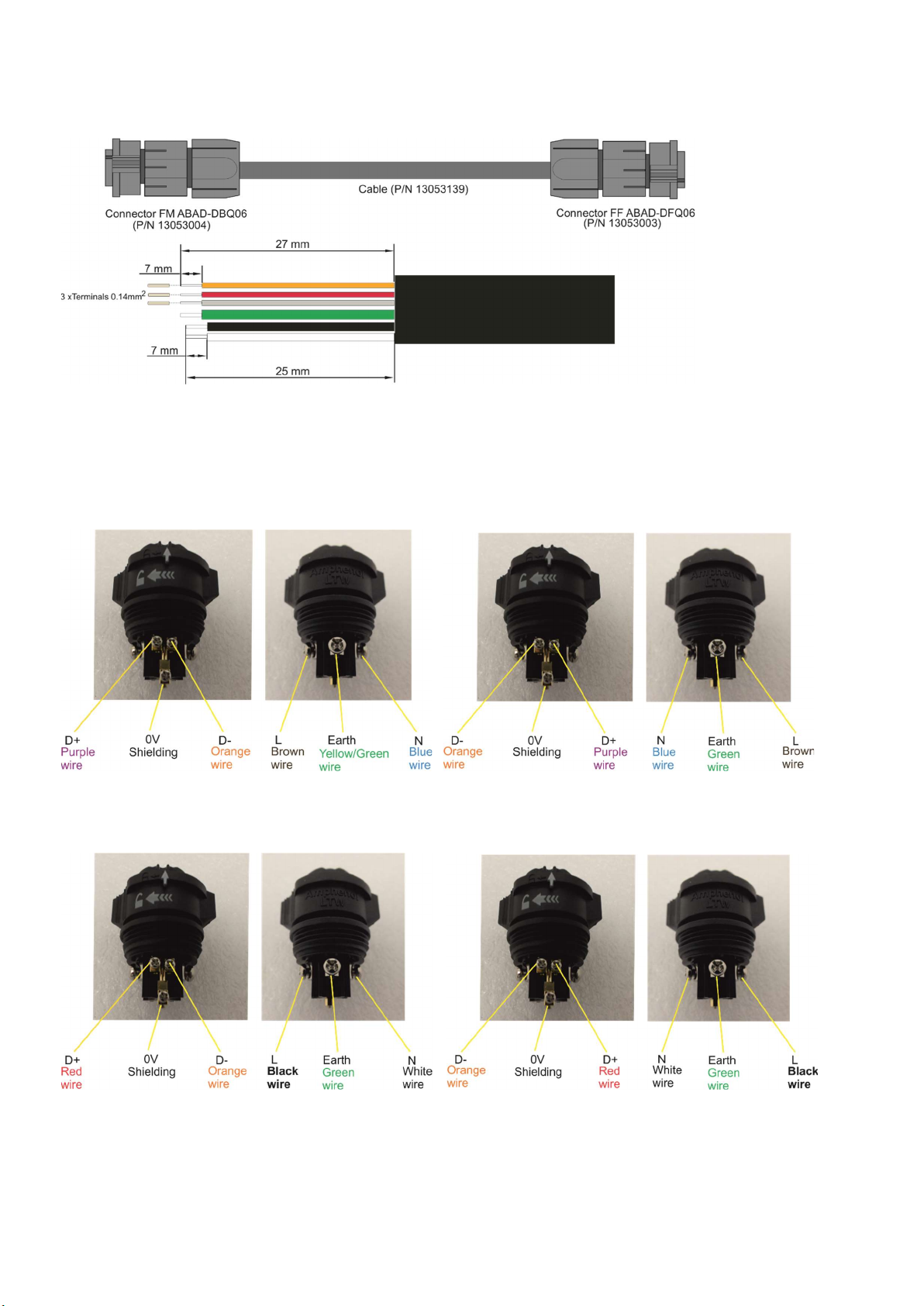

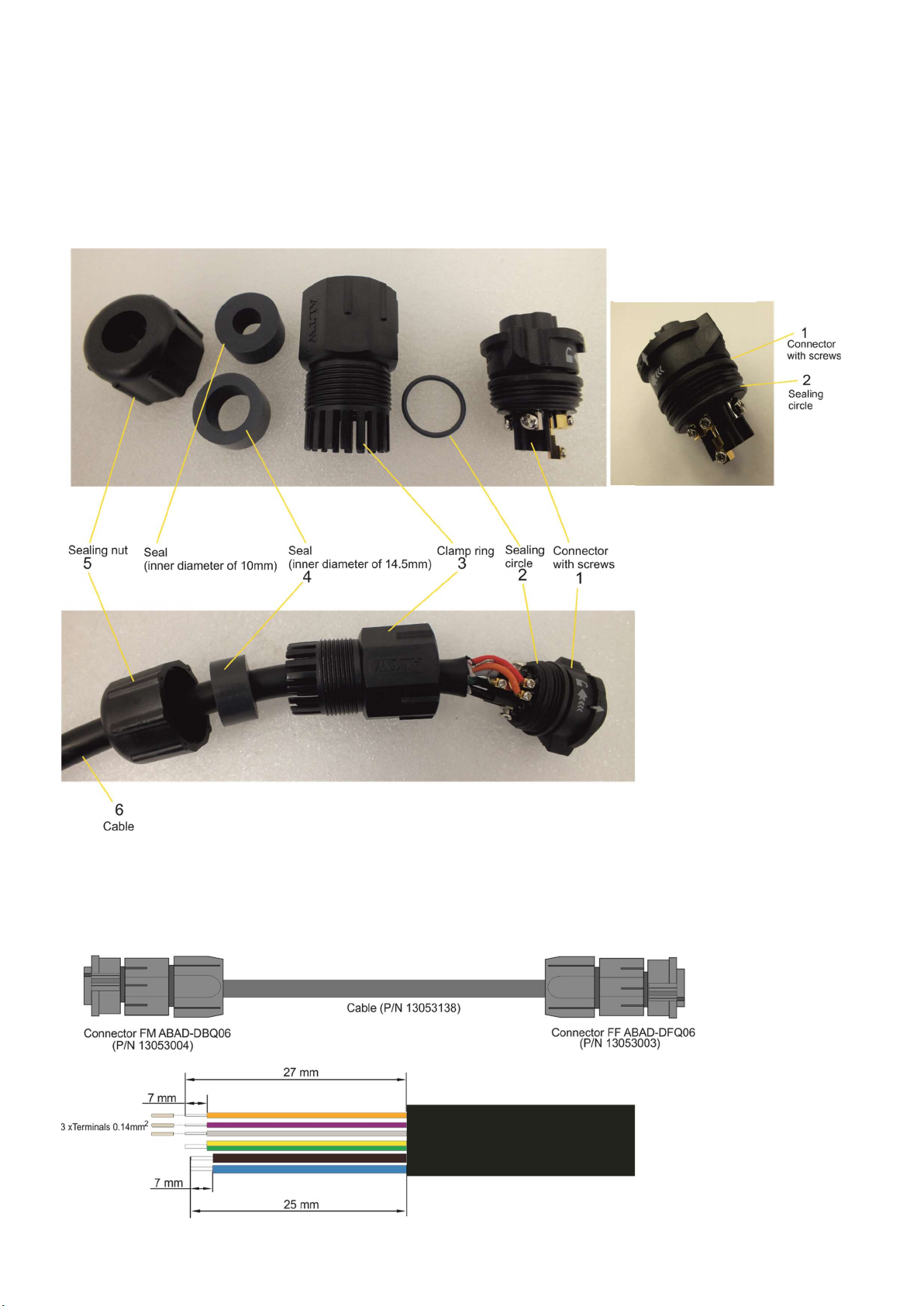

3.5 Jumper cable assembling
1. Dismantle the connector and slide its parts onto the cable (6).
Use the seal with inner diameter of 14.5 mm for the Anolis cable (P/N 13053138 or P/N 13053139).
The seal with inner diameter of 14.5 mm serves for cable of diameter 10-14.5mm.
The seal with inner diameter of 10 mm serves for cable of diameter 8-10mm.
Parts of the connector
2. Put the seiling circle (2) on the connector with screws (1).
3. Remove insulation from the cable (6) and from individual wires and fasten three terminals on data wires.
CE version
Detail of Sealing
circle (2) placing

UVinere
13
US version
4. Put parts of the connector on the cable (6) and connect wires to the connector. First connect power wires (L,N,
Earth) and after that data wires (D+, D-, 0V). Avoid excessive torsion of data wires!
CE version
Male Female
US version
Male Female

UVinere
14

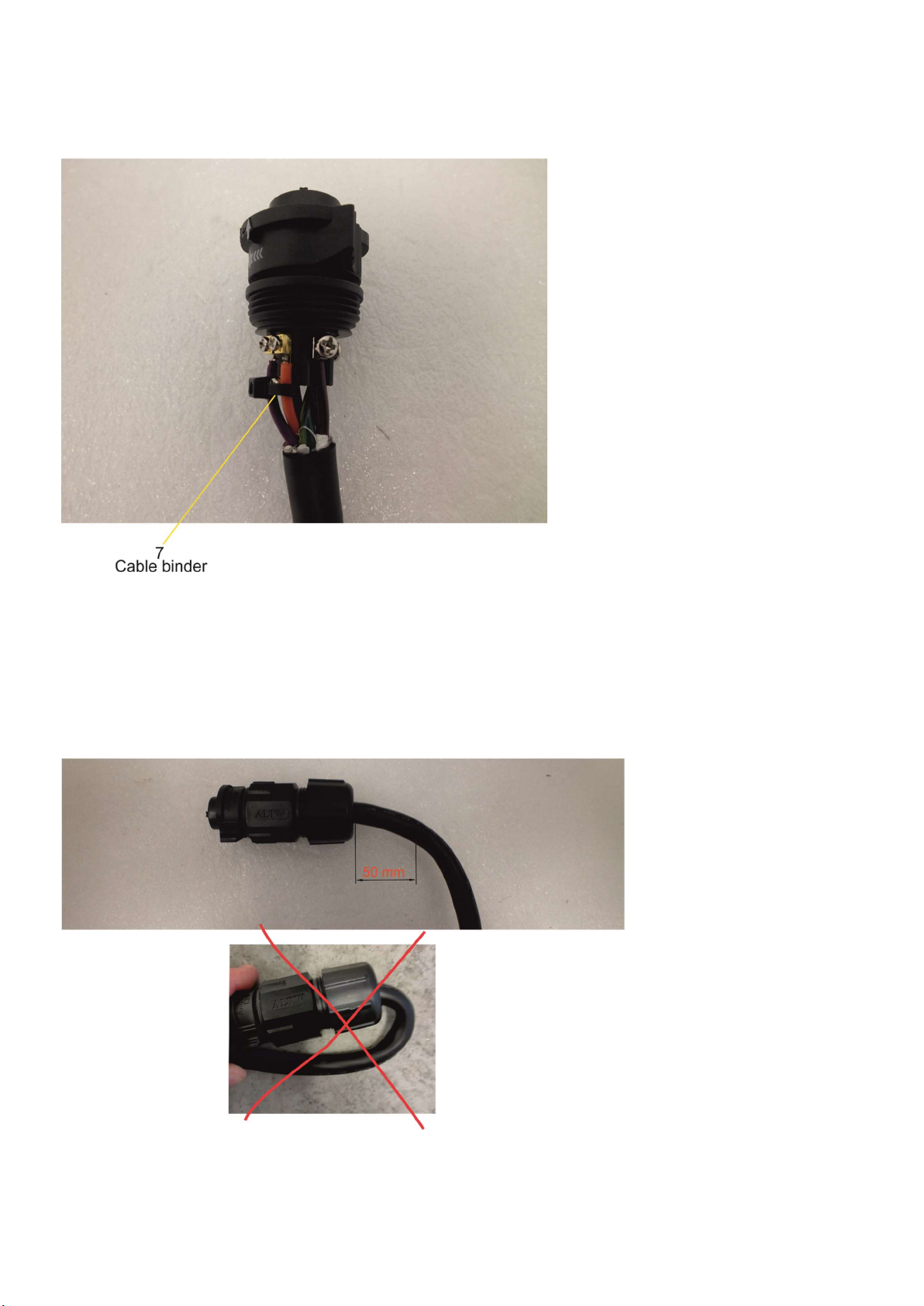

5. After connecting wires to the connector, tighten the three data wires (D+,D-, 0V) by means of the cable binder
(7).
6. Screw the clamp ring (3) to the connector (1), insert the seal (4) to the clamp ring (3) and tighten the sealing nut
(5) enough. During the steps DO NOT TWIST the cable (6).
7. Use the same procedure to assemble the connector on the second end of the cable.
IMPORTANT
Do not bend the cable near to the connector, minimum distance for bending is 50mm.

UVinere
15
4. Software update
Software update of UVinere has to be done by means of the software ROBE Uploader running on PC.
The ROBE Uploader is a software for automatized software update of ROBE fixtures. The ROBE Uploader switches
Emineres UV to the update mode automatically.
Please see https://www.robe.cz/robe-uploader/ for more information.
DMX or Ethernet connection via E-box
If the option Standard is selected from the menu E-box mode and LED modules are connected in series,
the E-box will be updated including connected UVinere modules. You have to use the file EminereEbox.lib in the
ROBE Uploader for this operating mode.
If the option Pass-Thr is selected from the menu E-box mode and LED modules are connected in series, you have to
do the following steps to update Emineres UV including the E-box:
1. Set the E-box to the Standard mode and switch it off/on. Only E-box will be shown in the ROBE Uploader.
You have to use the file EminereEbox.lib in the ROBE Uploader for software update of the E-box and
connected LED modules.
2.
After updating, set the E-box to the Pass-Thorough mode and switch it off/on
.
For more information about updating please see the E-box Lite/Daisy/Star user manual.

UVinere
16
5. Technical specifications
Power supply
• Electronic auto-ranging
• Input voltage: 120 - 277V AC, 50/60 Hz
• Power consumption:
UVinere 2: 45W
UVinere 4: 85W
• Inrush current:
UVinere 2: <70A/250µs
UVinere 4: <100A/200µs
Optic
• Light source:
UVinere 2: 16 x UV LEDs
UVinere 4: 32 x UV LEDs
• UV LEDs Wave Length: 365nm
• Beam Angle:
optical version: 24°
non-optical version: 92°
• Projected LEDs Life: 10.000 Hrs
Compatible drivers
• E-box Daisy
1 Output
1 Main power Input
Control: DMX, Art-Net, sACN , W-DMX control, RDM
Pixel control (1px= 1ft)
120-277V Input
Connection via terminal blocks, inlets via grommet
IP67
• E-box Star
6 outputs
1 Main power Input
Control: DMX, Art-Net, sACN , W-DMX control, RDM
Pixel control (1px= 1ft)
120-277V Input
Connection via terminal blocks, inlets via grommet
IP67
• E-box Lite
1 output
1 Main power Input
Control: DMX, W-DMX control, RDM
Pixel control (1px= 1ft)
120-277V Input
Connection via screw terminal blocks, inlets via grommet
IP67
Mounting method
• Via two L-shape brackets
• LED module “tilt” adjustment range: -95°/+95°

UVinere
17
Sizes
• UVinere 2 (600mm / 2ft)
• UVinere 4 (1200mm / 4ft)
Housing
• Aluminium extruded body with die-casted end caps
• Tempered glass
Cooling system
• Convection
Total heat dissipation
• UVinere 2: 113 BTU/h (calculated)
• UVinere 4: 214 BTU/h (calculated)
Protection factor
• CE: IP 67
• US: Suitable for wet location
Impact rating
• CE: IK06
Operating ambient temperature range
• -20°C /+40°C (-4°F /+104°F)
Operating temperature
• +67°C @ Ambient +40°C (+153°F @ Ambient +104°F)
Connection
• Input: panel connector Amphenol ABAB-DMQ06000021-IN (P/N13052952)
• Output: panel connector Amphenol ABAB-DAQ06000021 (P/N13052953) + water-tight cap
Weight
•UVinere 2: 4.05 kg (8.92 lbs)
•UVinere 4: 7.68 kg (16.93 lbs)

UVinere
18

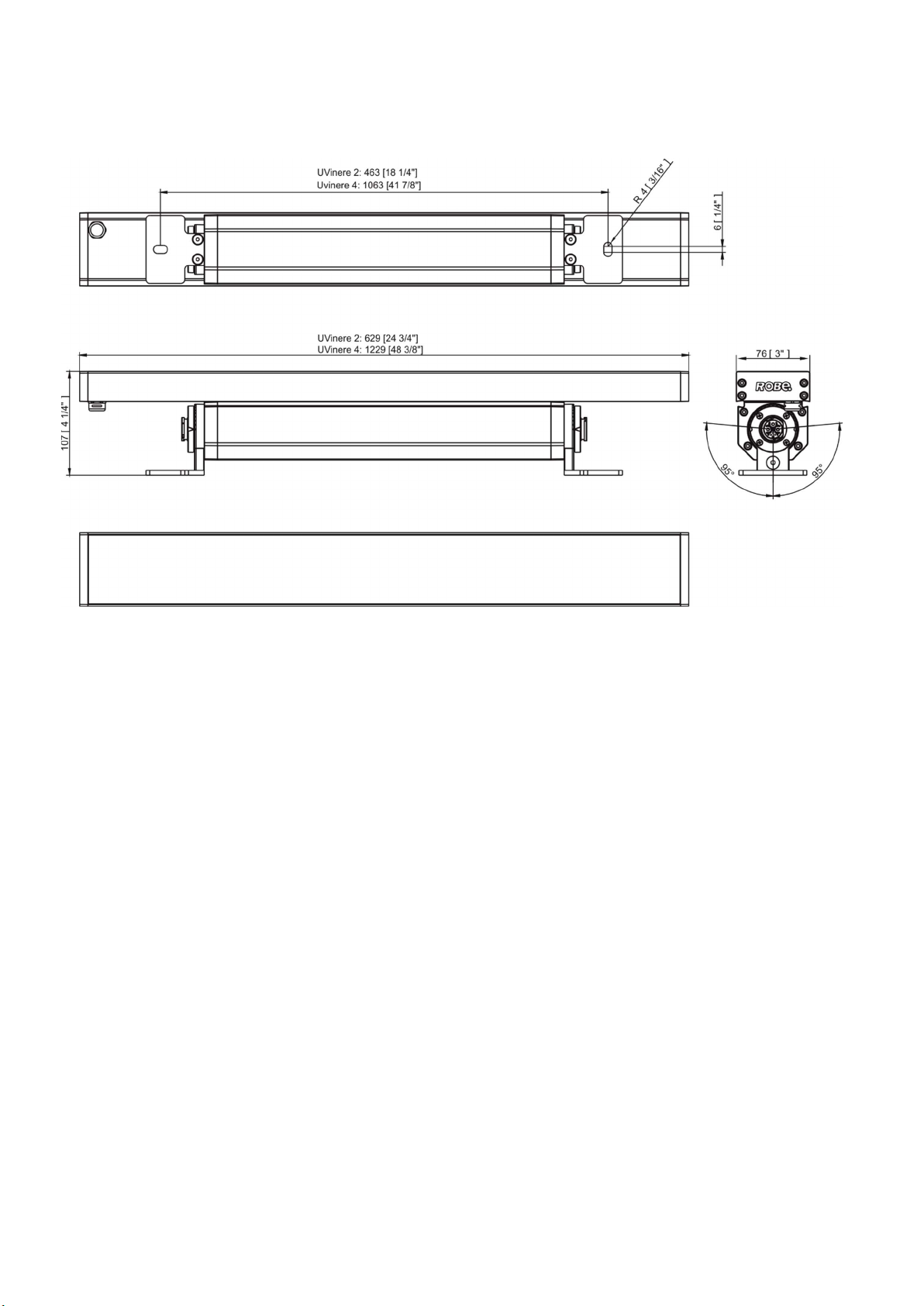

Dimensions (All dimensions in mm [inch])

UVinere
19
• Booster box
Included items
• 1 x UVinere
• 1 x User manual
Optional accessories
CE Leader Cables FF:
Leader Cable FF 2m (P/N 13053005)
Leader Cable FF 5m (P/N 13053006)
Leader Cable FF 10m (P/N 13053007)
Leader Cable FF 25m (P/N 13053008)
Leader Cable FF 50m (P/N 13053009)
US Leader Cables FF:
Leader Cable FF 2m (P/N 13053010)
Leader Cable FF 5m (P/N 13053011)
Leader Cable FF 10m (P/N 13053012)
Leader Cable FF 25m (P/N 13053013)
Leader Cable FF 50m (P/N 13053014)

UVinere
20
Jumper Cables FF/FM:
Jumper Cable FF/FM 0,25m (P/N 13053052)
Jumper Cable FF/FM 0,5m (P/N 13053053)
Jumper Cable FF/FM 1m (P/N 13053054)
Jumper Cable FF/FM 2m (P/N 13053055)
Jumper Cable FF/FM 3m (P/N 13053056)
Jumper Cable FF/FM 5m (P/N 13053057)
Jumper Cable FF/FM 10m (P/N 13053058)
Waterproof Cover Cap FM ZAHB-0006 (P/N 17031173)
Field Installable Connector FF (P/N 13053003)
Field Installable Connector FM (P/N 13053004)
E-boxes:
E-box Daisy (P/N 10063655)
E-box Daisy/W (P/N 10063638)
E-box Lite (P/N 10063657)
E-box Lite/W (P/N 10063653)
E-box Star (P/N 10063656)
E-box Star/W (P/N 10063644)
Booster box (P/N 10063712)
Cable Cover for Eminere 2 RAL9011 (P/N 10980485)
Cable Cover for Eminere 4 RAL9011 (P/N 10980487)
Shield for Eminere 2 RAL9011 (P/N 10980489)
Shield for Eminere 4 RAL9011 (P/N 10980491)
Black Glass Adaptor for UVinere 2 RAL9011 (P/N 10980773)
Black Glass Adaptor for UVinere 4 RAL9011 (P/N 10980648)
6. Cleaning and maintenance
DANGER !
Disconnect from the mains before starting any maintenance or cleaning work
Rinse off loose dirt with low pressure water spray. Wash the housing with a soft brush or sponge and a mild, non-
abrasive washing detergent. Rinse it.
Maintenance and service operations are only to be carried out by a qualified person.
Should you need any spare parts, please use ROBE OEM parts.
6.1 Disposing of the product
To preserve the environment please dispose or recycle this product at the end of its life according to the local
regulations and codes.
