TieRod Installation Manual
Guidelines/Restrictions:
- This carrier is intended for elliptical shaped factory crossbars.
- Bicycles must be e uipped with a uick release front wheel.
- Minimum crossbar spread is 16 inches, maximum 40 inches.
- Do not exceed the load capacity of your vehicle’s roof rack, 2 bike maximum for factory bars.
- Bicycle weight limit is 35lbs with this carrier.
- Use of forks e uipped with carbon fiber dropouts or forks without safety tabs will void the warranty.

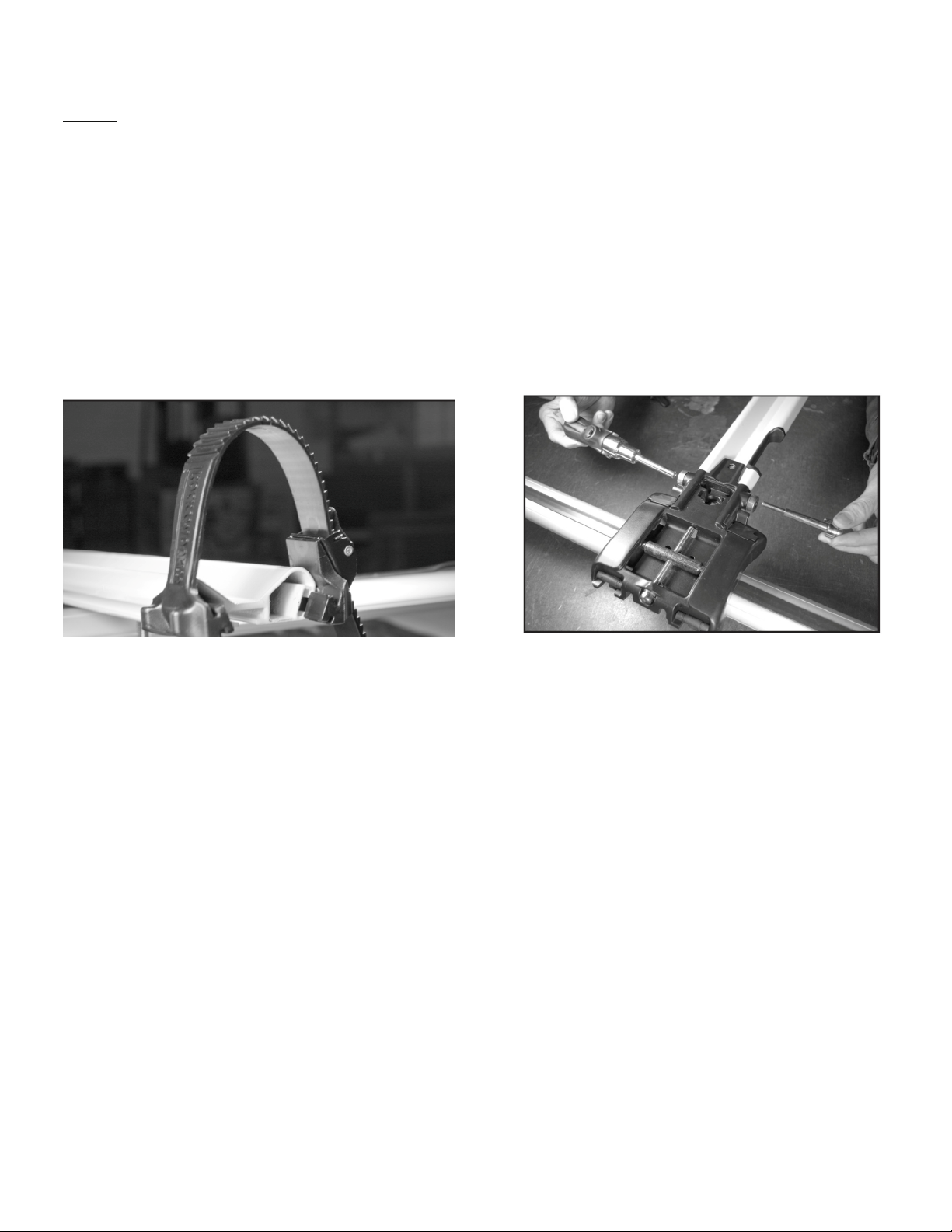

Step 1: Remove the cover plate from the head by pulling up on the tab. Loosen the bolt and unhook the
T-ends of the straps from the head. Place the rack onto your crossbar with the T-end straps under the
front crossbar (Figure#1).
Step 2: Slide the rear mounting bracket into the slot at the end of the Wheel Tray. Loosen one of the
bolts and pivot the plastic bracket away (Figure #2).
Figure #1 Figure #2
Step 3: Continue sliding the rear mounting bracket and center over the rear crossbar. Pivot the
plastic bracket to align with the loosened bolt and tighten (Figure #3). If bolts are not long
enough, unthread bolts and remove two black spacers (Figure #4).
Step 4: Hook the T-ends back into the openings and tighten (Figure #5).
Figure #3 Figure #4 Figure #5

Step 5: Install the Wheel Strap into the slots (Figure #6) on the side of the tray, buckle side facing out.
If it is a snug fit, a rubber mallet can be used to tap it into position.
Press the End Cap into the rear of the Wheel Tray.
If you purchased one lock core, remove the plastic plug in the handle of the Quick Release. With the key
in the lock core, line up the thin protruding tab on the end of the lock core with the two arrows on the
inside face and press in. If you purchased a second lock core to lock the rack to the car, break out the
round tab (about the size of a dime) centered in the Plastic Cap, and install the lock here. Follow the
icons for locked and unlocked positions.
Step 6: Unthread the Quick Release Skewer, and install into the head (Figure #7) by threading together
inside. Handle faces towards the outside of the car. Re-install the cover plate.
Figure #6 Figure #7
Maintenance:
Once a year, remove the rack from the car, clean and inspect for damage. Replace any worn components.
Put a drop of oil (chain lube, motor oil etc.) on the metal pivot points, threads and axle of the Quick
Release
Caution:
- Remove Baby Seats, Panniers, U-Locks or items which could detach from the bicycle.
- Do not use bicycle covers, bicycle bras, or bikes e uipped with disc wheels.
- Do not take the vehicle off road, if you must, drive cautiously.
- Locks are only deterrents to thieves, RockyMounts cannot be held liable for stolen bicycles.
- Remove rack before entering a car wash.
- Check all fastenings (nuts, bolts, straps and skewer) before each use
To Load a Bicycle
Step 1:
Open the handle of the uick release so the black handle is straight and the fixed end points down. Load
the fork onto the uick release so both fork ends are resting straight on the uick release. Close the
handle by flipping it 90 degrees to the closed position. If it is too loose, open the handle and turn it like a
screwdriver (clockwise to tighten, counter clockwise to loosen), and close the handle again. Re-adjust
until a firm and positive snap is felt when closed.

The Quick Release Skewer is not an on/off switch. You must close the handle with enough
tension to hold the bicycle.
Rock the bicycle side to side to ensure proper mounting. The fork should be properly seated and not
move. If unsure, please consult your dealer or RockyMounts. Failure to comply could result in the
bicycle detaching with subse uent damage to the bicycle, vehicle, or other motorist.
Step 2:
Fasten the Wheel Strap by looping the end through the wheel and into the buckle. Pull on the end until
the strap firmly contacts the wheel.
RockyMounts Lifetime Warranty
Thank you for purchasing a RockyMounts product. We take pride in providing a great customer
experience and manufacturing products that enable our customers to get their gear to their next colorful
adventure.
As of January st, 20 4, RockyMounts products are covered for life to the original purchaser when used
in accordance with the instruction manuals’ assembly, installation and use guidelines.
If you feel something broke before it’s time; please email us at [e-mail] or call us at
800.873. 87 . For the most efficient service, email a digital photo (we need this photo to verify the
problem) of the product in question, a brief description of the situation, and your purchase receipt. Our
techs will respond within one business day. Most of the time we’ll replace the part in question, but we
may ask for more clarification.
RockyMounts, Inc. warranty only covers RockyMounts, Inc. products. It does not cover theft, or damage
to vehicles and/or equipment.
All products purchased prior to Jan st, 20 4 are covered by a one-year warranty, see your product
manual for details.
