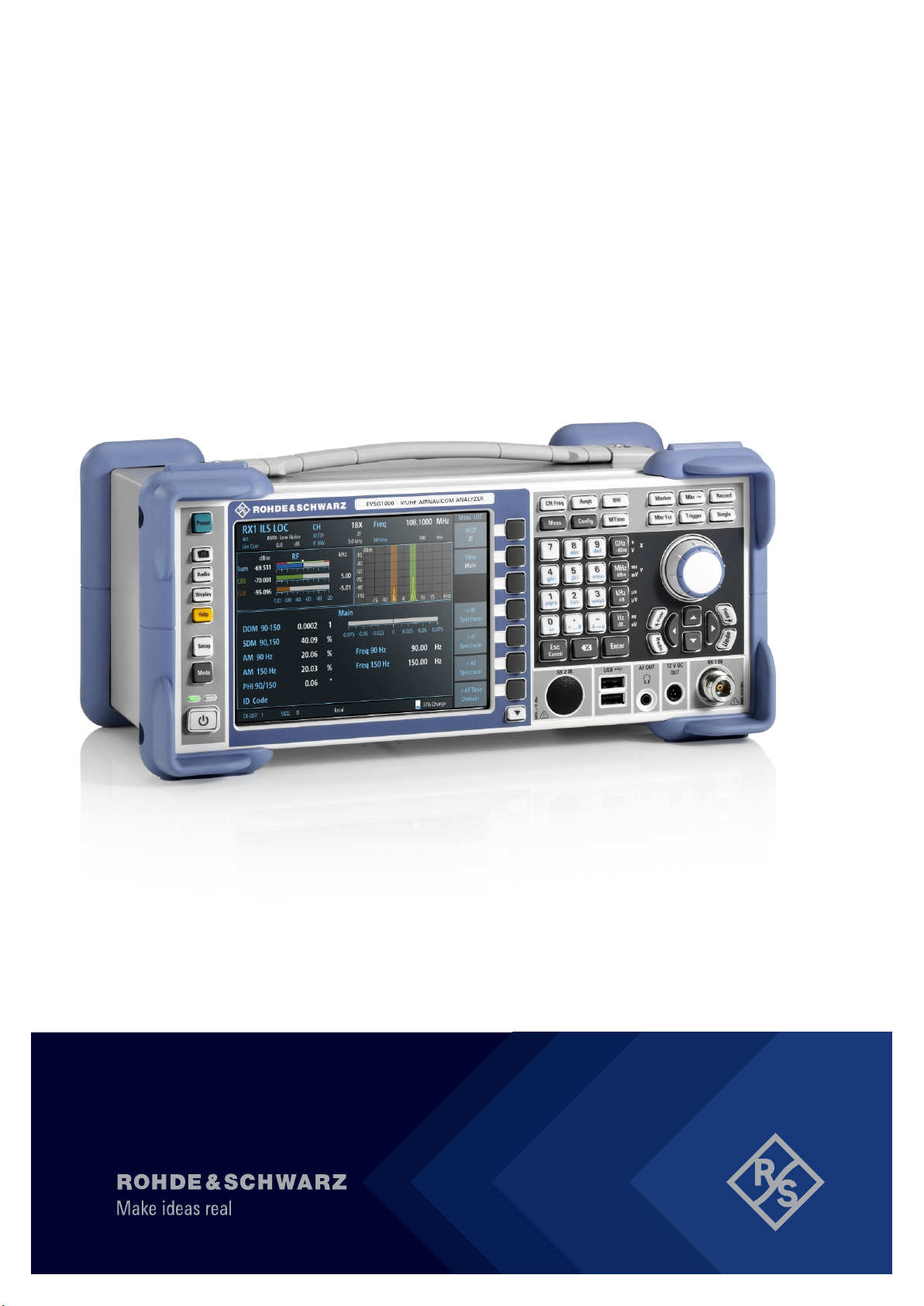

Rohde & Schwarz EVSG1000 User manual

R&S®EVSG1000
VHF/UHF Airnav/Com
Analyzer
Getting Started
1329872102
Version 05
(=MåE2)

This document describes the following R&S EVSG1000 models with firmware
version 1.50 or later:
●R&S EVSG1000 VHF/UHF nav/drone analyzer (1330.0350K02)
●R&S®EVSG1000 (1329.8009.02)
Furthermore, it covers the following options:
●R&S EVSG-B1 Second Signal Processing Unit (1329.8809.02)
●R&S EVSG-B2 Battery Management (1329.8815.02)
●R&S EVSG-B3 Battery Pack (1329.8821.02)
●R&S EVSG1-K7 LF-Analysis (1329.9163.02)
●R&S EVSG1-K20 GPS Support(1329.9092.02)
●R&S EVSG-Z1 carrying bag
●R&S EVSG-Z7 rack adapter kit
© 2023 Rohde & Schwarz GmbH & Co. KG
Muehldorfstr. 15, 81671 Muenchen, Germany
Phone: [phone] - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
All other trademarks are the properties of their respective owners.
1329.8721.02 | Version 05 | R&S®EVSG1000
The following abbreviations are used throughout this manual: R&S®EVSG1000 is abbreviated as
R&S EVSG1000.

Contents
R&S®EVSG1000
3Getting Started 1329.8721.02 ─ 05
Contents
1 Safety information................................................................. 7
1.1 Safety instructions................................................................................8
1.2 Labels on the product........................................................................ 10
1.3 Warning messages in the documentation........................................ 11
2 Documentation overview.................................................... 12
2.1 Getting started manual.......................................................................12
2.2 User manuals and help.......................................................................12
2.3 Service manual....................................................................................12
2.4 Printed safety instructions.................................................................13
2.5 Data sheets and brochures................................................................13
2.6 Release notes and open-source acknowledgment (OSA).............. 13
2.7 Calibration certificate......................................................................... 13
3 Key features......................................................................... 14
4 Preparing for use................................................................. 15
4.1 Unpacking and checking....................................................................15
4.2 Lifting and carrying............................................................................ 15
4.3 Setting up the R&S EVSG1000.......................................................... 16
4.3.1 Placing the R&S EVSG1000 on a bench top........................................ 16
4.3.2 Mounting the R&S EVSG1000 in a rack............................................... 16
4.3.3 Portable operation.................................................................................17
4.4 Connecting to power.......................................................................... 17
4.4.1 Connecting the provided AC/DC power supply connector....................18
4.4.2 Connecting an external DC power source............................................ 18
4.4.3 Using an optional battery pack..............................................................19

Contents
R&S®EVSG1000
4Getting Started 1329.8721.02 ─ 05
4.5 Switching on or off............................................................................. 20
4.6 Connecting devices for signal input and output............................. 22
4.7 Connecting to LAN............................................................................. 22
4.8 Setting up a data link (Wi-Fi) connection..........................................24
4.9 Performing an autocalibration...........................................................25
5 Instrument tour.................................................................... 26
5.1 Front panel.......................................................................................... 26
5.1.1 Power key............................................................................................. 27
5.1.2 Display.................................................................................................. 27
5.1.3 RX1 IN / RX2 IN....................................................................................27
5.1.4 USB.......................................................................................................28
5.1.5 AF out................................................................................................... 28
5.1.6 12 v DC out........................................................................................... 28
5.1.7 System keys..........................................................................................28
5.1.8 Softkeys................................................................................................ 29
5.1.9 Function keys........................................................................................29
5.1.10 Keypad..................................................................................................30
5.1.11 Rotary knob...........................................................................................30
5.1.12 Navigation keys.....................................................................................31
5.2 Rear panel............................................................................................32
5.2.1 Power supply........................................................................................ 33
5.2.2 Li-Ion battery pack................................................................................ 33
5.2.3 LAN (ethernet)...................................................................................... 33
5.2.4 RS232 GPS.......................................................................................... 34
5.2.5 PPS in................................................................................................... 34
5.2.6 Trigger in...............................................................................................34
5.2.7 LF in (Baseband/Low frequency input)................................................. 34

Contents
R&S®EVSG1000
5Getting Started 1329.8721.02 ─ 05
5.2.8 Demod out............................................................................................ 34
5.2.9 Loudspeaker......................................................................................... 34
5.2.10 Device ID.............................................................................................. 35
5.3 Accessories.........................................................................................35
6 Operating basics..................................................................39
6.1 Understanding the display information............................................ 39
6.2 Manual operation................................................................................ 41
6.2.1 Changing settings and activating functions...........................................42
6.2.2 Entering data.........................................................................................42
6.2.3 Getting help...........................................................................................44
6.3 Manual operation from a VNC viewer............................................... 47
6.4 Remote control....................................................................................49
7 Contacting customer support............................................ 50
Index..................................................................................... 51

Contents
R&S®EVSG1000
6Getting Started 1329.8721.02 ─ 05

Safety information
R&S®EVSG1000
7Getting Started 1329.8721.02 ─ 05
1 Safety information
The product documentation helps you use the product safely and efficiently. Fol-
low the instructions provided here and in the following chapters.
Intended use
The R&S EVSG1000 is a signal level and modulation analyzer to be used on the
ground. It performs measurements on instrument landing systems (ILS), ground-
based augmentation systems (GBAS), very high frequency omnidirectional range
(VOR) and marker beacon ground stations. It analyzes air traffic control commu-
nications (ATC COM) signals measured during startup, maintenance and servic-
ing. The portable, robust design and the integrated battery allow for network-inde-
pendent measurements also outdoors.
Use the product only for its designated purpose. Observe the operating conditions
and performance limits stated in the data sheet.
Target audience
The R&S EVSG1000 and its documentation is targeted at air navigation service
providers (ANSP), ground inspection service providers, national authorities for air
traffic control, and manufacturers and airport technicians for ILS, GBAS and VOR
ground equipment. Users require basic knowledge of ILS, GBAS and VOR
ground equipment, as well as the International Civil Aviation Organization (ICAO)
specifications in document 8071, annex 10.
Where do I find safety information?
Safety information is part of the product documentation. It warns you of potential
dangers and gives instructions on how to prevent personal injury or damage
caused by dangerous situations. Safety information is provided as follows:
●In Chapter 1.1, "Safety instructions", on page 8. The same information is
provided in many languages as printed "Safety Instructions". The printed
"Safety Instructions" are delivered with the product.
●Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.

Safety information
R&S®EVSG1000
8Getting Started 1329.8721.02 ─ 05
1.1 Safety instructions
Products from the Rohde & Schwarz group of companies are manufactured
according to the highest technical standards. To use the products safely, follow
the instructions provided here and in the product documentation. Keep the prod-
uct documentation nearby and offer it to other users.
Use the product only for its intended use and within its performance limits. Inten-
ded use and limits are described in the product documentation such as the data
sheet, manuals and the printed "Safety Instructions". If you are unsure about the
appropriate use, contact Rohde & Schwarz customer service.
Using the product requires specialists or specially trained personnel. These users
also need sound knowledge of at least one of the languages in which the user
interfaces and the product documentation are available.
Reconfigure or adjust the product only as described in the product documentation
or the data sheet. Any other modifications can affect safety and are not permitted.
Never open the casing of the product. Only service personnel authorized by
Rohde & Schwarz are allowed to repair the product. If any part of the product is
damaged or broken, stop using the product. Contact Rohde & Schwarz customer
service at https://www.rohde-schwarz.com/support.
Operating the product
The product is intended for mobile use. The maximum weight of the product is
provided in the data sheet. If the product casing is not waterproof, use an ade-
quate weather protection to carry the product outdoors with you.
When using the product in a vehicle or aircraft, make sure that the product is
properly secured. If stacking is possible, secure the whole stack of products so
that they cannot fall over and cause injury.
Observe the ambient conditions such as altitude, operating temperature and cli-
matic loads; see the data sheet.
Due to their exposed location, mobile communications systems are at risk of
damage from lightning. This also poses a risk to persons nearby. Vehicles carry-
ing mobile communications systems require an electrically conductive body, a
grounded antenna and also equipotential bonding that includes the cables routed
into the vehicle.
Safety instructions

Safety information
R&S®EVSG1000
9Getting Started 1329.8721.02 ─ 05
Connecting to power
The product runs on DC voltage. For the specifications of the supply voltage for
the product, refer to the data sheet. Under normal conditions, contact with DC
voltage in this range poses a low risk of electric shock.
Take the following measures for your safety:
●If you connect the product to an external power supply, use one recommen-
ded in the product documentation.
●Before switching on the product, ensure that the voltage and frequency indica-
ted on the product match the available power source.
●Only use intact cables and route them carefully so that they cannot be dam-
aged. Also ensure that nobody can trip over loose cables.
Handling batteries safely
The product contains exchangeable or built-in lithium polymer or lithium ion cells
or batteries. The use of the word battery in the following always means all types.
Only the battery contents are potentially hazardous. As long as a battery is
undamaged and the seals remain intact, there is no danger.
Impact, shock or heat can cause damage such as dents, punctures and other
deformations. A damaged battery poses a risk of personal injury. Handle a dam-
aged or leaking battery with extreme care. Immediately ventilate the area since
the battery releases harmful gases. If you come into contact with the battery fluid,
immediately remove all contaminated clothing. Irritation can occur if the battery
fluid comes in contact with your skin or eyes. Immediately and thoroughly rinse
your skin or eyes with water and seek medical aid.
For safe handling, follow these rules:
●Do not short-circuit the battery.
●Do not mechanically damage the battery. Do not open or disassemble the bat-
tery.
●Do not expose the battery to high temperatures such as open flames, hot sur-
faces and sunlight.
●Only use the battery with the designated Rohde & Schwarz product.
●Only use the appropriate Rohde & Schwarz charger to charge the batteries. If
the batteries are improperly charged, there is a risk of explosion. For charging
and discharging temperature ranges, see the product documentation.
●Replace exchangeable batteries only with the same battery type.
●Store the battery in the product or use the product packaging.
Safety instructions

Safety information
R&S®EVSG1000
10Getting Started 1329.8721.02 ─ 05
●Dispose of exchangeable batteries separately from normal household waste
as specified by the local waste disposal agency.
If you disregard these rules, you risk serious personal injury or even death due to
explosion, fire or hazardous chemical substances. The product documentation
provides further details.
If exchangeable batteries or products with built-in batteries are defective, contact
the Rohde & Schwarz customer service. Rohde & Schwarz classifies the severity
of the defect. When returning batteries or Rohde & Schwarz products containing
batteries, use a carrier qualified to transport dangerous goods and notify the car-
rier of this classification. Follow the carrier’s transport stipulations in line with
IATA-DGR, IMDG-Code, ADR or RID.
Using headphones
Take the following measures to prevent hearing damage. Before using head-
phones, check the volume and reduce it if necessary. If you monitor varying sig-
nal levels, take off the headphones and wait until the signal has settled. Then
adjust the volume.
Meaning of safety labels
Safety labels on the product warn against potential hazards.
Potential hazard
Read the product documentation to avoid personal injury or product damage.
DC - direct current
Connect to a DC power supply of the specified voltage range.
1.2 Labels on the product
Labels on the casing inform about:
●Personal safety, see "Meaning of safety labels" on page 10
●Product and environment safety, see Table 1-1
Labels on the product

Safety information
R&S®EVSG1000
11Getting Started 1329.8721.02 ─ 05
Table 1-1: Labels regarding product and environment safety
Labeling in line with EN 50419 for disposal of electrical and electronic equipment after
the product has come to the end of its service life.
For more information, see the R&S EVSG1000 user manual, chapter "Disposal".
Labeling in line with directive 2006/66/EC for disposal of batteries after they have come
to the end of their service life.
For more information, see the R&S EVSG1000 user manual, chapter "Disposal".
1.3 Warning messages in the documentation
A warning message points out a risk or danger that you need to be aware of. The
signal word indicates the severity of the safety hazard and how likely it will occur
if you do not follow the safety precautions.
CAUTION
Potentially hazardous situation. Could result in minor or moderate injury if not
avoided.
NOTICE
Potential risks of damage. Could result in damage to the supported product or to
other property.
Warning messages in the documentation

Documentation overview
R&S®EVSG1000
12Getting Started 1329.8721.02 ─ 05
2 Documentation overview
This section provides an overview of the R&S EVSG1000 user documentation.
Unless specified otherwise, you find the documents at:
www.rohde-schwarz.com/manual/EVSG
Further documents are available at:
www.rohde-schwarz.com/product/EVSG
2.1 Getting started manual
Introduces the R&S EVSG1000 and describes how to set up and start working
with the product. A printed version is delivered with the instrument.
2.2 User manuals and help
Contains the description of all instrument modes and functions. It also provides
an introduction to remote control, a complete description of the remote control
commands with programming examples, and information on maintenance, instru-
ment interfaces and error messages. Includes the contents of the getting started
manual.
The contents of the user manual are also available as online help on the
R&S EVSG1000.
2.3 Service manual
Describes the performance test for checking compliance with rated specifications,
firmware update, troubleshooting, adjustments, installing options and mainte-
nance.
The service manual is available for registered users on the global
Rohde & Schwarz information system (GLORIS):
Service manual

Documentation overview
R&S®EVSG1000
13Getting Started 1329.8721.02 ─ 05
2.4 Printed safety instructions
Provides safety information in many languages. The printed document is deliv-
ered with the product.
2.5 Data sheets and brochures
The data sheet contains the technical specifications of the R&S EVSG1000. It
also lists the firmware applications and their order numbers, and optional acces-
sories.
The brochure provides an overview of the instrument and deals with the specific
characteristics.
See www.rohde-schwarz.com/brochure-datasheet/EVSG/
2.6 Release notes and open-source acknowledg-
ment (OSA)
The release notes list new features, improvements and known issues of the cur-
rent firmware version, and describe the firmware installation.
The software makes use of several valuable open source software packages. An
open-source acknowledgment document provides verbatim license texts of the
used open source software.
See www.rohde-schwarz.com/firmware/EVSG.
2.7 Calibration certificate
The document is available on https://gloris.rohde-schwarz.com/calcert. You need
the device ID of your instrument, which you can find on a label on the rear panel.
Calibration certificate

Key features
R&S®EVSG1000
14Getting Started 1329.8721.02 ─ 05
3 Key features
The R&S EVSG1000 offers the following key features:
●Detailed analysis of ILS, VOR and Marker Beacon ground measurements
(based on ICAO Doc. 8071 and ICAO Annex 10)
●Spectrum preview and detailed signal analysis in frequency and time range
●Dynamic measurements up to 100 measurements per second in high mea-
surement rate modus
●Parallel course and clearance signal analysis in two-frequency systems (ILS)
●Simple remote operation via standard interfaces
●Software options for specific use cases
●Integrated data recording

Preparing for use
R&S®EVSG1000
15Getting Started 1329.8721.02 ─ 05
4 Preparing for use
Here, you can find basic information about setting up the product for the first time.
●Unpacking and checking................................................................................. 15
●Lifting and carrying..........................................................................................15
●Setting up the R&S EVSG1000.......................................................................16
●Connecting to power....................................................................................... 17
●Switching on or off...........................................................................................20
●Connecting devices for signal input and output.............................................. 22
●Connecting to LAN.......................................................................................... 22
●Setting up a data link (Wi-Fi) connection........................................................ 24
●Performing an autocalibration......................................................................... 25
4.1 Unpacking and checking
1. Unpack the R&S EVSG1000 carefully.
2. Retain the original packing material. Use it when transporting or shipping the
product later.
3. Using the delivery notes, check the equipment for completeness.
The instrument comes with the following accessories:
● AC/DC power supply connector with cable
● Printed Getting Started manual
4. Check the equipment for damage.
If the delivery is incomplete or equipment is damaged, contact
Rohde & Schwarz.
4.2 Lifting and carrying
The carrying handle on the top of the instrument is designed to lift or carry the
instrument. Do not apply excessive external force to the handle.
Lifting and carrying

Preparing for use
R&S®EVSG1000
16Getting Started 1329.8721.02 ─ 05
4.3 Setting up the R&S EVSG1000
The R&S EVSG1000 is designed for use either on a bench top or in a rack, or as
a portable instrument (with optional battery operation) in a transport bag in the
field.
See also:
●"Intended use" on page 7
4.3.1 Placing the R&S EVSG1000 on a bench top
To place the R&S EVSG1000 on a bench top
1. Place the R&S EVSG1000 on a stable, flat and level surface. Ensure that the
surface can support the weight of the R&S EVSG1000. For information on the
weight, see the data sheet.
2. The top surface is not designed for stacking. If you want to stack the
R&S EVSG1000 together with other products:
a) Follow the instructions given for the other products.
b) Place the R&S EVSG1000 on top.
4.3.2 Mounting the R&S EVSG1000 in a rack
A 19"-adapter is available as an accessory (R&S EVSG-Z7 rack adapter kit) to
mount the R&S EVSG1000 in a 19'' rack (e.g. in a measurement vehicle).
To mount the R&S EVSG1000 in a rack
1. NOTICE! Insufficient airflow can cause overheating and damage the product.
Design and implement an efficient ventilation concept for the rack.
2. Use the adapter kit R&S EVSG-Z7 rack adapter kit to prepare the
R&S EVSG1000 for rack mounting. For the order number, see the data sheet.
Mount the adapter kit. Follow the assembly instructions provided with the
adapter kit.
3. Lift the R&S EVSG1000 to shelf height.
Setting up the R&S EVSG1000

Preparing for use
R&S®EVSG1000
17Getting Started 1329.8721.02 ─ 05
4. Grab the handles and push the product onto the shelf until the rack brackets
fit closely to the rack.
5. Tighten all screws in the rack brackets with a tightening torque of 1.2 Nm to
secure the R&S EVSG1000 in the rack.
To unmount the R&S EVSG1000 from a rack
1. Loosen the screws at the rack brackets.
2. Remove the R&S EVSG1000 from the rack.
3. If placing the R&S EVSG1000 on a bench top again, unmount the adapter kit
from the R&S EVSG1000. Follow the instructions provided with the adapter
kit.
4.3.3 Portable operation
The R&S EVSG1000 was designed as a portable, robust instrument that can also
be operated outdoors.
An optional weather protection carrying bag (R&S EVSG-Z1 carrying bag, see
Chapter 5.3, "Accessories", on page 35) designed specifically for the
R&S EVSG1000 allows you to protect the instrument while working in the field.
The bag includes ventilation areas at the position of the ventilation outlets in the
casing to ensure air circulation. The transparent cover allows you to operate the
instrument without removing it from the bag. Together with the optional battery
pack (see Chapter 4.4.3, "Using an optional battery pack", on page 19), and
packed in the dedicated carrying bag, the R&S EVSG1000 is ideally suited for
operation directly in the field, even in rough environments.
See also Chapter 4.2, "Lifting and carrying", on page 15.
4.4 Connecting to power
To ensure high mobility and flexibility while using the R&S EVSG1000, it is equip-
ped with a DC power supply connector on the rear panel of the instrument.
There are various options to supply DC power to the R&S EVSG1000:
●Using the AC/DC power supply provided with the R&S EVSG1000.
Connecting to power

Preparing for use
R&S®EVSG1000
18Getting Started 1329.8721.02 ─ 05
●Using the internal battery, if options R&S EVSG-B2 Battery Management and
R&S EVSG-B3 Battery Pack are installed.
●Using an external DC power source with a voltage of 10 V DC to 28 V DC and
a current of 3.0 A.
For safety information, see "Connecting to power" on page 9.
●Connecting the provided AC/DC power supply connector.............................. 18
●Connecting an external DC power source...................................................... 18
●Using an optional battery pack........................................................................19
4.4.1 Connecting the provided AC/DC power supply connector
To operate the R&S EVSG1000 on a 230 V AC power supply, use only the provi-
ded AC/DC power supply connector.
1. Connect the DC connector on the provided AC/DC power supply connector to
the Power Supply connector on the back of the R&S EVSG1000 (see Chap-
ter 5.2.1, "Power supply", on page 33).
2. Plug the AC power cable into the AC/DC power supply connector. Only use
the AC power cable delivered with the R&S EVSG1000.
The required ratings are listed next to the AC power connector and in the data
sheet.
3. Plug the AC power cable into a two-pin power outlet with ground contact.
The green operating LED of the AC/DC power supply connector lights up.
The green Power LED on the front panel of the R&S EVSG1000 lights up.
4.4.2 Connecting an external DC power source
The R&S EVSG1000 can be operated directly from an external DC power source
with a voltage of 10 V DC to 28 V DC and a current of 3.0 A.
If you use an external power supply unit to supply safety extra-low DC voltage
(SELV) to the instrument, be sure to meet the requirements for reinforced/double
insulation in accordance with DIN/EN/IEC 61010 (UL 3111, CSA C22.2 No.
1010.1) or DIN/EN/IEC 60950 (UL 1950, CSA C22.2 No. 950). Provide current
limitation in accordance with DIN EN 61010-1 Appendix F2.1.
Connecting to power

Preparing for use
R&S®EVSG1000
19Getting Started 1329.8721.02 ─ 05
Connect the R&S EVSG1000 to an external DC power source as follows:
1. Connect a 3-pin XLR connection cable to the Power supply connector on the
back of the instrument (see Chapter 5.2.1, "Power supply", on page 33).
2. Insert a 3 AT fuse to protect the connection between the instrument and the
external DC power source against excessive current. A short-circuit can dam-
age the instrument or power supply unit.
3. Connect the XLR connection cable to the DC power supply.
If the cable must be extended, ensure the entire cable has a cross-section of
at least 1.5 mm2.
As soon as the DC power supply is switched on, the green Power LED on the
front panel of the R&S EVSG1000 lights up.
4.4.3 Using an optional battery pack
As an alternative to the fixed AC or DC power supply, the R&S EVSG1000 can be
operated by a battery pack, if the R&S EVSG-B2 Battery Management and
R&S EVSG-B3 Battery Pack options are installed. Use only the original battery
pack R&S EVSG-B3 Battery Pack. For the order numbers, see the data sheet.
If the battery option was ordered together with the instrument, the
R&S EVSG1000 comes with the battery management and battery pack already
installed. Otherwise these options must be installed by Rohde & Schwarz service
personnel.
For safety information, see "Handling batteries safely" on page 9.
For information on how to exchange a battery pack, see the R&S EVSG1000 user
manual, chapter "Maintenance".
If the battery pack is installed and no DC power is supplied, the R&S EVSG1000
automatically switches to battery operation.
Charging batteries
Charge the battery before using it for the first time. Following a long storage
period, it can be necessary to charge and discharge the battery several times to
reach full capacity.
Connecting to power

Preparing for use
R&S®EVSG1000
20Getting Started 1329.8721.02 ─ 05
When charging the battery, observe the following:
●For charging, use only the R&S EVSG1000 or the R&S®FSV-B34 battery
charger (1321.3950.02).
●If the instrument is connected to the provided AC/DC power supply connector
or to an external DC power supply with more than 12 V DC, the internal bat-
tery is automatically charged, regardless whether the instrument is switched
on or off.
●If the battery temperature rises above +53 °C, charging is interrupted until the
temperature drops below +45 °C. Large temperature variations can also
cause the charger to be switched off too early.
●Try not to overcharge the battery too often because overcharging reduces the
service life of the battery.
Look up the following details in the data sheet:
●Charging conditions
●Recharging interval to avoid deep discharge
When the battery is being charged, the Power LED blinks. During opera-
tion, the status bar also indicates that the battery is being charged. See
"Status bar" on page 41.
For charging times, see the R&S EVSG1000 user manual, chapter "Mainte-
nance".
4.5 Switching on or off
The Power LEDs on the front panel indicate the power and operation state of the
R&S EVSG1000.
The left LED indicates the operating state:
Table 4-1: Overview of operating states
Status LED
Off gray
Booting green, blinking
Ready for operation green
The right LED indicates the power state:
Switching on or off
