ORIGINAL ASSEMBLY AND
OPERATING INSTRUCTIONS
Rojaflex HSR-1 | HSR-5
For Rojaflex radio tubular motors and radio receivers
Handheld transmitter
HSR-1_HSR-5_V7. 2022-11-07

2 www.rojaex.com
CONTENTS
General safety instructions 3 - 5
Function overview / 6
Changing the battery
Technical data / Scope of delivery 7
Programming and settings 8 - 10
Notes 11
Contact information Back
ATTENTION!
After unpacking, compare the device type with the
corresponding information on the type plate. Incomplete
devices or devices that do not comply with the specifications
must not be put into operation and a complaint must be lodged
with our customer service department (see contact information)
before commissioning.
EU Declaration of Conformity according to Article 10(9):
Herewith declares Schoenberger Germany Enterprises GmbH & Co. KG, Hohenschäftlarn,
that the radio equipment type rojaflex handheld transmitter "HSR-1 | HSR-5" complies with the directive
2014/53/EU.
The full text of the EU Declaration of Conformity is available at the following web address:
www.rojaflex.com/konformitaetserklaerungen.html
Content

www.rojaex.com 3
General safety instructions
WARNING!
Important safety instructions!
• For the safety of persons it
is important to follow these
instructions!
• Please keep the manual and hand
it over to the new owner in case of
change of ownership!
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved.
• Children are not allowed to play with
the device.
• Cleaning and maintenance by the
user must not be carried out by
children without supervision.
WARNING!
The motor controlled by the radio
control (the transmitter) must be
disconnected from its power source
during cleaning, maintenance and
replacement of parts!
WARNING!
There is a danger to life from electric
shock when working on electrical
equipment!
Observe the instructions and safety
instructions of the drive/receiver
controlled by the radio control as well
as the corresponding instructions
of the driven roller shutter or sun
protection system!
ATTENTION!
The following instructions must be
observed!
The range of radio controls is regulated by
the legal requirements for radio systems
and is influenced by structural conditions,
among other things.
When planning, make sure you have
adequate radio reception.
This is especially true if the radio
transmitter is located in a different room
than the radio receiver, and therefore
the radio signal must penetrate walls or
ceilings.
Do not install the radio control in the
direct vicinity of large metallic surfaces.
Other transmitting equipment (e.g.
radio headphones, baby monitors, radio
weather stations) whose transmission
frequency is identical to that of the radio
control unit may interfere with reception.
Attention!
It is essential to observe the instructions
for correct use and the operating
conditions!
In case of improper use, there is an
increased risk of damage to the controlled
system!
• Use the radio control (transmitter)
only for connection to roller shutter,
awning and blind motors or their
receivers.

4 www.rojaex.com
General safety instructions
• Deactivate the automatic functions
of the radio control in case of
snowfall, icing or danger of frost to
avoid damage to the motor or the
driven system.
• Only use original components and
accessories from the manufacturer.
• Instruct all persons in the safe use
of the radio control and the motor
controlled by it.
• During commissioning, observe the
moving equipment (roller shutter,
awning, blind) and keep people
away from it until the movement is
finished.
• Prohibit children from playing with
the radio control system.
• Store handheld transmitters in
such a way that unintentional
operation, e.g. by children playing, is
impossible.
• Secure the controlled system against
unauthorized operation.
• Take safety precautions against
unintentional switch-on.
• Carry out all cleaning work on the
system in a de-energized state.
• Use caution when operating the
open/extended system as parts may
fall if fasteners (e.g. springs) weaken
or are broken.
• Never use defective or damaged
equipment.
• Check that the motor controlled by
the radio control unit and the motor
power cable are intact.
WARNING!
The use of defective devices can
endanger persons and cause damage
to property.
Regularly check the radio control and
the system controlled by it for proper
function and keep and keep people
away from it until the test of the
faultless function is finished!
Please contact our service department
(see contact information page) if you
notice any damage to the device.
ATTENTION!
After unpacking, compare the
device type with the corresponding
information on the type plate.
Incomplete devices or devices that
do not comply with the specifications
must not be put into operation.
IMPORTANT!
Disposal instructions!
(European Directive 2012/19/EU (WEEE)
Our electrical and
electronic products are
marked with a crossed-
out wheeled garbage
can, which indicates
that these products
and any batteries they
may contain must be
collected separately
at the end of their
useful life and must
not be disposed of together with normal
household waste.

www.rojaex.com 5
General safety instructions
The substances contained in these
products may have negative effects on
health and the environment, so users of
electrical products and batteries also have
a responsibility in recycling these waste
materials and in this way contribute to the
protection, preservation and improvement
of the environment.
Obligation for separate disposal
Our duty as manufacturers is, among other
things, to inform you of your obligation to
separate disposal.
• When disposing of products with
batteries, remove them from the
product and dispose of them separately.
• When disposing of illuminants, they
must be disposed of separately to the
receptacle.
Return option and
Recycling program EU
We are connected to public-law return
systems throughout Europe and thus
offer our customers access to a Europe-
wide network of local recycling facilities
(recycling centers, take-back points or
similar).
Our products are professionally recycled
via these local facilities. This reduces the
amount of waste - to the benefit of the
environment.
Our registration numbers:
*For registration data of other European
countries, see Contact Information page.
A take-back by us as manufacturer
according to §19 WEEE is not to be asserted.
Information on the degree of fulfillment
of the collection and recycling
requirements
It is also our duty as a manufacturer to
inform you about the degree of fulfillment
of the collection and recycling requirements.
Since we are connected to a qualified take-
back system, we can refer to the degree of
fulfillment of the recycling companies.
You can find this information on our
website.
Deletion of personal data
Some of our products contain personal data.
This applies in particular to information and
telecommunications technology devices
such as computers and smartphones. In
your own interest, please note that each end
user is responsible for deleting the data on
the old devices to be disposed of!
Reg. no.*
WEEE DE 41060608
Battery DE 88866710
Illuminant
Transport and
Shipping packaging DE5768543732165

P2
SI
BI

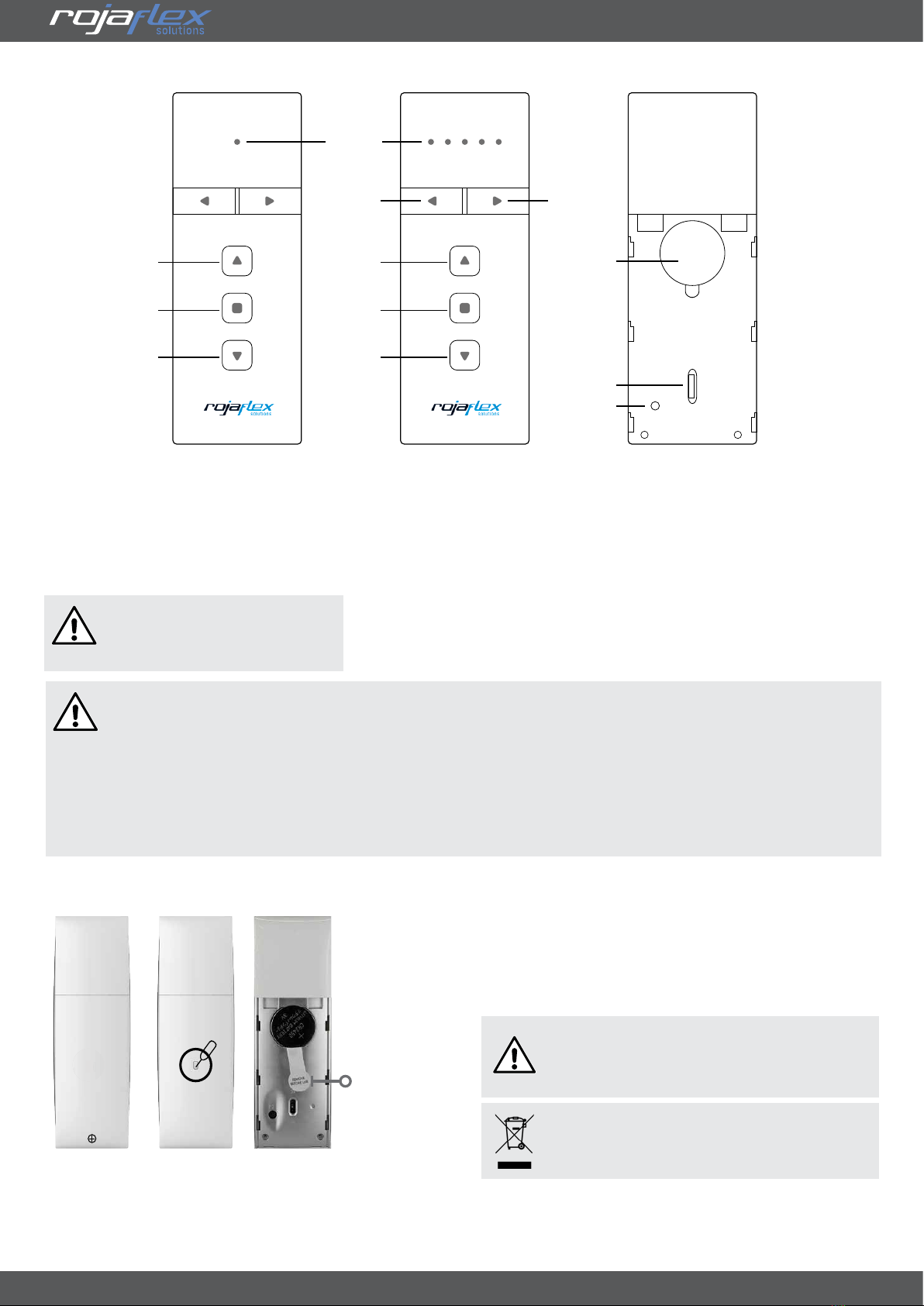

1-channel handheld transmier
HSR-1
*with the „DIP“ switch can,
depending on the radio
receiver
(see receiver instrucons),
between „SI“ (single = one-
way communicaon) and
„BI“ (two-way communica-
on) - radio can be selected.
STOP STOP
DOWN DOWN
UP UP Baery com-
partment
DIP switch*
Single / Bi -
Direconal
Programming
buon
LED
Channel display
K1 K2
5-channel handheld transmier
HSR-5
The K1 and K2 keys can be
used to switch between
the individual channels.
As soon as all 5 LEDs light
up, group control is acve
(all programmed receivers
are controlled simultane-
ously).
Handheld transmier - back
side with open cover
The baery is (depending on the transmier model) supplied
loose or already installed and secured against discharge with
a protecve lm. To replace/insert the baery, open the rear
cover by pressing lightly downwards*, remove the protecve
lm and insert the baery into the baery compartment with
the + (plus) side facing upwards as shown. Then close the rear
cover again.
The key assignment may dier de-
pending on the model:
K1= K- (minus) K2= K+ (plus)
Depending on the frequency of the swit-
ching operaons, we recommend replacing
the baery at least every 2 years.
* depending on the model, the rear cover is additionally secured with a screw or a pushbutton.
Open the screw with a standard Phillips screwdriver.
A paper clip or SIM tool can be used to unlock the pushbutton lock.
Please do not dispose of baeries in
household waste! Take them to an
appropriate disposal staon.
Remove pro-
tective foil.
Inserng the baery / changing the baery
This product contains a button cell battery. If swallowed, the button cell battery can cause
severe internal burns and death in as little as 2 hours.
Keep new and used batteries away from children. If the battery compartment cannot be
closed securely, stop using the product and keep it away from children. If you think that
batteries may have been swallowed or may have entered any part of your body, seek medi-
cal attention. If you think batteries may have been swallowed or may have entered a body
part, seek medical attention immediately..
6 www.rojaex.com
Function overview / changing the battery

Performance Features:
Input voltage 3V (battery CR2450)
Transmit frequency 433,05 - 434,79 MHz
Operating current ≤ 15mA
Quiescent current ≤ 10 μA
Standby consumption ≤ 3 μW
Transmitting power ≤ 10 mW
Protection class IP 20
Permissible ambient tempe-
rature +10°C to +50°C
Range Open field: approx. 150 m /
indoors: approx. 30 m *
Channels 1-channel | 5-channel
Compatibility Rojaflex radio motors and radio receivers
Radio system Rollender Code
Dimensions (approx.) (HxBxT) 130 mm × 44 mm × 18 mm
Technical data
Scope of delivery
When unpacking, please compare the package contents with the informaon on the scope of delivery in these
instrucons!
1. Hand transmier incl. baery
2. Wall mount incl. mounng material
3. Instrucon manual
* Range data are approximate values and depend on the structural conditions.
1
Original Montageanleitung
Original instructions
Mode d‘emploioriginal
Instruccionesoriginales
Manuale d’uso originale
Originelegebruiksaanwijzing
Oryginalnainstrukcja obsługi
Eredeti összeszerelésiútmutató
IT
NL
PL
HUN
DE
EN
FR
ES
Voustrouverez ici une version complète et actuelle du mode d‘emploi/
Puede encontraruna versión completa actual del manual aquí/
Potetetrovare una versione completa attuale del manuale qui/
Een actuele volledige versie van de handleiding vindt u hier/
Aktualną, pełną wersję podręcznika można znaleźć tutaj/
A kézikönyv aktuális, teljes verzióját itt találja:
BEDIENUNGSANLEITUNG
|HSR-5
Handsender
HSR-1_HSR-5_V6. 2022-04-19
32
www.rojaex.com 7
Technical data / scope of delivery

1. Programming mode - radio receiver or radio motor
Set the receiver (external Rojaex radio receiver or Rojaex radio motor) on which the handheld transmier is
to be programmed to programming mode (see receiver instrucons).

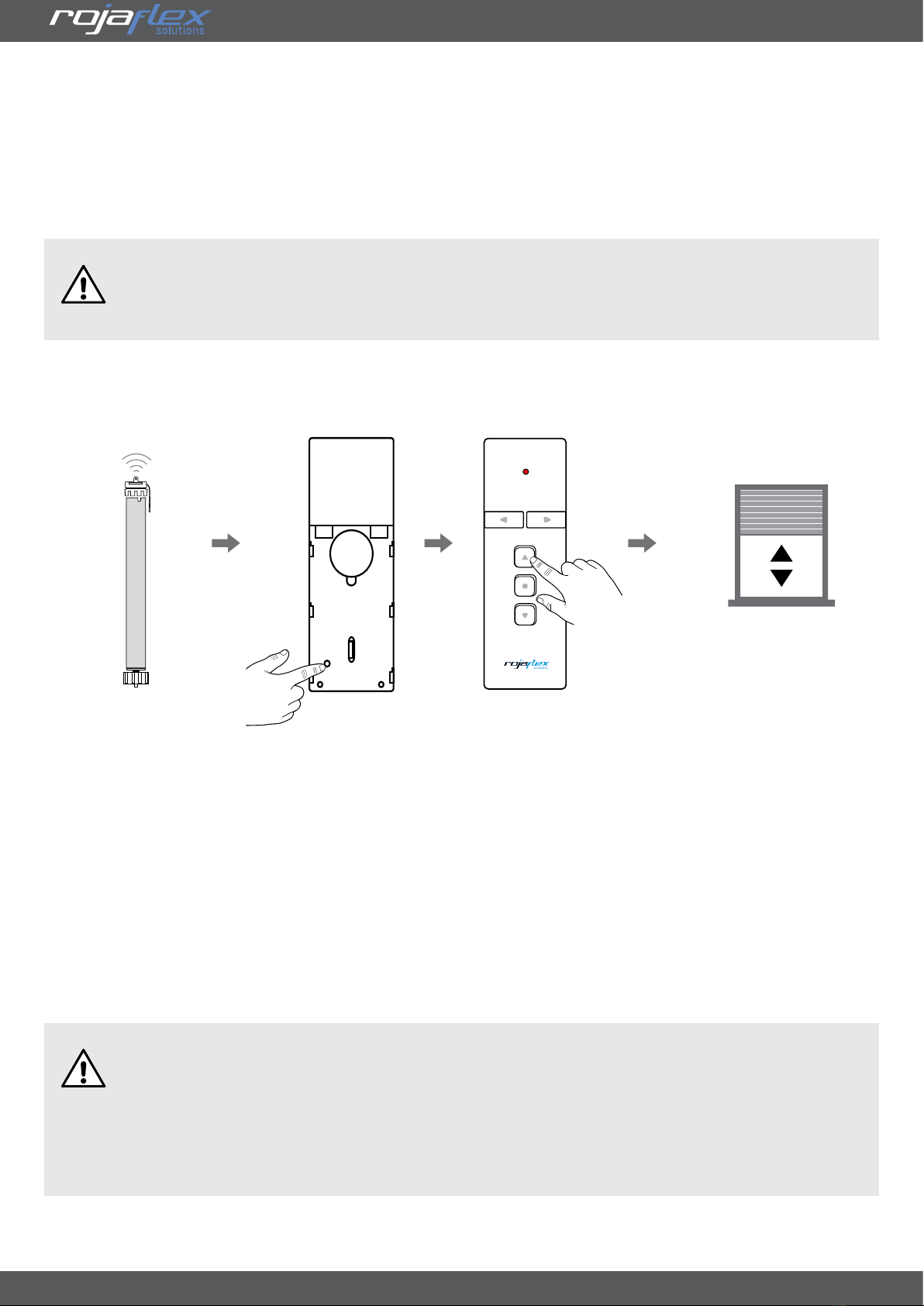

2. Programming the handheld transmier - HSR-1
Then check the funcon(s) by pressing the UP / STOP / DOWN keys!
If the direcon of rotaon of the motor is reversed (roller shuer / motor moves downwards when
the UP key is pressed), please start from the beginning and press the DOWN key aer the P2 key
instead of the UP key!
This changes the direcon of rotaon of the motor.
Each keystroke must be executed within 4 seconds!
Otherwise, the system automacally exits the programming mode.
Set receiver (motor / external
receiver) to programming
mode according to instruc-
ons.
Press P2 programming key
(rear side) 2 x
Press the UP key press. The motor (shuer) briey
moves UP/DOWN and/or the
receiver beeps.
OK!
First code programming suc-
cessfully carried out.
P2
SI
BI
8 www.rojaex.com
Programming and settings

To program addional channels, start from the beginning.
The group funcon (all LEDs light up simultaneously)
can NOT be taught-in separately as a channel!

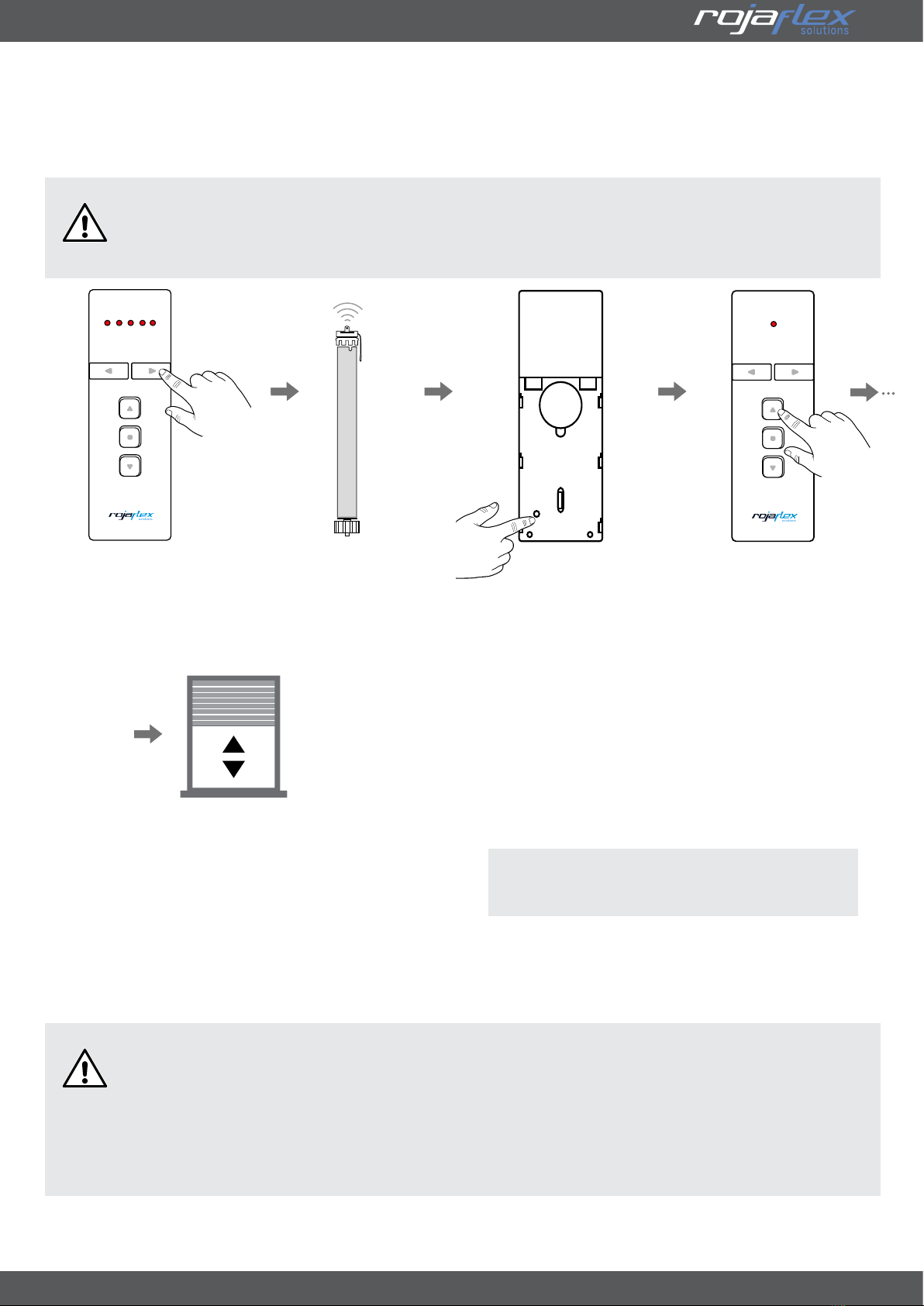

2.1 Programming the handheld transmitter - HSR-5
Then check the funcon(s) by pressing the UP / STOP / DOWN keys.!
If the direcon of rotaon of the motor is reversed (roller shuer / motor moves downwards when
the UP key is pressed), please start from the beginning and press the DOWN key aer the P2 key
instead of the UP key!
This changes the direcon of rotaon of the motor.
Each keystroke must be executed within 4 seconds!
Otherwise, the system automacally exits the programming mode.
Select the desired channel by
pressing the K1 (or K2) key
(LED of the selected channel
lights up).
Set receiver (motor / external
receiver) to programming
mode according to instruc-
ons.
Press P2 programming key
(rear side) 2 x
1 x UP-Press buon
The motor (shuer) briey moves UP/DOWN and/or the receiver
beeps.
OK!
First code programming successfully carried out.
P2
SI
BI
www.rojaex.com 9
Programming and settings

3. Add handheld transmitter
For further informaon, please refer to the instrucons of the Rojaex radio tubular motors or
radio receivers.
Ex.: HSR-5
(not applicable for HSR-1)
On an ALREADY PROGRAM-
MED staon, select an already
programmed channel by pres-
sing the K1 (or K2) key.
Then select the channel to be
added at the NEW transmier
by pressing the K2 (or K1) key
(red LED of the selected chan-
nel lights up).
On the handheld transmier
that has already been pro-
grammed, press 3 x Press
the P2 programming buon
(back).
On the new handheld trans-
mier to be programmed,
press 1 x Press the P2 pro-
gramming buon (on the
back).
The motor (shuer) briey
moves UP/DOWN and/or the
receiver beeps.
OK!
Hand-held transmier is
added.
Important:
For systems with SI (single-direconal system / one-way communicaon) the
P2 key of the already taught-in handheld transmier is only pressed 2x!
This concerns e.g. the MLSF/MLMF - drives and the external receivers REHK-1 and RUE-UP.
Please follow the instrucons of the respecve receiver/motor!
P2
SI
BI
P2
SI
BI
10 www.rojaex.com
Programming and settings

www.rojaex.com 11
Notes

Reprints, including excerpts, only with permission of the author.
Product changes that, in our view, serve to improve quality,
may be carried out at any time, even without notice or communication.
Illustrations can be example illustrations, which deviate in the appearance of the deviate
from the delivered goods.
Errors excepted. No liability is assumed for printing errors.
Our general terms and conditions apply.
If you have any questions about this product,
please contact us at the following address:
rojaflex
is a registered trademark of
Schoenberger Germany Enterprises GmbH & Co. KG
Zechtraße 1-7
82069 Hohenschäftlarn
Germany
T +49 (0) 8178 / 93 29 93 93
F +49 (0) 8178 / 93 29 93 94
info@rojaflex.com
www.rojaflex.com
EU Waste and recycling / Registrations
Germany for electrical devices:
Stiftung EAR
WEEE-Reg.-no.: DE 41060608
Germany for batteries:
Stiftung EAR
Batt-Reg.-no.: DE 88866710
Germany for packaging:
LUCID Reg.-no.: DE5768543732165
Austria for electrical devices:
Elektro Recycling Austria (ERA) GmbH
ERA Contract no: 40801
Austria for packaging:
Altstoff Recycling Austria (ARA) AG
ARA License number: 23363
Switzerland for electrical devices:
Stiftung SENS
Membership number: VP11544
France for electrical devices:
Ecologic
Membership number / Take-back system: M3670
National registry: UIN FR208795_01SUIN
France for packaging:
Citeo
Membership number / Take-back system: 532886
National registry: UIN FR208795_01SUIN
Spain for electrical devices:
ECOTIC
Reg.-no.: RII-AEE- 7601
Spain for packaging:
Ecoembes
Membership number: 97556
Italy for electrical devices:
Raccolta differenziata. Verifica le disposizioni del tuo Comune!
Reg.-no.: n/a
Italy for packaging:
Raccolta differenziata. Verifica le disposizioni del tuo Comune!
Membership number: n/a
