ORIGINAL ASSEMBLY AND
OPERATING INSTRUCTIONS
Rojaflex RHS1-W |RHS5-W
For Rojaflex radio tubular motors and radio receivers
Handheld transmitter
RHS1-W_RHS5-W_V4. 2022-11-08

2 www.rojaex.com
CONTENTS
General safety instructions 3 - 5
Function overview / 6
Changing the battery
Technical data / scope of delivery 7
Programming and settings 8 - 10
Notes 11
Contact information Back
ATTENTION!
After unpacking, compare the device type with
the corresponding information on the type plate.
Incomplete devices or devices that do not comply
with the specifications must not be put into operation
and a complaint must be lodged with our customer
service department (see contact information) before
commissioning.
EU Declaration of Conformity according to Article 10(9):
Herewith declares Schoenberger Germany Enterprises GmbH & Co. KG, Hohenschäftlarn,
that the radio system type rojaflex handheld transmitter "RHS1-W | RHS5-W" complies with the
directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available at the following Internet address:
www.rojaflex.com/konformitaetserklaerungen.html
Content
Handheld
transmitter
for Rojaflex
Radio tubular motors
and radio receivers
RHS1-W
RHS5-W
Art.-Nr.:
1000017756
1000017757

www.rojaex.com 3
General safety instructions
WARNING!
Important safety instructions!
• For the safety of persons it
is important to follow these
instructions!
• Please keep the manual and hand
it over to the new owner in case of
change of ownership!
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
• Children are not allowed to play
with the device.
• Cleaning and maintenance by the
user must not be carried out by
children without supervision.
WARNING!
The motor controlled by the radio
control (the transmitter) must be
disconnected from its power source
during cleaning, maintenance and
replacement of parts!
WARNING!
There is a danger to life from electric
shock when working on electrical
equipment!
Observe the instructions and safety
instructions of the drive/receiver
controlled by the radio control as well
as the corresponding instructions
of the driven roller shutter or sun
protection system!
ATTENTION!
The following instructions must be
observed!
The range of radio controls is regulated
by the legal requirements for radio
equipment and is influenced by structural
conditions, among other things.
When planning, make sure you have
adequate radio reception.
This is especially true if the radio
transmitter is located in a different room
than the radio receiver, and therefore
the radio signal must penetrate walls or
ceilings.
Do not install the radio control in the
direct vicinity of large metallic surfaces.
Other transmitting devices (e.g. radio
headphones, baby monitors, radio
weather stations), whose transmission
frequency is identical to that of the radio
control, may interfere with reception.
Attention!
It is essential to observe the instructions
for correct use and the operating
conditions!
In case of improper use, there is an
increased risk of damage to the controlled
system!
• Use the radio control (the
transmitter) only for connection
to roller shutter, awning and blind
motors or their receivers.

4 www.rojaex.com
General safety instructions
• Deactivate the automatic functions
of the radio control in case of
snowfall, icing or danger of frost to
avoid damage to the motor or the
driven system.
• Only use original components and
accessories from the manufacturer.
• Instruct all persons in the safe use
of the radio control and the motor
controlled by it.
• During commissioning, observe the
moving equipment (roller shutter,
awning, blind) and keep people
away from it until the movement is
finished.
• Prohibit children from playing with
the radio control.
• Store handheld transmitters in
such a way that unintentional
operation, e.g. by children playing,
is impossible.
• Secure the controlled system
against unauthorized operation.
• Take safety precautions against
unintentional switch-on.
• Carry out all cleaning work on the
system in a de-energized state.
• Use caution when operating the
open/extended system, as parts
may fall if fasteners (e.g. springs)
slacken or are broken.
• Never use defective or damaged
equipment.
• Check that the motor controlled by
the radio control unit and the motor
power cable are intact.
WARNING!
The use of defective devices can
endanger persons and cause damage
to property.
Regularly check the radio control and
the system controlled by it for their
for their function and keep people
away from it until the test of the
faultless function is finished!
Please contact our service department
(see contact information page) if you
notice any damage to the device.
ATTENTION!
After unpacking, compare the
device type with the corresponding
information on the type plate.
Incomplete devices or devices that
do not comply with the specifications
must not be put into operation.
IMPORTANT!
Disposal instructions!
(European Directive 2012/19/EU (WEEE)
Our electrical and
electronic products are
marked with a crossed-
out wheeled garbage
can, which indicates
that these products
and any batteries they
may contain must be
collected separately at
the end of their useful
life and must not be disposed of together
with normal household waste.

www.rojaex.com 5
General safety instructions
The substances contained in these
products may have negative effects on
health and the environment, so users of
electrical products and batteries also have
a responsibility in recycling these waste
materials and in this way contribute to the
protection, preservation and improvement
of the environment.
Obligation for separate disposal
Our duty as manufacturers is, among other
things, to inform you of your obligation to
separate disposal.
• When disposing of products with
batteries, remove them from the
product and dispose of them separately.
• When disposing of illuminants, they
must be disposed of separately to the
receptacle.
Return option and
Recycling program EU
We are connected to public-law return
systems throughout Europe and thus
offer our customers access to a Europe-
wide network of local recycling facilities
(recycling centers, take-back points or
similar).
Our products are professionally recycled
via these local facilities. This reduces the
amount of waste - to the benefit of the
environment.
Our registration numbers:
*For registration data of other European
countries, see Contact Information page.
A take-back by us as manufacturer
according to §19 WEEE is not to be asserted.
Information on the degree of fulfillment
of the collection and recycling
requirements
It is also our duty as a manufacturer to
inform you about the degree of fulfillment
of the collection and recycling requirements.
Since we are connected to a qualified take-
back system, we can refer to the degree of
fulfillment of the recycling companies.
You can find this information on our
website.
Deletion of personal data
Some of our products contain personal data.
This applies in particular to information and
telecommunications technology devices
such as computers and smartphones. In
your own interest, please note that each end
user is responsible for deleting the data on
the old devices to be disposed of!
Reg. no.*
WEEE DE 41060608
Battery DE 88866710
Illuminant
Transport and
Shipping packaging DE5768543732165

The key assignment may dif-
fer depending on the model:
K1= K- (minus)
K2= K+ (plus)
P2
BI
SI
CR 2450
1-channel handheld transmit-
ter RHS1-W
*with the “DIP”-switch you can, depen-
ding on the radio receiver
(see receiver instructions),
choose between “SI” (single = one-way
communication) and “BI” (two-way
communication) - radio.
STOP STOP
DOWN DOWN
UP UP
Battery com-
partment
DIP switch*
Single / Bi -
Directional
Programming
button
LED
Channel display
K1 K2
5-channel handheld transmit-
ter RHS5-W
You can switch between the
individual channels with the K1
and K2 keys.
As soon as all 5 LEDs light up, the
group control is active.
You now control all programmed
receivers simultaneously.
Handheld transmitter -
rear side with lid open
Inserting the battery / changing the battery
The battery is (depending on the transmitter model) enclosed loose or already installed and secured against
discharge with a protective foil. Open the rear cover by pressing lightly downwards*, remove the protective
film and insert the battery into the battery compartment with the + (plus) side facing upwards as shown.
Then replace the rear cover.
* depending on the model, the rear cover is additionally secured with a screw or a pushbutton.
To open the screw, please use a standard Phillips screwdriver.
A paper clip or a SIM tool can be used to unlock the pushbutton.
P2
BI
SI
CR 2450
REMOVE
BEFOREUSE
Remove pro-
tective foil.
Depending on the frequency of the switching
operations, we recommend replacing the battery
at least every 2 years.
Please do not dispose of batteries in household
waste! Take them to an appropriate disposal
station.
This product contains a button cell battery. If swallowed, the button cell battery can cause
severe internal burns and death in as little as 2 hours.
Keep new and used batteries away from children. If the battery compartment cannot
be closed securely, stop using the product and keep it away from children. If you think
batteries may have been swallowed or may have entered any part of your body, seek
medical attention immediately.
6 www.rojaex.com
Function overview / changing the battery

Performance Features:
Input voltage 3V (battery CR2450)
Transmit frequency 433,05 - 434,79 MHz
Operating current ≤ 15mA
Quiescent current ≤ 10 μA
Standby consumption ≤ 3 μW
Transmitting power ≤ 10 mW
Protection class IP 20
Permissible ambient tempe-
rature +10°C to +50°C
Range Open field: approx. 150 m /
indoors: approx. 30 m *
Channels 1-channel | 5-channel
Compatibility Rojaflex radio motors and radio receivers
Radio system Rolling Code
Dimensions (approx.) (HxBxT) 130 mm × 40 mm × 18 mm
Technical data
Scope of delivery
When unpacking, please compare the package contents with the information on the scope of delivery in
these instructions!
1. Hand transmitter incl. battery
2. Wall mount incl. mounting material
3. Instruction manual
* Range data are approximate values and depend on the structural conditions.
1
Original Montageanleitung
Original instructions
Mode d‘emploioriginal
Instruccionesoriginales
Manuale d’uso originale
Originelegebruiksaanwijzing
Oryginalnainstrukcja obsługi
Eredeti összeszerelésiútmutató
IT
NL
PL
HUN
DE
EN
FR
ES
Voustrouverez ici une version complète et actuelle du mode d‘emploi/
Puede encontraruna versión completa actual del manual aquí/
Potetetrovare una versione completa attuale del manuale qui/
Een actuele volledige versie van de handleiding vindt u hier/
Aktualną, pełną wersję podręcznika można znaleźć tutaj/
A kézikönyv aktuális, teljes verzióját itt találja:
BEDIENUNGSANLEITUNG
|RHS5-W
Handsender
RHS1-W_RHS5-W_V3. 2022-10-04
32
or
www.rojaex.com 7
Technical data / scope of delivery

1. Programming mode - radio receiver or radio motor
Set the receiver (external Rojaflex radio receiver or Rojaflex radio motor) on which the handheld transmitter
is to be programmed to programming mode (see receiver instructions).

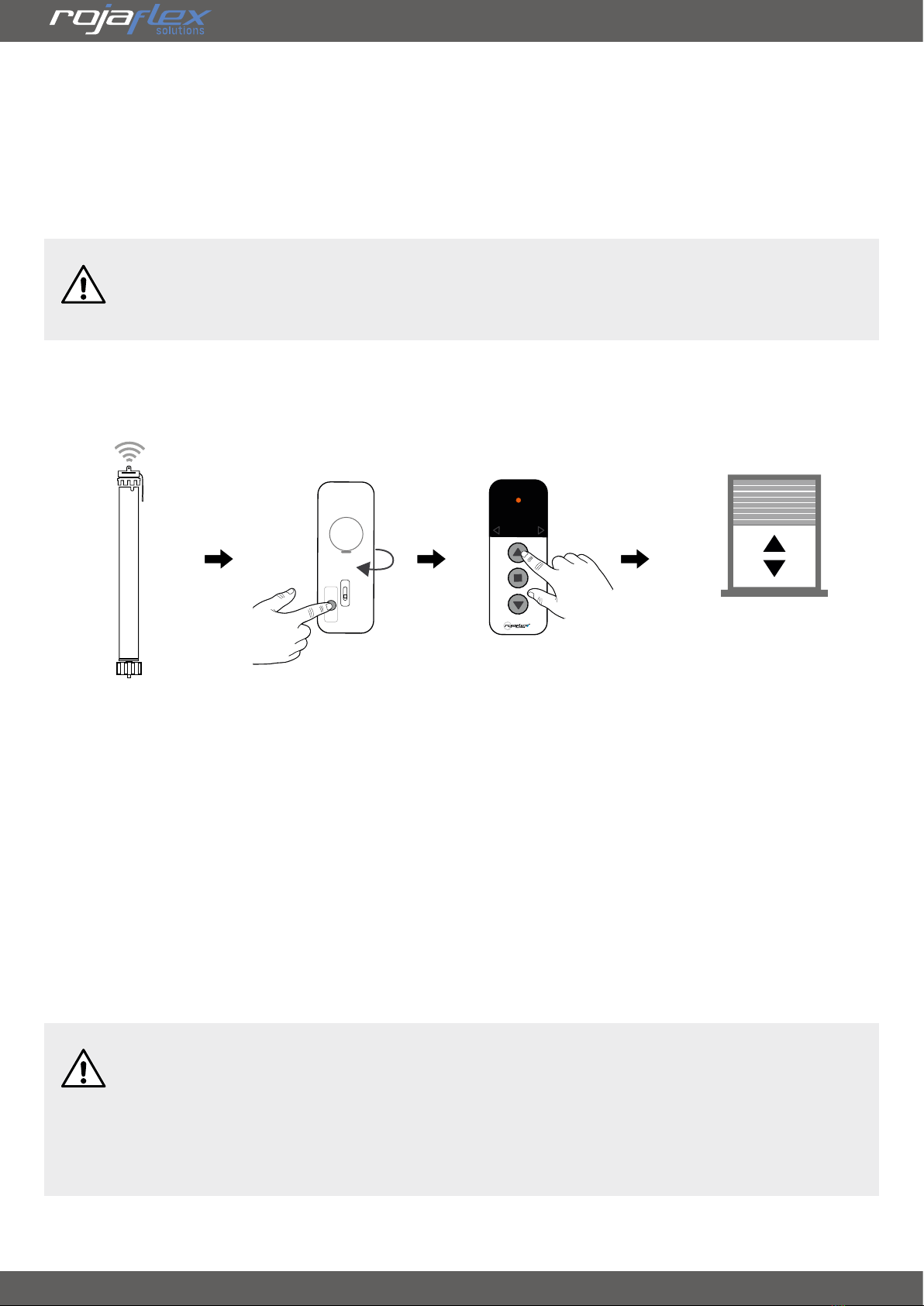

2. Programming the handheld transmitter - RHS1-W
Then check the function(s) by pressing the UP / STOP / DOWN keys!
If the direction of rotation of the motor is reversed (roller shutter / motor moves downwards when
the UP key is pressed), please start from the beginning and press the DOWN key after the P2 key
instead of the UP key!
This changes the direction of rotation of the motor.
Each keystroke must be executed within 4 seconds!
Otherwise, the system automatically exits the programming mode.
Set receiver (motor / external
receiver) to programming
mode according to instruc-
tions.
Press P2 programming key
(rear) 2 times.
Press UP key 1 x. The motor (shutter) briefly
moves UP/DOWN and/or the
receiver beeps.
OK!
First code programming suc-
cessfully carried out.
P2
BI
SI
CR 2450
8 www.rojaex.com
Programming and settings

To program additional channels, start from the beginning.
The group function (all LEDs light up simultaneously)
can NOT be taught-in separately as a channel!

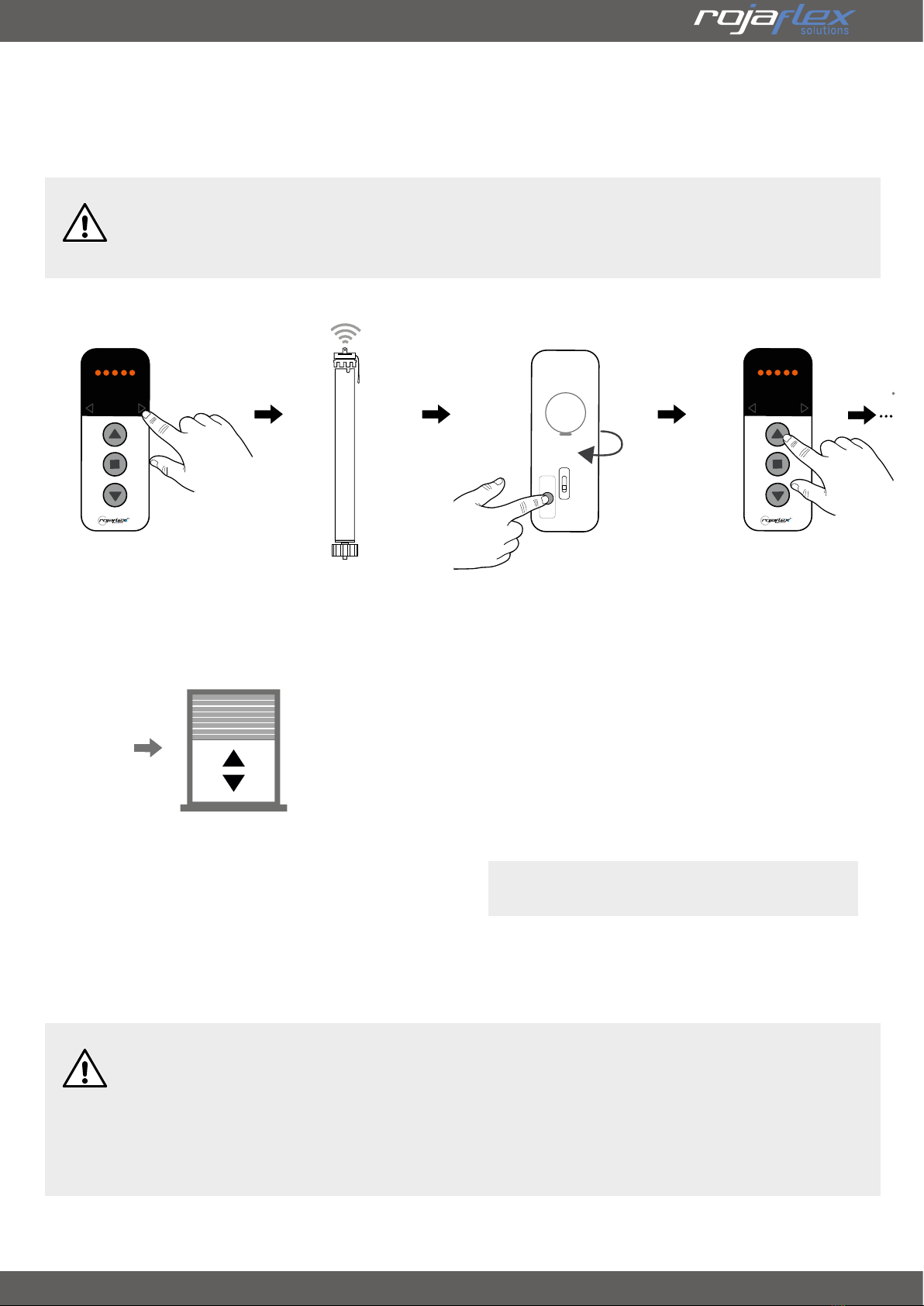

2.1 Programming the handheld transmitter - RHS5-W
Then check the function(s) by pressing the UP / STOP / DOWN keys!
If the direction of rotation of the motor is reversed (roller shutter / motor moves downwards when
the UP key is pressed), please start from the beginning and press the DOWN key after the P2 key
instead of the UP key!
This changes the direction of rotation of the motor.
Each keystroke must be executed within 4 seconds!
Otherwise, the system automatically exits the programming mode.
Select the desired channel by
pressing the K1 (or K2) key
(LED of the selected channel
lights up).
Set receiver (motor / external
receiver) to programming
mode according to instruc-
tions.
Press P2 programming key
(rear side) 2 x
Press UP key 1 x.
The motor (shutter) briefly moves UP/DOWN and/or the recei-
ver beeps.
OK!
First code programming successfully carried out.
P2
BI
SI
CR 2450
www.rojaex.com 9
Programming and settings

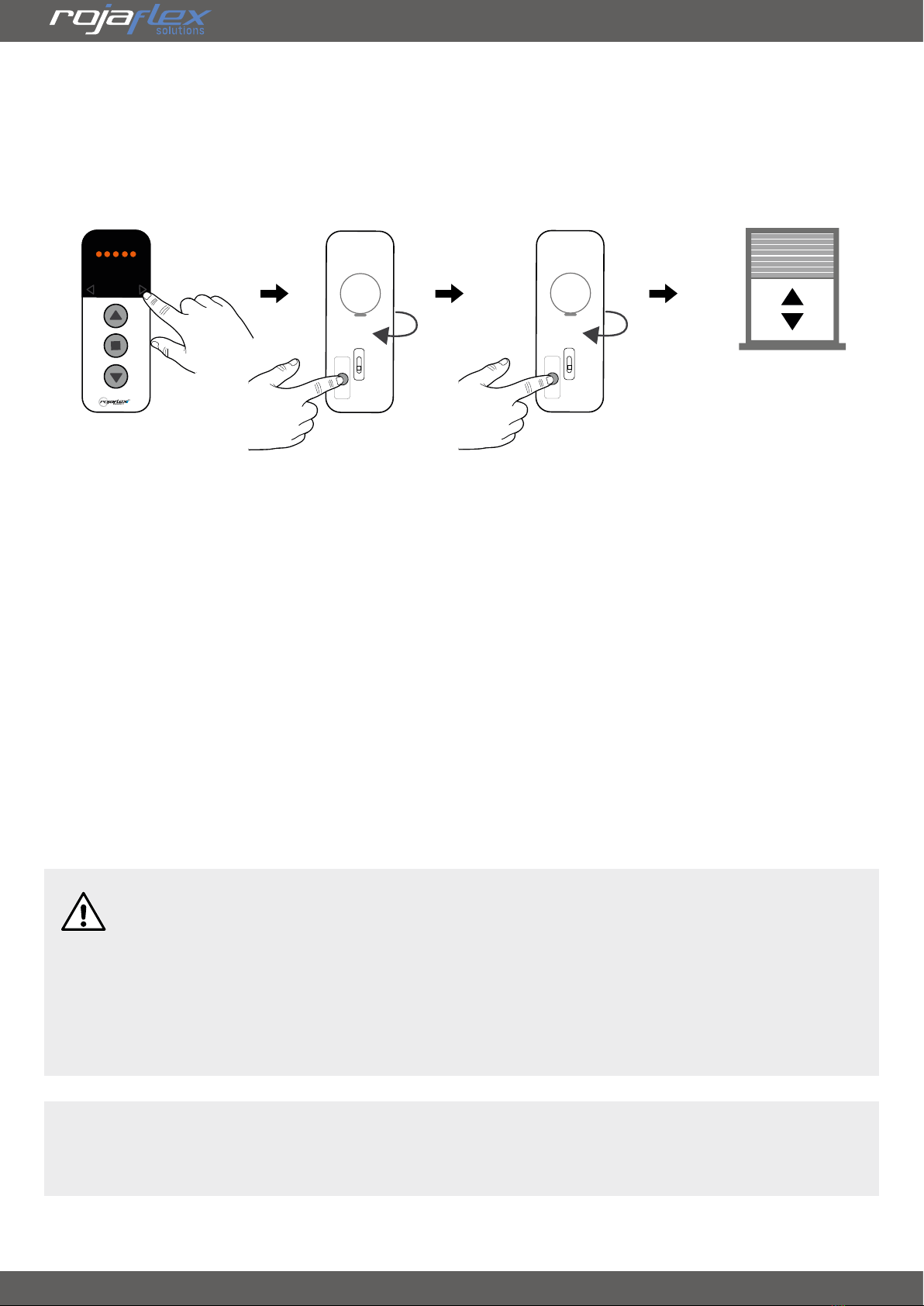

3. Add handheld transmitter
For more information, please refer to the instructions of the Rojaflex radio tubular motors
or radio receivers.
Ex.: RHS5-W
(not applicable for RHS1-W)
At an ALREADY programmed
station, select an already
programmed channel by
pressing the K1 (or K2) key.
Then, on the transmitter to be
programmed NEW, select the
channel to be added by pres-
sing the K2 (or K1) key (red
LED of the selected channel
lights up).
Press the P2 programming
button (back) 3 times on the
already programmed hand-
held transmitter.
Press the P2 programming
button (back) once on the
handheld transmitter to be
reprogrammed.
Please note!
For multi-channel transmitters,
the desired channel must be
selected first!
The motor (shutter) briefly
moves UP/DOWN and/or the
receiver beeps.
OK!
Handheld transmitter is
added.
Important:
For systems with SI (single-directional system / one-way communication) the
P2 button of the already taught-in handheld transmitter is only pressed 2x!
This applies, for example, to the MLSF/MLMF drives and the REHK-1 and RUE-UP external recei-
vers.
Please follow the instructions of the respective receiver/motor!
P2
BI
SI
CR 2450
P2
BI
SI
CR 2450
Handheld transmitter 1 Handheld transmitter 2
10 www.rojaex.com
Programming and settings

www.rojaex.com 11
Notes

Reprints, including excerpts, only with the permission of the author.
Product changes, which from our point of view serve to improve quality,
can be made at any time, even without prior notice or notification.
Illustrations can be example illustrations, which differ in appearance from
the delivered goods.
Errors excepted. No liability is assumed for printing errors.
Our general terms and conditions apply.
If you have any questions about this product,
please contact us at the following address:
rojaflex
is a registered trademark of
Schoenberger Germany Enterprises GmbH & Co. KG
Zechtraße 1-7
82069 Hohenschäftlarn
Germany
T +49 (0) 8178 / 93 29 93 93
F +49 (0) 8178 / 93 29 93 94
info@rojaflex.com
www.rojaflex.com
EU Waste and recycling / Registrations
Germany for electrical devices:
Stiftung EAR
WEEE-Reg.-no.: DE 41060608
Germany for batteries:
Stiftung EAR
Batt-Reg.-no.: DE 88866710
Germany for packaging:
LUCID Reg.-no.: DE5768543732165
Austria for electrical devices:
Elektro Recycling Austria (ERA) GmbH
ERA Contract no: 40801
Austria for packaging:
Altstoff Recycling Austria (ARA) AG
ARA License number: 23363
Switzerland for electrical devices:
Stiftung SENS
Membership number: VP11544
France for electrical devices:
Ecologic
Membership number / Take-back system: M3670
National registry: UIN FR208795_01SUIN
France for packaging:
Citeo
Membership number / Take-back system: 532886
National registry: UIN FR208795_01SUIN
Spain for electrical devices:
ECOTIC
Reg.-no.: RII-AEE- 7601
Spain for packaging:
Ecoembes
Membership number: 97556
Italy for electrical devices:
Raccolta differenziata. Verifica le disposizioni del tuo Comune!
Reg.-no.: n/a
Italy for packaging:
Raccolta differenziata. Verifica le disposizioni del tuo Comune!
Membership number: n/a
