rojaflex HSR-15 User manual

Original Montageanleitung
Original instructions
Mode d‘emploi original
Instrucciones originales
Manuale d’uso originale
Originele gebruiksaanwijzing
Oryginalna instrukcja obsługi
Eredeti összeszerelési útmutató
IT
NL
PL
HUN
DE
EN
FR
ES
Eine aktuelle Vollversion der Anleitung nden Sie hier/
You can nd a current full version of the manual here/
Vous trouverez ici une version complète et actuelle du mode d‘emploi/
Puede encontrar una versión completa actual del manual aquí/
Potete trovare una versione completa attuale del manuale qui/
Een actuele volledige versie van de handleiding vindt u hier/
Aktualną, pełną wersję podręcznika można znaleźć tutaj/
A kézikönyv aktuális, teljes verzióját itt találja:
https://www.rojaex.com/bedienungsanleitungen.html
ORIGINAL ASSEMBLY AND
OPERATING INSTRUCTIONS
Rojaex HSR-15
For Rojaex radio tubular motors and radio receivers
Handheld transmitter
HSR-15_V7. 2022-11-07

2 www.rojaex.com
CONTENTS
General safety instructions 3 - 5
Function overview / 6
Changing the battery
Function overview display 7
Technical data / scope of delivery 8
Programming and settings 9 - 10
Notes 11
Contact information Back
ATTENTION!
After unpacking, compare the device type with the
corresponding information on the type plate. Incomplete
devices or devices that do not comply with the specications
must not be put into operation and a complaint must be lodged
with our customer service department (see contact information)
before commissioning.
EU Declaration of Conformity according to Article 10(9):
Herewith declares Schoenberger Germany Enterprises GmbH & Co. KG, Hohenschäftlarn,
that the radio system type rojaex handheld transmitter "HSR-15" complies with the directive 2014/53/
EU.
The full text of the EU Declaration of Conformity is available at the following Internet address:
www.rojaex.com/konformitaetserklaerungen.html
Content

www.rojaex.com 3
General safety instructions
WARNING!
Important safety instructions!
• For the safety of persons it
is important to follow these
instructions!
• Please keep the manual and hand
it over to the new owner in case of
change of ownership!
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved.
• Children are not allowed to play with
the device.
• Cleaning and maintenance by the
user must not be carried out by
children without supervision.
WARNING!
The motor controlled by the radio
control (the transmitter) must be
disconnected from its power source
during cleaning, maintenance and
replacement of parts!
WARNING!
There is a danger to life from electric
shock when working on electrical
equipment!
Observe the instructions and safety
instructions of the drive/receiver
controlled by the radio control as well
as the corresponding instructions
of the driven roller shutter or sun
protection system!
ATTENTION!
The following instructions must be
observed!
The range of radio controls is regulated
by the legal requirements for radio
equipment and is inuenced by structural
conditions, among other things.
When planning, make sure you have
adequate radio reception.
This is especially true if the radio
transmitter is located in a dierent room
than the radio receiver, and therefore
the radio signal must penetrate walls or
ceilings.
Do not install the radio control in the
direct vicinity of large metallic surfaces.
Other transmitting equipment (e.g.
radio headphones, baby monitors, radio
weather stations) whose transmission
frequency is identical to that of the radio
control unit may interfere with reception.
Attention!
It is essential to observe the instructions
for correct use and the operating
conditions!
In case of improper use, there is an
increased risk of damage to the controlled
system!
• Use the radio control (transmitter)
only for connection to roller shutter,
awning and blind motors or their
receivers.

4 www.rojaex.com
General safety instructions
• Deactivate the automatic functions
of the radio control in case of
snowfall, icing or danger of frost to
avoid damage to the motor or the
driven system.
• Only use original components and
accessories from the manufacturer.
• Instruct all persons in the safe use
of the radio control and the motor
controlled by it.
• During commissioning, observe the
moving equipment (roller shutter,
awning, blind) and keep people
away from it until the movement is
nished.
• Prohibit children from playing with
the radio control.
• Store the handheld transmitter
in such a way that unintentional
operation, e.g. by children playing, is
prevented.
• Secure the controlled system against
unauthorized operation.
• Take safety precautions against
unintentional switch-on.
• Carry out all cleaning work on the
system in a de-energized state.
• Use caution when operating the
open/extended system as parts may
fall if fasteners (e.g. springs) weaken
or are broken.
• Never use defective or damaged
equipment.
• Check the motor controlled by the
radio control and the power cable of
the motor for integrity.
WARNING!
The use of defective devices can
endanger persons and cause damage
to property.
Regularly check the radio control and
the system controlled by it for proper
function and keep and keep people
away from it until the test of the
faultless function is nished!
Please contact our service department
(see contact information page) if you
notice any damage to the device.
ATTENTION!
After unpacking, compare the
device type with the corresponding
information on the type plate.
Incomplete devices or devices that
do not comply with the specications
must not be put into operation.
IMPORTANT!
Disposal instructions!
(European Directive 2012/19/EU (WEEE)
Our electrical and
electronic products are
marked with a crossed-
out wheeled garbage
can, which indicates
that these products
and any batteries they
may contain must be
collected separately
at the end of their
useful life and must
not be disposed of together with normal
household waste.

www.rojaex.com 5
General safety instructions
The substances contained in these
products may have negative eects on
health and the environment, so users of
electrical products and batteries also have
a responsibility in recycling these waste
materials and in this way contribute to the
protection, preservation and improvement
of the environment.
Obligation for separate disposal
Our duty as manufacturers is, among other
things, to inform you of your obligation to
separate disposal.
• When disposing of products with
batteries, remove them from the
product and dispose of them separately.
• When disposing of illuminants, they
must be disposed of separately to the
receptacle.
Return option and
Recycling program EU
We are connected to public-law return
systems throughout Europe and thus
oer our customers access to a Europe-
wide network of local recycling facilities
(recycling centers, take-back points or
similar).
Our products are professionally recycled
via these local facilities. This reduces the
amount of waste - to the benet of the
environment.
Our registration numbers:
*For registration data of other European
countries, see Contact Information page.
A take-back by us as manufacturer
according to §19 WEEE is not to be asserted.
Information on the degree of fulllment
of the collection and recycling
requirements
It is also our duty as a manufacturer to
inform you about the degree of fulllment
of the collection and recycling requirements.
Since we are connected to a qualied take-
back system, we can refer to the degree of
fulllment of the recycling companies.
You can nd this information on our
website.
Deletion of personal data
Some of our products contain personal data.
This applies in particular to information and
telecommunications technology devices
such as computers and smartphones. In
your own interest, please note that each end
user is responsible for deleting the data on
the old devices to be disposed of!
Reg. no.*
WEEE DE 41060608
Battery DE 88866710
Illuminant
Transport and
Shipping packaging DE5768543732165

P2
SI
BI
*with the „DIP“-switch, depending
on the radio receiver
(see receiver instructions),
depending on the radio recei-
ver (see receiver instructions),
between „SI“ (single = one-way
communication) and „BI“ (two-
way communication) - radio.
Battery compart-
ment
DIP switch*
Single / Bi -
Directional
Programming
button
Handheld transmitter -
back side
with open cover
Inserting the battery / changing the battery
Depending on the frequency of switching
operaons, we recommend replacing the
baery at least every 2 years.
The key assignment may dier depending on the model:
K1= K- (minus) K2= K+ (plus)
* depending on the model, the rear cover is additionally secured with a screw or a pushbutton.
Open the screw with a standard Phillips screwdriver.
A paper clip or SIM tool can be used to unlock the pushbutton lock.
Please do not dispose of baeries in
household waste! Take them to an
appropriate disposal staon.
Remove pro-
tective foil.
15-channel handheld transmit-
ter HSR-15
STOP
DOWN
UP
Display
Channel display
K1 K2
The K1 and K2 keys can be used to switch between the indi-
vidual channels (1-15).
The channel highlighted in black is active in each case.
As soon as the„a“ (after channel display 15) is highlighted,
group control is active. All programmed receivers are con-
trolled simultaneously.
Display
Shutter position
display
a
Battery status display*
*model dependent
The battery is (depending on the transmitter model) supplied
loose or already installed and secured against discharge with
a protective lm. To replace/insert the battery, open the rear
cover by pressing lightly downwards*, remove the protective
lm and insert the battery into the battery compartment with
the + (plus) side facing upwards as shown. Then close the rear
cover again.
This product contains a button cell battery. If swallowed, the button cell battery can cause
severe internal burns and death in as little as 2 hours.
Keep new and used batteries away from children. If the battery compartment cannot be
closed securely, stop using the product and keep it away from children. If you think that
batteries may have been swallowed or may have entered any part of your body, seek medi-
cal attention. If you think batteries may have been swallowed or may have entered a body
part, seek medical attention immediately.
6 www.rojaex.com
Function overview / changing the battery

a

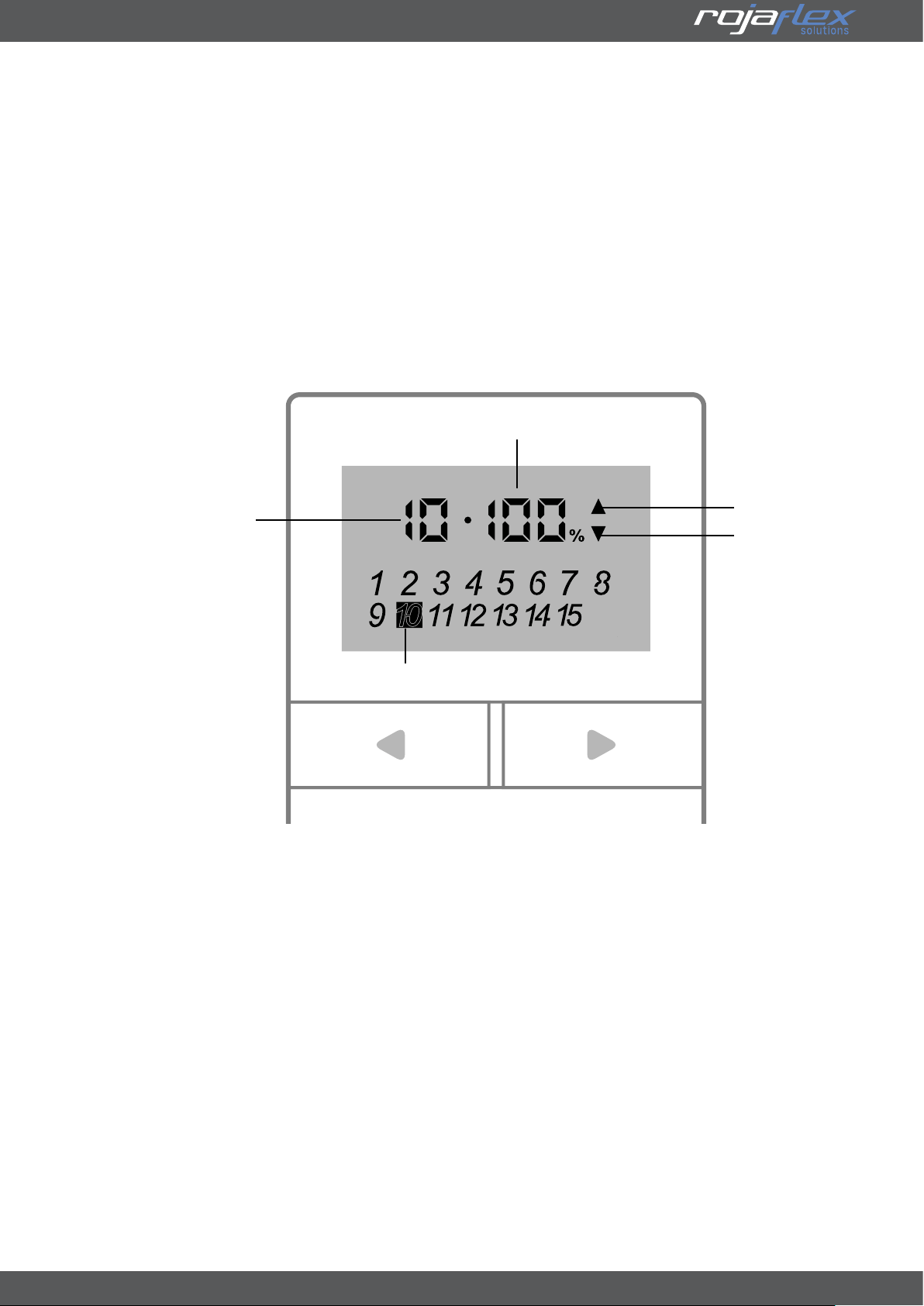

The Rojaex HSR-15 handheld transmitter has a multi-line display.
In the upper area, the selected channel (1-15), the roller shutter position display and the up and
down commands are displayed.
Roller shutter position indicator:
0% = shutter completely open / 100% = shutter completely closed.
The lower area shows the individual channels (1-15) and “a” as a symbol for group control.
The channel highlighted in black indicates the currently selected channel.
If the “a” is highlighted in black, group control is active - all programmed receivers are controlled
simultaneously.
UP
Channel display
Shutter position indicator
Display of the individual channels
LCD - Anzeige
DOWN
www.rojaex.com 7
Function overview display

Performance Features:
Input voltage 3V (battery CR2450)
Transmission frequency 433,05 - 434,79 MHz
Working current ≤ 15mA
Quiescent current ≤ 10 μA
Standby consumption ≤ 3 μW
Transmitting power ≤ 10 mW
Protection class IP 20
Permissible ambient tempe-
rature +10°C to +50°C
Range Open eld: approx. 150 m /
indoors: approx. 30 m *
Channels 15 channels
Compatibility Rojaex radio motors and radio receivers
Radio system Rollender Code
Dimensions (approx.) (HxBxT) 130 mm × 44 mm × 18 mm
Technical data
Scope of delivery
When unpacking, please compare the package contents with the information on the scope of delivery in
these instructions!
1. Hand transmitter incl. battery
2. Wall mount incl. mounting material
3. Bedienungsanleitung
* Range data are approximate values and depend on the structural conditions.
1Original Montageanleitung
Original instructions
Mode d‘emploioriginal
Instruccionesoriginales
Manuale d’uso originale
Originelegebruiksaanwijzing
Oryginalnainstrukcja obsługi
Eredeti összeszerelésiútmutató
IT
NL
PL
HUN
DE
EN
FR
ES
Voustrouverez ici une version complète et actuelle du mode d‘emploi/
Puede encontraruna versión completa actual del manual aquí/
Potetetrovare una versione completa attuale del manuale qui/
Een actuele volledige versie van de handleiding vindt u hier/
Aktualną, pełną wersję podręcznika można znaleźć tutaj/
A kézikönyv aktuális, teljes verzióját itt találja:
BEDIENUNGSANLEITUNG
Handsender
HSR-15_V6. 2022-04-21
3
2
8 www.rojaex.com
Technical data / scope of delivery

1. Programming mode - radio receiver or radio motor
Set the receiver (external Rojaex radio receiver or Rojaex radio motor) on which the handheld transmitter
is to be programmed to programming mode (see receiver instructions).
2. Programming the handheld transmitter - HSR-15
Then check the function(s) by pressing the UP / STOP / DOWN keys!
If the direction of rotation of the motor is reversed (roller shutter / motor moves downwards when
the UP key is pressed), please start from the beginning and press the DOWN key after the P2 key
instead of the UP key!
This changes the direction of rotation of the motor.
Each keystroke must be executed within 4 seconds!
Otherwise, the system automatically exits the programming mode.
Press UP key
1 x. The motor (shutter) briey
moves UP/DOWN and/or the
receiver beeps.
OK!
First code programming suc-
cessfully carried out.
Set receiver
(motor/exter-
nal receiver) to
programming
mode according to
instructions.
Select the desired channel by
pressing the K1 (or K2) key (the
channel highlighted in black is
selected).
The group function
(all channels are selected)
can NOT be taught-in separa-
tely as a channel!
Press P2 programming key
(rear side) 2 x
P2
SI
BI
www.rojaex.com 9
Programming and settings

3. Add handheld transmitter
For further informaon, please refer to the instrucons of the Rojaex
radio tubular motors or radio receivers.
At an ALREADY programmed
station, select an already
programmed channel by
pressing the K1 (or K2) key.
Then select the channel to be
added at the NEW transmitter
by pressing the K2 (or K1)
key (red LED of the selected
channel lights up).
On the handheld transmitter
that has already been pro-
grammed, press the
Press the P2 programming
button (back).
Press the P2 programming
button (on the back) once on
the new handheld transmitter
to be programmed.
Please note!
For multi-channel transmitters,
the desired channel must be
selected rst!
The motor (shutter) briey
moves UP/DOWN and/or the
receiver beeps.
OK!
Hand-held transmitter is
added.
Important:
For systems with SI (single-direconal system / one-way communicaon), the
Buon P2 of the already taught-in handheld transmier only pressed 2x!
This concerns e.g. the MLSF/MLMF - drives and the external receivers REHK-1 and RUE-UP.
Please follow the instrucons of the respecve receiver/motor!
P2
SI
BI
P2
SI
BI
10 www.rojaex.com
Programming and settings

www.rojaex.com 11
Notes

Reprints, including excerpts, only with the permission of the author.
Product changes, which from our point of view serve to improve quality,
can be made at any time, even without prior notice or notication.
Illustrations can be example illustrations, which dier in appearance from
the delivered goods.
Errors excepted. No liability is assumed for printing errors.
Our general terms and conditions apply.
If you have any questions about this product,
please contact us at the following address:
rojaex
is eine eingetragene Marke der / is a registered trademark of
Schoenberger Germany Enterprises GmbH & Co. KG
Zechtraße 1-7
82069 Hohenschäftlarn
Germany
T +49 (0) 8178 / 93 29 93 93
F +49 (0) 8178 / 93 29 93 94
info@rojaex.com
www.rojaex.com
EU Waste and recycling / Registrations
Germany for electrical devices:
Stiftung EAR
WEEE-Reg.-no.: DE 41060608
Germany for batteries:
Stiftung EAR
Batt-Reg.-no.: DE 88866710
Germany for packaging:
LUCID Reg.-no.: DE5768543732165
Austria for electrical devices:
Elektro Recycling Austria (ERA) GmbH
ERA Contract no: 40801
Austria for packaging:
Altsto Recycling Austria (ARA) AG
ARA License number: 23363
Switzerland for electrical devices:
Stiftung SENS
Membership number: VP11544
France for electrical devices:
Ecologic
Membership number / Take-back system: M3670
National registry: UIN FR208795_01SUIN
France for packaging:
Citeo
Membership number / Take-back system: 532886
National registry: UIN FR208795_01SUIN
Spain for electrical devices:
ECOTIC
Reg.-no.: RII-AEE- 7601
Spain for packaging:
Ecoembes
Membership number: 97556
Italy for electrical devices:
Raccolta dierenziata. Verica le disposizioni del tuo Comune!
Reg.-no.: n/a
Italy for packaging:
Raccolta dierenziata. Verica le disposizioni del tuo Comune!
Membership number: n/a
