Rollplay 24V Wave Catcher W301 Assembly instructions
Owner’s Manual and Assembly Instructions
Model #: W301
Read and understand the entire manual before assembly and operation. The scooter must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Visit us online at www.rollplay.com for
assistance and replacement parts.
®24V Wave Catcher
IMPORTANT:
Save this manual with your sales receipt.
NOTE: The unit must be traveling at least 3 mph (5 km/h) before motor will engage.
Kick to start until you reach at least 3 mph (5 km/h) then press a push button throttle
on the handlebar to engage the motor.
Introduction
BATTERY:
MOTOR:
AGE:
MAX WEIGHT:
PRODUCT SIZE:
LOW SPEED:
HIGH SPEED:
RECHARGE TIME:
MAX RUN TIME:
CHARGER OUTPUT:
24V 2900 mAH
22V 150W
8 Years+
143 lbs (65 kg)
33.5 x 13.6 x 34.6 in (85.0 x 34.5 x 88.0 cm)
Up to 5 mph (8 km/h)
Up to 10 mph (16 km/h)
6 Hours
1 Hour
DC 25.2 V
Thank you for purchasing this Rollplay scooter! We hope the rider enjoys
it for miles to come. Please read this instruction guide carefully before
assembling and operating the scooter.
Please contact Rollplay Customer Service with any questions.
Keep your sales receipt and register your product at www.rollplay.com.
Have your model number and serial number ready before calling. Please
have proof of purchase.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Email: [email protected]
Phone: 1-888-982-9309
Web: www.rollplay.com
IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 12 HOURS BEFORE FIRST USE!
Charge the battery after each use. Charge for 6 hours for every recharge
after the initial charge.
Charge the battery at least once a month, even if the
scooter is not in use.
Read this entire manual to ensure
proper assembly and safe operation
of the scooter.
BEFORE RETURNING YOUR PRODUCT TO THE
STORE, CONTACT ROLLPLAY WITH QUESTIONS.
E-mail Customer Service if you need assistance or replacement parts.
Please have your model number and serial number ready before calling.
Keep your sales receipt and register your product at www.rollplay.com as
we will require proof of purchase.
Failure to recharge the battery periodically may result in a battery that
will not accept a charge.
4Table of Contents
Safety ......................................................... 5

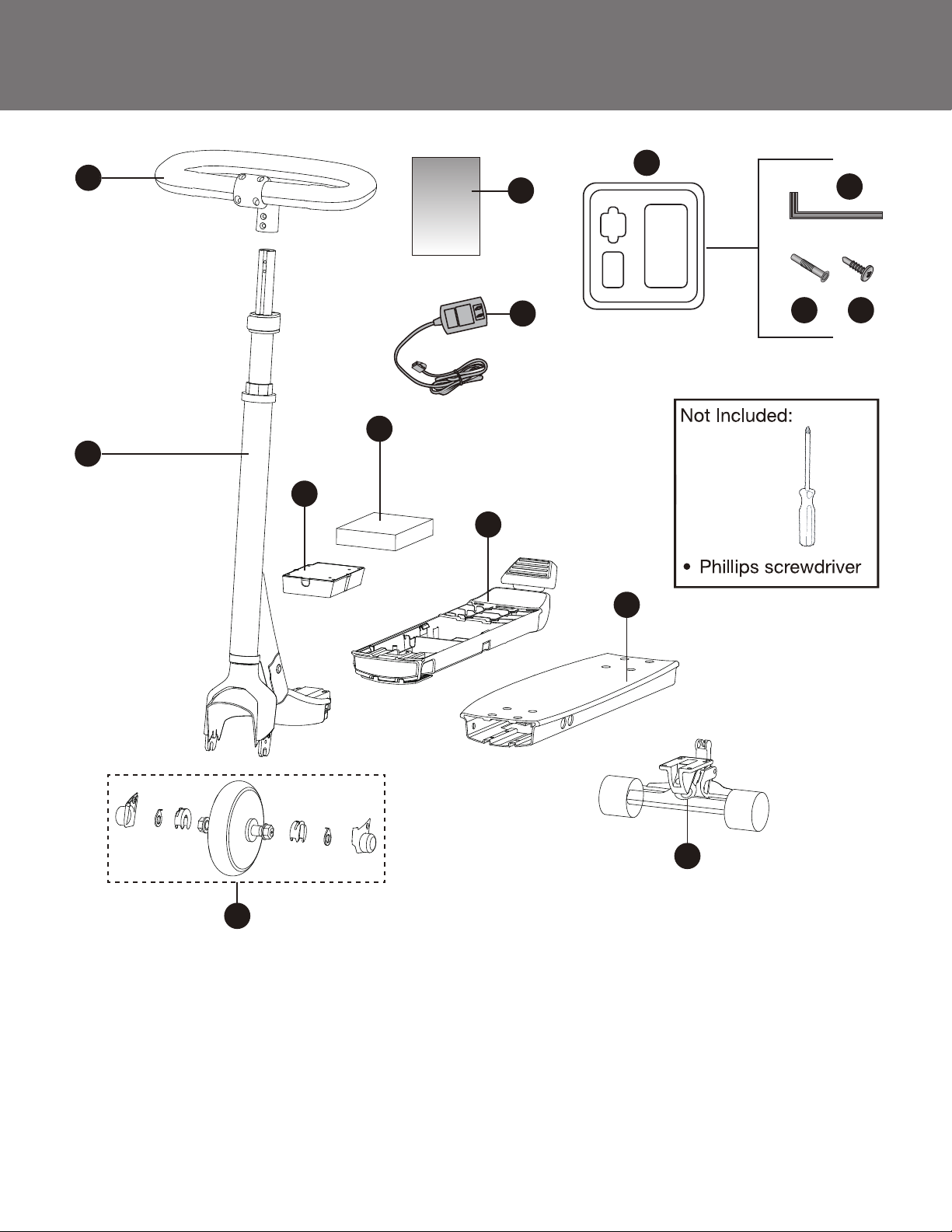

Parts .......................................................... 7
Charging Instructions ................................. 8

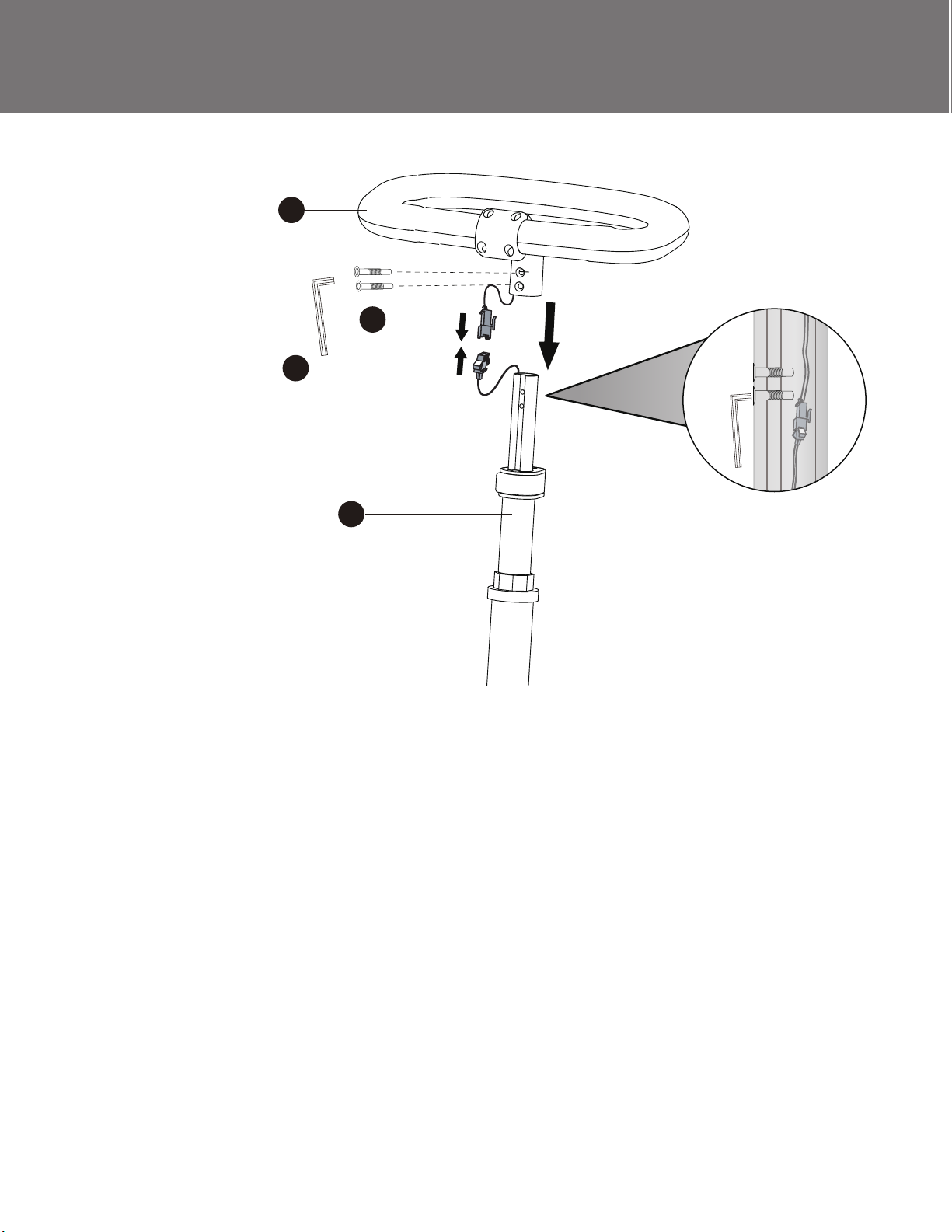

Assemble the Handlebar ...........................10

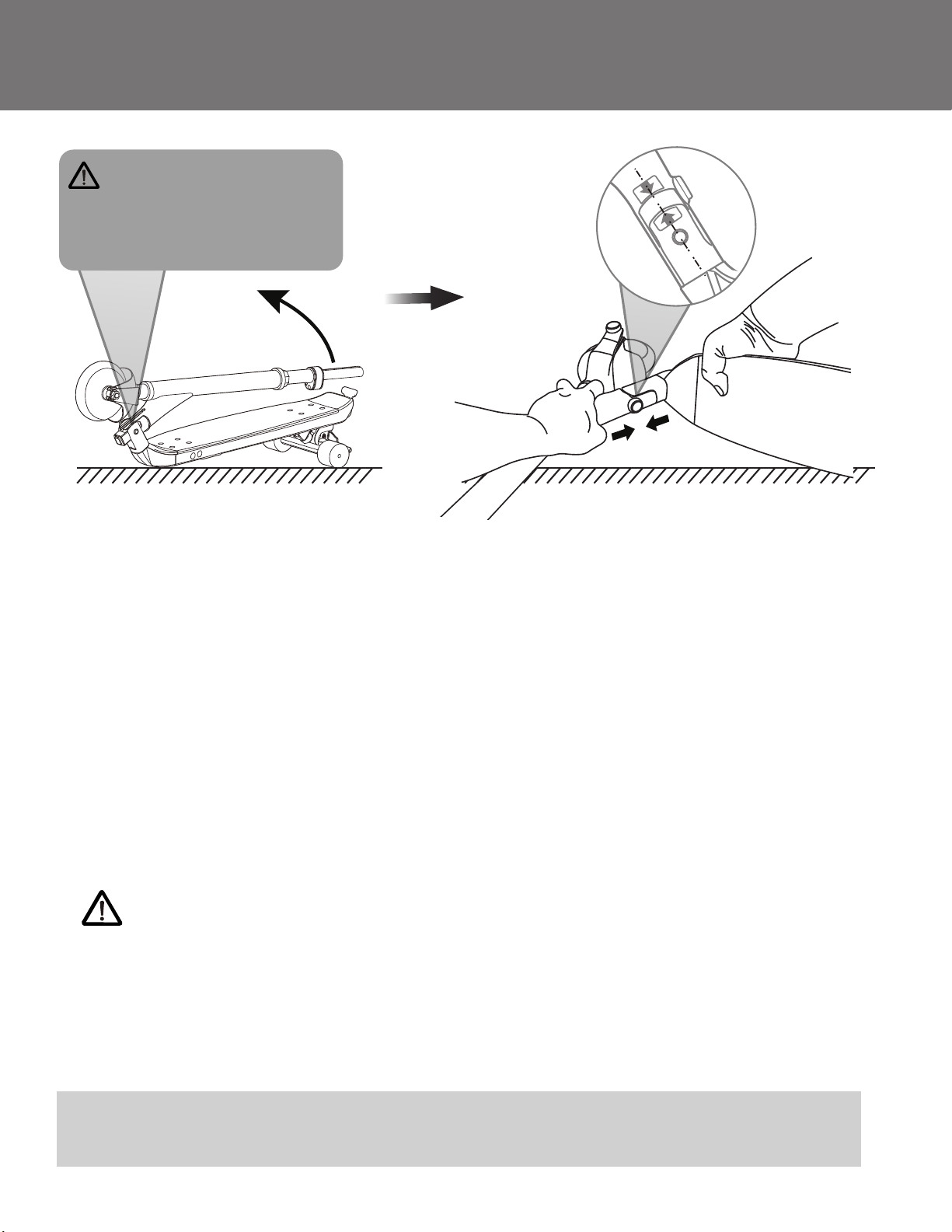

Unfolding Instructions ................................ 9
Assemble the Brake ..................................11

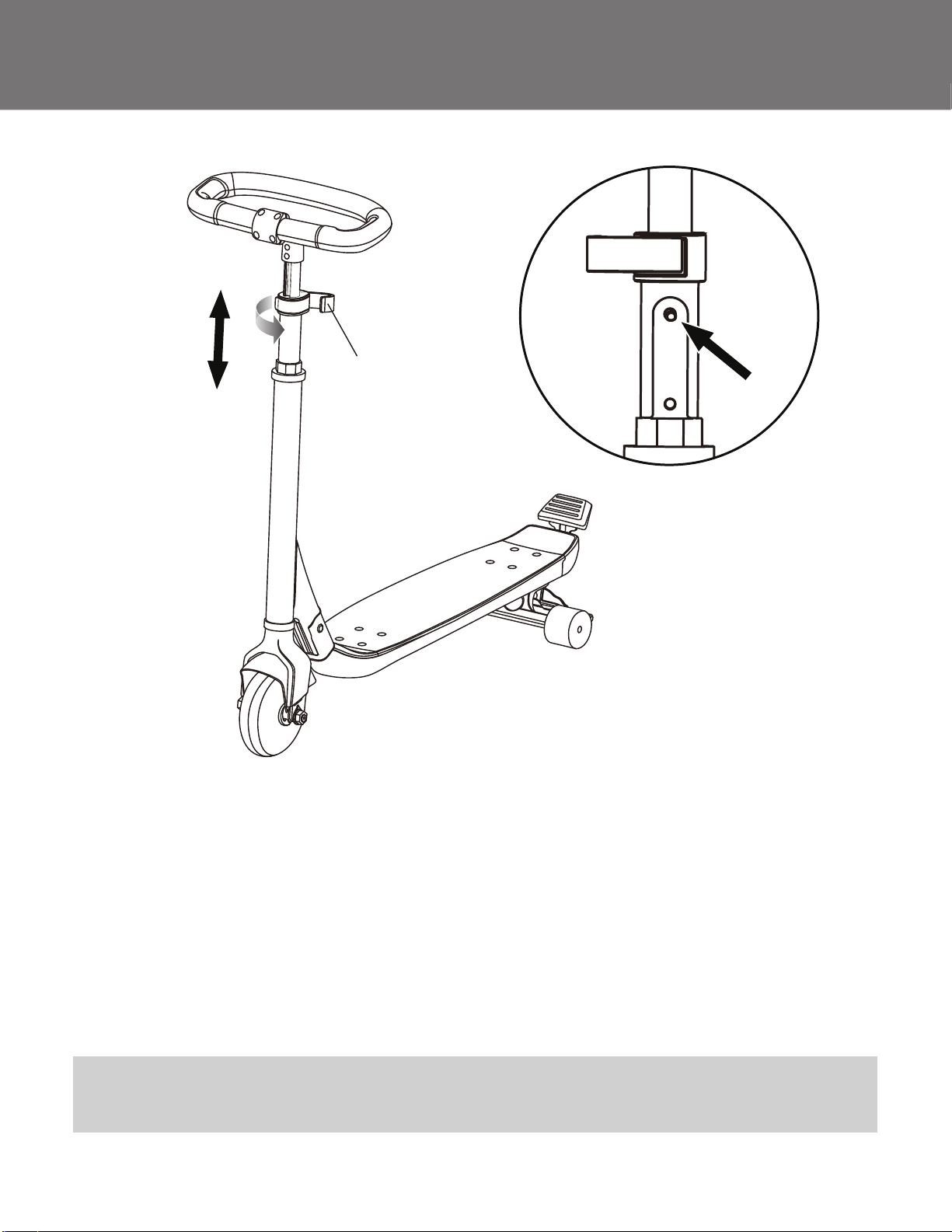

Adjust the Handlebar ................................12
Folding Instructions ...................................13
Operating Instructions...............................14

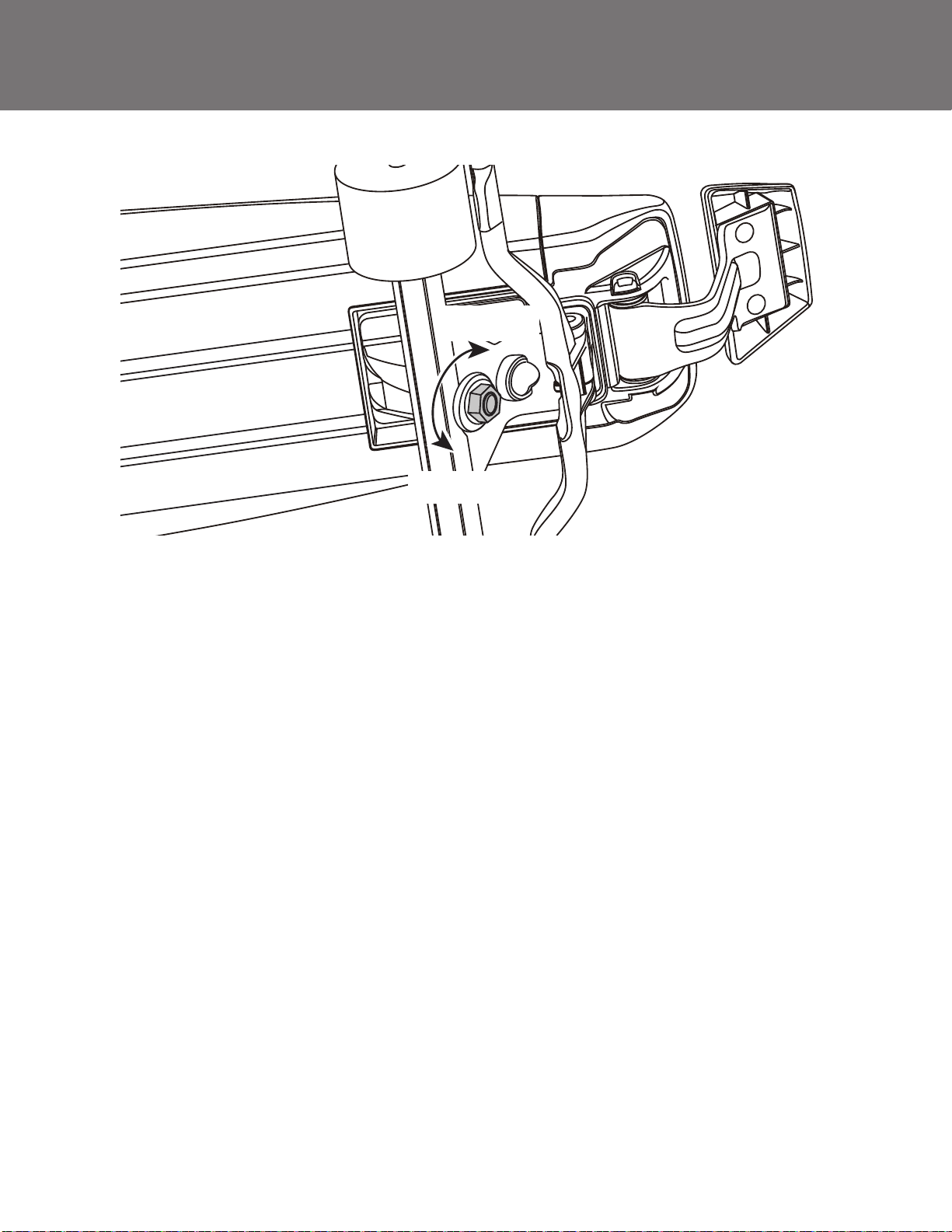

Rear Wheel Bracket Adjustment................15
Maintenance..............................................17
General Care .............................................18
Troubleshooting Guide ..............................19
FCC Information ........................................21
Service and Repairs.................................. 22
Warranty.................................................... 23
Product Registration................................. 24
Pre-ride Checklist ......................................16
Repair and Maintenance........................... 20
5
Safety
WARNING: SAFETY RIDING RULES
• The user must follow all safety rules and guidelines, or
serious injury or death may occur to the user.
• Always use common sense and safe practices when
using the scooter. The user must be at least 8 years
old and weigh no more than 65kg (143 lbs).
• Do not overload the scooter. Do not remove the
weight restriction decals.
• Do not operate near loose dirt, mud, sand or ne
gravel.
• Do not operate near ammable vapors (gasoline, paint
thinner, acetone, etc.).
• Always use the scooter in a safe, secure environment
with adult supervision.
• Always wear protective equipment such as a helmet,
knee pads, and elbow pads. Always wear a helmet
when riding your scooter and keep the chinstrap
securely buckled. The protective equipment should
comply with local regulations such as U.S. Consumer
Product Safety Commission (CPSC) Standard 16 CFR
1203. Always wear shoes and keep shoelaces tied and
out of the way of the wheels and motor. Closed toe,
athletic shoes are strongly recommended.
• Do not ride at night or in low visibility conditions.
• Prevent injury and death. Never leave child
unattended. Direct adult supervision is required. Never
use in roadways, near motor vehicles, in trafc, on or
near steep inclines or steps, swimming pools or other
bodies of water.
• Only 1 rider at a time.
• Risk of re, do not bypass.
• This product contains small parts that are for adult
assembly only. Keep children away when assembling.
Remove and dispose of all protective material and
plastic bags after assembly.
• Unit shall not be modied from the manufacturer’s
original design and conguration.
• Unit shall not be operated to perform racing, stunts, or
other maneuvers, which may lead to loss of control, or
may cause uncontrolled rider actions or reactions.
• Persons shall be advised not to allow hands, feet, hair,
body parts, clothing or similar articles to come in
contact with moving parts, wheels, or drivetrain, while
the engine is running. Keep away from moving parts.
• Before each use, please check the following:
1) All guards and pads originally supplied by the
manufacturer are in the proper place and in good
condition.
2) The area that the unit is to be operated is safe and
suitable for safe operation.
3) The braking system is functioning properly.
4) All safety labels are in place and understood by the
rider.
5) All axle guards, chain guards, or other covers or
guards supplied by the manufacture are in place and
in good condition.
• The owner shall allow the use and operation of the
unit only after a demonstration that such operators
can understand and operate all components of the
unit before use.
• Operators shall adhere to all of the manufacturer’s
recommendations and instructions, as well as
comply with all local laws and ordinances. Always
check and obey local laws or regulations which may
affect the locations where the Wave Catcher may be
used.
• Persons with the following conditions shall be
cautioned not to operate:
1) Those with heart conditions
2) Pregnant women
3) Persons with head, back, or neck ailments, or
prior surgeries to those areas of the body
4) Persons with any mental or physical conditions
that may make them susceptible to injury or impair
their physical dexterity or mental capabilities to
recognize, understand, and perform all of the safety
instructions and to be able to assume the hazards
inherent in use of the scooter.
• Components shall be maintained and repaired in
accordance with the manufacturer’s specications
and using only the manufacturer’s authorized
replacement parts with installation performed by
skilled persons.
• Avoid sharp bumps, drainage grates, and sudden
surface changes. Scooter may suddenly stop.
• Avoid streets and surfaces with water, sand, gravel,
dirt, leaves, and other debris. Wet weather impairs
traction, braking and visibility. Ride on a smooth,
paved surface away from motor vehicles. Scooter
should be used on a at surface. Never use near
bodies of water or swimming pools. Do not ride your
product in wet or icy weather conditions and never
immerse the product in water. Never ride indoors, as
this may damage ooring.
• Brake will get hot from continuous use. Do not touch
after braking.
• Avoid excessive speed associated with downhill
rides.
• Adult must assist children in the adjustment
procedures to unfold scooter, adjust handlebar, and
to fold scooter.
• Be careful to avoid pedestrians, skaters,
skateboards, scooters, bikes, children or animals
who may enter your path, and respect the rights and
property of others. Watch out for potential obstacles
that could catch your wheel or force you to swerve
suddenly or lose control.
• Check and secure all fasteners before every ride.
• Replace worn or broken parts immediately.
• Risk of re---no user serviceable parts, they are not
intended for use at elevations greater than 2000m
above sea level.
• Prolonged exposure to UV rays, rain and the
6
WARNING: BATTERY SAFETY
Safety
(Continued)
elements may damage the enclosed materials.
• Store indoors when not in use. Store in a dry
environment.
• The scooter must only be used with the
recommended charger which conforms to UL1310
standard.
• Do not charge at or below 32°F (0°C). Do not store
in freezing or below freezing temperatures. Should
be stored in temperatures below 86°F (30° C).
• The included lithium-ion battery must be recycled or
disposed of in an environmentally safe manner. Do
not dispose of a battery pack in a re; the battery
pack may explode. Do not dispose of the battery
pack in your household trash. The incineration, land
lling or mixing of batteries with household trash is
prohibited by law in most areas. Return exhausted
batteries to a federal or state approved lithium-ion
battery recycler.
• Do not exceed weight limit of 143 lb (65 kg).
Exceeding the weight limit could injure the rider or
damage the unit.
• Never use headphones or a cell phone to talk or
text when riding.
• This product is not suitable for children under 8
years old. Parents are strongly advised not to
disregard this recommendation and allow younger
children to ride the Wave Catcher. The age
recommendation is only an estimate and not a
guarantee that every child ages 8 and older is the
appropriate height, weight or has the appropriate
skills and maturity to ride the Wave Catcher. A
parent’s decision to allow his or her child to ride this
product should be based on the child’s maturity,
skill, and ability to follow rules. There are additional
hazards of using the product in areas other than
private grounds.
• The product shall be used with caution since skill is
required to avoid falls or collisions which may cause
injury to the user and third parties. Always be aware
of your surroundings. Watch out for potential
obstacles that could catch your wheel or force you
to swerve suddenly or lose control.
• Tampering with or modifying the electric circuit
system may cause shock, re or explosion, it could
permanently damage the system. Keep the
battery/charger housing and all electronic
components closed to prevent exposed wiring,
which may cause electric shock.
• Please wear reective armbands or a reective vest
for safety.
• Battery, charger, electric wire, plug, enclosure and
other parts should be periodically checked for
damage, if damage is found discontinue use until
repaired.
• IMPORTANT: Before using the scooter for the rst
time, the battery must be charged for a full 12 hours.
To prevent any battery leakage, heat or re,
please pay attention to the following precautions:
• Do not immerse the battery in water.
• Do not use the battery next to high temperature
sources, such as re, heater, etc.
• Please use the custom charger for lithium battery
charging.
• Do not reverse the battery.
• Do not connect the battery directly to the power
outlet.
• Do not throw the battery into a re or heater.
• Do not directly connect the terminals of the battery
with metal.
• Do not transport or store the battery together with
metals such as hairpins, necklaces, etc.
• Do not tap, throw or step on the battery.
• Do not directly solder the battery cells, or use sharp
tools to pierce the battery pack or battery cells.
• Do not use or leave the battery at high temperatures
(in direct sunlight or in a hot car), as this may cause
the battery to overheat, cause a re or malfunction,
resulting in a shorter battery life.
• Do not use in places with strong static electricity and
strong magnets, otherwise it will easily damage the
safety protection device of the battery pack.
• If the battery leaks and the electrolyte enters the
eyes, please don't rub it, rinse your eyes with clean
water, and go to a hospital for treatment immediately.
• Remove and stop using the battery immediately if it
emits a foul odor, overheats, there is discoloration, it
becomes deformed or there is any abnormality during
charging.
• If the terminals of the battery are dirty, use a dry cloth
to clean, to avoid poor connection.
• Discarded batteries should be covered with insulating
paper to prevent re and smoke.
• The battery should be stored in room temperature,
with 40%~60% power. It is recommended to charge
the battery at least once a month, even when the
scooter is not in use. Failure to recharge the battery
periodically may result in a battery that will not accept
a charge. If the product is stored, without use, for
more than a year, it is recommended to fully charge
and fully discharge the battery once a year to
maintain the performance of the battery.
7
Parts
1. Handlebar
2. Frame
3. Front Wheel
4. Rear Wheels
5. Deck
6. Battery Compartment
7. Battery (located in
battery compartment)
8. Control Board
(located in deck)
9. Manual
10. Charger
9
10
1
2
3
7
4
5
6
8
11
12 13
14
11. Wrench
12. Internal Hex
Screws (x2)
13. Screws (x2)
14. Blister Pack
NOTE: Allow 12 hours for initial battery charge. Follow the few short
assembly steps on the following pages to get your Wave Catcher ready.
1
2
8Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
To Reconnect the Battery:
YOU MUST CHARGE THE BATTERY FOR 12
HOURS BEFORE THE FIRST USE!
1. The charging port (1) is located
underneath of the right side of the
deck.
2. Plug the connector on the charger into
the charging port (1).
3. Plug the charger into a 120V outlet (2)
The charger light will turn red while the
battery is charging.
4. Unplug the charger from the outlet
when charging is complete and the
charger light turns green.
5. Remove the charger connector from
the charging port (1).
B
A
1. Ensure the scooter is stopped and
turned off.
2. Unlock and remove the battery
compartment cover (located
underneath the deck).
3. Locate the yellow battery connector (A)
that attaches directly to the battery.
4. Connect the yellow battery connector
(A) to the yellow battery charger
connector (B).
5. Replace the battery compartment
cover. Battery Compartment Cover
NOTE: It is recommended to charge the battery at least once a month,
even when the scooter is not in use. Failure to recharge the battery
periodically may result in a battery that will not accept a charge.
To Unfold:
1. Raise the front bar.
2. On a at surface, lay the scooter down on its side (refer to the position in
the gure above), hold the front bar with one hand and the front end of
the deck with the other hand. Make sure the up and down arrows on the
side are aligned. Push the deck up toward the front bar to connect the
two parts until it clicks into place. The two arrows on the front fork
should connect.
ALWAYS make sure that the handlebar is securely locked in the upright
position prior to riding.
WARNING:
Keep ngers clear of the folding mechanism when folding or unfolding
the scooter. Always make sure the handle is fully secure in the upright
position prior to riding. The scooter does not lock in the folding position,
use caution handling the scooter while it is folded.
For a video demonstration of the folding mechanism, please visit our
website: www.rollplay.com or contact our Customer service team
9
Unfolding Instructions
Keep ngers clear of the pivoting
mechanism when folding or
unfolding the scooter.
WARNING:
Front Bar
10 Assemble the Handlebar
2
1. Locate the internal hex screws (12) and wrench (11) in the blister pack.
2. Locate the wire on the top end of the handlebar shaft (2), connect to the
connectors inside the handlebar (1) and gently slide the wires into the
handlebar.
3. Insert the handlebar into place on the handlebar shaft.
4. Insert the screws (12) into the holes on the handlebar.
5. Use the wrench (11) to tighten the screws.
1
11
12
Handlebar Shaft
Handlebar
NOTE: Before each use, check the condition of the handlebar. Tighten
the screws around the handlebar lock when the handlebar is loose.
11
1. Align the two holes on the red brake pedal over the holes on the brake
connector. The metal bracket should tuck into the plastic piece.
2. Insert the screws (13) into the holes on the brake connector.
3. Use a screwdriver to tighten the screws.
Brake Pedal
Brake Connector
Assemble the Brake
13
Adjust the Handlebar
12
1. Unlock the handlebar lock, push the pin into the handlebar.
2. Push down or pull up the handlebar to the next position until it clicks
into place.
3. Lock the handlebar lock.
Handlebar Lock Pin
NOTE: There are two handlebar height positions to choose from.
13
Folding Instructions
1
2
To Fold:
1. On a at surface, lay the scooter down on its side (refer to the gure
above). Hold the front bar with one hand and push in the red button
with your thumb while holding the front end of the deck with the other
hand. Then slide the front bar away from the deck to unlock the folding
system.
2. Carefully collapse the front bar down to fold.
WARNING:
Keep ngers clear of the folding mechanism when folding or unfolding
the scooter. Always make sure the handle is fully secure in the upright
position prior to riding. The scooter does not lock in the folding position,
use caution handling the scooter while it is folded.
For a video demonstration of the folding mechanism, please visit our
website: www.rollplay.com or contact our Customer service team.
Keep ngers clear of the pivoting
mechanism when folding or
unfolding the scooter.
WARNING:
14 Operating Instructions
ON/OFF Button Speed Button
Throttle Button Throttle Button
1. Make sure you are in a safe, outdoor environment.
2. Press the ON/OFF Button underneath the deck to turn on the scooter. The
red light on the ON/OFF Button will light up to indicate that the power is on.
3. Use both hands to hold the handlebar and carefully step onto the scooter.
4. Kick to start. Once in motion, press one of the thumb throttle buttons to
activate the motor. Note: The scooter must be traveling at least 3 mph ( 5
km/h) before the motor will engage.
5. To stop, release the throttle and press down on the foot brake on the back
of the deck. Practice applying various pressures to the brakes at various
speeds in an open area free of obstructions prior to riding around others.
NOTE: The scooter is designed to cut power to the motor when the foot
brake is applied.
Speed Adjustment:
Press the Speed Button to adjust the maximum speed:
-The green light will turn on when the low maximum speed option of 5
mph (8 km/h) is activated.
-No light indicates that the high speed option of 10 mph (16 km/h) is the
max speed.
Automatic Shut-down:
After 30 minutes of inactivity, the scooter will automatically power down.
Press the ON/OFF Button to turn the scooter back on.
15
Riders can adjust the tightness of the skateboard truck to their
preference. The tightness of the truck determines how easy the scooter
turns and how stable the ride feels. If the scooter feels unstable for the
rider, it is recommended to check the rear wheels bracket. It can be
adjusted by tightening the nut to increase stability. If the scooter feels
too rigid and difcult to turn, slightly loosening the nut will improve the
scooter reactivity.
NOTE : The nut may become loose overtime, which may cause
instability. Please check and adjust periodically.
Rear Wheel Bracket Adjustment
Tighten
Loosen
Pre-ride Checklist
Frame, Fork and Handlebar
Always check that the handlebar is securely upright and is secured at the
correct height prior to use. Check for cracks or broken connections. Always
inspect your scooter prior to riding.
Brake
Check the brake for proper function. When you step on the foot brake, the
brake should provide resistance. When you apply the brake with the throttle
on/engaged, the brake should automatically cut power to the motor.
Wheels
Periodically inspect the wheels for excessive wear. If the wheels develop at
spots or have excessive wear, please replace them using Rollplay
replacement parts. Visit our website or contact our Customer Service team
to order.
Hardware/Loose Parts
Before every ride, check all parts, such as nuts, bolts, fasteners, etc., to
ensure they are secure and assembled correctly. There should not be any
unusual rattles or sounds from loose parts or broken components. If the
product is damaged, do not ride.
Proper Riding Attire
Always wear proper protective equipment, such as an approved safety
helmet (with chin strap securely buckled), elbow pads, and kneepads. A
helmet may be legally required by local law or regulation in your area. A
long-sleeved shirt and long pants are recommended. Always wear closed
toe, athletic shoes and keep shoelaces tied and out of the way of the wheels
and motor. Never ride barefooted or in sandals.
Laws and Regulations
Follow all local laws and regulations regarding how and where to use the
product legally. Follow all applicable laws for vehicles and pedestrians.
Operators/riders shall adhere to all manufacturer's recommendations and
instructions, as well as comply with all laws and ordinances.
Insurance
Do not assume that your existing insurance policies necessarily provide
coverage for accidents involving the use of this scooter. Check with your
insurance company for information regarding coverage.
16
17
Maintenance
Important Battery and Charger Information
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
•Charge the battery for 12 hours before using the scooter for the rst
time.
• Charge the battery immediately after each use. Charge for at least 6
hours, but no more than 12 hours.
• Charge the battery at least once a month, even when the scooter is not
used or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
65°C / 149°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
•Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 22 for
replacement information.
• Remove damaged batteries from the scooter immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
18 General Care
• Regularly inspect all scooter parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service and Repairs on Page 22 for more
information.
• DO NOT operate the scooter if there are any damaged parts.
• Carefully clean the scooter with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the scooter with a
hose.
• Store the scooter indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.
19
Troubleshooting Guide
Problem Potential Cause Solution
Scooter does not run Battery is low Recharge the battery
Restart the scooter
Thermal fuse tripped
Loose wires or loose
connectors
Battery is dead
Contact Customer Service
Electrical system is
damaged
Contact Customer Service
Contact Customer Service
Contact Customer Service
Motor is damaged Contact Customer Service
Scooter only runs for a
short time
Undercharged battery
Overcharged battery Never charge the battery for
more than 12 hours
Battery is old Contact Customer Service for
a replacement battery.
Scooter runs slowly Battery is not fully
charged
Ensure a secure connection
when the battery is recharging
Battery is old Contact Customer Service
Too much weight on
scooter
Reduce weight on scooter,
weight should not exceed
65kg (143 lb)
Harsh conditions Operate the scooter on level
ground and safe surfaces
Completely read through the manual and troubleshooting guide before
contacting Customer Service.
Repair And Maintenance
Cleaning Your Scooter
Wipe with a damp cloth to remove dirt and dust. Do not use industrial
cleaners or solvents as they may damage the surfaces. Do not use alcohol,
alcohol-based or ammonia-based cleaners as they may damage or
dissolve the plastic components or soften the decals or decal adhesive.
Battery Care and Disposal
Do not store in freezing or below freezing temperatures. To properly
maintain your battery and ensure maximum battery life, carefully read the
“Charging Instructions" section on page 8 of this owner’s manual.
Battery pack should not be disassembled, crushed, punctured, opened or
otherwise mutilated.
Disposal: Your lithium-ion battery pack must be recycled or disposed of in
an environmentally safe manner. Do not dispose of a battery pack in a re.
The battery pack may explode.
Do not dispose of a battery pack in your regular household trash. The
incineration, land lling or mixing of batteries with household trash is
prohibited by law in most areas. Return exhausted batteries to a federal or
state approved lithium-ion battery recycler.
Charger
The charger supplied with the scooter should be regularly examined for
damage to the cord, plug, enclosure and other parts. In the event of such
damage, the product must not be charged until it has been repaired or
replaced. Use ONLY with the recommended charger.
Wheels and Bearings
Under normal circumstances and conditions, Rollplay wheels and wheel
bearings are maintenance free. Nonetheless, it is the responsibility of the
owner or guardian to periodically inspect the wheels for wear and tear, the
axle for proper tightness, and bearings for side-to-side play, and loose
parts. When a wheel or wheel bearing develops play, this is an indication of
excess wear and replacement is necessary. Replace immediately with only
genuine Rollplay wheels, which can be ordered on our site:
www.rollplay.com. Worn wheels/bearings are considered normal
wear-and-tear and are not covered by the Rollplay Warranty. Wheels other
than genuine Rollplay wheels may not be compatible with your Rollplay
scooter. The use of anything other than genuine Rollplay replacement parts
may affect your safety and will void your warranty.
20
Table of contents
Other Rollplay Scooter manuals
