Rollplay PJ MASKS SCOOTER Series Assembly instructions

®
PJ MASKS SCOOTER
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
Owner’s Manual and Assembly Instructions
Model #: W302PJ W302PJ-OB

Introduction
Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys
it for miles to come. Please read this instruction guide carefully before
assembling and operating the vehicle. Please have your model number
and serial number ready before calling. Please have proof of purchase.
Keep your sales receipt or register your product at
www.rollplay.com.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: 1-888-982-9309
Email: customerservice@rollplay.com
Web: www.rollplay.com
Specifications:
BATTERY 6V 4AH
MOTOR 6V 15W
AGE 18 months - 3 years
MAX WEIGHT 22.7 kg (50 lbs)
PRODUCT SIZE 66.0 x 36.0 x 53.0 cm (26.0” x 14.2” x 20.9”)
SPEED 3.2km/h (2.0 MPH)
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 7.0V

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Call Customer Service if you need assistance or replacement parts. Please
have your model number and serial number ready before calling. Please
have proof of purchase. Keep your sales receipt or register your product at
www.rollplay.com as we may require proof of purchase.
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

4Table of Contents
Safety..........................................................5
Parts............................................................7
Charging Instructions ...............................8
....................................9
.............10
..........11
.................................12
.........................................13
.................................14
............................15
Maintenance ............................................16
General Care ............................................17
Troubleshooting Guide............................18
FCC Information ......................................19
Service and Repairs ...............................20
Warranty ...................................................21
Product Registration ...............................23
Attach Front Wheel
Assemble the Left Rear Wheel
Assemble the Right Rear Wheel
Attach the Footrest
Connect the Battery
Attach the Seat
Operation Instructions

5
Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 18 months old and weigh no more than 22.7 kg (50lbs).
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
•
Product Safety Commission (CPSC) Standard 16 CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
• Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes. ALWAYS sit on the seat. RISK OF FIRE. Do not bypass.
Remove batteries if product is to be left unsed for a long time ; Always replace the
whole set of batteries at one time , taking care not to mix old and new ones, or
batteries of different types.

6Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
Tampering with or modifying the electric circuit system may cause shock, re or
Before using the vehicle for the rst time, the battery must be
ush immediately with cool water for 15 minutes. if the chemical is swallowed,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
•
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT:
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

7
Parts
1
2
3
4
5
6 7
910
10
13
15
8
14.1
14.2
14.3
14.4
14.5
11
12
14
1. Body
2. Front Fork Assembly
3. Front Cap Connector
4. Front Cap
5. Handlebars
6. Right footrest
7. Left footrest
8. Rear axle
9. Gearbox
10. Rear wheel
11. Manual
12. Battery13. Charger
14. Blister pack
14.1 Steering wheel screw
14.2 Steering wheel nut
14.3 Washer
14.4 Cap nut
14.5 Spring washer
15. Wrenches(2)

B
A
A C
8
To Charge the Battery:
1. Unlock and remove the seat.
2. Unplug the battery connector (A)
from the engine connector (B).
3. Connect the battery connector (A)
to the battery charger connector (C)
and plug the battery charger into
120V outlet.
To unplug the battery
4. Unplug the battery charger from
the outlet; Unplug the battery con-
nector (A) from the battery charger
connector (C); Reconnect the battery
connector (A) to the engine connec-
tor (B); Replace the seat and tighten
the lock
Charging Instructions

9
1
2
3
4
1. Insert the front fork assembly into the
hole on the front of the scooter body.
2. Slide the Front Cap Connector onto
the top of the front fork. Ensure that the
holes on the cap are aligned with the
holes on the front fork. The inner spring
pin on the front fork will connect with
the Front Cap Connector. Insert the
screw and bolt on either side of the
Front Cap Connector and secure with a
screw driver.
3. Align the clip on the Front Cap with
the slot on the vehicle body, and snap
the Front Cap onto the body.
4. Locate the Handle Bars. Align the
handle bars over the inner spring pin on
the Front Fork Assembly. Insert the
Handle Bars onto the vehicle body,
ensuring that the inner spring pin clips
into place.
Attach the Front Wheel

10
1. Locate the washers and rear wheels. Slide a washer onto the smooth,
non-ridge side of the rear axle.
2. Slide the smooth end of the axle through slot on the back of the vehicle body.
3. Slide a washer, rear wheel, washer, and spring washer onto the ridged side of
the axle.
4. Screw the hex cap nut onto the left end of the axle. Do not over-tighten the
hex cap nut.
LR
Assemble the Left Rear Wheel

11
1. Slide the gearbox onto the right side of the rear axle. Ensure that the top cylin-
der of the gearbox insert into the motor hole on the vehicle body.
2. Slide the rear wheel onto the rear axle. Ensure that the gear teeth on the wheel
engage with the gear box.
3. Slide a washer and spring washer onto the axle.
4. Screw a hex nut cap onto the axle, then tighten both side of the axle with a
wrench.
LR
Assemble the Right Rear Wheel

12
LR
1. Snap a foot rest onto either side of the vehicle body.
Attach the Footrest

13

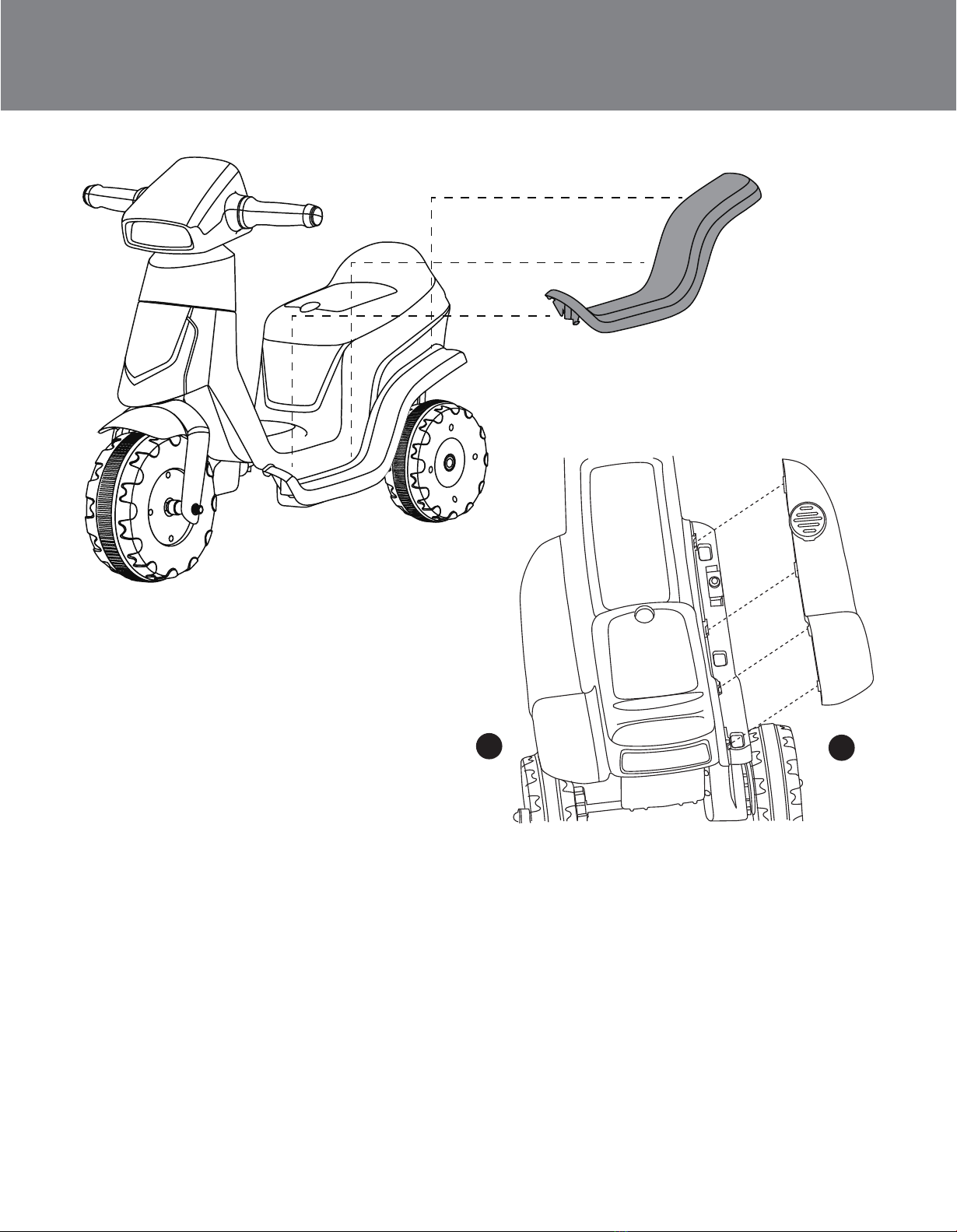

1. To release the seat, turn the seat lock to the unlock position and pull the seat up.
2. To install the seat, turn the seat lock to the unlock position. Then insert the hook
on the seat into the slot on the vehicle. Press the seat into place, and turn the
seat lock to the lock position.
Attach the Seat

14
Once the battery has been charged for 24 hours before rst use, connect the
battery back to the vehicle.
1. Unlock and remove the seat.
2. Connect the white engine connector to the white control wire connector.
3. Connect the red battery connector to the red control wire connector.
Connect the Battery

15
To operate the vehicle, press the foot pedal down to drive forward.
Release the foot pedal to stop. Use the handlebars to steer the scooter.
Foot pedal
Operation Instructions

16 Maintenance
Important Battery and Charger Information
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
•
time.
• Recharge the battery immediately after each use. Charge for at least
8-12 hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
• Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 21 for
replacement information.
• Remove damaged batteries from the car immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

17
General Care
• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service information on Page 21.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.

18 Troubleshooting Guide
Problem Potential Cause Solution
Vehicle does not run Battery is low Recharge the battery
Thermal fuse tripped Reset fuse
Loose wires or loose
connectors
Ensure the battery connectors are
securely attached. If wires are loose,
contact Customer Service for repairs
Battery is dead Call Customer Service for replacement
battery
Electrical system is damaged Call Customer Service for repairs
Motor is damaged Call Customer Service for repairs
Vehicle only runs for a
short time
Undercharged battery Ensure a secure connection when the
battery is recharging. Recharge for at
least 8-12 hours
Overcharged battery Never charge the battery for more than
30 hours
Battery is old Replace battery
Vehicle runs slowly Battery is not fully charged Ensure a secure connection when the
battery is recharging
Battery is old Call Customer Service to order
replacement battery
Too much weight on vehicle Reduce weight on vehicle 22.7 kg /
50lbs
Harsh conditions Operate the vehicle on level ground
and safe surfaces
Vehicle needs a push to
start
Loose wires or loose
connectors
Ensure the battery connectors are
securely attached.
“Dead spot” on motor A “dead spot” means electricity is
not being delivered to the terminal.
Contact Customer Service
Motor or gear box making
grinding noises
Motor or gear damage Contact Customer Service
Battery will not recharge Charger is not plugged in Plug charger into the wall
Charger is broken Contact Customer Service
Loose connector or adaptor Check that the connectors are
securely plugged in to each other
Battery makes bubbling
noise while recharging
This is normal No action required
Charger is warm This is normal No action required
Completely read through the manual and troubleshooting guide before
contacting Customer Service.

19
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Consult dealer or an experienced radio/TV technician for help.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Check the state or local requirements for the product before using the
product.
responsible for compliance could void the user’s authority to operate the
equipment.

20
Do not return this vehicle to the store.
If your product requires service, repairs or replacement parts, please
contact Rollplay Customer Service.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: 1-888-982-9309
Email: customerservice@rollplay.com
Web: www.rollplay.com
For a list of available replacement parts, please visit www.rollplay.com.
WE WILL REQUIRE PROOF OF PURCHASE. Please save your sales
receipt or register your product at www.rollplay.com.
Service and Repairs
This manual suits for next models
2
Table of contents
Other Rollplay Scooter manuals
Popular Scooter manuals by other brands

NAVEE
NAVEE N40 user manual

GILANI ENGINEERING
GILANI ENGINEERING GE-F2 instruction manual

Hudora
Hudora BigWheel 215 INSTRUCTIONS ON ASSEMBLY AND USE

B+B
B+B FORTIS instruction manual

First Choice Mobility
First Choice Mobility Komfy 4 EQ30FA user manual

Radio Flyer
Radio Flyer Grow with Me My 1st Scooter 538P manual
