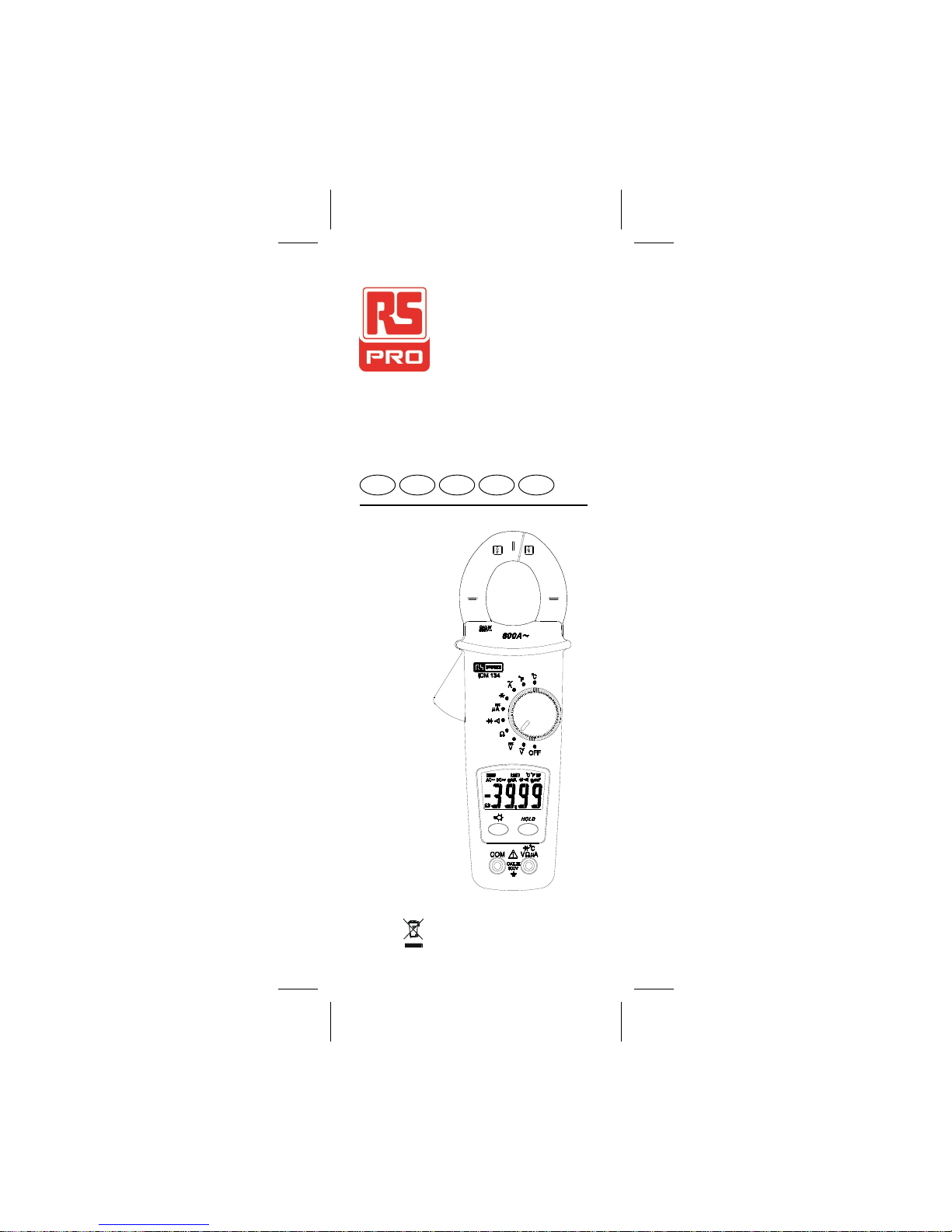

RS PRO ICM 134 User manual

Instruction Manual
ICM 134
Clamp Meter
EN DE ES IT FR


EN - 2
Safety Information
Read and understand this Instruction
Manual completely before using this
instrument. Failure to observe the warnings
and cautions in this Instruction Manual may
result in injury or death, or damage to the
instrument and other equipment or
property.
If this instrument is used in a manner not
specified in these instructions, the protec-
tion provided by the instrument may be
impaired.
WARNING
-Examine the instrument and probes and
leads before use. Do not use the instru-
ment if it is wet or damaged, or if you
suspect it is not operating correctly.
-When using the instrument, test leads or
probes, keep your fingers behind the
finger guards.
-Remove the test lead from the instrument
before opening the battery cover or instru-
ment case.
-Always use the correct terminals, switch
position and range for measurements.
-Verify the instrument is operating correctly
by measuring a known voltage before
use. If in doubt, have the instrument
serviced.
-Do not apply more than the rated voltage
as marked on the instrument between
terminals, or between any terminal and
earth ground.
-Use caution when measuring voltages
above 30 Vac rms or 60 Vdc. These
voltages pose a shock hazard.
-To avoid incorrect readings that can lead
to electric shock, replace the battery as
soon as low battery indicator appears
in the display.
-Disconnect the circuit power and
discharge all high-voltage capacitors
before making resistance, continuity, or
diode measurements.
-Do not use the instrument in a Hazardous
Area or around explosive gasses or
vapours.

EN - 3
-Wear suitable Personal Protective
Equipment when working around or near
hazardous Live conductors which could
be accessible.
-Do not use the thermocouple to measure
the temperature of Hazardous Live
conductors or equipment.
Caution
-Disconnect the test leads from the test
points before changing the position of the
function rotary switch.
-Never connect the instrument to a source
of voltage with the function rotary switch in
Ω/ ;/Aposition.
- If possible, do not work alone, so
assistance can be given if required.
-Do not expose the instrument to extremes
of temperature or high humidity.
-If this instrument is used in the vicinity of
equipment which generates electro
magnetic interference, the display may
become unstable or the measurements
may be subject to large errors.
The following symbols may appear on
the instrument and in this Instruction
Manual:
Risk of electric shock
Refer to Instruction Manual
 Direct Current (dc)
Alternating Current (ac)
<Battery
Earth
Equipment protected throughout by
double or reinforced insulation
Conforms to EU directives
Dispose of this equipment in
accordance with local regulations.
EApplication around and removal
from hazardous Live conductors is
permitted.

EN - 4
Maintenance
Do not attempt to repair this Instrument. It
contains no user-serviceable parts. Repair
or servicing should only be performed by
qualified personnel. This instrument
should be calibrated yearly, or more
frequently if used in harsh conditions or if
it is suspected of being inaccurate.
For calibration and repair contact RS
Components - the address is given at the
end of these instructions.
Cleaning
Periodically wipe the case with a damp
cloth and detergent. Do not use abrasives
or solvents.

EN - 5
To conserve battery power, the Auto Power
-off function will turn the instrument off
approximately 10 minutes after the last
operation.
10min
To disable the Auto Power-off function:
Turn the instrument off, press and hold the
“Backlight” button and turn the rotary switch
to the required function. The auto Power-off
is disabled until the next time the instru-
ment is turned off and on again.
Power On / Off
Auto Power Off

EN - 6
ACV / DCV
Resistance

EN - 7
Diode / Continuity
;

EN - 8
DC µA
Capacitance
Note –To improve the measurement
accuracy of a small value capacitor, record
the reading with the test leads open circuit,
then substract the residual capacitance of
the Instrument and leads from the final
measurement.
CUNKNOWN =CMEASUREMENT - CRESIDUAL

EN - 9

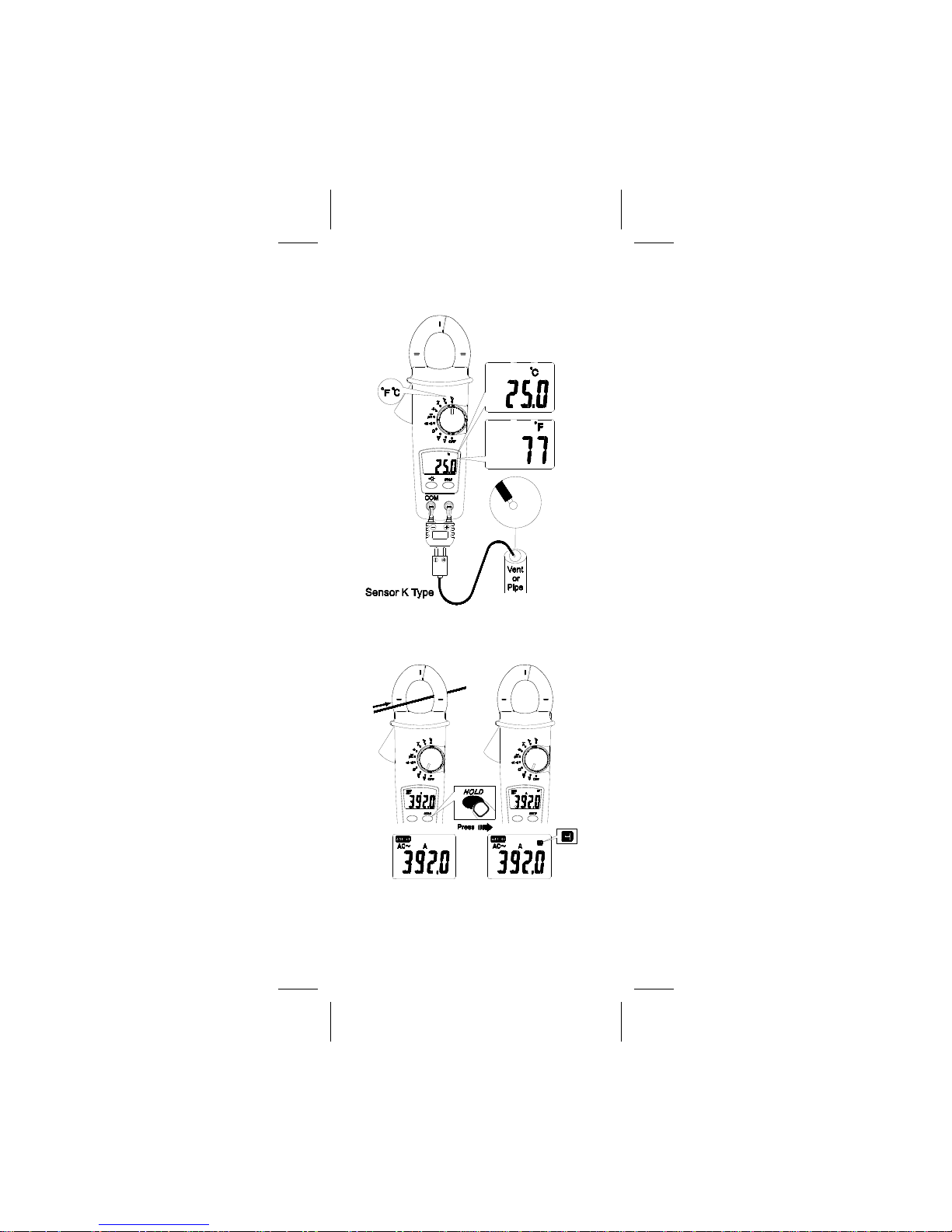

Temperature
Data Hold
392A
0A

EN - 10

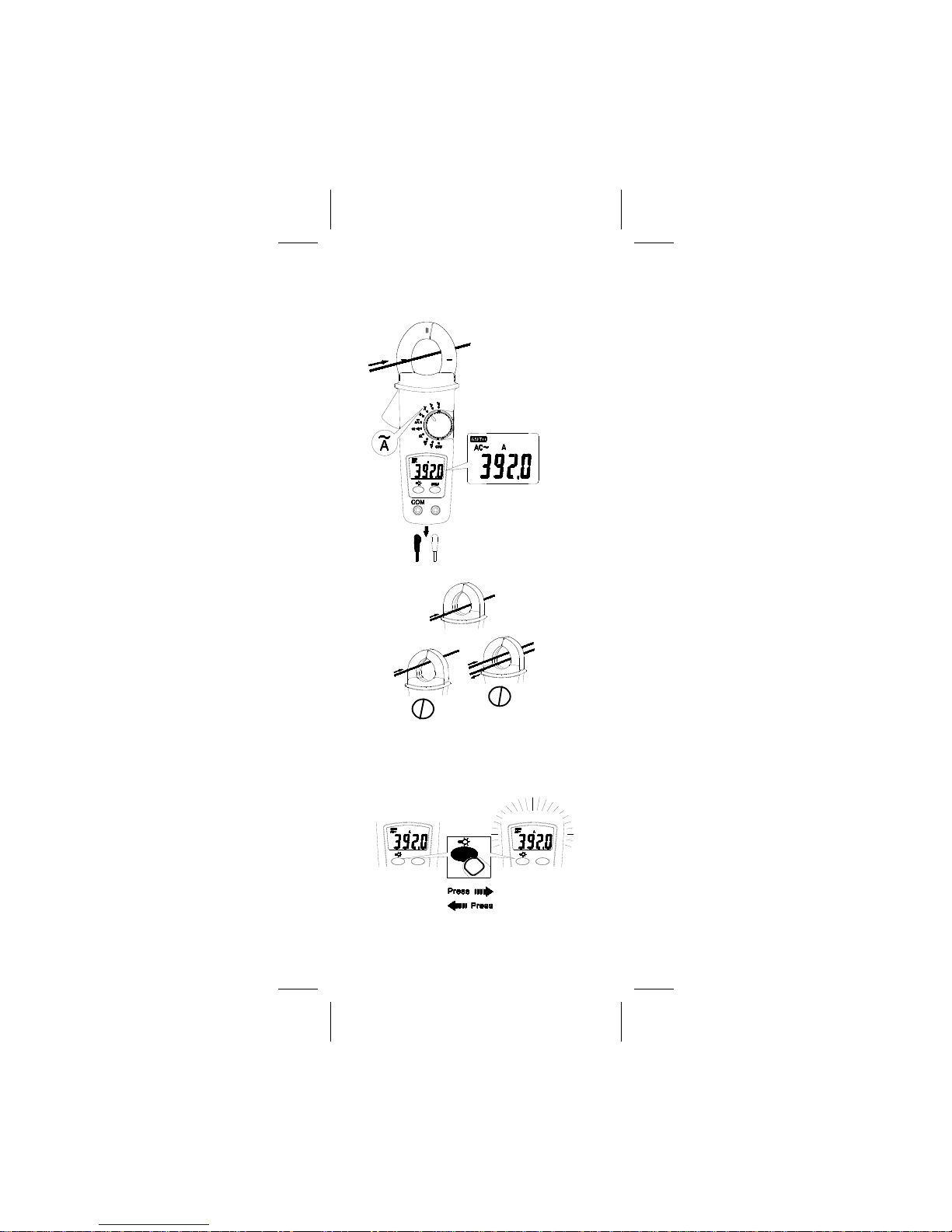

ACA
392A
CAT.Ⅲ.600V
with respect to
earth for the jaw.
Tactile Barrier for
hand guard.
Do not hold
the meter across
the Tactile Barrier.
I
I
I
I
OK
OK
OK I + (-I) = 0
Back Light
