Ruijie Reyee-Hotel Solution Cookbook Overview
1
1 Overview
1.1 Introduction
1.1.1 Benefits of Reyee Hotel Solution
Full wireless coverage
Smart flow control provides a better experience for every customer
Rapid network deployment to speed up business
Deliver projects with Self-Organizing Network quickly
Manage all network devices and monitor network easily
Report fault alarm on Ruijie Cloud App immediately to help locate and
troubleshoot fault quickly

Ruijie Reyee-Hotel Solution Cookbook Overview
2

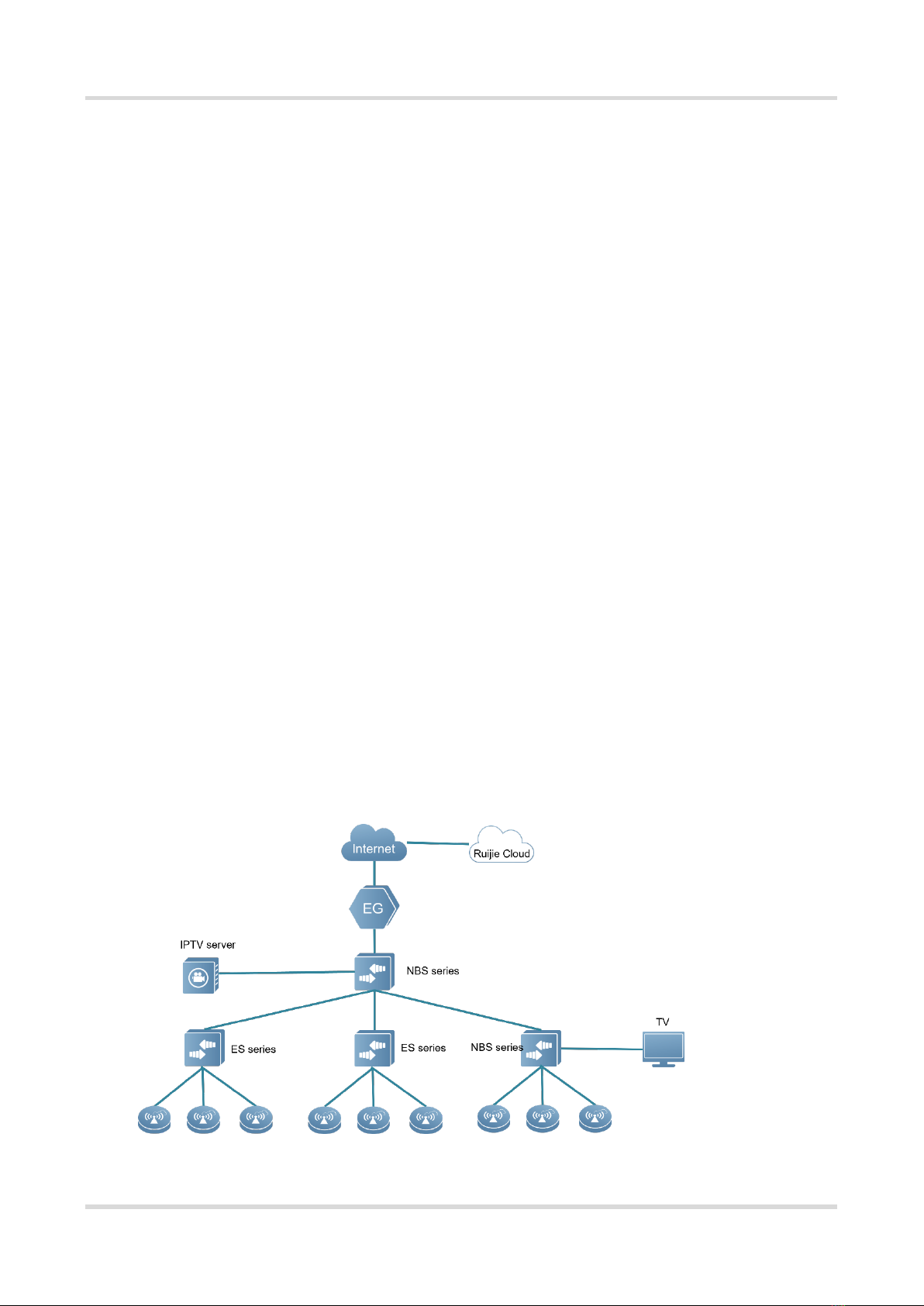

1.1.2 Reyee Hotel Solution Typical Topology

Ruijie Reyee-Hotel Solution Cookbook Getting Started
3
2 Getting Started
2.1 Project Requirement
1. Meet the business deployment requirements for small and medium-sized hotels
fully, such as: data services, IPTV services, IP PHONE services, CCTV services.
2. Isolate the networks of data services, IPTV services, IP PHONE services and CCTV
services mutually to reduce the interaction between different types of services
3. Provide a full range of wireless environments for hotel staff, visitors and guests,
such as the lobby, indoor, outdoor, etc.
4. Provide multiple authentication ways and different business experiences to
ensure the secure deployment of wireless networks.
5. Provide functions such as Multi-WAN, Intelligent Load Balance, Intelligent
Wireless Roaming, Intelligent Wireless Optimization and AI Heatmap for the hotel
network.
6. Provide the functions of fast network organization, fast faults location and
handling, project reporting output, and Cloud management.
2.2 Network Planning

Ruijie Reyee-Hotel Solution Cookbook Getting Started
4
2.3 Hardware Requirements
Device
Model
Number
Description
EG
RG-NBR6215-E
1
-
Switch
RG-NBS5200-
24GT4XS
1
-
RG-NBS3100-
8GT2SFP-P
1
-
RG-ES218GC-P
2
-
AP
RG-RAP2260E
1
-
RG-RAP1200P
1
-
RG-RAP6262G
1
-
2.4 Hotel Site Survey (Using AI heatmap)
AI heatmap is a pre-sales tool specially designed for monitoring and weak current
network engineering vendors. This tool is highly effective and user-friendly, providing
automatic wall recognition for popular floor plan formats such as png, pdf, and dwg
(CAD). Leveraging AI capabilities, the recognition accuracy surpasses 90%, minimizing
the need for manual wall drawings and significantly enhancing production planning
efficiency; It also supports various simulations, including Wi-Fi signals and monitoring
coverage that make network planning more manageable and increase chances of
securing orders. Additionally, it allows for editing topology diagrams, facilitating the
incorporation of any device and offering a clear understanding of network architecture.

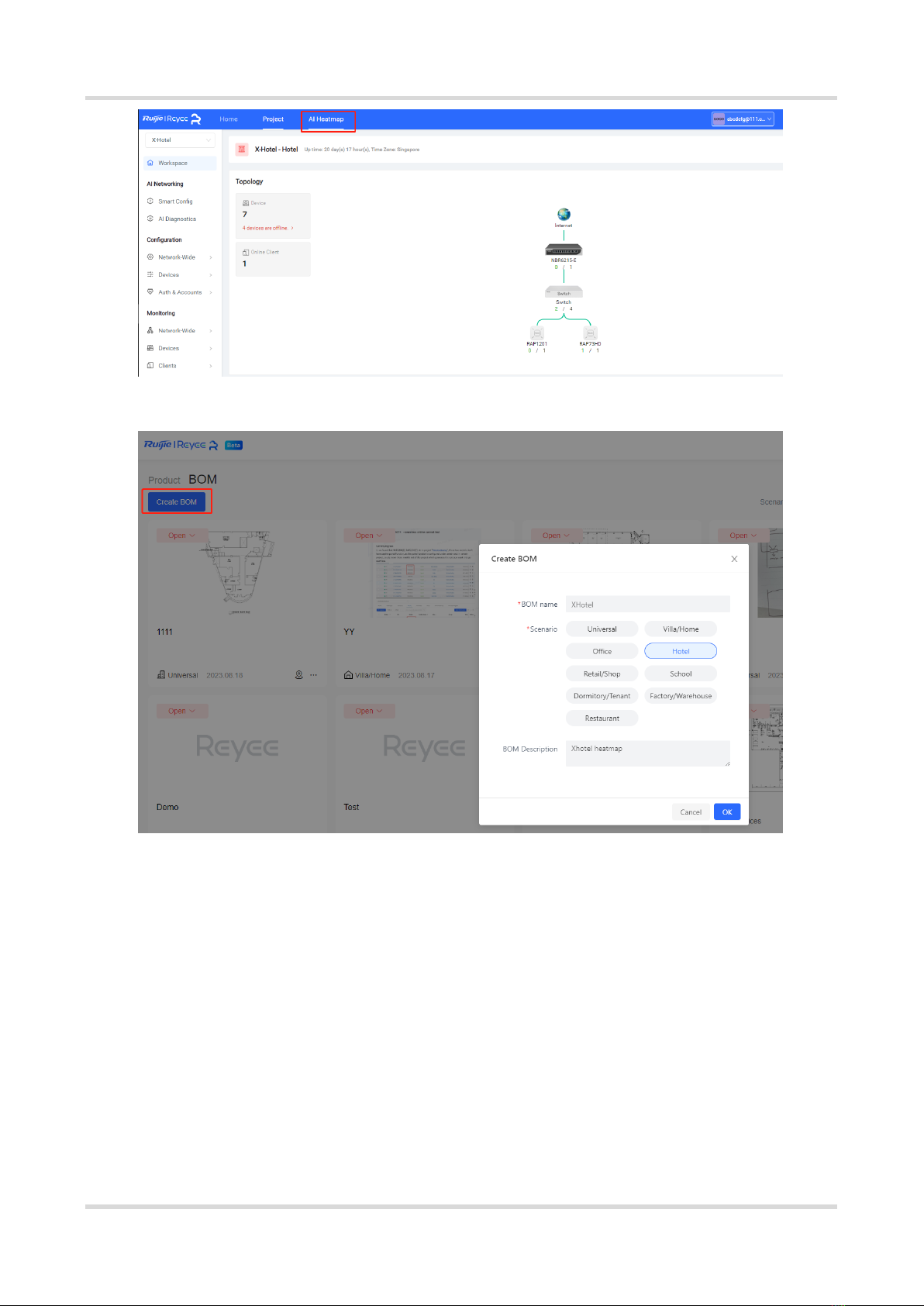

(1) Access to Ruijie Cloud and click AI Heatmap

Ruijie Reyee-Hotel Solution Cookbook Getting Started
5
(2) Create a new BOM, choose the Hotel scenario.

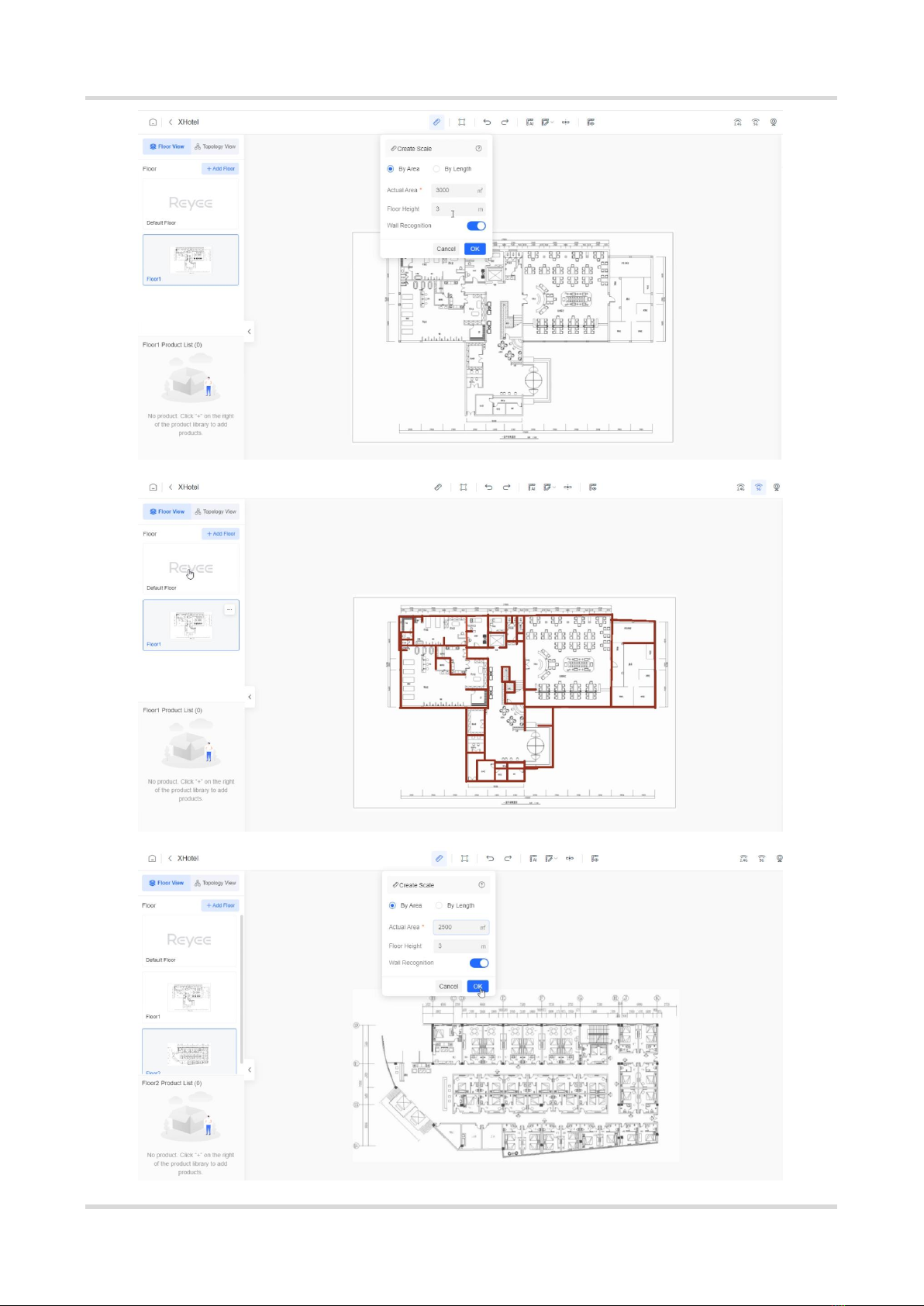

(3) Upload the floor plan and set the scale, after enable the Wall Recognition, will
automatically generate a wall simulation. With the blessing of AI, the recognition
accuracy rate is over 90%

Ruijie Reyee-Hotel Solution Cookbook Getting Started
6

Ruijie Reyee-Hotel Solution Cookbook Getting Started
7

Ruijie Reyee-Hotel Solution Cookbook Getting Started
8
(4) Click and hold the icon of the AP to be placed. Drag it to the specific place on
the floor plan, and then release the mouse. After an AP is placed, you can drag
its icon again to change its location.

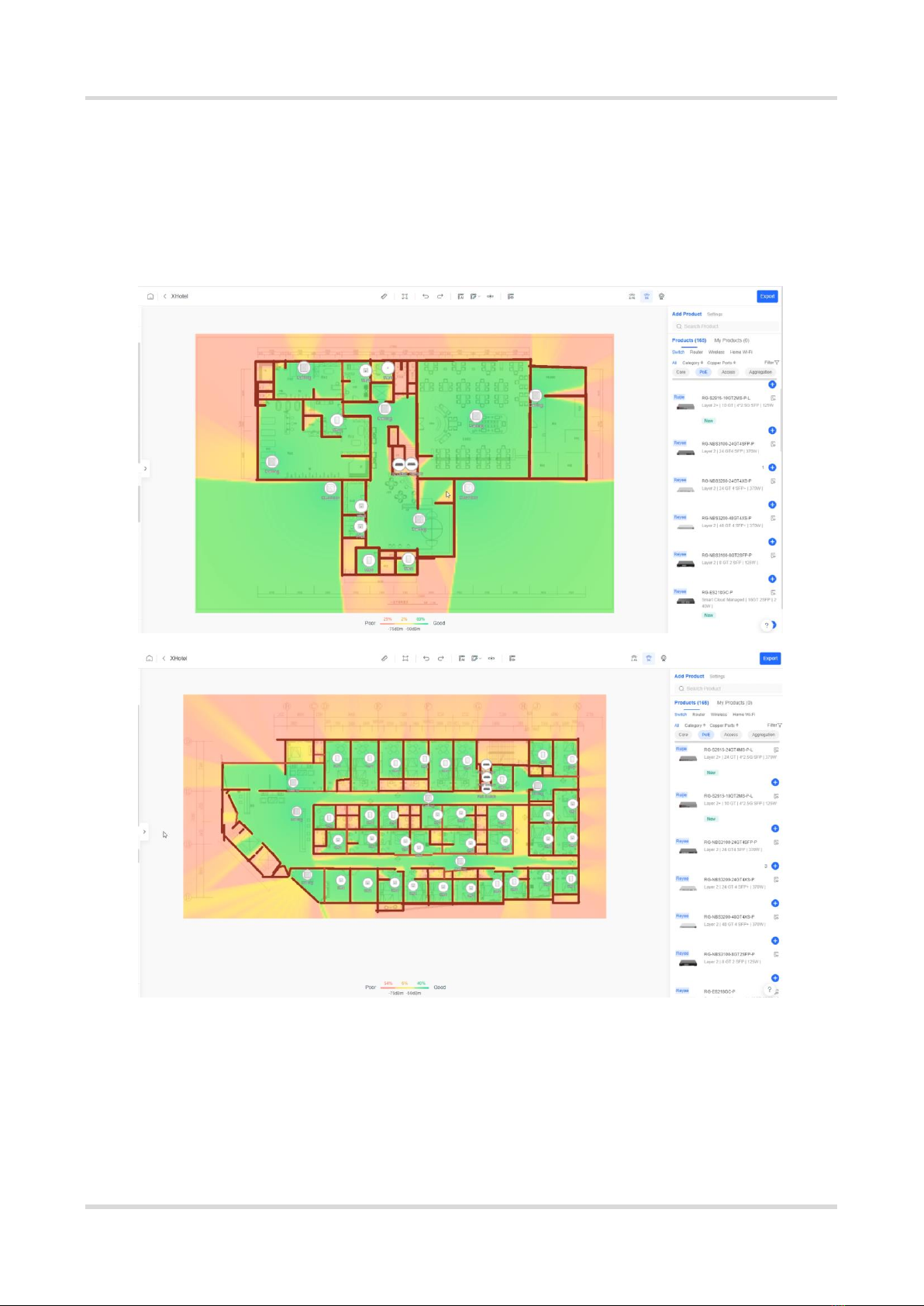

Click the 2.4G or 5G icon to enable signal, then the heat map can be
generated.

Ruijie Reyee-Hotel Solution Cookbook Getting Started
9
(5) Click Save locally. Generated report include product list, device overview, topology
and heat map.
Export Format support Excel, PDF and Word.

Ruijie Reyee-Hotel Solution Cookbook Getting Started
10

Ruijie Reyee-Hotel Solution Cookbook Basic Configuration
11
3 Basic Configuration
3.1 SON and Cloud Deployment
3.1.1 Application Scenario
After physical connections of devices are connected based on the topology, all Reyee
devices on the same network automatically complete self-organizing network (SON).
After SON is complete, devices can be managed and configured in a unified manner
through the main device. In addition, the entire network can be deployed on the cloud by
deploying one device on the cloud, which simplifies the deployment.
3.1.2 Procedure
(1) Complete physical connections between devices based on the actual topology. The
devices complete SON connections locally.

Ruijie Reyee-Hotel Solution Cookbook Basic Configuration
12

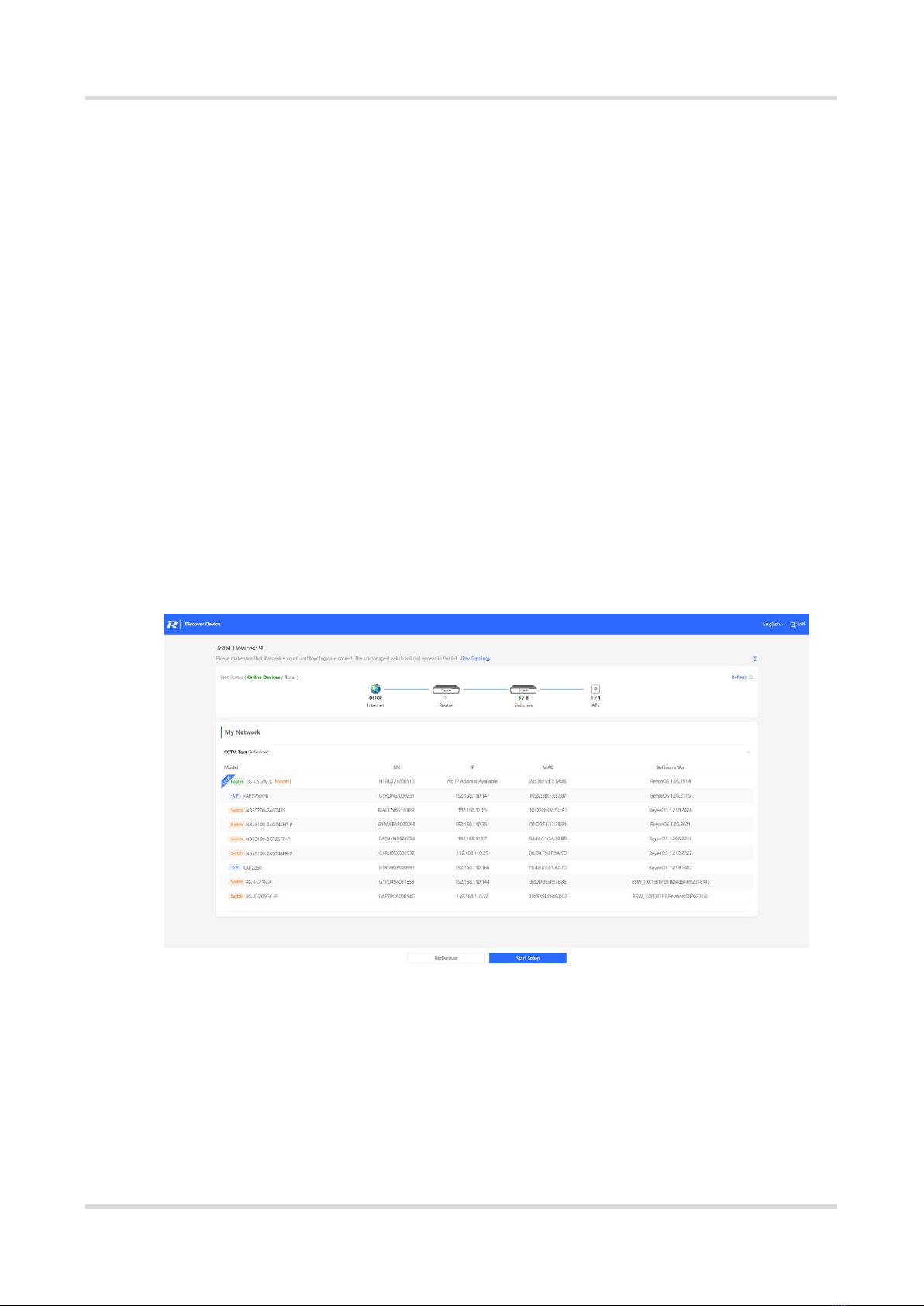

(2) View the actual network topology and device list on the local eWeb management
system.
