Instruction Manual
Electric Patio Heater
ZHQ1520-FHC-II
（8290/8291）
Please read these instructions carefully before using your new
heater
Unpack the heater to make sure that all the items are present and
that there are no components left in the box and that the heater head
is free from any packing material.
Using the detailed drawing follow the steps to assemble your heater.
Do not connect the heater to the electrical supply until all the
assembly is complete.
Do not connect the heater to the electrical supply if any of the
components or the power cord is damaged in any way.
If in doubt contact your supplier.
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play
with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.

2
WARNING:
This heater is not equipped with a device to control the room
temperature. Do not use this heater in small rooms when they are
occupied by persons not capable of leaving the room on their own,
unless constant supervision is provided.
Children of less than 3 years should be kept away unless
continuously supervised.
Children aged from 3 years and less than 8 years shall only switch
on/off the appliance provided that it has been placed or installed in its
intended normal operating position and they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children aged from 3 years and less than 8 years shall not plug in,
regulate and clean the appliance or perform user maintenance.
Caution
Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable
people are present.
1. Mount the heater outside or in a large open area and well away
from any obstructions such as branches or where the heater is
near any objects that can be affected by heat, such as furniture,
curtains or other inflammable objects (minimum distance 1
meter).
2. Do not position immediately above or below an electrical
socket.
3. The unit must be placed with the clearance of 180cm to the
floor and 30cm to the ceiling.
4. When the power supply cord is damaged, it must be replaced
by authorized agent or other professional people to avoid
danger.
5. This appliance is not intended for use by persons (including
children) with reduced physical. Sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play
with the appliance.
7. Do not use it near bath tubs, wash areas or swimming pools.
8. Do not use it in unventilated areas
9. Do not use where gas, petrol, paint or other inflammable

3
goods are stored.
10.Do not move when connected to an electrical supply and
always wait until the patio heater cool down before storing
away.
11.Do not touch the heater head when in use.
12.Do not leave after turn it on and unattended especially when
children or animals are in the vicinity.
13.The indication of different positions of switches should be
visible from a distance of 1M at least.
14.The Marking concerning covering shall be visible after the
heater has been installed. It shall not be placed on the back of
heaters.
15.The heater must be correctly installed according to the
instructions.
16.The heater must be securely placed on a horizontal and flat
Wall surface.
17.The heater will be at high temperature when in use. It keeps
hot for a period after shut down. Potential danger would occur
when you touch it during this period.
18.Don’t place the heater closed to curtain or other flammable
objects. Otherwise there will be a danger of catching fire.
19.Don’t cover the heater with anything when in use or a short
time after it is shut down.
20.Don’t wrap the power supply cord on the heater.
21.The heater must be handled with care, and avoid vibration or
hitting.
22.The heater must be securely grounded when in use.
23.If the heater gets damaged, it must be repaired by professional
electricians.
24.When assembling, keep away from any board or flammable
material.
25.The heater must be supervised by adults when it is used by a
child.
26.It is not safe to install the heater near a swimming pool, in a
bathroom or shower area.
27.The heater is for household use only. It is not safe to use on a
building site, greenhouse, barn or stable where there’s
flammable dust.
28.The heater is at high temperature when in use. Unplug the
heater and wait until it cools down before cleaning.

4
29.Don’t use this heater in place where causticity or volatile air
exists, such as dust, steam, gas, etc.
30.Don’t use this heater as a cloth drier or towel drier.
31.Don’t use this heater as a sauna heater.
32.Don’t use this heater in place of animal propagating and
rising.
33.The heater should be plugged in a socket, which is easily
visible and reachable.
34.Do not use this heater in the immediate surroundings of a
bath, a shower or a swimming pool.
35.Do not use this heater with a programmer, timer, separate
remote-control system or any other device that switches the
heater on automatically, since a fire risk exist if the heater is
covered or positioned incorrectly.
36.Place the heater outside or in a large open area and well away
from any obstructions such as branches or where the heater is
close to any objects that can be affected by heat, such as
furniture, curtains or other inflammable objects (minimum
distance 1 meter).
37.The instruction manual shall provide adequate instructions for
connection to the supply ensuring an equivalent protection!
38.If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
Accessories
Connection to 220-240 Volts Power Supply
It is important to ensure that the electricity supply is of adequate
capacity for the electrical load required by the appliance being
installed.
These appliances must be earthed.

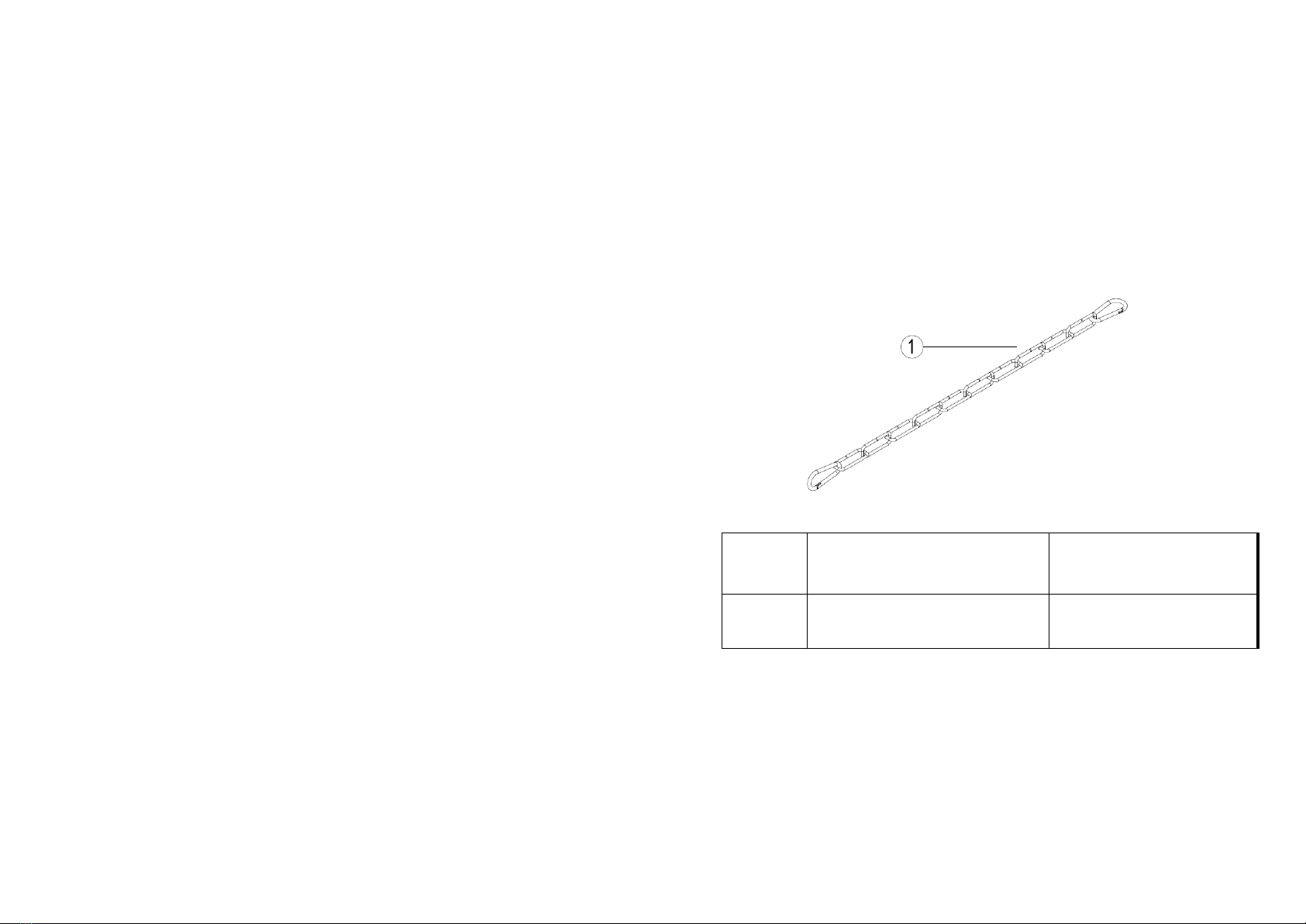

REF.
Name
Qty
1
Chain(with 2 carabiners)
1

5
Installation
Heater ZHQ1520-II is built with the best quality components in
accordance to the prevailing legal regulations and certified for safety
in use. For best results from the appliance please ensure that the
installation is done by a qualified electrician in accordance with the
following instructions and taking full account of current regulations.
When using the heater, please carefully follow the instructions and
recommendations below.
Installation to Ceiling

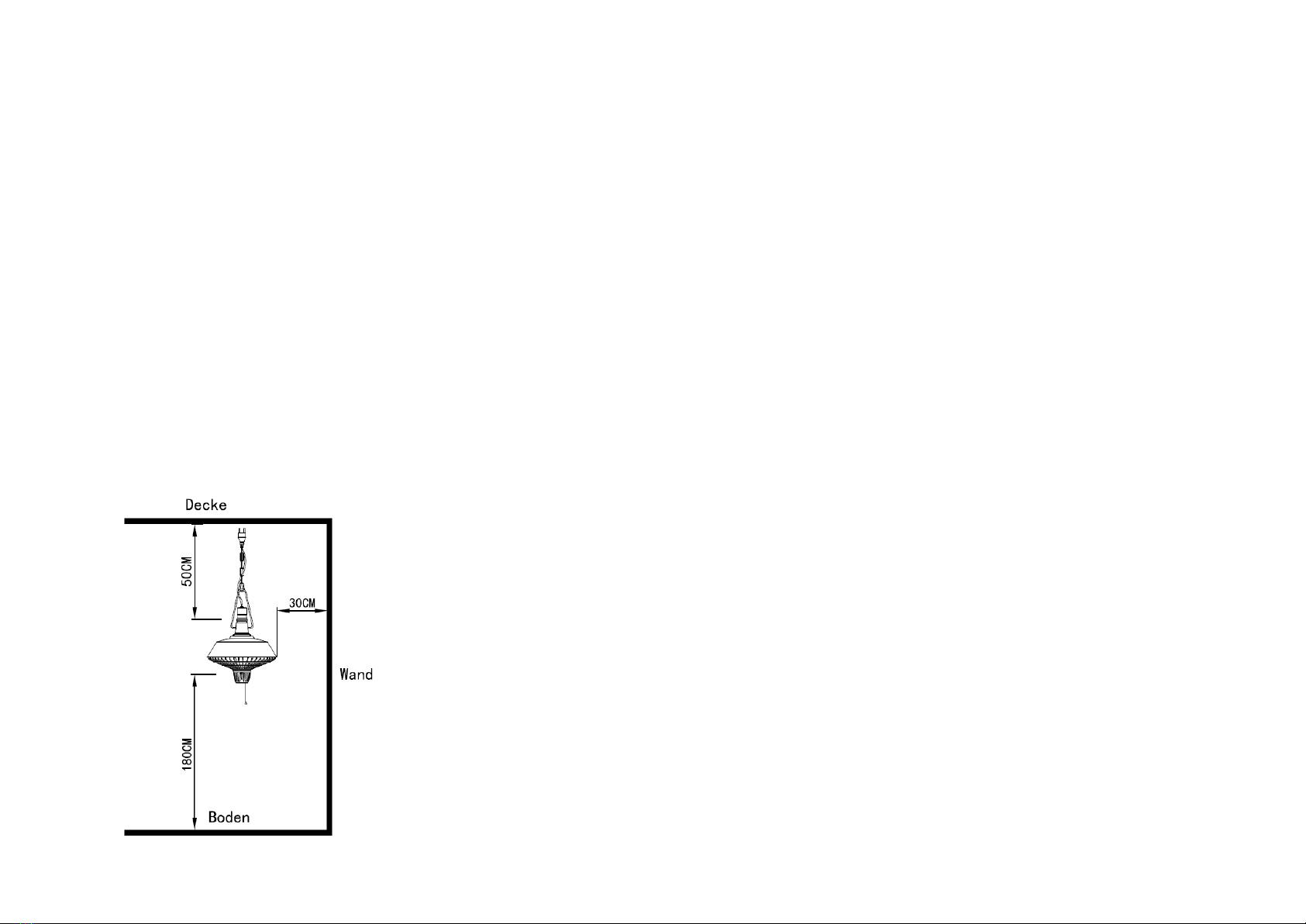

Minimum required distances:
300mm from the side wall
Minimum 500mm from the ceiling
Installation height above 1.8M
The heater must be fixed to a wall with the bracket supplied to
allow adequate ventilation.
Never fix or place heater near flammable or combustible
materials.
Generally heaters must be placed at a safe distance (clear space)
of at least 2.0m from combustible materials and glass walls. If
installed in workshops or garages where inflammable or
combustible paints are used, the heaters must be installed at a
distance of at least 4.0m from the source of danger.
If the heaters are placed in areas where spray painting of any
description is taking place, they should not be used during the
painting operations.
Never use the heater in particularly dusty and explosive areas.
Operation
Connect the power cable to a 13 amp supply which is located in a
safe, dry area.
The switch on the heater is used to control the Heater. When the
position mean on the low (900W), pull the Switch Cord once. Once
the Switch Cord is pulled, the smaller heating element will glow
and radiate heat.
To operate the heater on high (2100W), pull the Switch Cord again.
This will cause both the heating elements to glow and radiate
heat.
Although the patio heater is waterproof, do not use when raining
or in wet conditions.
Never connect the power cable from the electrical supply, when

6
the patio heater is not in use.
Care and maintenance
•When disconnected from the electrical supply, clean the
surface of the patio heater with a damp cloth. Never use
corrosive or solvent cleaners or immerse in water.
•Any maintenance or repairs including replacing the halogen
tube should only be carried out by a qualified electrician or by a
recommended service center.
Storage
If the heater will not be used for a long period of time, store it
in a cool, dry location when not in use. To prevent dust and
dirt build-up, use the original packaging to repack the unit.
Troubleshooting
•If the heater will not operate, please check the following
before seeking repair of service:
•Check if the power cord is plugged into an electrical outlet, if
not plug in.
•Check if electricity to the main fuse is working.
•Make certain the power switches are turned on. If not, choose
a setting.
Technical specification
•Power supply 220V~240V 50-60Hz
•Wattage max 2100w
•Net weight 2.5kg
•Insulation class I
