Rydeen BSS1 User manual

Owner’s Manual
BSS1
Microwave Radar Blind Spots System
Version1.2

1
Table of Contents
I. Items List.............................................................................................................................................. 2
II. Technical Specification....................................................................................................................... 3
III. Wiring Diagram. .................................................................................................................................3
IV. Wire Connection Diagram................................................................................................................4
V. Installation Guide..............................................................................................................................5
VI. Alert Conditions............................................................................................................................... 8
VII. How does it Alert..............................................................................................................................9
VIII. Troubleshooting...............................................................................................................................9
IX. Technical Support Info..................................................................................................................10
X. Limited Warranty............................................................................................................................10
XI. To Obtain Warranty Service...........................................................................................................11

2

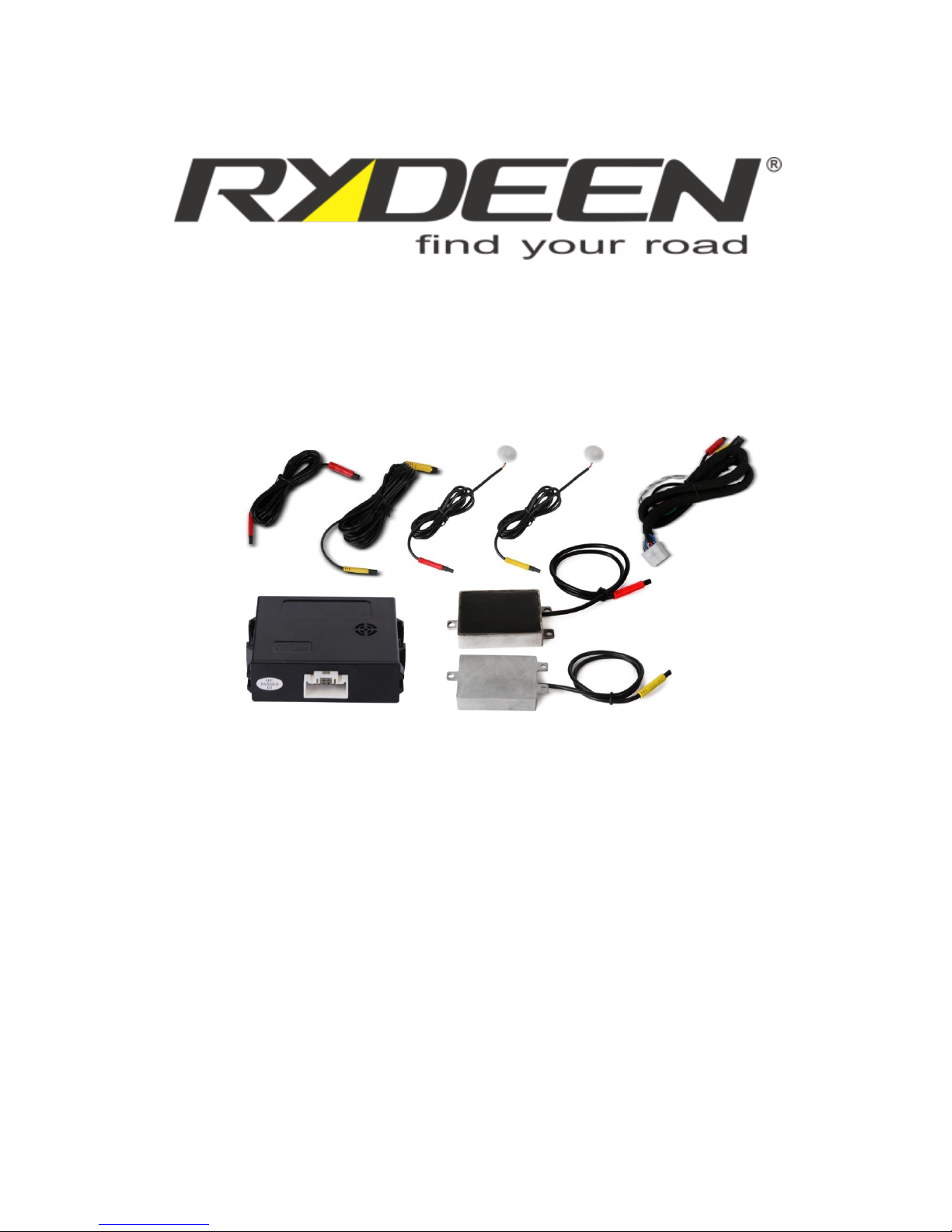

I. Items list
Number
Item Name
Quantity
1
Main Unit
1PCS
2
Main Harness
+ Extension Cable
1SET
3
Radar Sensor
2PCS
4
LED Indicator
2PCS
5
GPS Antenna
1PCS
6
Buzzer
1PCS
7
3M Velcro
4PCS
Tools for installation: angle gauge; insulation tape; multi-meter; screwdriver; cleaning cloth; tape.

3
II. Technical specification
Operating frequency
24.0 ----24.25GHZ
Transmit power
15dbm
Detection range
40 degree ( Horizontal )
Detection ability
5 targets can be detected at the same time
Speed range
0.5mph---137mph
Speed accuracy
< 0.5mph
Speed Restriction
1. The GPS Antenna when connected activates notifications
over 20mph (Example LED + Speaker)
2. If No GPS signal is detected or satellites not found, the
system will give notifications at any speed.
Direction of movement
Approached or overtaken by vehicles
Detection range
Truck : 1ft-60ft
Car : 1ft-50ft
Motorcycle:1ft-33ft
Pedestrian:1ft-23ft
Operating voltage
9---35V
Waterproof
Radars: IP65 / Cables: NOT waterproof
Working current
< 200mA
Working temperature
-40℃~ + 85℃

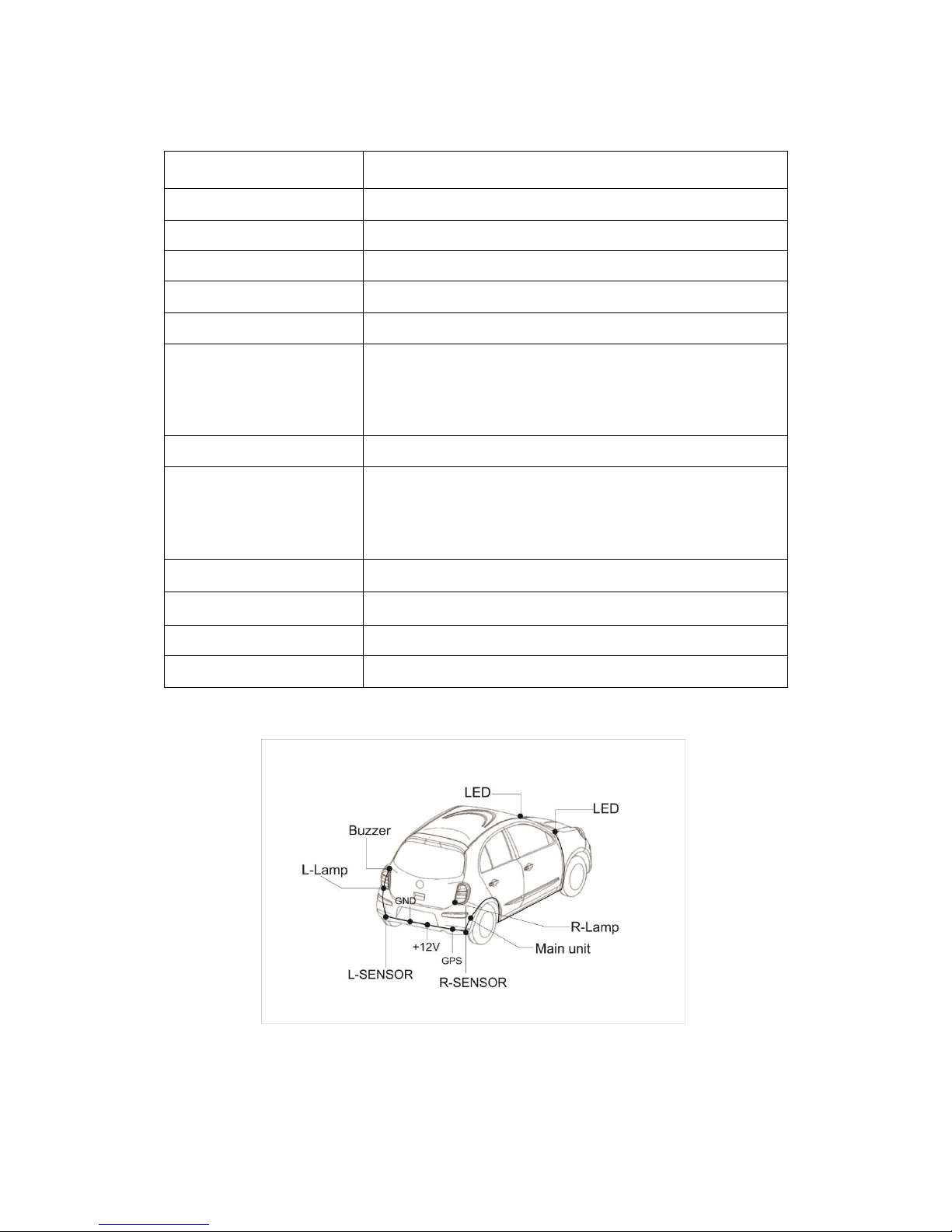

III. Installation Diagram

4
Red
Black
Black
Red
Red
Yellow
Pink
White/gray
Yellow
Orange
Green
Reverse Trigger
(Optional)
Black
IV. Wire Connection Diagram
GPS Ant
L_sensor
L_LED indicator
R_sensor
R_LED indicator
Buzzer
ACC/IGN
GND
N/A
L_lamp
R_lamp

5
V. Installation Guide
1. Sensor Installation
Installation requirements: sensors should be adhered to the inner corner of the bumper with
supplied Velcro. The angle should be between 20 to 25 degrees with the height ranging from
13-35 inches. (Fig.1-Fig.2)
Fig.1 Fig.2
Step1: Measuring method: Measure the rear bumper using the angle gauge to locate the 20 to 30
Degrees angle. (Fig.3-Fig.4)
The angle of the Microwave
radar sensors are between
20 to 25 Degrees.
The microwave sensors are only intended for
plastic bumpers.
Please note the BSS1 is NOT applicable for metal
bumpers.

6

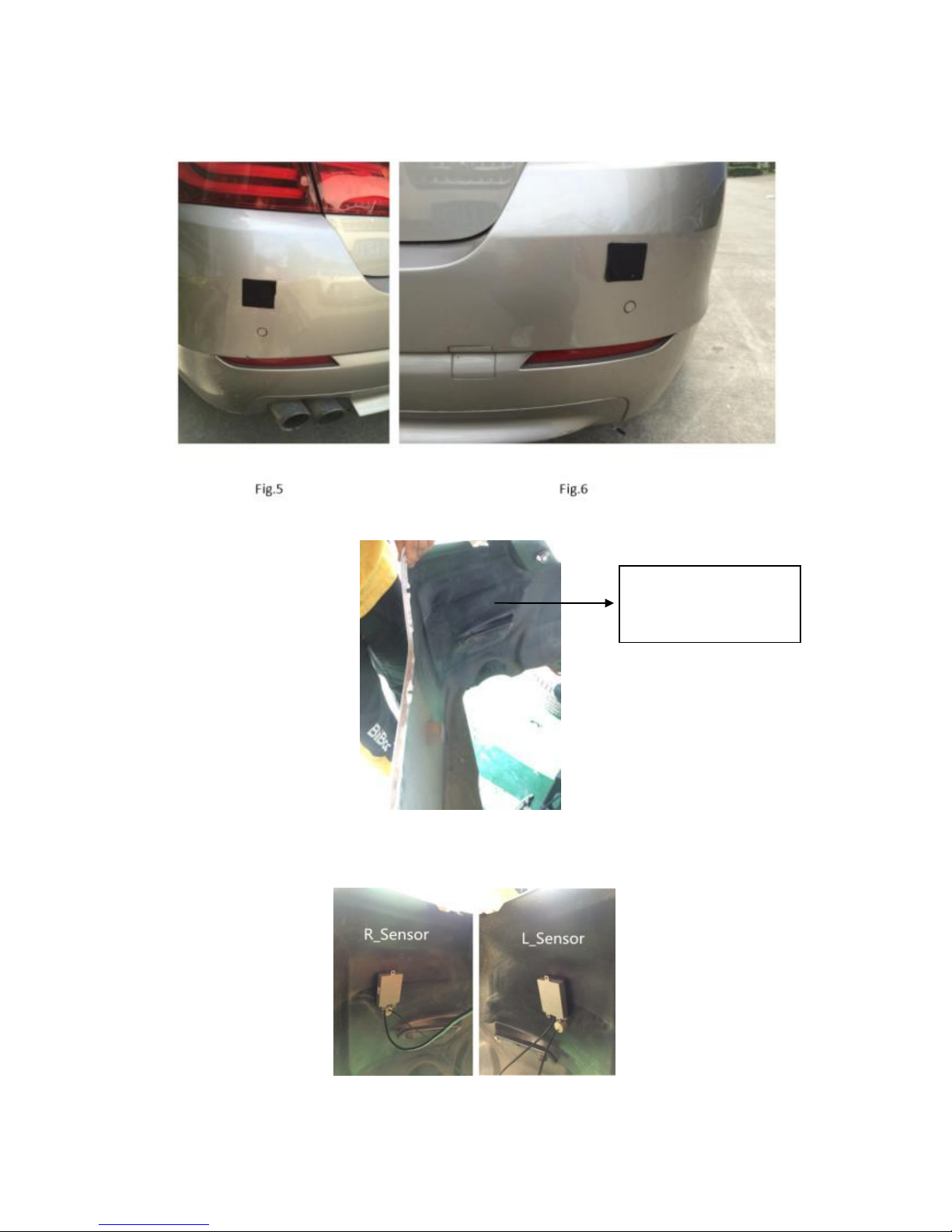

Step2: Locate the desired position for the sensors. (Fig.5 - Fig.6)
Step3: Remove the rear bumper to clean the surface for the sensors. (Fig.7)
Fig7
Step4: Place the provided Velcro (To Help Absorb Vibration) on the surface of the
sensors (black side) and the desired location on the bumper (See image below).
Fig.8 Fig.9
Make sure the surface is
clean before Velcro
placed with sensors.

7

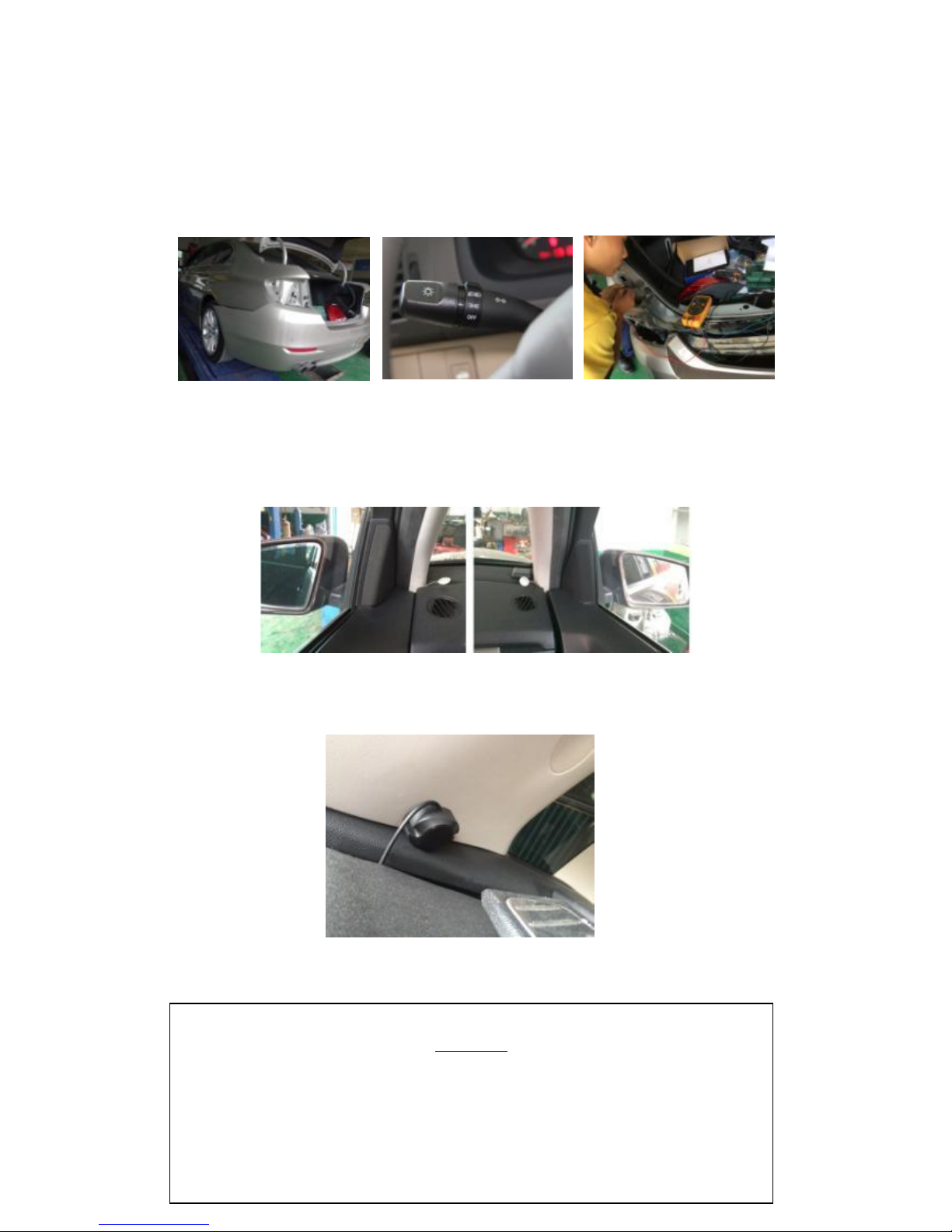

2. Installation of the left/right turn signal.
Step 5. Using the voltage Multi-meter, locate the left and right turn signal trigger wires behind
the tail lamp. Once verified, connect the left and right signal wires of the BSS1 wire harness to
the correct signal wires.
Fig10 Fig11 Fig12
3. LED indicator installation:
Step 6. Place the LED indicators where it is visible for the driver. Ideally on the A-pillar or in field
view side mirrors.
Fig.13 Fig.14
4. Speaker location:
Step 7. While installing the speaker, make sure it is not obstructed by any panels inside the
vehicle.
Fig.15
Step 8. Tuck the wires neatly to hide and prevent wire pinch.
Note
Illumination of the LED indicator on the control box:
1. The LED comes on solid when the system is first powered up;
2. The LED blinks slowly while the GPS module is connected to the satellite;
3. The LED blinks quickly while sensing moving objects that are approaching in the
blind spot (same frequency as to the alarm LED indicators & the buzzer);
4. The LED maintains the last blinking status after the alerts have ended (the last
blinking status of alarming is off / on randomly)

8

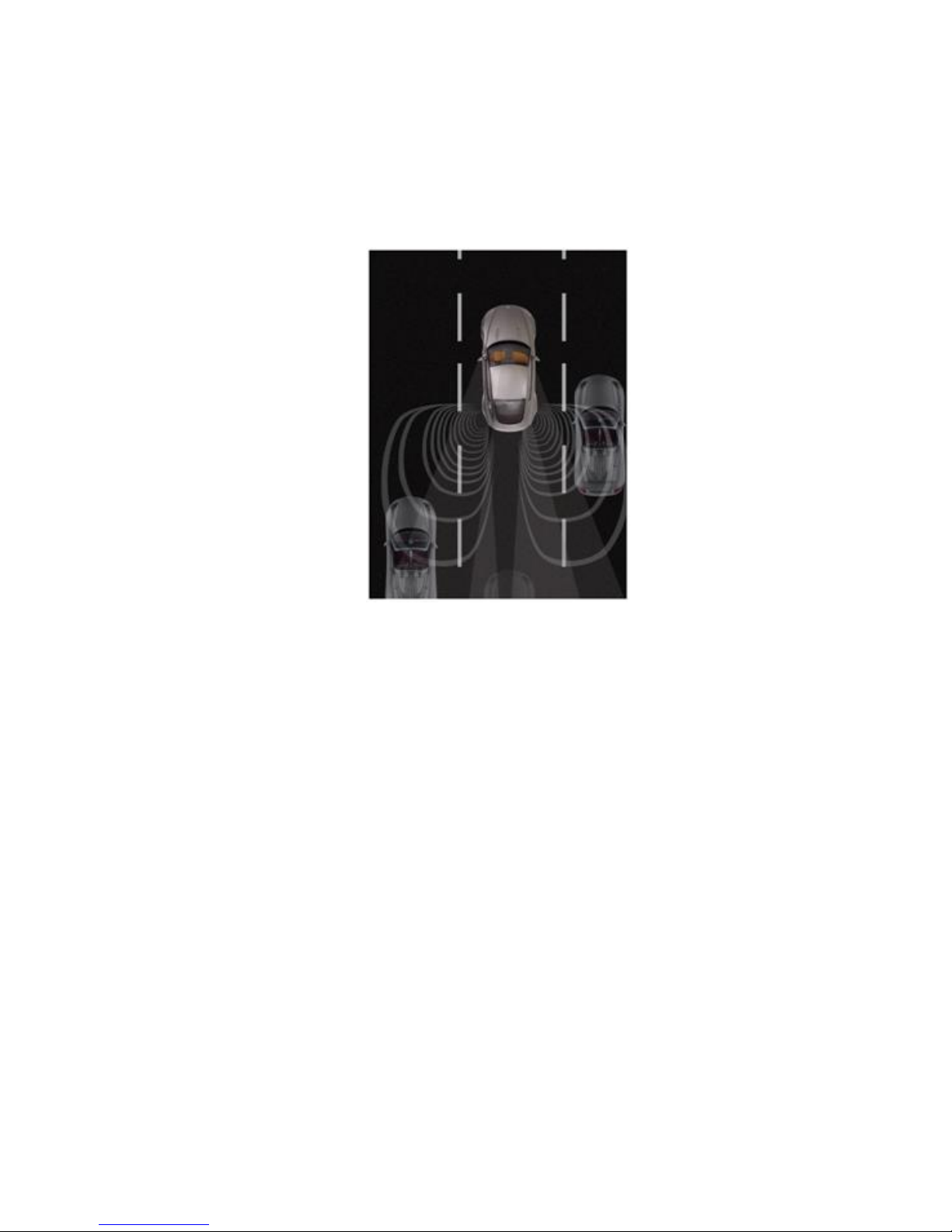

VI. Alert conditions:
1. When the vehicle is on, the system would start detecting objects in the blind area in the lane
next to and behind the vehicle 50 feet. (Fig.16)
2. When vehicles are approaching and their speed is faster than our own speed.
Fig.16
VII. How does it alert?
A: Blind detection on right side:
1. R-LED indicator will be activated when there is an object approaching to the right side blind
area of your vehicle (see Fig.16).
2. If the right turn signal of your vehicle is triggered at the same time, the R-LED indicator will be
blinking and the buzzer will be beeping as well (with the same frequency).
B: Blind detection on left side:
1. L-LED indicator will be activated when there is an object approaching to the left side blind area
of your vehicle (see Fig.16).
2. If the left turn signal of your vehicle is triggered at the same time, the L-LED indicator will be
blinking and the buzzer will be beeping as well (with the same frequency).
C: The LED and buzzer will standby (no activity) if there is no object approaching to the blind area
of your vehicle.
D: During reversing, the R & L LED will be blinking according to the approaching object detection
of each side.

9
VIII. Troubleshooting:
NO.
Issue
Reason
Solution
1
LED light does not
work
Incorrect connection or pins
not making contact
Check the harness and make
sure connection is correct
LED light is broken
Replace LED light
2
Opposite LED
indicator
Microwave sensor or LED
indicators are plugged in to the
opposite connector
Make sure RED is driver side and
YELLOW is passenger side.
3
Buzzer does not work
Wrong connection or pins not
making contact
Check the harness and make
sure connection is correct
Defective buzzer speaker
Replace buzzer
4
Sensors or GPS does
not work
Sensors or GPS module are
covered by the metal bumper
or other metal
Find the best location where the
GPS antenna cannot be blocked
by any metal
5
Unit does not work
after GPS is
connected
Blind spot system does not
trigger the sensors if the speed
is less than 20mph
Normal behavior in this case.
The GPS needs to detect
+20mph to trigger the sensors
IX. Technical Support Contact Info.
•Telephone: [phone] (within USA only)
•Email: [email protected]
•Web Address: www.rydeenmobile.com

10
X. Limited Warranty
Rydeen North America Inc. (a manufacturer of “Rydeen" products) warrants this product (BSS1)
only to the original purchaser as described following:
Warranty Coverage
This warranty covers all defects in material and workmanship except as specified below.
1. Installation by anyone other than an authorized Rydeen Mobile Retailer may void the
warranty.
2. Any products distributed outside of the USA by Rydeen North America Inc. (Rydeen) or
which is not purchased in the USA or Canada
3. Any product(s) which are purchased from an unauthorized retailer (in-store or online).
4. Any products in which the serial number label or the model number label are removed,
torn, modified or replicated.
5. Any damage defects or malfunctions resulting from any of following:
a) When defect occurs during shipment of product (freight carrier's responsibility).
b) Installation or removal of product.
c) Accidents, act of nature, misuse, abuse, neglect, unauthorized product modification or
failure to follow product owner's manual instructions.
d) Any repair or attempt to repair without RYDEEN authorization.
e) Any other cause which is not related to product defect.
f) Any cosmetic damages due to normal wear and tear.
g) Any consumable items (such as fuse or batteries).
If any problems develop with your Rydeen products during or after the Limited Warranty
Period, or if you have any questions regarding the operation or installation of the product, you
should contact your Rydeen retailer.
XI. To Obtain Warranty Service
If warranty service is required for your Rydeen product:
1. Please call Rydeen Customer Service Department at 1-877-777-8811 (within the USA
only), Monday–Friday between 9:00 AM to 4:00 PM Pacific Standard time and obtain a Return
Authorization Number (“RA”) Number.
2. Please pay for any shipping charge to Rydeen Customer Service Department.
Rydeen will pay the return shipping charge, if the repair or service was performed
during the warranty period. Rydeen will ship freight collect
(Recipient is responsible for shipping charge) if Rydeen determine the service was performed
outside of warranty period or exclusions described above. Rydeen will not accept warranty
service requests from outside of the U.S.A. even if product was purchased in the USA.
3. Please include a copy of your original purchase receipt including Rydeen
Product model number, purchase date, retailer name/address and a RA Number
whenever your product is sent for warranty service.
5. Shipping address for Rydeen Customer Service Department is following:
Rydeen North America Inc 2701 Plaza Del Amo, Unit 705, Torrance, California 90503, USA
