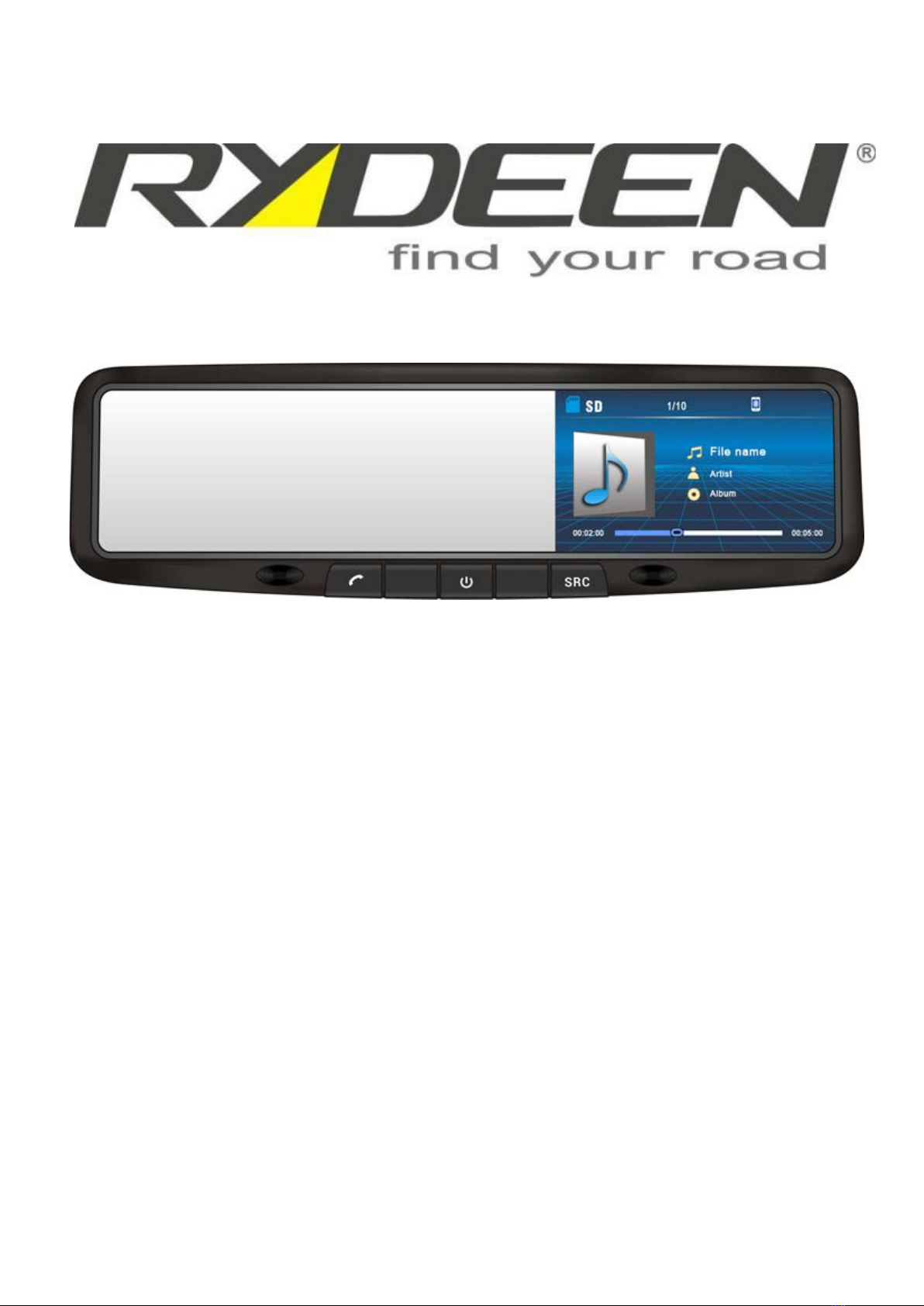

Owner’s Manual MD4BT
Digital Input Mirror Replacement System
v1.1

11
Contents
1. Welcome Statement & Warnings 2
2. What’s in the Box 4
3. Product Overview and Features 5
4. Installation 12
5. Rydeen MD4BT Configurations 15
Settings Operations.......................................................15
Mi-Link Operations . .......................................................16
Bluetooth Operations . ....................................................16
Bluetooth Phone Call history . ...............................................17
Bluetooth Phone Call..........................................................17
Voice Command Activation..................................................18
Bluetooth Audio.................................. .. ....... . ....................18
SD Operations.......................................... .. ..................18
SD Home Menu..................................................... .. ..........18
Music playback..................................................................19
6. Technical Support Contact Informatio 20
7. One Year Limited Warrant 20
8. To Obtain Warranty Servic 21
Contents
Phone/Movie playback........................................................19

2
Welcome Statement & Warnings
1.Welcome Statement & Warnings
C o n g ratu l a ti ons and thank you for purchasing the RYDEEN MD4BT Digital Input
Mirror Replacement System. We hope you will enjoy using this exciting product
and trust that it will make your driving experience more enjoyable and hassle-free.
The MD4BT provides an easy-to-use Wireless Remote Control interface, easy-to-
understand GUI, and innovative functionality in a stylish housing that replaces
the factory mirror.
Please read this Owner’s Manual carefully before using this product. If you have
any further questions about your MD4BT operation, feel free to call RYDEEN,
Toll Free at 1-877-777-8811(within USA only) for product support, or visit our
website:www.rydeenmobile.com.
PRECAUTIONS & WARNINGS
IMPORTANT
INFORMATION
PLEASE READ CAREFULLY BEFORE USING THIS
PRODUCT
This product is intended to provide a Smartphone Link function that will expand
the system capacity as well as possibility. We therefore, recommend that you
read and follow all information and instructions in this Owner’s Manual to achieve
the best performance from your MD4BT.
Set the unit volume at a level that will allow you to hear outside traffic
and emergency vehicles.
The MD4BT should not be operated with Smartphone while driving. The driver
can only operate the unit while the vehicle is parked in a safe location. A
passenger may not program and operate t he un it w h il e t he veh i c l e i s i n
mo ti on.
SEVERE INJURY RISK -DO NOT mount your MD4BT on the surface of, or i n
t he d e pl oymen t f ield of your ve hi c le’s dri ver an d p assen g er a i rbag un it s.

3
Welcome Statement & Warnings
Position the unit in a location that does not obstruct the driver ’s view of
the
road, i ns t rumen t s or veh i c l e con t ro l s.
Position the unit so the screen can be viewed with just a quick glance. Glance at
the unit screen or manipulate the in-route touch screen controls ONLY WHEN
VEHICLE IS COMPLETELY STOPPED AND IT IS SAFE to do so.
Be sure the MD4BT unit is securely attached to the windshield of your vehicle
with the supplied bracket.
DO NOT attempt to modify or disassemble the MD4BT unit. Personal injury or
damage could result. If a problem occurs, stop using the system immediately
and contact RYDEEN. Changes or modifications to the MD4BT will void the
warranty and its compliance with FCC rules thus making it illegal to use.
If you notice any of the following: (unidentified liquid on the unit; smoke rising
out of the unit; unusual odor emanating from the unit) – STOP USING THE
UNIT IMMEDIATELY. Contact the nearest RYDEEN retailer
or call RYDEEN Customer Service for assistance Toll Free @ 1-877-777-8811
(within USA only).
DO NOT mount your MD4BT on any non-automotive form of transportation
(motorcycles, bikes, ATV’s, watercraft).
WARNINGS
•Avoid dropping your MD4BT unit or subjecting it to excessive shock
and vibrations as this may cause it to malfunction.
•DO NOT use any sharp object to operate your unit’s touch-screen display.
Excessive force could damage the LCD display.
•Keep the MD4BT unit out of reach of small children. Removable parts
(Micro SD memory card) can be a choking hazard.
•The MD4BT unit IS NOT WATERPROOF. Avoid exposing it to rain or other forms of
excessive moisture. Water damage is not covered under the warranty.
WARNINGS
•THE FOLLOWING INSTRUCTIONS ARE INTENDED FOR AUTHORIZED RYDEEN
MOBILE INSTALLERS ONLY
•PROFESSIONAL INSTALLATION BY AN AUTHORIZED RYDEEN RETAILER IS
REQUIRED TO BE COVERED UNDER WARRANTY

4
What’s in the Box

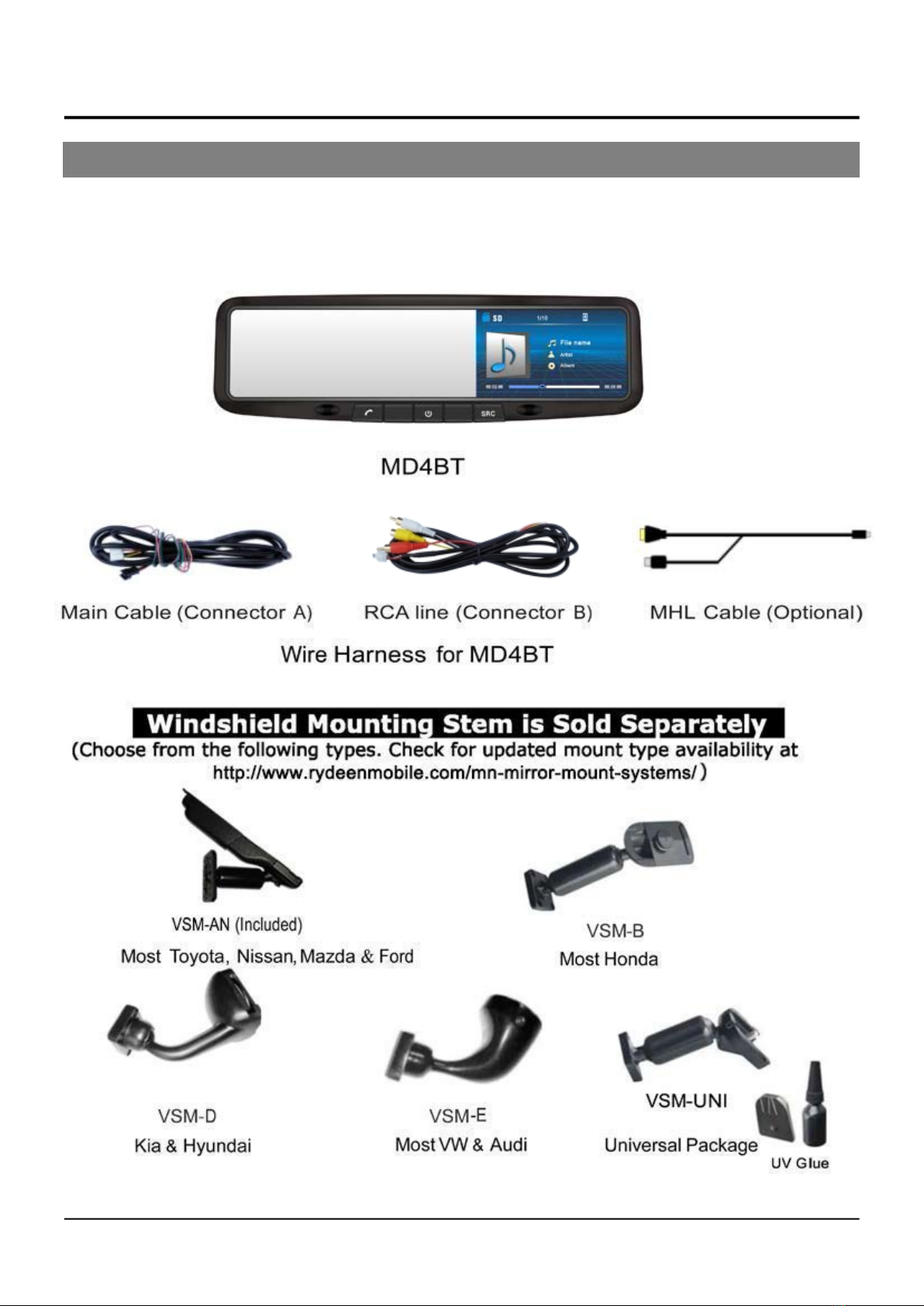

2. What’s in the Box
Your MD4BT system comes complete with everything you need to get set up and
get going. Please take a moment to review the contents of your system.

5
3. Product Overview and
MD4BT
Product Overview and Features

6
Product Overview and Features
Operation Spread Sheet
Front Description
1 Mirror Wide Angle Mirror (Transparent for Display)
2Microphone IR
Sensor
♦Built in Microphone for
Bluetooth♦IR Sensor for Wireless
Remote
3Phone
♦Short Press (while incoming call):Receive Phone Call♦Short
Press (while Mi-Link mode):Select Audio input on HDMI
Source& HDMI Audio/Bluetooth Audio
♦Short press 1 time (while Micro SD Playback):Get into Micro
SD Card file playback
♦Short press 2 times (While Micro SD Playback list): Get into
Micro SD Card file browsing [Music, Picture, Movie]
♦Long Press 2 seconds (while Bluetooth connected): Activate/
Deactivate Voice Command
4Proximity IR Sensor IR Sensor for Proximity Control
5Power
Short Press : Screen On/Off
Short Press (while incoming call):Reject Phone Call
Short Press (while dialing a call):Hang up phone calling
Short Press (while power off & ACC on):Power On
Long Press 2 seconds (while unit is working):Power Off
6Source
Short Press: Select Mi-Link[HDMI Input]/Bluetooth
Audio/Bluetooth Phone/SD Card
Long Press 2 seconds: Proximity sensor setting menu On/Off
On Proximity sensor setting menu: short press SRC to change
item, short press Phone key to define each item
7 LCD Display Screen 4.3-inch LCD
8 Bracket Chassis Attaches to Vehicle Specific Bracket Here
9 Connector A Main Connector
10 Connector B Second Connector for Audio Output & Camera Input
11 Brightness Sensor 3 Steps Auto Dimmer Screen function

7
Wiring Diagram Illustrations:
Product Overview and Features

8
NO. BACK / CABLE Description
12 Mi-Link HDMI Connector Digital Audio, Video Input Adaptor
13 Green Reverse Trigger
14 Pink Parking Break Trigger
15 Yellow (Battery) 12V+ Constant power supply
16 Red (ACC) 12v+ ACC Controlled Power Supply
17 Black (GND) - Chassis Ground
18 Backup Camera Input Video Input for Backup Camera
19 RCA Connector (Red) Audio Output (Right Channel)
20 RCA Connector (White) Audio Output (Left Channel)
Connector PIN Descriptions:
Connector A
Connector B
Pin Color Description Terminal
1Yellow 12 DC Constant (car battery) Bare
2Black Ground Bare
3Red Ignition 12v + (ACC) Bare
4Green Reverse Trigger Bare
5Pink Braking Trigger Bare
Pin Color Description Terminal
6 Red Audio Line Out + Right RCA Male
7 White Audio Line Out + Left RCA Male
8Black Ground wire RCA Male
(Ground)
9 Yellow Camera In RCA Female
1
5
Product Overview and Features
Wiring Diagram Descriptions:

9
Remote Control Illustration：
Product Overview and Features
Key Number Key Image Description Operation Function
[1] Power
Symbol Power
Long Press ①Power Off
Short Press ①Power On ②Screen On / Off ③End Phone call ④Reject
Incoming Call
[2] SRC SRC Short Press ①Change Source ②Exit out of the Settings Menu
Long Press ①Enter Settings Menu
[3] U Up Short Press ①Volume Up ②Select Micro SD Card file ③Select Phone call
history ④Select Setting Items ⑤Select Picture Setting Items
[4] F Forward Short Press ①Next Song ②Select Phone call history ③Select Settings ④Select
Screen Settings
[5] Enter
Symbol Enter Short Press ①Play / Pause Music Playback ②Select Micro SD Card file ③Select
to call a Phone Number ④Exit out of the Settings Menu
Long Press ①Enter the Picture Settings Menu
[6] Phone
Symbol Phone Short Press
①Accept incoming call ②To browse the SD Card files ③Get into
Micro SD Card file playback list ④Get in to Micro SD Card file
browsing [Music, Picture, Movie] ⑤Select Audio Input for Digital
Input [ Digital (Mi-Link) / Bluetooth ]
Long Press ①Voice Command Activation On/Off
[7] D Down Short Press ①Volume Down ②Select Micro SD Card file ③Select Phone call
history ④Select Setting Items ⑤Select Picture Setting Items
[8] R Reverse Short Press ①Previous Song ②Select Phone call history ③Select Settings ④
Select Screen Settings

10
Main Features of the product:
•Screen On by Proximity Sensor
•Auto Screen Off function [Off /15/30/
45/60sec]
•Audio Output for External Sound System
•Built in High Quality Speaker
•Interchangeable VSM-A Mount Included
Full Line of Vehicle Specific Mounts
Available
•Voice Command Activate / Deactivate by
Proximity Sensor
•Rear View Mirror Monitor
•HDMI Digital Input
•Ultra Bright 4.3” LCD Monitor
•Built in Bluetooth (Hands Free
Phone and Audio Streaming) [ e.g.
HFP, PBAP, A2DP and AVRCP]
•Internal Microphone for Bluetooth
•Built in Proximity Sensor
•Micro SDHC Card Slot for Movie
Music & Photo Playback
Unique Features of MD4BT
•Turn On/Off the screen
•Turn On/Off the Voice Command Activation
＊ While Bluetooth is connected, you can approach the device
with your hand or Long Press 2 seconds Phone Key on
the unit or remote to activate the Voice Command Activation.
＊ Approach the device with your hand again or Short press
Phone key on the unit or remote to exit the
Voice Activation.
•Mi-Link your Smartphone
With easy connection to your Smartphone via MHL cable (Rydeen P/N MHL01 for
Android phones), MD4BT mirrors the phone screen to the screen on MD4BT. You
can also use a HDMI adaptor together with Lightening to USB cable from Apple to
display your iPhone screen on MD4BT.
Product Overview and Features
＊ As the picture to the left shows, you can turn the screen on
just by approaching with you hand.
＊ Turn off the screen by pressing the Power button on the
unit or remote.

11
•Back up camera auto-switching
For your driving safety, the screen will automatically switch to camera input video
when you are reversing.
•Multi-choice Picture Quality
To guarantee the picture quality satisfied to your first priority while enjoying a
movie or photo, or viewing camera picture when you are back-up, you can set
picture mode like below picture shows by long pressing 2 seconds button on
your remote control.
Picture Mode: Standard/Mild/User/Dynamic
Contrast/Brightness/Color: 0-50 adjustable
Default(standards): Contrast 28/ Brightness 38/ Color 15
•Display Auto Dimmer Function
The TFT display of MD4BT has an auto-dimming function which is designed to
adjust the brightness of the screen automatically with a photo sensor that senses
day & night, which could efficiently protect the LCD as well as your eyes.
•Sensor LCD Screen Off Time
For screen protection, MD4BT is designed with auto screen-off when the unit is
not being visually used. Below is your choice of with auto screen-off time options.
•15 sec : 15sec later Screen Off automatically, after last operation.
•30 sec : 30sec later Screen Off automatically, after last operation.
•45 sec : 45sec later Screen Off automatically, after last operation.
•60 sec : 60sec later Screen Off automatically, after last operation.
The MD4BT helps minimize complicated button operation of your Smart-
Phone. Enjoy these simple and convenient features with the RYDEEN
MD4BT.
Product Overview and Features
You can turn on the screen by pressing Power button or just aproaching your
hand to the screen.

12
WARNING
•THE FOLLOWING INSTRUCTIONS ARE INTENDED FOR
AUTHORIZED
RYDEEN MOBILE INSTALLERS ONLY.
• PROFESSIONAL INSTALLATION BY AUTHORIZED RYDEEN
RETAILER
REQUIRED TO BE COVERED UNDER WARRANTY.
• To find your nearest Rydeen Authorized installer, please
call Rydeen Mobile Electronics 877-777-8811
• Dropping your MD4BT unit or subjecting it to excessive
shock and vibrations may cause it to malfunction and void
warranty.
• The MD4BT is not Waterproof. Please avoid exposing
it to rain or excessive moisture. Water damage is not covered
under the warranty.
Installation
4. Installation

13
Most vehicles have the mirror mounted directly onto the glass;
therefore improper tools or techniques used in the removal of
existing mirror or installation of MD4BT could result in a
damaged or broken windshield. Rydeen is not responsible for
damage to the windshield caused by installation.
1) Remove the existing mirror and unplug a connector if one exists. (Note: All
vehicles use different mounting solutions. If necessary, consult your local
automotive dealer or installation professional for specific instructions.)
2) Attach the vehicle-specific mounting stem (sold
separately) to the back of the mirror using the
supplied washers and screws, starting with the
holes nearest the top of mirror housing.
3) Mount the MD4BT using supplied screw. Slide or
twist it onto the factory mounting base and carefully
tighten the screw until secure.
Installation

14
4) Route the mirror cable along the headliner and down the A pillar, and make
power, ground and accessory connections.
Yellow- Constant 12V+ source
Red- Ignition controlled ACC 12V+ source.
Black- (-) Ground (Connecting to car chassis works the best)
5) Solder or use T-taps on pre-tested and verified wires. Note: No reverse
trigger input is required; the screen switches to the rear-camera view when the
camera sends a video signal, the video input senses the video voltage.
6) Turn the key to ACC and the unit should turn on. Hide the cable and re-
assemble the vehicle.
Installation

Rydeen MD4BT Configurations
15
Settings Operations
Get into Settings by long pressing button on the unit or remote for 2
seconds.
● Proximity Sensor
To turn On/Off Proximity Sensor for
Voice Command activation.
●Proximity Sensitivity
To adjust the proximity sensitivity level at
LOW/MID/HIGH.
LOW: 4 inch / MID: 6 inch / HIGH: 10 inch.
(up) & (down) to select items. ①Use
②Use (back) & (forward) to select & confirm parameters correspondingly.
③Exit Settings by short pressing SRC.
● Display Screen Off Time
To set the screen OFF time at 15/30/45/60 seconds.
Set the screen OFF time at "off" to turn off this function.
● Auto Dimmer Display
To turn On/Off the display screen auto-dimming function.
● Speaker Out (Internal Speaker/Audio Line Out Selection)
To turn On/Off Audio Line Out speaker (you can use either MD4BT internal speaker or
Line out external speakers).
● Setup parameters by buttons on the unit
①Use SRC button to select items (up & down).
②Use Phone button to select & confirm parameters correspondingly.
③Exit Settings by long pressing SRC button.
● Setup parameters by remote
5. Rydeen MD4BT Configurations
The MD4BT provides you four sources of entertainments,short press SRC
symbol on the unit or remote to select the one you wanted (Mi-Link[HDMI
Input]=>Bluetooth Audio=>Bluetooth Phone=>SD Card).

Rydeen MD4BT Configurations
16
Mi-link: Digital Input with Smart-Phone
5. Rydeen MD4BT Configurations
Mi-Link operations
● To operate this function, please make sure
your mobile Phone is Mirror-Link included.
● For connecting iPhone 5, 5C, 5S, 6 or 6
Plus, Apple Specific Adaptor is required.
● For connecting specific Android Phones,
please use RYDEEN’s MHL cable (sold
separately).
Bluetooth Operations
Your MD4BT is equipped with a Bluetooth-enabled hands-free function to enable
you to make and receive cellular phone calls safely while driving. The process of
creating a secure connection between your cellular phone and the device is called
pairing.(Note: you cellular phone MUST have Bluetooth capability and have its
Bluetooth function turned on in order to make a connection with the device. If you
are not sure, please consult the manual that came with your phone.)
Pairing Your Phone with the Mirror Unit
Bluetooth Pairing
1. Please make sure that your phone is in “Discoverable Mode”. To get the best
conversation quality, it is recommended that the distance between the mobile
phone and the device is within 10 feet. Insure there are no metal objects or
obstacles between the path of the mobile phone and the unit when you begin
the pairing process.
2. Press the SRC button on unit(or on remote control) to place device in Bluetooth
mode.
3. Select ”RYDEEN MD4BT” on your phone, and it will ask you to enter the pairing
code used by the mirror unit. (The default code is 0000) Once the code is entered,
your phone should indicate the pairing process is successful.

•
•
•
You can receive a call by pressing
(Phone symbol on the unit or remote.
You can hang up phone callings or reject
incoming calls by short press
(Power Symbol) on the unit or remote.
You can use (Phone symbol) on the
unit or remote to cancel a current calling
(dialing.
17
Rydeen MD4BT Configurations
● Once Bluetooth connection succeed, please
confirm the loading of Phone Call history to
the unit at your mobile Phone.
● Use the direction keys
& Phone key on the remote to choose a
number on the Call History, Received Calls
and Missed Calls to make a Call.



4. Once the pairing process is successful, the unit will remember your device info
and will connect to your device automatically.
Note: If your phone does not locate the mirror unit, repeat the pairing procedure,
ensuring that you are within acceptable range and completing the process within
the 60-second period. If the pairing code is incorrect, check to ensure that the code
has not been changed on the mirror.
Bluetooth Phone Call history

● You should better use your mobile Phone to make a Call, if the number you
wanted is not on the Call history.
Call history Received calls Missed calls
Bluetooth Phone Call

●Make sure the unit is Bluetooth connected
with mobile Phone.
●Approach to the button area of the device
with your hand or Long Press 2 seconds
Phone Key on the unit or remote to
activate Voice Command Activation.
● Create voice commands with the device,
just like operating your mobile Phone.
18
Rydeen MD4BT Configurations

Voice Command Activation
●Approach to the button area of the device with your hand again or short Press
Phone Key on the unit or remote to exit Voice Command Activation.
Bluetooth Audio
•Once your phone is connected with
the MD4BT, start the music player
application on your mobile phone.
•Select a music you want to play on
your mobile phone and the music
will start to play automatically
through MD4BT.

SD Operations
SD Home Menu
●Open the card slot cap, insert an SD
card into the corresponding slot, the unit
will load the files automatically.
●By pressing & & on the
remote, you can choose to play music,
show photos, or even watch movies.
●To remove the card, you should first select another source, in order to avoid
damaging the card, press the card slightly, and take off the card after it pops out.
●The unit can remember the last time playback status.
●The MD4BT can support up to32G Micro SD Card capacity.
