Rydeen BSS3 User manual

Owner’s Manual BSS3x
Microwave Radar Blind Spots System
Version1.1

1
Table of Contents
I.......Items List.............................................................................................................2
II......Technical Specification.........................................................................................3
III.....Installation Diagram............................................................................................3
IV......Wire Connection Diagram..................................................................................4
V......Installation Guide.................................................................................................5
VI.....Alert Conditions..................................................................................................8
VII....System Indicators................................................................................................8
VIII...Troubleshooting..................................................................................................9
IX......Technical Support Info........................................................................................9
X......Limited Warranty................................................................................................9
XI......To Obtain Warranty Service..............................................................................10

Radar Sensor 2PCS
2

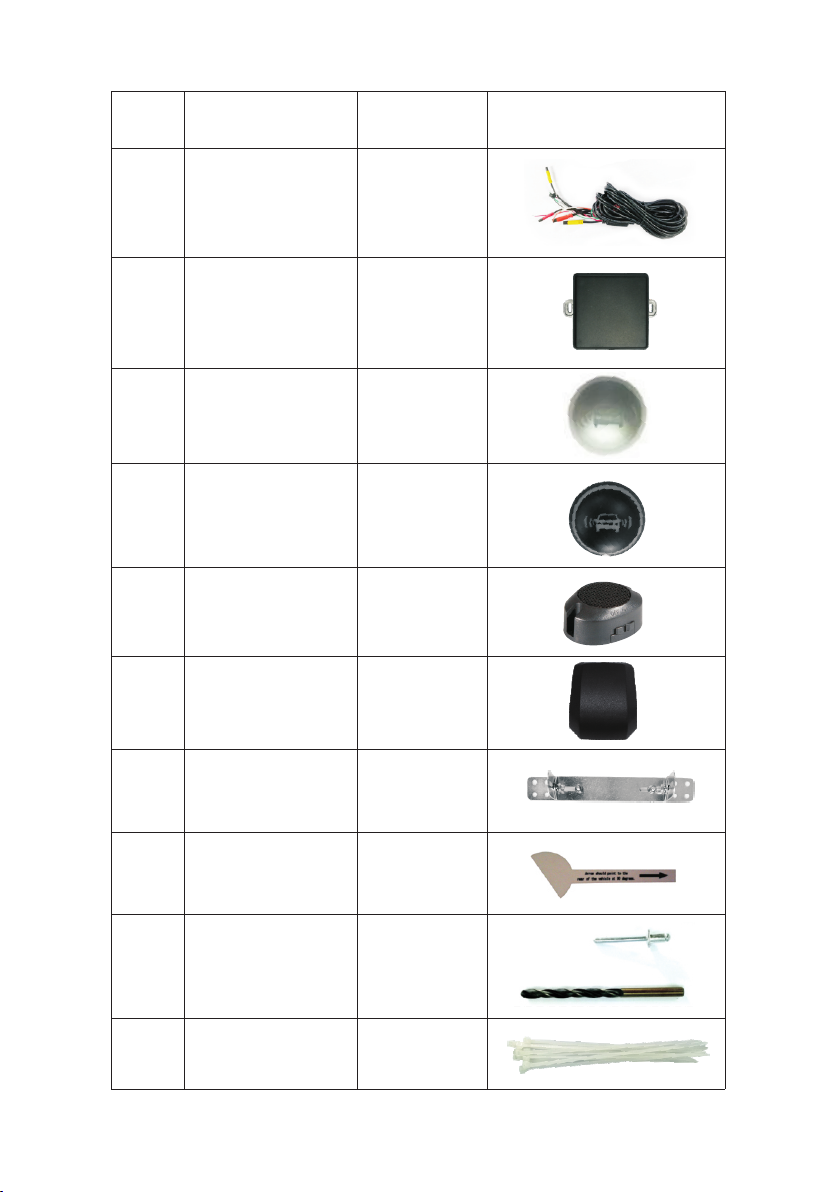

I. Items list
Number Item Name Quantity Picture
1
2
Main Harness
&Extension Cable 1SET
3
4
LED Indicator 2PCS
7
8
Adjustable Buzzer 1PC
Radar Puck Bracket
5
LED Indicator Housing 2PCS
2PCS
Installation Angle Tool 1PC
9
10
Drill Bit and Rivets
Zip Ties
Drill 1PC&
Rivets 12PCS
10PCS
6GPS Antenna 1PC

3
II. Technical Specification
III. Installation Diagram
The system will be only activated at the speed over 18mph
Detection Angle 70 degrees ( Horizontal )
Speed Accuracy < 0.5mph
Speed Restriction
Direction of Movement Vehicles Approaching or Vehicles You Are Passing
Detection Range -6.5ft to 80ft
Operating Voltage 8V to 30V
Waterproof Radars: IP67 / Cables: NOT waterproof
Working Current
Working Temperature
< 0.4A
-20℃ ~ + 70℃
LED
LED
R-Lamp
L-Lamp
Buzzer
L-SENSOR R-SENSOR
+12V
GPS
THIS PRODUCT FUNCTIONS AS AN AID
FOR NOTIFYING THE PRESENCE OF OBSTACLES IN VEHICLE BLIND SPOTS.
IT DOES NOT DETECT ALL DANGERS AND OBSTACLES
AND IS NOT A SUBSTITUTE FOR YOUR JUDGEMENT AND CAREFUL ATTENTION.
BEFORE ANY MANEUVER, VISUALLY CHECK BOTH SIDES OF THE VEHICLE TO CONFIRM.
WARNING
Important Safety Information

4
Red
Black
Pink
Orange
Green
Reverse Trigger
IV. Wire Connection Diagram
L_sensor
L_LED indicator
R_sensor
R_LED indicator
Buzzer
ACC/IGN
GND
L_lamp
R_lamp
Red
Yellow
Yellow
Black
Red
Black
GPS

5
V. Installation Guide
1. Sensor Installation
Use Supplied Tool to Set Proper Radar Puck Angle: the default installation angle is: 38 degree.
Depending on actual situation, the install angle could be adjusted accordingly:
38° 38°

6
Mounting Radar Pucks with Provided Adjustable Brackets
Please follow directions below:
1) Prepare Materials: 2) Mount the sensor module on the bracket:
3) After found angle set, firmly screw or bolt the bracket to the car:
from side

7

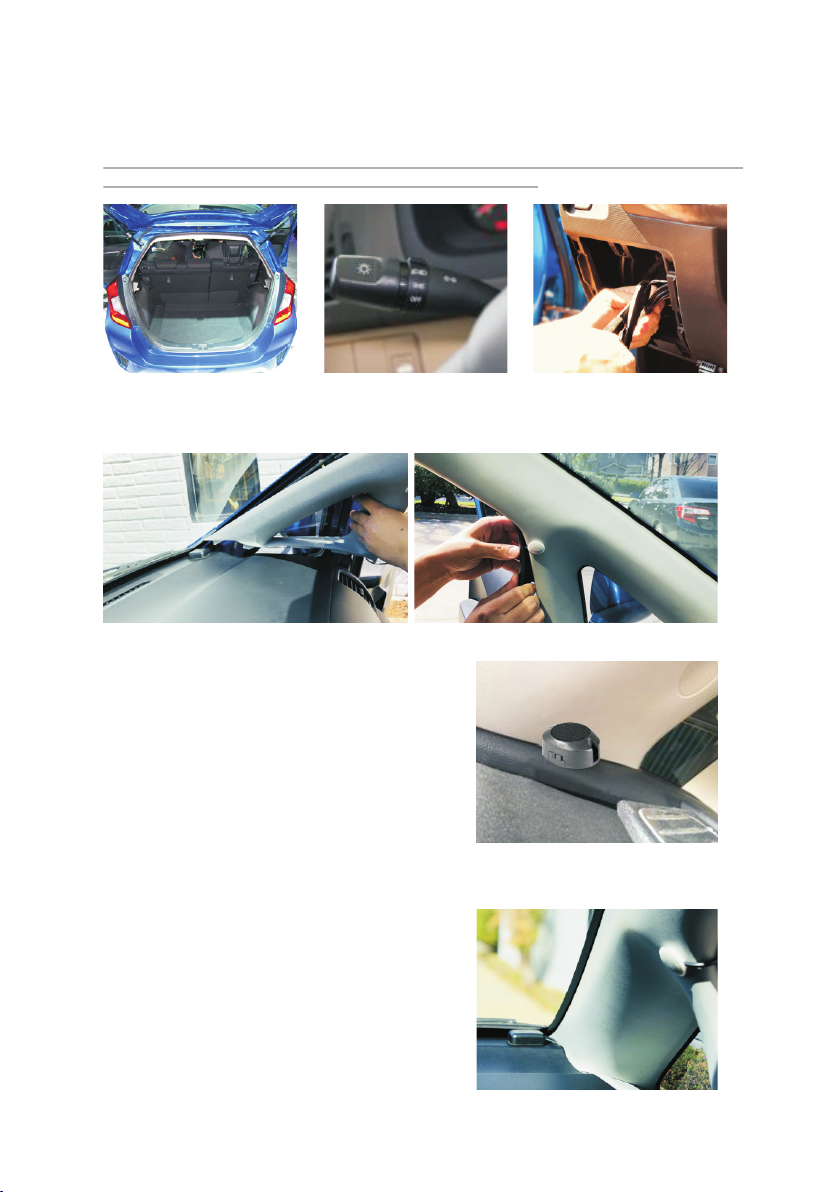

2. Installation of the left/right turn signal.
Step 2. Using the voltage multi-meter, locate the left and right isolated* turn signal trigger wires
behind the tail lamp. Once verified, connect the left and right signal wires of the BSS3x wire harness
to the correct signal wires.
* Vehicles with shared bulb for turn and brake light will cause confusion to systems behavior, in this
case integrate wires from front isolated turn signals or side markers
Fig.1 Fig.2 Fig.3
3. LED indicator installation:
Step 3. Place the LED indicators where it is visible for the driver. Ideally on the A-pillar.
Fig.4 Fig.5
4. Speaker location:
Step 4. While installing the speaker, make sure it is not
obstructed by any panels inside the vehicle.
Fig.6
Step 5. Tuck the wires neatly to hide and prevent wire pinch.
Step 6. While installing the GPS, make sure it is not
obstructed by any panels inside the vehicle.
Fig.7

8
VI. Alert conditions:
VII. System Indicators:
A. When the system is turned on each time (your vehicle ignition or ACC is switched on), both LED
indicators will flash once to indicate system start up and initialization. Once a GPS connection is
established, which may take up to 2 minutes, both LED indicators will flash twice to indicate the
system is ready for use. The GPS connection is used to calculate your vehicle's speed.
When your vehicle is traveling slower than the start speed setting 18mph(29km/h), the system will
not produce warnings.
B.
1. The Right LED indicator will illuminate and remain illuminated when there is an object or vehicle
approaching,
2. If your vehicle's right turn signal is activated when there is an object or vehicle approaching,
the Right LED indicator will flash
repeatedly and the included .
C.
1. The Left LED indicator will illuminate and remain illuminated when there is an object or vehicle
approaching, or when your vehicle approaches and passes a moving vehicle.
2. If your vehicle's left turn signal is activated when there is an object or vehicle approaching,
, the Left LED indicator will flash
repeatedly and the
Blind spot detection toward the right rear of your vehicle:
speaker will beep (bi-bi-bi) one time
Blind spot detection toward the left rear of your vehicle:
speaker will beep (bi-bi-bi) one time
or when your vehicle approaches and passes a moving vehicle.
or
when your vehicle approaches and passes a moving vehicle,
or
when your vehicle approaches and passes a moving vehicle
included .
D. Cross-Traffic Detection:
1. When your vehicle is reversing and the system detects an object or vehicle approaching from your
right, the right LED indicator will illuminate and remain illuminated and the included speaker will
beep repeatedly.
2. When your vehicle is reversing and the system detects an object or vehicle approaching from your
left, the Left LED indicator will illuminate and remain illuminated and the included speaker will beep
repeatedly.
Note: The system will not detect or warn of standing objects or objects moving under 5 mph (8 km/h).
CAUTION
The BSS3x can not only objects approaching your vehicle from behind, but also detect objects
your vehicle is approaching or overtaking. Under certain driving scenarios, the BSS3x may detect
objects in an unintended way. The following conditions below are examples of scenarios where fault
notifications may occur
detect
.
Fig 8 Fig 9 Fig 10 Fig 11
When the system is on and functioning, the system is designed to detect the following events:
1. Blind spots while driving: Objects in the blind spot areas around your vehicle-in the lanes on the
left/right and directly behind the vehicle at a distance of up to 82 ft (approximately 25 m).
2. Blind spots while being passed / overtaken: When vehicles are approaching / overtaking your vehicle
from behind, or when your vehicle approaches and passes a moving vehicle.
3. Cross-Traffic Detection: When your vehicle is reversing, vehicles approaching from your left and
right.

9
VIII. Troubleshooting:
NO. Issue Reason Solution
1 LED light does not
work
Incorrect
not making contact
connection or pins Check the harness and make
sure connection is correct
LED light is broken Replace LED light
2 Opposite LED
indicator
Microwave sensor or LED
indicators are plugged in to the
opposite connector
Make sure RED is driver side and
YELLOW is passenger side.
3 Buzzer does not work Wrong connection or pins not
making contact
Check the harness and make
sure connection is correct
Defective buzzer speaker Replace buzzer
IX. Technical Support Contact Info.
Telephone: 1-877-777-8811 (within USA only)
Email: [email protected]
Web Address: www.rydeenmobile.com
X. Limited Warranty
Rydeen North America Inc. (a manufacturer of “Rydeen" products) warrants this product (BSS3x)
only to the original purchaser as described following:
Warranty Coverage
This warranty covers all defects in material and workmanship except as specified below.
1. Installation by anyone other than an authorized Rydeen Mobile Retailer may void the
warranty.
2. Any products distributed outside of the USA by Rydeen North America Inc. (Rydeen) or
which is not purchased in the USA or Canada.
3. Any product(s) which are purchased from an unauthorized retailer (in-store or online).
4 Sensors or GPS does
not work
Sensors or GPS module are
covered by the metal bumper
or other metal
Find the best location where the
GPS antenna cannot be blocked
by any metal
5Unit does not work
after GPS is
connected
Blind spot system does not
trigger the sensors if the speed
is less than 18mph
Normal behavior in this case.
The GPS needs to detect
+18mph to trigger the sensors

10
4. Any products in which the serial number label or the model number label are removed,
torn, modified or replicated.
5. Any damage defects or malfunctions resulting from any of following:
a) When defect occurs during shipment of product (freight carrier's responsibility).
b) Installation or removal of product.
c) Accidents, act of nature, misuse, abuse, neglect, unauthorized product modification or
failure to follow product owner's manual instructions.
d) Any repair or attempt to repair without RYDEEN authorization.
e) Any other cause which is not related to product defect.
f) Any cosmetic damages due to normal wear and tear.
g) Any consumable items (such as fuse or batteries).
If any problems develop with your Rydeen products during or after the Limited Warranty
Period, or if you have any questions regarding the operation or installation of the product, you
should contact your Rydeen retailer.
XI. To Obtain Warranty Service
If warranty service is required for your Rydeen product:
1. Please call Rydeen Customer Service Department at 1-877-777-8811 (within the USA
only), Monday–Friday between 9:00 AM to 4:00 PM Pacific Standard time and obtain a
Return Authorization Number (“RA”) Number.
2. Please pay for any shipping charge to Rydeen Customer Service Department.
Rydeen will pay the return shipping charge, if the repair or service was performed
during the warranty period. Rydeen will ship freight collect
(Recipient is responsible for shipping charge) if Rydeen determine the service was performed
outside of warranty period or exclusions described above. Rydeen will not accept warranty
service requests from outside of the U.S.A. even if product was purchased in the USA.
3. Please include a copy of your original purchase receipt including Rydeen
Product model number, purchase date, retailer name/address and a RA Number
whenever your product is sent for warranty service.
4. Shipping address for Rydeen Customer Service Department is following:
Rydeen North America Inc 2701 Plaza Del Amo, Unit 705, Torrance, California 90503, USA

rydeenmobile.com
Rydeen North America Inc. Dba
Rydeen Mobile Electronics
2701 Plaza Del Amo, Suite 705, Torrance, California 90503
Phone: 1-877-777-8811 Fax: 1-310-943-3778
Copyright © 2020 Rydeen North America Inc. All Rights Reserved.
RYDEEN ® is a registered trademark of Rydeen North America Inc.
These materials are protected by copyright law and international treaties. Any unauthorized use,
reproduction or distribution of these materials, or any portion herein, will result in severe civil and
criminal penalties and fines. Violators will be prosecuted to the fullest extent of the law.
