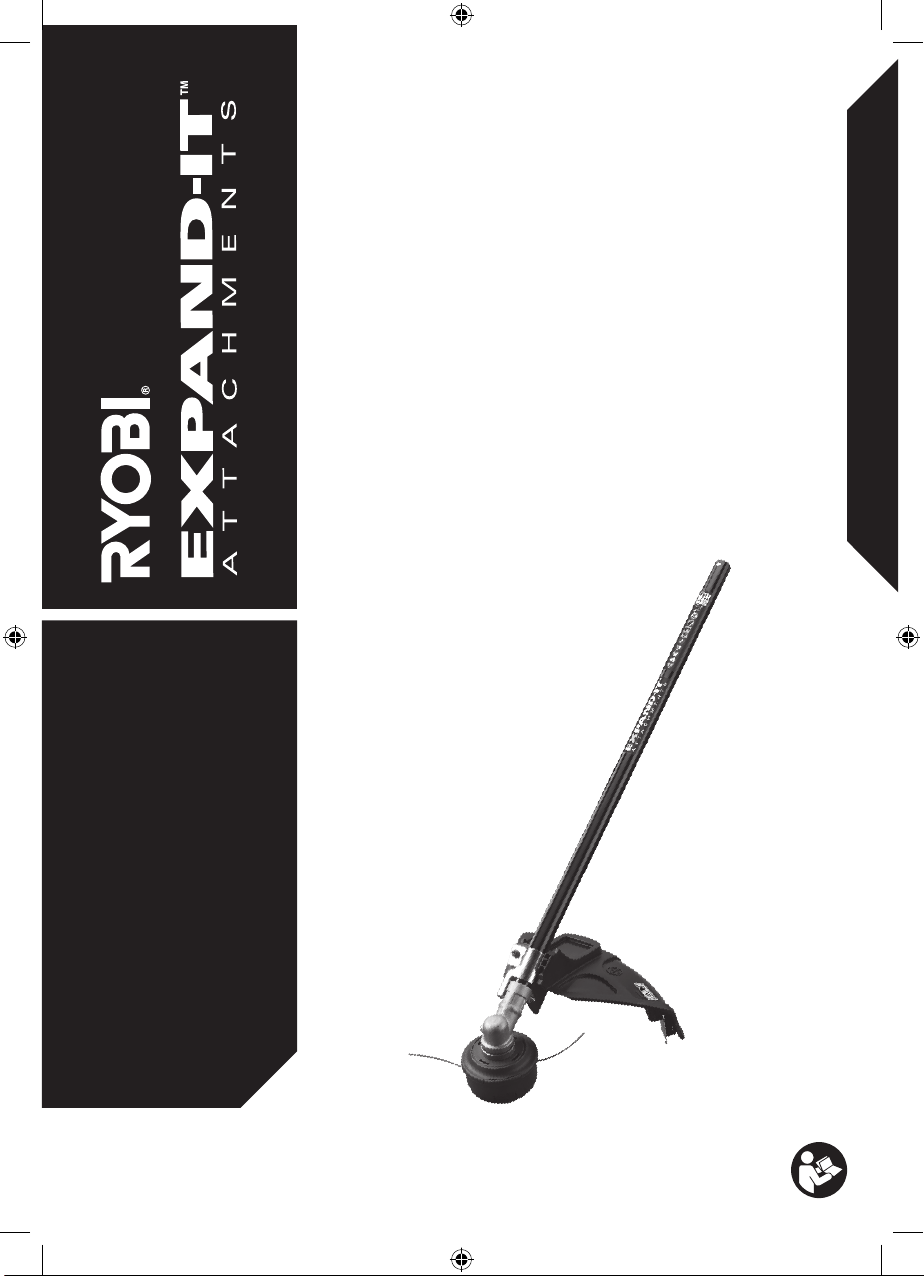

Ryobi EXPAND-IT ALT05 User manual

ORIGINAL INSTRUCTIONS
Line Trimmer
Attachment
ALT05

Important!
It is essential that you read the instructions in this manual before assembling,
operating and maintaining the product.
Subject to technical modification.

1
Safety, performance, and dependability have been given
top priority in the design of your line trimmer attachment.
INTENDED USE
The line trimmer attachment is approved for use with
RLT254CDSO, RLT254SDSO, RBC254SESO, and
RBC254SBSO models driven by the RPH254A powerhead.
It is intended to be used only by adults who have read and
understood the instructions and warnings in the attachment
and powerhead manuals, and who can be considered
responsible for their actions.
The product is only intended for use outdoors in a well-
ventilated area. For safety reasons, the product must be
adequately controlled by a two-handed operation.

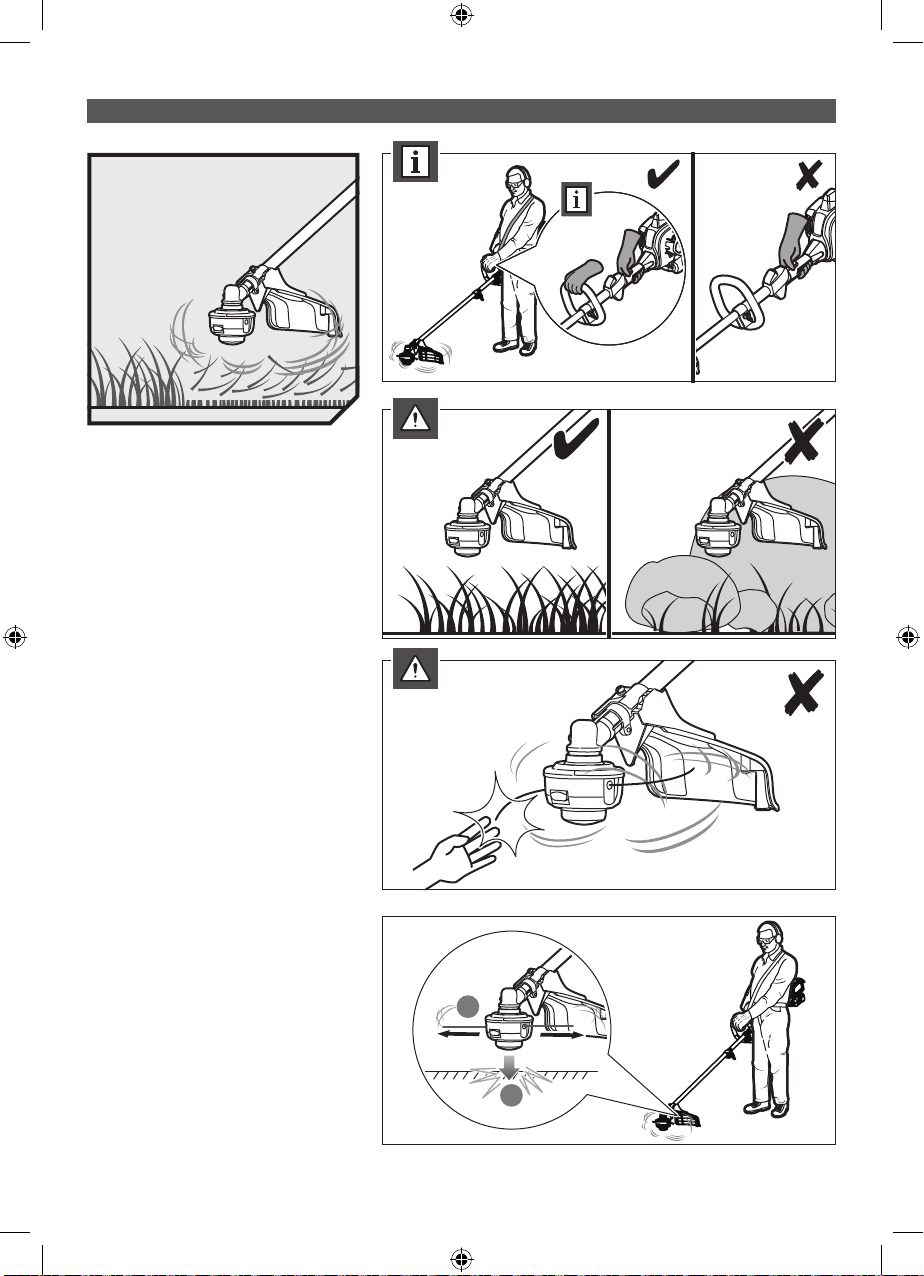

The product is intended for cutting long grass, pulpy
weed, and similar vegetation at or about ground level.
The cutting plane should be approximately parallel to the
ground surface. The product should not be used to cut or
trim hedges, bushes, or other vegetation where the cutting
plane is not parallel to the ground surface.
Do not use the product for any other purpose.
WARNING
When using the product, the safety rules must be
followed. For your own safety and that of bystanders,
read these instructions before operating the product.
Keep the instructions safe for later use.
GENERAL SAFETY WARNINGS
■For safe operation, read and understand all instructions
before using the product. Follow all safety instructions.
Failure to follow all safety instructions listed below, can
result in serious personal injury.
■Never start or run the engine in a closed or poorly
ventilated area; breathing exhaust fumes can kill.
■Do not touch area around the silencer or cylinder of the
product, these parts get hot from operation.
■Always stop the engine and allow it to cool down before
making any adjustments.
■Do not smoke when mixing fuel or filling fuel tank.
■Mix and store fuel in a container approved for fuel.
■Mix fuel outdoors where there are no sparks or flames.
Wipe up any fuel spillage. Move 9 m away from
refuelling site before starting engine.
■Stop the engine and allow to cool down before refuelling
or storing the product.
■Allow the engine to cool down; empty the fuel tank and
oil tank (if applicable), and secure the product from
moving before transporting in a vehicle.
WARNING
When the throttle trigger is released and the engine is
running at idle speed, the cutting attachment must not
move. If it does continue to move, there is risk of severe
injury to the operator. Do not use the product. Bring the
product to an authorised service centre for professional
adjustment.
ADDITIONAL SAFETY WARNINGS
■Some regions have regulations that restrict the use of
the product. Check with your local authority for advice.
■Never allow children or people unfamiliar with the
instructions to use the product.
■Avoid using the product in bad weather especially if
there is a risk of lightning.
■Do not operate in poor lighting. The operator needs
clear unrestricted vision to identify potential hazards.
■Keep bystanders, children, and pets 15 m away from
the product while in use. Stop the product if anyone
enters the area.
■Avoid using on wet grass.
■Do not walk backwards when using the product.
■Keep firm footing and balance at all times. Do not
overreach. Overreaching can result in loss of balance
or exposure to hot surfaces. Always be sure of your
footing on slopes. Walk, never run.
■Beware of objects thrown by the cutting means. Clear
debris like small stones, gravel and other foreign
objects from the work area before starting operation.
Wires or string may become entangled with the cutting
means.
■Wear full eye and hearing protection while operating the
product. If working in an area where there is a risk of
falling objects, head protection must be worn.
■Wear heavy, long trousers, non-slip protective footwear
and gloves. Do not wear loose fitting clothing, short
trousers, jewellery of any kind, or use with bare feet.
■Secure long hair so it is above shoulder level to prevent
entanglement in any moving parts.
■Use of hearing protection reduces the ability to hear
warnings (shouts or alarms). The operator must pay
extra attention to what is going on in the working area.
■Operating similar tools nearby increases both the risk
of hearing injury and the potential for other persons to
enter your working area.
■Do not operate the product when you are tired, ill, or
under the influence of alcohol, drugs, or medication.
■Keep all parts of your body away from any moving part.
■Keep the cutting head attachment below waist level.
■Never operate the product with damaged guards or
without guards in place. Ensure the correct guards are
fitted particularly.
■Keep hands and feet away from the cutting means at
all times and especially when the product is running.

2
WARNING
If the product is dropped, suffers heavy impact or begins
to vibrate abnormally, immediately stop the product and
inspect for damage or identify the cause of the vibration.
Any damage should be properly repaired or replaced by
an authorised service centre.
LINE TRIMMER SAFETY WARNINGS
■Do not fit a metal replacement line.
■Beware, the cutting elements continue to rotate after
the motor is switched off.
■Turn off the engine. Make sure all moving parts have
come to a complete stop:
■Turn off the product and disconnect from the power
supply:
●before servicing
●before clearing a blockage
●before checking, cleaning, and working on the
product
●before changing accessories
●before leaving the product unattended
●after striking a foreign object
●whenever performing maintenance
●whenever the product starts to vibrate abnormally
■The small blade fitted to the safety guard is designed to
trim the new extended line to the correct length for safe
and optimum performance. It is very sharp, do not touch
it particularly when cleaning the product.
■Always ensure that ventilation openings are kept clear
of debris.
■Before use and after any impact, check that there are
no damaged parts. A defective switch or any part that is
damaged should be properly repaired or replaced by an
authorised service centre.
■Do not modify the product in any way, this may increase
the risk of injury to yourself or others.
■Use only the manufacturer’s replacement cutting line.
■Do not use any other cutting attachment.
■Immediately switch off and disconnect from the power
supply in the event of accident or breakdown. Do not
operate the product again until it has been fully checked
by an authorised service centre.
TRANSPORTATION AND STORAGE
■Stop the engine and allow it to cool down before storing
or transporting.
■Clean all foreign material from the product.
■Drain all fuel from tank into a container approved for
petrol. Remember to properly replace and tighten the
fuel cap.
■Run the engine until it stops, this will remove all fuel
that could become stale and leave varnish and gum in
the fuel system.
■Store the product in a cool, dry, and well-ventilated
place that is inaccessible to children. Keep away from
corrosive agents such as garden chemicals and de-
icing salts.
■Do not store outdoors.
■When transporting the product in a vehicle, secure it
against movement or falling to prevent injury to persons
or damage to the product.
■Never carry or transport the product while the engine
is running.
■Abide by all government and local regulations for the
safety storage and handling of petrol.
SHORT TERM (LESS THAN ONE MONTH)
■Stop the engine and allow it to cool down before storing.
■Clean all foreign material from the product.
■Store the product in a cool, dry, and well-ventilated
place that is inaccessible to children.
■Keep away from corrosive agents such as garden
chemicals and de-icing salts.
■Do not store outdoors.
MAINTENANCE
WARNING
Use only original manufacturer’s replacement parts,
accessories and attachments. Failure to do so can cause
possible injury, can contribute to poor performance, and
may void your warranty.
WARNING
Servicing requires extreme care and knowledge
and should be performed only by a qualified service
technician. For service, bring the product to the nearest
authorised service centre for repair. When servicing, use
only original replacement parts.
■Turn off, disconnect from the power supply (if
applicable), and make sure all moving parts have come
to a complete stop before conducting any maintenance
or cleaning work.
■You may make adjustments and repairs described in
this manual. For other repairs, contact the authorised
service agent.
■For the replacement line, use only nylon filament line
of the diameter described in the specifications table of
this manual.
■After each use, clean the product with a soft, dry cloth.
Any part that is damaged should be properly repaired or
replaced by an authorised service centre.
■Check all nuts, bolts and screws at frequent intervals
for proper tightness to ensure the product is in safe
working condition.
■Bring the product to an authorised service centre to
replace damaged or unreadable labels.

3
RESIDUAL RISKS
Even when the product is used as prescribed, it is still
impossible to completely eliminate certain residual risk
factors. The following hazards may arise during use, and
the operator should pay special attention to avoid the
following:
■injury caused by vibration
–Hold the product by designated handles and restrict
working time and exposure.
■injury caused by exposure to noise
–Wear hearing protection and limit exposure.
■injury caused by flying debris
–Wear eye protection at all times.
RISK REDUCTION
It has been reported that vibrations from hand-held tools
may contribute to a condition called Raynaud’s Syndrome
in certain individuals. Symptoms may include tingling,
numbness and blanching of the ngers, usually apparent
upon exposure to cold. Hereditary factors, exposure to
cold and dampness, diet, smoking and work practices
are all thought to contribute to the development of these
symptoms. There are measures that can be taken by the
operator to possibly reduce the effects of vibration:
■Keep your body warm in cold weather. When operating
the product, wear gloves to keep the hands and wrists
warm. It is reported that cold weather is a major factor
contributing to Raynaud’s Syndrome.
■After each period of operation, exercise to increase
blood circulation.
■Take frequent work breaks. Limit the amount of
exposure per day.
If you experience any of the symptoms of this condition,
immediately discontinue use and see your physician.
WARNING
Injuries may be caused, or aggravated, by prolonged
use of a tool. When using any tool for prolonged periods,
ensure you take regular breaks.
WHAT’S IN THE BOX
■Trimmer attachment x 1
■Trimmer guard x 1
■Wrench x 1
■Manual x 1

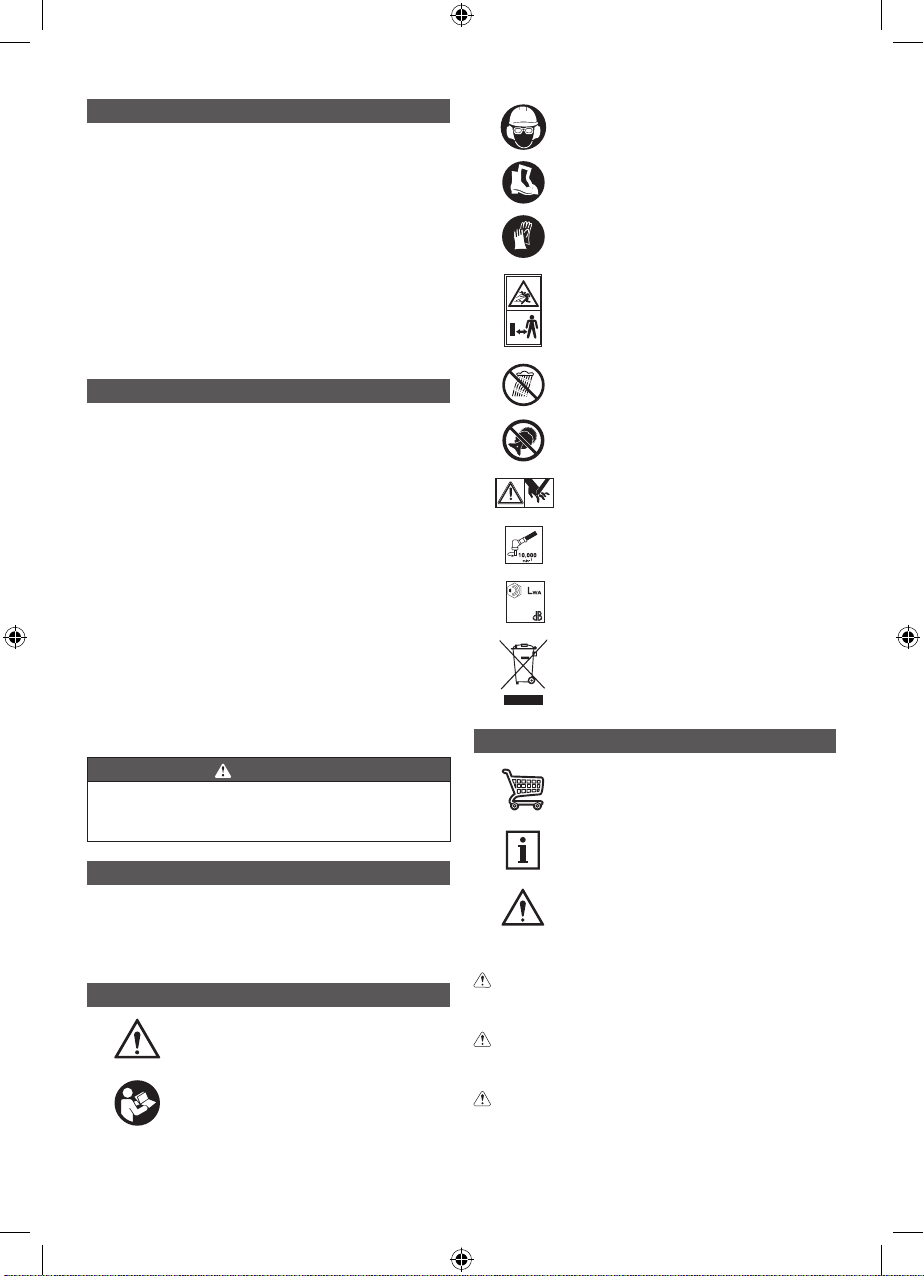

SYMBOLS ON THE PRODUCT
Safety alert
Read and understand all instructions
before operating the product, follow all
warnings and safety instructions.
Wear eye, ear, and head protection.
Wear non-slip safety footwear when
using the product.
Wear non-slip, heavy-duty gloves.
Beware of thrown or flying objects.
Keep all bystanders, especially children
and pets, at least 15 m away from the
operating area.
Do not expose to rain or damp
condition.
Do not use metal blade(s) on the
product.
Keep hands away from blades.
Rotational direction and maximum speed
of the shaft for the cutting attachment.
114
Guaranteed sound power level (tested in
RLT254SDSO model)
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or
retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Parts or accessories sold separately
Note
Warning
The following signal words and meanings are intended to
explain the levels of risk associated with this product.
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
CAUTION

4
Without safety alert symbol
Indicates a situation that may result in property damage.
ASSEMBLY
UNPACKING
This product requires assembly.
■Carefully remove the product and any accessories from
the box. Make sure that all items listed in the packing
list are included.
■Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
■Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
WARNING
If any parts are damaged or missing, do not operate the
product until the parts are replaced. Failure to heed this
warning could result in serious personal injury.
WARNING
Do not attempt to modify the product or create
accessories not recommended for use with the product.
Any such alteration or modication is misuse and could
result in a hazardous condition leading to possible
serious personal injury.
WARNING
Never attach or adjust any attachment while the power
head is running. Failure to stop the engine may cause
serious personal injury.
WARNING
Be certain all knobs and fasteners are fully tightened
before operating the product. Check it periodically for
tightness during use to avoid serious injury.
ATTACHING THE GRASS DEFLECTOR
■Insert the tab on the mounting bracket in the slot on the
grass deflector.
■Insert the screw into the grass deflector.
■Tighten the screw securely.
ATTACHING THE POWER HEAD TO THE TRIMMER
ATTACHMENT
WARNING
Never attach or adjust any attachment while the power
head is running. Failure to stop the engine may cause
serious personal injury.
■The trimmer attachment connects to the power head by
means of a coupler device.
■Loosen the knob on the coupler of the power head shaft
and remove the end cap from the attachment.
■Push in the button located on the attachment shaft.
■Align the button with the guide recess on the power
head coupler and slide the two shafts together.
■Rotate the attachment shaft until the button locks into
the positioning hole.
NOTE: If the button does not release completely in the
positioning hole, the shafts are not locked into place.
Slightly rotate from side to side until the button is locked
into place.
■Tighten the knob securely.
REMOVING THE ATTACHMENT FROM THE POWER
HEAD
■Loosen the knob.
■Push in the button and twist the shafts to remove and
separate the ends.
ATTACHING THE HANGER CAP
To use the hanger cap, push in the button and place the
hanger cap over the lower end of the attachment. Slightly
rotate the cap from side to side until the button locks into
place.
NOTE: The secondary hole in the attachment shaft can be
used for hanging purposes as well.

5
UNPACKING
x 1 x 1
x 1 x 1

6
KNOW YOUR PRODUCT
7
5
6
4
3
1
2
1. Trimmer guard
2. Cut-off blade
3. Upper housing
4. Spool
5. Bump knob
6. Lower housing
7. Cutting line

7
GETTING STARTED
2
1
3
2
1
1 2
3
Always wear safety goggles or safety glasses with side
shields when operating the product. Failure to do so could
result in objects being thrown into your eyes resulting
in possible serious injury. When handling the trimmer
assembly, wear non-slip, heavy-duty protective gloves.
Wear non-skid, protective footwear that will protect your
feet and improve your footing on slippery surfaces.
Attach the grass deector.
Attach the powerhead to the trimmer attachment.

8
OVERVIEW
p.9
p.13 p.14
p.12p.11

9
OPERATION
1
2
OPERATING THE TRIMMER
NOTE: Hold the product with the right hand
on the rear handle and the left hand on the
front handle.
WARNING:
Do not cut in a dangerous cut-
ting area. Avoid trees and shrubs. Tree bark,
wood mouldings, cladding, and fence posts
can easily be damaged by the line.
WARNING
: Exercise extreme caution when
using the product.
Tap the knob on the ground to advance the
line. The line advances each time the head is
tapped. Do not hold the knob on the ground.

10
OPERATION
1
2
3
NOTE: The line trimming cut-off blade on
the grass deflector will cut the line to the
correct length.
NOTE: The small blade fitted to the cutting
attachment guard is designed to trim the
new extended line to the correct length for
safe and optimum performance. It is very
sharp; do not touch it, particularly when
cleaning the product.
NOTE: Cut tall grass from the top down.
This will prevent grass from wrapping
around the shaft housing and bump head,
which may cause damage from overheat-
ing.
NOTE: For cutting ease and safety, cut the
grass from the right side to the left side.

11
MAINTENANCE
12
1
2
20cm20cm 20cm20cm
1
2
2.7m
3
REPLACING THE LINE
1. Rotate the bump knob on the trimmer head
until the line on the centre of the bump knob
aligns with arrows on top of trimmer head.
2. Use a 2.4 mm diameter monolament string.
Cut one piece of string approximately 5.4 m
in length. Insert one end of the line located
on the side of the trimmer head and push
until line comes out through the eyelet on the
other side. Continue to push string through
the string head until the middle section of the
string is inside the string head.
3. Ensure there is equal lengths of line on either
side of the trimmer head (max. 2.7 m per
side). Rotate the bump knob on the trimmer
head to wind the line.
NOTE: Wind the line until approximately
20 cm remains protruding from the trimmer
head.

12
MAINTENANCE
3
2
1
2
1
3
1
2

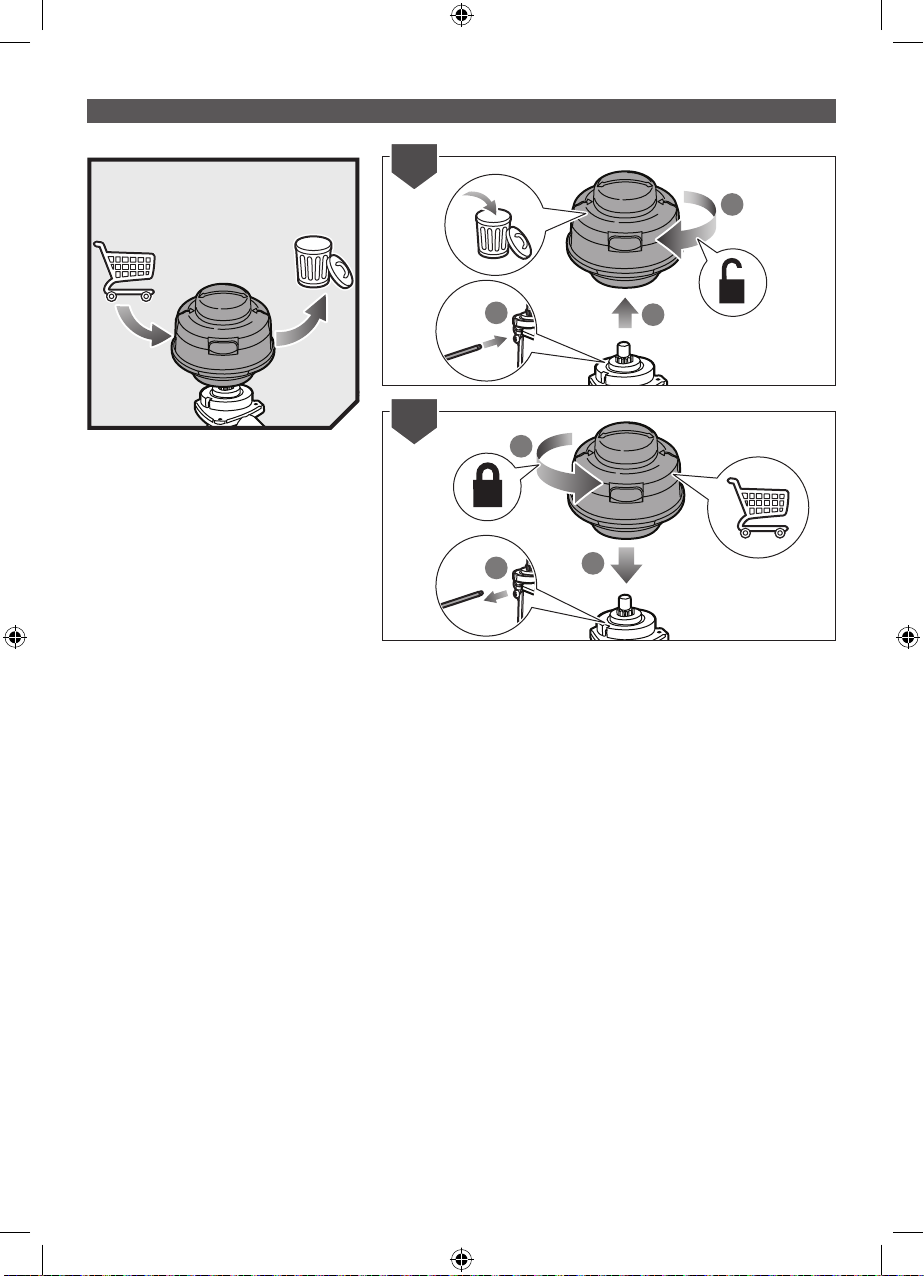

REPLACING THE STRING HEAD
1. Insert the wrench through the hole in the
upper ange washer and the hole in the gear
head, then turn clockwise to remove the old
string head.
2. Install the new string head, align the nut
in the string head to the connector shaft
of the gear box and turn the string head
counterclockwise by hand to tighten.

13
MAINTENANCE
1
CLEANING THE PRODUCT
1. Clean all foreign material from the product.
WARNING: Keep away from corrosive
agents such as garden chemicals and de-
icing salts.
WARNING:The small blade fitted to the
cutting attachment guard is designed
to trim the new extended line to the
correct length for safe and optimum
performance. It is very sharp; do not
touch it, particularly when cleaning the
product.

14
STORAGE
20190402v1
2
1
3
4
1
2

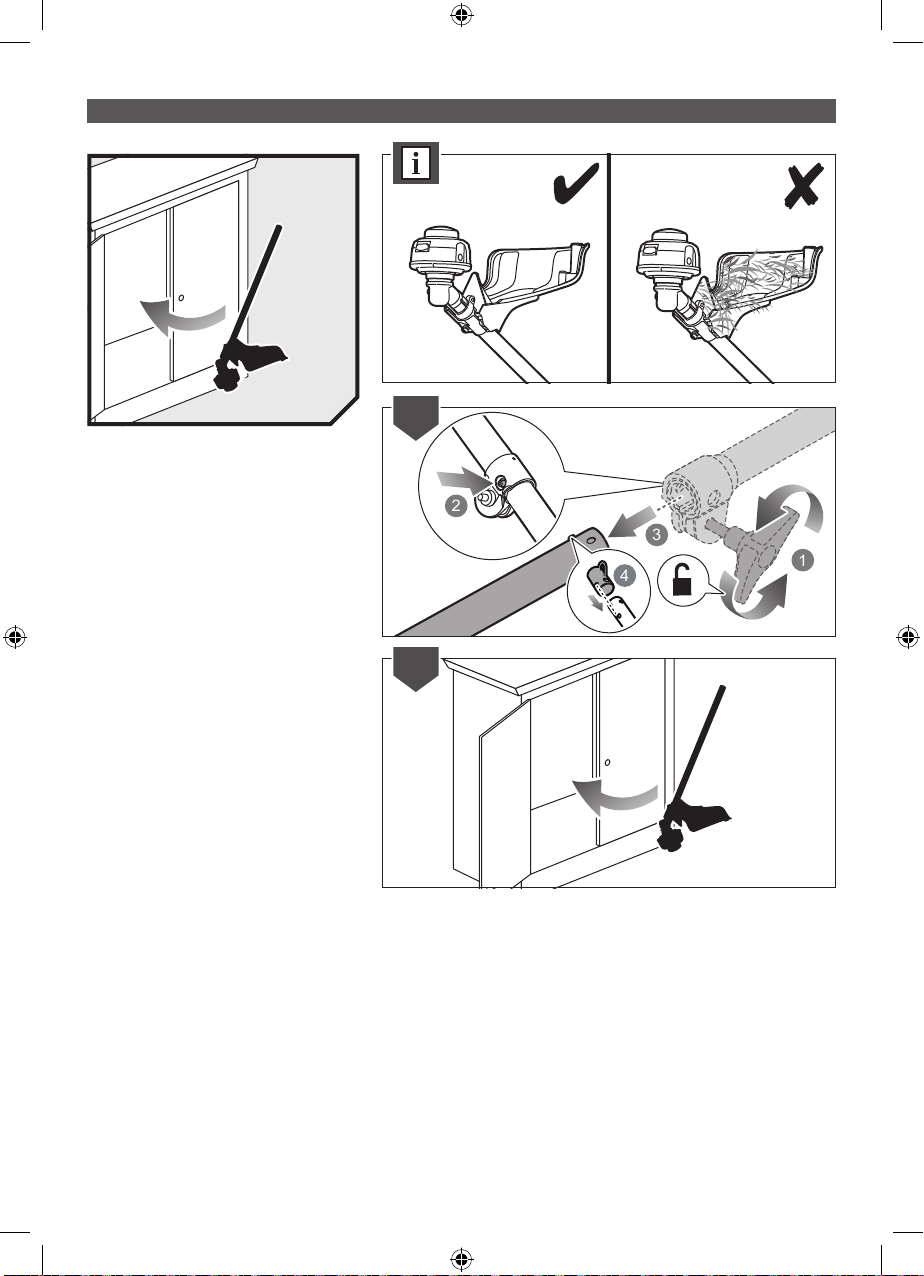

STORING THE PRODUCT
NOTE:
Make sure to clean the product
before storing.
1. Remove the attachment from the upper
boom of the power head, and then attach the
hanger cap.
NOTE: If a cutting blade is tted, cover it
with the blade protector.
2. Store the product.

PRODUCT SPECIFICATIONS
Line trimmer attachment
Model
ALT05
Weight
1.45 kg
Cutting swath
457 mm
Cutting line diameter
2.4 mm
For assembling with petrol-driven power head (Below values
measured on RLT254SDSO power head)
Weight (power head only)
4.25 kg
Fuel tank volume
580 cm3
Engine displacement
25.4 cm3/cc
Maximum engine performance (in
accordance with ISO 8893)
0.85 kW
Rated engine performance
0.8 kW
Maximum rotational frequency of
the spindle
10,000 min-1
Engine speed (rotational frequency)
at idle 2,600-3,400
min-1
Fuel consumption (in accordance
with ISO 8893) at max. engine
performance
0.38 kg/h
Specic fuel consumption (in
accordance with ISO 8893) at max.
engine performance
0.45 kg/h
Vibration level (in accordance with ISO 22867
Front handle
- Idling
3.8 m/s2
- Racing
13.8 m/s2
- Equivalent
10.1 m/s2
Rear handle
- Idling
4.2 m/s2
- Racing
7.1 m/s2
- Equivalent
5.9 m/s2
Uncertainty of vibration measurement
1.5 m/s2
Noise emission level (in accordance with ISO 22868)
A-weighted emission sound pressure level at the operator’s position
- Idling
72.3 dB (A)
- Racing
98.4 dB(A)
- Equivalent A-weighted sound
pressure level
95.4 dB (A)
Uncertainty
2.5 dB(A)
A-weighted sound power level
- Idling
83.1 dB(A)
- Racing
111.8 dB(A)
- Equivalent A-weighted sound
power level
111.8 dB(A)
Uncertainty
2.5 dB
REPLACEMENT PARTS
Parts Accesory number Part number
Speed winder bump feed
head
RAC1214 000997065
Grass deector
N/A 308743020
String line
N/A 528721000

961480051-01
RYOBI is a trademark of Ryobi Limited, and
is used under license.
Techtronic Industries (Australia) Pty. Ltd.
31 Gilby Road, Mount Waverley,
VIC, 3149, Australia
Techtronic Industries New Zealand Ltd.
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
Imported by:
