Ryobi RY18PW22A User manual

FRONT PAGE
RY18PW22A

2
Original Instructions
IMPORTANT!
It is essential that you read the instructions
in this manual before assembling, operating,
and maintaining the product.
Subject to technical modication.
Safety, performance, and dependability have
been given top priority in the design of your
cordless power washer.
INTENDED USE
The cordless power washer is intended for
outdoor use only.
The product is designed for home or domestic
use. It is intended to clean patio furniture,
windows, automobiles, boats by removal of
stubborn dirt using clean water with or without
cleaning detergent.
The product should be used in well-illuminated
conditions.
Use the designated accessory kits for the
power washer when using it for any other
purpose, such as spraying consumer-grade
cleaning solutions and disinfectants.
Do not use the product for any other purpose.
WARNING! The product is designed for
use with a neutral cleaning agent supplied or
recommended by the manufacturer. The use
of other cleaning agents or chemicals may
adversely affect the safety of the product.
GENERAL SAFETY WARNINGS
WARNING! Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock,
re, and/or serious injury.
CAUTION! The product must not be used
on a drinking water supply without a backow
preventer being installed that corresponds to
EN 12729 Type BA. Water owing through
a backow preventer is not considered
drinkable. Do not connect the product to the
public drinking water network.
■The product is not intended for use by
children or persons with reduced physical,
sensory, or mental capabilities, or lack of
experience and knowledge. Children should
be adequately supervised to ensure they do
not play with the product.
■Wear personal protective equipment when
operating the product, such as safety
goggles and hearing protection.
■To reduce the risk of injury, keep children
and bystanders away. All bystanders should
wear safety glasses and be kept at a safe
distance from the work area.
■Inspect the safety devices to check if they
are in good working condition. Make sure
that all safety devices are operating properly
before each use.
■Do not use the product if the important parts
are damaged, such as safety devices or
spray wand.
WARNING! During the use of power
washers, aerosols may be formed. Inhalation
of aerosols can be hazardous to health.
WARNING! Do not turn the nozzle while
pulling the trigger. If the water is owing while
the nozzle is turned, the relief channel releases
the water. This is not a leak, but allows the
water to escape without damaging the tool.
■High-pressure jet is dangerous if misused.
Do not direct the jet to people, live
electronics, or the product itself.
■To avoid the risk of explosion, do not spray
flammable liquids.
■Do not direct the jet against yourself or
others to clean clothes or footwear.
■Hoses, fittings, and couplings are important
for the safety of the product. Use only
hoses, fittings, and couplings that are
recommended by the manufacturer.
■Some regions have regulations that restrict
the use of the product in some operations.
Check with your local authority for advice.
■Before each use, check for damage.
Damaged hoses must be replaced
immediately. Ensure that all connections,
such as spray wand and nozzle, are secure.
Unwind the hose properly so they may not
get twisted or kinked.
■Before starting any cleaning operation,
close doors and windows. Clear the area to
be cleaned of debris, toys, outdoor furniture,
or other objects that could create a hazard.
■Do not use the product in temperatures
below 0°C.
■Do not use acids, alkaline, solvents,
flammable material, bleaches, or industrial
grade solutions in the product. These
products can cause physical injuries to the
operator and irreversible damage to the
product.
WARNING! High-pressure jet can be
dangerous if subject to misuse. The jet must
not be directed to people, animals, electrical
devices, or the product itself.

3
Original Instructions
■Hold the handle securely with both hands.
Expect the handle to move when the trigger
is pulled due to reaction forces. Failure to
do so could cause loss of control and injury
to yourself and others.
■Exercise caution to avoid slipping or falling.
■Keep firm footing and balance. Do not
overreach. Overreaching can result in loss
of balance.
■Never leave the product running unattended.
Turn off the product, and leave only when it
comes to a complete stop. Keep the product
out of reach of children when it is turned on.
■Be familiar with the controls. Know how to
stop the product and bleed the pressure
quickly.
■Stay alert, and exercise control. Watch what
you are doing, and use common sense.
■Do not use the product while tired, ill, or
under the influence of drugs, alcohol, or
medication. A moment of inattention while
operating the product may result in serious
personal injury.
■Do not use the product if the switch does not
turn it on and off. Any product that cannot
be controlled with a switch is dangerous
and must be repaired.
■Keep a minimum distance of 30 cm when
cleaning vehicles. The high-pressure jet
may damage or burst vehicle tires or tire
valves.
■The product is not to be used if it has
been dropped, if there are visible signs of
damage, or if it is leaking.
■Injuries may be caused, or aggravated, by
prolonged use of the product. When using
the product for prolonged periods, ensure to
take regular breaks.
BATTERY PACK SAFETY WARNINGS
■Recharge the battery pack only with the
charger specified by the manufacturer.
A charger that is suitable for one type of
battery pack may create a risk of fire when
used with another battery pack.
■When battery pack is not in use, keep it
away from other metal objects, such as
paper clips, coins, keys, nails, screws, or
other small metal objects that can make a
connection from one terminal to another.
Shorting the battery pack terminals together
may cause burns or a fire.
■Keep the battery pack and the charger away
from wet and damp conditions.
■Use the product only with battery packs
specified in this manual. Use of any other
battery packs may create a risk of injury and
fire.
■Under abusive conditions, liquid may be
ejected from the battery pack; avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, seek medical
help. Liquid ejected from the battery pack
may cause irritation or burns.
■The battery pack has overheat protection.
Excessive temperatures will cause the
battery to stop powering the product. If the
battery pack is too warm, allow it to cool
down before resuming operation. If the
product still does not work, recharge the
battery pack.
NOTE: The battery pack LED indicator
will not work if the battery pack protection
feature has caused the battery pack to stop
powering the product. Release the on-off
button or remove the battery pack from the
product and the battery pack LED indicator
will resume normal function.
ADDITIONAL BATTERY SAFETY
WARNINGS
WARNING! Do not splash water to the
product. It may damage the battery pack.
To reduce the risk of re, personal injury, and
product damage due to a short circuit, never
immerse your tool, battery pack or charger in
uid or allow uid to ow inside them. Corrosive
or conductive uids, such as seawater, certain
industrial chemicals, and bleach, or bleach-
containing products, etc., can cause a short
circuit.
TRANSPORTATION AND STORAGE
■Stop the product, remove the battery
pack, and allow the product to cool down.
Disconnect the product from the water
supply before storing or transporting.
■Remove water from all hoses and the pump,
and empty the detergent tank before storing
the product.
■Neatly coil the siphon hose, and store it with
the power washer.
■Clean all foreign materials from the product.
Store it in a cool, frost-free, dry, and well-
ventilated place that is inaccessible to
children. Do not store the product near the
furnace or other sources of heat that could
dry out the pump seals. Keep the product

4
Original Instructions
away from corrosive agents, such as garden
chemicals and de-icing salts. Do not store
the product outdoors.
■For transportation in a vehicle, secure the
product against movement or falling to
prevent injury to persons or damage to the
product.
WARNING! Store the product indoors only.
Storing in an area with temperature below 0°
will damage the product.
TRANSPORTING LITHIUM BATTERIES
Transport the battery pack in accordance with
local and national provisions and regulations.
Follow all special requirements on packaging
and labelling when transporting batteries by a
third party. Ensure that no batteries can come
in contact with other batteries or conductive
materials while in transport by protecting
exposed connectors with insulating, non-
conductive caps or tape. Do not transport
batteries that are cracked or leaking. Check
with the forwarding company for further advice.
MAINTENANCE
Use only original manufacturer’s replacement
parts, accessories, and attachments. Failure to
do so can cause possible injury, can contribute
to poor performance, and may void your
warranty.
Servicing requires extreme care and
knowledge and should be performed only by a
qualied service technician. Have the product
serviced by an authorised service centre only.
When servicing, use only original replacement
parts.
■Stop the product, remove the battery
pack, and allow the product to cool down.
Disconnect the product from the water
supply:
●before cleaning the product
●before maintaining the product
●before replacing spare parts
■You may make adjustments or repairs
described in this manual. For other repairs,
contact an authorised service centre.
■Regularly inspect and maintain the product
for safe operation. Ensure that the battery
compartment is properly assembled, tightly
closed, and frequently check for damages.
Any part that is damaged should be properly
repaired or replaced by an authorised
service centre.
■If the product is to be stored unused for
a long period, the batteries should be
removed.
KNOW YOUR PRODUCT
See page 7.
1. Release button
2. Power washer housing
3. Lock-out button
4. Latch
5. Handle grip
6. Switch trigger
7. Battery compartment
8. Water inlet
9. Extension wand
10. Operator's manual
11. 3-in-1 nozzle
12. Release button
13. Quick connector
14. Siphon hose
15. Floater
16. Filter
17. Battery pack (sold separately)
18. Charger (sold separately)
19. Detergent
20. Multipurpose Brush
21. Detergent Bottle
SAFETY DEVICES
■Lock-out button
–The lock-out button locks the switch
trigger and prevents unintentional
opening of the high-pressure jet.

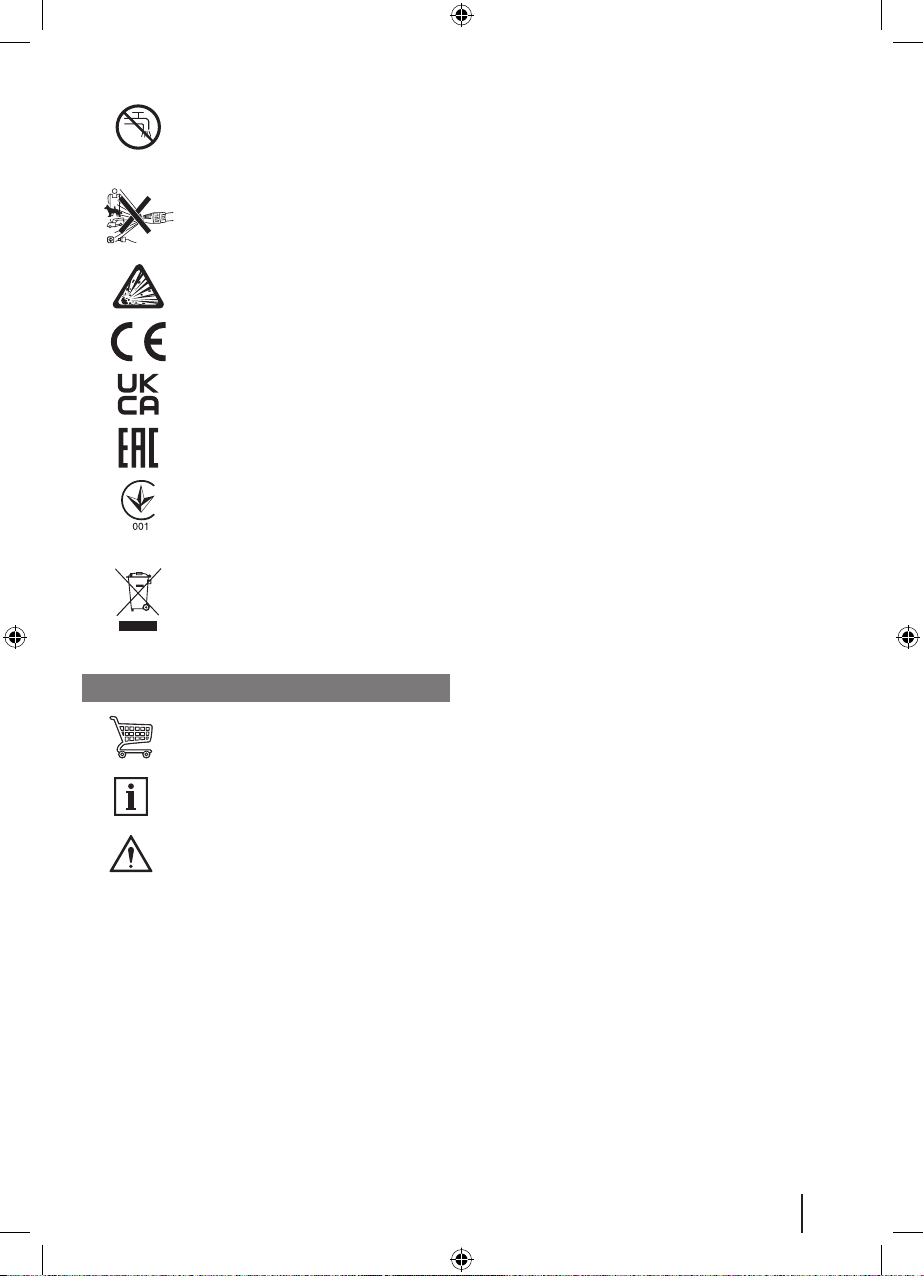

SYMBOLS ON THE PRODUCT
Warning
To reduce the risk of injury,
read and understand the
operator’s manual before
using the product.
Wear eye and hearing
protection.
To reduce the risk of injury
from high-pressure injection,
do not direct spray at persons
or animals.
Kickback. To reduce the risk of
injury from kickback, hold the
trigger handle securely with
both hands when the product
is on.

5
The product is not suitable
for connection to the drinking
water supply without backow
preventer.
Never point the spray wand to
human, animals, the body of
the product, power supply, or
any electrical appliances.
Burst hazard
European Conformity Mark
British Conformity Mark
EurAsian Conformity Mark
Ukraine Conformity Mark
Waste electrical products
should not be disposed of
with household waste. Please
recycle where facilities exist.
Check with your local authority
or retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Parts or accessories sold
separately
Note
Warning

6

7
RY18PW22A
15
16
14
13
12
11
10
9
8
7
6
5
4
3
2
1
17
18
19
21
20
RY18PW22A-120P
RY18PW22A-125
RY18PW22A-140

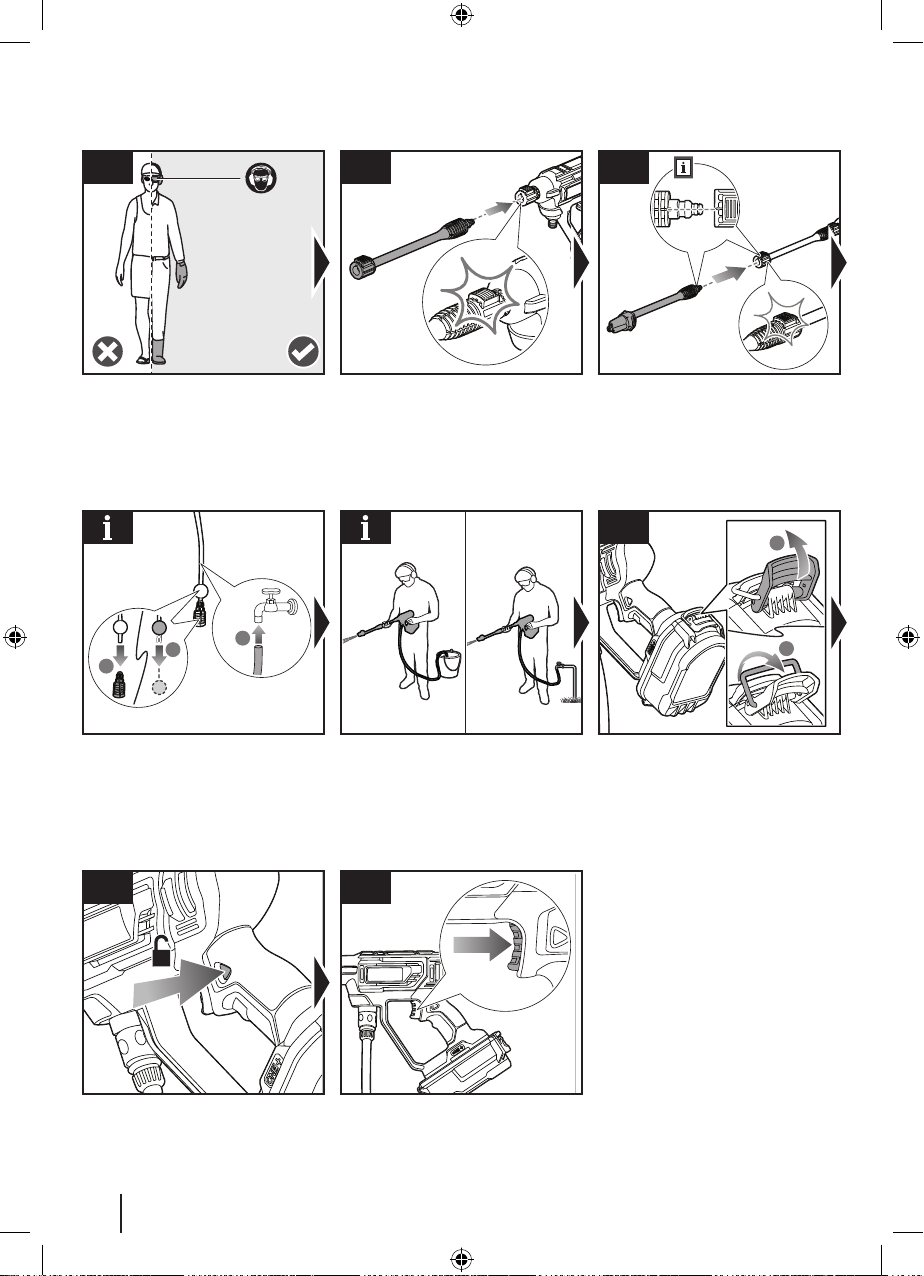

8
1
2
3
2
1
1

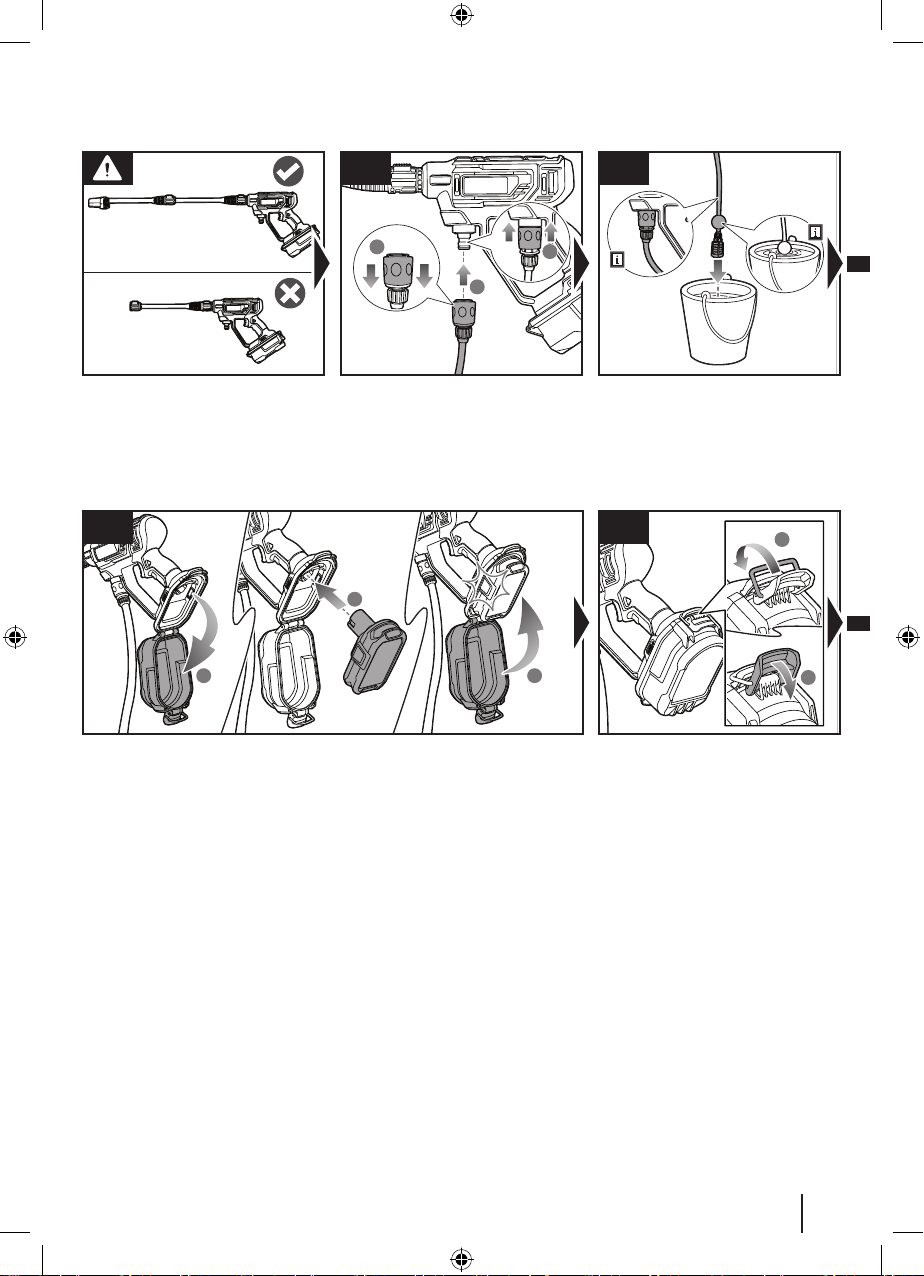

9
2
10
3
6

9
1
3
2
2
1
4 5
8
i
9
3
1
2
7

10
p.13p.11

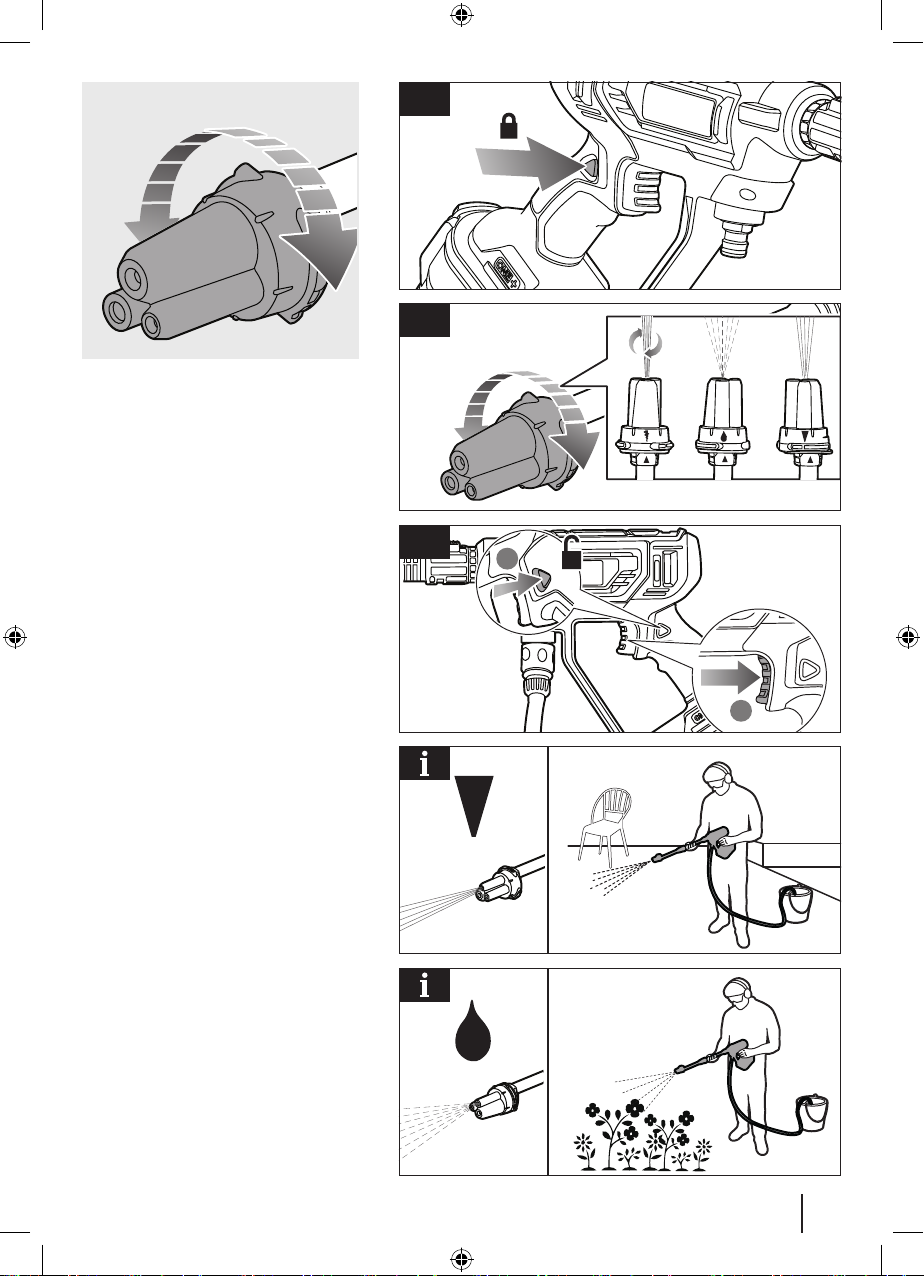

11
1
2
1
2
3

12
1
2

13
12
1
1
3
4
2
2
1
2
3
1
2
1
2
2
1
4
5

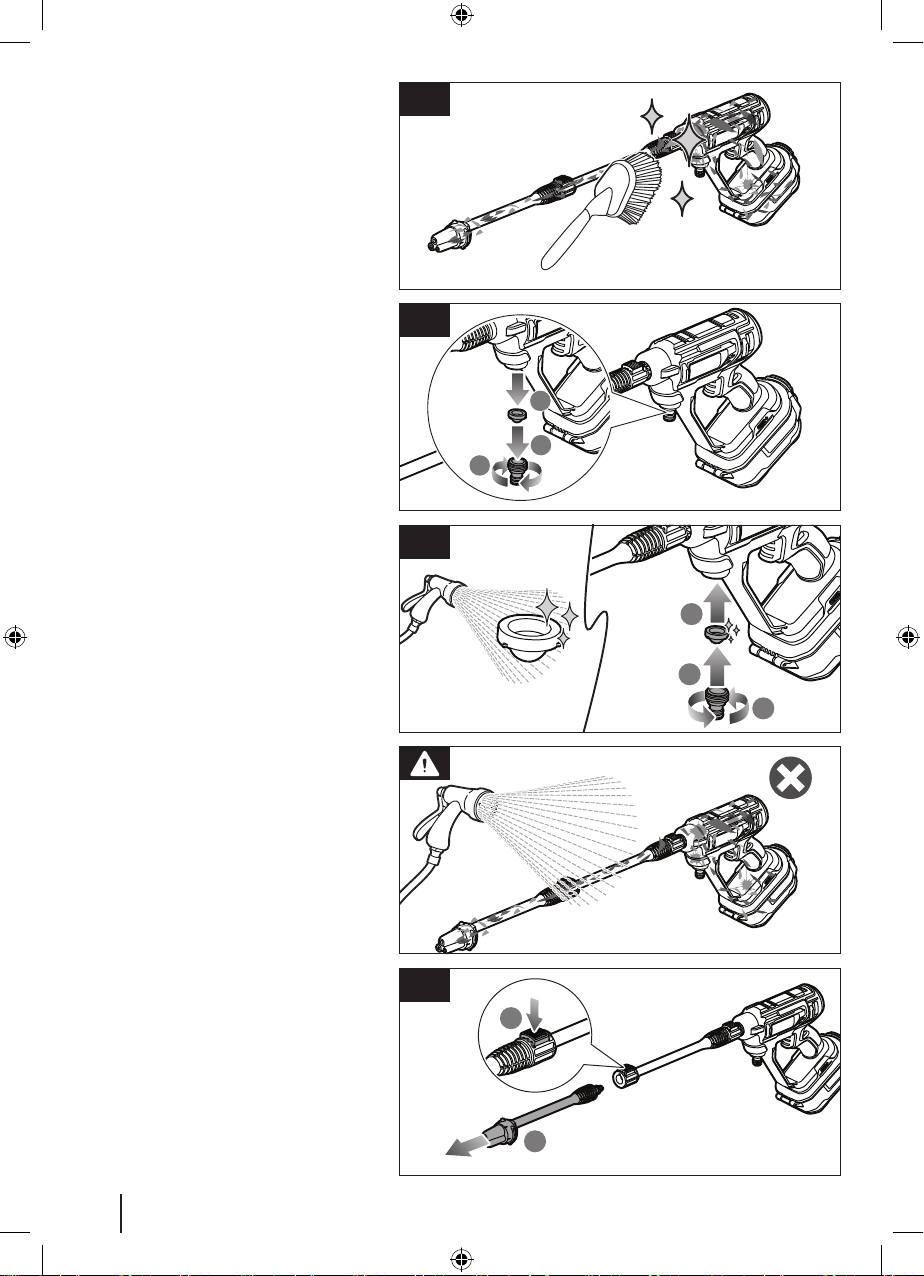

14
1
2
3
1
2
3
6
7
8
1
2
9

15
2
1
10
11
20210617v4d3

PRODUCT SPECIFICATIONS
Cordless power washer
Model RY18PW22A
Rated voltage 18 V d.c.
Weight 2 kg
Maximum pressure 24.8 bar
Rated pressure 22 bar
Dilution ratio 1:20
Rated ow 182 L/hr
Maximum ow 270 L/hr
Maximum inlet water
pressure
7 bar
Maximum suction height 1.2 m
Maximum suction hose
length
6 m
Minimum garden hose inner
diameter
8 mm
BATTERY AND CHARGER
Model RY18PW22A-0 RY18PW22A-120P
Battery pack - RB18L20
Charger - RC18115
Compatible battery
packs
RB18L..
Compatible
chargers
BCS618G, BCL14181.., RC18..
Model RY18PW22A-125 RY18PW22A-140
Battery pack RB18L25 RB18L40
Charger RC18115 RC18115
Compatible battery
packs
RB18L..
Compatible
chargers
BCS618G, BCL14181.., RC18..
ACCESSORIES
20L Water Bag RAC717
Stone Detergent RAC731
Foam Detergent RAC732
Universal Detergent RAC733
Wood Detergent RAC734
Detergent Bottle RAC748
Wheel Brush RAC749
Multipurpose Brush RAC750
2L Bottle Adapter RAC751
Misting Kit RAC754
Squeegee RAC763
Pivoting adaptor RAC764
Rinsing nozzle RAC765
Extension wand RAC767
Extension pole RAC768
Extension syphoning RAC769
QC kit RAC770
3-in-1 nozzle RAC771

RYOBI® WARRANTY APPLICATION ONDITIONS
In addition to any statutory rights resulting from the purchase, this product is covered
by a warranty as stated below.
1. The warranty period is 24 months for consumers and commences on the date
the product was purchased. This date has to be documented by an invoice or
other proof of purchase. The product is designed and dedicated to consumer
and private use only. So there is no warranty provided in case of professional or
commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC)
the warranty period over the period described above using the registration on
the www.ryobitools.eu website. The eligibility of products for extended warranty
is clearly displayed in stores and / or on packaging and is contained within the
product documentation. The end user is required to register his/her newly-
acquired products online within 30 days from the date of purchase. The end user
may register for the extended warranty in his/her country of residence if listed on
the online registration form where this option is valid. Furthermore, end users
must give their consent to the storage of their personal data that is required to be
entered online. They must also accept the terms and conditions. The registration
confirmation receipt, which is sent out by e-mail, and the original invoice showing
the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to
faults in workmanship or material at the purchase date. The warranty is limited to
repair and/or replacement and does not include any other obligations including
but not limited to incidental or consequential damages. The warranty is not valid
if the product has been misused, used contrary to the instruction manual, or has
been incorrectly connected to a power supply. This warranty does not apply to:
–any damage to the product that is the result of improper or lack of
maintenance
–any product that has been altered or modified
–any product where original identification (trade mark, serial number)
markings have been defaced, altered or removed
–any damage caused by non-observance of the instruction manual
–any product not displaying the CE approval mark on the rating plate
–any product that has been attempted to be repaired by a non-authorised
warranty service centre or without prior authorisation by Techtronic
Industries
–any product connected to an improper power supply (amps, voltage,
frequency)
–any product used with inappropriate fuel mixture (fuel, oil, Ratio of oil / fuel
mixture)
–any damage caused by external influences (water, chemical, physical,
shocks) or foreign substances
–normal wear and tear spare parts
–inappropriate use, overloading of the tool
–use of non-approved accessories or parts
–Accessories provided with the tool or purchased separately including but
not limited to blades, saw chains, cutting lines etc.
–Any periodic adjustments to or maintenance cleaning of carburetors
–Components (parts and accessories) subject to natural wear and tear,
including but not limited to bump knobs, drive belts, clutch, blades of hedge
trimmers or lawn mowers, harness, cable throttle, carbon brushes, power
cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes,
vacuum bag and straps, guide bars, saw chains, hoses, connector fittings,
spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines,
spark plugs, air filters, gas filters, mulching blades, etc.
4. For servicing, the product must be sent or presented to a RYOBI authorised
service station listed for each country in the following list of service station
addresses. In some countries your local RYOBI dealer undertakes to send the
product to the RYOBI service organisation. When sending a product to a RYOBI
service station, the product should be safely packed without any dangerous
contents such as petrol, marked with sender’s address and accompanied by a
short description of the fault.
5. A repair / replacement under this warranty is free of charge. It does not constitute
an extension or a new start of the warranty period. Exchanged parts or products
become our property. In some countries delivery charges or postage will have
to be paid by the sender. Your statutory rights arising from the purchase of the
product remain unaffected.
6. This warranty is valid in the European Community, Switzerland, Iceland, Norway,
Liechtenstein, Turkey, Russia and the United Kingdom. Outside these areas,
please contact your authorised RYOBI dealer to determine if another warranty
applies.
AUTHORISED SERVICE CENTRE
Any request or issue with the product can be addressed to your local authorized
service centres (visit www.ryobitools.eu) or directly to: Techtronic Industries GmbH,
Max Eyth Straße 10, 71364 Winnenden, Germany. Please state the serial number and
product type printed on the label.
EC DECLARATION OF CONFORMITY
Manufacturer: Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
We declare as the manufacturer under our sole responsibility that the product
mentioned below
Cordless power washer
Brand: RYOBI
Model number: RY18PW22A
Serial number range: 47575101000001 - 47575101999999
fulfills all the relevant provisions of the following European Directives, European
Regulations and harmonized standards:
2014/35/EU, 2014/30/EU, 2011/65/EU, EN 55014-1:2017+A11,
EN 55014-2:2015, EN 60335-1:2012+A1+A2+A11+A13+A14, EN
60335-2-54:2008+A11+A1, EN 62233:2008, EN IEC 63000:2018
Sven Eschrich
VP of Engineering - TTI Outdoor Power Division
Winnenden, Feb. 2, 2021
Authorised to compile the technical file:
Alexander Krug, Managing Director
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
GB-DECLARATION OF CONFORMITY
Manufacturer: Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
We declare as the manufacturer under our sole responsibility that the product
mentioned below
Cordless power washer
Brand: RYOBI
Model number: RY18PW22A
Serial number range: 47575101000001 - 47575101999999
fulfills all the relevant provisions of the following Regulations: S.I. 2016/1101 (as
amended), S.I. 2016/1091 (as amended), S.I. 2012/3032 (as amended), and that the
following designated standards have been used:
BS EN 55014-1:2017+ A11, BS EN 55014-2:2015,
BS EN 60335-1:2012+A1+A2+A11+A13+A14, BS EN
60335-2-54:2008+A11+A1, BS EN 62233:2008,
BS EN IEC 63000:2018
Sven Eschrich
VP of Engineering - TTI Outdoor Power Division
Winnenden, Feb. 2, 2021
Authorised to compile the technical file:
Alexander Krug, Managing Director
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
RYOBI is a trade mark of Ryobi Limited,
and is used under license.
© 2020-21 Techtronic Cordless GP.

18

19

BACK PAGE
Techtronic Industries GmbH
Max-Eyth-Straße 10,
71364 Winnenden, Germany
Techtronic Industries (UK) Ltd
Fieldhouse Lane
Marlow Bucks SL7 1HZ
UK
961068243-03
