Ryobi ED-500 Operation manual

ED-500

- 1 -
7
5 6
1 3 42
98 10

- 3 -
Fig. 2Fig. 1
Fig. 4Fig. 3
Fig. 6Fig. 5
SDS-plus adapter
SDS-plus drill
chuck shaft
Ring gear
drill chuck
a
b
31
6

- 3 -
Fig. 8Fig. 7
Fig. 9 Fig. 10
Fig. 11 Fig. 12
9
7 7
77
5
t
4

- 4 -
THANK YOU FOR BUYING A RYOBI PRODUCT.
To ensure your safety and satisfaction, carefully read through
this OWNER’S MANUAL before using the product.
General Safety Rules
WARNING!
below may result in electric shock, fire and/or serious injury. The term
Read all instructions. Failure to follow all instructions listed
“power tool” in all of the warnings listed below refers to your mains
operated (corded) power tool or battery-operated (cordless) power
tool.
SAVE THESE INSTRUCTIONS
1) Work area
a) Keep work area clean and well lit. Cluttered and dark areas
invite accidents.
b) Do not operate power tools in explosive atmospheres, such
as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a
power tool.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
Distractions can cause you to lose control.
b) Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators. There is
an increased risk of electric shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away from
heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e) operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
3) Personal safety
a)
Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while
you are tired or under the influence of drugs, alcohol or
medication.
A moment of inattention while operating power
tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety
equipment such as dust mask, non-skid safety shoes, hard hat,
or hearing protection used for appropriate conditions will reduce
personal injuries.
c) Avoid accidental starting. Ensure the switch is in the OFF
position before plugging in. Carrying power tools with your
finger on the switch or plugging in power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating
part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all
times. This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices can
reduce dustrelated hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for
your application. The correct power tool will do the job better
and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power source before making
any adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of
moving parts, breakage of parts and any other condition
that may affect the power tools operation. If damaged, have
the power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind and
are easier to control.
g) Use the power tool, accessories and tool bits etc., in
accordance with these instructions and in the manner
intended for the particular type of power tool, taking
into account the working conditions and the work to
be performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person
using only identical replacement parts. This will ensure that
the safety of the power tool is maintained.
Specific Safety Rules
a) Wear ear protectors. Exposure to noise can cause hearing
loss.
b) Use auxiliary handles supplied with the tool. Loss of control
can cause personal injury.
c) Hold power tools by insulated gripping surfaces when
performing an operation where the cutting tool may
contact hidden wiring or its own cord. Contact with a “live”
wire will make exposed metal parts of the tool “live” and shock
the operator.
d) Keep hands away from all cutting edges and moving parts.
e) Maintain labels and nameplates. These carry important
information. If unreadable or missing, contact a RYOBI
service facility for a free replacement.
WARNING!
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains chemicals
known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are
specially designed to filter out microscopic particles.
1. lead from lead-based paint.
2. crystalline silica from bricks and cement and other masonry
products.
3. arsenic and chromium from chemically-treated lumber.

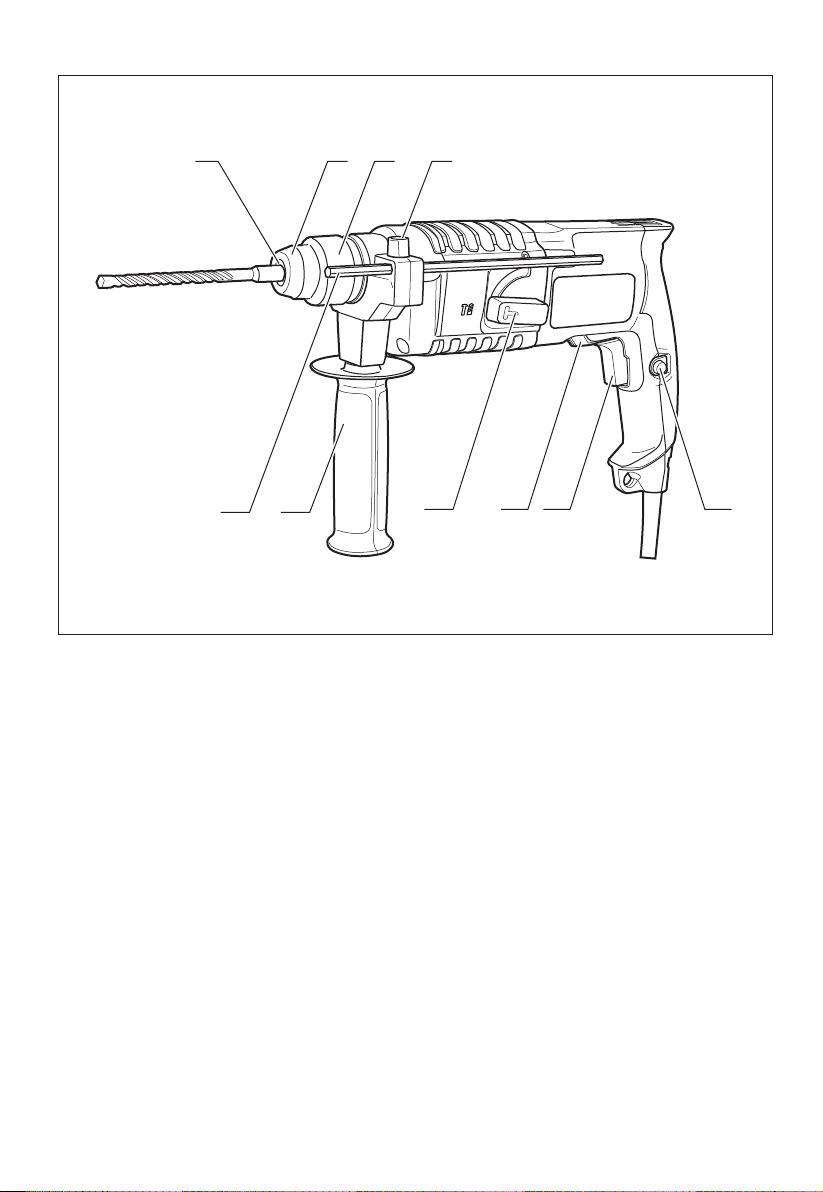

1. Tool holder (SDS-plus)
2. Dust protection cap
3. Locking sleeve
4. Winged screw
5. Depth stop
6. Auxiliary handle
7. Operational mode selection switch
8. Right/Left rotation switch
9. ON/OFF switch
Locking button
10.
Voltage .........................................................
Power input ..............................................................
Impact energy ..............................................................
No load speed ...............................................
Impact rate .......................................................
Drilling capacities
Steel ........................................................
Concrete ..................................................
Wood ........................................................
Shank type ..........................................................
Net weight .................................................................
Drill bit: 6x150mm Drill bit x 1pc, 8x150mm Drill bit x 1pc,
10x150mm Drill bit x 1pc
- 5 -
ROTARY HAMMER SAFETY PRECAUTIONS
1. Mount the bit correctly as described in the operation instructions.
Unless properly mounted, the bit may shoot out.
2. Do not use on surfaces covering electrical wiring.
Before using on walls, floors or ceilings, check for the location of
3. Hold the tool securely with both hands while operating. The tool
may recoil, causing injury to your hands, if not held firmly.
4. Do not touch the bit as it becomes extremely hot during operation.
5. Never point the hammer bit towards any person.
The machine is intended for hammer drilling in concrete, brick and
stone. It is also suitable for drilling without impact in wood, metal,
ceramic and plastic.
Machines with electronic control and right/left rotation are also suitable
for screw driving and thread cutting.
INSTRUCTIONS FOR SAFE HANDLING
DESCRIPTION
SPECIFICATIONS
STANDARD ACCESSORIES
APPLICATIONS
Take care that the dust protection cap (2) is not damaged when
changing tools.
SDS-plus Tools
The SDS-plus tool is designed to be freely movable. This causes
eccentricity when the machine is off-load. However, the drill
automatically centres itself during operation. This does not affect
drilling precision.

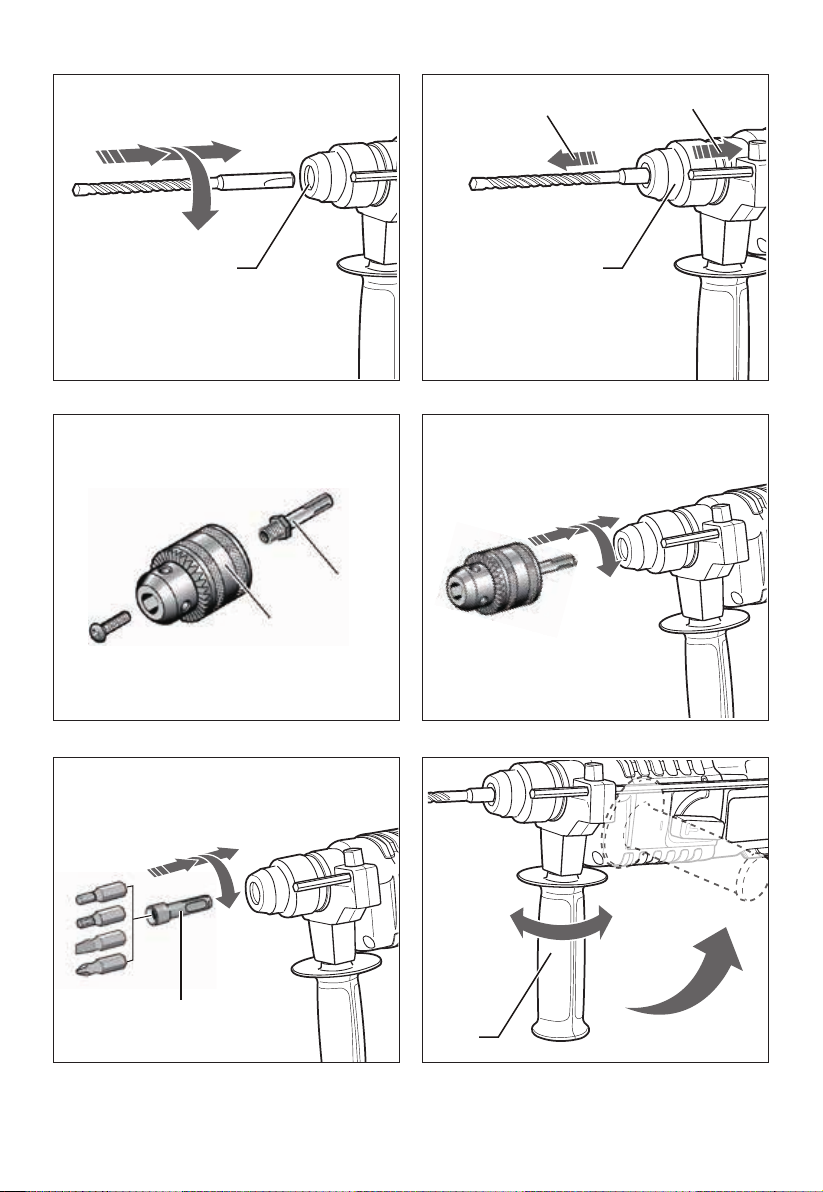

Inserting (Fig. 1)
Clean and lightly oil the tool before inserting.
Insert the dust-free tool into the tool holder (1) with twisting until it
latches.
The tool locks itself. Check the locking by pulling on the tool.
Removing (Fig. 2)
Pull the locking sleeve (3) to the rear (a) and hold while removing the
tool (b).
Tools without SDS-plus
Do not use tools without SDS-plus for hammer drilling or chiseling
To work with tools without SDS-plus (e.g., drills with cylindrical shafts),
a drill chuck with a SDS-plus chuck shaft (optional accessory) must be
inserted into the tool holder (Fig. 3).
Insert the dust-free, assembled chuck into the tool holder l with twisting
until it latches (Fig. 4).
The chuck locks itself. Check the locking by pulling on the chuck.
Screwdriver Bits (Fig. 5)
For screwdriver bits, use the SDS-plus adapter (optional accessory).
1. Make sure that the tool is only connected to the voltage marked
on the name plate.
2. Never use the tool if its cover or any bolts are missing. If the
cover or bolts have been removed, replace them prior to use.
Maintain all parts in good working order.
3. Always secure tools when working in elevated positions.
4. Never touch the blade, drill bit, grinding wheel or other moving
parts during use.
5. Never start a tool when its rotating component is in contact with
the work piece.
6. Never lay a tool down before its moving parts have come to a
complete stop.
7. ACCESSORIES: The use of accessories or attachments other
than those recommended in this manual might present a hazard.
8. REPLACEMENT PARTS : When servicing use only identical
replacement parts
230V ~ 50Hz
500W
1.5J
0-1000min-1
0-3900bpm
20mm
20mm
30mm
SDS-plus
2.3kg
TOOL CHANGING
AUXILIARY HANDLE (FIG. 6)
WARNING! For safety reasons, the machine should be used only with
the auxiliary handle (6).
The auxiliary handle (6) can be rotated 360°.
Loosen the handle grip by turning in direction B, and tighten it at an
easy-to-use position by turning the grip in direction A.
By rotating the auxiliary handle to a comfortable position, a fatigue-fee
and therefore safe working position can be achieved.
OVERLOAD CLUTCH
If the drill bit becomes jammed or caught, the drive to the drill spindle
is interrupted. Because of the forces that occur as a result, always
hold the machine securely with both hands and take a firm stance.
Loosen the winged screw (10) on the auxiliary handle (6). Adjust the
drilling depth (t) on the depth stop (5).
Retighten the winged screw.
DEPTH STOP (FIG. 7)
By increasing or decreasing the pressure on the ON/OFF switch (9),
the speed can be continuously controlled during operation.
Advantages:
• Slow starting of holes, e.g., on smooth surfaces or tiles.
• No sliding off of the drill when stating the hole.
• No splintering of the hole.
The speed must be selected according to the operating mode, the
material to be worked and the diameter of the drill.
SETTING THE SPEED

- 6 -
Turn the mode selection switch (7) to the “ ” direction.
Turn the mode selection switch (7) to the “ ” direction.
The operating mode selection switch may be actuated only at a
standstill.
WARNING! Do not use tools without SDS-plus for hammer drilling
or chiseling!
HAMMERING MODE (Fig. 9)
DRILLING MODE (Fig. 10-12)
OPERATION
MAINTENANCE
1. For safe and proper working, always keep the machine and
ventilation slots clean.
2. A damaged dust protection cap should be changed immediately.
We recommend having this carried out by an after-sales service.
3. Approximately every 10 hours of operation, please check the
grease reservoir as follow steps:
a) Lift the tap of oil seal cap (9), loosen the cap counter clockwise
with fingers to open the grease reservoir.
b) Remove the corresponding amount of grease from container
and press it into the reservoir.
c) Replace the oil seal cap to the grease reservoir and secure it
by turning clockwise.
4. Worn carbon brushes are to be replaced only by a specialist
workshop. It is recommended that you take this tool to a Ryobi
Authorized Service Center for a through cleaning and lubrication
at least once a year.
It is recommended that you take this tool to a Ryobi Authorized
Service Center for a through cleaning and lubrication at least once
a year.
DO NOT MAKE ANY ADJUSTMENTS WHILE THE MOTOR IS IN
CAUTION!
USE ONLY THE GREASE APPROVED BY RYOBI FOR THE
PRODUCT. OTHER GREASE CAN BE DAMAGE YOUR PRODUCT.
WARNING!
To ensure safety and reliability, all repairs should be performed
by an AUTHORIZED SERVICE CENTER or other QUALIFIED
SERVICE ORGANIZATION.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
MOTION.
ALWAYS DISCONNECT THE POWER CORD FROM THE
RECEPTACLE BEFORE CHANGING REMOVABLE OR
EXPENDABLE PARTS (BLADE, BIT, SANDING PAPER ETC.),
LUBRICATING OR WORKING ON THE UNT.
The following table shows how the mode selection switch (7), and the
right/left rotation switch (8) as well as the ON/OFF switch (9) for
regulation the speed are to be set for the various operating modes:
Hammer drilling in concrete or stone (Fig. 9)
Drilling in steel or wood (Fig. 10)
Screw driving:
Right rotation (Fig. 11)
Left rotation (Fig. 12)
CAUTION! Ensure that the mains voltage is correct!
The voltage of the power source must agree with the value given on the
nameplate of the machine. Machines designated for 230V can also be
operated with 220 V.
To switch on the machine, press the ON/OFF switch (8)Lock the
depressed ON/OFF switch (9) by pressing the lock-on button (10).
To switch off the machine, release the ON/OFF switch (9) or push and
then release it.
The operation of the gearbox for each application is set with the mode
selection switch (7):
Operating Modes

RYOBI POWER EQUIPMENT
WARRANTY
Subject to the warranty conditions below, this
RYOBI tool (hereinafter called “the Product”),
is warranted by Ryobi (herein called “the
Company”) to be free from defects in material
or workmanship for a period of 24 months
from the date of original purchase covering
both parts and labour. Under the terms of
this warranty, the repair or replacement of
any part shall be the opinion of the Company
or its authorised agent. Should service
become necessary during the warranty
period, the owner should contact the
authorised Ryobi retailer from whom the
product was purchased, or the nearest
Company branch office. In order to obtain
warranty service, the owner must include the
Sales Docket and Warranty Certificate to
confirm date of purchase. This Product is
sold by the dealer or agent as principal and
the dealer has no authority from the Company
to give any additional warranty or guarantee
on the Company’s behalf except as herein
contained or herein referred to.
Warranty Conditions
This warranty only applies provided that the
Product has been used in accordance with
the manufacturer's recommendations under
normal use and reasonable care (in the
opinion of the Company) and such warranty
does not cover consumable components,
damage, malfunction or failure resulting from
misuse, neglect, abuse, or used for a purpose
for which it was not designed, or is not suited
and no repairs, alterations or modifications
have been attempted by other than an
Authorised Service Agent. This guarantee
will not apply if the tool is damaged by
accident or if repairs arise from normal wear
and tear.
Accessories such as bits,blades, sanding
discs, cutting lines, etc., are excluded from
this guarantee. Normal consumable parts,
such as carbon brushes, bearings, chucks,
cord assembly’s, spark plugs, recoil pulleys
and bump head assembly’s are specifically
excluded from this guarantee.
The Company accepts no additional liability
pursuant to this warranty for the costs of
traveling or transportation of the Product or
parts to and from the sevice dealer or agent
-which costs are not included in the warranty.
Nothing herein shall have the effect of
excluding, restricting or modifying any
conditions, warranty, right or liability imposed,
to the extent only that such exclusion,
restriction or modification would render any
term herein void.
THIS WARRANTY FORM
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES.
For your record and to assist in establishing date of purchase (necessary for in-warranty service), please
keep your purchase docket and this form, completed with the following particulars.
PURCHASED FROM:.........................................................................................................
ADDRESS OF DEALER:....................................................................................................
DATE:......................... MODEL NO................................ SERIAL NO.................................
Present this form with your Purchase Docket when Warranty Service is required.
STEVENS & CO (Pty) Ltd
604, 16th Street, Randjespark
Midrand, South Africa
Tel: [phone]
Fax: [phone]
email: [email protected]
P O Box 4059
HALFWAY HOUSE
1685, South Africa
