Ryobi RSDS800 User manual

ORIGINAL INSTRUCTIONS
Rotary Hammer
Drill
RSDS800

Important!
It is essential that you read the instructions in this manual before assembling,
operating and maintaining the product.
Subject to technical modification.

1
Safety, performance, and dependability have been given
top priority in the design of your rotary hammer drill.
INTENDED USE
This rotary hammer drill is intended to be used only by
adults who have read and understood the instructions and
warnings in this manual and can be considered responsible
for their actions. It is to be used by a single operator by
grasping both trigger and side handles.
The rotary hammer drill is designed to operate without
hammer function into wood and metal. For chiselling and
masonry drilling, the hammer mode may be used.
The rotary hammer drill is designed to operate with drill
bits up to the maximum diameter dened in the product
specication table.
Do not use the product in any way other than those stated
for intended use.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in
electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool’’ in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools
that have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar

2
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits
etc, in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
5) SERVICE
Have your power tool serviced by a qualified
repair person using only identical manufacturer’s
replacement parts. This will ensure that the safety of
the power tool is maintained.
HAMMER SAFETY WARNINGS
■Wear ear protectors. Exposure to noise can cause
hearing loss.
■Use auxiliary handle(s), if supplied with the tool.
Loss of control can cause personal injury.
■Hold power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring or its own
cord. Cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live” and
could give the operator an electric shock.
■Wear safety goggles to protect your eyes from flying
particles and splinters.
RESIDUAL RISKS
Even when the rotary hammer drill is used as prescribed,
it is still impossible to completely eliminate certain residual
risk factors. The following hazards may arise and the
operator should pay special attention to avoid the following:
■Risk of electrocution if electric cables are drilled into.
Always grasp the tool by designated handles, do not
touch the drill bits.
■Kick-back whilst drilling if the bit jams. Always use the
side handle and grip the tool firmly.
■Damage to the respiratory system. Wear respiratory
protection masks containing filters appropriate to the
materials being worked. Ensure adequate workplace
ventilation. Do not eat, drink or smoke in the work area.
■Damage to hearing. Always wear effective hearing
protection and limit exposure to noise.
■Damage to eyes from flying dust and debris particles.
Always wear suitable eye protection.
■Injury caused by vibration. Hold the tool by designated
handles and limit exposure to vibration. See “RISK
REDUCTION”.
RISK REDUCTION
It has been reported that vibrations from hand-held tools
may contribute to a condition called Raynaud’s Syndrome
in certain individuals. Symptoms may include tingling,
numbness and blanching of the ngers, usually apparent
upon exposure to cold. Hereditary factors, exposure to
cold and dampness, diet, smoking and work practices
are all thought to contribute to the development of these
symptoms. There are measures that can be taken by the
operator to possibly reduce the effects of vibration:
■Keep your body warm in cold weather. When operating
the unit wear gloves to keep the hands and wrists
warm. It is reported that cold weather is a major factor
contributing to Raynaud’s Syndrome.
■After each period of operation, exercise to increase
blood circulation.
■Take frequent work breaks. Limit the amount of
exposure per day.
If you experience any of the symptoms of this condition,
immediately discontinue use and see your doctor about
these symptoms.
WARNING
Injuries may be caused, or aggravated, by prolonged
use of a tool. When using any tool for prolonged periods,
ensure you take regular breaks.
KNOW YOUR PRODUCT
See page 6.

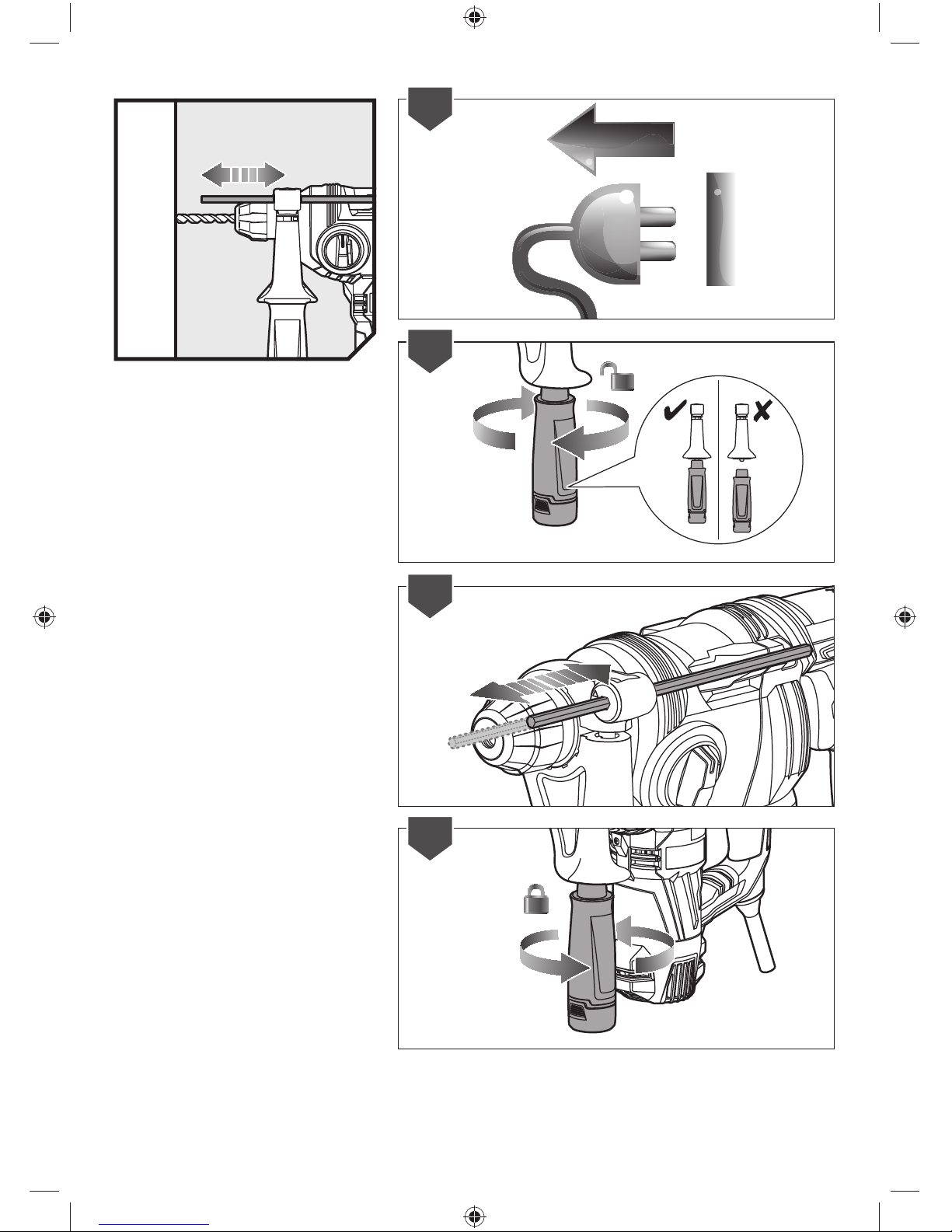

1. Depth guide rod
2. Mode selector
3. Light
4. AuxilIary handle
5. Speed adjustment dial
6. Forward/ reverse button
7. Lock-on button
8. Trigger
MAINTENANCE
WARNING
The product should never be connected to a power supply
when you are assembling parts, making adjustments,
cleaning, performing maintenance, or when the product
is not in use. Disconnecting the product will prevent
accidental starting that could cause serious injury.
WARNING
When servicing use only original manufacturer’s
replacement parts. Use of any other parts may create a
hazard or cause product damage.
■Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to various types of commercial

3
solvents and may be damaged by their use. Use clean
cloths to remove dirt, carbon dust, etc.
WARNING
Do not at any time let brake uids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. They contain chemicals that can
damage, weaken or destroy plastic.
■Electrical tools used on berglass material, wallboard,
spackling compounds, or plaster are subject to
accelerated wear and possible premature failure
because the berglass chips and grindings are highly
abrasive to bearings, brushes, commutators, etc. We
do not recommend using the product for extended work
on these types of materials.
WARNING
Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
■If the power supply cord is damaged, it must be replaced
only by the manufacturer or by an authorized service
center to avoid risk. Contact authorized service center.
■For greater safety and reliability, all repairs should be
performed by an authorised Ryobi service centre.
LUBRICATION
All of the bearings in the product are lubricated with a
sufcient amount of high grade lubricant for the life span of
the product under normal operating conditions. Therefore,
no further lubrication is required.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing
of as waste. The machine, accessories, and
packaging should be sorted for environment-
friendly recycling.
SYMBOLS ON THE PRODUCT
Safety alert
VVolts
Hz Hertz
Alternating current
WWatts
noNo-load speed
min־¹ Revolutions or reciprocations per minute
Class II tool, double insulation
Hammer mode
Chisel adjustment mode
Hammer drill mode
Drill mode
CE conformity
EurAsian Conformity Mark.
Ukrainian mark of conformity.
Please read the instructions carefully before
starting the machine.
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
local authority or retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Connect to the power supply.
Disconnect from the power supply.
Parts or accessories sold separately
Lock
Unlock
Speed, minimum
Speed, maximum
Note
The following signal words and meanings are intended to
explain the levels of risk associated with this product:
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.

4
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
CAUTION
(Without Safety Alert Symbol) Indicates a situation that
may result in property damage.

5
x 1
x 1
x 1 x 1

6
1
4
3
2
5
6
7
8

7
1
2
1
6
23
2
2
1
1
3
7
4 5

8

9
1
2
1
2
2
3
1

10
1
2
1
2
3
5
1
2
4

11
12
3
4
1
2
5

12
1
2
4
3

PRODUCT SPECIFICATIONS
Rotary Hammer Drill
Model RSDS800
Voltage 220 - 240 V
50 / 60Hz
Input 800 W
No-load speed (Drill mode) 0 - 1,450 min-1
Blows per minute (Hammer speed) 0 - 5,000 min-1
Impact energy 3.0 J
Tool attachment SDS-plus
Drilling capacity
in metal 13 mm
in wood 32 mm
in masonry 28 mm
Weight
(According to EPTA procedure 01/2003)
3.44 kg
Measured sound values determined according to EN 60745:
A-weighted sound pressure level LpA = 89.0 dB(A)
Uncertainty K KpA = 3 dB
A-weighted sound power level LwA = 100.0 dB(A)
Uncertainty K KwA = 3 dB
Wear ear protectors.
The vibration total values (triaxial vector sum) determined
according to EN 60745:
Hammer drilling into concrete ah,CH = 23.1 m/s2
Uncertainty K 1.5 m/s2
Chiseling ah,CHeq = 19.4 m/s2
Uncertainty K 1.5 m/s2
VIBRATION LEVEL
WARNING
The vibration emission level given in this information sheet
has been measured in accordance with a standardised
test given in EN 60745 and may be used to compare
one tool with another. It may be used for a preliminary
assessment of exposure. The declared vibration emission
level represents the main applications of the tool. However
if the tool is used for different applications, with different
accessories or poorly maintained, the vibration emission
may differ. This may signicantly increase the exposure
level over the total working period.
An estimation of the level of exposure to vibration should
also take into account the times when the tool is switched
off or when it is running but not actually doing the job.
This may signicantly reduce the exposure level over the
total working period. Identify additional safety measures
to protect the operator from the effects of vibration such
as: maintain the tool and the accessories, keep the hands
warm, organisation of work patterns.

Guarantee
In addition to any statutory rights resulting from the purchase, this product is covered by a guarantee as stated below.
1. The guarantee period is 24 months for consumers and commences on the date when the product was purchased.
This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to
consumer and private use only. So there is no guarantee provided in case of professional or commercial use.
2. There is, in some cases (i.e. promotion, range of tools), a possibility to extend the warranty period over the period
described above using the registration on the www.ryobitools.eu website. The eligibility of the tool is clearly displayed
in stores and/or on packaging. The end user needs to register his/her newly-acquired tools online within 8 days from
the date of purchase. The end user may register for the extended warranty in his country of residence if listed on the
online registration form where this option is valid. Furthermore, end users must give their consent to the storage of the
data which are required to enter online and they have to accept the terms and conditions. The registration confirmation
receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the
extended warranty. Your statutory rights remain unaffected.
3. The guarantee covers all defects of the product during the warranty period due to defaults in workmanship or material
at the purchase date. The guarantee is limited to repair and/or replacement and does not include any other obligations
including but not limited to incidental or consequential damages. The warranty is not valid if the product has been
misused, used contrary to the instruction manual, or being incorrectly connected. This guarantee does not apply to:
–any damage to the product that is the result of improper maintenance
–any product that has been altered or modified
–any product where original identification (trade mark, serial number) markings have been defaced, altered or
removed
–any damage caused by non-observance of the instruction manual
–any non CE product
–any product which has been attempted to be repaired by an non-qualified professional or without prior authorization
by Techtronic Industries
–any product connected to improper power supply (amps, voltage, frequency)
–any product used with inappropriate fuel mixture (fuel, oil, percentage of oil)
–any damage caused by external influences (chemical, physical, shocks) or foreign substances
–normal wear and tear of spare parts
–inappropriate use, overloading of the tool
–use of non-approved accessories or parts
–carburettor after 6 months, carburettor adjustments after 6 months
–components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive
belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines,
felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains,
hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs,
air filters, gas filters, mulching blades, etc.
4. For servicing, the product must be sent or presented to a RYOBI authorized service station listed for each country in the
following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product
to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely
packed without any dangerous contents such as petrol, marked with sender’s address and accompanied by a short
description of the fault.
5. A repair/replacement under this guarantee is free of charge. It does not constitute an extension or a new start of the
guarantee period. Exchanged parts or tools become our property. In some countries delivery charges or postage will
have to be paid by the sender.
6. This guarantee is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia.
Outside these areas, please contact your authorized RYOBI dealer to determine if another warranty applies.

ACD PLANT LTD
145 Southbank Road
Coundon
Coventry, West Midlands
CV6 1FG
Phone: [phone]
Email: [email protected]
Web: www.acdplant.co.uk
CBS Power Tools Limited
Unit 4, V P Square
Storeys Bar Rd, Fengate
Peterborough, Cambridgeshire
PE1 5YS
Phone: [phone]
Email: [email protected]
Web: www.cbspowertools.com
C D Powertools
76 Old Road
Churwell Morley, Leeds
LS27 7TH
Phone: [phone]
Email: [email protected]
Web: www.cdpowertools.co.uk
C J Sinclair Limited
44 Victoria Road
St Peters
Broadstairs, Kent
CT10 2UG
Phone: [phone]
Email: [email protected]
Web: www.cjsinclairltd.co.uk
Powertech Ind Ltd
Unit 2C, Ellison Road
Norwood Ind, Killamarsh
Shefeld, South Yorkshire
S21 2JG
Phone: [phone]
Email: [email protected]
Web: www.powertech-industrial.co.uk
RYCKO Technical Services LTD
104 Green Lane
St Albans, Herts
AL3 6EX
Phone: [phone]
Email: [email protected]
Web: www.ryckotechnical.com
ToolTech Industrial Equipment
227 E Dunhill Road, Macosquin
Coleraine, Co Londonderry
BT514LQ
Phone: [phone]
Email: [email protected]
AUTHORISED SERVICE CENTRES
For an updated list of authorised service centres, visit http://uk.ryobitools.eu/header/service-and-support/service-agents.

DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Herewith we declare that the product
Rotary Hammer Drill
Brand: Ryobi
RSDS800
Serial number range: 44446901000001 - 44446901999999
is in conformity with the following standards or standardized documents
2006/42/EC, 2004/108/EC (until 19 April 2016), 2014/30/EU, 2011/65/EU
EN55014-1:2006+A1:2009+A2:2011, EN55014-2:1997+A1:2001+A2:2008, EN61000-3-2:2014, EN61000-3-3:2013,
EN60745-1:2009+A11:2010, EN60745-2-6:2010
RoHS documentation is compiled according to EN 50581:2012
Andrew John Eyre (BEng, CEng, MIET)
Vice President, Regulatory & Safety
Winnenden, Dec. 10, 2015
Authorised to compile the technical file:
Alexander Krug, Managing Director
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany

Techtronic Industries GmbH
Max-Eyth-Straße 10,
71364 Winnenden, Germany
201511.24v1
961068077-01A
