R18CLV

2
Original Instructions
IMPORTANT!
It is essential that you read the instructions
in this manual before assembling, operating,
and maintaining the product.
Subject to technical modication.
Safety, performance, and dependability have
been given top priority in the design of your
cordless cultivator.
INTENDED USE
The cordless cultivator is intended only for
outdoor use by a standing operator walking
with the product. For safety reasons, the
product must be adequately controlled by
using two-handed operation at all times.
The product is designed for cultivating or
loosening soil in an open domestic garden
area. The maximum working depth of the
product is 10 cm deep and 20 cm wide.
The product should be used only as described
in this manual.
Do not use the product for any other purpose.
GENERAL PRODUCT SAFETY WARNINGS
WARNING! Read all safety warnings,
instructions, illustrations, and sepcications
provided with this power tool. Failure to follow
all instructions listed below may result in
electric shock, re, and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers
to your mains-operated (corded) or battery-
operated (cordless) product.
WORK AREA SAFETY
■Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
■Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
■Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
PERSONAL SAFETY
■Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
■Use personal protective equipment. Always
wear eye protection. Protective equipment
such as a dust mask, non-skid safety shoes,
hard hat or hearing protection used for
appropriate conditions will reduce personal
injuries.
■Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energising power tools that have
the switch on invites accidents.
■Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power
tool may result in personal injury.
■Do not overreach. Keep proper footing and
balance at all times. This enables better
control of the power tool in unexpected
situations.
■Dress properly. Do not wear loose clothing
or jewellery. Keep your hair and clothing
away from moving parts. Loose clothes,
jewellery or long hair can be caught in
moving parts.
■If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce
dust-related hazards.
■Do not let familiarity gained from frequent
use of tools allow you to become complacent
and ignore tool safety principles. A careless
action can cause severe injury within a
fraction of a second.
POWER TOOL USE AND CARE
■Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at
the rate for which it was designed.
■Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with switch is
dangerous and must be repaired.
■Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk

3
Original Instructions
of starting the power tool accidentally.
■Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
■Maintain power tools and accessories.
Check for misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power tool’s
operation. If damaged, have the power tool
repaired before use. Many accidents are
caused by poorly maintained power tools.
■Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier
to control.
■Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from
those intended could result in a hazardous
situation.
■Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow
for safe handling and control of the tool in
unexpected situations.
BATTERY TOOL USE AND CARE
■Recharge only with the charger specified by
the manufacturer. A charger that is suitable
for one type of battery pack may create a
risk of fire when used with another battery
pack.
■Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and
fire.
■When battery pack is not in use, keep it
away from other metal objects, like paper
clips, coins, keys, nails, screws or other
small metal objects, that can make a
connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
■Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the
battery may cause irritation or burns.
■Do not use a battery pack or tool that
is damaged or modified. Damaged or
modified batteries may exhibit unpredictable
behaviour resulting in fire, explosion or risk
of injury.
■Do not expose a battery pack or tool to fire
or excessive temperature. Exposure to fire
or temperature above 130°C may cause
explosion.
■Follow all charging instructions and do not
charge the battery pack or tool outside
the temperature range specified in the
instructions. Charging improperly or at
temperatures outside the specified range
may damage the battery and increase the
risk of fire.
CULTIVATOR SAFETY WARNINGS
■Use the product across the face of slopes;
never up and down. Exercise extreme
caution when changing direction on slopes.
■Exercise extreme caution when reversing or
pulling the product towards you.
■Never pick up or carry the product while the
motor is running.
■Use the product only in daylight or with
good artificial light.
■Keep proper footing and balance at all
times, especially on slopes. Walk, never
run.
■Do not use the product near drop-offs,
ditches, excessively steep slopes, or
embankments. Poor footing could cause a
slip-and-fall accident.
■Avoid working the soil when soggy or wet.
Wait a day or two after heavy rain for the
ground to dry.
■Keep hands and feet away from the rotating
tines at all times and especially when
turning on the motor.
■Turn off the product, and remove the battery
pack. Make sure that all moving parts have
come to a complete stop:
●before leaving the product unattended
●before cleaning the product or clearing a
blockage
●before checking for any damage after
hitting an object
●if the machine starts to vibrate abnormally
(check immediately)
●before performing maintenance
■Read the instructions carefully. Be familiar
with the controls and the correct use of the
product.

4
Original Instructions
■Never allow children or people unfamiliar
with these instructions to use the product.
Local regulations may restrict the age of the
operator.
■Never operate the product while people,
especially children, or pets are nearby.
Keep in mind that the operator or user is
responsible for accidents or hazards.
■While operating the product, always wear
substantial footwear and long trousers.
While operating the product always wear
substantial footwear and long trousers.
■Thoroughly inspect the area where the
product is to be used and remove all objects
which can be thrown by the product.
■Before each use, always visually inspect
to see, that the housing is undamaged
and that guards and handles are in place
and properly secured. Replace worn or
damaged components in sets to preserve
balance.
ADDITIONAL BATTERY SAFETY
WARNINGS
To reduce the risk of re, personal injury, and
product damage due to a short circuit, never
immerse your tool, battery pack or charger in
uid or allow uid to ow inside them. Corrosive
or conductive uids, such as seawater, certain
industrial chemicals, and bleach or bleach-
containing products, etc., can cause a short
circuit.
TRANSPORTATION AND STORAGE
■Turn off the product, and remove the battery
pack. Make sure that all moving parts have
come to a complete stop. Allow the product
to cool down before storing or transporting.
■Remove all foreign materials from the
product. Store the product in a cool, dry, and
well-ventilated place that is inaccessible
to children. Keep the product away from
corrosive agents, such as garden chemicals
and de-icing salts. Do not store the product
outdoors.
■For transportation in a vehicle, secure the
product against movement or falling to
prevent injury to persons or damage to the
product.
TRANSPORTING LITHIUM BATTERIES
Transport the battery pack in accordance with
local and national provisions and regulations.
Follow all special requirements on packaging
and labelling when transporting batteries by a
third party. Ensure that no batteries can come
in contact with other batteries or conductive
materials while in transport by protecting
exposed connectors with insulating, non-
conductive caps or tape. Do not transport
battery packs that are cracked or leaking.
Check with the forwarding company for further
advice.
MAINTENANCE
■Use only original manufacturer’s
replacement parts, accessories, and
attachments. Failure to do so can cause
possible injury, can contribute to poor
performance, and may void your warranty.
■Servicing requires extreme care and
knowledge and should be performed only
by a qualified service technician. Have the
product serviced by an authorised service
centre only.
■Check all nuts, bolts, and screws at frequent
intervals for proper tightness to ensure that
the product is in safe working condition.

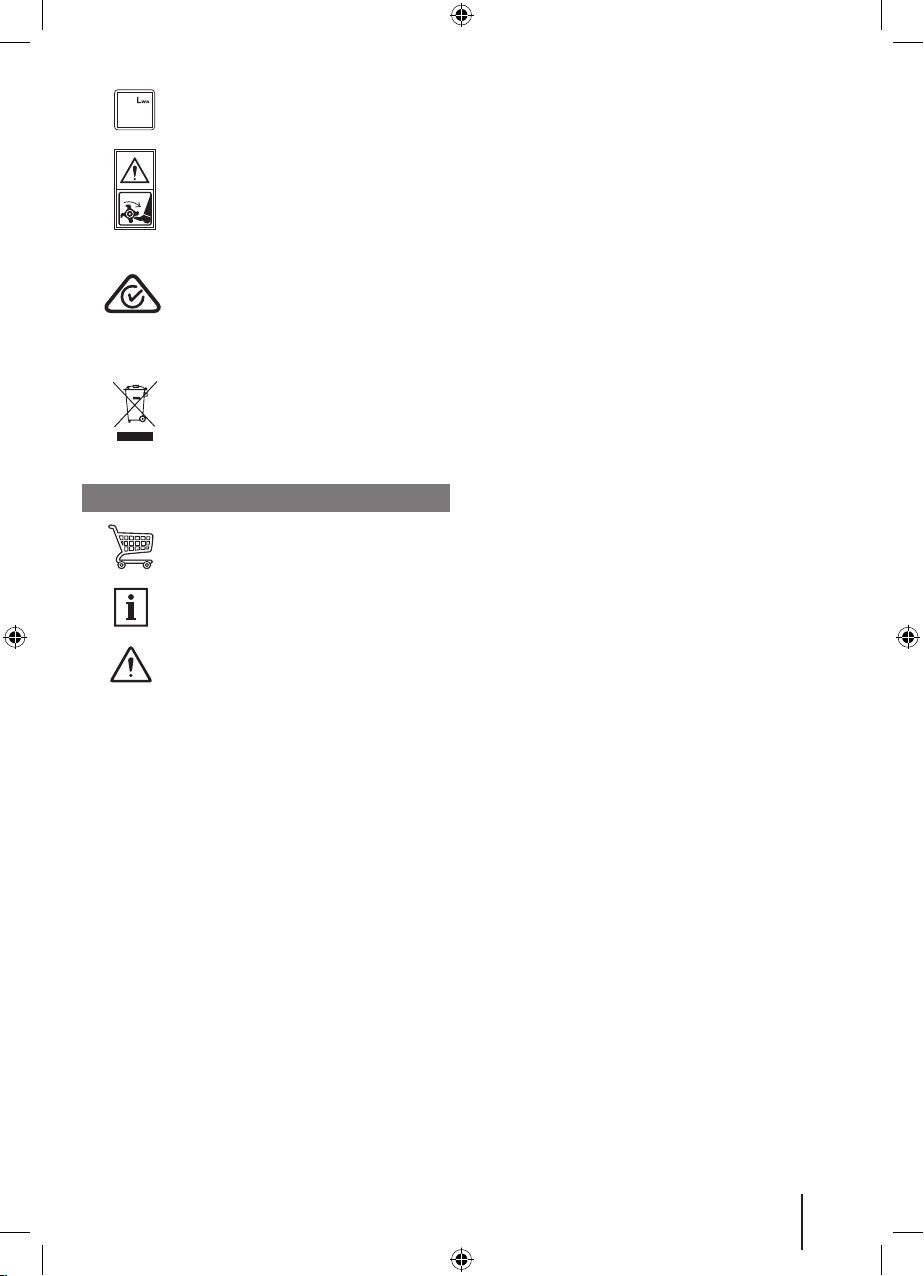

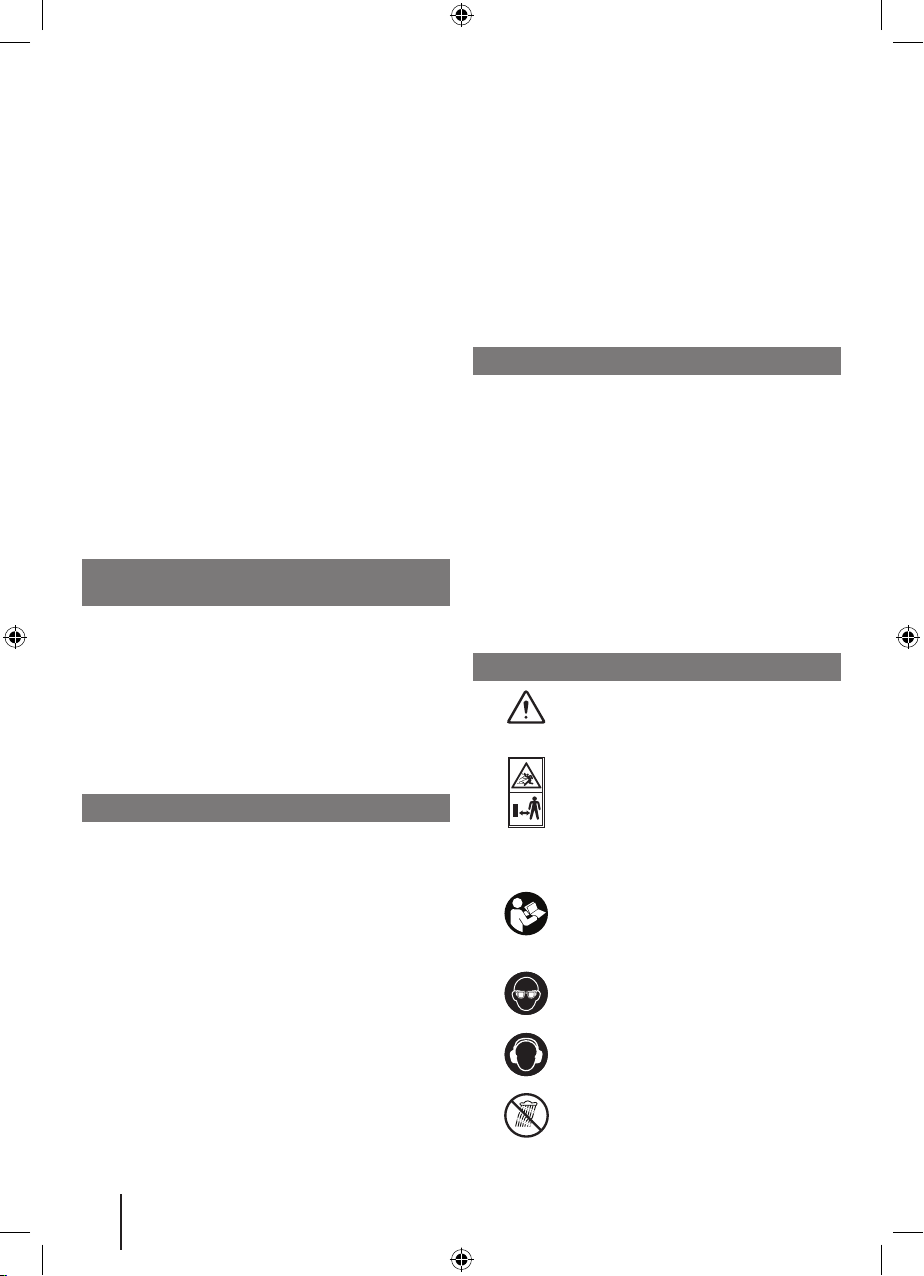

SYMBOLS ON THE PRODUCT
Safety alert
Beware of thrown or ying
objects. Keep all bystanders,
especially children and pets,
at least 15 m away from the
operating area.
Read and understand
all instructions before
operating the product. Follow
all warnings and safety
instructions.
Wear eye protection.
Wear hearing protection.
Do not expose to rain or damp
condition

5
Original Instructions
93
Guaranteed sound power level
Keep feet and hands away
from rotating tines.
Regulatory Compliance
Mark (RCM). The product
meets applicable regulatory
requirements.
Waste electrical products
should not be disposed of
with household waste. Please
recycle where facilities exist.
Check with your local authority
or retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Parts or accessories sold
separately
Note
Warning

6
Original Instructions

7

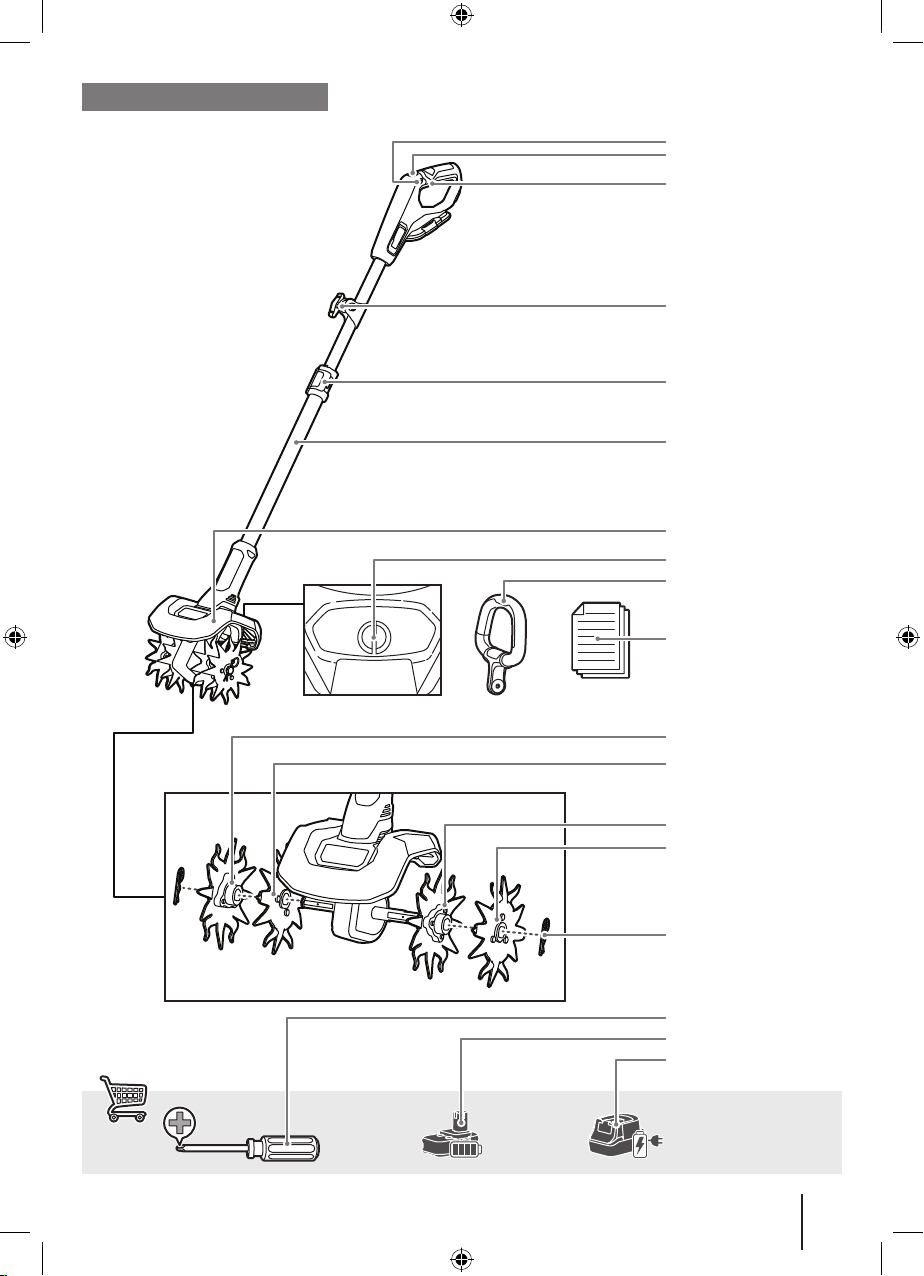

Know your product
R18CLV
Lock-out button
Speed selector switch
Trigger switch
Handle adjustment knob
Telescopic collar
Lower shaft
Tine guard
Handle
Operator's manual
Outer tine D
Inner tine C
Inner tine B
Outer tine A
Hitch pin
Crosshead screwdriver
Battery pack
Charger
Tine guard locking slot

8

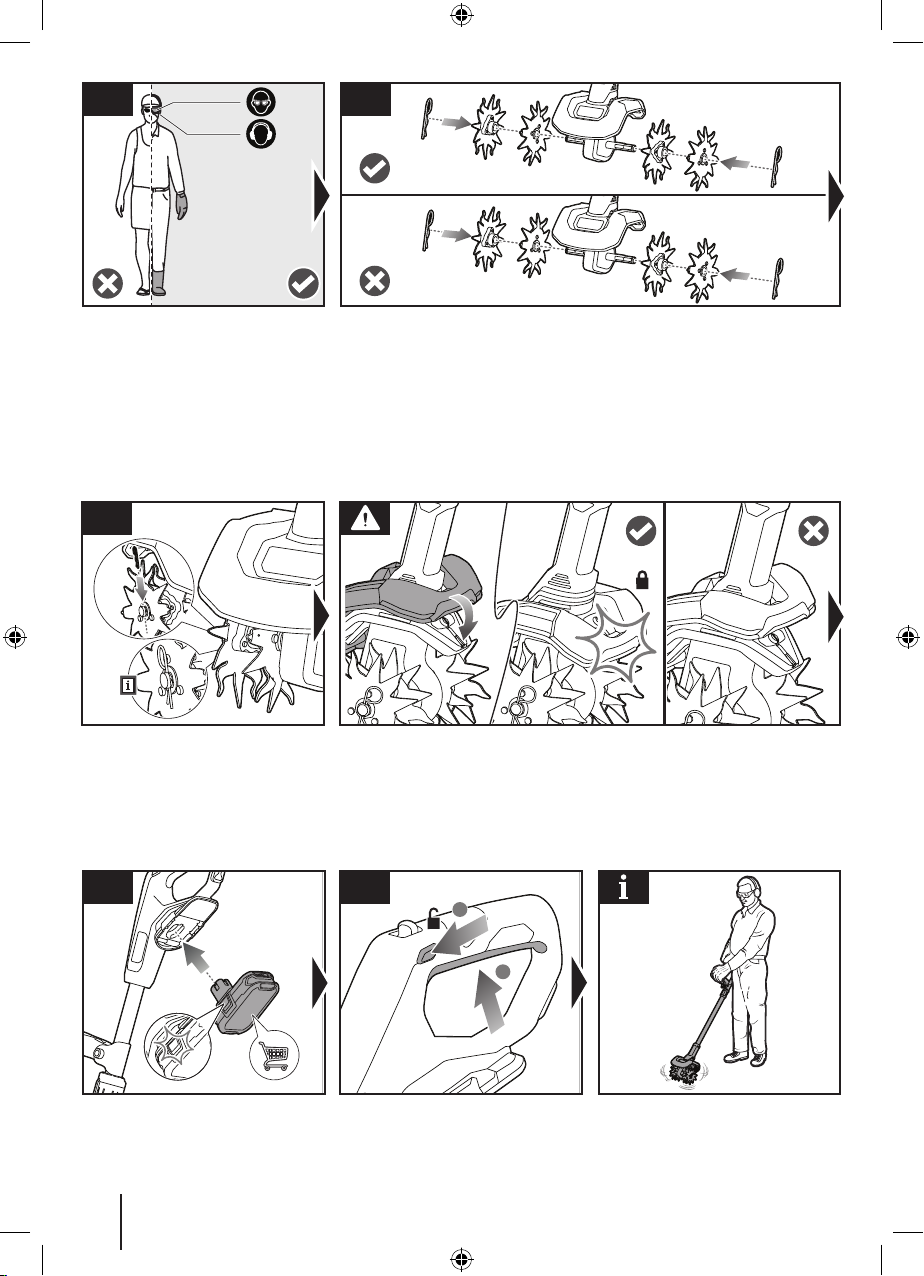

Getting started
1
2
11
Press the lock-out button and squeeze
the trigger to start operating the
product.
NOTE: The product must be
adequately controlled by using two-
handed operation at all times.
C
B
A
D
A
B
C
D
1 2
7
10
6
Insert the hitch pin into the holes
located on the side of the tine shaft.
WARNING: Do not operate the product if the tine guard is not locked. Make sure
that the tine guard is locked by pushing it down until it clicks into place.
Always wear safety goggles or safety
glasses with side shields when
operating the product. Failure to do so
could result in objects being thrown into
your eyes, resulting in possible serious
injury.
NOTE: The product will not operate properly if the tines are installed incorrectly.
Install the battery pack until the latches
snap into place. Make sure that the
battery pack is securely attached
before using the product.

9
Getting started
7
6
10
12
A
B
1
22
3
1
1
2
3
8
4
9
1
2
DC
1
2
3
5
7

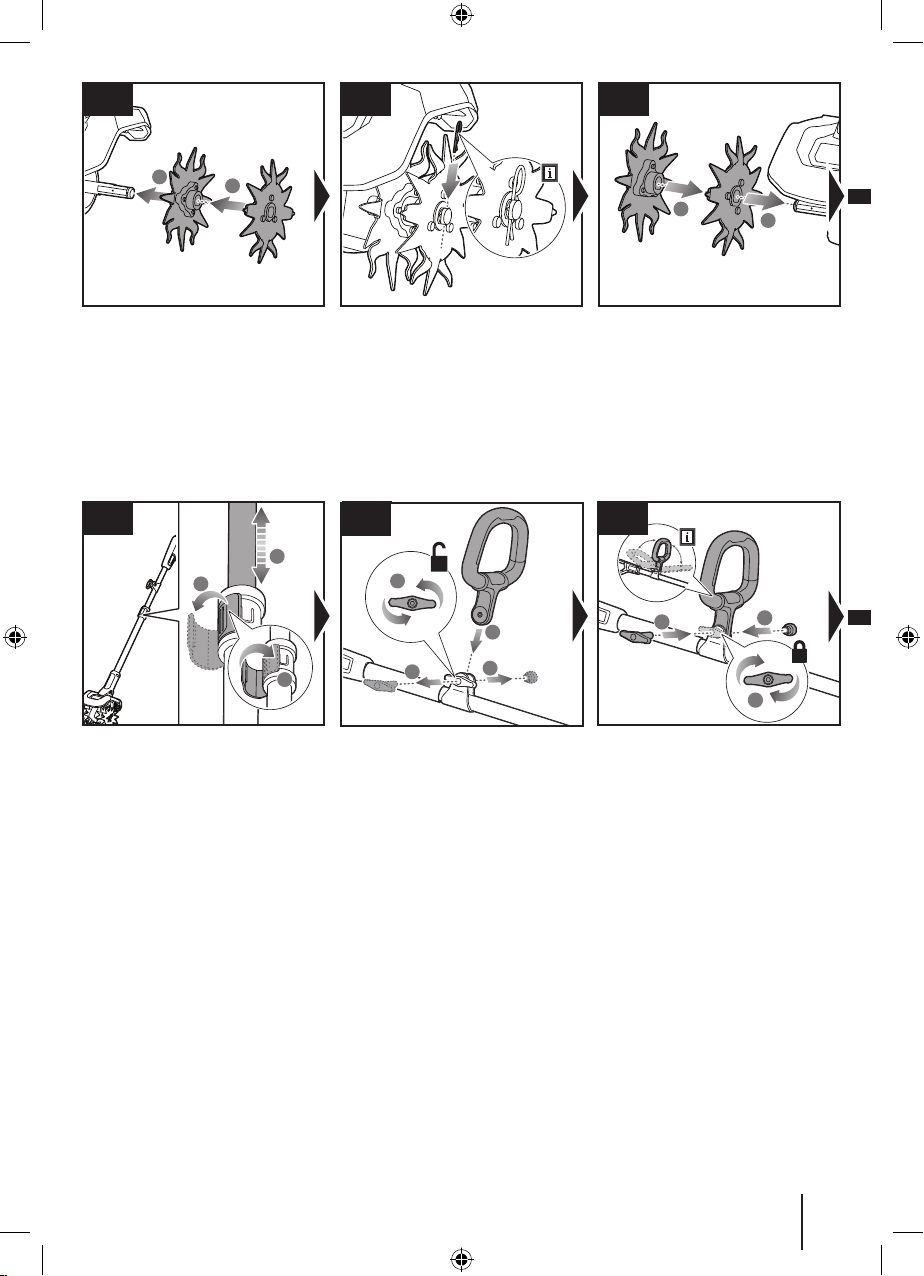

Turn the handle adjustment knob
counterclockwise to release the knob.
Install the front handle.
Insert the handle adjustment knob back
in place. Turn the knob clockwise to
secure it in place.
Place tine B on the tine shaft to the right
of the gearbox. The stamped side of the
tine should face toward the gearbox.
Place a felt washer on the tine shaft.
Place the outer tine labeled A on the
right side of the tine shaft. The stamped
side should face toward tine B.
Insert the hitch pin into the holes
located on the side of the tine shaft.
Place tine C on the tine shaft to the
left of the gearbox. The stamped side
of the tine should face away from the
gearbox. Place a felt washer on the
tine shaft. Place the outer tine labeled
D on the left side of the tine shaft. The
stamped side should face away from
the gearbox.
Unlatch the telescopic collar to adjust
the lower shaft to the preferred length.
Latch the collar back to lock the shaft
in place.

10

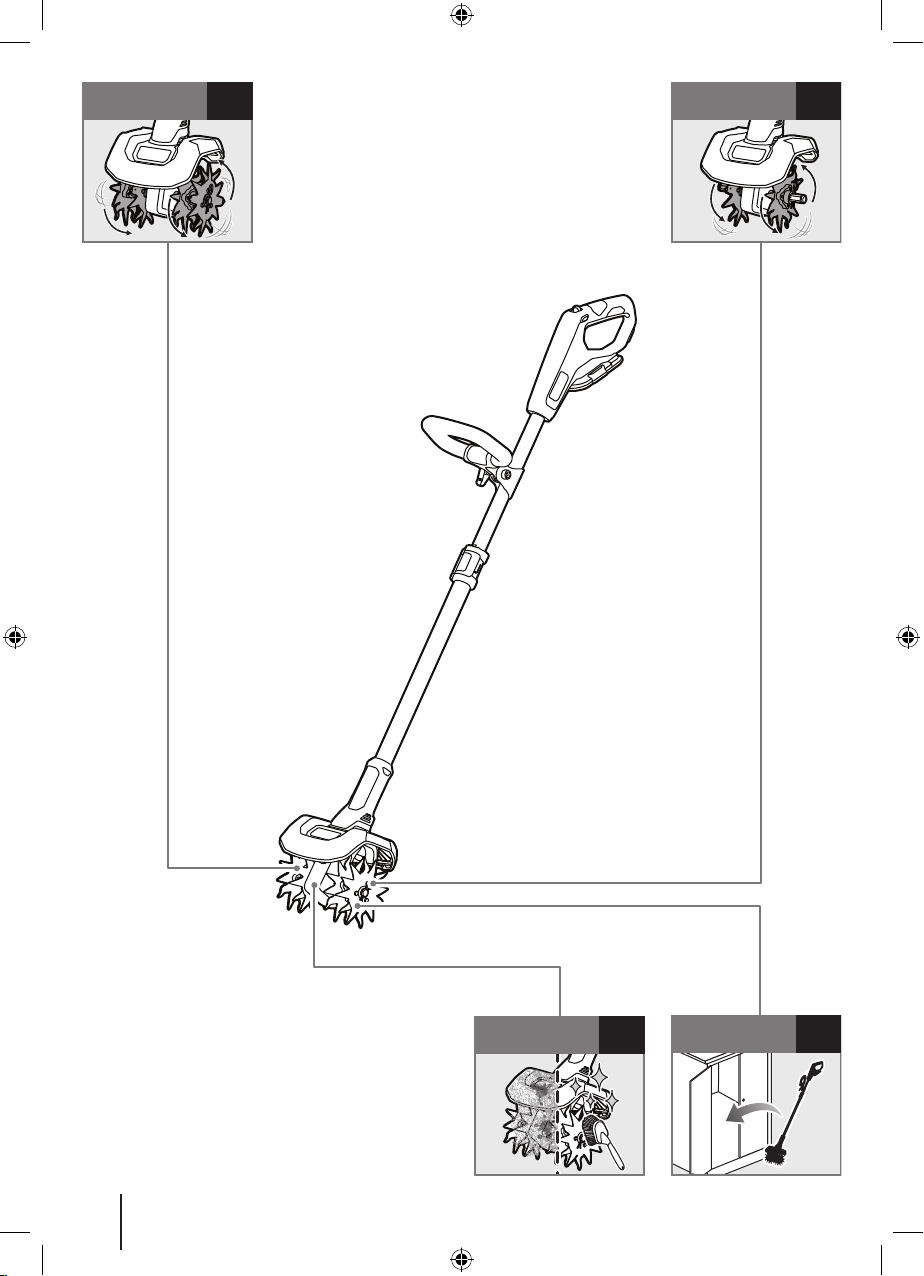

p.13
p.17
p.11
p.15
Four-tine operation
Cleaning the tines
Two-tine operation
Storing the product

11
Operation
1
1
2
1 2 3
2
3
FOUR-TINE OPERATION
WARNING: Keep hands and feet away from
the rotating tines at all times.
CAUTION: The product must be adequately
controlled by using two-handed operation at
all times.
1. Install the battery pack until the latches
snap into place. Make sure that the
battery pack is securely attached before
using the product.
2. Press the lock-out button, and squeeze
the trigger to start operating the product.
Use the speed selector switch to increase
the power when necessary.
3. Pull or push the cultivator while it is
digging in the soil’s surface.

12
Operation
NOTE: For cultivating ease and safety, use
a forward and backward motion when using
the product.
WARNING: Never operate the product on
rocky surfaces.

13
Operation
1
2
1
A
1
2
3
2
D
1
2
3
3
4

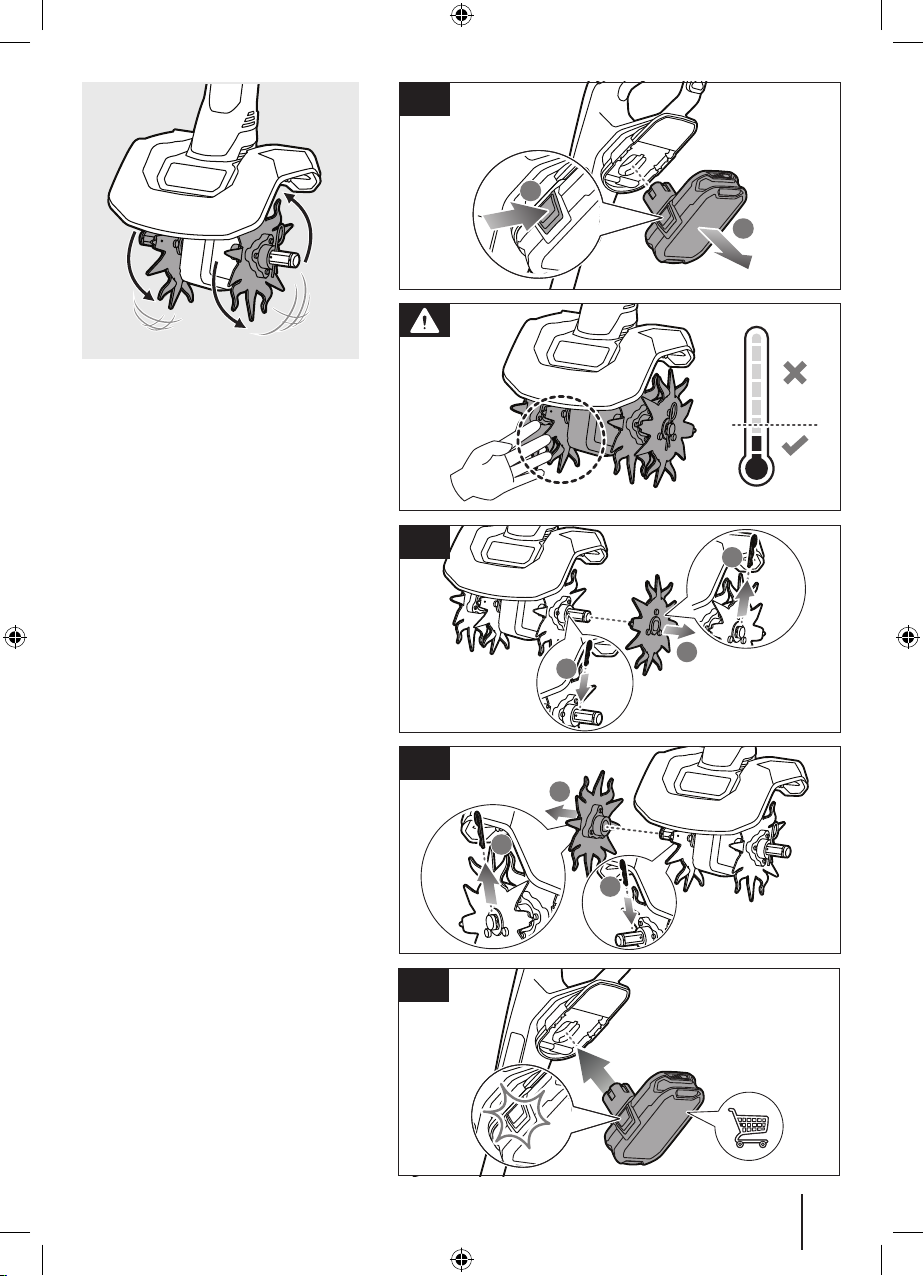

TWO-TINE OPERATION
1. Press the latches on each side of the
battery pack to remove the battery pack.
CAUTION: Wait for the product to cool
before removing the tines.
2. Unlock the hitch pin, and remove tine A.
Install the hitch pin back in place.
3. Unlock the hitch pin, and remove tine D.
Install the hitch pin back in place.
4. Install the battery pack until the latches
snap into place. Make sure that the
battery pack is securely attached before
using the product.

14
Operation
1
2
1 2 3
5
5. Press the lock-out button, and squeeze
the trigger to start operating the product.
Use the speed selector switch to increase
the power when necessary.

15
Maintenance
1
2
2
1
A
1
2
5
2
1
D
3
1
2
4

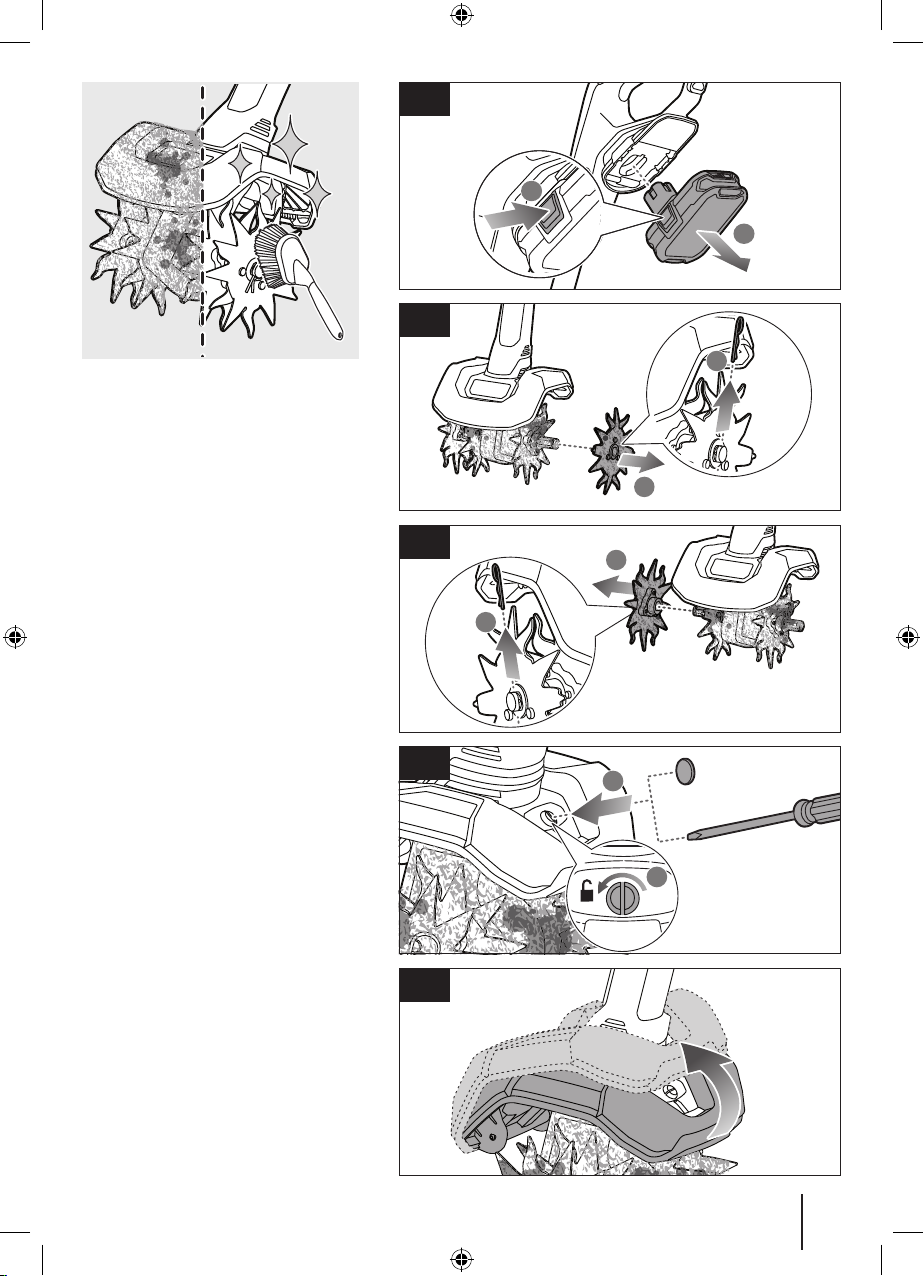

CLEANING THE TINES
1. Press the latches on each side of the
battery pack to remove the battery pack.
2. Unlock the hitch pin and remove tine A.
3. Unlock the hitch pin and remove tine D.
4. Unlock the tine guard by using a
coin or screwdriver to turn the slot
counterclockwise.
5. Lift up the tine guard.

16
Maintenance
6
6. Clean the product with a soft, dry cloth,
and clean the debris from the tines with
a stiff brush.
WARNING: Do not use water to clean the
tines.

17
Storage
1
2
1
1
2
1
2
2
3
4
STORING THE PRODUCT
NOTE: Clean all foreign materials from the
product.
1. Press the lock-out button to lock the
trigger switch in place.
2. Press the latches on each side of the
battery pack to remove the battery pack.
3. Unlatch the telescopic collar, and adjust
the shaft to its minimum length.
4. Latch the telescopic collar back to lock
the shaft in place.

18
Storage
1
2
3
1
5
20210428v1
6
5. Turn the handle adjustment knob
counterclockwise, and press the front
handle down. Turn the knob clockwise to
secure the handle.
6. Store the product in a cool, dry, and well-
ventilated place that is inaccessible to
children and well away from sources of
ignition.

PRODUCT SPECIFICATIONS
Cordless cultivator
Model R18CLV
Total weight 4.9 kg
Cultivator attachment
1.15 kg
Rated voltage 18 V d.c.
Maximum no-load speed
340 /min
Maximum working depth 10 cm x 20 cm
Noise emission values determined according to
AS/NZS 62841.1:2015+A1:2016
A–weighted sound pressure level
at the operator position
75.8 dB(A)
Uncertainty K = 3 dB
A–weighted sound power level 88.1 dB(A)
Uncertainty K = 4.24 dB
Guaranteed sound power level 93 dB(A)
Vibration values determined according to
AS/NZS 62841.1:2015+A1:2016
Front handle 1.08 m/s2
Rear handle 1.35 m/s2
Uncertainty K = 1.5 m/s2
BATTERY AND CHARGER
Model R18CLV
Battery pack not included
Weight -
Charger not included
Compatible battery packs RB18L13, RB18L13Z, RB18L15,
RB18L15A, RB18L15B, RB1815C,
RB18L20A, RB1820C, RB18L25,
RB18L25A, RB18L30A, RB18L40,
RB18L40A, RB1840C, RB1840X,
RB18L50, RB18L50A, RB18L60A,
RB18L90A
Compatible charger BCL14181H, BCL14183H, BCS618,
RC18627U, RC18150, RC18150U,
RC18120, RC, 18115, BCL1418IV
WARNING! The declared vibration total
values and the declared noise emission values
given in this instruction manual have been
measured in accordance with a standardised
test and may be used to compare one tool with
another. They may be used for a preliminary
assessment of exposure.
The declared vibration and noise emission
values represent the main applications of the
tool. However, if the tool is used for di󰀨erent
applications, used with di󰀨erent accessories,
or poorly maintained, the vibration and noise
emission may di󰀨er. These conditions may
signicantly increase the exposure levels over
the total working period.
An estimation of the level of exposure to
vibration and noise should take into account
the times when the tool is turned o󰀨 or when
it is running idle. These conditions may
signicantly reduce the exposure level over
the total working period.
Identify additional safety measures to protect
the operator from the e󰀨ects of vibration and
noise, such as maintaining the tool and the
accessories, keeping the hands warm (in case
of vibration), and organising work patterns.

BACK PAGE
961479043-01
Imported by:
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149
Melbourne, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
RYOBI is a trade mark of Ryobi Limited, and is used under license.
© 2021 Techtronic Cordless GP
