ORIGINAL INSTRUCTIONS
Pole Hedge
Trimmer Power
Head Attachment
OHT18

Important!
It is essential that you read the instructions in this manual before assembling,
operating and maintaining the product.
Subject to technical modification.

1
Safety, performance, and dependability have been given
top priority in the design of your pole hedge trimmer power
head attachment.
INTENDED USE
This pole hedge trimmer power head attachment is
approved for use with telescopic pole handles of OPP1850
and OHT1860S.
The pole hedge trimmer power head attachment is only
intended for use outdoors by a single person who is
standing rm on a solid ground. For safety reasons, the
product must be adequately controlled by using two-
handed operation.
The product is designed for home or domestic use. It is
intended to cut and trim hedges, shrubs, and similar
vegetation. It is intended to be used only by adults who
have read and understood the instructions and warnings
in the attachment and powerhead manuals, and who can
be considered responsible for their actions. The product is
designed to be extended to a maximum length of 3.2 m. Do
not exceed this working length.
It should be used in dry, well-illuminated conditions. It is not
intended to cut grass, trees, or branches.
Do not use the product for any other purpose.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings, instructions, illustrations, and
specifications provided with this power tool. Failure to
follow the warnings and instructions may result in electric
shock, re, and/or serious injury.
Save all warnings and instruction for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
WORK AREA SAFETY
■Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
■Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
■Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
■Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
■Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
■Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
■Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
■When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
■If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
PERSONAL SAFETY
■Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
■Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injury.
■Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
■Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
■Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power in
unexpected situations.
■Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
■If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
■Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
POWER TOOL USE AND CARE
■Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
■Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with switch is dangerous and must be repaired.
■Disconnect the plug from the power source and/or

2
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
■Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
■Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
■Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
■Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
■Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
SERVICE
■Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that safety of the power tool is maintained.
■Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
POLE HEDGE TRIMMER SAFETY WARNINGS
■Keep all parts of the body away from the cutter blade.
A moment of inattention while operating the pole hedge
trimmer may result in serious personal injury.
■Carry the pole hedge trimmer by the handle with cutter
blade stopped. When transporting or storing the pole
hedge trimmer always fit the cutting device cover.
Proper handling of the pole hedge trimmer reduces
possible personal injury from the cutter blades.
ADDITIONAL SAFETY WARNINGS
■Some regions have regulations that restrict the use of
the product to some operations. Check with your local
authority for advice. Read all instructions.
■Clear the work area before each use. Remove all
objects such as cords, lights, wire, or string which can
be thrown or become entangled in the cutting means.
■Check the hedge for foreign objects, such as wire
fences.
■Exercise additional caution when using the product near
fencing, posts, buildings, or other immovable objects.
■To protect yourself from electrocution, do not operate

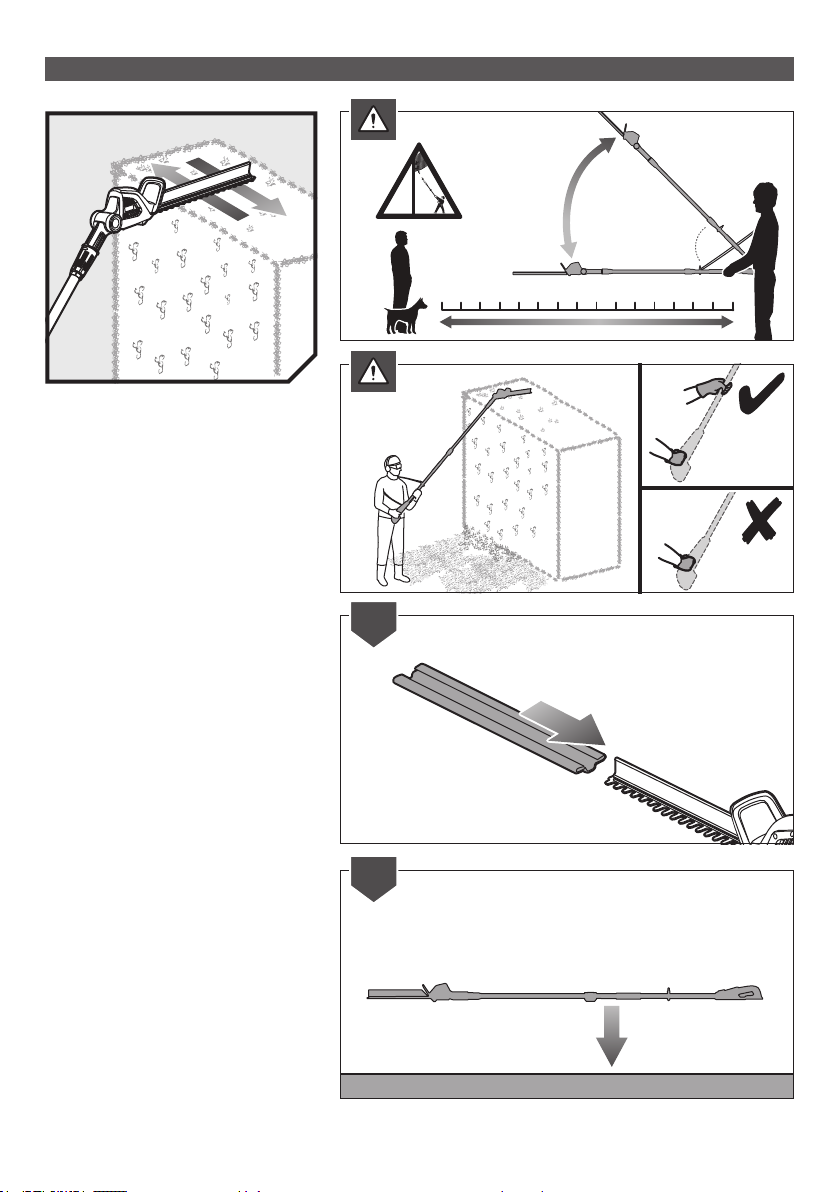

the product within 10 m of overhead electrical lines.
■Beware of thrown objects; keep all bystanders, children,
and pets at least 15 m away from work area. Stop the
product if anyone enters the area.
■Do not allow children or untrained individuals to use the
product.
■Check constantly for persons or animals behind or
inside any hedge or bush to be trimmed.
■Do not operate the product in poor lighting. The
operator requires a clear view of the work area to
identify potential hazards.
■Ensure that all handles and guards are fitted when
using the pole hedge trimmer. Never attempt to use
an incomplete pole hedge trimmer or one fitted with an
unauthorised modification.
■Ensure before each use that all controls and safety
devices function correctly. Do not use the product if the
motor does not stop when releasing the trigger.
■Inspect the product before each use. Check for loose
fasteners. Make sure that all guards and handles are
properly and securely attached. Replace any damaged
parts before use.
■Do not modify the product in any way.

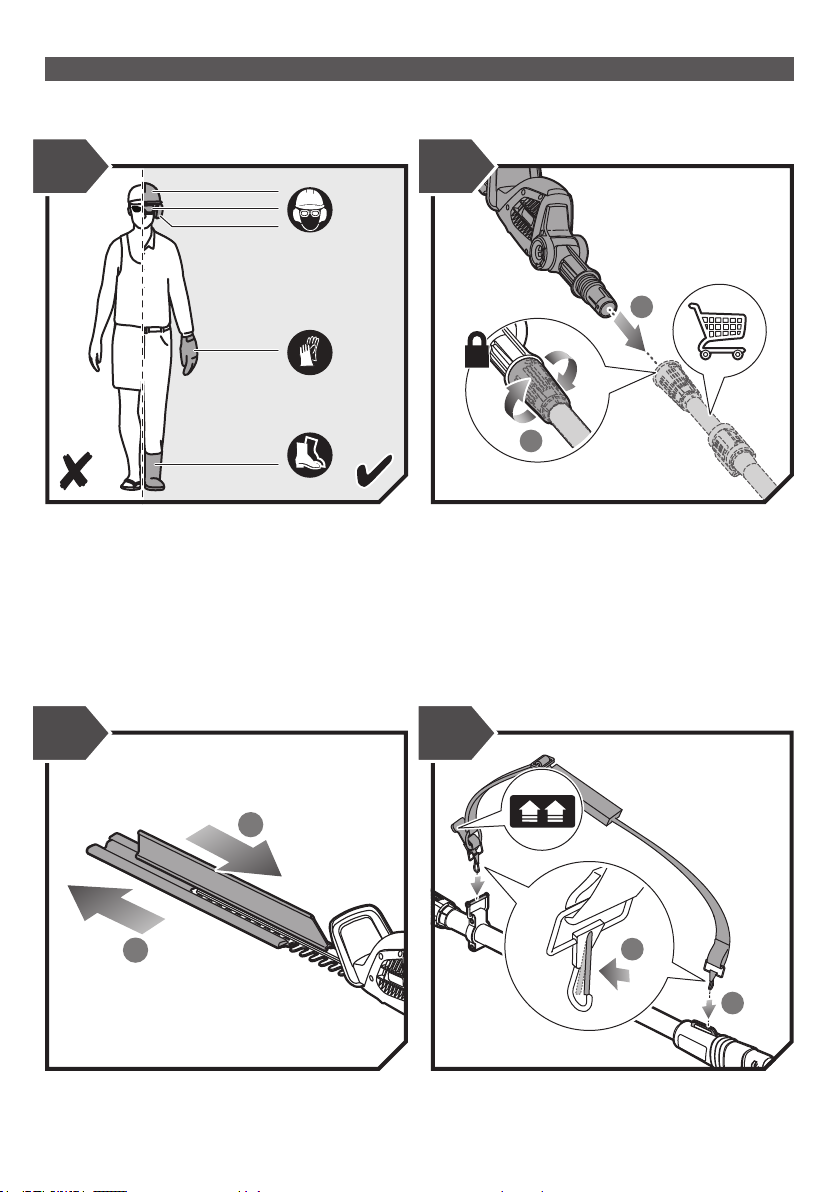

■Wear full eye and hearing protection while operating the
product. If working in an area where there is a risk of
falling objects, head protection must be worn.
■Wear heavy, long trousers, boots, and gloves. Do not
wear loose fitting clothing, short trousers, jewellery of
any kind, or use with bare feet.
■Secure long hair so it is above shoulder level to prevent
entanglement in moving parts.
■Use of hearing protection reduces the ability to hear
warnings (shouts or alarms). The operator must pay
extra attention to what is going on in the working area.
■Operating similar tools nearby increases both the risk
of hearing injury and the potential for other persons to
enter your working area.
■Do not use the product while tired, ill, or under the
influence of alcohol, drugs, or medication.
■Keep firm footing and balance. Do not overreach.
Overreaching can result in loss of balance and can
result in serious injury, or exposure to hot surfaces.
■Keep all parts of your body away from any moving part.
■Before starting the product, make sure the cutting
blades will not come in contact with anything.
■Never operate the product in an explosive atmosphere.
■While operating the product, always hold it firmly with
both hands by the two handles and ensure that the
operating position is safe and secure. The manufacturer
does not recommend the use of steps or ladders.
■Ensure that the pole hedge trimmer is correctly located
in a designated working position before starting the
product.
■Use the harness if it is supplied with your pole hedge
trimmer. It will assist you to support the weight of the
product during use and while moving between trimming
positions. Carefully adjust the harness to fit comfortably.
■Identify the quick release mechanism and practice
using it before you start using the product. Its correct
use may prevent serious injury in the case of an
emergency. Never wear additional clothing over
the harness or otherwise restrict access to the quick

3
release mechanism.
■Blades are sharp. When handling the blade assembly,
wear non-slip, heavy-duty protective gloves. Do not
place your hand or fingers between blades or in any
position where they could get pinched or cut.
■Turn off the product, and remove the battery pack.
Make sure that all moving parts have come to stop, and
allow the pole hedge trimmer to cool down:
●before adjusting the working position of the cutting
device
●before cleaning or clearing a blockage
●before leaving the product unattended
●before checking, maintaining, or working on the
product.
■Do not force the product through heavy shrubbery. This
can cause the blades to bind and slow down. If the
blades slow down, reduce the pace.
■Do not attempt to cut stems or twigs that are larger
than 18 mm thick, or those obviously too large to feed
into the cutting blade. Use a non-powered hand saw or
pruning saw to trim large stems.
■Do not operate the product with damaged or excessively
worn blades.
■If the cutting mechanism strikes any foreign object or
the pole hedge trimmer starts making unusual noise
or vibration, stop the product, remove the battery, and
allow the product to stop before you do the following:
●inspect for damage
●check for, and tighten, any loose parts
●have any damage parts replaced or repaired with
parts having equivalent specifications.
WARNING
If the product is dropped, suffers heavy impact, or begins
to vibrate abnormally, immediately stop the product and
inspect for damage or identify the cause of the vibration.
Any damage should be properly repaired or replaced by
an authorised service centre.
WARNING
Check that all the shaft couplings on the extension shaft
and tool are securely fastened before each use and at
frequent intervals.
TRANSPORTATION AND STORAGE
■Stop the product, remove the battery, and allow both to
cool before storing or transporting
■Clean all foreign material from the product. Store it in a
cool, dry, and well-ventilated place that is inaccessible
to children. For extra safety, store the battery separately
from the pole hedge trimmer. Keep away from corrosive
agents such as garden chemicals and de-icing salts. Do
not store outdoors.
■Cover the blade with the blade protector before storing
the product or during transportation.
■For transportation in a vehicle, secure the product
against movement or falling to prevent injury to persons
or damage to the product.
MAINTENANCE
WARNING
Use only original manufacturer’s replacement parts,
accessories, and attachments. Failure to do so can cause
possible injury, can contribute to poor performance, and
may void your warranty.
WARNING
Servicing requires extreme care and knowledge
and should be performed only by a qualied service
technician. Have the product serviced by an authorised
service centre only. When servicing, use only original
replacement parts.
WARNING
The blades are sharp. To prevent personal injury,
exercise extreme caution when cleaning, lubricating and
tting, or removing the blade protector.
■Turn off the product, remove the battery and make sure
all moving parts have come to a complete stop before
conducting any maintenance or cleaning work.
■You may only make adjustments or repairs described
in this manual. For other repairs, contact the authorised
service centre.
■After each use, clean the product with a soft, dry cloth.
■After each use, clean the debris from the blades with a
stiff brush, and then carefully apply a rust preventative
lubricant before refitting the blade protector. Use the
recommended rust preventative and lubricant spray
to apply an even distribution and reduce the risk of
personal injury from contact with the blades. For
information about suitable spray product, check with
your local authorised service centre.
■Lubricate the blades lightly before use if necessary
using the above method.
■Check all nuts, bolts, and screws at frequent intervals
for proper tightness to ensure that the product is in safe
working condition. Any part that is damaged should be
properly repaired or replaced by an authorised service
centre.
RESIDUAL RISK
Even when the product is used as prescribed, it is still
impossible to completely eliminate certain residual risk
factors. The following hazards may arise during use and the
operator should pay special attention to avoid the following:
■injury caused by contact with the blades
–The blade cannot be guarded while cutting. Keep
the blade away from yourself and others. Cover it
with the blade protector when the product is not in
use.
■injury caused by vibration
–Always use the right tool for the job. Use designated
handles and restrict working time and exposure.
■hearing damage caused by exposure to noise

4
–Wear ear protection and limit exposure.
RISK REDUCTION
It has been reported that vibrations from handheld tools
may contribute to a condition called Raynaud’s Syndrome.
Symptoms may include tingling, numbness and blanching
of the ngers, usually apparent upon exposure to cold.
Hereditary factors, exposure to cold and dampness, diet,
smoking, and work practices are all thought to contribute
to the development of the these symptoms. There are
measures that can be taken by the operator to possibly
reduce the effects of vibration:
■Keep your body warm in cold weather. When
operating the unit, wear gloves to keep the hands
and wrists warm. It is reported that cold weather is
a major factor contributing to Raynaud’s Syndrome.
■After each period of operation, exercise to increase
blood circulation.
■Take frequent work breaks. Limit the amount of
exposure per day.
If you experience any of the symptoms of this condition,
immediately discontinue use and see your physician.
WARNING
Injuries may be caused, or aggravated, by prolonged
use of a tool. When using any tool for prolonged periods,
ensure you take regular breaks.
WHAT’S IN THE BOX
See page 6.
1. Hedge trimmer attachment x 1
2. Blade protector x 1
3. Operator’s manual x 1
4. HEDGESWEEP attachment x 1
SYMBOLS ON THE PRODUCT
Safety alert
Read and understand all instructions
before operating the product, follow all
warnings and safety instructions.
Wear eye, ear and head protection.
Wear non-slip safety footwear when
using the product.
Wear non-slip, heavy duty gloves.
Do not expose to rain or damp
condition.
Sharp cutting blades. To prevent
serious injury, do not touch cutting
blades.
Pull: Quick release tab
Regulatory Compliance Mark (RCM).
The product meets applicable
regulatory requirements.
10m Electrical hazard, at least 10 m away
from the overhead electric-power lines
Beware of thrown or ying objects.
Keep all bystanders, especially children
and pets, at least 15 m away from the
operating area
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or
retailer for recycling advice.
The guaranteed sound power level is
96 dB
SYMBOLS IN THIS MANUAL
Parts or accessories sold separately
Note
Warning
The following signal words and meanings are intended to
explain the levels of risk associated with this product.
DANGER
Indicates an imminently hazardous situation, which, if
not avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not

5
avoided, may result in minor or moderate injury.
CAUTION
Without safety alert symbol
Indicates a situation that may result in property damage.

6
x 1
x 1
x 1 x 1
WHAT’S IN THE BOX

7
31 2
45
KNOW YOUR PRODUCT
1. Blades/Bar
2. Pivoting button
3. Shaft coupling connector
4. Blade protector
5. HEDGESWEEP debris sweeper

8
1
2
1 2
1
2
2
1
3 4
GETTING STARTED
Always wear safety goggles or safety glasses with
sideshields when operating the product. Failure to do so
could result in objects being thrown into your eyes resulting
in possible serious injury. When handling the blade
assembly, wear non-slip, heavy-duty protective gloves.
Wear non-skid, protective footwear that will protect your
feet and improve your footing on slippery surfaces.
Connect the pole to the hedge trimmer attachment.
Tighten the shaft coupling by turning it clockwise.
Remove the blade protector. Slide the HEDGESWEEP
over the blade.
Attach the shoulder strap.

9
OVERVIEW
p.10 p.13
p.14
Cleaning the pole hedge
trimmer
Operating the pole hedge
trimmer
Storing the pole hedge
trimmer

10
2
≤60˚
≥15m
(50’)
10m
1
OPERATION
OPERATING THE POLE HEDGE TRIMMER
CAUTION: DANGER! Risk of electrocution!
Do not operate within 10 m of overhead
electrical lines.
Position the product at an angle of 60° or
less, depending on the specific situation.
Keep bystanders at least 15 m away.
CAUTION: Always use two hands to operate
the pole hedge trimmer.
1. Cover the blade with the blade protector.
2. Lay the product on the ground.

11
-45°
0°
70°
35°
1
2
3
OPERATION
3. Press the pivoting button and adjust the
pole of the hedge trimmer to the required
working angle.
CAUTION: Do not touch the hedge trimmer
blade to adjust the working angle.
NOTE: The working angle of the pole hedge
trimmer can be adjusted to –45°, 35°, and
70°.
4. Remove the blade protector.
4

12
OPERATION
5. Trim the hedge from left to right.
NOTE: Keep watch for falling debris and other
materials.
5

13
1
2
1
2
MAINTENANCE
CLEANING THE POLE HEDGE TRIMMER
1. Remove the HEDGESWEEP. Clean the
body and handles of the product with a
soft, dry cloth, and a brush.
WARNING: Do not clean the blade with
water.
2. Lubricate the blades lightly before and
after use, with a plant-friendly lubricant.

14
2
1
1
2
STORAGE
STORING THE POLE HEDGE TRIMMER
1. Cover the blade with the blade protector.
2. Loosen the shaft coupling. Remove the
pole from the hedge trimmer attachment.
3. Store the product in a cool, dry, and well-
ventilated place that is inaccessible to
children and well away from sources of
ignition.
3
20190603v1

PRODUCT SPECIFICATIONS
Cordless Pole Hedge Trimmer
Model OHT18
Only compatible with OHT1860S and OPP1850.
Usable cutting length 450 mm
Cutting capacity 18 mm
Below values are measured with OPP1850/OHT1860S telescopic
pole handles
Rated voltage 18 V dc
No-load speed 1,350 min-1
Stroke rate at no load 2,700 spm
Maximum product working length 3.2 m
Weight (with harness and without
battery)
4.2 kg
Vibration level with telescopic pole handle (in accordance with
annex C of EN ISO 10517:2009+A1:2013)
With shaft extended
Front handle 0.8 m/s2
Rear handle 1.0 m/s2
Without shaft extended
Front handle 0.9 m/s2
Rear handle 0.7 m/s2
Uncertainty of measurement 1.5 m/s2
Noise emission level with telescopic pole handle (in accordance
with annex D of EN ISO 10517:2009+A1:2013)
A-weighted sound pressure level
at operator’s position
78.7 dB(A)
Uncertainty of measurement 2.5 dB
A-weighted sound power level 93.6 dB(A)
Uncertainty of measurement 2.5 dB
REPLACEMENT PARTS
HEDGESWEEP 526799003
Blade protector 526798003
VIBRATION LEVEL
The declared vibration value has been measured with a
standard test method and may be used to compare one
tool with another.
The declared vibration value may be used in a preliminary
assessment of exposure.
The vibration emission during actual use of power tool can
differ from the declared total value depending on the ways
in which the tool is used.
Identify safety measures to protect yourself based on an
estimation of exposure in the actual conditions of use,
taking account of all parts of the operating cycle such as the
times when the tool is switched off and when it is running
idle in addition to the trigger time.

Imported by:
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149
Melbourne, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
961476019-01
RYOBI is a trademark of Ryobi Limited,
and is used under license.
HEDGESWEEP is a trademark of Techtronic Outdoor
Products Technology Limited.
