Original Instructions
IMPORTANT!
It is essential that you read the instructions in this manual
before assembling, operating, and maintaining the
product.
Subject to technical modication.
Safety, performance, and dependability have been given top
priority in the design of your cordless line trimmer.
INTENDED USE
The cordless line trimmer is intended to be used only by
adults who have read and understood the instructions and
warnings in this manual and can be considered responsible
for their actions.
The product is intended only for outdoor use in a
wellventilated area. For safety reasons, the product must be
adequately controlled by a two-handed operation.
The product is intended for cutting long grass, pulpy weed,
and similar vegetation at or about ground level.
The cutting plane should be approximately parallel to the
ground surface when trimming and approximately vertical
when edging.
Do not use the product for any other purpose.
GENERAL PRODUCT SAFETY WARNINGS
WARNING! Read all safety warnings, instructions,
illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below
may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) product or battery-operated (cordless) product.
WORK AREA SAFETY
■Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
■Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the
dust or fumes.
■Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
■Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
■Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is
earthed or grounded.
■Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
■Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
■When operating a power tool outdoors, use an extension
cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
■If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
PERSONAL SAFETY
■Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while
operating power tools may result in serious personal
injury.
■Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat or hearing protection
used for appropriate conditions will reduce personal
injuries.
■Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source and/
or battery pack, picking up or carrying the tool. Carrying
power tools with your finger on the switch or energising
power tools that have the switch on invites accidents.
■Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
■Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
■Dress properly. Do not wear loose clothing or jewellery.
Keep your hair and clothing away from moving parts.
Loose clothes, jewellery or long hair can be caught in
moving parts.
■If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
■Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury
within a fraction of a second.
POWER TOOL USE AND CARE
■Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
■Do not use the power tool if the switch does not turn it on
and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
■Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from the
power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power
tool accidentally.
■Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
■Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage

3
Original Instructions
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by
poorly maintained power tools.
■Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
■Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into account
the working conditions and the work to be performed.
Use of the power tool for operations different from those
intended could result in a hazardous situation.
■Keep handles and grasping surfaces dry, clean and
free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the
tool in unexpected situations.
BATTERY TOOL USE AND CARE
■Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
■Use power tools only with specifically designated battery
packs. Use of any other battery packs may create a risk
of injury and fire.
■When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
■Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause
irritation or burns.
■Do not use a battery pack or tool that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion or
risk of injury.
■Do not expose a battery pack or tool to fire or excessive
temperature. Exposure to fire or temperature above
130°C may cause explosion.
■Follow all charging instructions and do not charge the
battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at
temperatures outside the specified range may damage
the battery and increase the risk of fire.
SERVICE
■Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
■Never service damaged battery packs. Service of battery
packs should only be performed by the manufacturer or
authorised service providers.
LINE TRIMMER SAFETY WARNINGS
■Do not use the machine in bad weather conditions,
especially when there is a risk of lightning. This
decreases the risk of being struck by lightning.
■Thoroughly inspect the area for wildlife where the
machine is to be used. Wildlife may be injured by the
machine during operation.
■Thoroughly inspect the area where the machine is to
be used and remove all stones, sticks, wires, bones,
and other foreign objects. Thrown objects can cause
personal injury.
■Before using the machine, always visually inspect to see
that the cutter and the cutter assembly are not damaged.
Damaged parts increase the risk of injury.
■Check the grass collector frequently for wear or
deterioration. A worn or damaged grass collector may
increase the risk of personal injury.
■Keep guards in place. Guards must be in working
order and be properly mounted. A guard that is loose,
damaged, or is not functioning correctly may result in
personal injury.
■Keep all cooling air inlets clear of debris. Blocked air
inlets and debris may result in overheating or risk of fire.
■Wear eye protection and ear protection. Adequate
protective equipment will reduce personal injury.
■While operating the machine, always wear non-slip and
protective footwear. Do not operate the machine when
barefoot or wearing open sandals. This reduces the chance
of injury to the feet from contact with the moving cutter.
■Always wear clothing such as trousers that covers the
operator’s legs while operating the machine. Contact
with the moving cutter or line may cause injury.
■Keep bystanders away while operating the machine.
Thrown debris can result in serious personal injury.
■Do not operate the machine above waist height. This
helps prevent unintended cutter contact and enables
better control of the machine in unexpected situations.
■Exercise caution when operating the machine in wet
grass. Walk, never run. This reduces the risk of slipping
and falling which may result in personal injury.
■Do not operate the machine on excessively steep
slopes. This reduces the risk of loss of control, slipping
and falling which may result in personal injury.
■When working on slopes, always be sure of your footing,
always work across the face of slopes, never up or down
and exercise extreme caution when changing direction.
This reduces the risk of loss of control, slipping and
falling which may result in personal injury.
■Keep all power cords and cables away from cutting
area. Power cords or cables may be hidden in hedges
or bushes and can be accidentally cut or damaged by
the line or cutter.
■Keep all parts of the body away from the moving trimmer
cutter or line. Do not clear material from the machine
until it has been disconnected from the power source.
The moving trimmer cutter or line may result in serious
personal injury.
■Carry the machine with the machine switched off and
away from your body. Proper handling of the machine
will reduce the likelihood of accidental contact with a
moving trimmer cutter or line.
■Only use replacement cutting heads and trimmer cutters
or lines specified by the manufacturer. Do not replace
the trimmer cutters or lines with metal wires or blades.
Incorrect replacement parts may cause loss of control,
breakage and injury.
■Do not replace the plastic lines or cutters with metal
wires or blades. The use of non-recommended cutting
devices may cause injury.

4
Original Instructions
ADDITIONAL SAFETY WARNINGS
■Before use and after any impact, check that there are no
damaged parts on the product. A defective switch or any
part that is damaged or worn should be properly repaired
or replaced by an authorised service centre.
■The small blade fitted to the lawn guard is designed to
trim the newly extended line to the correct length for safe
and optimum performance. The blade is very sharp.
Do not touch the blade, particularly when cleaning the
product.
■Use only the manufacturer’s replacement cutting line.
Do not use any other cutting attachment.
■Make sure that the cutting attachment is properly
installed and securely fastened.
■Never operate the product unless all guards, deflectors,
and handles are properly and securely attached.
■Ensure that the line cut-off blade in the guard is properly
positioned and secured before each use.
■Keep the head attachment below waist level.
■Immediately turn off the product and remove the battery
pack in the event of an accident or a breakdown. Do not
operate the product again until it has been fully checked
by an authorised service centre.
■To reduce the risk of injury associated with contacting
moving parts, always turn off the product, remove the
battery pack, and allow both to cool down. Make sure
that all moving parts have come to a complete stop:
●before servicing
●before clearing a blockage
●before checking, cleaning, and working on the
product
●before changing accessories
●after striking a foreign object
●whenever leaving the product unattended
●whenever performing maintenance
●whenever the product starts to vibrate abnormally
■Ensure that all guards and handles are properly fitted
and are in good condition.
■Hold the product by designated handles, and restrict
working time and exposure.
■Beware of objects thrown by the cutting means. Clear
debris like small stones, gravel, and other foreign objects
from the work area before starting operation. Wires or
string may become entangled with the cutting means.
■Always ensure that ventilation openings are kept clear
of debris.
■Injuries may be caused, or aggravated, by prolonged
use of a product. When using any product for prolonged
periods, ensure that you take regular breaks.
■Operate the product only in temperatures between 0°C
and 40°C.
■Store the product in a location where the ambient
temperature is between 0°C and 40°C.
ADDITIONAL BATTERY SAFETY WARNINGS
To reduce the risk of re, personal injury, and product
damage due to a short circuit, never immerse the product,
battery pack, or charger in uid or allow uid to ow inside
them. Corrosive or conductive uids, such as seawater,
certain industrial chemicals, and bleach or bleach-containing
products, etc., can cause a short circuit.
■Charge the battery pack in a location where the ambient
temperature is between 10°C and 38°C.
■Store the battery pack in a location where the ambient
temperature is between 0°C and 40°C.
■Use the battery pack in a location where the ambient
temperature is between 0°C and 40°C.
TRANSPORTATION AND STORAGE
■Turn off the product, remove the battery pack, and allow
both to cool down before storing or transporting.
■Remove all foreign materials from the product.
■Do not store or transport the product with the battery
pack fitted. Remove the battery pack, and secure it
separately. Store the product in a cool, dry, and well-
ventilated place that is inaccessible to children. Keep
the product away from corrosive agents, such as garden
chemicals and de-icing salts. Do not store the product
outdoors.
■For transportation in vehicles, secure the product
against movement or falling to prevent injury to persons
or damage to the product.
TRANSPORTING LITHIUM BATTERIES
■Transport the battery pack in accordance with local and
national provisions and regulations.
■Follow all special requirements on packaging and
labelling when transporting batteries by a third party.
Ensure that no batteries can come in contact with other
batteries or conductive materials while in transport by
protecting exposed connectors with insulating, non-
conductive caps or tape. Do not transport batteries
that are cracked or leaking. Check with the forwarding
company for further advice.
MAINTENANCE
■Use only original manufacturer’s replacement parts,
accessories, and attachments. Failure to do so can cause
possible injury, can contribute to poor performance, and
may void your warranty.
■Servicing requires extreme care and knowledge
and should be performed only by a qualified service
techUse only original manufacturer’s replacement
parts, accessories, and attachments. Failure to do
so can cause possible injury, can contribute to poor
performance, and may void your warranty.
■Servicing requires extreme care and knowledge
and should be performed only by a qualified service
technician. Have the product serviced by an authorised
service centre only.
■Turn off the product and remove the battery back before
conducting any maintenance or cleaning work.
■You may make adjustments or repairs described in this
manual. For other repairs, contact an authorised service
centre.
■For the replacement line, use only a nylon filament line
of the diameter described in the specifications table of
this manual.
■After each use, clean the product with a soft, dry cloth.
Any part that is damaged should be properly repaired or
replaced by an authorised service centre.

5
Original Instructions
■Check all nuts, bolts, and screws before each use and
at frequent intervals for proper tightness to ensure that
the product is in safe working condition. Any part that is
damaged should be properly repaired or replaced by an
authorised service centre.
■Bring the product to an authorised service centre to
replace damaged or unreadable labels.
SYMBOLS ON THE PRODUCT
Safety alert
Read and understand all instructions
before operating the product. Follow all
warnings and safety instructions.
Do not expose the product to rain or
damp conditions.
Wear eye and ear protection.
Wear non-slip, heavy-duty gloves.
Wear non-slip safety footwear when
using the product.
Do not use metal blade(s) on the product.
Remove the battery pack before starting
any work on the product.
6400/min
Rotational direction and maximum speed
of the shaft for the cutting attachment.
15m
Beware of thrown or ying objects.
Keep all bystanders, especially children
and pets, at least 15 m away from the
operating area.
Keep hands away from cut-o󰀨 blade.
Beware of thrown or flying objects. Keep
all bystanders a safe distance away from
the product.
96
Guaranteed sound power level
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or retailer
for recycling advice.
Regulatory Compliance Mark (RCM).
Product meets applicable regulatory
requirements.
SYMBOLS IN THIS MANUAL
Note
Warning
Parts or accessories sold separately

6

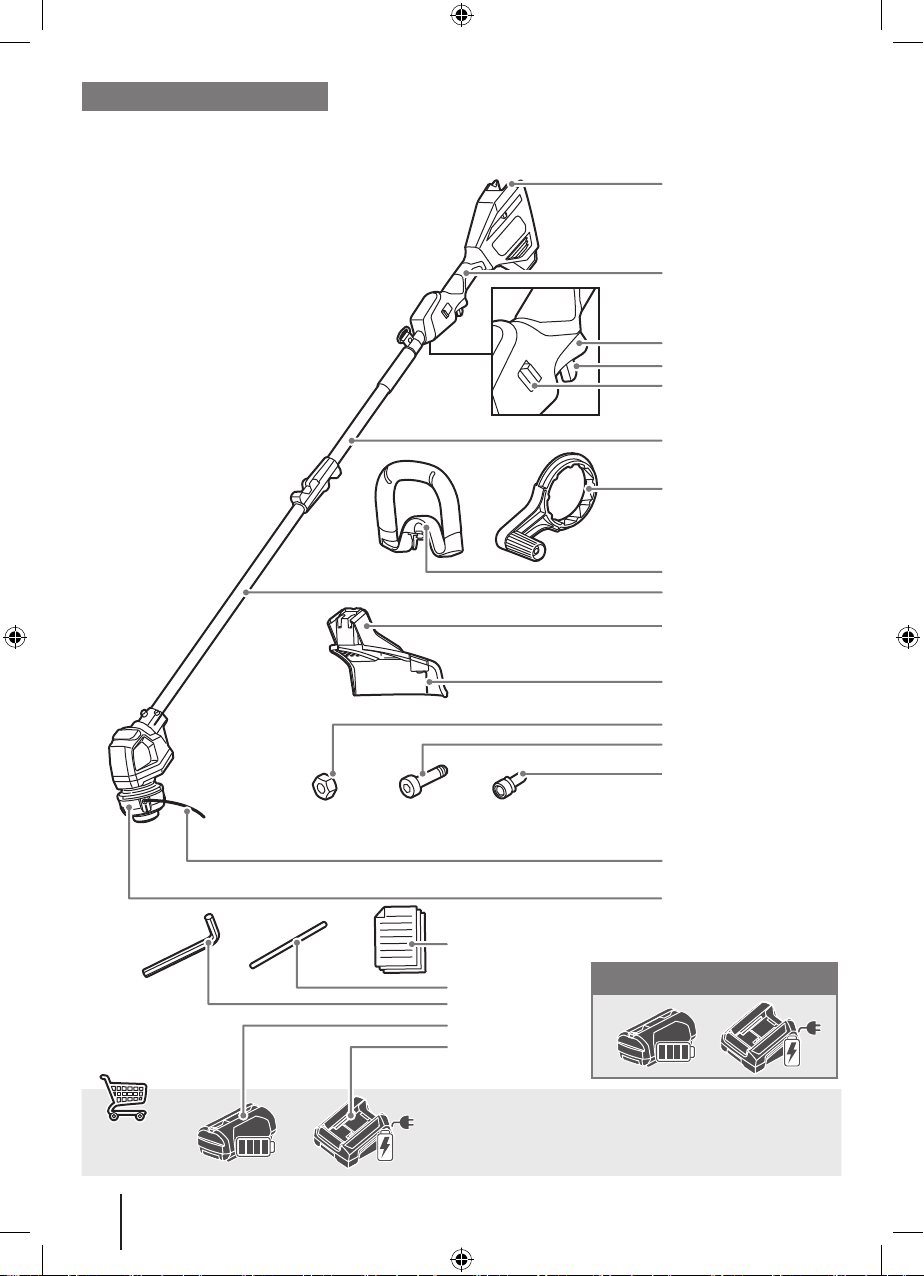

Know your product
R36XLTR10
Battery port
Rear handle
On/off trigger
Front handle
Lock-out trigger
Speed selector
Speed winder
Upper shaft
Lower shaft
Safety guard
Hex screw
Bolt
Nut
Cut-off blade
Cutting line
String head
Operator’s manual
Battery pack
Lock pin
Hex key
Charger
x2x2x2
R36XLTR26

7

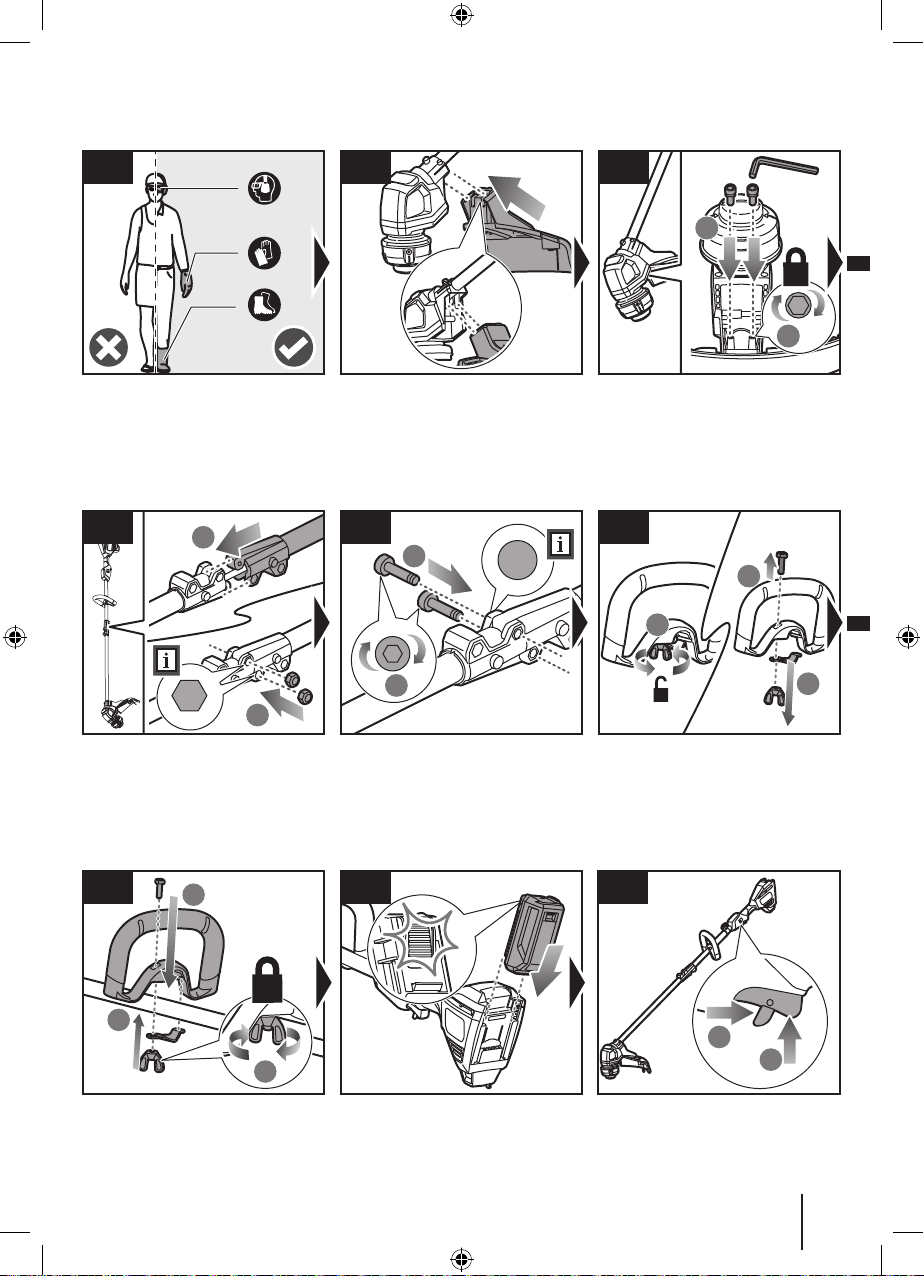

Getting started
8
Insert the battery pack until the latch
clicks into place.
2
1
x2
3
Install hex screws to hold the safety
guard in place. Turn the hex screws
clockwise to tighten and secure the
safety guard.
2
3
1
1
2
1
2
1
2
1
2
3
1
64 5
97
4
7
2
Always wear safety goggles or safety
glasses with side shields when
operating the product. Wear non-slip,
heavy-duty protective gloves. Wear
non-skid, protective footwear that will
protect your feet and improve your
footing on slippery surfaces.
Install the safety guard to the trimmer
head.
Turn the wing nut counterclockwise to
loosen the clamp and remove the screw
from the front handle.
Insert the upper shaft into the lower
shaft. Insert the nuts in the hex holes.
Secure the upper shaft and lower shaft
with bolts. Ensure to lock it in place with
the nuts.
Attach the front handle on the upper
drive shaft at a comfortable position.
Secure the front handle by turning the
wing nut clockwise.
Press and hold the lock-out trigger, and
squeeze the on/off trigger to turn on the
product.

8
38 cm
43 cm

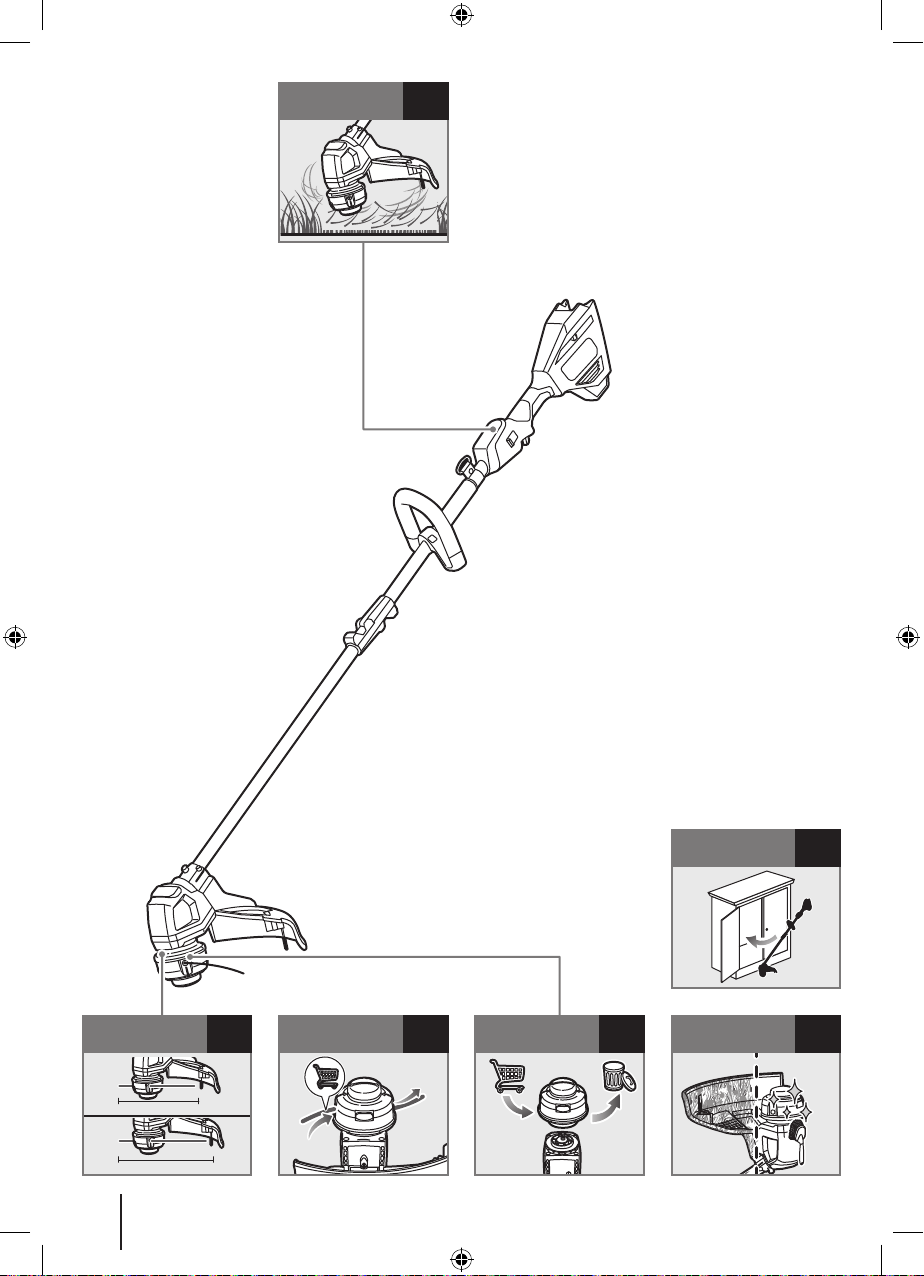

p.16
p.17
Replacing the
cutting line
Operating the
product

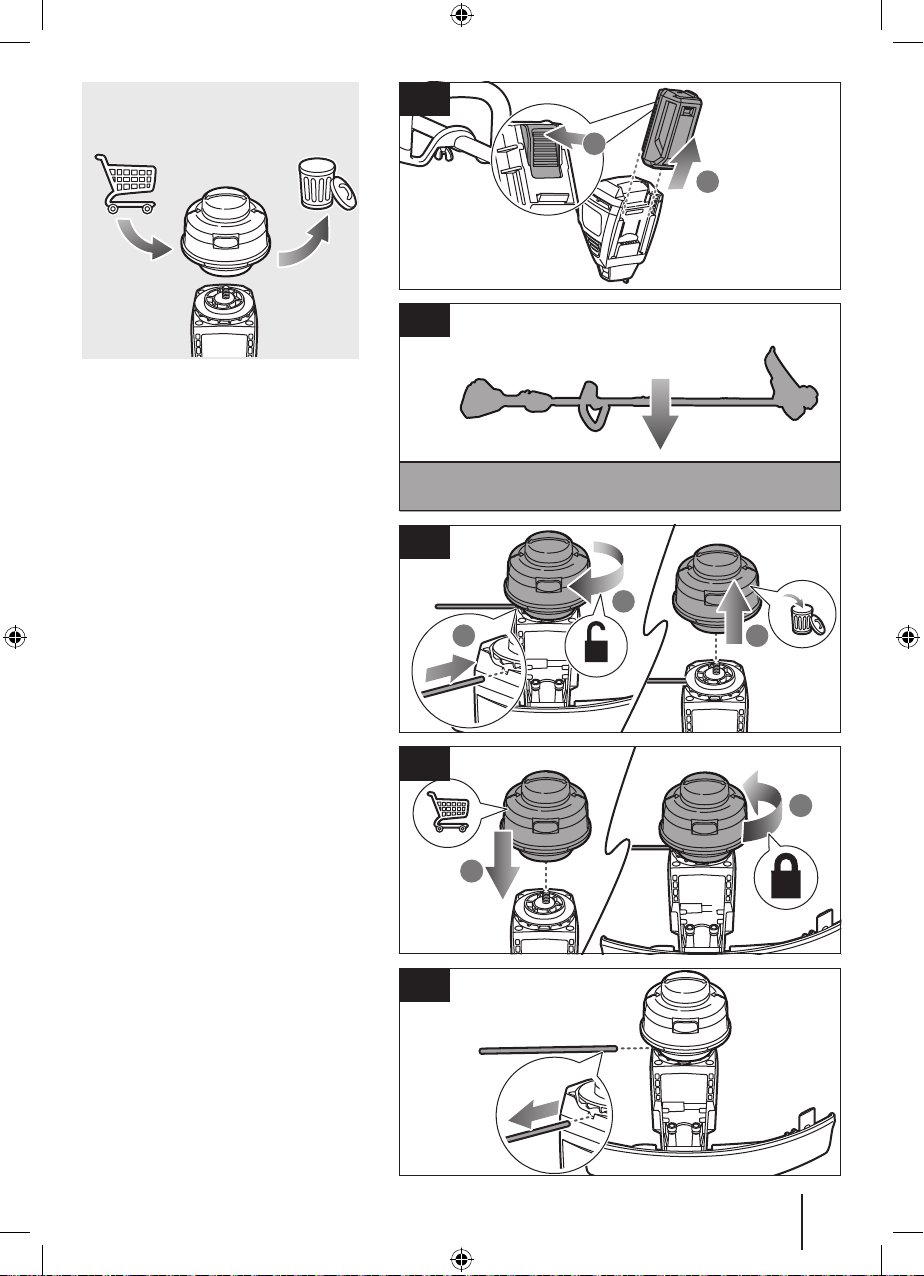

Replacing the
string head
Cleaning the
product

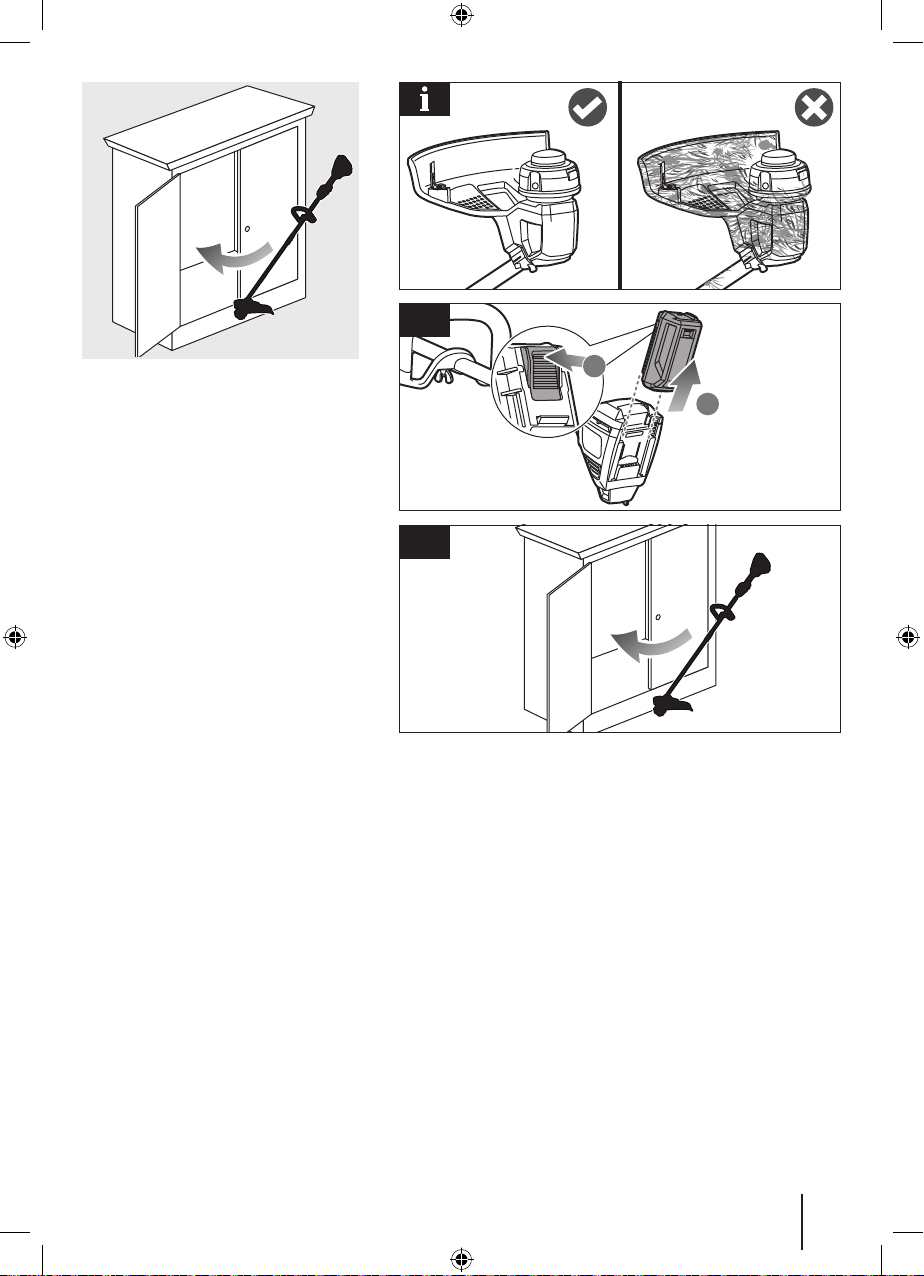

Storing the product
Adjusting the
cutting line
p.9
p.15p.12 p.13

9
Operation
1
2
OPERATING THE PRODUCT
WARNING: For safety reasons, the product
must be adequately controlled by a two-
handed operation. Hold the product with the
right hand on the rear handle and the left
hand on the front handle.
WARNING: Consider the environment in
which you are working. Keep the working
area free from wires, sticks, stones, and
debris, which if struck by the cutter can
become thrown objects.
WARNING: Exercise extreme caution when
using the product. Keep hands and feet
away from the cutting means at all times,
especially when turning on the motor.

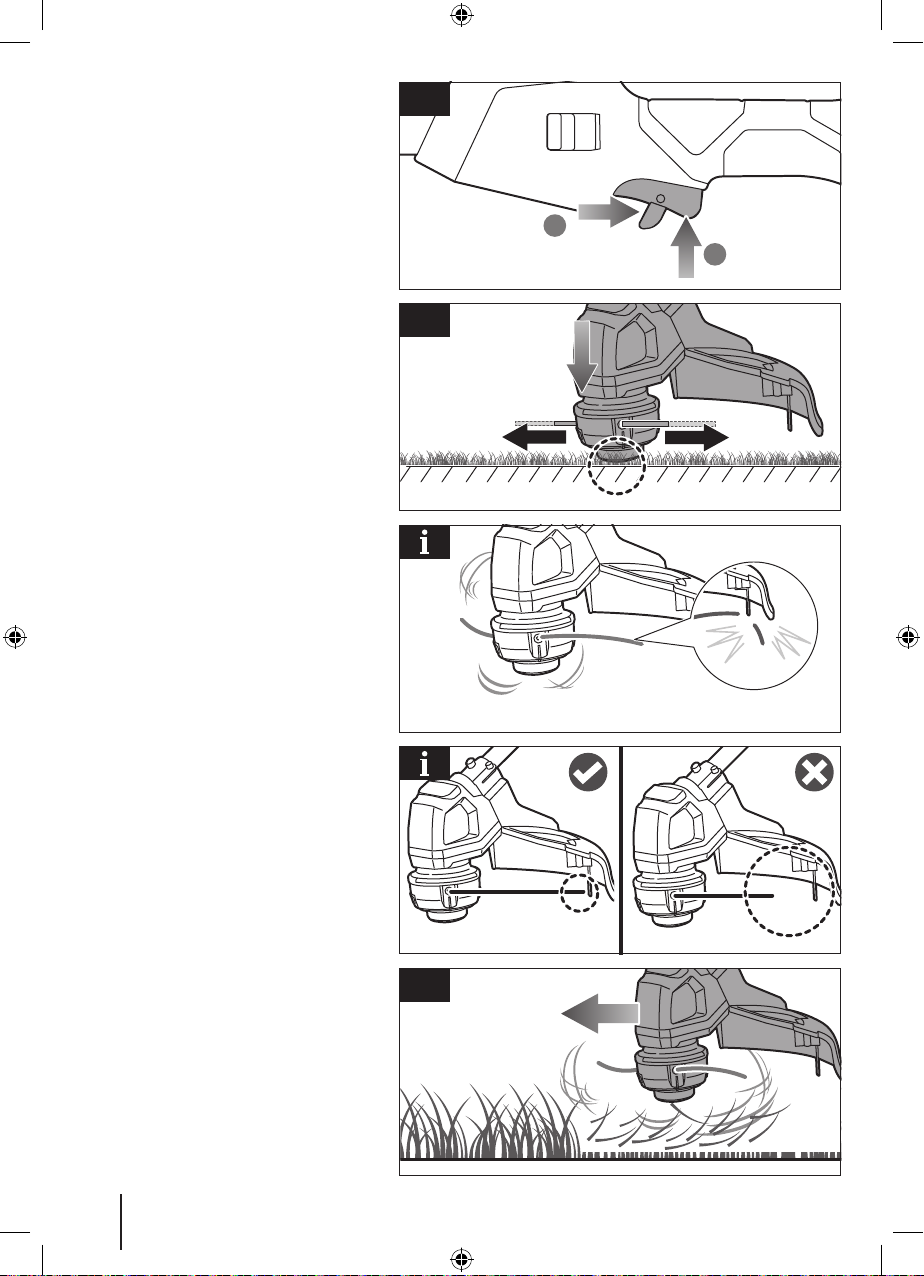

1. Insert the battery pack until the latch
clicks into place.
2. Use the speed selector to adjust the
speed from high to low.

10
Operation
1
2
3
4
5
3. Press and hold the lock-out trigger, and
squeeze the on/off trigger to turn on the
product.
4. Tap the bump knob on the ground to
advance the line. The line advances each
time the head is tapped. Do not hold the
bump knob onto the ground.
NOTE: Tap the bump knob only on grass to
prevent damage to the bump knob.
NOTE: The small blade tted to the safety
guard is designed to trim the newly extended
line to the correct length for safe and optimum
performance. The blade is very sharp. Do not
touch the blade, particularly when cleaning
the product.
5. For cutting ease and safety, cut the grass
from one direction.

11
Operation
1
2
3
NOTE: Cut tall grass from the top down. This
prevents grass from wrapping around the
shaft housing and bump head, which may
cause damage from overheating.
NOTE: Cut grass from the right side to the
left side for cutting ease and safety.

12
Operation
38 cm
43 cm
1
2
1
2
x2
1
3
2
3
x2
2
1
38 cm
43 cm
38 cm
43 cm
4
ADJUSTING THE CUTTING LINE
1. Press the battery latch and remove the
battery pack.
2. Place the product on a level surface.
Position the product with the motor side
down and the blade guard side up.
3. Remove the screws on the line cut-off
blade. Remove the blade. Rotate the
blade 180º.
4. Install the blade. Tighten the screws to
secure the blade into the new position.
NOTE: The cutting width of the line trimmer
can be adjusted according to preference.
A cutting width of 43 cm gets the job done
faster but results in a lesser runtime.

13
Maintenance
1
2
1
2
3
1
2
2.4 mm
1
2
1.65 m
3
2.65 m
4
5
REPLACING THE CUTTING LINE
1. Press the battery latch and remove the
battery pack.
2. Place the product on a level surface.
Position the product with the motor side
down and the blade guard side up.
3. Rotate the bump knob on the string head
until the line on the centre of the bump
knob aligns with the arrows on the outer
spool.
4. Use a 2.4 mm diameter line. Cut one
piece of the line, approximately 3.0 m in
length. Insert one end of the line through
the eyelet on the side of the string head,
and push the line until it comes out
through the eyelet on the other side.
Continue to push the line through the
string head until the line is even in length
on both sides.
5. Ensure that there are equal lengths
of line on either side of the string head
(max. 2.65 m per side). Rotate the bump
knob with the speed winder to wind the
line.
NOTE: The bump knob can also be
rotated by hand.
NOTE: When reloading, the line length
should be maximum of 2.65 m each side.

14
Maintenance
12 cm 12 cm
6
1
2
7
8
NOTE: Wind the line until approximately 12 cm
remains protruding from the trimmer head.
6. Insert the battery pack until the latch clicks
into place.
7. Press and hold the lock-out trigger, and
squeeze the on/off trigger to turn on the
product.
8. Tap the bump knob on the ground to
advance the line. The line advances each
time the head is tapped. Do not hold the
bump knob onto the ground.
NOTE: Tap the bump knob only on grass to
prevent damage to the bump knob.
NOTE: The small blade tted to the safety
guard is designed to trim the newly extended
line to the correct length for safe and optimum
performance. The blade is very sharp. Do not
touch the blade, particularly when cleaning the
product.

15
Maintenance
2
2
1
3
1
2
3
4
5
1
2
1
REPLACING THE STRING HEAD
1. Press the battery latch and remove the
battery pack.
2. Place the product on a level surface.
Position the product with the motor side
down and the blade guard side up.
3. Align the slot on the string head assembly
and string head, and insert the lock pin.
Turn the string head clockwise to loosen
and remove it.
4. With the lock pin still inserted on the slot,
install the new string head and and turn it
counterclockwise to tighten.
5. Remove the lock pin from the string head
assembly.

16
Maintenance
2
3
1
2
1
CLEANING THE PRODUCT
1. Press the battery latch and remove the
battery pack.
2. Place the product on a level surface.
Position the product with the motor side
down and the blade guard side up.
WARNING: The small blade tted to the
safety guard is designed to trim the newly
extended line to the correct length for safe
and optimum performance. The blade is very
sharp. Do not touch the blade, particularly
when cleaning the product.
3. Clean the product with a soft, dry brush.
WARNING: Avoid using solvents when
cleaning plastic parts. Most plastics are
susceptible to damage from various types of
commercial solvents and may be damaged
by their use.

17
Storage
20220824v2
2
1
2
1
STORING THE PRODUCT
NOTE: Clean the product before storing it.
1. Press the battery latch and remove the
battery pack.
2. Store the product in a cool, dry, and
well-ventilated place that is inaccessible
to children. Keep the product away
from corrosive agents, such as garden
chemicals and de-icing salts. Do not
store the product outdoors.

PRODUCT SPECIFICATIONS
Cordless line trimmer
Model R36XLTR26 / R36XLTR10
Voltage 36 V d.c.
No-load speed (high) 5500 +/- 10% min
No-load speed (low) 5000 +/- 10% min
Cutting capacity 38 cm / 43 cm
Cutting line diameter 2.4 mm
Weight
Without battery pack 4.2 kg
With 6 Ah battery pack 6 kg
Noise emission values determined according to IEC 60335-2-91
A-weighted sound pressure level LpA = 78.9 dB(A)
Uncertainty K= 3.0 dB
A-weighted sound power level LWA = 92.4 dB(A)
Uncertainty K= 3.0 dB
Vibration total values determined according to IEC 60335-2-91
Vibration emission value
Front handle ah = 3.9 m/s2
Rear handle ah = 2.9 m/s2
Uncertainty K = 1.5 m/s2
LWA + KWA 96 dB (A)
BATTERY AND CHARGER
Model R36XLTR26 R36XLTR10
Battery pack R36BTY6 –
Charger R36CHA4A0 –
Compatible battery
packs
BPL3626D2, BPL3650D2, BPL3640D2,
BPL3620D, BPL3660D, BPL3690D,
BPL3612D, R36BTY2, R36BTY4,
R36BTY5, R36BTY6, R36BTY8,
R36BTY12
REPLACEMENT PARTS
Replacement head RAC1214
Replacement bump knob 530455002
Replacement 2.4 mm trimming line RLTS3
NOTE: Visit your local special orders desk or contact RYOBI
customer service for replacement parts.
WARNING! The declared vibration total values and the
declared noise emission values given in this instruction
manual have been measured in accordance with a
standardised test and may be used to compare one tool with
another. They may be used for a preliminary assessment
of exposure.
The declared vibration and noise emission values represent
the main applications of the tool. However, if the tool is used
for di󰀨erent applications, used with di󰀨erent accessories,
or poorly maintained, the vibration and noise emission
may di󰀨er. These conditions may signicantly increase the
exposure levels over the total working period.
An estimation of the level of exposure to vibration and noise
should take into account the times when the tool is turned o󰀨
or when it is running idle. These conditions may signicantly
reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator
from the e󰀨ects of vibration and noise, such as maintaining
the tool and the accessories, keeping the hands warm (in
case of vibration), and organising work patterns.

Imported by:
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149
Melbourne, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
RYOBI is a trade mark of Ryobi Limited, and is used under license.
961479074-02
