Ryonet Riley Hopkins 350 User manual

Assembly Instructions
4 color, 4 station | 6 color, 4 station
6 color, 6 station | 8 color, 6 station

1
Tools Required:
• Two 9/16” wrenches
• Hammer
11 per unit
Main Press core assembly
16” x 24” Honeycomb aluminum platen
Print station assembly
Print station & bumper bolt hardware
1 per station
1 per station
1 per station /
color
2
3
4
What’s in the box
Tag Item Q.
4
1
3
3

2
PRSA-RHCLRARMKIT
Riley Hopkins Print head bumper assembly
Tag
1
3
4
2
2
2
PRCO-BMPRBLTCVRBLU
PRHD-HC3/8NF4-1/2GR5ZC
PRHD-LNYN3/8NFGR5ZC
Air Hose for Riley print head bump stops 3-1/2”
long
3/8-24 x 4-1/2” Hex Cap Screw grade 5 Zinc
3/8-24 Lowpro Nyloc Nut
5/16 USS Flat Washer Zinc
PRHD-WA5/16USSGR5ZC
2
4
Name/ID Description Q.
1
2
4
3

3
PRSA-RH350
Riley Hopkins 350 station hardware.
Tag
18
4
4
4
4
1
PRHD-HC1/4NC3/4GR5ZC
MFLS-RRLWRWSHR
PRHD-RP3/16X1ZC
PRHD-RP3/16X1ZC
MFLS-RR300PSPLT
3/8-16 X 1 Hex Cap Screw Grade 5 Zinc
3/8-16 Nyloc Nut Zinc
1/4” Roq Ready lower washer
3/16 x 1 Roll Pin Zinc
3/16 x 1 Roll Pin Zinc
14 ga stainless printstaion doubler plate
PRHD-LWA1/4ZC
2
3
4
5
6
Name/ID Description Q.
1
3
4
5
6
2

4

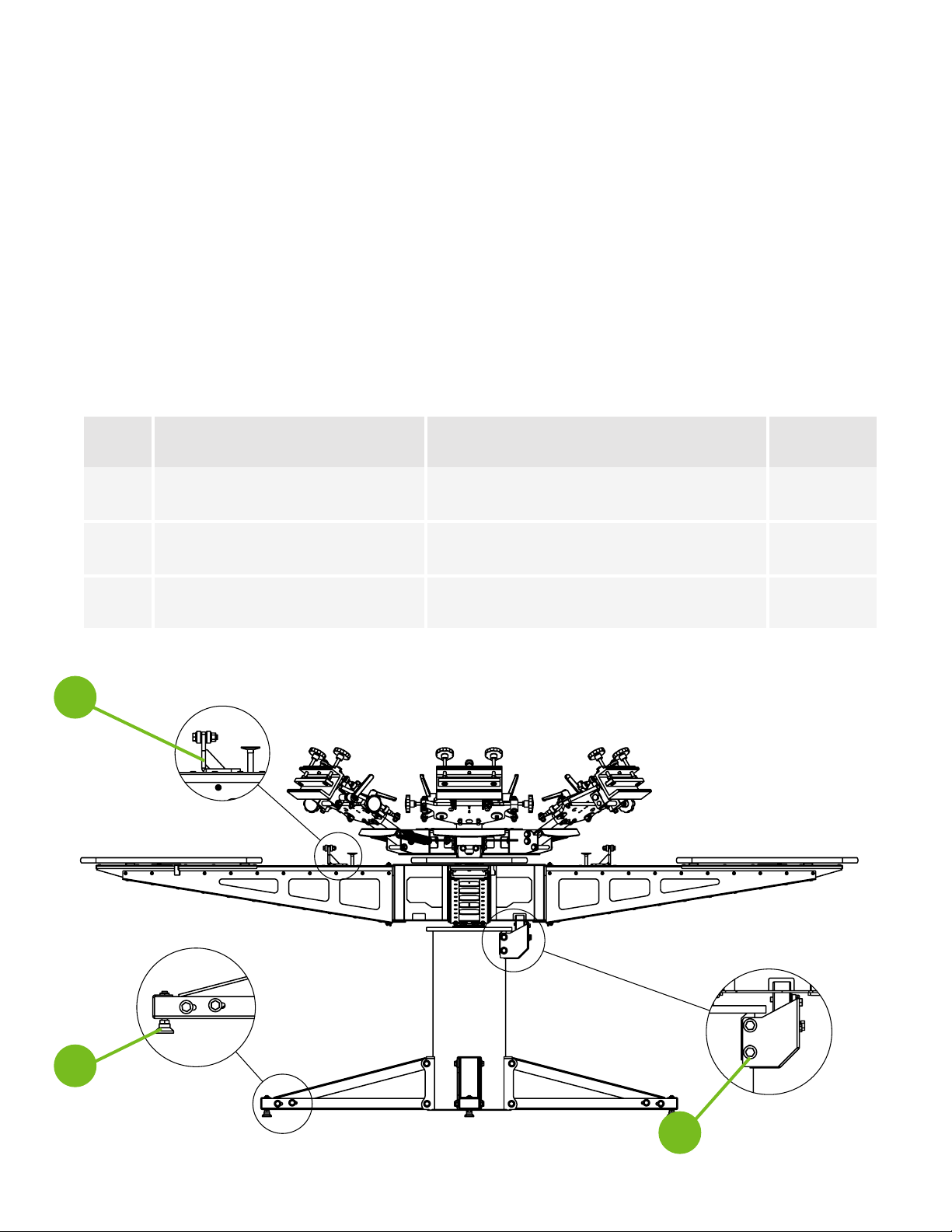

STEP 1
Install the lower bumper bolt assemblies. Do not overtighten hardware.
Tighten just enough to hold in place.
NOTE: Refer to page 2 for hardware detail
Before dropping the print heads, ensure that spring hooks are engaged
in the slots. The hooks must be facing upward. WARNING: EXTREME FORCE.
INSTALL WITH CAUTION!
1
2
4
3

5
STEP 2
Install the Upper bumper bolt assemblies. No not overtighten hardware.
Tighten just enough to hold in place.
NOTE: Refer to page 2 for hardware detail
1
2
3
4

6
Install the Upper bumper bolt assemblies. No not overtighten hardware.
Tighten just enough to hold in place.
NOTE: Refer to page 2 for hardware detail
6
1
2
STEP 3
Aach the print station top section with supplied hardware. One 7/16 inch
wrench is required for installation. Harware labeled below are required per
print station. Do not fully tighten at this time. Visually align the 2 small
3/16” holesup with the rotary section.
Note: Refer to Page 3 for hardware detail.

7
STEP 4

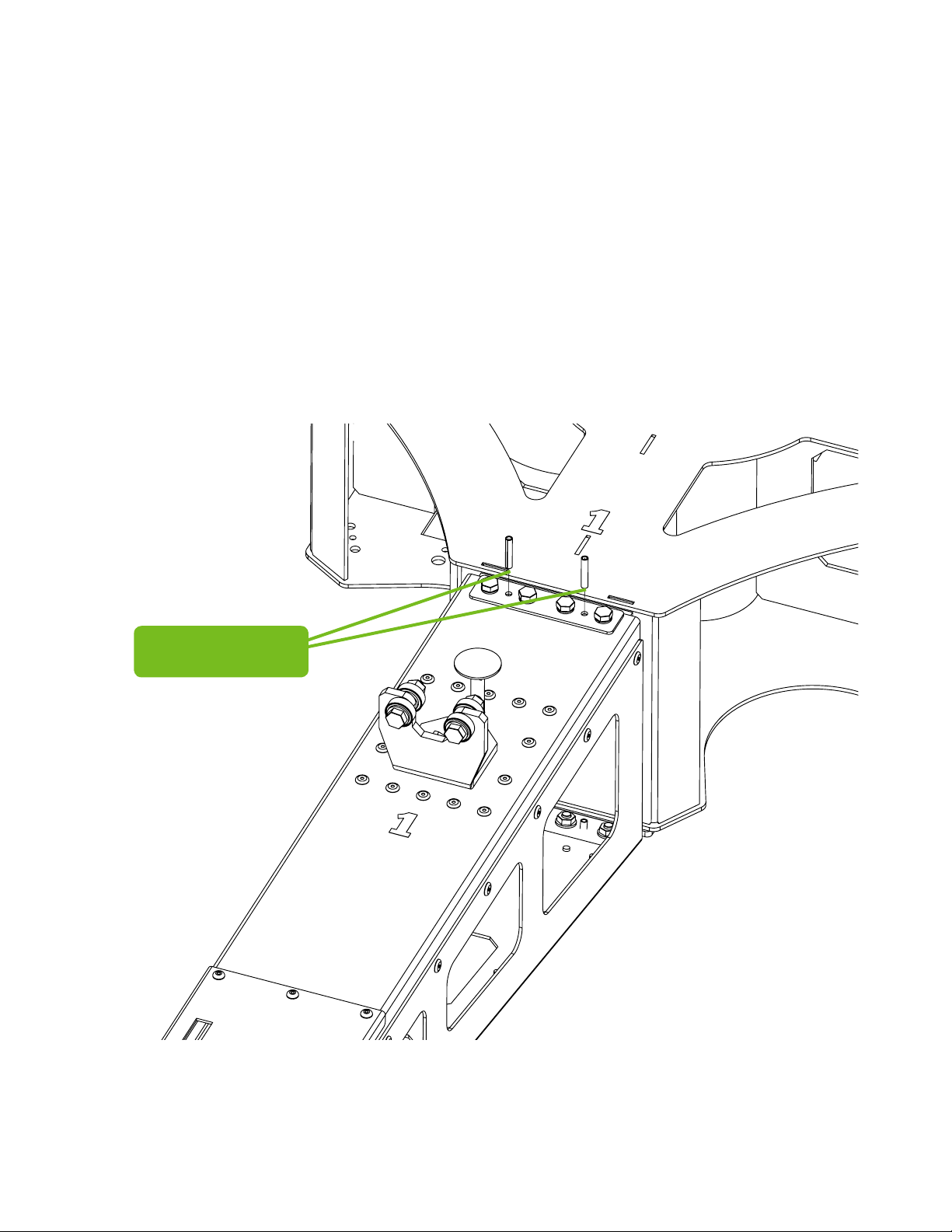

Install the locating pins into the top 2 holes of the print station with a
hammer. Once installed 1/2”, fully tighten the top hardware.
Note: Failure to do so will shi the print station out of alignment with the
other print stations.
Alignment pins

8
Install the locating pins into the top 2 holes of the print station with a
hammer. Once installed 1/2”, fully tighten the top hardware.
Note: Failure to do so will shi the print station out of alignment with the
other print stations.
STEP 5
Aach the print station lower section with supplied hardware. One 7/16
inch wrench is required for installation. DO NOT fully tighten at this time.
Note: Refer to Page 3 for hardware detail.
4
3
1

9

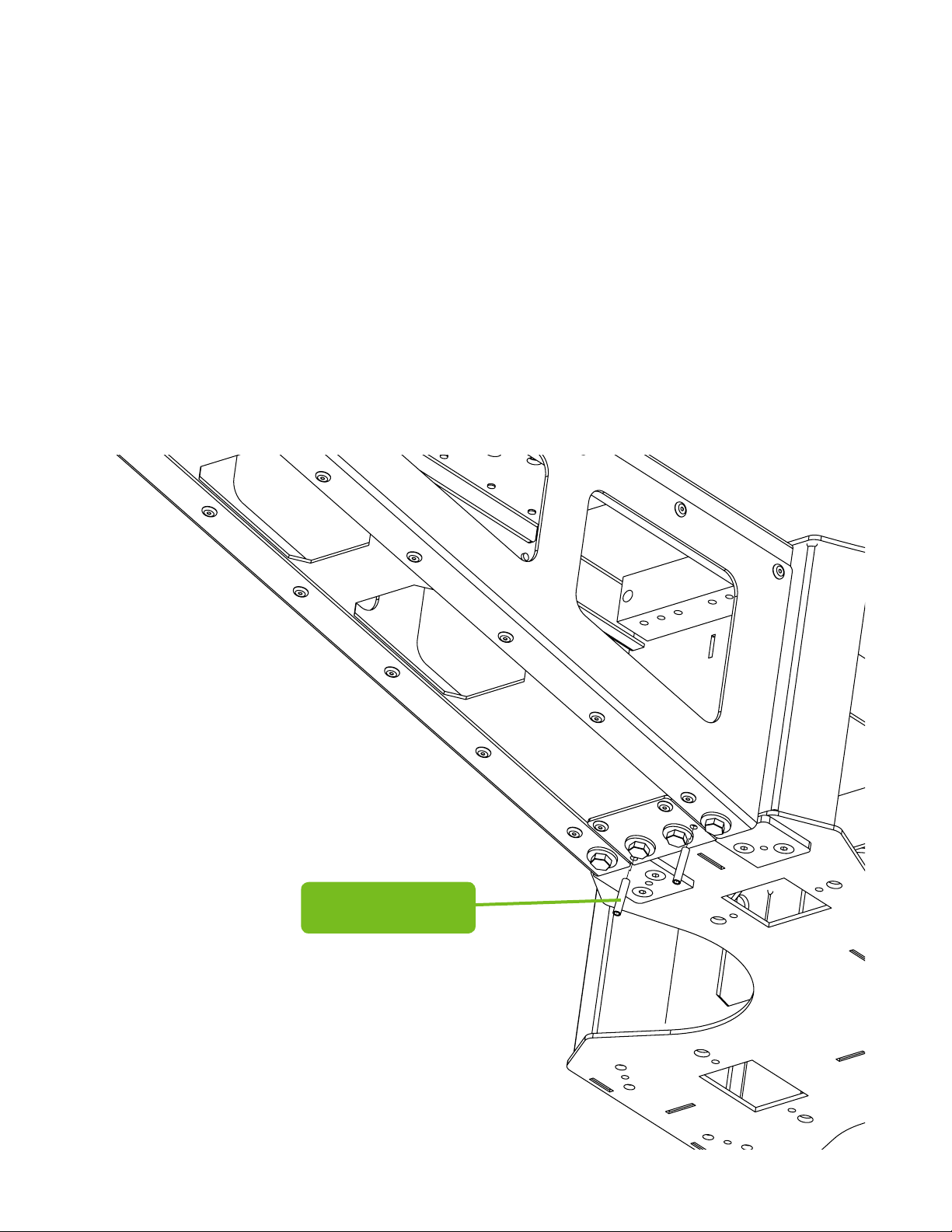

Before the final tightening of the hardware, insert the 3/16” roll pins into
the lower holes of the print station. With hardware snug, visually align
drilled holes as close as possible.
Tap them in approx. half way with a hammer. Fully tighten hardware
aer the pins are installed.
Note: Refer to Page 3 for hardware detail.
STEP 6

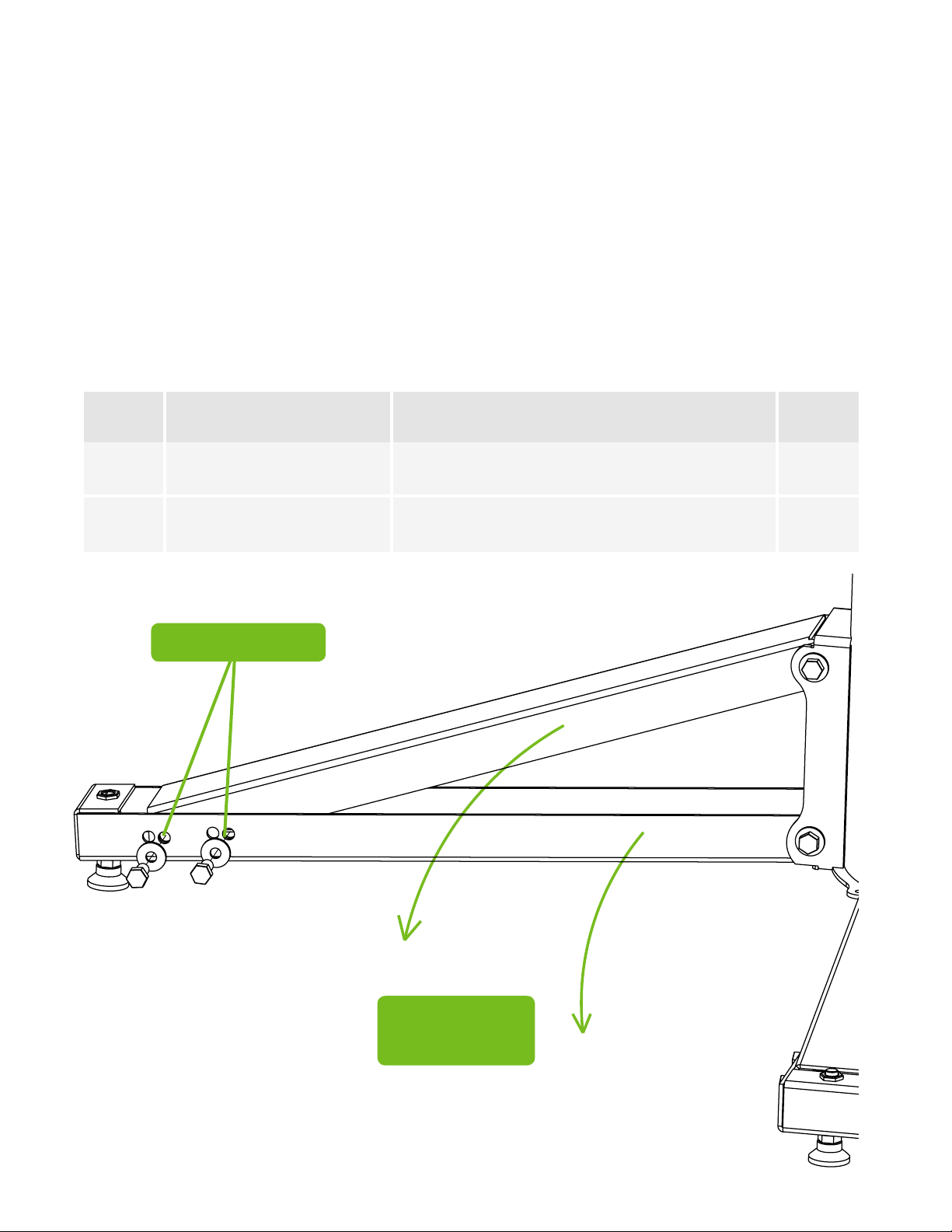

Alignment pins
