Reverse With Condence ™ 1
Backup Camera System with
Waterproof Quad View Monitor
and Heated Camera
RVS-082575
Instruction Manual
RVS Systems, Inc. © 2016

RVS Systems
2
Introduction...............................03
SafetyInformation..........................04-06
Before Beginning Installation. . . . . . . . . . . . . . . . . . . . . . . 07
InstallationGuide.......................... 08-09
Monitor..............................10-14
Connections...............................15
Remote.............................16-17
OSDSetup................................18
TriggerSetting..............................19
JumpKey..............................20-21
TouchScreenOperations.......................22-26
Camera...........................27-28
Troubleshooting............................29
Warranty&Disclaimer........................ 30-31
TABLE OF CONTENTS

Reverse With Condence ™ 3
NOTE! Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a RearView Backup
Camera System!
With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as a
substitute for the standard rear view mirror or for any other mirror
that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with aTV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION

RVS Systems
4
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and/or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
• The Rear View Camera System is
designed to help the driver safe-
ly detect people and/or objects,
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.
• Never back up while looking at the
monitor alone. You should always
check behind and around the vehi-
cle when backing up, in the same
way as you would if the vehicle did
not have the RearView Camera
System.Ifyoubackupwhilelooking
only at the monitor, you may cause
damage or injury. Always back up
slowly.
•The Rear View Camera System is
not intended for use during exten-
sive back-up maneuvers or backing
into cross trac or pedestrian walk-
ways.
•Please, always remember, the area
displayed by the Rear View Camera
Systemislimited.Itdoesnotdisplay
the entire panorama that is behind
you.
USAGE:
SAFETY INFORMATION

Reverse With Condence ™ 5
•Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
• Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
•Take special care when
cleaning the monitor.
•Make sure to rmly ax the prod-
uct before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
• Cover the power cable with fric-
tion tape where it may touch a
metal case. A short circuit
or disconnected wire may cause a
re.
• While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
•The RearView System should only
be used when the vehicle is in
reverse.
• Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
• Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
• Dropping the unit may cause
possible mechanical failure.
INSTALLATION:
SAFETY INFORMATION

RVS Systems
6
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT ORTHE USE OF ANY PRODUCT.
SAFETY INFORMATION
If you have questions about this product, contact:
RVS Systems
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]

Reverse With Condence ™ 7
Beforedrilling please check thatno cable orwiring isonthe other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot or moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system. If the
system seems to not be operating properly see troubleshooting (page
27).
BEFORE YOU BEGIN

RVS Systems
8
INSTALLATION GUIDE
Wiring
After connecting the monitor to the power harness, plug the camera
into the CAM 3 input. Connect the RED 12V power wire to an ignition
power source and the BLACK 12V ground wire to a chassis ground.The
BROWN wire is the REVERSE trigger wire. Connect this wire to the vehi-
cle’s backup light circuit to activate the rear view image whenever the
vehicle shifts into reverse.To attach a second camera, connect it to the
CAM 1 input.

Reverse With Condence ™ 9
INSTALLATION GUIDE
Precautions For Use Of Monitor
I. The monitor is made of glass and plastic. Do not subject it to
a mechanical shock by dropping it from a high place, etc.
II. Do not apply excessive force to the monitor surface or the
adjoining areas since this may cause the color tone to vary.
III. Only clean with a soft dry cloth and/orWindex.
IV. Do not attempt to disassemble the mirror monitor.
Safety
• Before drilling, be sure no cable or wire is on the other side.
• Feed as much cable as possible into vehicle & clamp securely.
This reduces the possibility of cable being hooked or snagged.

RVS Systems
10
MONITOR

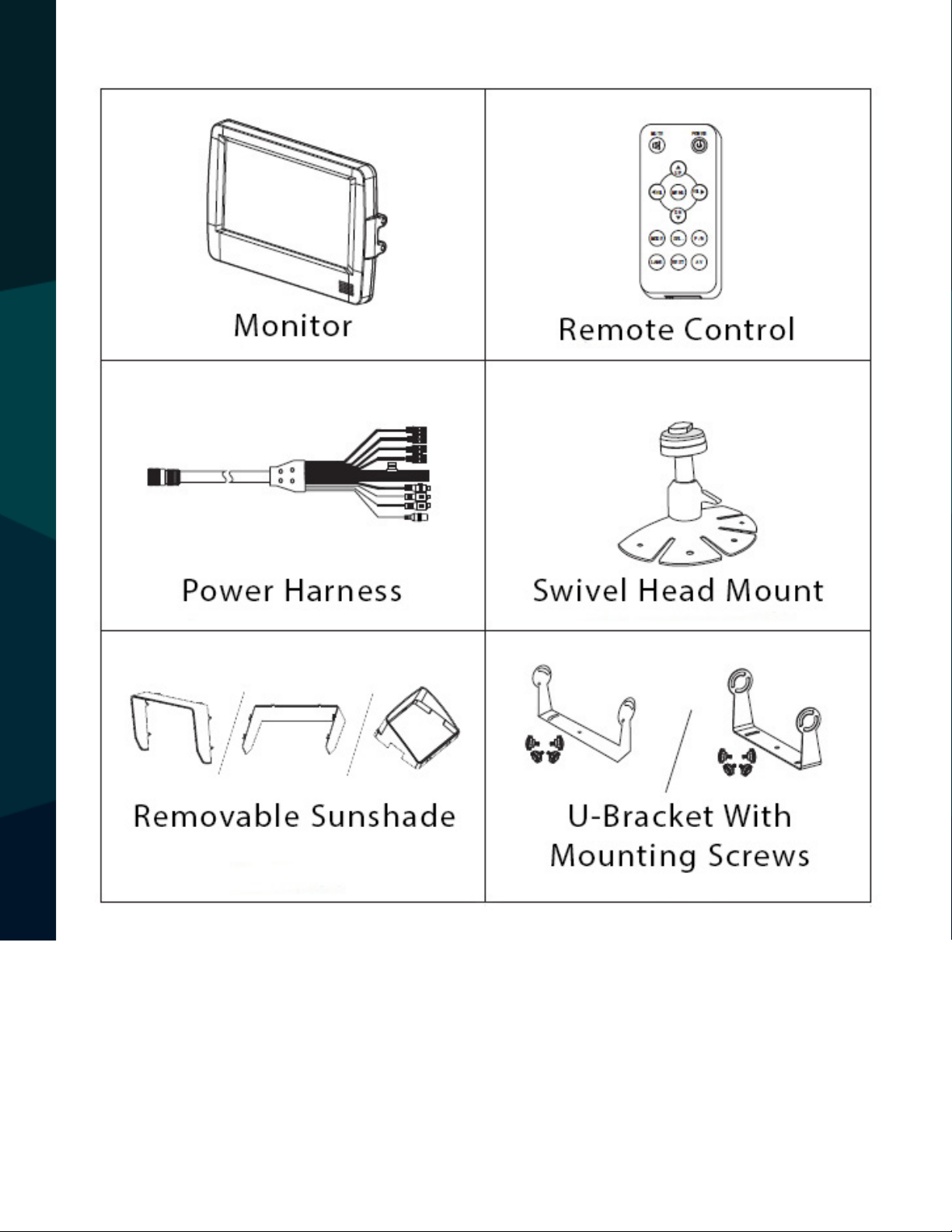

Components
Waterproof Camera

Reverse With Condence ™ 11
MONITOR

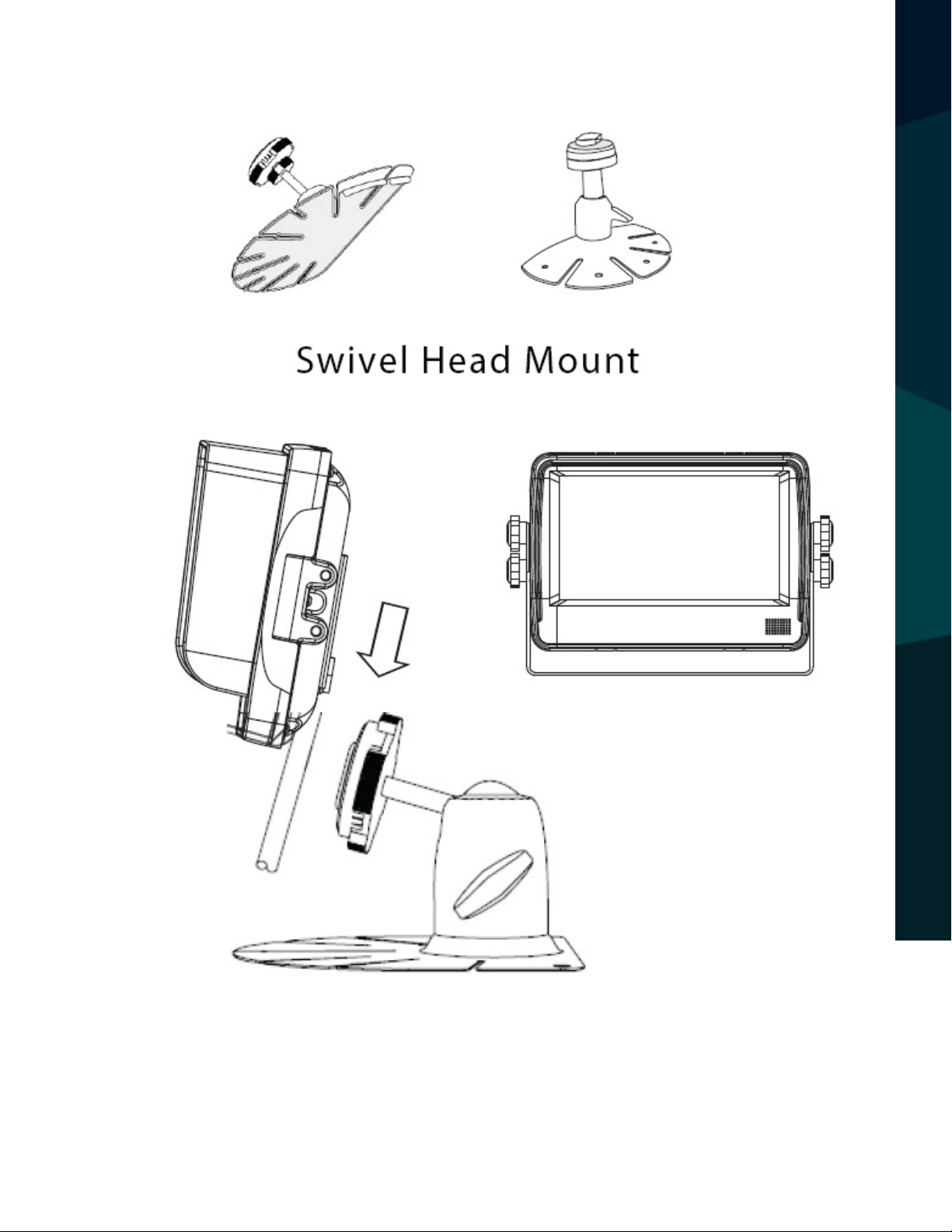

7” Waterproof Quad View Monitor with a TFT LCD digital color touch
screen display. Monitor comes with a U-Bracket, swivel head mount,
and a waterproof rating of IP69K.
• 7” Quad View Display with multiple viewing options
• Completely waterproof - IP69K
• Touch screen display
• Optional distance grid lines
• Built-in speaker

RVS Systems
12
MONITOR

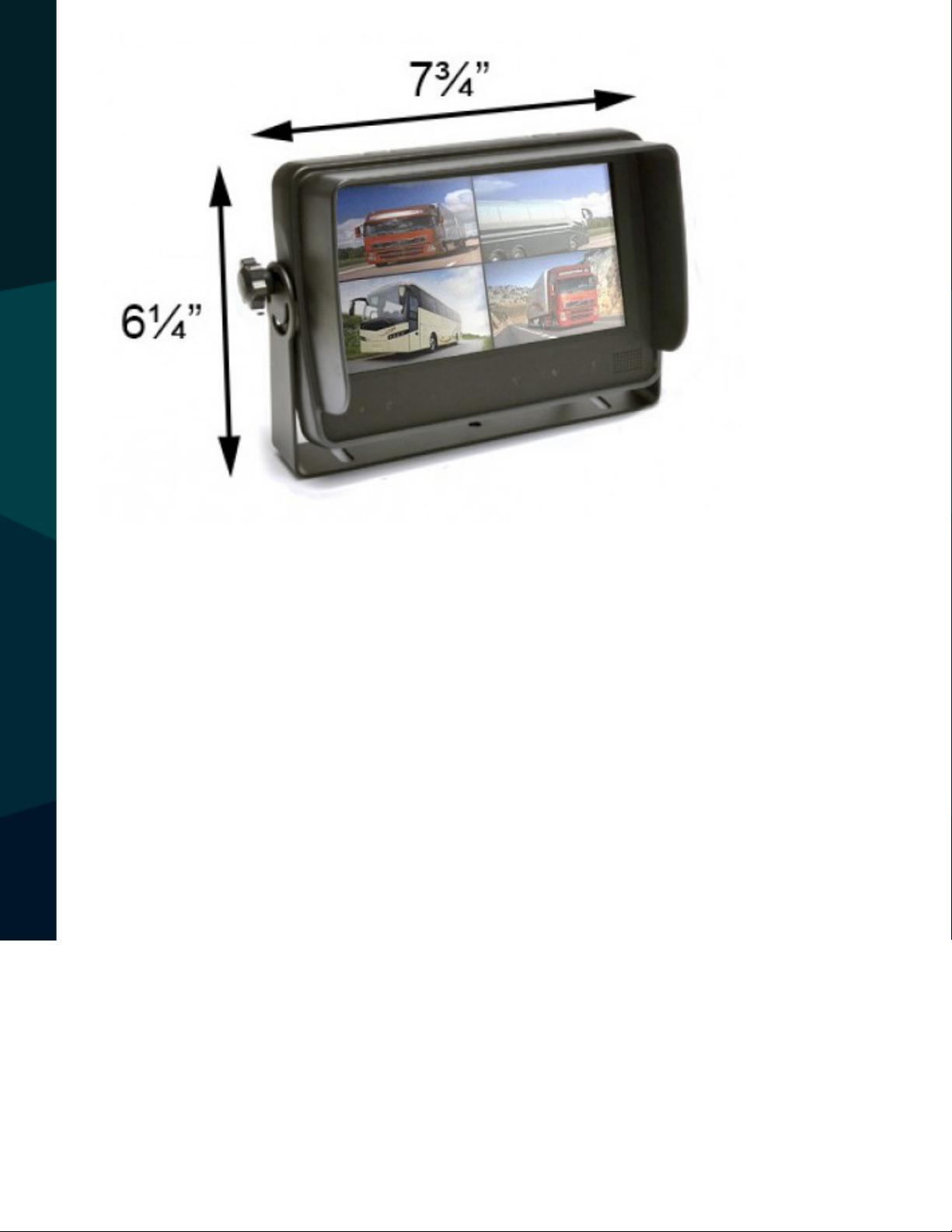

Monitor Dimensions
Dimension 7”
TV System NTSC/ PAL
Resolution 800 x 3 (RGB) x 480
Brightness 400 cd/m²
Contrast 500 :1
Viewing Angle U: 50°/ D: 60°, R/L: 70°
Aspect Ratio 16:9
Operating Temperature -10 ~ +65ºC
Storage Temperature -30 ~ +80ºC
Power Consumption Max. 25W
Power for Cameras Max. 4×300mA, 12V
Dot Pitch 0.192 (H) x 0.1805 (V)
Video Inputs 4 Video Inputs, 1 DVD Input
Audio Inputs 4 Audio Inputs; 1 DVD input
Video Outputs 1 Rec Video Output
Audio Output 1 Live Audio Output
Waterproof Rating IP69K
Touch Screen Transmittance ≥80%
Screen Operation Pressure 10~110g
Screen Response Time <10ms

Reverse With Condence ™ 13
MONITOR

RVS Systems
14
MONITOR

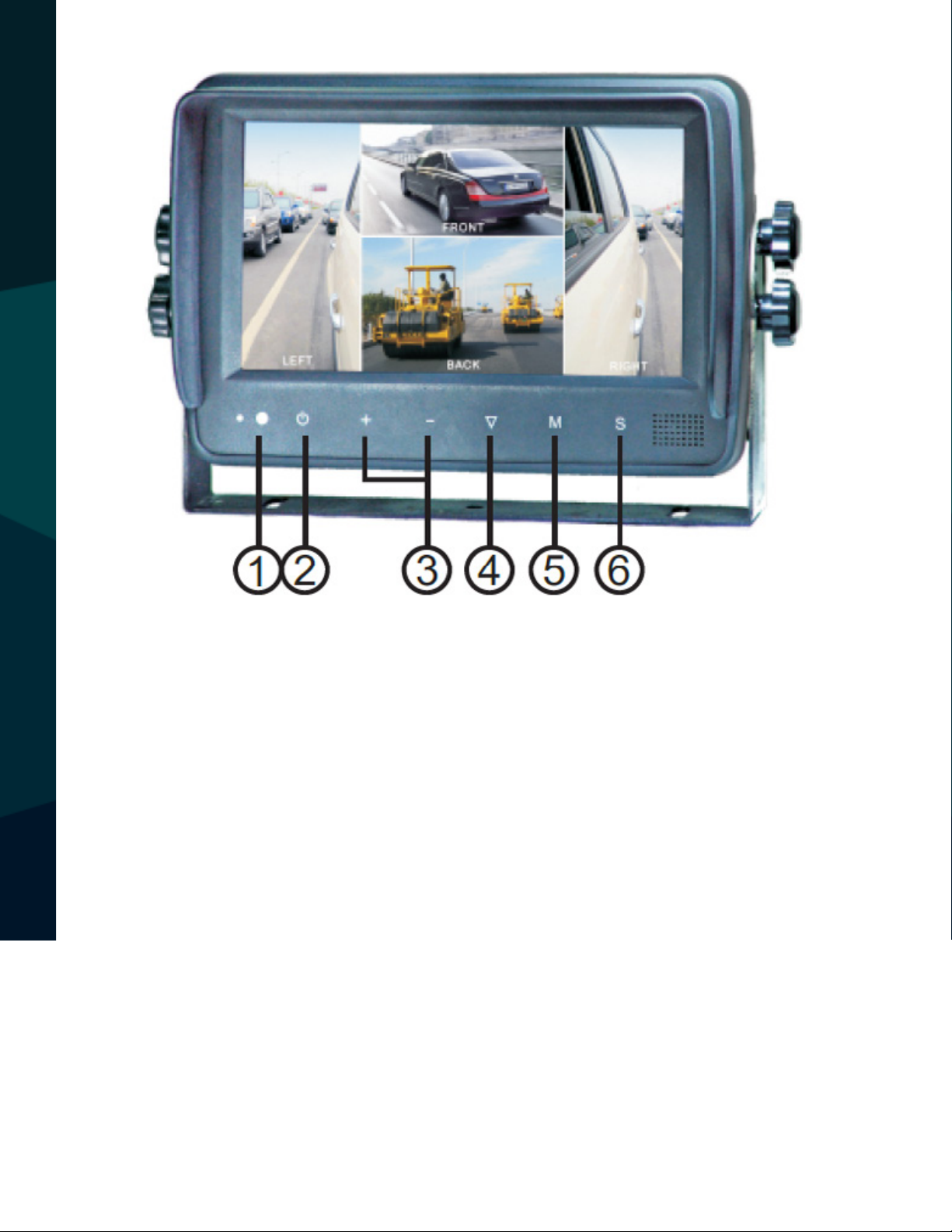

1. Remote control signal sensor
2. Power button
3. Increase / decrease volume and switch sub-menu values
4. Menu selection and toggle display mode (SINGLE/DUAL/TRIPLE/
QUAD/PIP IMAGE)
5. Menu button
6. Jump Key - Immediately view predetermined display mode

Reverse With Condence ™ 15
CONNECTIONS
Connections

RVS Systems
16
REMOTE
Remote Operations
1. MUTE: MUTE / UNMUTE volume
2. POWER: Turn monitor ON / OFF
3. MENU: Toggle between menus
4. UP: Toggle selection UP

Reverse With Condence ™ 17
REMOTE
5. DN: Toggle selection DOWN & toggle display mode (SINGLE/
DUAL/TRIPLE/QUAD/PIP IMAGE)
6. VOL: Decrease volume & toggle sub-menu values
7. VOL: Increase volume & toggle sub-menu values
8. MODE: Toggle display mode (SINGLE/DUAL/TRIPLE/QUAD/PIP
IMAGE)
9. SEL.: Toggle jump key
10. P/N: Toggle between PAL/NTSC
11. LANG: Toggle language
12. REST: Restore factory settings
13. AV: Enter/leave DVD channel

RVS Systems
18
OSD SETUP
On-Screen Display (OSD)
• SCALE: Toggle distance grid lines ON/OFF.When ON, distance grid lines will
be displayed when backup camera (CAM 3) is triggered.
• INPUT SCAN:Toggle camera input auto identication. When ON, monitor will
display connected cameras and skip inputs not connected.
• BOUNDARY: Toggle border color between camera inputs (WHITE/GRAY/
BLACK/UNCOLORED).
• LANGUAGE: Toggle OSD language (ENGLISH/FRENCH/DUTCH/SPANISH/GER-
MAN).
• Software version appears under LANGUAGE.

Reverse With Condence ™ 19
TRIGGER SETTING
Trigger Setting
• TURN IMAGE: Display options when side cameras (CAM 1, CAM 2) are trig-
gered.When on SINGLE, the corresponding camera will display when either
camera is triggered. When on SPLIT, a split image of side and rear view camera
will be displayed when either side camera is triggered.
• REAR IMAGE: Display options when backup camera is triggered.When on
BACK, just the backup camera will display when triggered.When set asTRIPLE,
the left, right, and backup camera will simultaneously display.
• TRIGGER DELAY: Toggle duration (seconds) of video display when trigger sig-
nal goes o (0-30 seconds).
• SPLIT SCREEN: Display options when“SPLIT”trigger wire is activated.
• AUDIO: Toggle audio output.

RVS Systems
20
Jump Key Setting
MENU AND TOUCHSCREEN OPERATIONS
JUMP KEY
