Safe Fleet RVS-507620 User manual

Reverse With Condence ™ 1
Backup Camera System With
Replacement Mirror Monitor
RVS-507620
Instruction Manual
RVS Systems, Inc. © 2017

RVS Systems
2
Introduction...............................03
SafetyInformation..........................04-06
Before Beginning Installation. . . . . . . . . . . . . . . . . . . . . . . 07
InstallationGuide.......................... 08-09
DistanceGridLines...........................10
InstallationandWire.........................11-13
MonitorSpecications..........................14
Camera.............................15-16
Troubleshooting.............................17
Warranty&Disclaimer........................ 18-19
TABLE OF CONTENTS

Reverse With Condence ™ 3
NOTE! Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a RearView Backup
Camera System!
With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as a
substitute for the standard rear view mirror or for any other mirror
that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with aTV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION

RVS Systems
4
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and/or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
•The Rear View Camera System is
designed to help the driver safe-
ly detect people and/or objects
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.
•Never back up while looking at the
monitor alone. You should always
check behind and around the vehi-
cle when backing up, in the same
way as you would if the vehicle did
not have the Rear View Camera
System.Ifyoubackupwhilelooking
only at the monitor, you may cause
damage or injury. Always back up
slowly.
•The Rear View Camera System is
not intended for use during exten-
sive back-up maneuvers or backing
into cross trac or pedestrian walk-
ways.
•Please, always remember, the area
displayed by the Rear View Camera
Systemis limited.It doesnotdisplay
the entire panorama that is behind
you.
USAGE:
SAFETY INFORMATION

Reverse With Condence ™ 5
•Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
•Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
•Take special care when
cleaning the monitor.
•Make sure to rmly ax the prod-
uct before use.
•If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may touch
a metal case, cover the cable with
friction tape. A short circuit
or disconnected wire may cause a
re.
•While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
•The Rear View System should only
be used when the vehicle is in
reverse.
•Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
•Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
•Dropping the unit may cause
possible mechanical failure.
INSTALLATION:
SAFETY INFORMATION

RVS Systems
6
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
SAFETY INFORMATION
If you have questions about this product, contact:
RVS Systems
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]

Reverse With Condence ™ 7
Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot or moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system. If the
system seems to not be operating properly see troubleshooting (page
17).
BEFORE YOU BEGIN

RVS Systems
8
Replacement Monitor
The mirror monitor replaces the existing car mirror. Carefully remove
the mirror o the“pin”. Slide the replacement mirror on to the pin and
secure it with the screw provided (already in the screw hole). Dier-
ent cars have dierent brackets. Depending on your vehicle make and
manufacturer. There are many methods to remove the original rear-
view mirror, however, please don’t force the mirror o the bracket.
The manufacturer will not be responsible for damage caused to your
car by incorrect mirror installation. Figure 1.1
Clip-On Monitor
1. The Mirror Monitor attaches to the existing rear view mirror in
vehicle with the pressurized clips on the back of the monitor.
2. Attach monitor to existing mirror, and adjust mounting angle to
allow optimum driver viewing comfort.
Camera & Cable
Be sure to position the cable properly. The aviation camera cable uses
aircraft grade connectors which means the camera cable can be ex-
posed to all weather elements. Do not run the cable over sharp edges,
do not kink the cable and keep away from HOT and rotating parts.
Fasten all cables and secure all excess cable. Connect camera to the
camera extension cable which runs inside the vehicle. Figure 1.2
INSTALLATION GUIDE

Reverse With Condence ™ 9
Wiring
Connect the camera to the power harness, then plug into the AV2 in-
put. Connect the RED 12V power wire to an ignition power source and
the BLACK 12V ground wire to a chassis ground. The GREEN wire is the
REVERSE trigger wire. Connect this wire to the vehicle’s backup light
circuit to activate the rear-view image whenever the vehicle shifts into
reverse. To connect a second camera, connect it to AV1 input. It can be
turned on by pressing the power button on the monitor. Figure 2.1,
Figure 2.2
Precautions for use of Mirror Monitor
I. The Mirror Monitor is made of glass. Do not subject it to a
mechanical shock by dropping it from a high place, etc.
II. Do not apply excessive force to the monitor surface or the
adjoining areas since this may cause the color tone to vary.
III. Clean with a soft dry cloth and/or Windex only.
IV. Do not attempt to disassemble the mirror monitor.
Safety
• Before drilling, be sure no cable or wire is on the other side.
• Feed as much cable as possible into vehicle & clamp securely.
This reduces the possibility of cable being hooked or snagged.
INSTALLATION GUIDE + TIPS

RVS Systems
10

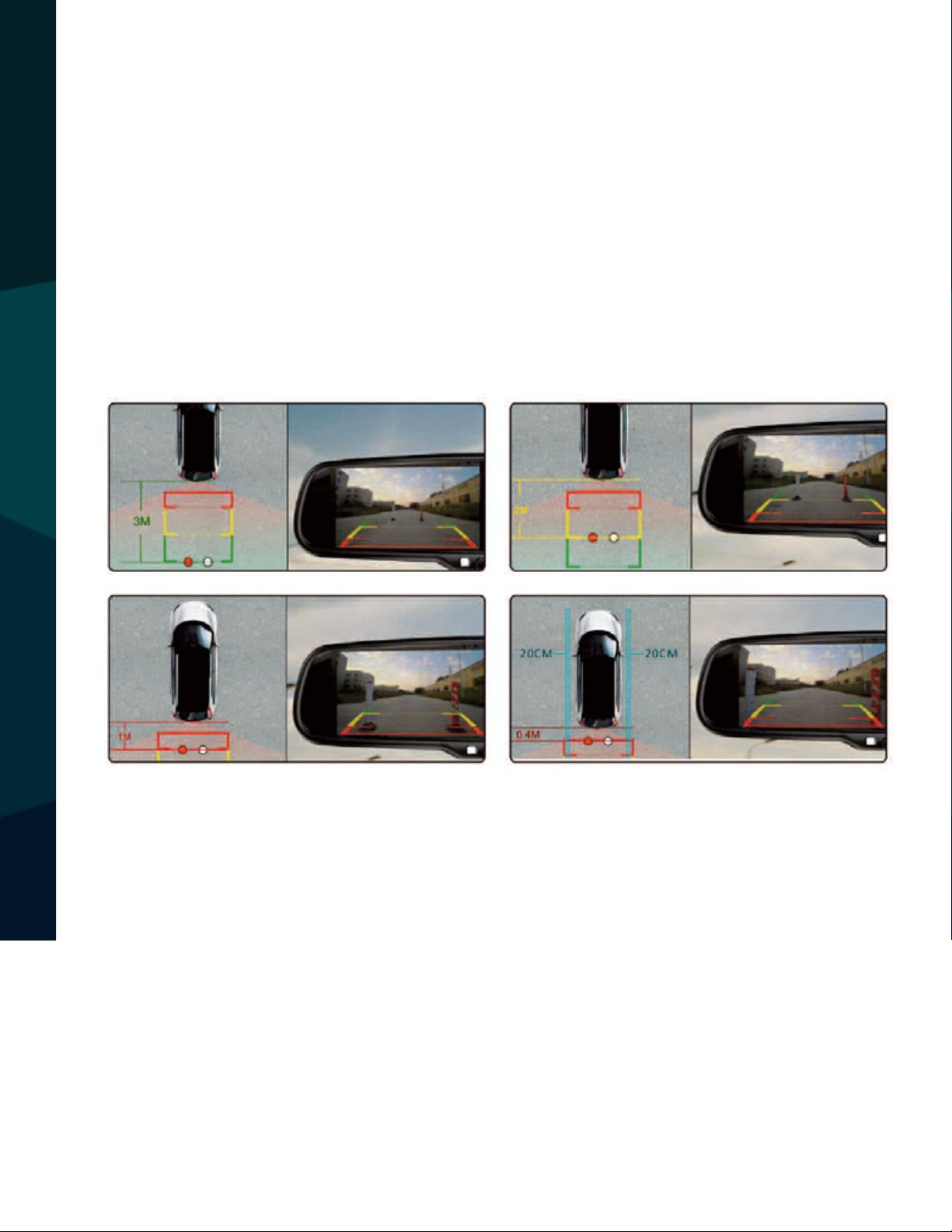

Generally, to help drivers estimate the distance from obstacles, there are
three lines for reference- red, yellow, and green. Those three lines are dis-
played on the monitor when car is reversing. The green line is 3M from the
back of the car and the yellow line is 6.5 ft. The distant red line is 1M from
the backside of car while the close red line is 0.4M. Both reference lines on
the left and right should leave 0.2M space from the car.
Distance grid line accuracy may vary based on your camera angle. Adjust
the distance grid lines to t your application.
DISTANCE GRID LINES
Accuracy
Distance Grid Lines

Reverse With Condence ™ 11
FIGURE 1.1
FIGURE 1.2
INSTALLATION AND WIRE

RVS Systems
12
1. RED- Power (+)
2. YELLOW- Video
3. GREEN- Mirror / Normal Imaging
4. WHITE- Audio
5. BLACK- Ground (-)
HOW TO WIRE + SPLICING
FIGURE 2.1

Reverse With Condence ™ 13
HOW TO WIRE + SPLICING
FIGURE 2.2

RVS Systems
14
10.25”
3”
About Our Monitor
SPECIFICATIONS:
MONITOR SPECIFICATIONS
Screen Size:
Display Screen:
Display Resolution:
Aspect Ratio:
Color Depth:
Pixel Pitch (mm)
Power Consumption:
Working Voltage:
Video Input:
Signal System:
4.3”
TFT-LCD
400(H)x234(V)
16:9
16.7M dithering
0.219x0.219
8W
DC 9V-32V
VIDEO-IN to GPS/DVD
(Default) Camera to backup camera
PAL/Auto/NTSC

Reverse With Condence ™ 15
CAMERA
Camera Dimensions
•18 Infra-red illuminators (enables you to see in total darkness)
•1/3" Sharp® color CCD, 410k pixels, 2.5mm wide lens with 130°
angle
• Shock resistant with a 20G Vibration and 100G impact rating
•Built-in high gain microphone

RVS Systems
16
CAMERA
Camera Specications
SENSOR
PICTURE ELEMENTS
GAMMA CORRECTION
IMAGE SENSOR
LENS
VIEW ANGLE
WATERPROOF RATING
SYNC SYSTEM
INFRARED DISTANCE
USABLE ILLUMINATION
POWER SOURCE
S/N RATIO
ELECTRONIC IRIS
VIDEO OUTPUT
IR SWITCH CONTROL
VIBRATION AND SHOCK RATING
1/3” SHARP® COLOR CCD
410,000 PIXELS
R=0.45TO1.0
620TV LINES, PAL: 752 H X 582
V NTSC 811(H) x 507(V)
2.5MM
130°
IP69K
INTERNAL SYNCHRONIZATION
50 FEET 18INFRARED
0LUX IR ON
DC 9V-32V
MOR TE HA 48N DB
1/50, 1601/100,000SEC
1VP  P,75
ACDS AUTOMATIC CONTROL
20G / 100G
OPERATING TEMPERATURE
STORAGE TEMPERATURE
NET WEIGHT
40°C ~ +70°C / RH 95% MAX
40°C ~ +85°C / RH 95% MAX
22OZ

Reverse With Condence ™ 17
•Do a hard reset, unplug all cables
and power cables, leave out for 1
minute and then re-connect them
•Check to ensure that the
connection to the camera is tight
•Verify camera cable is plugged into
port labeled Backup Camera
•Verify that the green positive
trigger on power harness is set to re-
verse power 12v+
•Verify camera is on correct camera
input
•Verify cable is connected to
monitor
•Connect known working camera
and cable to monitor
No Image On Screen
TROUBLESHOOTING

RVS Systems
18
ONE YEAR WARRANTY
RVS SYSTEMS, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A PERIOD
OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR REPLACE
ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. RVS SYSTEMS, INC. IS NOT RESPON
SIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER INSTALLATION,
DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. RVS SYSTEMS, INC. IS NOT
RESPONSIBLE FOR CONSEQUENTIAL DAMAGES OF ANY KIND.
THIS WARRANTY IS VOID IF: DEFECTS IN MATERIALS OR WORKMANSHIP OR DAMAGES
RESULT FROM REPAIRS OR ALTERATIONS WHICH HAVE BEEN MADE OR ATTEMPTED BY
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE
TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE,
NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE RVS SYSTEMS, INC. SYSTEM
AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
WARRANTY PERFORMANCE
DURING THE ABOVE WARRANTY PERIOD, SHOULDYOUR RVS SYSTEMS PRODUCT
EXHIBIT A DEFECT IN MATERIAL OR WORKMANSHIP, SUCH DEFECTWILL BE REPAIREDWHEN
THE COMPLETE RVS SYSTEMS, INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND IN
SURED,TO RVS SYSTEMS, INC. OTHER THAN THE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BY THISWARRANTY.
WARRANTY DISCLAIMERS
NOWARRANTY, ORAL ORWRITTEN, EXPRESSED OR IMPLIED, OTHERTHE ABOVEWARRANTY
IS MADEWITH REGARD TO THIS RVS SYSTEMS, INC. RVS SYSTEMS, INC. DISCLAIMS ANY IM
PLIEDWARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE
AND ALL OTHER WARRANTIES IN NO EVENT SHALL RVS SYSTEMS. INC.
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR
ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGEDTO BE AS A
CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING,
BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.
WARRANTY

Reverse With Condence ™ 19
DISCLAIMER
RVS SYSTEMS AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE USER
OF OUR SYSTEMSWILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDEWITH
AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL AND CAU
TIOUS DRIVING OR FOR THE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC LAWS
AND MOTOR VEHICLE SAFETY REGULATIONS.THE RVS SYSTEMS PRODUCTS ARE NOT A SUB
STITUTE FOR REARVIEW MIRRORS OR FOR ANY OTHER MOTOR VEHICLE
EQUIPMENT MANDATED BY LAW. OUR CAMERA SYSTEMS HAVE A LIMITED FIELD OF VISION
AND DO NOT PROVIDE A COMPREHENSIVEVIEW OFTHE REAR OR SIDE AREA OFTHEVEHICLE.
ALWAYS MAKE SURETO LOOK AROUNDYOURVEHICLE AND USEYOUR MIRRORSTO CONFIRM
REARWARD CLEARANCE AND THAT YOUR VEHICLE CAN MANEUVER SAFELY.
RVS SYSTEMS AND/OR ITS AFFILIATES SHALL HAVE NO RESPONSIBILITY OR LIABILITY
FOR DAMAGE AND/OR INJURY RESULTING FROM ACCIDENTS OCCURRING WITH VEHICLES
HAVING SOME OF RVS SYSTEMS PRODUCTS INSTALLED AND RVS SYSTEMS AND/OR ITS AF
FILIATES, THE MANUFACTURER, DISTRIBUTOR AND SELLER SHALL NOT BE LIABLE FOR ANY
INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR
INTENDED USE OFTHE PRODUCT. IN NO EVENT SHALL RVS SYSTEMS AND/OR ITS AFFILIATES
HAVE ANY LIABILITY FOR ANY LOSSES WHETHER DIRECT OR INDIRECT, IN CONTRACT, TORT
OR OTHERWISE INCURRED IN CONNECTION WITHTHE SYSTEMS,
INCLUDING BUT NOT LIMITED TO DAMAGED PROPERTY, PERSONAL INJURY AND/OR LOSS OF
LIFE. NEITHER SHALL RVS SYSTEMS AND/OR ITS AFFILIATES HAVE ANY
RESPONSIBILITY FOR ANY DECISION, ACTION OR INACTION TAKEN BY ANY PERSON IN
RELIANCE ON RVS SYSTEMS SYSTEMS, OR FOR ANY DELAYS, INACCURACIES AND/OR ER
RORS IN CONNECTION WITH OUR SYSTEMS FUNCTIONS.
DISCLAIMER

RVS Systems
20
If you have any questions
about this product, contact:
RVS SYSTEMS, Inc.
1797 Atlantic Avenue
Brooklyn, NY 11233
888.881.2601
Better Cameras. Better Service.
IT’S OUR GUARANTEE.
